D-Link DWR-966 User manual

DWR-966
4G Integrated Access Device
User Manual

1
Declaration of Conformity
We, D-Link Corp.,
Address: No.289, Sinhu 3rd Rd, Neihu District Taipei City 114 Taiwan
Declare under our own responsibility that the product:
Model: DWR-966
Intended use: 4G Integrated Access Device
This product is in conformity with the following standards and/or other
normative documents:
1. Health (Article 3.1(a) of the R&TTE Directive)
EN 62311: 2008, EN 50385:2002
2. Safety (Article 3.1(a) of the R&TTE Directive)
EN 60950-1:2006/A11:2009+A1:2010+A12:2011+A2:2013
3. Electromagnetic compatibility (Article 3.1 (b) of the R&TTE
Directive)
EN 301 489-1 V1.9.2, EN 301 489-7 V1.3.1, EN 301 489-17
V2.2.1, EN 301 489-24 V1.5.1
EN 55022:2010/ AC:2011 Class B, EN55024: 2010
EN 61000-3-2:2006/A1:2009/A2:2009, EN 61000-3-3:2008
4. Radio frequency spectrum usage (Article 3.2 of the R&TTE
Directive)
EN 301 511 V9.0.2, EN 301 908-1 V6.2.1
EN 300 328 V1.8.1, EN 301 893 V1.7.1
5. RoHS Directive (2011/65/EU)
EN 50581: 2012
We hereby declare that the above named product is in conformance to
all the essential requirements of the Directives:
R&TTE Directive (1999/5/EC), RoHS Directive (2011/65/EU)

2
The technical documentation relevant to the above equipment will be
held at:
D-Link Corp.
No.289, Sinhu 3rd Rd, Neihu District Taipei City 114 Taiwan

3
This booklet must contain a Section entitled "Precautions for the use of
devices". Two types of information have to be notified.
Firstly, these advices should be for the safety of people as users:
(i) no use of the mobile phone in airplanes, hospital, gas stations,
professional garages…
(ii) advise medical implants patient (heart, insuline….) that they shall
keep mobile phone 15cm away from the implant and, while calling,
keep the phone on the opposite side of the implant.
Secondly, the booklet shall advice the end-user in order to reduce the
level of exposure to radiations. For instance, but not exhaustively,
these advices should be for mobile phones:
(i) use the mobile phone in good reception conditions,
(ii) use a hand free kit,
(iii) advise pregnant women to hold the mobile phone far from hers
stomach,
(iv) advise child and adolescent to use a mobile phone far from genital
parts…
The maximum ambient temperature specified by manufacturer is
40 ˚C.
Please make sure the temperature for adapter will not be higher than
40 ˚C
The adapter shall be installed near the equipment and shall be easily
accessible.
CE RF Exposure Compliance
This device meets the EU requirements (1999/519/EC) and the
International Commission on Non-Ionizing Radiation Protection (ICNIRP)
on the limitation of exposure of the general public to electromagnetic
fields by way of health protection.
To comply with the RF exposure requirements, this equipment must be
operated in a minimum of 20 cm separation distance to the user.

4
TABLE OF CONTENTS
1. GETTING TO KNOW THE DWR-966 ...............................5
1.1 Introduction ............................................................................ 5
1.2 Package Contents.................................................................... 6
1.3 System Requirements ............................................................. 6
1.4 Hardware Overview - Front Panel & LEDs............................... 7
1.5 Hardware Overview - Rear Panel & LEDs................................ 8
1.6 Hardware Overview - Side Panel............................................. 9
2. INSTALLATION ............................................................10
3. USER CONFIGURATION INTERFACE .............................11
3.1 Accessing the User Configuration Interface.......................... 11
3.2 Interface Layout .................................................................... 12
3.3 Using the User Configuration Interface ................................ 13
3.3.1 Home....................................................................................................13
3.3.2 Internet ................................................................................................15
3.3.3 Wi-Fi .....................................................................................................22
3.3.4 LAN.......................................................................................................34
3.3.5 Advanced..............................................................................................38
3.3.6 System ..................................................................................................66
4. APPENDIX ..................................................................75
4.1 First Login to the User Interface............................................ 75
4.2 Connected-PC IP Address Configuration............................... 78

5
1. Getting to know the DWR-966
1.1 Introduction
The DWR-966 is a 4G Integrated Access Device (IAD) that integrates a
range of methods for connecting to the Internet, allowing users to
access 4G mobile network services via a single device. Once connected,
you can easily share your network utilizing wireless Wi-Fi and wired
Ethernet interfaces. The advanced 4G technology provides much better
performance than traditional 3G networks.

6
1.2 Package Contents
Thank you for purchasing the DWR-966. Before using the DWR-966,
please confirm that the packaging includes the following items and
accessories:
1.3 System Requirements
4G SIM card, with valid Internet service
A computer with a Windows®, Macintosh®, or Linux-based
operating system with an installed Ethernet adapter
Internet Explorer Version 8.0 or above for configuration usage
1. DWR-966 unit × 1
2. Ethernet cable × 1
3. Antenna × 2
4. Power adapter × 1
5. Cigarette lighter adapter × 1

7

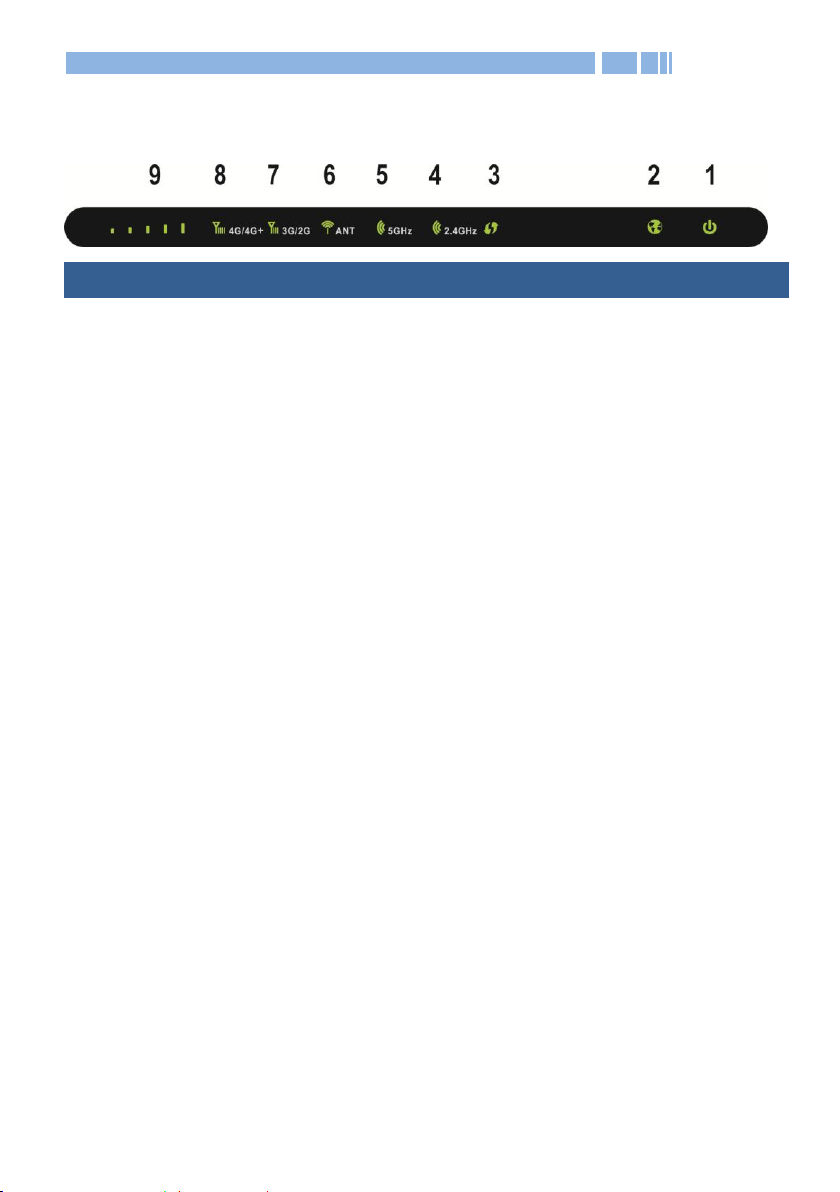

1.4 Hardware Overview - Front Panel & LEDs
LED
Status
Description
1
Power
Off
System off
Green
System on
Red
System error
2
Internet
Off
Internet not connected
Green
Internet connected
3
WPS
Green
Successful WPS connection
Blinking Green
(flashes every 2 seconds)
On-going WPS connection process
Blinking Green
(flashes every second)
Invalid WPS connection process
Off
WPS is disabled.
4
Wi-Fi
2.4 GHz
Off
Wi-Fi 2.4 GHz is disabled.
Green
Wi-Fi 2.4 GHz is enabled.
Blinking Green
Data transmission
5
Wi-Fi
5 GHz
Off
Wi-Fi 5 GHz is disabled.
Green
Wi-Fi 5 GHz is enabled.
Blinking Green
Data transmission
6
Ext/Int
antenna
Off
Internal antenna is used.
Green
External antennas are used.
7
3G/2G
mode
Green
3G network connected
Blue
2G network connected
off
3G/2G network not connected
8
4G/4G+
mode
Green
4G/4G+ network connected
off
4G/4G+ network not connected
9
Signal
strength
indicators
Indicates the signal strength of the
connected mobile network

8
1.5 Hardware Overview - Rear Panel & LEDs
Item
Name
Description
1
Reset button
Press and hold for 0.5 seconds to restore
default settings.
Note: Restoring factory default settings
will erase all of your existing settings.
2
LAN ports
Connects to your local network devices
such as a PC or laptop
3
USB ports
Optional external device connections
4
Power switch
Turns device on
5
Power input port
Connects to the power adapter
LED
Status
Description
LAN
Green
Port connected
Blinking green
Data transmitting/receiving
Off
Port not connected

9
1.6 Hardware Overview - Side Panel
Item
Name
Description
1
WPS button
Quick wireless connection
with other WPS-supported
devices
2
SIM card slot
4G or 3G SIM-card
connection
3
Antenna switch
Press the button to switch
between using external
antennas or using the
internal antenna of the
product.

10

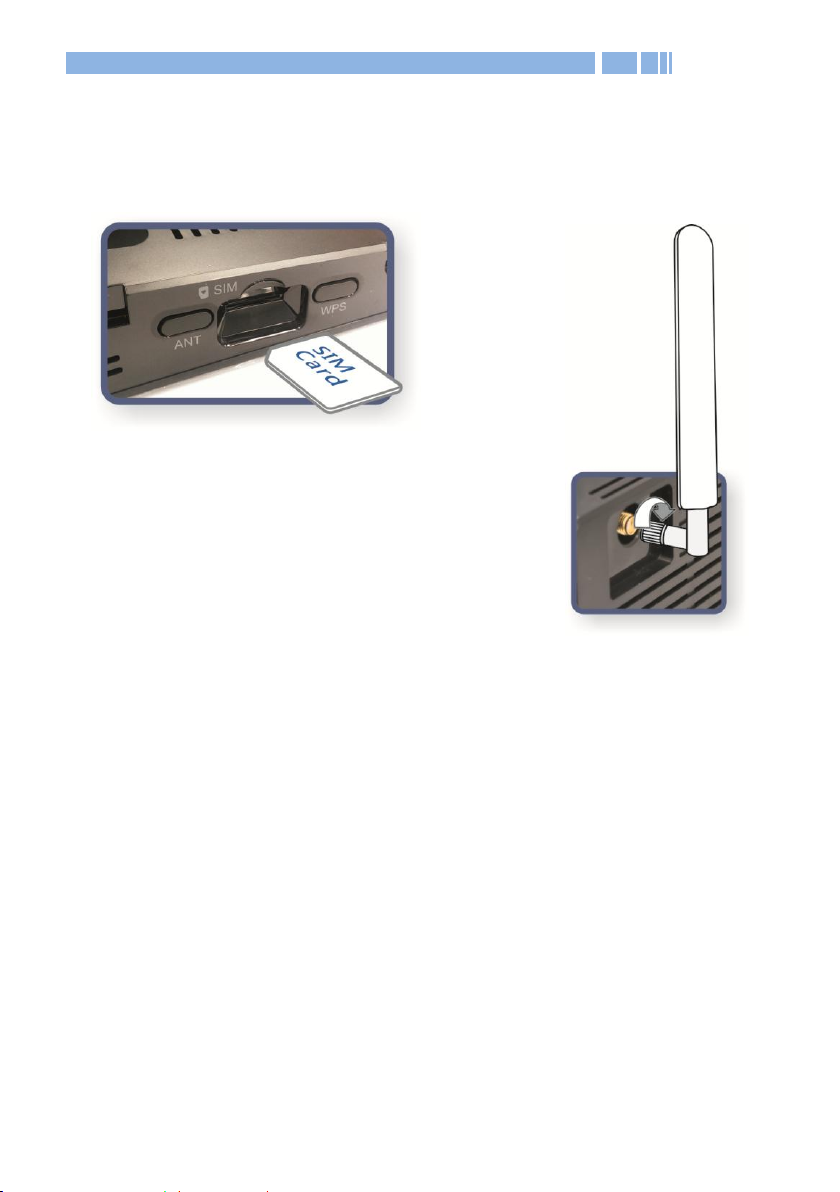

2. Installation
1. Insert the SIM card provided by your 4G mobile network operator.
2. Insert the antennas into the antenna
connectors on the DWR-966. Rotate the
connector end of the antenna to fasten it.
3. Insert the Ethernet cable into one of the LAN ports on the rear
panel of the DWR-966. Insert the other end of this Ethernet cable
into the port of the computer. You can also use the default network
password to connect Wi-Fi devices to the DWR-966 directly. The
default SSID and network password is listed on the label attached
to the rear panel of the DWR-966.

11
3. User Configuration Interface
3.1 Accessing the User Configuration Interface
The User Configuration Interface allows you to configure the DWR-966
using your web browser. Follow the procedures below to log in and
configure the settings:
1. Ensure that the computer you use for configuring the DWR-966
has the proper IP address settings for communicating with the
DWR-966. The default LAN network settings and IP address of the
DWR-966 are shown below:
IP address: 192.168.1.1
Subnet mask: 255.255.255.0.
Note: Set the IP address of this computer to obtain an IP
address automatically or assign an IP address from 192.168.1.100
to 192.168.1.230. See the Appendix for detailed procedures for
manually setting your IP address.
2. Open your web browser and type 192.168.1.1 in the address field:
3. Users that log in to the configuration interface for the first time
will be directed to a password-modifying page. Follow the
on-screen steps to finish modifying the login password of the
interface. See the Appendix of the document for details of first
login.
4. Restart the browser and start the login process again. An
authentication screen appears. Enter the password that you
modified earlier.

12

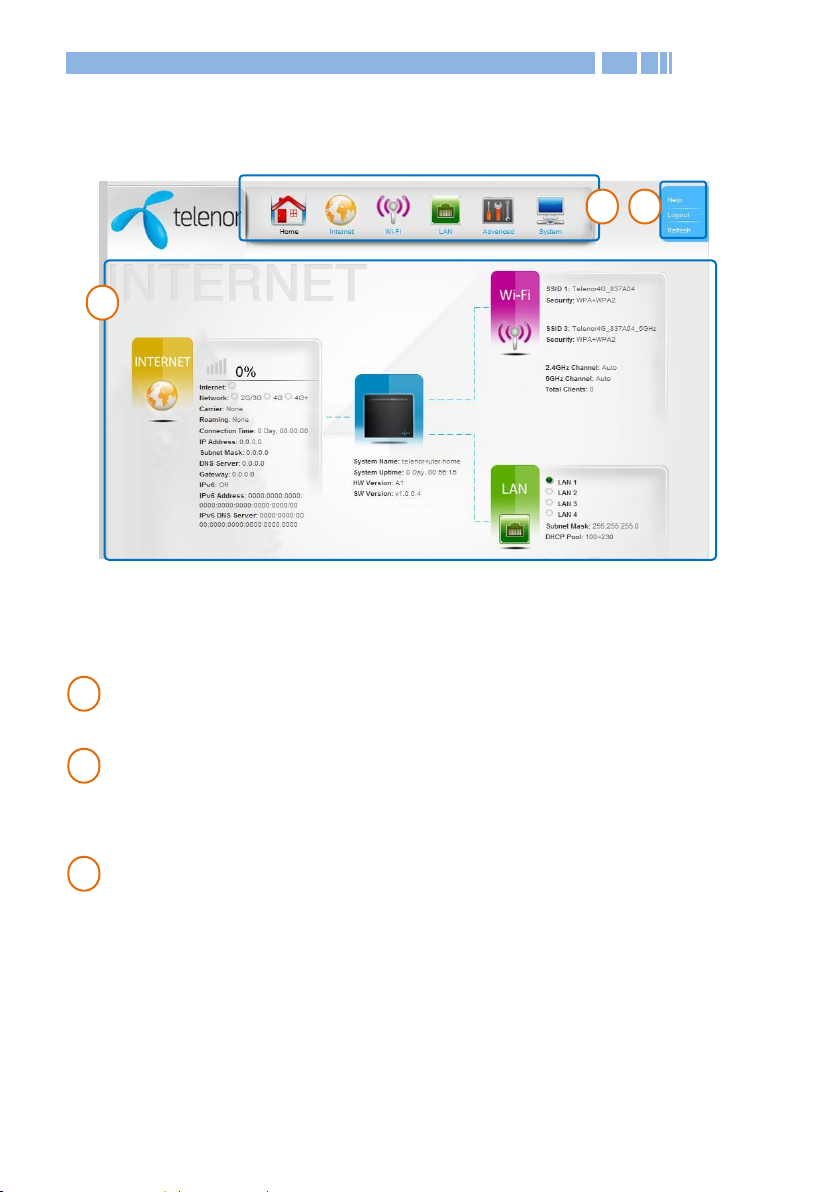

3.2 Interface Layout
After logging in, the Home Screen appears. The User Configuration
Interface consists of three parts:
This part is the displayed content. In the Home screen, basic
system status is displayed.
The menu bar of the User Configuration Interface. Click tabs to
access configuration pages of each function. Additional options
will appear on the left-hand side as you click the main tabs.
This part displays your Login status and provides links to refresh
the page and open the Help page.
3
2
1
1
2
3

13
3.3 Using the User Configuration Interface
3.3.1 Home
The status page displays basic system Information including a summary
of the Internet, system, Wi-Fi, and Local Area Network (LAN).
Internet: Indicates the Internet connection status. The indicator
displays in green to confirm the product has connected to the Internet
successfully.
Signal Strength Indicator: Indicates the current signal strength of the
connected mobile network
Network: Provides the current status of the interface used to access
the Internet
Carrier: Provider name of your mobile network service
Roaming: Confirms whether the mobile network service is roaming in
other networks

14
Connection Time: Elapsed time the DWR-966 has been connected to
the Internet
IP Address: The DWR-966’s Internet IP address
Subnet Mask: The DWR-966’s Internet subnet mask
DNS Server: IP address of the DNS server that the DWR-966 uses
Gateway: The Internet gateway IP address
IPv6: Indicates whether the IPv6 function is turned on or off
IPv6 address: The DWR-966’s Internet IP address in IPv6 format
IPv6 DNS Server: The IPv6-format IP address of the DNS server
connected to by the DWR-966
System Information:
System Name: Displays the DWR-966’s configured name
System Uptime: Elapsed time since the DWR-966 was last turned on or
rebooted
HW Version: Hardware version that the DWR-966 is currently using
SW Version: Firmware version that the DWR-966 is currently using
Wi-Fi:
SSID: Names of the DWR-966’s wireless networks
Security: Encryption and authentication settings of each wireless
network
Channel: Current channel that the DWR-966 uses
Total Clients: Number of client devices connected via Wi-Fi
LAN:
LAN 1–4: Connection status of the four LAN ports of the DWR-966
Subnet Mask: The DWR-966’s LAN subnet mask
DHCP Pool: IP address range that the DWR-966 will assign from within

15
3.3.2 Internet

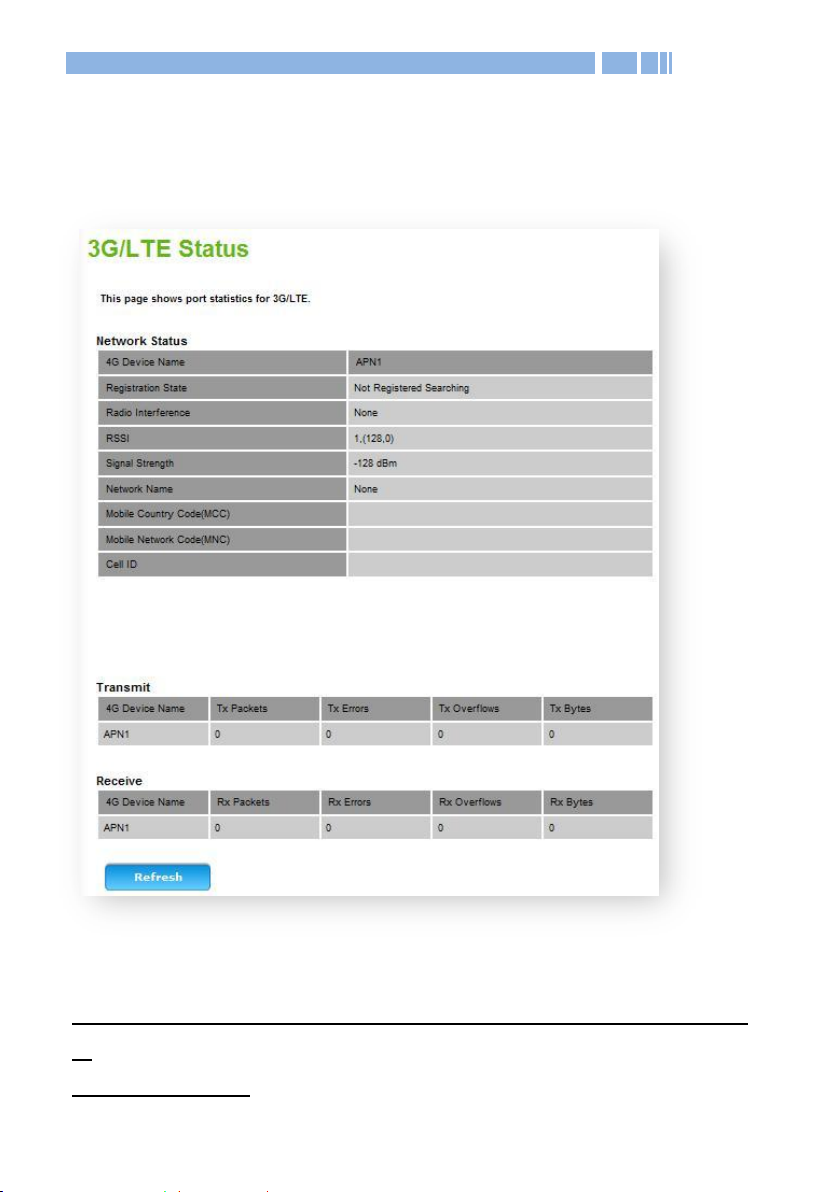

Internet3G/LTE Status
Network Status:
4G Device Name: Name of the 4G device that the DWR-966 connects
to
Registration State: Status of connection to a network service

16
Radio Interference: Any interference that the DWR-966 has detected
RSSI: Received Signal Strength Indicator (RSSI) measures the strength of
received radio signals.
Signal Strength: Strength value of the received signal
Network Name: Network name of the network connected to
Mobile Country Code (MCC): Mobile country code of the connected
network
Mobile Network Code (MNC): Mobile network code of the connected
network
Cell ID: ID of the connected base transceiver station
Transmit: Displays transmission status and related statistics
Tx Packets: Number of IP packets transmitted from the DWR-966
Tx Errors: Number of error packets transmitted from the DWR-966
Tx Overflows: Number of overflows transmitted from the DWR-966
Tx Bytes: Number of bytes transmitted from the DWR-966
Receive: Displays receiving status and related statistics
Rx Packets: Number of IP packets received by the DWR-966
Rx Errors: Number of error packets received by the DWR-966
Rx Overflows: Number of overflows received by the DWR-966
Rx Bytes: Number of bytes received by the DWR-966
Clicking Refresh will renew this data.

17

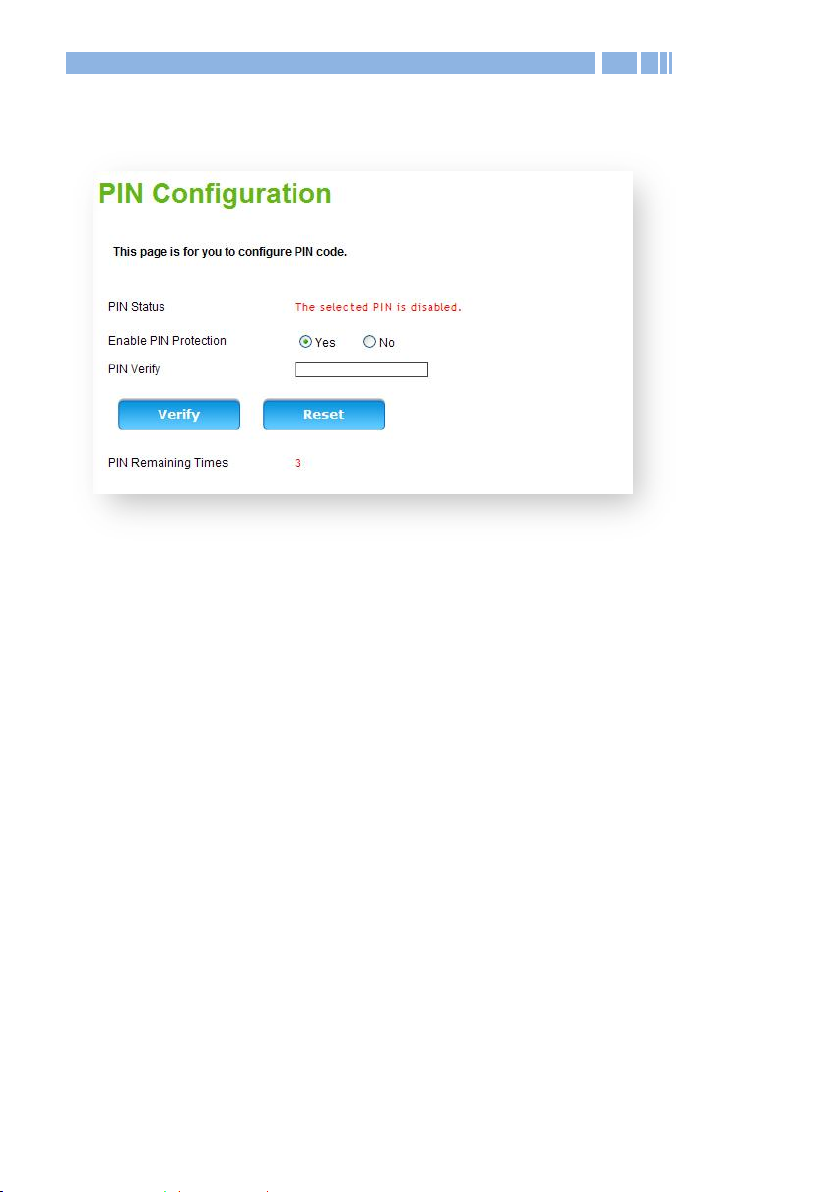

InternetPIN Configuration
This page allows configuration of the PIN code of your SIM card.
Enable PIN Protection: Choose to enable or disable PIN protection.
After selecting Yes, a field will appear below for you to enter the PIN
code for certification.
PIN Verify: Enter the PIN code.
Click Verify to proceed.
When you enter the PIN code incorrectly for three consecutive times,
you may have to use a PUK code to reset a new PIN code:

18
PUK Verify: When you enter the PIN code incorrectly for three
consecutive times, your SIM card will be locked and you will need a
PUK code to unlock it. Please contact your service provider for the PUK
code. You have ten attempts to enter the PUK code to unlock your SIM
card. After ten failed attempts your SIM card will be permanently
blocked.
New PIN: Enter the new PIN code.
Confirm New PIN: Enter the new PIN code again.

19
InternetRadio Configuration
Allow Data Roaming: Selecting the check box will allow DWR-966 to
roam in other networks.
Radio Mode: Select 2G, 3G, or 4G for your mobile network or select 4G
Preferred to switch between available mobile networks automatically
when the 4G signal is not stable.
Radio Frequency: When you select 4G or 4G Preferred, select a radio
frequency from Band 3, Band 7, Band 8, or Band 20 according to your
region and the frequency your service uses.
Selecting Auto will allow the system to choose a most appropriate
frequency automatically.
Antenna: Select EXT if using an external antenna with this device, or
select INT if using the device’s internal antenna.
