D-Link DAP-300P User manual

User Manual
DAP-300P
Wireless N300 PoE Access Point / Router
July, 2020

DAP-300P Wireless N300 PoE Access Point / Router
User Manual
Contents
Chapter 1. Introduction.........................................4
Contents and Audience.......................................................4
Conventions.................................................................4
Document Structure..........................................................4
Chapter 2. Overview.............................................5
General Information.........................................................5
Specifications..............................................................
Product Appearance.........................................................11
Upper Panel..............................................................11
Back Panel...............................................................12
Delivery Package...........................................................13
Chapter 3. Installation and Connection.........................14
Before You Begin...........................................................14
Connecting to Mobile Device with D-Link Assistant Application..............15
Connecting to PC...........................................................19
PC with Ethernet Adapter.................................................19
Configuring IP Address in O Windows 7...................................20
Configuring IP Address in O Windows 10..................................25
PC with Wi-Fi Adapter....................................................29
Configuring Wi-Fi Adapter in O Windows 7................................30
Configuring Wi-Fi Adapter in O Windows 10...............................33
Connecting to Web-based Interface..........................................3
Web-based Interface Structure..............................................38
ummary Page.............................................................38
Home Page................................................................40
Menu ections............................................................41
Notifications............................................................42
Chapter 4. Configuring via Web-based Interface.................43
Initial Configuration Wizard...............................................43
electing Operation Mode.................................................45
Changing LAN IPv4 Address................................................48
Wi-Fi Client.............................................................49
Configuring WAN Connection...............................................51
Static IPv4 Connection.................................................52
Static IPv6 Connection.................................................53
PPPoE, IPv6 PPPoE, PPPoE Dual Stack,
PPPoE + Dynamic IP (PPPoE Dual Access Connections.....................54
PPPoE + Static IP (PPPoE Dual Access Connection.......................55
PPTP + Dynamic IP or L2TP + Dynamic IP Connection......................56
PPTP + Static IP or L2TP + Static IP Connection........................57
Configuring Wireless Network.............................................58
Configuring LAN Port for IPTV/VoIP.......................................60
Changing Web-based Interface Password....................................62
Connection of Multimedia Devices........................................... 4
Statistics................................................................. 7
Network tatistics.......................................................67
DHCP.....................................................................68
Clients and ession......................................................69
Multicast Groups.........................................................70
Routing Table............................................................71
Page 2 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual
Connections Setup..........................................................72
LAN......................................................................72
IPv4...................................................................72
IPv6...................................................................77
WAN......................................................................80
Creating Dynamic IPv4 or Static IPv4 WAN Connection....................81
Creating Dynamic IPv6 or Static IPv6 WAN Connection....................86
WAN Reservation..........................................................90
Wi-Fi......................................................................92
Basic ettings...........................................................92
Client Management........................................................99
WP .....................................................................100
Using WPS Function via Web-based Interface............................102
WMM.....................................................................103
Client..................................................................106
Additional..............................................................108
MAC Filter..............................................................111
Advanced..................................................................113
NMP....................................................................114
DN .....................................................................117
Ports ettings..........................................................119
MAC Filter..............................................................122
VLAN....................................................................124
DDN ....................................................................127
Redirect................................................................129
Routing.................................................................130
TR-069 Client...........................................................132
Remote Access...........................................................134
UPnP IGD................................................................136
UDPXY...................................................................137
IGMP....................................................................139
ALG/Passthrough.........................................................140
Firewall..................................................................142
IP Filter...............................................................142
Virtual ervers.........................................................146
DMZ.....................................................................149
URL Filter..............................................................150
System....................................................................151
Configuration...........................................................152
Firmware Update.........................................................154
Local Update..........................................................155
Remote Update.........................................................156
Log.....................................................................157
Ping....................................................................160
Traceroute..............................................................162
Telnet..................................................................164
ystem Time.............................................................165
Yandex.DNS................................................................1 7
ettings................................................................167
Devices and Rules.......................................................169
Chapter 5. Operation Guidelines...............................171
Safety Rules and Conditions...............................................171
Wireless Installation Considerations......................................172
Chapter . Abbreviations and Acronyms.........................173
Page 3 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Introduction
CHAPTER . INTRODUCTION
Contents and Audience
This manual describes the access point DAP-300P and explains how to configure and operate it.
This manual is intended for users familiar with basic networking concepts, who create an in-home
local area network, and s stem administrators, who install and configure networks in offices.
Conventions
Example Description
text The bod text of the manual.
Before You Begin A reference to a chapter or section of this manual.
“Quick Installation
Guide” A reference to a document.
Change A name of a menu, menu item, control (field, checkbox, drop-down
list, button, etc.).
192.1 8.0.50 Data that ou should enter in the specified field.
!Information An important note.
Document Structure
Chapter 1 describes the purpose and structure of the document.
Chapter 2 gives an overview of the device's hardware and software features, describes its
appearance and the package contents.
Chapter 3 explains how to install the access point DAP-300P and configure a PC in order to access
its web-based interface.
Chapter 4 describes all pages of the web-based interface in detail.
Chapter 5 includes safet instructions and tips for networking.
Chapter introduces abbreviations and acron ms used in this manual.
Page 4 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Overview
CHAPTER 2. OVERVIEW
General Information
The DAP-300P device is a wireless access point supporting the router mode. It is an affordable
solution for creating wireless networks at home or in an office.
Using the DAP-300P device, ou are able to quickl create a wireless network at home or in our
office, which lets computers and mobile devices access it virtuall an where (within the operational
range of our wireless network). The access point can operate as a base station for connecting
wireless devices of the standards 802.11b, 802.11g, and 802.11n (at the rate up to 300Mbps).
The device supports multiple functions for the wireless interface: several securit standards (WEP,
WPA/WPA2), MAC address filtering, different operation modes (access point, router, client), WPS,
WMM.
Support of guest Wi-Fi network in the router mode allows ou to create a separate wireless network
with individual securit settings. Devices connected to the guest network will be able to access the
Internet, but will be isolated from the devices and resources of the access point's LAN.
The access point is equipped with a WAN port with Power over Ethernet (PoE) support which
allows to use one Ethernet cable for data and power transfer. In the access point mode, the port with
PoE support is used as a LAN port.
In the access point mode, ou are able to use DAP-300P to create a wireless network or to connect
to a wired router. In the router mode, ou are able to connect DAP-300P to a cable or DSL modem
or to a private Ethernet line and use a high-speed Internet connection to successfull fulfill a wide
range of professional tasks.
The “client” function is available in both modes and allows using DAP-300P as a wireless client
and a wireless repeater in the access point mode and as a WISP repeater in the router mode.
You can configure the settings of the DAP-300P device via the user-friendl web-based interface
(the interface is available in two languages – in Russian and in English).
The configuration wizard allows ou to connect DAP-300P to a wired or wireless ISP (when
switched to the router mode) in several simple steps or quickl set needed parameters for operation
as an access point, repeater, or client (when switched to the access point mode).
You can simpl update the firmware: when the Internet access is provided, the access point itself
finds approved firmware on D-Link update server and notifies when read to install it.
Page 5 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Overview
Specifications*
Hardware
Processor ·MT762 DAN (5 0MHz)
RAM ·64MB, built in processor
Flash ·MB, SPI
Interfaces ·10/100BASE-TX WAN port with PoE support
·10/100BASE-TX LAN port
LEDs ·POWER / WLAN
·INTERNET
·LAN
Buttons ·RESET button to restore factory default settings
Antenna ·Two internal antennas (3dBi gain)
MIMO ·2 x 2
Power connector ·Power input connector (DC)
Software
Operation Modes ·Access point
·Router
WAN connection types ·PPPoE
·IPv6 PPPoE
·PPPoE Dual Stack
·Static IPv4 / Dynamic IPv4
·Static IPv6 / Dynamic IPv6
·PPPoE + Static IP (PPPoE Dual Access)
·PPPoE + Dynamic IP (PPPoE Dual Access)
·PPTP/L2TP + Static IP
·PPTP/L2TP + Dynamic IP
* The device features are subject to change without notice. For the latest versions of the firmware and relevant
documentation, visit www.dlink.ru.
Page 6 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Overview
Software
Network functions ·Support of IEEE 02.1X for Internet connection
·DHCP server/relay
·Advanced configuration of built-in DHCP server
·Stateful/Stateless mode for IPv6 address assignment, IPv6 prefix delegation
·Automatic obtainment of LAN IP address (for access point/repeater/client
modes)
·DNS relay
·Dynamic DNS
·Static IPv4/IPv6 routing
·IGMP Proxy
·RIP
·Support of UPnP IGD
·Support of VLAN
·WAN ping respond
·Support of SIP ALG
·Support of RTSP
·WAN failover
·Autonegotiation of speed, duplex mode, and flow control / Manual speed and
duplex mode setup for each Ethernet port
·Built-in UDPXY application
Firewall functions ·Network Address Translation (NAT)
·Stateful Packet Inspection (SPI)
·IPv4/IPv6 filter
·MAC filter
·URL filter
·DMZ
·Prevention of ARP and DDoS attacks
·Virtual servers
·Built-in Yandex.DNS web content filtering service
VPN ·IPsec/PPTP/L2TP/PPPoE pass-through
Management and monitoring ·Local and remote access to settings through TELNET/WEB (HTTP/HTTPS)
·Bilingual web-based interface for configuration and management
(Russian/English)
·Notification on connection problems and auto redirect to settings
·Firmware update via web-based interface
·Automatic notification on new firmware version
·Saving/restoring configuration to/from file
·Support of logging to remote host
·Automatic synchronization of system time with NTP server and manual
time/date setup
·Ping utility
·Traceroute utility
·TR-069 client
·SNMP agent (SNMPv2/v3)
Wireless Module Parameters
Standards ·IEEE 02.11b/g/n
Frequency range
The frequency range depends upon the
radio frequency regulations applied in your
country
·2400 ~ 24 3.5MHz
Page 7 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Overview
Wireless Module Parameters
Wireless connection security ·WEP
·WPA/WPA2 (Personal/Enterprise)
·МАС filter
·WPS (PBC/PIN)
Advanced functions ·“Client” function (access point mode)
Wireless network client
Wireless network repeater
·“Client” function (router mode)
WISP repeater
·WMM (Wi-Fi QoS)
·Information on connected Wi-Fi clients
·Advanced settings
·Guest Wi-Fi / support of MBSSID
·Periodic scan of channels, automatic switch to least loaded channel
·Autonegotiation of channel bandwidth in accordance with environment
conditions (20/40 Coexistence)
Wireless connection rate ·IEEE 02.11b: 1, 2, 5.5, and 11Mbps
·IEEE 02.11g: 6, 9, 12, 1 , 24, 36, 4 , and 54Mbps
·IEEE 02.11n: from 6.5 to 300Mbps (from MCS0 to MCS15)
Transmitter output power
The maximum value of the transmitter
output power depends upon the radio
frequency regulations applied in your
country
·02.11b (typical at room temperature 25 °C)
17dBm at 1, 11Mbps
·02.11g (typical at room temperature 25 °C)
17dBm at 6, 54Mbps
·02.11n (typical at room temperature 25 °C)
17dBm at MCS0~6
16dBm at MCS7
Page 8 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Overview
Wireless Module Parameters
Receiver sensitivity ·02.11b (typical at PER = % (1000-byte PDUs))
-90dBm at 1Mbps
-90dBm at 2Mbps
- dBm at 5.5Mbps
- 6dBm at 11Mbps
·02.11g (typical at PER < 10% (1000-byte PDUs))
- 2dBm at 6Mbps
- 1dBm at 9Mbps
-79dBm at 12Mbps
-77dBm at 1 Mbps
-74dBm at 24Mbps
-70dBm at 36Mbps
-66dBm at 4 Mbps
-65dBm at 54Mbps
·02.11n (typical at PER = 10% (1000-byte PDUs))
HT20
- 2dBm at MCS0
-79dBm at MCS1
-77dBm at MCS2
-74dBm at MCS3
-70dBm at MCS4
-66dBm at MCS5
-65dBm at MCS6
-64dBm at MCS7
HT40
-79dBm at MCS0
-76dBm at MCS1
-74dBm at MCS2
-71dBm at MCS3
-67dBm at MCS4
-63dBm at MCS5
-62dBm at MCS6
-61dBm at MCS7
Modulation schemes ·02.11b: DQPSK, DBPSK, DSSS, CCK
·02.11g: BPSK, QPSK, 16QAM, 64QAM with OFDM
·02.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM (HT20 and HT40)
Physical Parameters
Dimensions ·213 x 213 x 3 mm ( x x 1.5 in)
Page 9 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Overview
Operating Environment
Power ·4 V, 0.5A or 02.3af PoE
·External DC power adapter 12V/0.5A (not included in the delivery package)
Temperature ·Operating: from 0 to 40 °C
·Storage: from -20 to 65 °C
Humidity ·Operating: from 10% to 90% (non-condensing)
·Storage: from 5% to 95% (non-condensing)
Page 0 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Overview
Product Appearance
Upper Panel

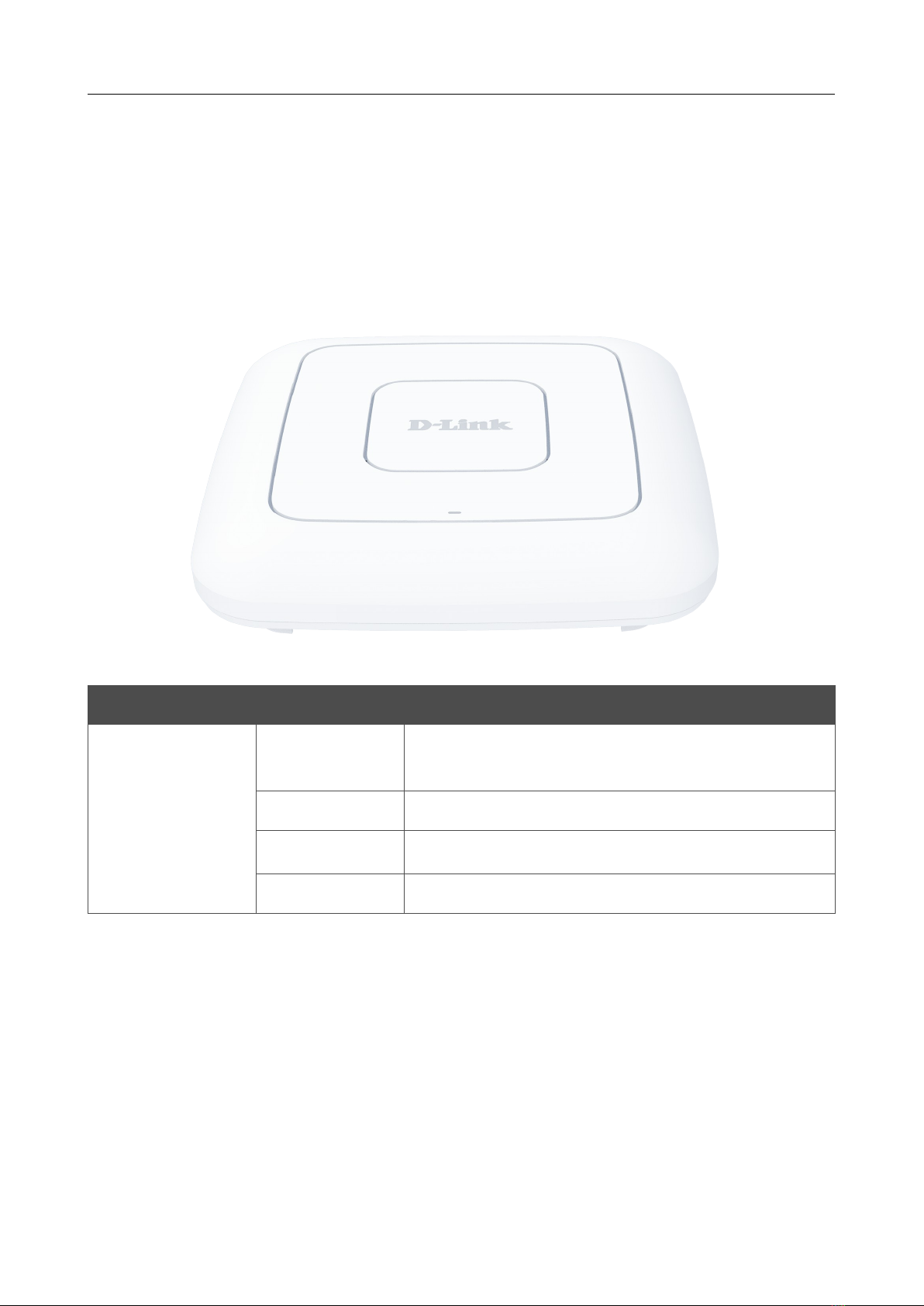

Figure 1. Upper panel view.
LED Mode Description
POWER /
WLAN
Solid red The device is powered on and the device’s WLAN is
off.
Blinking red lilac Data transfer through the Wi-Fi network.
Solid lilac The device’s WLAN is on.
No light The device is powered off.
Page of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Overview

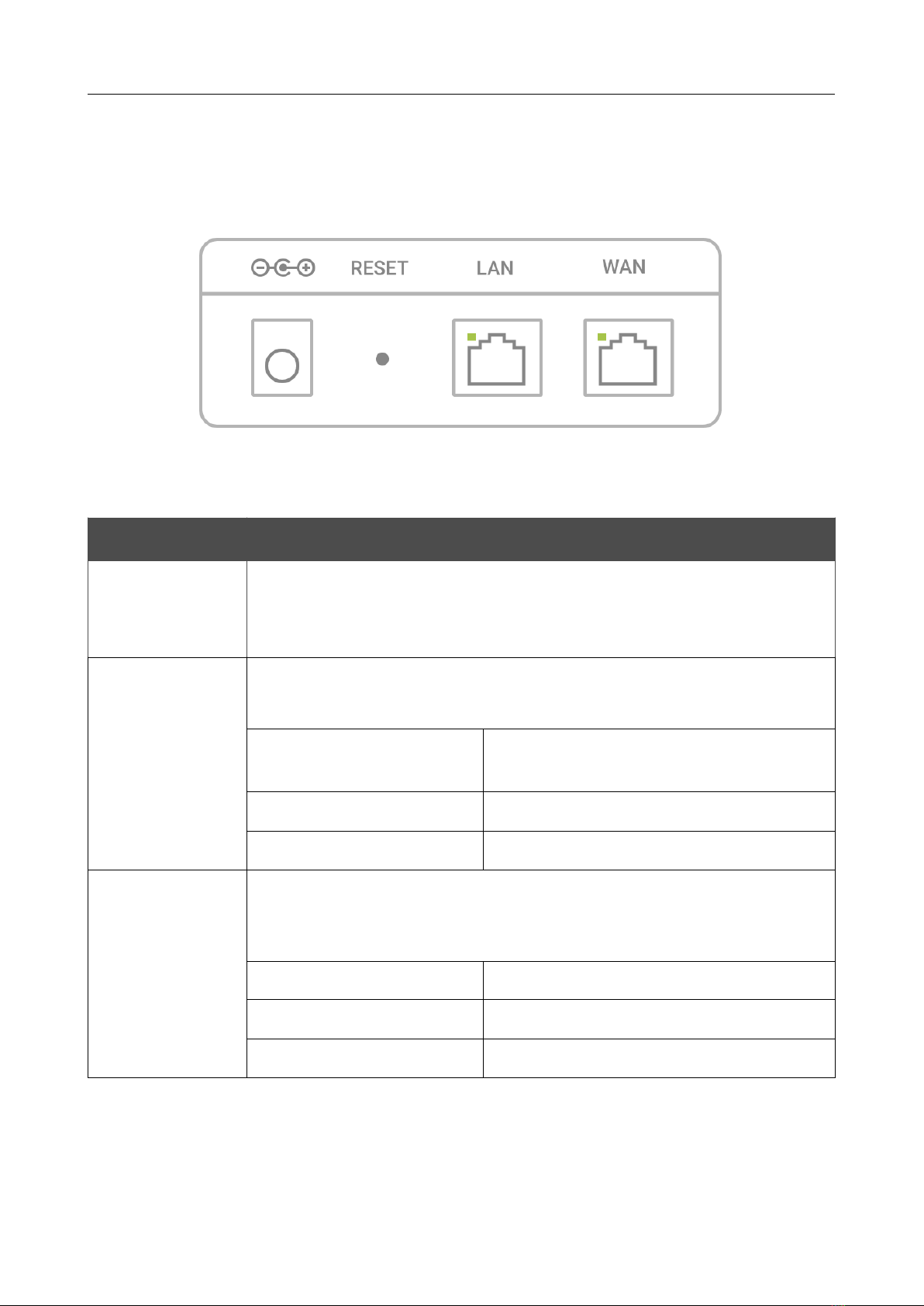

Back Panel
Figure 2. Back panel view.
Name Description
RESET
A button to restore the factor defaults.
To restore the factor defaults, push the button (with the device turned on),
hold it for 10 seconds, and then release the button.
LAN
An Ethernet port to connect a computer or network device.
A LAN LED corresponds to the port. The operating modes:
Solid green A device (computer) is connected to the port,
the connection is on.
Blinking green Data transfer through the LAN port.
No light The cable is not connected to the port.
WAN (PoE)
A port with PoE support to connect to a switch, a private Ethernet line, or a
cable or DSL modem. In the access point mode, it is used as the LAN port.
An INTERNET LED corresponds to the port. The operating modes:
Solid green The cable is connected to the port.
Blinking green Data transfer through the WAN port.
No light The cable is not connected.
Also, the power connector is located on the back panel of the access point. The device is also
equipped with two internal Wi-Fi antennas.
Page 2 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Overview
Delivery Package
The following should be included:
•Access point DAP-300P
•Wall mounting bracket with mounting kit
•“Quick Installation Guide” (brochure).
The “User Manual” and “Quick Installation Guide” documents are available on D-Link website
(see www.dlink.ru).
!Using a power suppl with different parameters than those indicated on the device will
cause damage and void the warrant for this product.
Page 3 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Installation and Connection
CHAPTER 3. INSTALLATION AND CONNECTION
Before You Begin
Please, read this manual prior to installing the device. Make sure that ou have all the necessar
information and equipment.
Computer or Mobile Device
Configuration of the access point DAP-300P supporting the router mode (hereinafter referred to as
“the access point”) is performed via the built-in web-based interface. The web-based interface is
available from an operating s stem that supports a web browser.
Also ou can use D-Link Assistant application for Android or iPhone mobile devices (smartphones
or tablets).
PC Web Browser
The following PC web browsers are recommended:
•Apple Safari 8 and later
•Google Chrome 48 and later
•Microsoft Internet Explorer 10 and later
•Microsoft Edge 20.10240 and later
•Mozilla Firefox 44 and later
•Opera 35 and later.
For successful operation, JavaScript should be enabled on the web browser. Make sure that
JavaScript has not been disabled b other software (such as virus protection or web user securit
packages) running on our computer.
Wired or Wireless NIC (Ethernet or Wi- i Adapter)
An computer that uses the access point should be equipped with an Ethernet or Wi-Fi adapter
(NIC). If our computer is not equipped with such a device, install an Ethernet or Wi-Fi adapter
prior to using the access point.
Wireless Connection
Wireless workstations from our network should be equipped with a wireless 802.11b, g, or n NIC
(Wi-Fi adapter). In addition, ou should specif the values of SSID, channel number and securit
settings defined in the web-based interface of the access point for all these wireless workstations.
Page 4 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Installation and Connection
Connecting to Mo ile Device with D-Link Assistant Application
1. Connect the power adapter (not included in the deliver package) to the power connector
port on the back panel of the access point, then plug the power adapter into an electrical
outlet or power strip.
2. Make sure that the Wi-Fi connection on our mobile device is on. To switch it on, go to the
mobile device settings.
3. In the list of available wireless networks on our mobile device, select the wireless network
DAP-300P.
4. In the opened window, enter the network ke (see WPS PIN on the barcode label on the
bottom panel of the device) as the password and connect to the wireless network of DAP-
300P.
5. In the settings of the wireless network DAP-300P on our mobile device, in the IP
Settings field, select the Static value (for Android) or the Manual value (for iOS).
6. Enter the value 192.1 8.0.51 in the IP address field. For iOS devices, also specif the
subnet mask 255.255.255.0. Confirm the changed settings.
7. Launch D-Link Assistant application on our mobile device. The application is available for
Android and iPhone smartphones in AppStore and Google Pla .
D-Link Assistant for Android D-Link Assistant for iOS
1 Field names ma var in different versions of operating s stems on mobile devices.
Page 5 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Installation and Connection
8. In the application menu, in the Connection method section select the Connection by
IP address value.

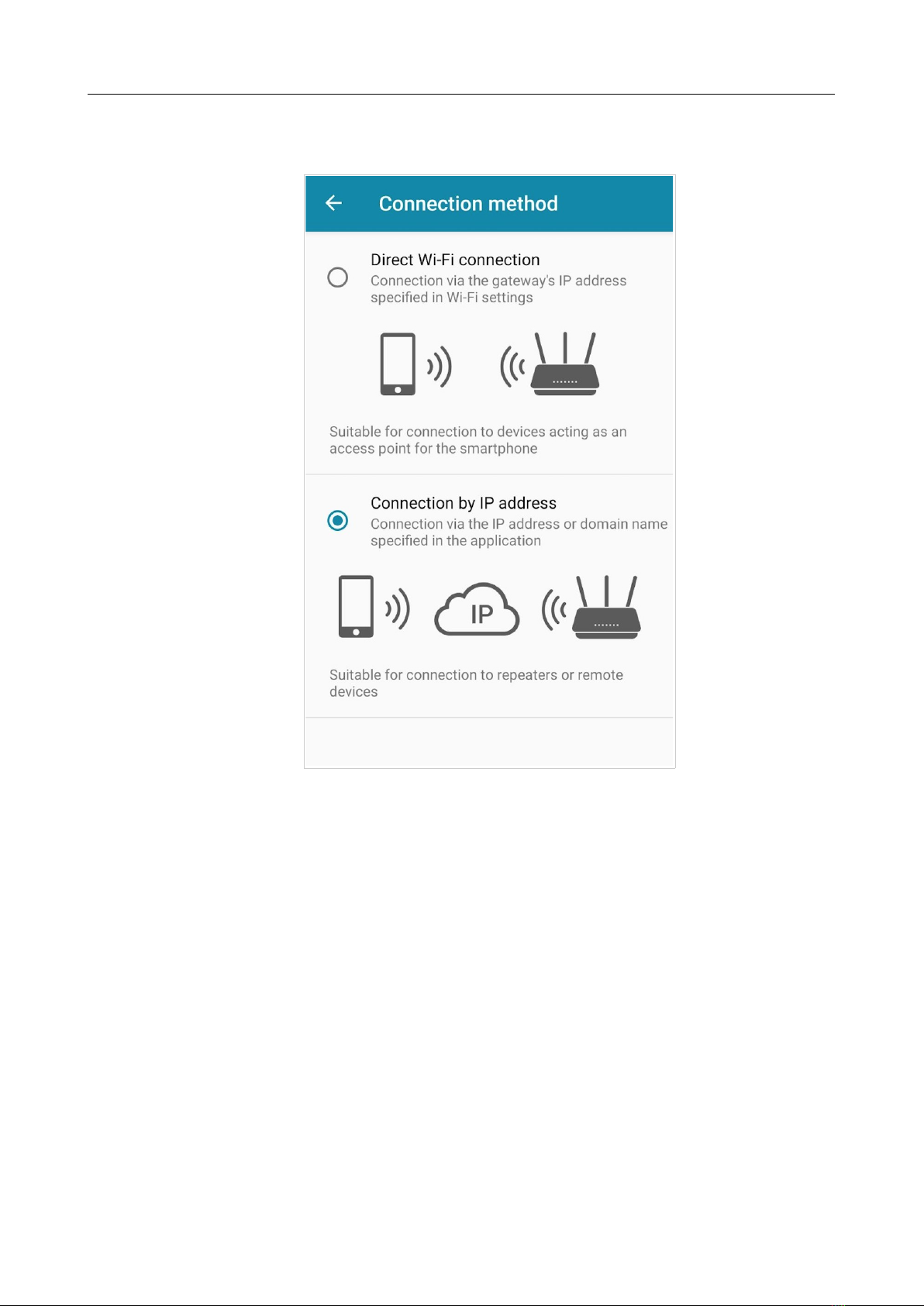

Figure 3. The Connection method section.
Page 6 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Installation and Connection
9. On the application main page click the CHANGE ADDRESS button.
Figure 4. The application main page.
Page 7 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Installation and Connection

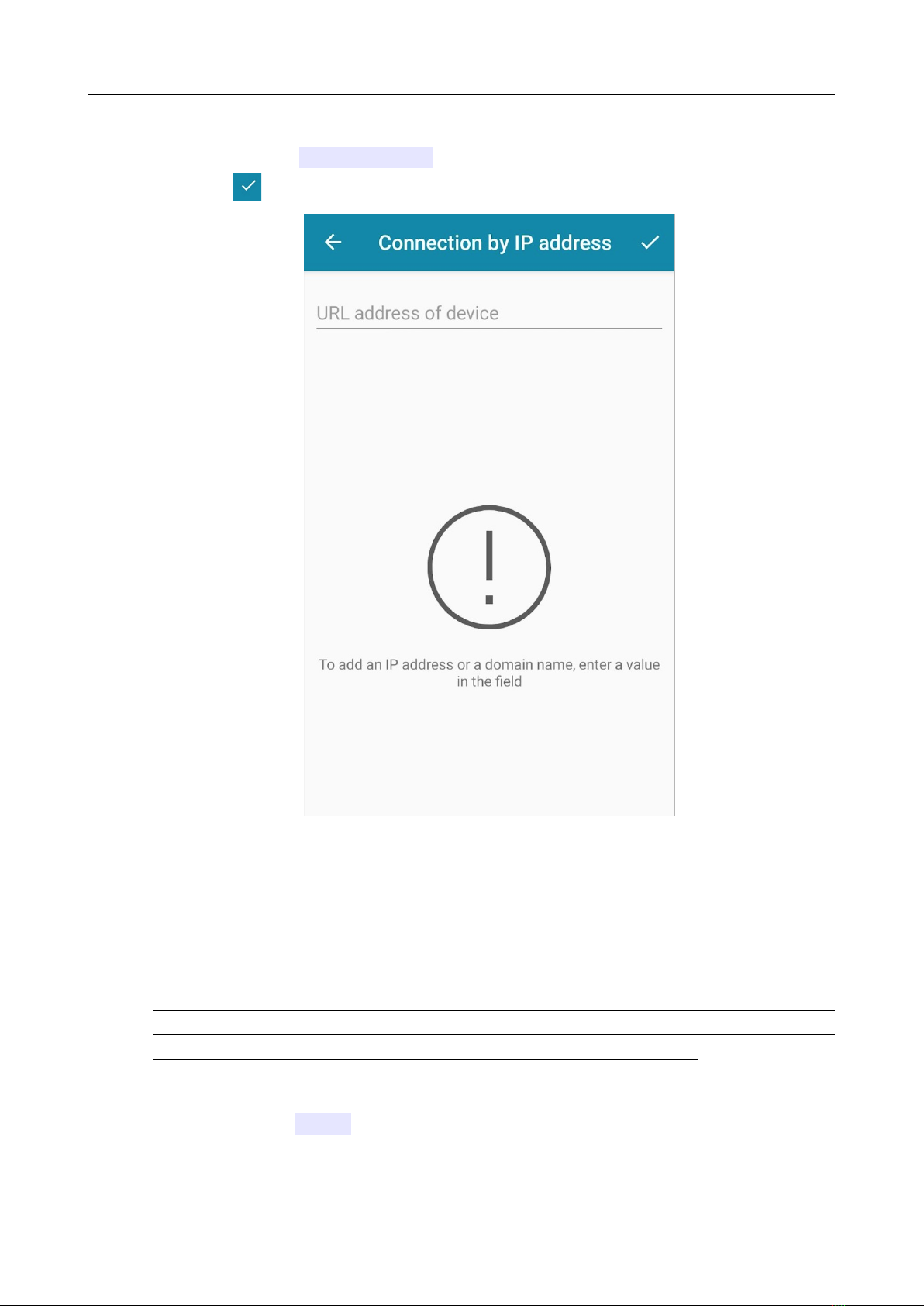

10. On the opened page, enter the IP address of the access point (b default, the following IP
address is specified: 192.1 8.0.50) in the device URL address field and click the button
to confirm ( ).
Figure 5. The device URL settings page.
11. Make sure that the application correctl identified the access point to which ou connect,
and click the Open button to configure all needed parameters of DAP-300P.
You can go through the Initial Configuration Wizard or finish the Wizard earlier and go the
configuration menu (for the description of the configuration pages, see the relevant section of the
Configuring via Web-based Interface chapter).
!As ou perform initial configuration of the access point via Wi-Fi connection, note that
immediatel after changing the wireless default settings of the access point ou will need
to reconfigure the wireless connection using the newl specified settings.
When DAP-300P is accessed with the application the next time and after, the authorization page
opens. Enter the username (admin) and the password ou specified.
Page 8 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Installation and Connection
Connecting to PC
PC with Ethernet Adapter
1. Connect an Ethernet cable between the LAN port of the access point and the Ethernet port of
our PC.
2. For a switch supporting PoE: connect an Ethernet cable between the PoE-enabled switch
and the WAN port of the access point.
3. For a switch not supporting PoE or router: connect an Ethernet cable between the switch
or router and an Ethernet port of the access point.
4. Connect the power adapter (not included in the deliver package) to the power connector
port on the back panel of the access point, then plug the power adapter into an electrical
outlet or power strip.
Now ou need to configure an IP address for the Ethernet adapter of our PC.
Page 9 of 175

DAP-300P Wireless N300 PoE Access Point / Router
User Manual Installation and Connection
Configuring IP Address in OS Windows 7
1. Click the Start button and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. (If the Control Panel has the categor
view (the Category value is selected from the View by drop-down list in the top right
corner of the window), choose the View network status and tasks line under the
Network and Internet section.)

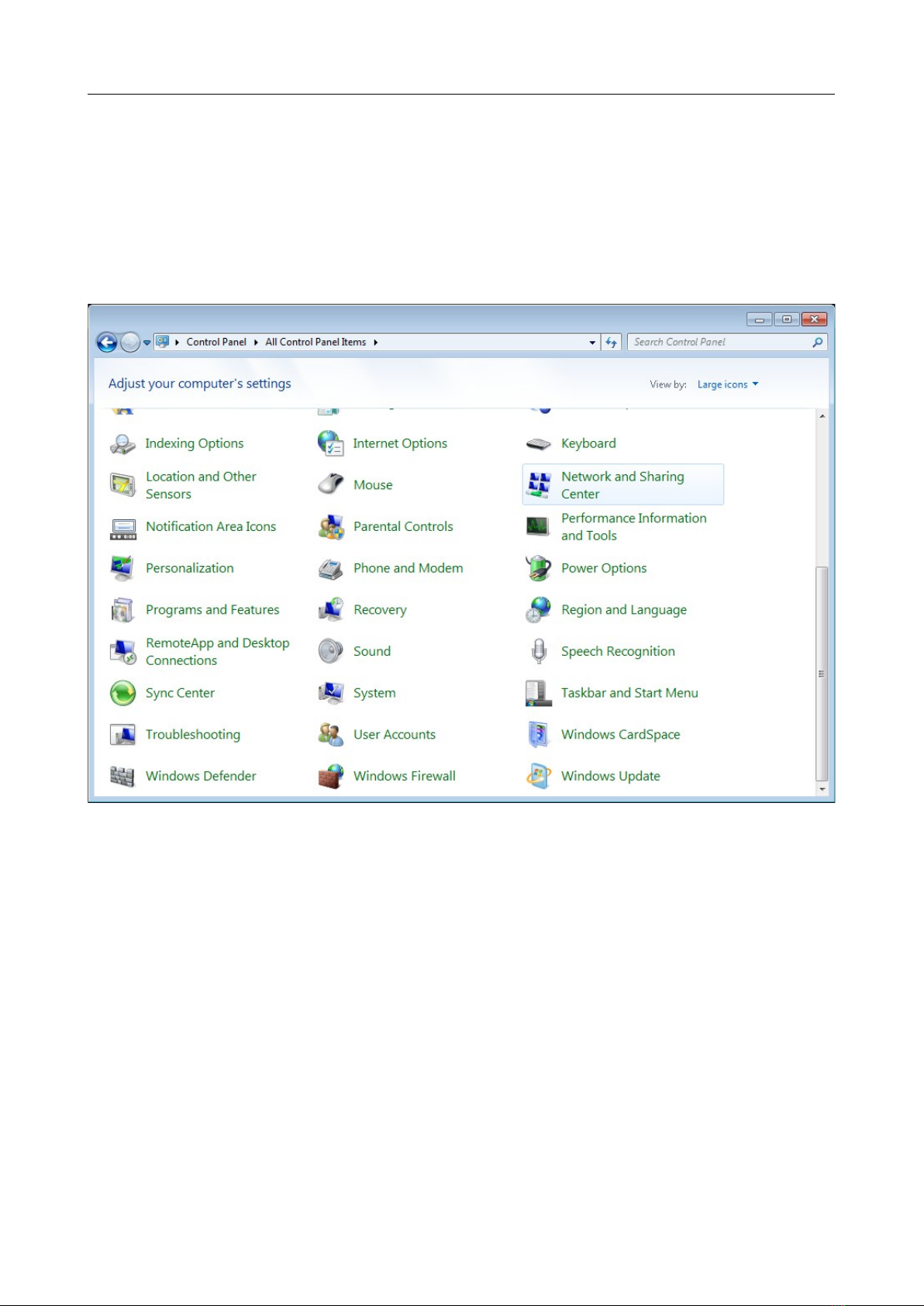

Figure 6. The Control Panel window.
Page 20 of 175
