D-Link DAP-1533 User manual

DAP-1533

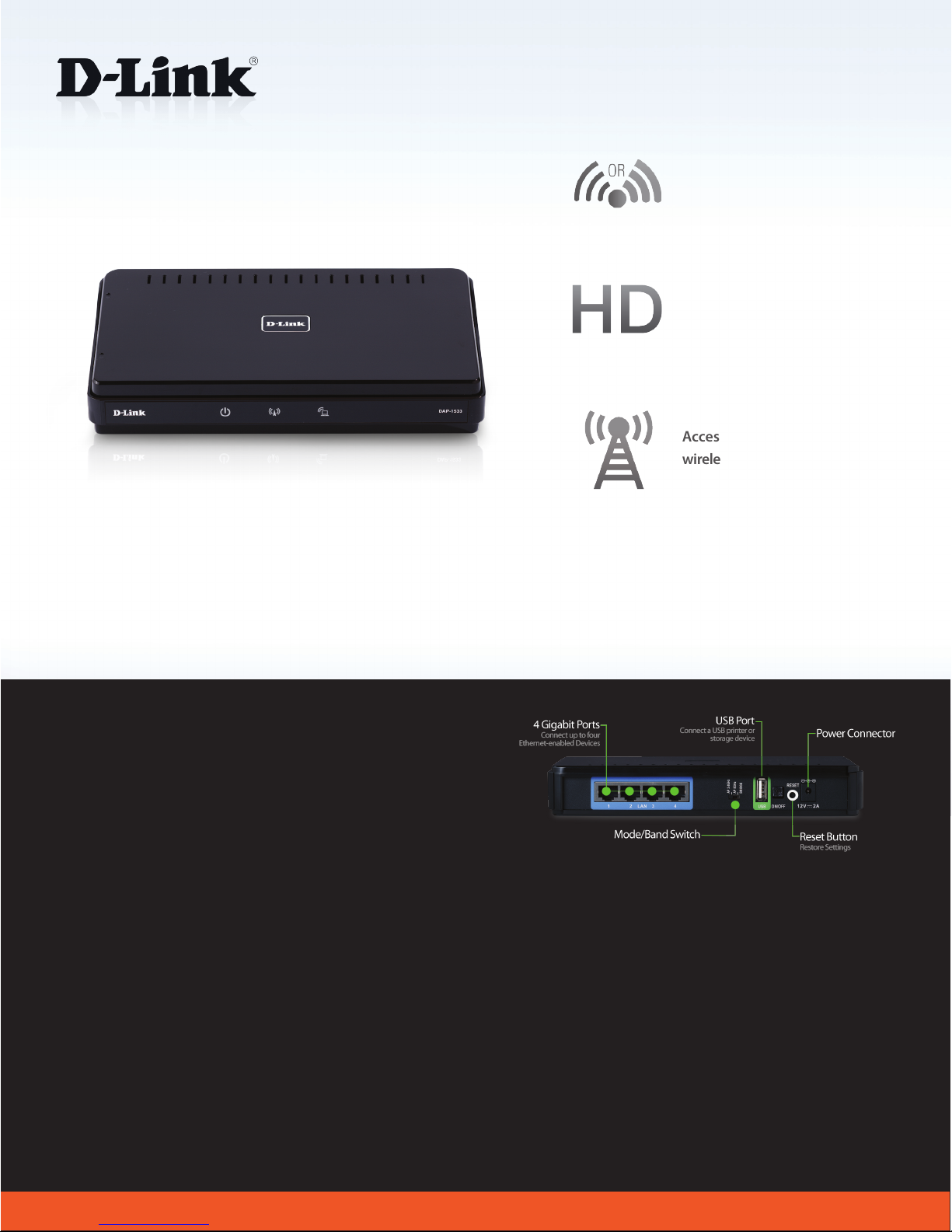

Selectable Dual Band for video
streaming and gaming
Access point capability for adding
wireless to a wired network
Wireless N450 MediaBridge®/Access Point
Wireless N450 MediaBridge®/Access
Point - Flexible networking solutions
Whether you’re wanting to give high bandwidth to your
Ethernet-ready devices in your entertainment system or you
want to add wireless capability to your existing wired network,
the Wireless N450 MediaBridge®/Access Point is perfect for you.
Wireless Bridge Mode- Great for
connecting your entertainment system to your existing wireless network
With 4 Gigabit Ports, you can connect any Ethernet-enabled devices such as cable/satellite boxes, game consoles, Internet-ready TV
or Network Attached Storage (NAS) to your existing wireless network for blazing wired speeds.
Access Point Mode -Extend your existing wired network
Connect the Wireless N450 MediaBridge®/Access Point to an existing wired network to extend it wirelessly. Stream HD videos to the
far corners of your home or play online games without any skipping or delays.
Dual Band- Great performance for everything you do
The dual band technology in the Wireless N450 MediaBridge®/Access Point means you can select either 2.4GHz or 5GHz wireless signals
to adjust for your different networking needs. You can do all you normally do with your network using the 2.4GHz band. The 5GHz band
helps avoid interference by providing a clearer wireless band for HD signals.
Up to 450 Mbps for HD Video

DAP-1533
Features
+ Up to 450Mps1
+ Selectable Dual band 2.4GHz or 5GHz
+ 4 Gigabit Ethernet Ports
+ IEEE 802.11n/g/a Compliant
+ One-Touch AP Conguration
+ Built-in Network QoS
+ Supports Secure Wireless Encryption Using WPA™ or
WPA2™ Security
+ WPS (Wi-Fi® Protected Setup™) for simple Push-Button
Wireless Network Conguration
+ Supports IPv6
+ 24/7 Basic Installation Support5
+ 1-Year Limited Warranty6
Think green
D-Link Green™ devices are about providing eco-friendly
alternatives without compromising performance. They
are designed to help conserve energy, protect our
environment from harmful substances, and reduce
waste by using recyclable packaging. Learn more,
visit www.dlinkgreen.com.
Protecting the environment
+ Complies with the European Union’s RoHS directive
that restricts the use of certain hazardous materials
+ Uses soy ink and recyclable packaging to help
reduce waste that goes into the environment
NAS
TV
Game Console
DVR
5GHz
2.4GHz
Computer
Adapter
Modem RouterInternet
Modem RouterInternet

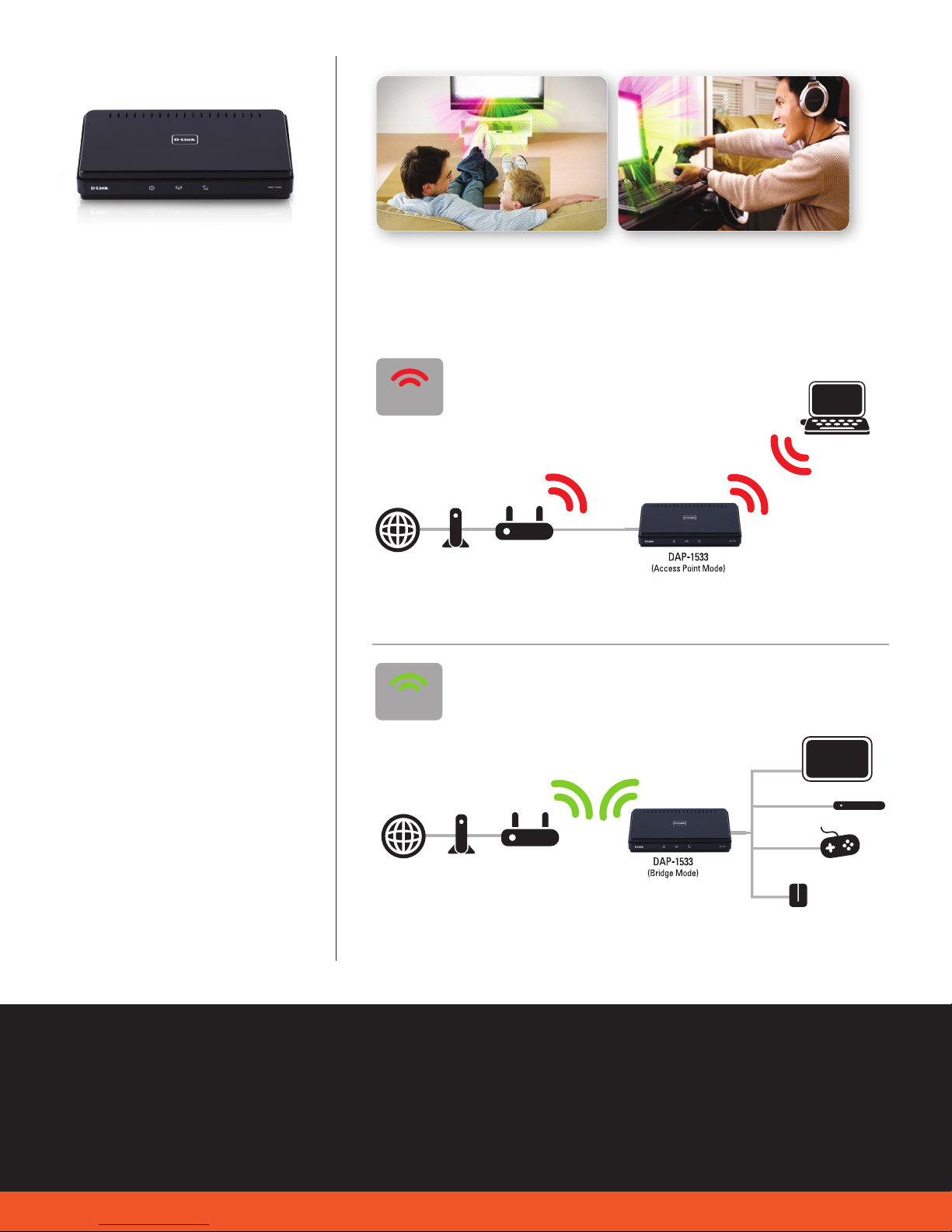

Bridge Mode
Access Point Mode

Technical Specications
DAP-1533
STANDARDS
+ IEEE 802.11n
+ IEEE 802.11g
+ IEEE 802.11a
+ IEEE 802.3
+ IEEE 803.u
+ IEEE 802.3ab
PHYSICAL INTERFACE
+ 4 10/100/1000 Gigabit Ethernet Ports
+ 1 WPS Push Button (for Wi-Fi Protected
Setup™)
+ 3-Mode Switch
- AP 2.4GHz
- AP 5GHz
- Bridge
+ USB 2.0 Port
OPERATION MODES
+ AP 2.4GHz
+ AP 5GHz
+ Bridge
SECURITY
+ Wi-Fi Protected Access (WPA/WPA2)
+ WPS™
LEDs
+ Power
+ AP
+ Bridge
CERTIFICATIONS
+ FCC
+ IC
+ IPv6
+ Wi-Fi®
TEMPERATURE
+ Operating: 30º to 104º F (0º to 40º C)
HUMIDITY
+ Operating: 10% - 90% Non-condensing
DIMENSIONS (L x W x H)
+ Item: 10.18” x 8.19” x 2.68”
WARRANTY
+ 1-Year Limited6
1Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction,
and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless
range and speed rates of a standard Wireless G product from D-Link. Maximum throughput based on D-Link Wireless N devices.
2Latest software and documentation are available at http://support.dlink.com.
3Computer must adhere to Microsoft’s recommended System Requirements.
4The software included with this product is not Mac-compatible.
524/7 Basic Installation Support is available only in the USA for the first 30 days from date of original purchase.
61-Year Limited Warranty available only in the USA and Canada.
All references to speed and range are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
©2011 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, the D-Link logo, the D-Link RoHS logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and/or other countries. Other
trademarks or registered trademarks are the property of their respective owners.
MINIMUM SYSTEM REQUIREMENTS
Computer with:
+ Windows®73 , Windows Vista®3, Windows®XP SP3 3,
or Mac OS®X (v10.4)4
+ Internet Explorer®v7 or Mozilla®Firefox®v3.0
+ Network Interface Card
+ CD-ROM Drive
For Internet Access:
+ Cable or DSL Modem
+ Subscription with an Internet Service Provider (ISP)
+ Router
RECOMMENDED SYSTEMREQUIREMENTS
For Optimal Wireless Performance, use with:
+ Wireless N750 Dual Band Router (DIR-835)
PACKAGE CONTENTS
+ Wireless N450 MediaBridge®/Access Point
+ Ethernet Cable
+ Power Adapter
+ Quick Installation Guide
+ CD-ROM5with Product Documentation
TV
NAS
DAP-1533
(Bridge Mode)
Game Console
Internet Modem Router
DVR
Computer
Adapter
Computer
Adapter
DAP 15
33
(B
(Bri
dge
Mode
)
)
2.4GHz 5GHz
C
om
Ada
pte
r
Com
Ada
Ada
pte
pte
r
r
DAP-1533
DAP-1533
(Access Point Mode)
DAP
15
33
BRIDGE
MODE
AP
MODE
Send
Existing
Router
XBox/PS3/Wii
Slingbox
Boxee Box
TV
Receive

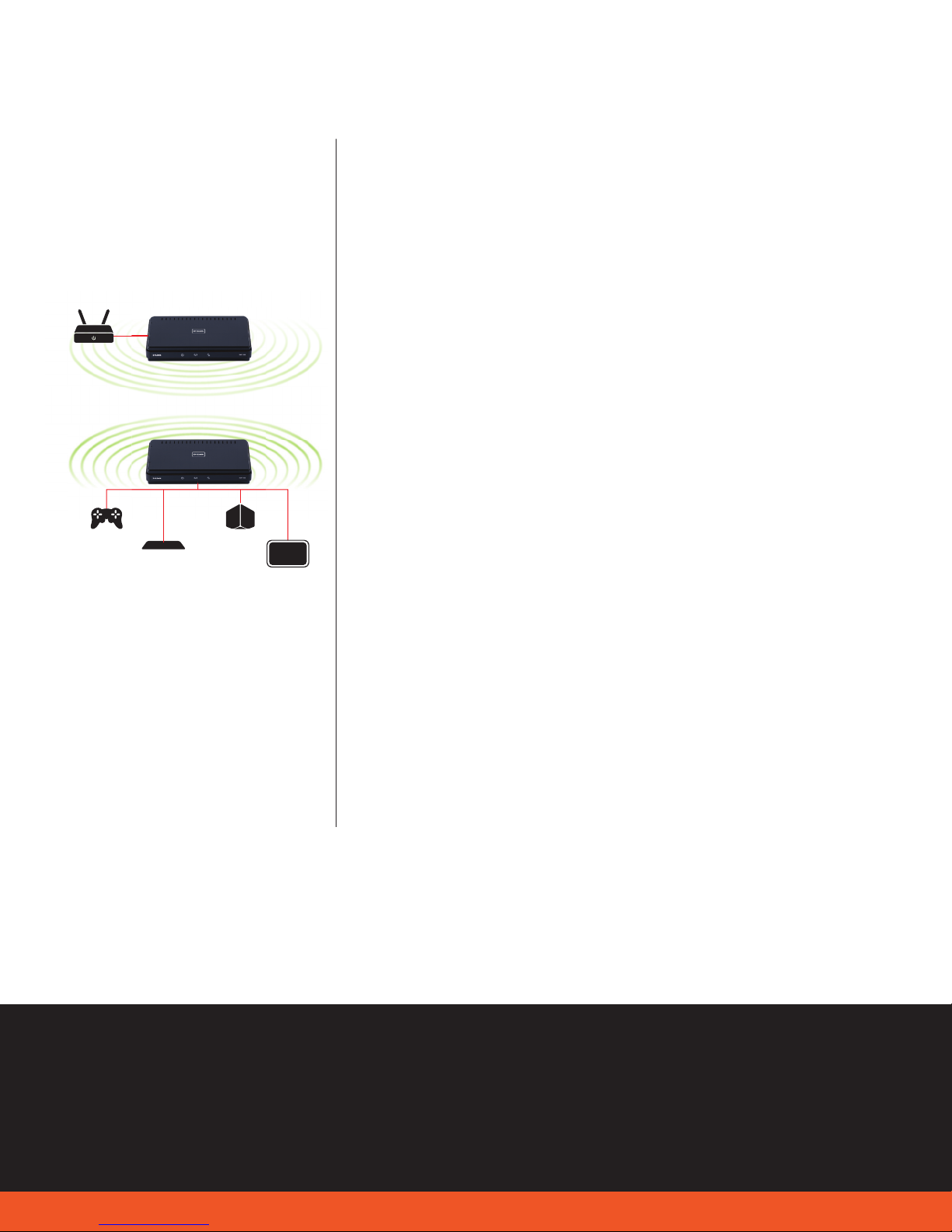

With a second DAP-1533, create a powerful
wireless bridge to connect up to four devices
in your entertainment center at up to 450Mbps
In addition, with an existing router and the
MediaBridge®/Access Point in this box, bridge
to an entertainment center and connect up to
four devices.
