D-Link Nuclias Connect DAP-2622 User manual

NUCLIAS CONNECT
DAP-2622 User Guide
V 1.00
2020 | Business Class Networking

D-Link DAP-2622 User Manual
2
Table of Contents
Nuclias Connect .........................................................................4
Introduction ................................................................................... 4
Nuclias Connect Key Features.................................................. 5
Package Contents......................................................................... 6
System Requirements................................................................. 6
Hardware Overview ..................................................................7
LEDs................................................................................................... 7
Connections ................................................................................... 7
Basic Installation........................................................................8
Hardware Setup ............................................................................ 8
Method 1 - PoE with PoE Switch or Router.................. 8
Method 2 - PoE without PoE Switch or Router................9
Setup Wizard ........................................................................... 10
Web User Interface................................................................. 11
Wireless ..........................................................................................12
Access Point Mode .............................................................12
WDS with AP Mode............................................................14
WDS Mode ............................................................................16
Wireless Client Mode.........................................................18
Wireless Client Mode.........................................................19
Wireless Security .................................................................20
Wired Equivalent Privacy (WEP) ..............................20
Wi-Fi Protected Access (WPA / WPA2)....................21
LAN ..........................................................................................23
IPv6 ..........................................................................................24
Advanced Settings.....................................................................25
Performance.........................................................................26
Wireless Resource Control.......................................................28
Multi-SSID..............................................................................30
VLAN........................................................................................32
VLAN List..........................................................................32
Port List.............................................................................33
Add/Edit VLAN ...............................................................34
PVID Settings..................................................................35
Intrusion.................................................................................36
Schedule ................................................................................37
Internal RADIUS Server.....................................................38
ARP Spoong Prevention ................................................39
Bandwidth Optimization .................................................40
Captive Portal.......................................................................42
Authentication Settings - Web Redirection Only42
Authentication Settings - Username/Password.44
Authentication Settings - Passcode .......................46
Authentication Settings - Remote RADIUS..........48
Authentication Settings - LDAP...............................50
Authentication Settings - POP3...............................52
Login Page Upload.......................................................54
MAC Bypass.....................................................................55
DHCP Server .........................................................................56
Dynamic Pool Settings................................................56
Static Pool Setting ........................................................57
Current IP Mapping List..............................................58

D-Link DAP-2622 User Manual
3
Filters.......................................................................................59
Wireless MAC ACL.........................................................59
WLAN Partition ..............................................................60
IP Filter Settings.............................................................61
Trac Control...............................................................................62
Uplink/Downlink Setting .................................................62
QoS...........................................................................................63
Trac Manager....................................................................64
Status ..............................................................................................65
Device Information ............................................................66
Client Information ..............................................................67
WDS Information Page .....................................................68
Stats Page......................................................................................69
Ethernet Trac Statistics..................................................69
WLAN Trac Statistics.......................................................70
Log ...................................................................................................71
View Log.................................................................................71
Log Settings..........................................................................72
Maintenance Section ................................................................74
Administration.............................................................................75
Limit Administrator............................................................75
System Name Settings......................................................76
Login Settings......................................................................76
Console Settings .................................................................76
Ping Control Setting ..........................................................77
LED Settings..........................................................................77
DDP Control Setting ..........................................................78
Country Settings .................................................................78
Nuclias Connect Setting...................................................78
Firmware and SSL Upload................................................79
Conguration File Upload ...............................................80
Time and Date Settings ....................................................81
Conguration and System.......................................................82
System Settings...........................................................................83
Help .................................................................................................84
Technical Specications ........................................................ 85
Antenna Pattern ..................................................................... 86

D-Link DAP-2622 User Manual
4
Nuclias Connect
Introduction
Nuclias Connect is D-Link’s centralized management solution for Small-to-Medium-Sized Business (SMB) networks. Nuclias Connect makes it easier
to analyze, automate, congure, optimize, scale, and secure your network — delivering the convenience of an Enterprise-wide management solution
at an SMB price. Nuclias Connect gives you the nancial and technical exibility to expand from a small network to a larger one (up to 1,000 APs),
while retaining a robust and centralized management system. And with its intuitive Graphical User Interface (GUI), a wealth of enhanced AP features,
and a setup wizard that supports 11 languages, Nuclias Connect minimizes the hassle of deployment, conguration, and administration.
Deployable on aWindows server (or Linux via Docker), PC, or Smartphone (via lite management app) the Nuclias Connect free-to-download software
is capable of managing up to 1,000 Access Points (APs) without licensing charges, coupled with an inexpensive optional
hardware controller (the Hub) suitable for remote locations. Through software-based monitoring and remote management of all wireless Access
Points (APs) on your network, Nuclias Connect oers tremendous exibility compared to traditional hardware-based unied
management systems. Conguration can be done remotely. Network trac analytics are available at a glance (in whole or in part). Load Balancing,
Airtime Fairness, and Localized Throttling are enabled.
Nuclias Connect supports multi-tenancy, so network admins can grant localized management authority for local networks. In addition, because APs
can support 8 SSIDs per radio (16 SSIDs per dual band APs), administrators have the option of using one SSID to create a guest network for visitors.
Nuclias Connect provides direct AP discovery and provisioning when it shares the same Layer-2/Layer-3 network with a given AP, allowing users to
nd APs and import proles with minimum eort, which can be applied as needed to groups or individual APs for even more eective conguration.
Since Nuclias Connect’s software operates transparently on the network, an AP can be deployed anywhere in an NAT environment. Admins can
provide & manage a variety of distributed deployments, including setting & admin account conguration for each deployment.
Nuclias Connect allows for multiple user authentications while enabling specic access control congurations for each SSID, giving admins the
option of conguring separate internal networks for dierent subnets, while enabling more advanced Value-Added Services, such as Captive Portal
or Wi-Fi Hotspot.

D-Link DAP-2622 User Manual
5
Nuclias Connect Key Features
• Free-to-Download Management Software
• Searchable Event Log and Change Log
• License-Free Access Points
• Trac Reporting & Analytics
• Authentication via Customizable Captive Portal, 802.1x and RADIUS Server, POP3, LDAP, AD
• Remote Cong. & Batch Cong.
• Multilingual Support
• Intuitive Interface
• Multi-Tenant & Role-Based Administration
• Payment Gateway (PayPal) Integration and Front-Desk Ticket Management
For more information on how to use Nuclias Connect with DAP-2622, please refer to the Nuclias Connect User Guide.

D-Link DAP-2622 User Manual
6
Package Contents
• DAP-2622 Nuclias Connect AC1200 Wave 2 Wall-Plated Access Point
• Power Adapter
• Mounting Plate and Hardware
• Ethernet Cable
Note: Using a power supply with a dierent voltage rating than the one included with the DAP-2622 will cause damage and void the warranty for this product.
System Requirements
yComputer with Windows®, Macintosh®, or a Linux-based operating system with an installed Ethernet Adapter
yInternet Explorer 11, Safari 7, Firefox 28, or Google Chrome 33 and above (for web-based conguration)

D-Link DAP-2622 User Manual
7
Hardware Overview
LEDs Connections
2LAN (PoE) Port Connect to a Power over Ethernet (PoE) switch or router via
an Ethernet cable.
3Lan (PoE Out) Port Gigabit RJ-45 port for data and PSE out.
4Ethernet LAN Port Gigabit RJ-45 port for data.
5Reset Button
Press and hold for ve seconds to reset the access point to
the factory default settings. Press and hold for ten seconds
to reboot the access point.
1Power/Status
Solid Red Indicates the access point has malfunctioned.
Blinking Red This LED will blink during boot-up.
Solid Green Indicates that the DAP-2622 is working
properly.
1
34
5
2

D-Link DAP-2622 User Manual
8
Basic Installation
Hardware Setup
To power the access point, you can use one of the following 2 methods:
Method 1 - Use if you have a PoE switch or router
Method 2 - Use if you have a PoE injector and do not have a PoE-capable switch or router DAP-2622
PoE Switch
Method 1 - PoE with PoE Switch or Router
Plug in one end of your Ethernet cable into the LAN port of the DAP-2622’s back panel,
and the other end into the port on a switch.
Congure the Access Point
1. Connect the access point and your computer to the same PoE switch. Manage the
access point from the computer.
2. Enter dap2622.local in the address eld of your browser.
3. Log in to the Administration Web pages. The default login information is:
Username: admin
Password: admin
Computer

D-Link DAP-2622 User Manual
9
Method 2 - PoE without PoE Switch or Router
1. Connect one end of an Ethernet cable into the Data In port on the PoE base unit
(not included) and the other end into one port on your switch, router, or computer.
2. Connect one end of an Ethernet cable into the P+Data Out port on the PoE base
unit and the other end into the LAN (PoE) port on the access point.
3. Use the supplied power adapter. Connect the power adapter to the Power In
receptor on the PoE adapter.
4. Connect the power cable to the power adapter and then connect the other end
into a power outlet.
5. Enter dap2622.local in the address eld of your browser.
6. Log in to the Administration Web pages. The default login information is:
Username: admin
Password: admin
DAP-2622
Switch or Router
PC
Power Adapter
PoE Adapter

D-Link DAP-2622 User Manual
10
Setup Wizard
The rst login instance displays the System Settings window which requires you to change the password used to access the web UI. Additional
settings include the System Time and System Country functions.
After logging in to the user interface, ll in the New Password and Conrm New Password elds.
In the System Time function, select Using Network Time Protocol (NTP) or Manually to dene the system time. If required, click the Daylight Sav-
ing Oset drop-down menu and select the value (minutes).
ySetting NTP System Time: Before trying to congure NTP, perform a ping test with the NTP server. In the NTP Server eld, enter the NTP server
to use. Then click the Time Zone drop-down menu and select the appropriate time zone.
ySetting System Time Manually: From the System Date drop-down menu, select the Year, Month, and Day along with the Hour and Minutes
appropriate for the AP.
yEnable Daylight Saving: Click the radio button to enable the daylight saving time (DST) function. Set the DST start and end time by clicking
on the drop-down menus and setting the Month, Week, Day, Hour, and Minute of the DST starting days.
ySystem Country: Click the drop-down menu to select your country.
Once the settings are congured, click the Update button to accept the conguration and proceed to the main interface menu page.

D-Link DAP-2622 User Manual
11

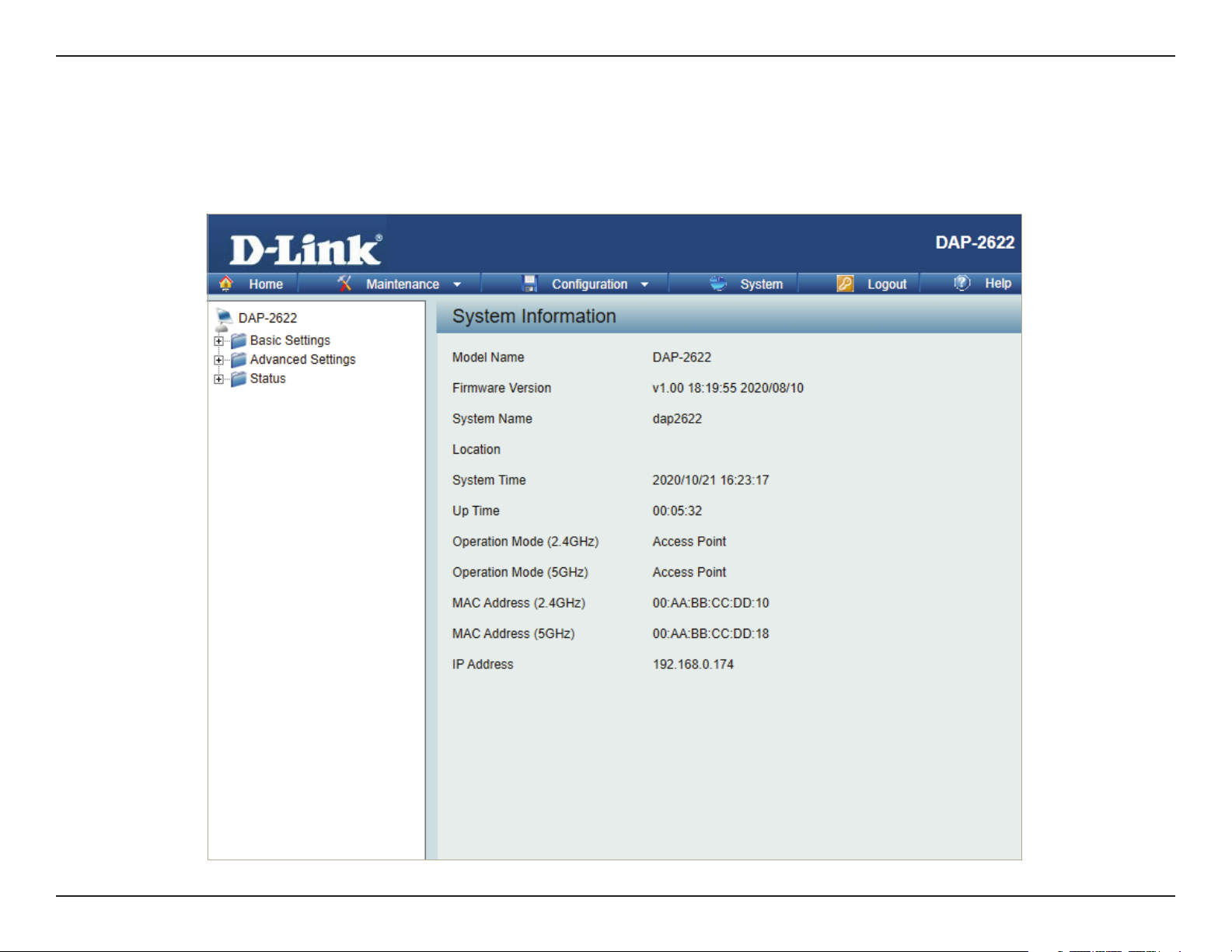

Web User Interface
The DAP-2622 supports an elaborate web user interface where the user can congure and monitor the device. Launch a web browser, type
dap2622.local in the address eld and then press Enter to login. Most of the congurable settings are located in the left menu of the web GUI
which contains sections called Basic Settings,Advanced Settings and Status.

D-Link DAP-2622 User Manual
12
Wireless
On the wireless settings page, you can setup the basic wireless conguration for the access point. The user can choose from 4 dierent wireless
modes:
Access Point - Used to create a wireless LAN
WDS with AP - Used to connect multiple wireless networks while still functioning as a wireless access point
WDS - Used to connect multiple wireless networks
Wireless Client - Used when the access point needs to act as a wireless network adapter for an Ethernet-enabled device
Wireless Band:
Mode:
Network Name (SSID):
SSID Visibility:
Auto Channel Selection:
Select either 2.4 GHz or 5 GHz from the drop-down
menu.
Select Access Point from the drop-down menu.
Service Set Identier (SSID) is the name designated
for a specic wireless local area network (WLAN).
The SSID’s factory default setting is dlink. The SSID
can be easily changed to connect to an existing
wireless network or to establish a new wireless
network. The SSID can be up to 32 characters and
is case-sensitive.
Select Enable to broadcast the SSID across the
network, thus making it visible to all network users.
Select Disable to hide the SSID from the network.
This feature when enabled automatically selects
the channel that provides the best wireless
performance. The channel selection process only
occurs when the AP is booting up. To manually
select a channel, set this option to Disable and
select a channel from the drop-down menu.
Access Point Mode

D-Link DAP-2622 User Manual
13
Channel:
Channel Width:
Authentication:
To change the channel, rst toggle the Auto Channel Selection setting to Disable, and then use the drop-down menu to make
the desired selection.
Note: The wireless adapters will automatically scan and match the wireless settings.
Click the drop-down menu to select 20 MHz, Auto 20/40 MHz or Auto 20/40/80 MHz. Select 20 MHz if you are not using any
802.11n wireless clients. Auto 20/40 MHz allows you to connect to both 802.11n and 802.11b/g or 802.11a wireless devices on
your network.
Use the drop-down menu to choose Open System, Shared Key, WPA-Personal, WPA-Enterprise, or 802.1x.
• Select Open System to communicate the key across the network (WEP).
• Select Shared Key to limit communication to only those devices that share the same WEP settings. If multi-SSID is
enabled, this option is not available.
• Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.
• Select WPA-Enterprise to secure your network with the inclusion of a RADIUS server.
• Select 802.1X if your network is using port-based Network Access Control.

D-Link DAP-2622 User Manual
14
Wireless Band:
Operation Mode:
Network Name (SSID):
Auto Channel Selection:
Channel:
Channel Width:
Select either 2.4GHz or 5GHz from the drop-down
menu.
WDS with AP mode is selected from the drop-down
menu.
Service Set Identier (SSID) is the name designated
for a specic wireless local area network (WLAN).
The SSID’s factory default setting is dlink. The SSID
can be easily changed to connect to an existing
wireless network or to establish a new wireless
network.
Enabling this feature automatically selects
the channel that will provide the best wireless
performance. This feature is not supported in WDS
with AP mode. The channel selection process only
occurs when the AP is booting up.
All devices on the network must share the same
channel.To change the channel, use the drop-down
menu to make the desired selection. (Note: The
wireless adapters will automatically scan and match
the wireless settings.)
Click the drop-down menu to select 20 MHz, Auto
20/40 MHz or Auto 20/40/80 MHz. Select 20 MHz
if you are not using any 802.11n wireless clients.
Auto 20/40 MHz allows you to connect to both
802.11n and 802.11b/g or 802.11a wireless devices
on your network.
WDS with AP Mode

D-Link DAP-2622 User Manual
15
AP MAC Address:
Site Survey:
Authentication:
Enter the MAC address of the AP on your network that will serve as a bridge to wirelessly connect multiple networks.
Click on the Scan button to search for available wireless networks, then click on the available network that you want to
connect to.
Use the drop-down menu to choose Open System or WPA-Personal.
• Select Open System to communicate the key across the network.
• Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.

D-Link DAP-2622 User Manual
16
Wireless Band:
Mode:
Network Name (SSID):
Auto Channel Selection:
Channel:
Channel Width:
AP MAC Address:
Select either 2.4GHz or 5GHz from the drop-down
menu.
WDS is selected from the drop-down menu.
Service Set Identier (SSID) is the name designated
for a specic wireless local area network (WLAN).The
SSID’s factory default setting is dlink. The SSID can
be easily changed to connect to an existing wireless
network or to establish a new wireless network.
Enabling this feature automatically selects
the channel that will provide the best wireless
performance. This feature is not supported in WDS
mode.
All devices on the network must share the same
channel.To change the channel, use the drop-down
menu to make the desired selection.
Click the drop-down menu to select 20 MHz, Auto
20/40 MHz or Auto 20/40/80 MHz. Select 20 MHz
if you are not using any 802.11n wireless clients.
Auto 20/40 MHz allows you to connect to both
802.11n and 802.11b/g or 802.11a wireless devices
on your network.
Enter the MAC address of the AP on your network
that will serve as a bridge to wirelessly connect
multiple networks.
WDS Mode

D-Link DAP-2622 User Manual
17
Site Survey:
Authentication:
Click on the Scan button to search for available wireless networks, then click on the available network that you
want to connect with.
Use the drop-down menu to choose Open System or WPA-Personal.
• Select Open System to communicate the key across the network.
• Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server
is required.

D-Link DAP-2622 User Manual
18
Wireless Band:
Mode:
Network Name (SSID):
Auto Channel Selection:
Channel:
Channel Width:
Select either 2.4 GHz or 5 GHz from the drop-down
menu.
Wireless Client is selected from the drop-down menu.
Service Set Identier (SSID) is the name designated for a
specic wireless local area network (WLAN). The SSID’s
factory default setting is dlink. The SSID can be easily
changed to connect to an existing wireless network.
Enablingthisfeatureautomaticallyselectsthe channel
that will provide the best wireless performance. This
feature is not supported in Wireless Client mode.
The channel used will be displayed, and matches the
AP that the DAP-2622 is connected to when set to
Wireless Client mode.
Click the drop-down menu to select 20 MHz, Auto
20/40 MHz or Auto 20/40/80 MHz. Select 20 MHz
if you are not using any 802.11n wireless clients.
Auto 20/40 MHz allows you to connect to both
802.11n and 802.11b/g or 802.11a wireless devices
on your network.
Click on the Scan button to search for available
wireless networks, then click on the available network
that you want to connect with.
Will be explained in the next topic.
Check the box to enable the Wireless MAC Clone
function.
Click the drop-down menu to select Auto or Manual.
Wireless Client Mode
Site Survey:
Authentication:

D-Link DAP-2622 User Manual
19
Enable:
MAC Source:
MAC Address:
Check the box to enable the Wireless MAC Clone
function.
Click the drop-down menu to select Auto or Manual.
When MAC Source is set to Manual, click Scan to
nd the MAC address to clone.
Wireless Client Mode

D-Link DAP-2622 User Manual
20
There are mainly two forms of wireless encryption, called Wired Equivalent Privacy (WEP) and Wi-Fi Protected Access (WPA). WEP was the rst security method
developed. It is a low-level encryption but better than no encryption.WPA is a newer encryption standard, and with the more advancedWPA2 standard wireless
networks have nally reached a point where their security is strong enough to give users peace of mind.
Wireless Security
Wired Equivalent Privacy (WEP)
WEP provides two variations, called Open System and Shared Key.
Open System will send a request to the access point and if the key used matches the one congured on the access point, the access point will return a“success”
message back to the wireless client. If the key does not match the one congured on the access point, the access point will deny the connection request from
the wireless client.
Shared Key will send a request to the access point and if the key used matches the one congured on the access point, the access point will send a challenge
to the client. The client will then again send a conrmation of the same key back to the access point where the access point will either return a success or a
denial packet back to the wireless client.
Encryption:
Key Type*:
Key Size:
Key Index (1-4):
Key:
Use the radio button to disable or enable
encryption.
Select HEX* or ASCII.**
Select 64 Bits or 128 Bits.
Select the 1st through the 4th key to be the active
key.
Input up to four keys for encryption. You will select
one of these keys in the Key Index drop-down
menu.
*Hexadecimal (HEX) digits consist of the numbers 0-9 and the letters A-F.
**ASCII (American Standard Code for Information Interchange) is a code that represents English letters using
numbers ranging from 0-127.
