Daavlin ML24000 Operation manual

MNL-00024 [1] Proprietary and Confidential Page 1of 21
OPERATION AND SERVICE MANUAL

MNL-00024 [1] Proprietary and Confidential Page 2of 21
Table of Contents
1.0 Introduction ......................................................................................................................................4
2.0 Indications for Use............................................................................................................................5
3.0 Classifications....................................................................................................................................5
4.0 Operating Specifications...................................................................................................................5
5.0 Transport and Storage Specifications ...............................................................................................6
6.0 EMC Precautions...............................................................................................................................6
7.0 Electrical Specifications.....................................................................................................................6
8.0 Site Selection.....................................................................................................................................6
9.0 UVA-1 Output Spectrum ...................................................................................................................7
9.1 Irradiance Specifications...............................................................................................................7
9.2 Labels and Symbols.......................................................................................................................7
10.0 Training Requirements....................................................................................................................10
11.0 Warnings & Cautions ......................................................................................................................10
11.1 Electrical Shock Hazards..............................................................................................................10
11.2 Ultraviolet Light Exposure & Bodily Injury Hazards....................................................................11
11.3 Equipment & Property Damage Hazards....................................................................................11
12.0 Unlocking the Device ......................................................................................................................12
13.0 Changing or Disabling the Key Code ...............................................................................................12

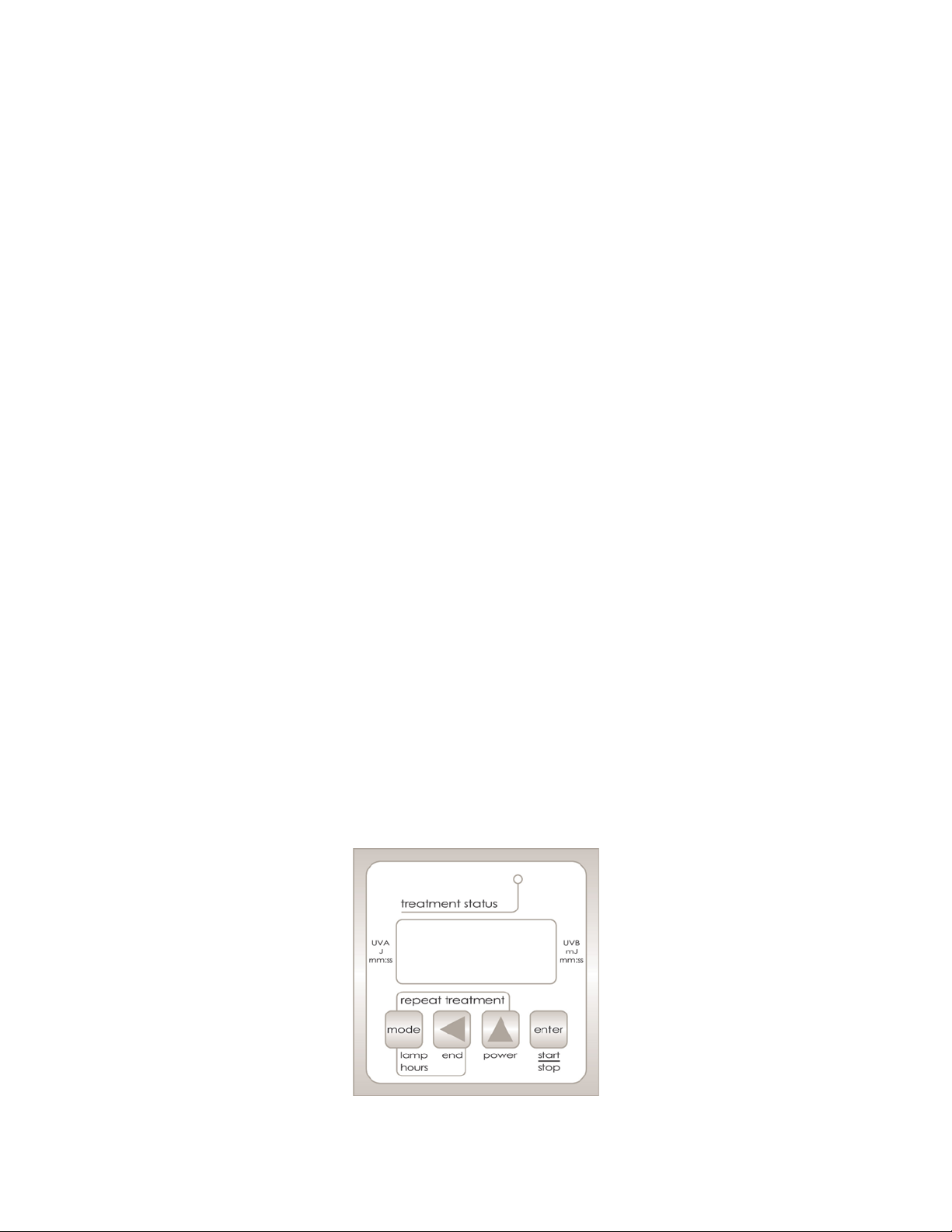

14.0 Flex Timer Instructions....................................................................................................................12
14.1 Determining a Treatment Time ..................................................................................................12
14.2 Partial UVA, UVA-1 Time Chart...................................................................................................13
14.3 Setting Up a Treatment Time......................................................................................................13
14.4 Special Functions of the Digital Timer ........................................................................................14
14.5 Special Notes...............................................................................................................................14
14.6 Flex Timer Range and Accuracy ..................................................................................................14
15.0 Treatment Protocols .......................................................................................................................15
15.1 MED Testing................................................................................................................................15
15.2 MED Testing Procedure ..............................................................................................................15
15.3 Daavlin Dose Patch (sold separately)..........................................................................................16
15.4 General Instructions for MED Testing.........................................................................................16
15.5 RECOMMENDED PROTOCOL FOR UVA-1....................................................................................16
16.0 Care of Your Phototherapy Unit .....................................................................................................17
16.1 Recommended Maintenance Schedule......................................................................................17
16.2 Cleaning.......................................................................................................................................17

MNL-00024 [1] Proprietary and Confidential Page 3of 21
16.3 Cleaning of the Filter...................................................................................................................17
16.4 Relamping ...................................................................................................................................17
16.5 Removing and Fitting Lamps.......................................................................................................18
16.6 Resetting Your Lamp Hours.........................................................................................................18
16.7 Troubleshooting..........................................................................................................................19
16.8 Spare Parts and Accessories .......................................................................................................19
17.0 Warranty.........................................................................................................................................20
17.1 Limited Warranty Policy..............................................................................................................20
17.2 Warranty Coverage.....................................................................................................................20
17.3 Customer Responsibility .............................................................................................................20
17.4 Warranty Service.........................................................................................................................20
17.5 Disposal.......................................................................................................................................21
17.6 Other Services.............................................................................................................................21
17.7 Contact Information....................................................................................................................21

MNL-00024 [1] Proprietary and Confidential Page 4of 21
1.0 Introduction
Thank you for purchasing a Daavlin Phototherapy Unit. The use of light for the treatment of
photoresponsive skin disorders has been our passion since 1981. From the beginning we have been
devoted to providing our customers with the highest quality products coupled with industry leading
customer service.
At Daavlin, we are always keeping track of new developments and are doing our best to implement the
latest findings in our products. We appreciate receiving feedback from the medical community and
patients, so we can further improve our products. If you have any comments or suggestions, please
contact our Customer Service department and your input will be channeled to the appropriate person.
The purpose of this manual is to instruct users on the proper methods of operation and general
maintenance. In addition to this, the manual also addresses important information regarding device
specifications, warnings, treatment protocols and warranty information. Please take a moment to read
the entire operation manual before operating your Daavlin phototherapy unit.
Here at Daavlin we are proud of our tradition of development and innovation in the field of
phototherapy and we are honored that you have chosen us for your phototherapy needs. Let’s be clear.
Our commitment to you starts…Now!
Sincerely,
The Daavlin Distributing Company
205 West Bement Street
P.O. Box 626
Bryan, OH 43506-0626
Phone: [phone]
Fax: [phone]
Email: [email protected]m
Website: www.Daavlin.com

MNL-00024 [1] Proprietary and Confidential Page 5of 21
2.0 Indications for Use
The Daavlin ultraviolet light emitting device contained in this manual are intended for use, by or under
the direction of a physician, for the therapeutic treatment for individuals who require ultraviolet or
visible radiation for diagnosed skin disorders.
WARNING: Do not use these devices for anything other than their intended purposes.
CAUTION: Federal law restricts this device to sale by or on the order of a physician or any other
practitioner licensed by the law of the state in which he/she practices.
3.0 Classifications
FDA:
Class II Device
93/42/EEC:
Class IIa Device
IEC 60601-1:
Class I Device
Pollution Degree:
Class II
Mode of Operation:
Non-continuous
IEC/EN 62471:2006
UV Risk Group:
Risk Group 2 (Moderate-Risk)
WARNING: This device is designed for intermittent operation only and not for continuous use. The
device should not be cycled continuously. For treatments greater than 20 minutes in duration the device
should be either turned off or left idling for a minimum of 50% of the administered treatment time, e.g.
a treatment lasting 40 minutes in duration should be followed by a cool down period of 20 minutes.
4.0 Operating Specifications
Ambient
Temperature:
15°C to 30°C (59°F to 86°F)
Relative Humidity:
10% to 95%, Non-condensing
Liquid
Ingress Rating:
IPX0 (This device does not have protection against
ingress of water.)
Ocular Hazard
Distance:
3 Meters (9.84 Feet)
Altitude:
≤ 2000m
WARNING: Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or
with oxygen or nitrous oxide.

MNL-00024 [1] Proprietary and Confidential Page 6of 21
5.0 Transport and Storage Specifications
Ambient Temperature:
-40°C to 70°C (-40°F to 158°F)
Relative Humidity:
10% to 95%, Non-condensing
Atmospheric Pressure:
50 kPa to 106 kPa
Altitude:
≤ 2000m
6.0 EMC Precautions
The devices contained in this manual have been tested and found to comply with the EMC limits of the
international standard IEC 60601-1-2. These limits are designed to provide reasonable protection
against interference in a typical medical installation. The system can radiate radio frequency energy if
not installed in accordance with the instructions, and may cause harmful interference to other devices in
the vicinity. There is no guarantee that interference will not occur in a particular installation. If the
system does cause interference with other devices, which can be determined by turning the system off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Re-orient or relocate the receiving device
•Increase the separation between the equipment
•Connect the System into an outlet on a circuit different from that to which the other device(s) is
connected
Consult the manufacturer or field service technician for help
7.0 Electrical Specifications
The device is manufactured in the following electrical configurations. Always refer to the identification
label of the device to determine which electrical configuration the device is manufactured to.
•Mains input = 230V, 3~, 60Hz, 100A Operating = 230V, 3~, phase to phase
•Mains input = 400V, 3N~, 50Hz, 100A Operating = 230V~, single-phase (phase to neutral)
8.0 Site Selection
A site should be chosen within reach of the specified electrical connection (refer to the Facility
Requirements Guide) and where the unit can be left in place without obstructing traffic flow. It is
important that the unit be properly grounded. The site should not be in any area where water or
moisture might collect and should be protected from access by children and other unintended users.
WARNING: To avoid the risk of electric shock this equipment must only be connected to a supply mains
with a protective earth.
CAUTION: This device is a Class A Medical Device suitable for use in all establishments other than
domestic and those directly connected to the public low voltage power supply network that supplies
buildings used for domestic purposes.

MNL-00024 [1] Proprietary and Confidential Page 7of 21

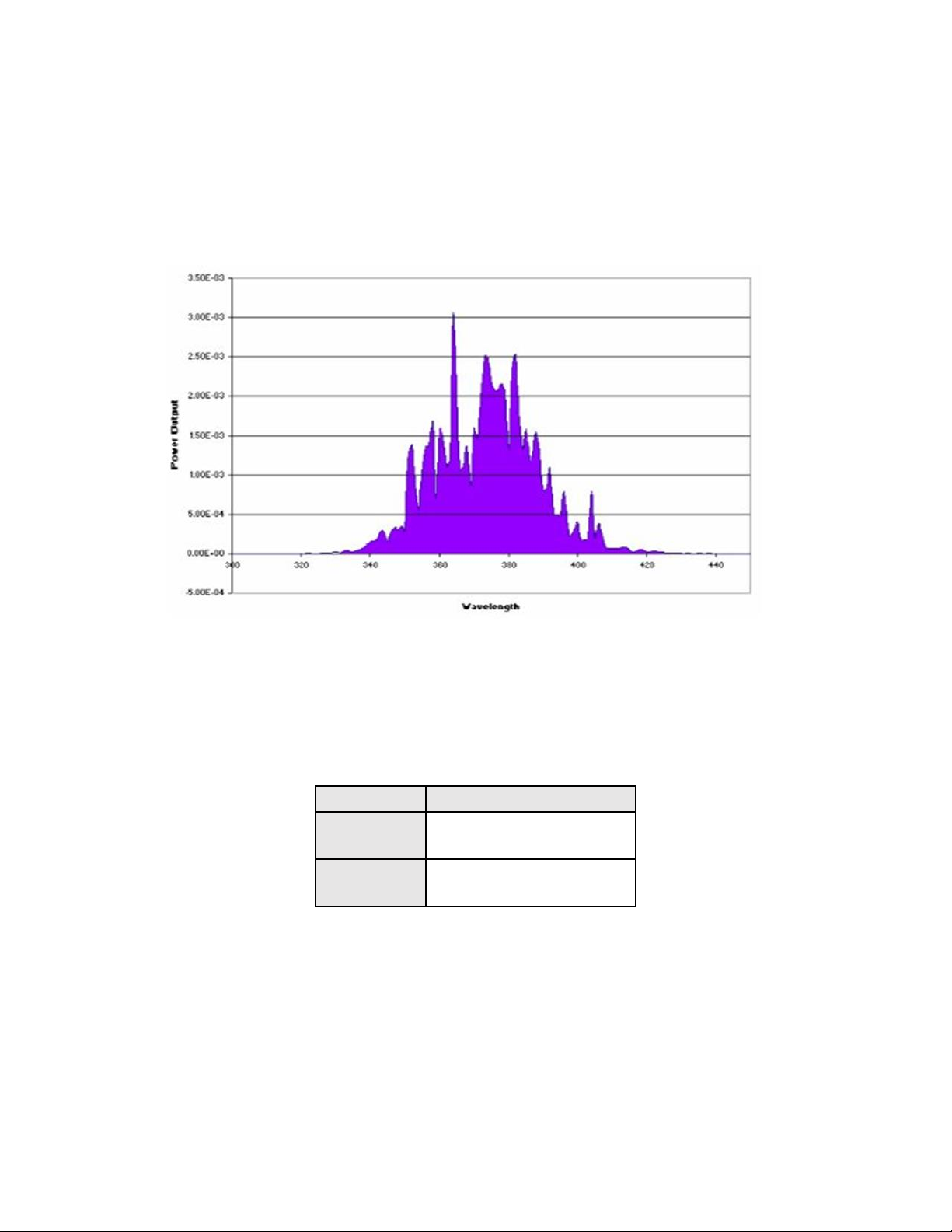

9.0 UVA-1 Output Spectrum
The treatment light is generated by 24 1000 Watt High Intensity Discharge Metal Halide Lamps. The light
emitted is in the UVA band with a primary emission range of 350-400 nanometers. The output spectrum
of the system is shown in Figure 1.4. Some of the light outside the 350-400nm peak emission range is
typical for these types of systems and does not affect safety or efficiency.
Figure 1
9.1 Irradiance Specifications
The power output of your unit is dependent on the style and quantity of lamps contained within the
device. The power output of your unit is fixed and cannot be altered by the user. The power output
value of your device, as measured at the factory, is shown on the Power Output Certificate included with
your device literature. The table below represents the possible output range of your unit.
Lamp Style:
High Intensity Discharge
Minimum
Output:
9" Away: 60 mW/cm2(+/- 10%)
Maximum
Output:
9" Away: 100 mW/cm2(+/- 10%)
Note: Irradiance measurements taken with Gigahertz-Optik P-9710-1 Optometer.

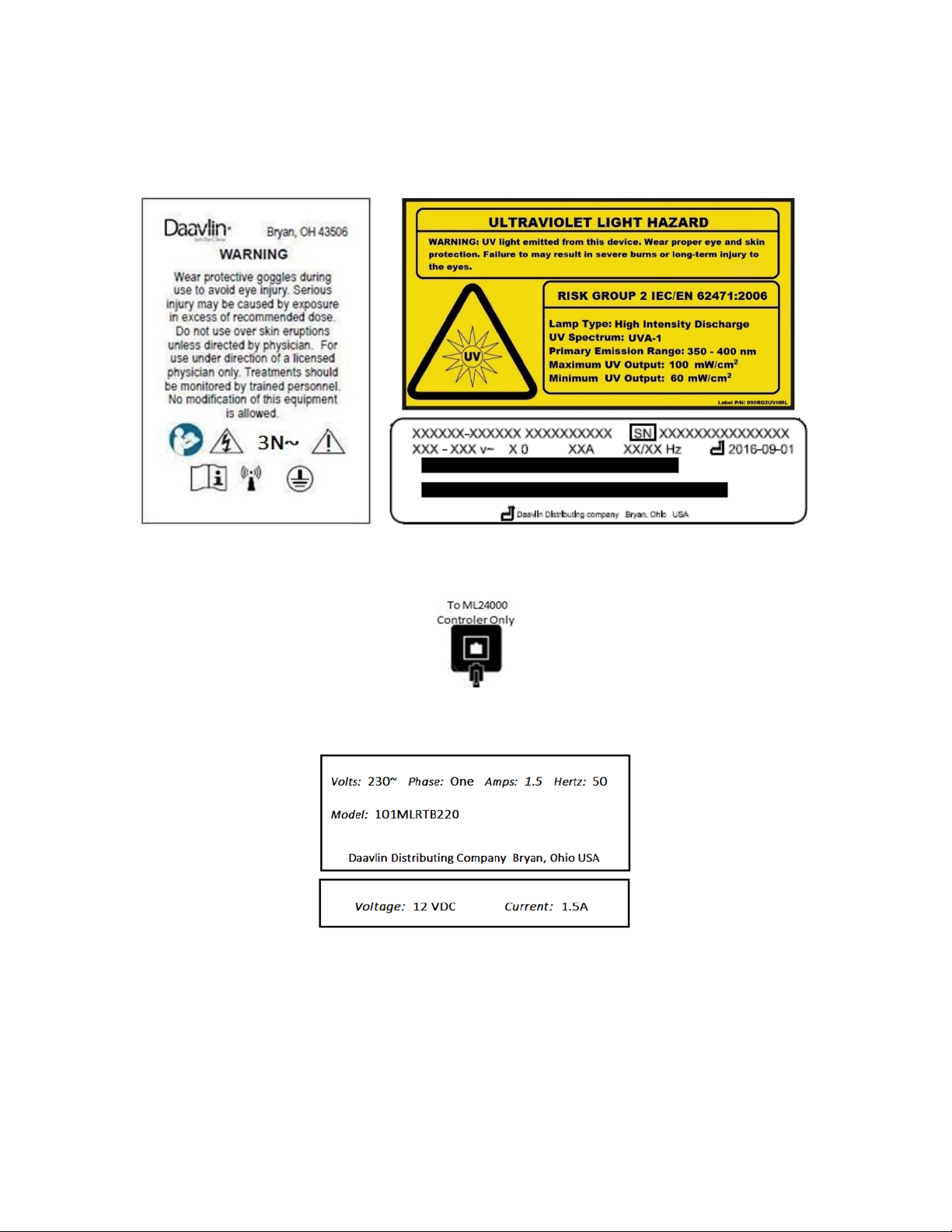

9.2 Labels and Symbols
A warning label is affixed to your device in a prominent and easily readable position. Please read the
label carefully as it contains important safety information for you. According to IEC/EN 62471:2006,
sources of optical radiation are classified into risk groups subject to their potential photobiological
hazard. This device falls under Risk Group 2 (Moderate-Risk) and does not pose a severe hazard due to
the natural aversion response to bright light or thermal discomfort. A Risk Group 2 warning label, which

MNL-00024 [1] Proprietary and Confidential Page 8of 21
also includes the primary emission range and potential output range, is affixed to your device in a
prominent and easily readable position. In addition to the warning labels mentioned above, an
identification label indicates the serial number and date of manufacture that is specific to your device.
The ML24000 features a Data Connection port located on the Device. This port is only to be used as a
data only connection to the ML24000 Flex Controller Box. This data port is identified by the following
label.
The ML24000 Flex Controller Box comes affixed with two additional labels containing important
information regarding the Flex Controller Box model number, system rating, and DC input jack rating.
This information is identified by the following labels.

MNL-00024 [1] Proprietary and Confidential Page 9of 21
The following is a chart detailing all symbols located on the cabinet and their definitions:
DANGEROUS VOLTAGE
!
ATTENTION, CONSULT ACCOMPANYING DOCUMENTS
NON-IONIZING RADIATION
EARTH (ground)
PROTECTIVE EARTH (ground)
ALTERNATING CURRENT
THREE-PHASE ALTERNATING CURRENT WITH NEUTRAL CONDUCTOR
OPERATING INSTRUCTIONS
REFER TO INSTRUCTION MANUAL/BOOKLET
DATA ONLY ETHERNET PORT
L1, L2, L3
PHASE CONDUCTORS

MNL-00024 [1] Proprietary and Confidential Page 10 of 21
10.0 Training Requirements
Phototherapy services require staff that have appropriate training, knowledge, and clinical skills in order
to ensure effective outcomes and quality care for patients. Staff must be assessed as being competent
and safe in order to provide phototherapy treatments that maximize benefit and minimize adverse
effects. Recommended training requirements include:
•Staff should be either a physician, nurse, or any other practitioner licensed by the law of the
state or country in which he/she practices
•Training and experience in dermatology is important to provide holistic patient care. This
knowledge includes:
oAnatomy and the Physiology of the skin
oRecognition and understanding of skin diseases
oSkin assessment
oUnderstanding of photoresponsive diseases
•Theoretical knowledge of phototherapy and its use
•A period of supervised practice for approximately 3 months with a competent practitioner
•Managers should ensure that staff members have, or are provided with, the appropriate level of
training and education needed prior to administering phototherapy services.
11.0 Warnings & Cautions
11.1 Electrical Shock Hazards
•Warning: A qualified, licensed electrician must wire the service for this device in accordance
with all national and local codes and the electrical instructions provided in the accompanying
Service & Installation Instructions manual. Unauthorized personnel should not open the panels.
The Daavlin Service Department should be consulted before any service is performed.
•Warning: Prior to each use, always verify that the device is in correct working order and
operating condition and plugs, sockets, lamps, and electrical cables and connections are not
worn or damaged.
•Warning: Upon detection or discovery of faulty, worn, or damaged component(s), factory
authorized service personnel must replace the component(s) in accordance with the
accompanying Service & Installation Instructions manual and test the device for proper
functionality prior to placing the device in use again.
•Warning: Before opening the device casing to perform maintenance or service, read,
understand, and follow all warnings, cautions, and instructions in this and the accompanying
Service & Installation Instructions manual, both of which are provided with the device.
•Warning: Before opening the device casing to perform maintenance or service, disconnect the
device from the power source.
•Warning: The device must never be directly exposed to liquids of any kind. If the device is
inadvertently exposed to liquid, it must be tested for safe function before being placed in
operation again.

MNL-00024 [1] Proprietary and Confidential Page 11 of 21
•Warning: No modification of this equipment is permitted. Unauthorized modification will void
the warranty and may result in hazardous or improper device operation.
11.2 Ultraviolet Light Exposure & Bodily Injury Hazards
•Warning: All treatments must be administered under the direction of a licensed physician only.
•Warning: To protect the eyes during operation, the operator, patient and anyone in view of the
device must wear UV blocking glasses or tightly fitting goggles designed to block 100% of all UVA
and UVB light from the eye area when worn. Failure to do so may result in severe burns or long-
term injury to the eyes.
•Warning: Serious injury may be caused by exposure in excess of recommended dose.
•Warning: Do not use over skin eruptions without express consent from the attending physician.
•Warning: Do not treat when patient present has noticeable burns.
•Warning: If a patient experiences burning, never treat the patient until the noticeable effects of
burning subside, and always reduce the subsequent treatment time.
•Caution: Trained personnel must monitor all treatments.
•Caution: To protect unaffected skin during operation, the operator, patient and anyone in view
of the device must generously apply UV blocking skin protection to all exposed skin that the
attending physician does not intend to treat with ultraviolet light.
•Caution: Center patients between the lamps during treatment to avoid over exposure to
isolated areas of the body.
11.3 Equipment & Property Damage Hazards
•Warning: A qualified, licensed electrician must wire the service for this device in accordance
with all national and local codes and the electrical instructions provided in the accompanying
Service & Installation Instructions manual. Unauthorized personnel should not open the panels.
The Daavlin Service Department should be consulted before any service is performed.
•Caution: Orient the power cord to protect it from being pulled or otherwise damaged.
•Caution: The device must never be directly exposed to flowing or splashing liquid or water.
•Caution: The device should be placed a minimum of 1 inch (2.5 cm) away from surrounding
walls, devices, and furniture to ensure proper cooling airflow.
•Caution: The room that the device is placed in should be vented to allow free air displacement
to ensure the device and surroundings remain cool.
•Caution: Only original components and accessories should be used with the device to avoid
damage.
•Caution: The device contains glass lamps. Avoid excessive force to the device to prevent lamp
damage.
•Caution: The device control system display is susceptible to damage from excessive force.
Avoid excessive force to the control system to prevent damage.
•Caution: If the device malfunctions, cease operation immediately. If the device is placed close to
other equipment, it is possible that the cause is interference by external noise sources and
fields, in which case you should follow the remedies found under EMC Precautions. If the device
continues to malfunction cease operation and contact the Daavlin Service Department.

MNL-00024 [1] Proprietary and Confidential Page 12 of 21
•Caution: This device is a Class A Medical Device suitable for use in all establishments other than
domestic and those directly connected to the public low voltage power supply network that
supplies buildings used for domestic purposes.
•Caution: This device is designed for intermittent operation only and not for continuous use. The
device should not be cycled continuously. For treatments greater than 20 minutes in duration
the device should be either turned off or left idling for a minimum of 50% of the administered
treatment time, e.g. a treatment lasting 40 minutes in duration should be followed by a cool
down period of 20 minutes.
12.0 Unlocking the Device
To prevent unauthorized use, the device will “self lock” when left idle for twenty (20) minutes. To unlock
your unit follow the instructions below.
1. Press any key to awaken your unit.
2. Your device will display the word “CODE”.
3. The factory preset key code is “0007”. Press the ▲ key seven times. Your unit will now display
“0007”.
4. Press the “ENTER” key to unlock your unit.
13.0 Changing or Disabling the Key Code
If you would like to disable or personalize your factory default key code please contact the Daavlin
service department at 1-800-322-8546 for step by step instructions.
14.0 Flex Timer Instructions
14.1 Determining a Treatment Time
When using time as a dose, there are two treatment methods that can be used. The simplest is to start
at a prescribed time and then increase treatment times by a specific time increment or by a percentage.
Another method is to use the factory power output levels (shown on the Power Output Certificate) to
determine estimated “time equivalents” needed to deliver doses in Joules (UVA-1).

MNL-00024 [1] Proprietary and Confidential Page 13 of 21
To determine a “time equivalent”, consult the laminated Time Chart that is provided and find the power
output on the top row (horizontal axis). The numbers in the left most column (vertical axis) represent a
range of potential treatment doses. Find the dose then trace that row to the right until it intersects with
the column corresponding to the factory power output of the device. The time equivalent is shown where
the two lines intersect. For example, if the factory power output is 8.0 mW/cm2and the dose to be
delivered is 2 Joules, then the appropriate treatment time will be 04:10. A partial time chart illustrating
this is shown on the following page.
Note: For your convenience, and as an alternative to the UV time chart, the latest version of our free
iPhone and Android application “Phototherapy Math” is available for download at the iTunes app store
and Android market. It quickly calculates treatment times, backup safety times, and makes the
calculation of dose and time increases simple. If using a PC, visit www.phototherapymath.com for a web
based calculator and additional information.
14.2 Partial UVA, UVA-1 Time Chart
mW/cm2
5
6
7
8
9
10
12
14
Joules
1.0
03:20
02:47
02:23
02:05
01:51
01:40
01:23
01:11
2.0
06:40
05:33
04:46
04:10**
03:42
03:20
02:47
02:23
3.0
10:00
08:20
07:09
06:15
05:33
05:00
04:10
03:34
The UVA and UVA-1 Time Chart (not shown here) is configured the same as the UVB Time Chart. The doses
are listed in Joules and the energy output levels and times are different than the UVB output levels. Each
chart is clearly marked.
14.3 Setting Up a Treatment Time
To administer a treatment you must enter your desired treatment time. Based on the example above the
treatment time will be 4:10.
1. Press any key to awaken the unit. The word “CODE” will appear.
2. Enter in your key code. Unless you have changed it, the factory preset key code is 0007.
3. Once the key code has been entered, the display should read 00:00.
4. Press the ▲key until the first digit of your desired time is displayed. If the treatment time is one
minute and ten seconds (04:10), the first digit will be a “4”.
5. Press the ◄key to move the “4” one space to the left. The display should read 00:40.
6. Press the ▲key until the next desired number is displayed (“1” in this case). The display should
read 00:41.
7. Press the ◄key to move the “4” one space to the left. The display will now read 04:10.
8. When the desired time is displayed (in this case 04:10) press the ENTER key to lock in your
treatment time.
Put on your goggles and position yourself per the instructions.
→

MNL-00024 [1] Proprietary and Confidential Page 14 of 21
9. Begin the treatment by pressing ENTER.
To repeat the same dose for another exposure, press the END key to clear the display. Then press the
MODE and POWER keys at the same time and release. This will automatically bring up the last treatment
administered. Press ENTER to start the treatment.
Note: The Digital Timer will beep three times to signal the end of a treatment. It will also flash the
treatment time on the display.
14.4 Special Functions of the Digital Timer
•To pause an active treatment press either the END or ENTER key.
•When a treatment is paused the screen will read “HOLD”. To resume a paused treatment press
the ENTER key.
•To end or cancel an active treatment press the END key two times.
•If you make a mistake while entering a dose or backup time, repeatedly press the ◄key until all
zeros are displayed.
•To check the age (in hours) of your lamps press and release the MODE and ◄keys together at the
same time. The lamps must be off to do this.
14.5 Special Notes
•The maximum time that can be entered is 59 minutes and 59 seconds
•It is not possible to enter 60 seconds. You must enter 1:00 minute instead.
•A short beep is sounded for every valid key entered. A long beep is sounded when an invalid key
is entered.
•If power goes off during a treatment, the system will remember how much of the treatment has
elapsed. When power is restored, your device will be on “HOLD”. To continue the treatment,
press START. To cancel the treatment press END.
•The small orange light above the display will be lit when a treatment is in process. It will blink
when the treatment is paused.
14.6 Flex Timer Range and Accuracy
Time Range:
1 Second - 59 Minutes 59 Seconds (00:01 - 59:59)
Accuracy:
+ / - 5%

MNL-00024 [1] Proprietary and Confidential Page 15 of 21
15.0 Treatment Protocols
15.1 MED Testing
The more accurate but more complicated method of determining a patient's initial dose is through MED
testing. Because this is a cumbersome process, many doctors do not wish to determine a patient's initial
dose in this manner. However, before we discuss the procedure in greater detail, let us first define the
terms.
MED stands for Minimum Erythemal Dose and is defined as the minimal dose of UVB that will cause
marked erythema on a patient's skin. As an example, a skin type IV will have an MED somewhere within
the range of 200-600 milliJoules of narrow band UVB. See Protocols for all skin types and ranges.
MED testing results in a more accurate starting point. Because of the subjective nature of a patient's
response to the skin-typing quiz, the empirical method is more subject to error. In many cases, testing will
show that a patient may be more tolerant to ultraviolet than would have been suggested by simple skin
typing.
It is important to start phototherapy patients at as high a dose as possible. Underdosing a patient causes
excessive tanning that means that the patient must undergo more and more aggressive treatment just to
overcome the natural UV screening effect of tanned skin. This results in an excessively high cumulative
dose to clear the patient's disease.
When setting up a UVA-1 patient, the key element in determining exactly how much UVA-1 radiation the
patient will receive is the MED. The first UVA-1 treatment is always a percentage of the MED that has
been entered. Thereafter, each succeeding treatment is some percentage of the preceding dose. Each and
every dose is mathematically related to the MED value,whether this value was determinedby MED testing
or by skin typing.
The following section provides instructions on exactly how MED testing is carried out in the doctor's office.
15.2 MED Testing Procedure
The first stage in performing MED testing is to determine the patient’s skin type. The patient’s skin type
is then used to determine the dosages that will be used to perform MED testing. Many physicians use a
simple table of questions to determine a patient's tolerance to light. The table is reproduced below:
Skin Type
History
Skin Type I
Always burns, never tans
Skin Type II
Always burns, sometimes tans
Skin Type III
Sometimes burns, always tans
Skin Type IV
Always tans, never burns
Skin Type V
Brown skinned (Chinese, Mexican American)
Skin Type VI
Black
Once you have determined the patient’s skin type you can proceed to the testing stage.

MNL-00024 [1] Proprietary and Confidential Page 16 of 21
15.3 Daavlin Dose Patch (sold separately)
The Daavlin Dose Patch is a disposable adhesive MED/MPD test panel. There are six exposure windows
measuring 2cm x 2cm. The panel is applied directly to the patient’s skin like a bandage. The Dose Patch
is hypoallergenic and can be used for all skin types.
15.4 General Instructions for MED Testing
Dose Patch can be used on any part of body. Non-exposed areas of
arms, buttocks and back are common test sites. Protect the patient’s
eyes and cover areas not being tested with UV blocking clothing or
sunscreen. The person doing the testing should also take protective
measures against incidental exposure.
Remove the two adhesive end pieces on the back of the patch. Apply
the patch in the desired location. Make sure it is stretched tightly across
the skin. Use two or more patches if more than six exposure levels are
required.
Determine the doses you will test for (recommended doses below).
Open exposure window #1. Begin the test by exposing entire patch
area to ultraviolet light source. As each dose level is reached, open
exposure windows in consecutive order. The last window opened equals the lowest dose; the first window
opened equals the highest dose.
The patient will need to return in 48 hours to have the test results read for UVA-1. The resulting MED will
now be the initial MED for setting up the patient for the first treatment.
15.5 RECOMMENDED PROTOCOL FOR UVA-1
Irradiation 5 x week for 3 weeks (altogether 15 exposures) Determination of the UVA 1 MED prior to
treatment Start with 1 MED if MED < 70 J/cm2. Increase of the dose by 20 % every time if there is not an
erythematous reaction and by good tolerability until a maximal dose of 70 J/cm2.
NOTE: REFERENCE THE APPLICABLE TIME CHARTS SUPPLIED WITH YOUR ML24000 FOR DOSING TIMES
Daavlin Dose Patch

MNL-00024 [1] Proprietary and Confidential Page 17 of 21
16.0 Care of Your Phototherapy Unit
16.1 Recommended Maintenance Schedule
Action
Frequency
Dusting of the unit and lamps
Once a month
Fully clean all internal
reflectors, lamps, and
protective acrylic
Annually
Power Output Measurement
(Timer Only)
Every 100 hours of use and when lamps are replaced
(Meters can be rented or purchased through Daavlin)
Replace lamps
UVA –Every 500-800 hours of use.
16.2 Cleaning
We suggest using “Monk” Brand Wipes for exterior cleaning as they disinfect and will not harm any
ultraviolet or light transmitting surfaces. These wipes are available for purchase through Daavlin. When
dusting the unit we recommend using a feather duster or a similar non-abrasive cleaning device.
16.3 Cleaning of the Filter
A trained technician should clean the internal filters and cavities of the machine annually. Do not
attempt to clean these filters without proper training, as certain solutions may damage the filters. Only
Daavlin authorized personnel should perform this function.
Allow the filters to cool down.
Use a vacuum to remove dust from black filters on both sides of each lamp column.
Depending on the frequency of use and the location of the unit, the filters may collect dirt. This will impair
UV intensity.
16.4 Relamping
Only Daavlin authorized personnel may carry out lamp replacement
The UV output of the lamps typically degrades to unacceptable levels after 500-800 hours of use. Only
use the replacement lamps specified in this manual when relamping. Although other lamps may fit and
light, they may also produce excess amounts of UVB which could be harmful to the patient. Always return
lamp filters to their original position after relamping. Follow all federal and local regulations when
relamping and disposing of discarded lamps.
Note: Always measure lamp intensity before and after lamp replacement. It is important to notify
everyone concerned that the lamps have been replaced as patient exposure times may need adjusting.

MNL-00024 [1] Proprietary and Confidential Page 18 of 21
16.5 Removing and Fitting Lamps
1. Measure lamp intensity of current lamp before replacement.
2. Switch the lamp off; allow the lamps to cool down.
3. Turn unit off at the breaker.
4. Remove the air filter brackets and acrylic from each column.
5. Put on latex gloves when handling filters and lamps.
6. Remove the three clear filters from each column and place in safe location.
7. Remove the six colored filters from each column and place in safe location.
8. Grasp the end of the lamp and pull from lamp socket.
9. Insert the new lamps into the lamp sockets.
10. Replace the filters in reverse order that they were removed.
11. Replace the air filter brackets and acrylic for each column.
12. Reconnect the unit at the breaker.
13. Switch on the unit and measure UV intensity in order to be able to redefine the necessary
exposure times.
Notify all those involved with the unit’s operation of the lamp replacement as patient exposure times
may need adjusting.
16.6 Resetting Your Lamp Hours
Whenever the lamps are changed in your device, it is important to reset the lamp age to zero.
To Reset lamp hours to zero when installing new lamps, take the following steps:
Press MODE, then ◄and ENTER all at the same time
Then…
Press ▲
Then…
Press ENTER
Then…
Press MODE and ◄at the same time
Then…
Press END

MNL-00024 [1] Proprietary and Confidential Page 19 of 21
16.7 Troubleshooting
Problem
What To Do
Deposits in the glass cylinder
of the lamp
It is quite normal for deposits to collect in the glass
cylinder of the lamp after the lamps have been
switched off. These deposits are the result of the
metal halide precipitating inside the lamp when it
cools down. They will disappear completely once
the lamp is switched on and warms up again.
The lamp does not ignite.
When troubleshooting the problem, please note in
certain, rare cases, it may take up to 2 minutes for a
lamp to ignite (such a lamp will ignite normally once
it has been ignited several times).
*Make sure that the main switch is on.
*Make sure the unit is properly plugged in. (Check
all plug connections.)
*Check all fuses in the unit and the building.
*If the lamp is defective, change the lamp.
*If the ignition unit is defective, contact the Daavlin
Service Department.
*If it is impossible to ignite the lamp or if the lamp
produces only a weak, bluish light, switch the device
off immediately to prevent damage to the ignition
units. Contact Daavlin Service Department.
Filters have slipped or are
defective
Never operate the unit if the filters have slipped or
are defective. Switch the device off. Contact
Daavlin Service Department.
16.8 Spare Parts and Accessories
Description
Daavlin Part No.
Metal Halide High Pressure Lamp, 1000 W
101MLLAMP
Colored Filter (260mm x 230mm)
100MLFLTRGLSRD
Clear Filter Filter (639mm x 292mm)
100MLFLTRGLSCLR
UVA-1 Irradiance Meter
925GOX97
Dose Patch (box of 100)
101MTDP100
Cleaning Wipes
908WPDISMNK
UV Safety Glasses –Fit Over Green
905GR
UV Safety Goggles with Elastic Band –Red
101RDG

MNL-00024 [1] Proprietary and Confidential Page 20 of 21
17.0 Warranty
17.1 Limited Warranty Policy
This Limited Warranty is provided to the original purchaser (the “Purchaser”) of the Daavlin device (the
“Equipment”). Daavlin warrants Equipment to conform with the Equipment specifications and be free
from defects in material and workmanship during the device Warranty Period. No warranty is made as
to useful lamp life or as to reduction in ultraviolet output due to any cause. DAAVLIN MAKES NO OTHER
WARRANTIES OF ANY KIND WHATSOEVER TO PURCHASER OR ANY THIRD PARTIES WITH RESPECT TO
THE EQUIPMENT AND HEREBY EXPRESSLY DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE.
Product
Warranty Period
New Equipment
1 Year
Remanufactured Equipment
90 Days
Lamps
90 Days
17.2 Warranty Coverage
This Limited Warranty applies only to Equipment or components found to be defective due to materials
and workmanship. This Limited Warranty does not apply when Equipment is purchased for the purposes
of renting commercially to customers for home use. This Warranty does not apply to any Equipment
which has been used, repaired or altered outside the factory in any way so as to affect the design, or
operated in any way other than in accordance with our operating instructions. The Limited Warranty
does not apply to Equipment failure or damage caused by shipping or customer abuse, misuse, or
accident, incorrect customer installation, improper electrical service, lack of proper maintenance, and
Acts of God. This Limited Warranty does not extend to repairs made necessary by use of parts or
accessories not recommended by the manufacturer. Daavlin shall not be responsible for any indirect,
incidental, special, punitive, or consequential damages of Purchaser. Daavlin does not provide end
support for Microsoft Windows software installed on PCs that are part of a Daavlin phototherapy
system. PURCHASER’S SOLE REMEDY UNDER THIS LIMITED WARRANTY IS REPAIR OR REPELACMENT OF
THE EQUIPMENT.
17.3 Customer Responsibility
In the event that warranty service is requested, the Purchaser must reasonably cooperate with Daavlin
to verify the warranty claim of the Purchaser, including conducting minor diagnostic work. Failure to
participate in diagnostic work may result in being charged for on-site service calls. The Purchaser must
allow Daavlin, at Daavlin’s option, to inspect the Equipment or component parts on request.
17.4 Warranty Service
During the warranty period, Daavlin will, at Daavlin’s option, repair or replace any Equipment or
components that appear to have been defective in material or workmanship, with new or
remanufactured materials. Daavlin may require the return of merchandise claimed to be defective for its
examination and shall be the sole judge as to whether material is in fact defective under the terms of
this Limited Warranty. In such situations, Daavlin will cover freight expenses in the continental USA to
ship products covered under warranty both to and from Daavlin’s servicing center if the product fails
