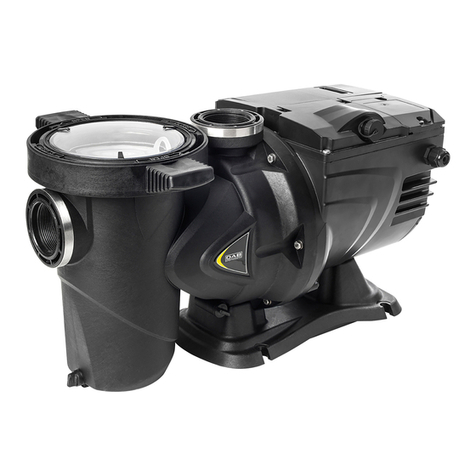

DAB E.SWIM Operating and maintenance manual

INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE
E.SWIM
E.PRO

ENGLISH
32
INDEX
KEY..................................................................................................................................................................33
IMPORTANT WARNINGS AND SAFETY RECOMMENDATIONS................................................................33
RESPONSIBILITY ...........................................................................................................................................36
1GENERAL ................................................................................................................................................36
1.1Description.......................................................................................................................................36
1.2Technical characteristics................................................................................................................37
2INSTALLATION........................................................................................................................................37
2.1Hydraulic connections....................................................................................................................37
2.2Electrical connection to the supply line........................................................................................38
2.3Electrical connections for auxiliary inputs and outputs .............................................................39
3THE OPERATOR PANEL........................................................................................................................40
3.1Keyboard and Display.....................................................................................................................40
3.2Main page of the display (homepage) ...........................................................................................41
4Commissioning.......................................................................................................................................42
4.1Priming .............................................................................................................................................42
4.2Guided configuration (WIZARD) ....................................................................................................42
5SWITCHING ON AND USING THE PUMP..............................................................................................43
5.1Operating mode...............................................................................................................................43
5.1.1 Regulating modes...........................................................................................................................43
5.1.2 Command modes ...........................................................................................................................44
5.2Rapid starting and stopping of the pump ("Manual" mode).......................................................45
5.3Rapid changing of the setpoint and of the pre-set parameters..................................................46
5.4Advanced use (“Auto” mode) ........................................................................................................46
6SELECTING THE PREFERRED modes (menu)....................................................................................47
6.1Menu access and navigation..........................................................................................................47
6.1.1 Appearance and opening page of the menu ..................................................................................47
6.1.2 Access to a sub-menu ....................................................................................................................47
6.1.3 Changing a parameter in the menu................................................................................................48
6.2Menu structure.................................................................................................................................50
6.2.1 Settings...........................................................................................................................................51
6.2.1.1 WIZARD (loaded from the menu)................................................................................................51
6.2.1.2 Languages...................................................................................................................................51
6.2.1.3 Day & Time..................................................................................................................................51
6.2.1.4 Unit of Measure ...........................................................................................................................51
6.2.1.5 Pump Limits.................................................................................................................................52
6.2.1.6 Screen adjustment.......................................................................................................................52
6.2.1.7Password.......................................................................................................................................52
6.2.2 Set Points 1-4 .................................................................................................................................53
6.2.3 Set Points 5-8 .................................................................................................................................53
6.2.4 Quick Clean ....................................................................................................................................54
6.2.5 Timers.............................................................................................................................................54
6.2.5.1 Timer Settings..............................................................................................................................55
6.2.5.2 Timer daily summary ...................................................................................................................55
6.2.6 External Control..............................................................................................................................56
6.2.6.1 Configuration of the Inputs...........................................................................................................56
6.2.6.2 Configuration of the Outputs........................................................................................................56
6.2.7 Priming............................................................................................................................................56
6.2.8 Antifreeze (Protection against water freezing in the pump)............................................................57
6.2.9 Anti-Lock (Protection against mechanical blocking of the pump)...................................................58
6.2.10 Fault History..................................................................................................................................58
7PROTECTION SYSTEMS – LOCKS (FAULT)........................................................................................59
7.1Manual reset of error conditions....................................................................................................59
7.2Automatic reset of error conditions ..............................................................................................59
7.3Viewing the block history ...............................................................................................................59
8Factory settings......................................................................................................................................60
8.1Restoring the factory settings........................................................................................................61
9Troubleshooting......................................................................................................................................61
10Maintenance............................................................................................................................................62
11DISPOSAL................................................................................................................................................62
12GUARANTEE...........................................................................................................................................62

ENGLISH
33
KEY
The following symbols have been used in the discussion:
Situation of general danger. Failure to respect the instructions that follow may cause harm to persons and
property.
Situation of electric shock hazard. Failure to respect the instructions that follow may cause a situation of
grave risk for personal safety.
Notes and important remarks.
IMPORTANT WARNINGS AND SAFETY RECOMMENDATIONS
This manual concerns the product DAB E.SWIM / E.PRO.
GENERAL RISK FACTORS
Before installation, carefully read this manual which contains important information for use of the product.
This document must be kept so that it can also be consulted afterwards.
Installation and operation must comply with the local safety regulations in force in the country in which the
product is installed.
Everything must be done in a workmanlike manner.
Failure to respect the safety regulations not only causes risk to personal safety and damage to the
equipment, but invalidates every right to assistance under guarantee.
INSTALLATION AND SERVICING BY SKILLED PERSONNEL
It is advisable that installation be carried out by competent, skilled personnel in possession of the
technical qualifications required by the specific legislation in force.
The term skilled personnel means persons whose training, experience and instruction, as well as their
knowledge of the respective standards and requirements for accident prevention and working conditions,
have been approved by the person in charge of plant safety, authorizing them to perform all the
necessary activities, during which they are able to recognize and avoid all dangers. (Definition for
technical personnel IEC 60364.)
We suggest special maintenance at least once a year by qualified personnel.
USE ONLY BY COMPETENT PERSONS
The appliance may be used by children over 8 years old and by persons with reduced physical, sensory
or mental capacities, or who lack experience or knowledge, on condition that they are under supervision
or after they have received instructions concerning the safe use of the appliance and the understanding
of the dangers involved. Children must not play with the appliance. Cleaning and maintenance intended
to be carried out by the user must not be performed by children without supervision.
MECHANICAL SAFETY
NEVER LET THE PUMP RUN WITHOUT WATER.
Water also performs the functions of lubricating, cooling and protecting the seals: dry running can cause
permanent damage to the pump and will void the guarantee.
Always fill the filter before starting the pump.

ENGLISH
34
‐Protect the pump from unfavourable weather conditions.
‐For long periods of inactivity or frost, remove all the caps and completely drain the pump body. Keep
the caps!
‐To use as an outdoor pump, provide suitable protection and install the pump on an insulating base at
least 100 mm high.
‐Store the pumps in a dry covered area, with constant air humidity.
‐Do not wrap the motor in plastic bags! Risk of condensation!
‐If testing the seal of the pipes at a pressure higher than 2.5 bar, exclude the pump (close the gate
valves before and after the pump).
‐ATTENTION: do not lubricate the O-ring gasket of the transparent cover with oil or grease.
‐Use only water and neutral soap to clean the transparent cover, do not use solvents.
‐Periodically inspect and clean the pump filter.
‐With the pump under the water level, close the gate valves on suction and delivery before removing the
filter cover.
The pumps may contain small quantities of residual water from testing. We advise flushing them briefly
with clean water before their final installation.
ELECTRICAL SAFETY
Use is allowed only if the electric system is in possession of safety precautions in accordance with the
regulations in force in the country where the product is installed (for Italy CEI 64/2).
All repair and maintenance work must be carried out only after having disconnected the pump from the
power supply mains.
RISKS LINKED TO HEATING
When the machine is operating, touch only the parts for settings and controls (operator keyboard): the
other parts can reach temperatures higher than 40°C.
Keep inflammable materials far away from the machine.
Run the machine in ventilated environments.
TYPES OF PUMPED LIQUIDS ALLOWED
The machine has been designed and made for pumping fresh or salt water from swimming pools, clean
or slightly dirty, with a limited content of fibres and small suspended solid particles.
The water temperature must not be higher than 40°C / 105°F.
DO NOT USE THE PUMP WITH LIQUIDS WITH DIFFERENT CHARACTERISTICS!
Use of the pump with a concentrated amount of sand can cause early wear and decreased pump
performance.
Do not add swimming pool chemicals (such as disinfectants, water treatment substances, etc.) directly
to the pump or in front of the pump inlet: undiluted chemicals are aggressive and can damage the pump,
while also voiding the guarantee.
SPECIFIC RISKS FOR SWIMMING POOLS, BATHING POOLS AND SIMILAR
Special warnings for the United States of America (U.S.A.):

ENGLISH
35
SAFETY WARNINGS:
Suction entrapment hazard. Can cause serious injury or death.
To reduce the risk of entrapment the pump must be installed in accordance with the latest
federal, state and local swimming pool codes and must be connected to a minimum of two
functioning suction outlets per pump or otherwise installed in accordance with the latest
APSP-7 standard.
Do not operate pump if any suction outlet cover is damaged, broken, missing or not securely
attached.
The use of an approved ASME A 112.19.17 safety vacuum release system (SVRS) is
recommended and may be required under federal (U.S.), state or local law.
This pool motor is NOT equipped with a Safety Vacuum Release System (SVRS).
SVRS helps prevent drowning due to body entrapment on underwater drains.
In some pool configurations, if a person’s body covers the drain, the person can be trapped by
suction.
Depending on your pool configuration, a SVRS may be required to meet local, state, and
federal requirements.
For information regarding SVRS requirements and the Virginia Graeme Baker Pool and Spa
Safety Act visit www.cpsc.gov
Entrapment hazard
In swimming pools, bathing pools and similar facilities, the water recycling drains cause strong suction
when the pump is activated. In this situation there is a serious risk: if a person (especially a child) covers
the drain with his body, he could be trapped and held under water until he drowns.
There could be the same tragic outcome if long hair were caught in the drain, trapping the bather’s head
under water.
A
lso necklaces, parts of swimming costumes or clothing and other objects used in the pool
(for example a small life-belt) can be sucked into the drain, blocking the body of the wearer under water,
with extreme consequences.
Evisceration hazard (by suction)
The circumstance of strong suction can cause the partial entrapment of limbs and organs, with
extremely serious and sometimes fatal consequences.
This is a real risk: in the USA there were 74 documented cases of entrapment and evisceration between
1990 and 2004 (Source: CPSC, USA 2005).
It is therefore obligatory and indispensable to respect all the applicable national and local regulations.
Particular care must be taken in checking periodically that the grids on the suction openings are intact
and clean.
Over time, the grids become deteriorated due to age, contact with water and exposure to the sun and to
atmospheric agents: they must be checked regularly and with the greatest care, immediately evacuating
people from the area if damage is found.
Dangerous pressures
During any operation on the system, air can get in and be pressurized. Compressed air can cause the
sudden opening of the cover and cause damage, injuries and even death.
DO NOT RELEASE OR WORK ON THE COVER WHEN THE PUMP IS UNDER PRESSURE.

ENGLISH
36
Use only for fixed facilities of swimming pools and bathing pools. Do not use for seasonal facilities that
can be dismantled (that is, where the water retaining walls are deflated or disassembled in winter).
RESPONSIBILITY
The Manufacturer does not vouch for correct operation of the electropumps or answer for any damage that
they may cause if they have been tampered with, modified and/or run outside the recommended work range
or in contrast with other indications given in this manual.
The Manufacturer declines all responsibility for possible errors in this instructions manual, if due to misprints or errors
in copying. The Manufacturer reserves the right to make any modifications to products that it may consider necessary
or useful, without affecting their essential characteristics
1 GENERAL
1.1 Description
The system consists of a centrifugal pump and an electronic inverter with advanced control software. It offers a
powerful and flexible system for the automation of the water flow for swimming pools, spas, bathing pools and other
applications.
The pump is particularly efficient. The presence of the inverter allows considerable energy saving, and therefore
economic advantages and protection for the environment; it also allows the complete automation and programmability
of switching on, which can be configured easily and rapidly by means of the wide built-in screen and convenient
keyboard.
Figure1

ENGLISH
37
1- User panel cover
2- User panel
3- QR code
4- Quick guide
5- Terminal board cover
6- External connector
7‐Power cable inlet
Figure 2
1.2 Technical characteristics
The technical characteristics are summed up in the table below.
Topic Parameter E-SWIM
ELECTRIC POWER
SUPPLY Voltage 220-240 V +/- 10%
Frequency 50/60 Hz
Maximum current 5.6 SFA
Maximum power 1250 W
CONSTRUCTION
CHARACTERISTICS Overall dimensions 574 x 310 x 316 mm / 22.6 x 12.2 x 12.4 in
Empty weight (excluding packaging) 18 kg / 39 lb
Protection class IP55
Motor insulation class F
HYDRAULIC
PERFORMANCE Maximum head 16 m / 52 ft
Maximum flow rate 32 m3/h / 141 gpm
Maximum working pressure 2,5 bar
WORKING
CONDITIONS Max liquid temperature 40°C / 104°F
Max ambient temperature 50°C / 122°F
Table 1 – Technical Characteristics
2 INSTALLATION
The system must be used preferably in the technical area for installing swimming pool pumps.
In no case must it be run if exposed without protection to atmospheric agents.
The place of installation must be well ventilated.
2.1 Hydraulic connections
Follow these recommendations with care:
Install the pump horizontally, on a flat and sturdy base, as close as possible to the edge of the pool.
The pump is able to overcome a maximum difference in level of 4 m (with non-return valve).
Install the filter and the pump in a protected, well ventilated place.
Avoid letting the motor be immersed in water.
For pump-system connections use only adhesives suitable for plastics.

ENGLISH
38
Provide adequate support for the suction and delivery pipes so that they do not weigh down on the
pump.
Do not make the couplings between the pipes too tight.
Suction pipe diameter > = pump inlet diameter.
If a metal pipe is connected, fit a plastic coupling on the pump inlet.
The suction pipe must be perfectly airtight.
ATTENTION: before connecting the pipes, check that their inside is clean.
To avoid problems in suction, install a foot valve and make a positive slope of the suction pipe
towards the pump.
2.2 Electrical connection to the supply line
Figure 3
To improve immunity to the possible noise radiated towards other appliances it is recommended to use a separate
electrical duct to supply the product.
Attention: always respect the safety regulations!
Electrical installation must be carried out by an expert, authorised electrician, who takes on all
responsibility.
The system must be correctly and safely earthed as required by the regulations in force.
The mains voltage must be the same as that on the motor data plate.
Connect to the mains with a two-pole switch, with contact opening distance of at least 3 mm.
The thermal magnetic circuit breaker and the power cables must be correctly sized.
The leakage current to earth is max. 3.5 mA. It is recommended to use a type B differential switch. The
system must be adequately sized. The pump must be fed by means of an isolation transformer or a
differential switch, which must have a differential operating current no higher than 30 mA.
The mains terminals may still have dangerous voltage when the motor is stopped and for a few minutes
after disconnecting from the power mains.
The line voltage may change when the electropump is started. The line voltage may undergo variations
depending on other devices connected to it and on the quality of the line.

ENGLISH
39
2.3 Electrical connections for auxiliary inputs and outputs
The pump has a connector for configurable user inputs and outputs.
Figure 4
The output is made from a relay (clean contact), with the following electrical characteristics.
Characteristics of the output contacts
Type of contact NO (normally open)
Max. bearable voltage [V] 24Vac / 24Vdc
Max. bearable current [A] 2A -> resistive load
1 A -> inductive load
Max. bearable power 2.5VA / 2W
Table 2 - Output contact
The functions that can be activated on the output contact are described in paragraph 6.2.6.2.
The following inputs are available (see also par. 6.2.6.1):
1. A digital input, with clean contact (maximum voltage 5Vdc, maximum current 1mA); the closed contact means
"run", the open contact means "stop".
2. An input for an external analog signal, configurable as 0-10V or 4-20 mA .
The following figure shows the relationship between the analog signal on input and the setpointSP to be activated.
See the following parts of this manual for further information on operation.
Figure 5
The inputs are not opto-isolated.
To connect to the input and output connector, use only the cable kit with code DAB 60172444. The
details of the connector and of the connection are included in the kit.

ENGLISH
40
Attention: keep the cable for the input and output signals well away from the power and alternate supply
lines (230V and similar), so as to limit disturbances and interference that can alter the signals.
When it is not in use, the connector on the pump must be kept accurately closed, with the cap well
tightened. Only in this way is the necessary resistance to water and damp guaranteed.
3 THE OPERATOR PANEL
3.1 Keyboard and Display
Figure 6
Description of the elements:
1. LCD graphic screen
2. (Six) LED warning light indicating the active function; each LED indicates the activation of the key next to it.
3. LED red warning light ( ), for alarm indication (fault).
4. LED white warning light ( ), lit to indicate that the board is live; if it is blinking, it means that the board is live,
but the pump is not enabled (see “RUN/STOP” key below).
5. LED green warning light ( ), indicates that the pump is running.
6. (Four) keys “SET 1-4” for manual control of switching on, for directly selecting (or deselecting) a set flow or
speed (setpoint).
1.
2.
6.
7.
10.
13.
5.
4.
3.
12.
11.
9.
8.

ENGLISH
41
The table in chapter 8 shows the factory values of the setpoints associated with the keys from “SET1” to
“SET4”. These values are suitable for most installations, but they can be easily changed if desired (see
6.2.2).
7. Key for activating “QuickClean” mode, to command quick cleaning or quick recirculating with a high flow rate.
8. Key for enabling “Auto”, mode, for activating the automatic control of the pump (which may be timed (“Timers”)
or given by external signals (“EXT”).
9. Keys for navigating and accessing the menus:
the “ENTER” key allows you to access the menus and the items on which you are positioned;
the “arrow” keys allows you to move about on the display or in the active menu, and to select an item;
they also allow you to change the value of the selected item.
10. “OK” key, to confirm and to leave without saving the changes made.
11.“ESC” key, to cancel any changes and leave (without saving).
12. “Reset” key, to cancel the alarms (faults) that may be in progress.
13. “RUN/STOP” key, to enable or disable running of the pump; the pump enabled status is indicated by the
steady lighting of the white LED , which blinks if running of the pump is disabled.
When the pump is running (green LED lit), the pump stops if “RUN/STOP” is pressed, whatever the
operating condition, in both “Manual” and “Auto” mode.
However the “RUN/STOP” control is not direct starting control, but only an enabling: if it is pressed with
the pump stopped (green LED off), the pump starts only if a mode is active that contemplates switching
on at the current moment.
In STOP condition, when the white LED is blinking, the pump can never stop until “RUN/STOP” is
pressed.
The only exceptions:
- the “Antifreeze” function can start the pump even in STOP status, to avoid breakages due to frost (see
paragraph 6.2.8);
- the “Antilock” function can start the pump even in STOP status, to avoid metchanical blocking of the
impeller after long inactivity (paragraph 6.2.9).
The keyboard can be blocked with a (“Password”; in this way access to the functions can be restricted, to avoid
undesired intervention. See paragraph 6.2.1.7.
3.2 Main page of the display (homepage)
This is the appearance of the home page, which appears on the display in normal operating conditions and sums up
all the information on system operation.
1. 
2. 
3. 
Figure 7
The information forms three groups:
1. The status lines (at the top) provide information on:
othe status (running, stopped) along with the current command (SET1 – SET3, QC, Timer A-H, etc.), or
any active Warnings and Faults; in the example in the figure: “System Running” indicates that the
system is active, commanded by “TIMER A”.
othe active setpoint value (“SP”) and the expected time of the end of the active function (“End”).
2. The instantaneous values of the electrical and hydraulic magnitudes, which are grouped in the space in the
centre of the screen and continuously updated during operation.
3. The rapid access bar (at the bottom): contains the date and time with some icons; you navigate on these
elements with the right arrow and left arrow keys, and move the selection (highlighted by the box), then press
“ENTER” [ ] to go to the selected item.

ENGLISH
42
This gives simple and direct access to the items used most frequently, without having to scroll through the
menu. These are the items available and the functions accessed:
o“Configuration” Menu access (see chapter 6),
oCurrent "Date and time" direct change of date and time (paragraph 6.2.1.3),
o“Timer” access to the Timers (paragraph 6.2.5),
o“Key” (or padlock) direct access to the protection system with Password, described in paragraph
6.2.1.7; the symbol represents the current status:
(key) Password not entered, free access to all functions;
(closed padlock) Password entered and active, access to the control keys is prevented
(except the “STOP” key);
(open padlock) Password entered but temporarily deactivated, access is temporarily
allowed.
4 COMMISSIONING
4.1 Priming
Installation below water level:
Fit one gate valve in the suction pipe and one in the delivery
pipe to isolate the pump.
Fill the pump, slowly and completely opening the gate valve
in the suction pipe, and keeping the gate valve on delivery
open to let the air out.
Figure 8
Installation above water level:
If there are several suction pipes, arrange the pipes and the
manifold below water level and reach the pump with only
one vertical pipe.
To reduce the priming time, it is recommended to install the
pump with as short a suction pipe as possible.
Fill the basket of the filter with water up to the level of the
suction mouth.
Figure 9
4.2 Guided configuration (WIZARD)
When switched on for the first time, the device proposes to perform the WIZARD easy configuration, which guides the
user in a fast and easy setting of the most important parameters.
It is necessary to perform the WIZARD: the initial system status is that of the factory configuration, and in
that the language and the units of measure may not be those used in your country, the weekly clock
starts at a random time, and the other parameters may not be suitable for your system.
If you need to revise all these parameters quickly at a later date, you can reload the WIZARD by
selecting a specific item on the menu (paragraphs 6.2 and 6.2.1.1).
The WIZARD presents the following pages in sequence:
1. Select Language (see also par. 6.2.1.2)
2. Select time display mode (24h or am/pm)

ENGLISH
43
3. Set current time
4. Set current day
5. Set Unit of measure of head
6. Set Unit of measure of flow
7. Set Unit of measure of temperature
8. Selecting Regulating Mode
9. Select maximum limit of flow (Qmax) (see also par. 6.2.1.5)
10. Select maximum limit of head (Hmax)
11. Final confirmation
Each page of the Wizard presents a single parameter to configure, starting from the language.
Title Page in the Wizard
(this is page 1 of a total of 11 pages)
Keys to use
(the arrows are not shown) Figure 10
As well as the title, the page shows these indications:
symbol “1/11”: indicates the current page number (1), out of the total pages of the WIZARD (11), and of
course it changes from one page to the next;
in the centre of the page is the list (or menu) of the various languages available, and the box shows the
language currently selected;
the vertical bar, represented on the left, shows the position where we are on the list (or menu) of the
languages available; in the example, we are in the first position and the sign on the bar is at the top;
the keys to use are indicated at the bottom (as well as the arrows which, for simplicity, are not shown):
o“OK” key [ ]: confirms any changes made and allows you to proceed to the next page;
o“ESC” key [ ]: cancels any changes made; when you press it again, or if no changes have been
made, it returns to the previous page.
As is intuitive, use the up arrow and down arrow keys to scroll through the list of languages to select the one you want,
then press “OK” [ ]. The selected language is activated and you proceed to the next page (number 2/11) of the
WIZARD.
On some pages, such as the one with hours and minutes, the arrows also allow you to change the value displayed.
After having chosen the units of measure and, if necessary, set the limits of the flow rate and head, a page is shown
telling you that the Wizard is complete. By pressing “ESC” you can go back to review or change the settings; by
pressing “OK” you leave the Wizard and proceed to normal pump operation.
5 SWITCHING ON AND USING THE PUMP
5.1 Operating mode
5.1.1 Regulating modes
The following diagram shows the indicative curves of the system’s hydraulic performances.

ENGLISH
44
Head H
ft m
100%
70%
20% m3/h
US GPM
Flow Q
Figure 11
The inverter automatically regulates the rotation speed of the pump, shifting the work point, as necessary, to any part
of the area subtended by the maximum curve (100%).
Regulation during pumping can takes place in flow control mode or in fixed curve mode.
‐In “flow control” (“Flow”) the system assesses the instantaneous flow of water and varies the pump speed so that
the flow corresponds to the setpoint, expressed in this case in “m3/h” (cubic metres per hour) or “GPM” (US
gallons per minute). In this mode, the work point moves (ideally) on a vertical line, corresponding to the flow value
chosen.
‐In“fixedcurve”mode(“Speed %”), thesetpoint(expressedasapercentage“%”) indicatestheoperatingcurve
onwhichyouwanttobepositioned. As can be seen in the figure, the operating point then moves following the
trend of the curve chosen, which is similar to the trend of fixed speed curves in traditional pumps.
Generally, when the work point falls below the maximum curve, the system reduces the absorbed power and thus
decreases the energy consumption.
5.1.2 Command modesThe system can operate in two control modes: “Manual” mode and “Auto” mode.
In “Manual” mode:
the operator manually commands the switching on of the pup by pressing the keys from “SET1” to “SET4” or
“QuickClean”;
the LED next to the key that has been pressed lights up (for example, if “SET1” is pressed the LED above this
key is lit).
In “Auto” mode:
switching on and off are automatically commanded by Timers, which can be programmed as desired on a
weekly basis, or by signals arriving from an external control unit (“EXT”).
This mode is disabled when the system leaves the factory.
To activate it, you must first of all configure the necessary parameters (see 6.2.5 and 6.2.6), and then press the “Auto”
key (the respective LED lights up).
“Manual” mode and “Auto" mode can also be used simultaneously; in this case, as will be described
better below, the automatism ("Auto") remains active in the background but, if necessary, it can be
temporarily overridden by a manual command, which has precedence.

ENGLISH
45
5.2 Rapid starting and stopping of the pump ("Manual" mode).
The pump leaves the factory and is delivered with Priming enabled: if the programming of Priming is not
changed (see par. 6.2.7), when switched on for the first time, the pump may start at top speed.
Before pressing “RUN/STOP”, make sure that the valves are open, the pipes are not blocked, and keep
away from the filter and from parts that can be pressurized.
Check well all the IMPORTANT SAFETY WARNINGS AND RECOMMENDATIONS.
Once the first configuration has been carried out with the WIZARD (in conditions with the white LED blinking and
the “Auto” LED off), starting the pump is very easy:
press the key from “SET1” to “SET4” corresponding to the desired setpoint (e.g. “SET1”), or the “QuickClean”
key; the LED corresponding to the key pressed lights up, indicating the selection made;
press “RUN/STOP”.
At this point, switching on is enabled and the pump starts; the green running LED lights up, while the white LED
is lit with a steady light (indicating that now the system is active).
The system performs startup: the pump starts at a fixed speed (50%) for a few seconds.
Startup is necessary for the pump to switch on correctly, and it is always performed at each start of the
motor.
Priming is then performed (par. 6.2.7), if it is enabled (according to factory setting).
After that, the pump continues to run according to the setpoint associated with the “SETx” or “QuickClean” function
used (in the example, the “SET1” setpoint).
The factory values are given in chapter 8.
For the “SETx” keys, it is easy to change the setpoint (choosing also between flow or speed) and the
other characteristics (duration) by means of the menu (see 6.2.2).
Also the operation associated with the “QuickClean” key can be customized (see 6.2.4).
Pressing a “SETx” or “QuickClean” key puts the pump into “Manual” mode, which has precedence over
“Auto” mode: even with “Auto” active (“Auto” LED on), pressing a “SETx” or “QuickClean” key will start
the pump with the setpoint associated with the key.
An execution time or duration is also associated with each “SETx” function and with “QuickClean”.
The following events may occur while the pump is running:
the end of the time (or duration) associated with the “SETx” or “QuickClean” key selected previously is
reached,
or the same “SETx” or “QuickClean” key is pressed again;
in both cases, the key function ceases, its LED switches off, and the pump stops.
However, if the “Auto” function was active in the background (“Auto” LED lit), it now takes control of the
machine, deciding either to switch off the pump or to switch on with another setpoint, depending on the
programming made. So the pump might not switch off.
It is very easy to stop the pump manually: with the pump running, just:
press “RUN/STOP”.
the pump thus stops in any case (*), interrupting all active modes (this means that also “Auto” mode, which may have
been active in the background, switches off); the green running LED switches off. The white LED starts to blink,
indicating that the system has been disabled.
When “RUN/STOP” is pressed again, the system is re-enabled and everything is restarted; the white LED is now lit
with a steady light.
(*) The only exceptions: the Antifreeze and Antilock functions start the pump even if the system is disabled (see
paragraphs 6.2.8 and 6.2.9).
After a blackout during operation in Manual mode, the system does not restart unless the SETx key that
was lit had the duration “ENDLESS”. In this case, the system restarts with the same setpoint as before.

ENGLISH
46
5.3 Rapid changing of the setpoint and of the pre-set parameters
When the pump is running with a “SETx” key pressed (as described above):
pressing a“SETx”keydifferentfromtheactiveone(e.g.“SET3”, while“SET1”, isactive)willperformthe
setpointofthenewkey(forthewholerespectiveduration)andthelightingoftheLEDschangesaccordingly;
instead, by pressing the up arrow and down arrow keys, you can increase of decrease the flow or speed
(setpoint) at which the pump is operating. The setpoint value is shown on the display on the homepage (see
par. 3.2).
The modified value is stored automatically in the same “SETx” key currently selected (the one with the LED lit).
Also if “QuickClean” has been pressed and the pump is running, the setpoint can be changed with the arrow keys as
described above; the new value is saved directly in the “QuickClean” key.
Both a setpoint and an execution time (or duration) are associated with each “SETx” and “QuickClean”
key. Unlike the setpoints, the times cannot be changed with the quick method described above;
however, they can be changed easily (see 6.2.2 and 6.2.4).
The factory values are given in chapter 8.
5.4 Advanced use (“Auto” mode)
On this machine there is a powerful and sophisticated system of timed starting at different setpoints, each with a
different duration, which can be planned as preferred on a weekly basis. A simple setting of the parameters is
sufficient to perform all the desired cycles completely automatically for seven days. This mode is called “Timers”. (See
par. 6.2.5.)
It is also possible to have all the pump starts commanded by an external control unit or computer, connected to the
input signals (described in 2.3.). This mode is called “EXT”, or external (see par. 6.2.6). In this case the internal timers
do not intervene.
These two modes make up the “Auto” mode.
It is disabled when the pump leaves the factory, because it must be configured specifically for each system (swimming
pool, bathing pool, spa, etc.).
To enable “Auto” mode, just go to the menu (par. 6) and, following the indications on the screen, choose the mode
(Timers or Ext) and set the values for your system.
After having programmed “Auto” mode, proceed as follows to activate it (in conditions with the white LED blinking
and the “Auto” LED off):
with the pump stopped, press the “Auto” key (the LED next to the key lights up),
then press “RUN/STOP” (the white LED lights up with a steady light).
From this moment, the pump starting operations, with their respective setpoints and operating times, will be decided
automatically, without requiring any further intervention by the operator.
Even with “Auto” mode active (“Auto” LED on), pressing a “SETx” or “QuickClean” key will start the pump
immediately with the setpoint and the duration associated with the key. The pump thus goes into “Manual”
mode, which has precedence over “Auto” mode.
However, “Auto” mode remains active in the background and resumes control as soon as the function of
the key that was pressed ceases.
To deactivate “Auto” mode:
press the “Auto” key again (the LED next to the key lights up).
If you need to stop the pump manually when it is operating, just:
press “RUN/STOP”.
the pump thus stops in any case (*), interrupting all the active modes.
This means that “Auto” mode stops and also any active manual mode (“SETx” or “QuickClean”); the green running
LED switches off. The white LED starts to blink, indicating that the system has been disabled.
When “RUN/STOP” is pressed again, the system is re-enabled and everything restarts as before. The white LED is
now lit with a steady light.
(*) The only exceptions: the Antifreeze and Antilock functions start the pump even if the system is disabled (see
paragraphs 6.2.8 and 6.2.9).

ENGLISH
47
6 SELECTING THE PREFERRED MODES (MENU)
A rapid and intuitive menu system gives access to the various modes, allowing you to activate and configure them as
desired.
6.1 Menu access and navigation
The menu is accessed by pressing the “ENTER” key [ ] when the item “Configuration” is selected in the bar
at the bottom of the homepage (par. 3.2).
The complete structure of the menu, with all the items of which it is composed, is shown in paragraph 6.2.
6.1.1 Appearance and opening page of the menu
When you enter the menu, the opening page appears, as in the figure:
1.
2.
3.
4.
Figure 12
The page contains these elements:
1. The line at the top shows the page title, in this case “Menu”.
2. The bar on the left indicates in what position we are with respect to the extension of the menu; in this case we
are at the start and the internal sign is at the top end.
3. The centre of the page contains a part of the list of items that make up the menu, which we can scroll through
with the arrow keys (up and down); the item on which we are positioned is highlighted by the flashing box
(dotted in the figure). The previous menu item (at the top) and the next item (at the bottom) are also shown.
4. The line at the bottom indicates which keys can be used on the page, as well as the arrows (not shown for
simplicity). In this case we can press ESC” [ ] to leave, or “ENTER” [ ] to access the selected item.
The following figure shows how the display changes when the down arrow key is pressed.
Figure 13
Now the flashing box (dotted here) highlights the item after the one in the previous situation; in the vertical bar on the
left, the internal sign is lower down, showing that we are positioned farther down the items that make up the menu.
When we press the up arrow key, we return to the situation in the previous figure.
The list of items in the menu should by considered as cyclical, that is as a loop: from the last item it returns to the first
with the down arrow key. And from the first item it goes to the last with the up arrow key.
The complete structure of the menu is shown in paragraph 6.2.
6.1.2 Access to a sub-menu
When some items on the menu are accessed, a further menu, or sub-menu, may open.
This happens, for example, on the initial page of the menu, shown above:

ENGLISH
48
Figure 14
When we press “ENTER” [ ] to access the “Settings” item, we access the respective “Menu - Settings”:
Title
Position on the menu tree
(branch 1)
Figure 15
We can also navigate the sub-menus with the arrow keys and access the desired item by pressing “ENTER” [ ].
The symbol at top right represents the position on the menu tree; here we are in branch number 1.
As well as the complete menu structure, paragraph 6.2 also shows the branch (and item) numbering of all the parts of
the menu.
6.1.3 Changing a parameter in the menu
Let us see how to change the value of a parameter, for example the time setting. Suppose we want to set 12:34 as the
current time.
1. Navigating in the menu (see table in par. 6.2), we arrive at this page:
Position on the menu tree
(branch 1, item 3)
Flashing selection
Figure 16
2. Pressing “ENTER” [ ] opens the modification of the selected line:

Fixed box, only the figures to
be changed are flashing
Figure 17

ENGLISH
49
3. The figures for the hours are flashing and are changed as desired with the up arrow and down arrow keys:
Figure 18
4. When we reach the desired value, we proceed to the minutes with the right arrow key:
Figure 19
5. Now the figures for the minutes are flashing, they too are changed with the up arrow and down arrow keys:
Figure 20
6. When the new value is completed (12:34 in the example), we confirm by pressing “OK” [ ], and leave the
hour and minute setting, as shown in the following figure. (Instead, if we want to abandon the changes made,
we press “ESC” [ ] to return to the figure in point 1).
Figure 21
If necessary, we can now move about the page (with the up and down arrow keys) to change the other values (format
and day of the week), proceeding in the same way as described so far.
Pressing “ESC” [ ] takes us back in the (sub-) menu structure, and navigation can be continued in each of these.
Pressing “ESC” [ ] several times takes us right out of the menu, until we return to the main page (par. 3.2).

ENGLISH
50
6.2 Menu structure
This is the complete (tree) structure of the menu.
(Main)MENU
Settings Menu‐Settings 1
WIZARD 1WizardW1/11… W11/11
Languages 1Languageselect 1‐2
Day&Time1Timeset 1‐3
UnitofMeasure 1Unitselect 1‐4
PumpLimits 1Limitset 1‐5
Screen 1Preferences 1‐6
Password 1PWset/reset 1‐7
SetPoints1‐4SP1‐4settings 2
SetPoints5‐8SP5‐8settings 3
QuickClean QuickCleanset 4
Timers Menu‐Timers 5
Configuration 5SPselect,start,stop 5‐1
View 5Daybydaysummary 5‐2
ExternalControl Menu‐EXT 6
INPUT 6Inputset 6‐1
OUTPUT 6Outputset 6‐2
Priming Primingset 7
Antifreeze Antifreezeset 8
Antilock Antilockset 9
FaultHistoryFaultList&Clear 10 FaultListdisplay 10‐1
Table 3 – Menu Structure
