Daedong KIOTI EX35 User manual

FOREWORD
 Make sure to read this manual carefully and keep it handy for future reference.
 When leasing or transferring this tractor, deliver this manual together with the tractor.
 The specications in this manual are subject to change without notice.
< NOTE >
Congratulations, and welcome to the fabulous world of EX35(C)/EX40(C)/EX45(C)/EX50(C) ownership,
where serious work is made fun again!
This versatile tractor is a culmination of the entire tractor and diesel knowledge gained by the Daedong In-
dustrial Co.,LTD over the years since 1947 and has been designed with the nest materials and under rigid
quality control standards set forth by the KIOTI Engineering Department.
Knowledge of tractor operation is essential for many years of dependable service and reliability. To help new
owner's familiarize themselves with the KIOTI EX35(C)/EX40(C)/EX45(C)/EX50(C), it is the policy of KIOTI
tractor to provide an owner's manual which includes helpful information about tractor safety, operation and
maintenance. If the information you seek is not found in this manual, your KIOTI tractor dealer will be happy
to help you.
Please feel free to contact DAEDONG IND. CO.,LTD with your questions/concerns.
M47-EU-00.indd 1 2014-11-11 오후 4:09:45

This manual was compiled in compliance with the ISO 3600, standards and the instructions contained here comply with
the requirements of the Machinery Directive 2010/52/EU in force in the European Community. For tractors sold or used
outside the European Community, local laws will prevail.
Main protections on the tractors discussed in this manual.
ISO 3600 EU StandardS
dESCrIPtIOn nOn CaBIn CaBIn
1. ROPS (Protection against overturning) Yes Yes
2. FOPS (Protection against objects falling from above) No Yes
3. OPS (Protection against penetration of objects from sides)
protection against hazardous chemicals
No
(CategoryⅠ)
No
(CategoryⅠ)
M47-EU-00.indd 2 2012-03-14 오후 7:11:31

TABLE OF CONTENTS
SAFETY PRECAUTIONS ................................
PRECAUTIONS BEFORE OPERATION .........
SPECIFICATIONS............................................
DESCRIPTION OF OPERATING SYSTEM .....
OPERATION ....................................................
3- POINT HITCH IMPLEMENT OPERATION ..
MAINTENANCE...............................................
STORAGE AND DISPOSAL............................
TROUBLESHOOTING.....................................
INDEX...............................................................
SECTION
1
2
3
4
5
6
7
8
9
10
M47-EU-00.indd 3 2012-03-14 오후 7:11:08

TABLE OF CONTENTS
SAFETY PRECAUTIONS ....................................1-1
PRECAUTIONS BEFORE OPERATION .................. 1-2
............................................. 
PRECAUTIONS DURING OPERATION ................... 1-5
.................................... 
 ................................... 
 .................................
 ....................................
 ............................ 
SAFETY PRECAUTIONS DURING SERVICING ... 1-12
SAFETY PRECAUTIONS WHEN
USING THE LOADER.......................................... 1-16
SAFETY DECAL MAINTENANCE ......................... 1-19
DECAL MOUNTING LOCATION ............................ 1-19
 ........................................................................ 
 ................... 
PRECAUTIONS BEFORE OPERATION .............2-1
VEHICLE IDENTIFICATION NUMBER..................... 2-2
................................................ 
 .......................................................... 
............................................. 
ESSENTIAL REPLACEMENT PART ....................... 2-4
 .......................................................... 
 .......................................................................... 
......................................... 
 ................................................. 
SPECIFICATIONS................................................3-1
GENERAL SPECIFICATIONS .................................. 3-2
 .............................................. 
 ......................................... 
 ... 

 ................................. 
M47-EU-00.indd 4 2012-03-14 오후 7:11:08

TABLE OF CONTENTS
.............................................................................. 

 ................................................................ 
................................................................ 
............. 
 ................ 
 ....................................... 
 ................................. 
.................................................... 
 ............................................ 
............................. 
........................................................... 
 .......................................................... 
............................................ 
 ........................................... 
................................................................ 
................................................................ 
 ............................................................... 
 ................................................................ 
 ........................................ 
..................................................... 
TRAVELING SPEED............................................... 3-12
IMPLEMENT LIMITATIONS.................................... 3-14
............................... 
DESCRIPTION OF OPERATING SYSTEM .........4-1
EXTERIOR VIEW...................................................... 4-3
SWITCH .................................................................... 4-5
 .................................................. 
 .................................................................. 
 ................................................ 
 ................................................ 
................................................................ 
 .....................................
 ................................................................
........................................... 
............................................ 
 ................................................. 
INSTRUMENT PANEL............................................ 4-14
M47-EU-00.indd 5 2012-03-14 오후 7:11:08

TABLE OF CONTENTS
OPERATING THE CONTROLS ............................. 4-26
..................................................... 
....................................... 
 .............................................. 
 ..................................... 
 ....................................................... 
 ........................................................... 
.............................................................. 
.............................. 
.......................................... 
........................................................ 
................... 
........................................... 
...................................... 
..................................................... 
 ...................................... 
.................... 
 .................. 
 ........................................................ 
 ..................................... 
.. 
 ....................... 
CABIN SYSTEM ..................................................... 4-44
..................................................... 
.................................................... 
................................................................... 
 ............................................. 
............................................................ 
.......................................................... 
........................................................................... 
 ...................................... 
...................................................................... 
.............................................................. 
 ................................................................ 
................................................................... 
 .......... 
 ............................... 
 ............................... 
TIRES, WHEELS AND BALLAST .......................... 4-57
........................................................................... 
M47-EU-00.indd 6 2012-03-14 오후 7:11:08

TABLE OF CONTENTS
 ............................................... 
.............................................. 

................................................. 
 .. 
 .......................... 
 ............ 
3-POINT HITCH IMPLEMENT
AND LOADER OPERATION.............................6-1
REMOVAL AND INSTALLATION OF
3-POINT HITCH IMPLEMENT
(WITH PTO SHAFT) ....................................... 6-2
OPERATION TIP FOR 3-POINT HITCH ELEMENTS....6-5
 ........................................ 
 ........................................ 

................................................ 
 ..................................... 
 ........................................ 
............................................... 
.................................................. 
 ............................................... 
OPERATION ........................................................5-1
PRE-OPERATION..................................................... 5-2
INITIAL OPERATION................................................ 5-3
OPERATING THE ENGINE ...................................... 5-3
................................................ 
 ............................................... 
OPERATING THE TRACTOR................................. 5-11
 .............................................................
.................................................... 
............................................ 
 .................................................... 
....................................................................... 
 ...................................................................... 
 .................................................... 

 ............................................. 
M47-EU-00.indd 7 2012-03-14 오후 7:11:08

TABLE OF CONTENTS
HANDLING LOADER ............................................ 6-11
......... 
 .................................................... 
 ........................................................ 
 ......................................................... 
MAINTENANCE...................................................7-1
MAINTENANCE CHECK LIST ................................. 7-3
.................................................... 
............................. 
LUBRICANTS ........................................................... 7-6
MAINTENANCE CODE ............................................ 7-7
........................ 
 ............................................ 
 ............................... 
............. 
 ............................. 
..................................
 ............... 
 .......... 

 .................................................... 
............................................ 
 ............................................... 
........................................ 
........................................................................ 
 ..
 ...
 ..................... 
 ................................... 
......................... 
 .............. 
................................. 
 ...................................... 
 .... 
 ......................................... 
........................... 
................................................................. 
 ................................. 
 ................................................ 
........... 
M47-EU-00.indd 8 2012-03-14 오후 7:11:08

TABLE OF CONTENTS
TRACTOR STORAGE .............................................. 8-2
 ............................................................ 
................................................. 
............................ 
USAGE AND DISPOSAL ......................................... 8-5
TROUBLESHOOTING.........................................9-1
ENGINE TROUBLESHOOTING ............................... 9-2
TRACTOR TROUBLESHOOTING ........................... 9-4
INDEX.................................................................10-1
...................................... 
..................... 
 .... 
........................ 
 ......... 
 .................... 
 ................ 
 .................. 
 ....................................... 

 ....................................... 
 ............................................................... 
 ................................... 
.... 
 ................. 
................................................ 
.................................... 
............................................... 
................................................ 
.................................. 
STORAGE AND DISPOSAL................................8-1
M47-EU-00.indd 9 2012-03-14 오후 7:11:09

NOTE
This manual includes information titled as WARNING, CAUTION, IMPORTANT
and NOTE. These titles indicate the following:
SAFETY AND VEHICLE DAMAGE WARNING
This indicates that interesting or helpful information is being
provided.
This indicates that a condition may result in damage to your
vehicle or its equipment if the caution is not heeded. Follow
the advice provided with the caution.
This indicates that a condition may result in harm, serious in-
jury or death to you or other persons if the warning is not
heeded. Follow the advice provided with the warning.
This mark indicates emphasis on notable characteristics of
working procedures, and information about technology for
easier operation.
WARNING
CAUTION
IMPORTANT
M47-EU-00.indd 10 2012-03-14 오후 7:11:09

KIOTI

UNIVERSAL SYMBOLS
H
M
L
N

Power Take-Off Clutch Con-
trol-Position
Power Take-Off Clutch Con-
trol-ON Position

Engine Oil-Pressure


Engine Coolant-Temperature



Creep





Hazard Warning Lights
Position Control-Lowered Po-
sition

Neutral Position
L:Low speed travel light
M:Middle speed travel light
H:High speed travel light
QT lamp
Preheat
Coolant

M47-EU-00.indd 11 2012-03-14 오후 7:11:15

M47-EU-00.indd 12 2012-03-14 오후 7:11:15

PRECAUTIONS BEFORE OPERATION ...................... 1-2
GENERAL PRECAUTIONS.........................................................1-2
PRECAUTIONS DURING OPERATION ....................... 1-5
WHEN STARTING THE ENGINE................................................1-5
WHEN DRIVING THE TRACTOR ...............................................1-9
WHEN PARKING THE TRACTOR ............................................1-11
WHEN OPERATING THE P.T.O. ...............................................1-11
WHEN USING THE 3-POINT HITCH ........................................1-12
SAFETY PRECAUTIONS DURING SERVICING ....... 1-12
SAFETY PRECAUTIONS WHEN
USING THE LOADER................................................. 1-16
SAFETY DECAL MAINTENANCE ............................. 1-19
DECAL MOUNTING LOCATION ................................ 1-19
DECALS ....................................................................................1-20
CAUTIONS FOR DECAL MAINTENANCE ...............................1-24
1
SAFETY PRECAUTIONS
1
M47-EU-01.indd 1 2012-03-14 오후 7:12:17

1
-
3
1
-
2SAFETY PRECAUTIONSEX35(C)/EX40(C)/EX45(C)/EX50(C)
1
-
3
1
-
2SAFETY PRECAUTIONSEX35(C)/EX40(C)/EX45(C)/EX50(C)
PRECAUTIONS BEFORE OPERATION
GENERAL PRECAUTIONS
A careful operator is the best oper-
ator. Most accidents can be avoid-
ed by observing certain precautions.
To help prevent accidents, use these
safety precautions, and pay attention
to the job at hand. If you can prevent
an accident, your time will have been
well spent.
5. Keep safety decals clean of dirt
and debris.
6. Watch where you are going at all
times so that you are able to avoid
obstacles that can cause injury or
damage to your tractor.
7. When starting the tractor make
sure your path is clear of people to
avoid accidents caused by sudden
movements.
8. Before making reverse move-
ments with your tractor, you should
always check to see that the path
is clear.
1. It is recommended that you read
and understand this entire manual
before operation of your new trac-
tor. Failure to do so could result in
accidents or injury.
2. Only persons who are properly
trained should be allowed to oper-
ate the tractor.
3. Read and follow all warning labels
and decals afxed to the tractor.
4. Replace any missing or dam-
aged decals as soon as it is prac-
tical. A list of decals is shown on
page1-19~21.
T66O101a T66O102a
M47-EU-01.indd 2 2012-03-14 오후 7:12:18

1
-
3
1
-
2SAFETY PRECAUTIONSEX35(C)/EX40(C)/EX45(C)/EX50(C)
1
1
-
3
1
-
2SAFETY PRECAUTIONSEX35(C)/EX40(C)/EX45(C)/EX50(C)
16. All persons using the tractor
should have knowledge of its
proper operation and should read
this manual carefully.
17. Never get off the tractor without
setting the parking brake, lower-
ing the implement to the ground
and shutting of the tractor.
18. No alterations should be made to
your KIOTI tractor.
12. Never start the engine while
standing on the ground.
13. Only the operator should ride on
the tractor unless a passenger
seat is installed. Keep bystand-
ers away from the tractor while in
operation.
14. When getting on and off the trac-
tor, handholds and step plates
should always be used. This will
help to prevent accidental slips
trips and falls.
15. Be sure to scrape off mud or soil
from your shoes before mounting
the tractor.
T66O103a T66O104a T66O105a
9. Never operate this tractor or
any other agricultural equipment
while under the inuence of alco-
hol, drugs or while fatigued.
10. While working in cooperation with
other tractors always communi-
cate your intentions.
11. Do not start your tractor by short-
ing across the starter.
M47-EU-01.indd 3 2012-03-14 오후 7:12:20

1
-
5
1
-
4SAFETY PRECAUTIONSEX35(C)/EX40(C)/EX45(C)/EX50(C)
1
-
5
1
-
4SAFETY PRECAUTIONSEX35(C)/EX40(C)/EX45(C)/EX50(C)
Always use seat belt when the
tractor is equipped with a ROP-
Sand CAB. Never use the seat
belt when tractor is not equipped
with a ROPS. (ROPS: Roll-Over
Protective Structures)
NOTE
A ROPS and CAB should never be
modied by welding, grinding or cut-
ting, as this can weaken the ROPS
structure. If any components of the
ROPS unit is damaged, it must be
replaced.
If the ROPS unit is removed or loos-
ened for any reason, the parts should
be fitted back to their original posi-
tions and all bolts should be properly
torqued.

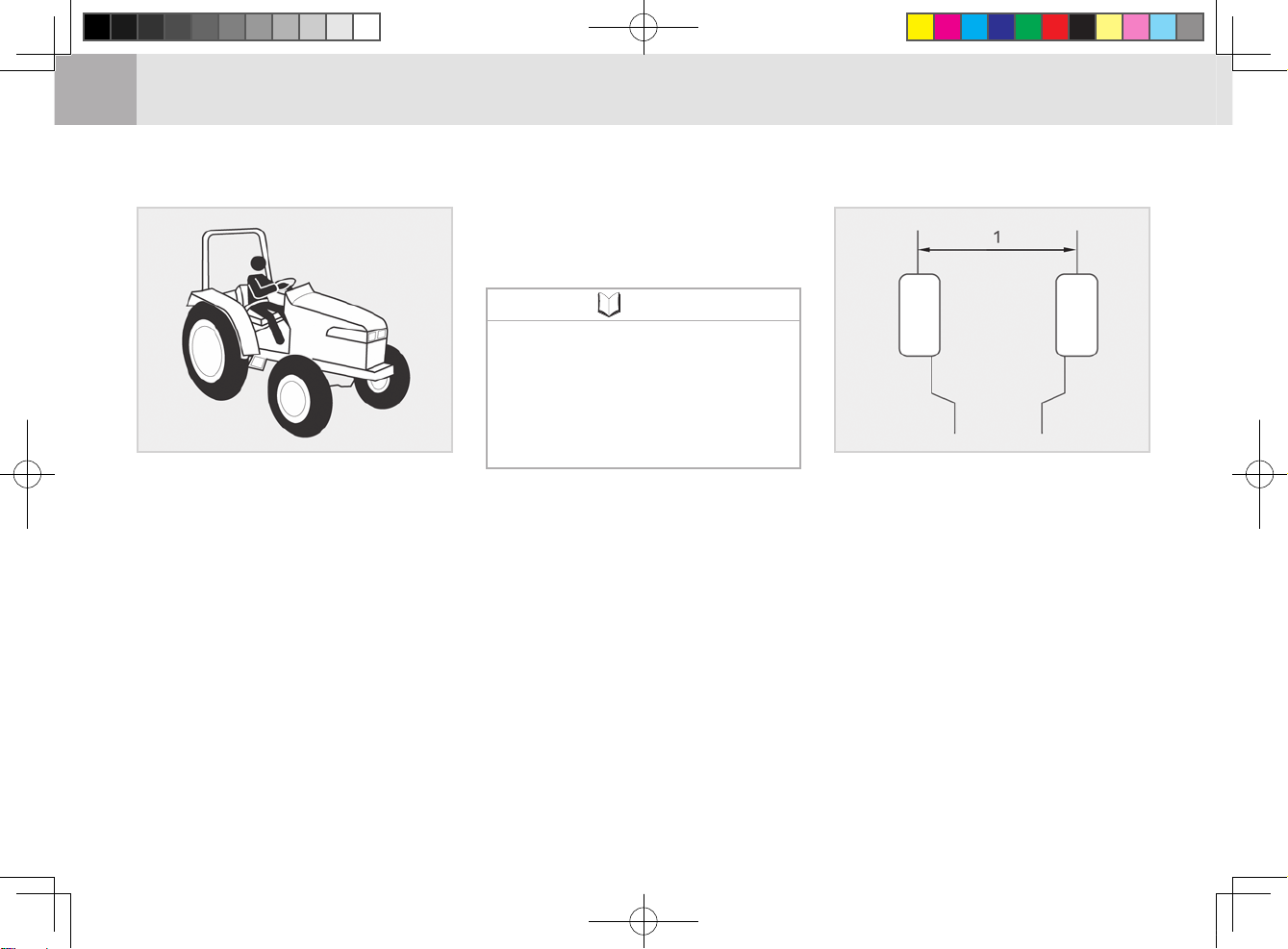

21. Extra caution should be taken
when driving tractors with narrow
tread widths. For added stability
you should adjust your rear wheel
tread width, see page 4-60.
19. Before starting your tractor you
should depress the clutch and
make sure that all shift levers are
in the neutral position and park-
ing brake is applied.
20. For your safety ROPS with a seat
belt is recommended for all appli-
cations.
(1) Tread
T66O106a T66O107a
M47-EU-01.indd 4 2012-03-14 오후 7:12:21

1
-
5
1
-
4SAFETY PRECAUTIONSEX35(C)/EX40(C)/EX45(C)/EX50(C)
1
1
-
5
1
-
4SAFETY PRECAUTIONSEX35(C)/EX40(C)/EX45(C)/EX50(C)
22. This cabin is not certified for
chemical proof, never operate
the tractor for chemical spray or
in the air contaminated by any
chemical or equivalent without
approved personal safety equip;
cartridge respiration/eyeprotec-
tion/gloves/etc.
XXX
X
X
X
T55O116a
1. Avoid accidental contact with gear
shift levers while the engine is run-
ning. Unexpected tractor move-
ments can result in bodily injury.

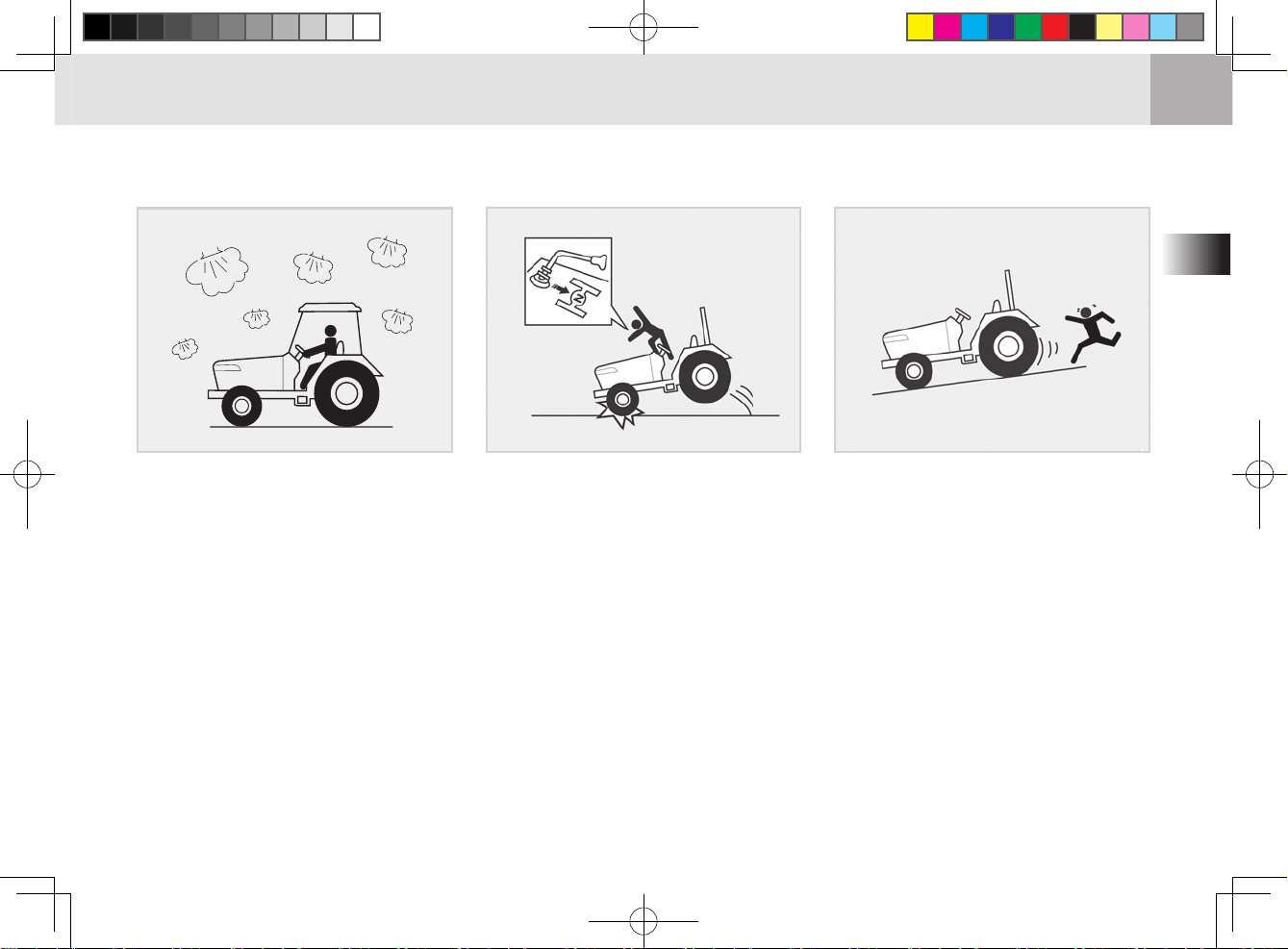

2. Do not park your tractor on a
steep incline, and remember to
shut off the engine and P.T.O be-
fore dismounting the tractor.
PRECAUTIONS DURING OPERATION
WHEN STARTING THE ENGINE
T66O109aT66O108a
M47-EU-01.indd 5 2012-03-14 오후 7:12:22

1
-
7
1
-
6SAFETY PRECAUTIONSEX35(C)/EX40(C)/EX45(C)/EX50(C)
1
-
7
1
-
6SAFETY PRECAUTIONSEX35(C)/EX40(C)/EX45(C)/EX50(C)
3. Do not operate your tractor in
an enclosed building without the
proper ventilation. Containing car-
bon monoxide can cause serious
injury or death.
T66O110a
4. Make sure that all pressure lines
are tight before starting the tractor.
5. Pull only from the drawbar. Nev-
er hitch anything to the axle hous-
ing or any other point except the
drawbar. Pulling from any other lo-
cation only increase the risk of se-
rious personal injury or death.
(1) Drawbar (2) Towing Hook
H11O110a
6. Improper use of the draw-bar, even
if correctly positioned, can cause a
rear overturn.
7. Do not overload an attachment
or towed equipment. Use proper
counterweights to maintain tractor
stability. Hitch heavy loads to the
draw-bar only.
M55O117a
M47-EU-01.indd 6 2012-03-14 오후 7:12:24

1
-
7
1
-
6SAFETY PRECAUTIONSEX35(C)/EX40(C)/EX45(C)/EX50(C)
1
1
-
7
1
-
6SAFETY PRECAUTIONSEX35(C)/EX40(C)/EX45(C)/EX50(C)
8. Check for correct coupling be-
tween tow hook and trailer. See
the Towing Attachments chapter.
9. Use ballast weight as recom-
mended. Never add more ballast
to compensate a higher load than
allowed. Reduce load for safety.

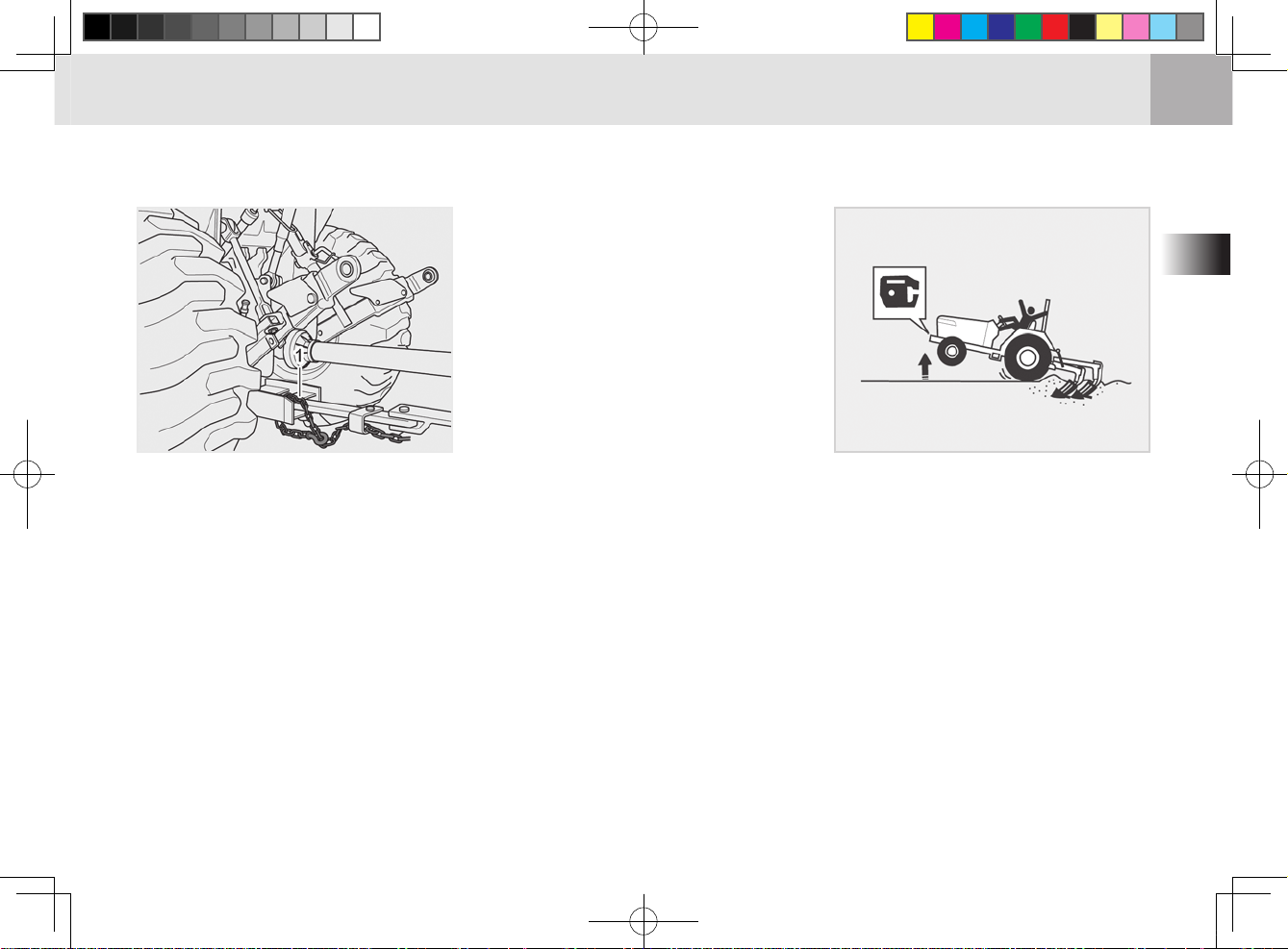

10. A safety chain will help control
drawn equipment should it be
accidentally separated from the
draw-bar while transporting. Us-
H11O682a
ing the proper adaptor parts,
attach the chain to the tractor
draw-bar support or other speci-
ed anchor location. Provide only
enough slack in the chain to per-
mit turning. See your Dealer for a
chain with a strength rating equal
to, or greater than the gross
weight of the towed machine.

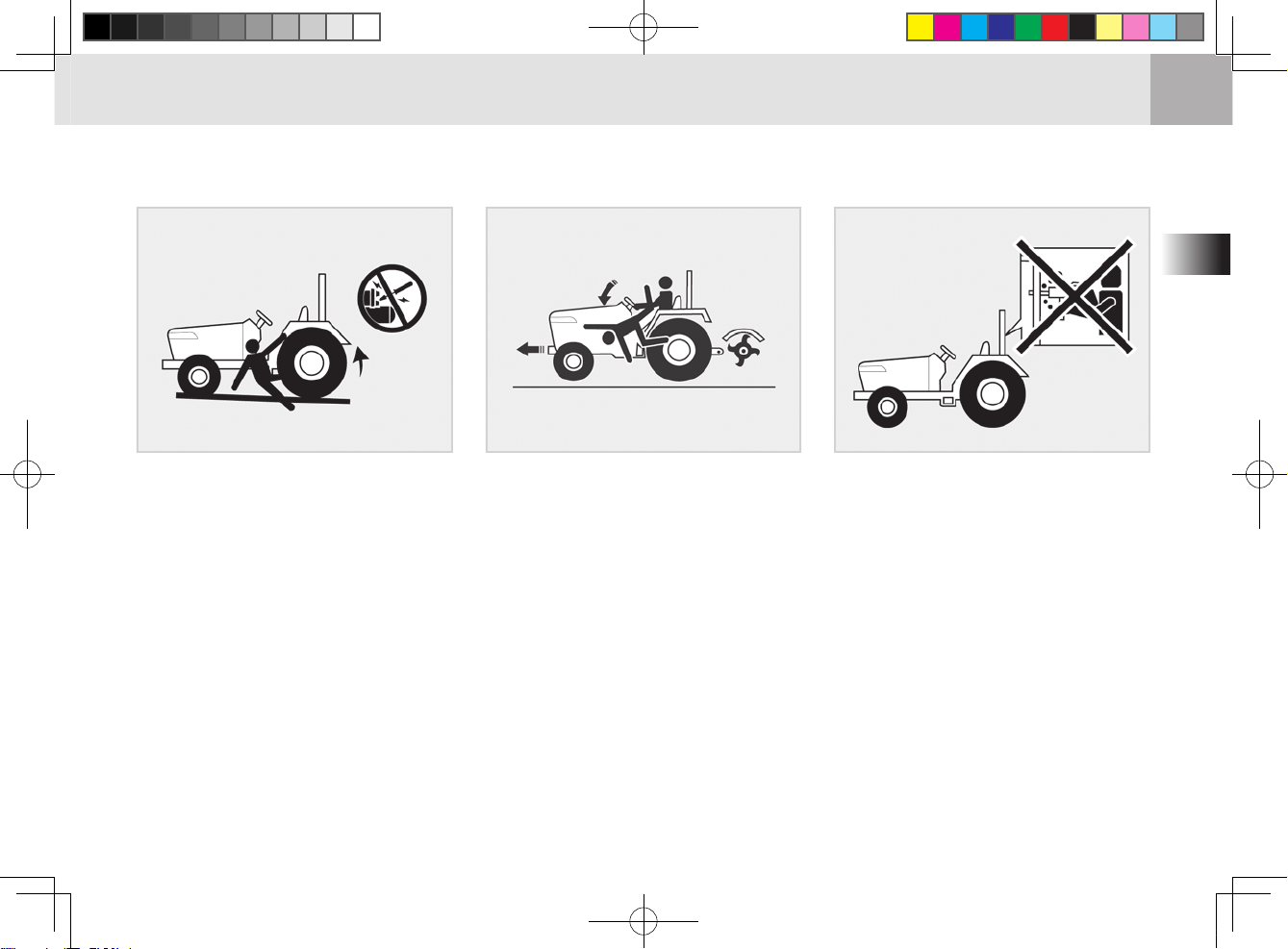

11. If the front of the tractor tends
to rise up when heavy imple-
ments are attached to the three
point hitch, weights should be in-
stalled on the tractor. Do not op-
erate the tractor with a light front
end.
T66O112a
M47-EU-01.indd 7 2012-03-14 오후 7:12:25

1
-
9
1
-
8SAFETY PRECAUTIONSEX35(C)/EX40(C)/EX45(C)/EX50(C)
1
-
9
1
-
8SAFETY PRECAUTIONSEX35(C)/EX40(C)/EX45(C)/EX50(C)
12. Always use the proper ballast
weight on your tractor when us-
ing rear implements.
13. Watch front and rear to avoid ob-
stacles at row ends, near trees
and around other obstructions.
T66O113a
14. Do not leave equipment in the
raised position when the vehicle
is stopped or unattended.
15. When using implements or at-
tachments with your tractor you
should rst read their respective
owner's manual. You should al-
ways keep their safe operation
procedures in mind.
16. You should be familiar with your
equipment and its limitations.
17. If abused or used incorrectly your
tractor can become dangerous to
you and bystanders. Overload-
ing your tractor or using unsafe
equipment can also be danger-
ous and should be avoided. Re-
fer to the "Specifications of Im-
plement Limitation", which out-
lines the maximum load for safe
tractor operation.

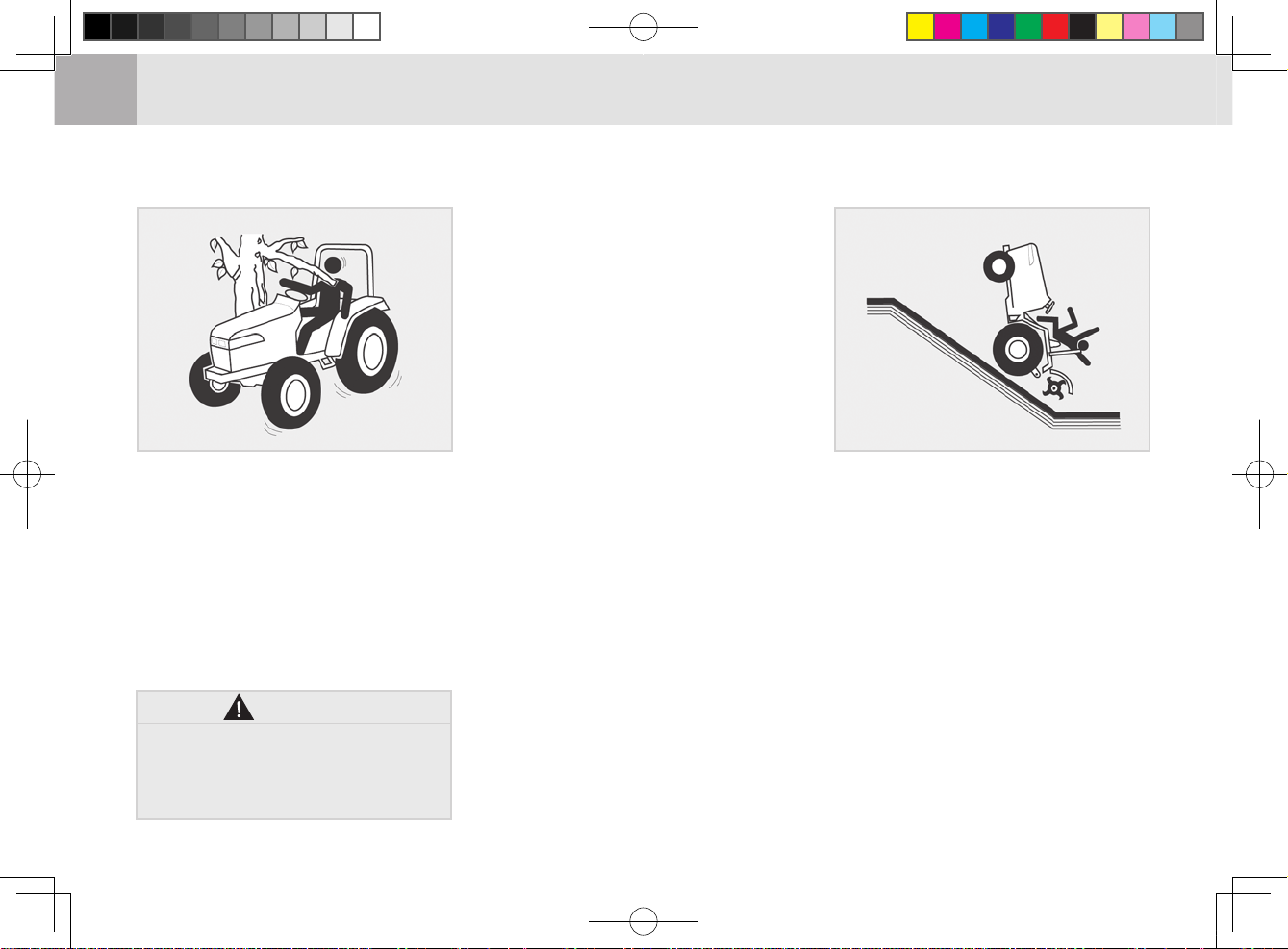

18. Driving forward out of a ditch
or steep inclines can cause the
tractor to tip over backwards. To
avoid this you should back out of
these positions. Four wheel drive
tractors can give you a false
sense of security in the tractors
ability to maneuver out of these
positions, so extra caution should
be taken.
19. Never try to get on or off a mov-
ing tractor.
T66O114a

Drive carefully to avoid injury
from penetration of objects
from sides, because this ma-
chine does not comply to OPS.
WARNING
M47-EU-01.indd 8 2012-03-14 오후 7:12:26
