Daewoo DWA-122R User manual

1

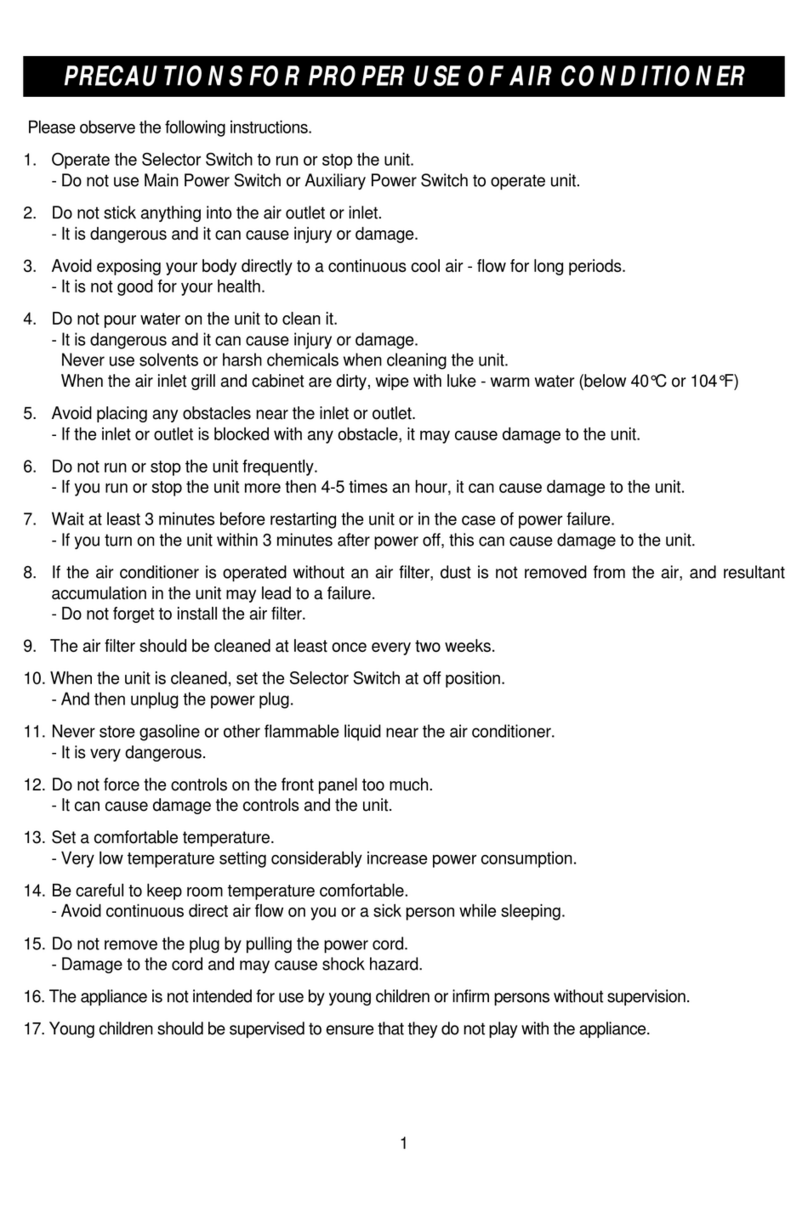

Please observe the following instructions.
1. Operate the Selector Switch to run or stop the unit.
- Do not use Main Power Switch or Auxiliary Power Switch to operate unit.
2. Do not stick anything into the air outlet or inlet.
- It is dangerous and it can cause injury or damage.
3. Avoid exposing your body directly to a continuous cool air - flow for long periods.
- It is not good for your health.
4. Do not pour water on the unit to clean it.
- It is dangerous and it can cause injury or damage.
Never use solvents or harsh chemicals when cleaning the unit.
When the air inlet grill and cabinet are dirty, wipe with luke - warm water (below 40°C or 104°F)
5. Avoid placing any obstacles near the inlet or outlet.
- If the inlet or outlet is blocked with any obstacle, it may cause damage to the unit.
6. Do not run or stop the unit frequently.
- If you run or stop the unit more then 4-5 times an hour, it can cause damage to the unit.
7. Wait at least 3 minutes before restarting the unit or in the case of power failure.
- If you turn on the unit within 3 minutes after power off, this can cause damage to the unit.
8. If the air conditioner is operated without an air filter, dust is not removed from the air, and resultant
accumulation in the unit may lead to a failure.
- Do not forget to install the air filter.
9. The air filter should be cleaned at least once every two weeks.
10. When the unit is cleaned, set the Selector Switch at off position.
- And then unplug the power plug.
11. Never store gasoline or other flammable liquid near the air conditioner.
- It is very dangerous.
12. Do not force the controls on the front panel too much.
- It can cause damage the controls and the unit.
13. Set a comfortable temperature.
- Very low temperature setting considerably increase power consumption.
14. Be careful to keep room temperature comfortable.
- Avoid continuous direct air flow on you or a sick person while sleeping.
15. Do not remove the plug by pulling the power cord.
- Damage to the cord and may cause shock hazard.
16. This air-conditioner must used 20°C(min)-43°C(max) outdoor and 20°C(min)~32°C(max) indoor on the
temperature range.
17. The appliance is not intended for use by young children or infirm persons without supervision.
18. Young children should be supervised to ensure that they do not play with the appliance.
PRECAUTIONS FOR PROPER USE OF AIR CONDITIONER

2
1. GENERAL SPECIFICATIONS..............................................................................................2
2. INSTALLATION INSTRUCTIONS....................................................................................3~6
• LOCATION OF INSTALLATION
• BEFORE INSTALLATION
• HOW TO REMOVE THE FRONT GRILLE
• HOW TO INSTALL THE DRAIN CAP
• WINDOW INSTALLATION
3. NAMES OF MAJOR COMPONENTS..................................................................................7
4. OPERATION INSTRUCTIONS.......................................................................................8~13
• DISPLAY
• REMOTE CONTROL

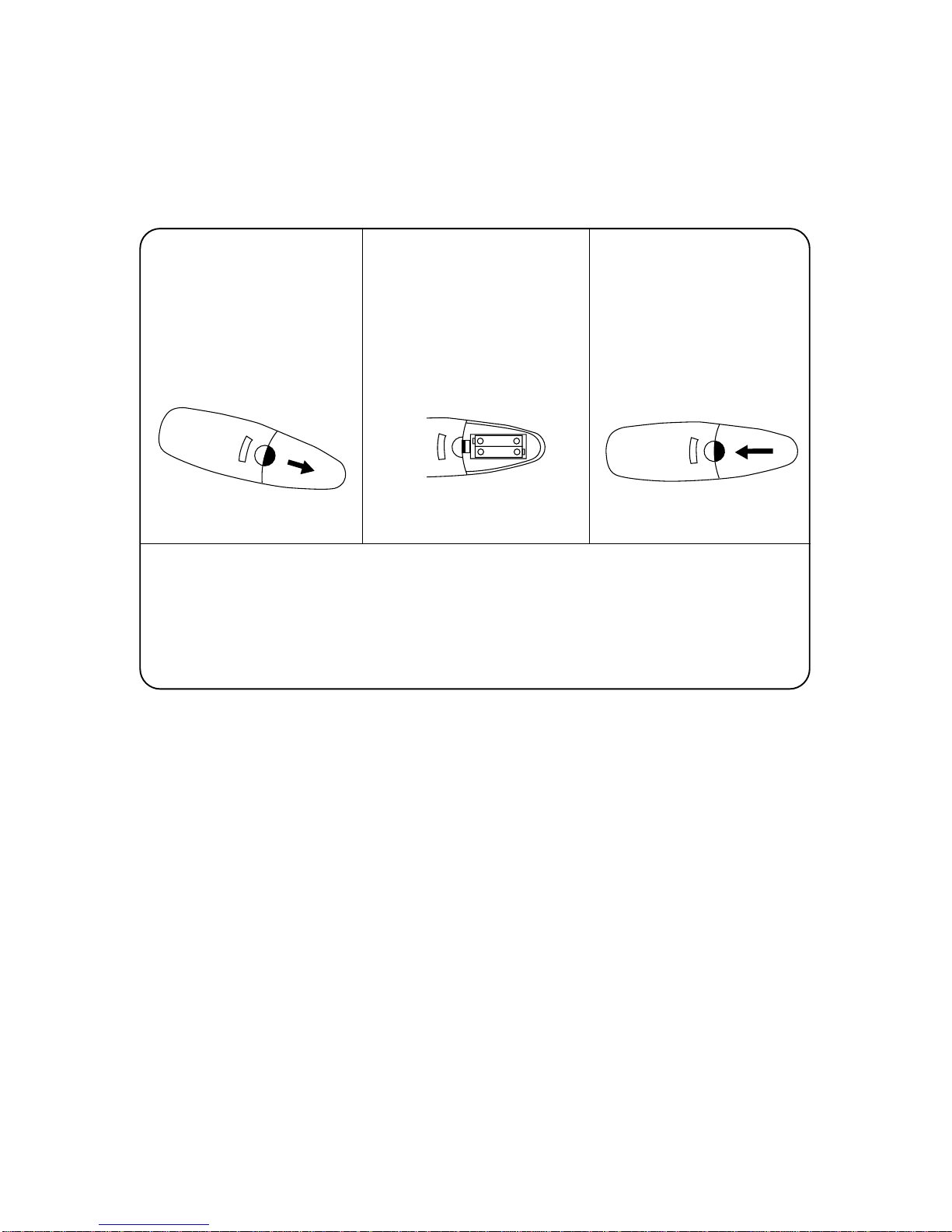

• HOW TO INSERT BATTERIES
5. GENERAL INFORMATION.................................................................................................14
• AIR FLOW AROUND UNIT
• DRAIN HOLE AND WATER DRIPPING OUTSIDE
• DOOR VENT
6. CARE AND MAINTENANCE..............................................................................................15
• AIR FILTER
• CLEANING THE AIR CONDITIONER
7. ELECTRICAL REQUIREMENTS .......................................................................................16
• ELECTRICAL GROUNDING INSTRUCTIONS.
• USE OF EXTENSION CORDS
• REPLACEMENT OF SUPPLY FLXIBLE CORD
8. BEFORE CALLING FOR SERVICE...................................................................................17
TABLE OF CONTENTS
GENERAL SPECIFICATIONS
ITEM MODEL
POWER SOURCE
DIMENSIONS
WEIGHT (NET)
DWA-122R DWB-122R DWB-123R DWA-151R
AC 208-230V, 60Hz, SINGLE PHASE AC 220-230V, 50Hz, SINGLE PHASE AC 240V, 50Hz, SINGLE PHASE AC 208-230V, 60Hz, SINGLE PHASE
38.8Kg (85.6 lbs) – Approx. 39.8 Kg (87.7 Ibs)– Approx. 42Kg (92.6 lbs)– Approx.
600(W)x380(H)x535(D) mm
23.6(W)x14.9(H)x21.0(D) inch

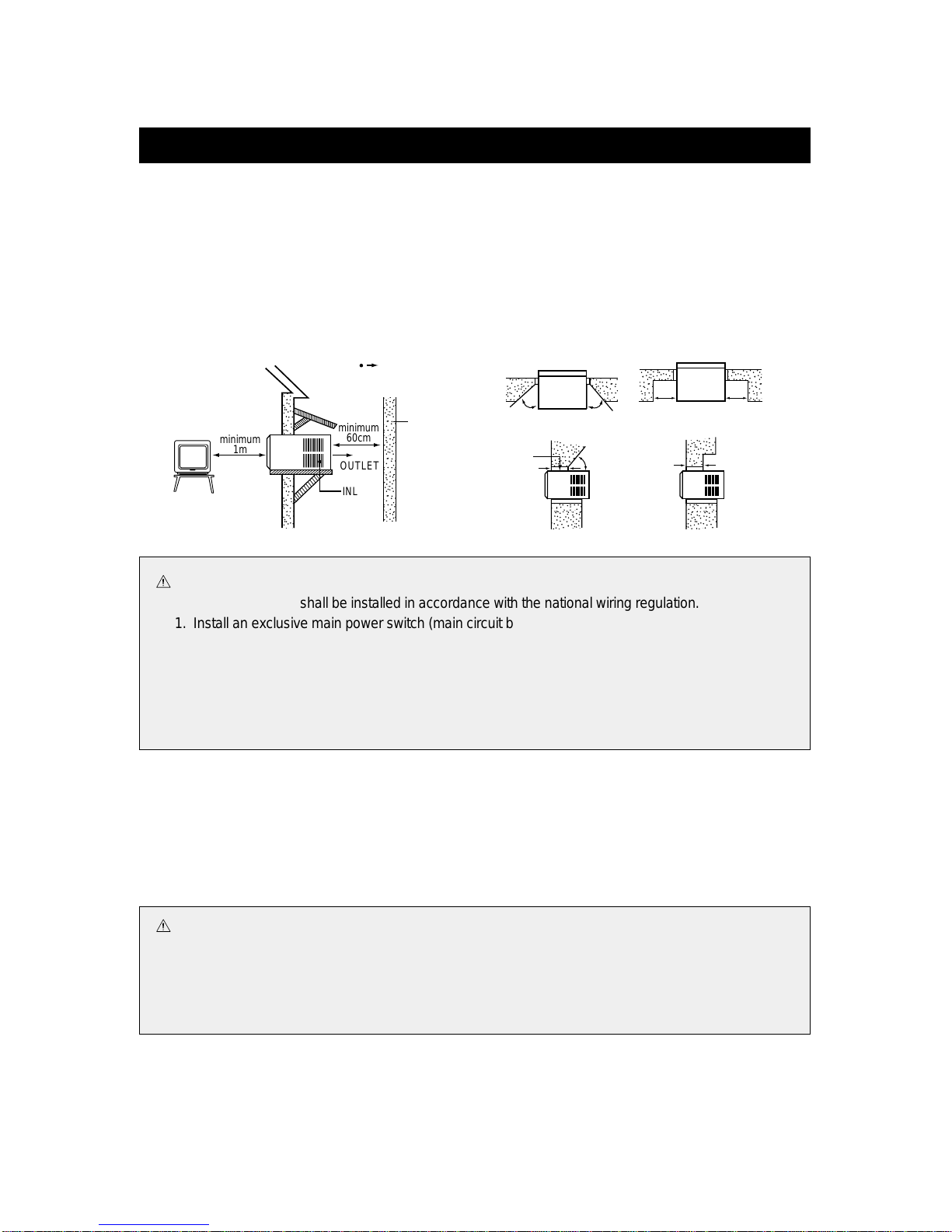

• LOCATION OF INSTALLATION
1. Install the unit at a place having sufficient strength to support the unit securely.
2. Do not install the unit at a place where leakage of combustible gas is suspected.
3. If the air conditioner is operated in an atmosphere containing oils (including machine oil), salt near a
coastal area, etc, such substances may lead to failure of the unit.
4. Provide sufficient clearance or space around the air inlet and air outlet so that air flow will not be
obstructed (See following figures).
• BEFORE INSTALLATION
Test Run Unit : Plug unit into proper power supply outlet.
Refer to operating instructions in this manual for comfortable living. Check all controls for correct
operation, then unplug unit.
Determine Correct Mounting procedure-Refer to Window Installation or Through the Wall Installation.
INSTALLATION INSTRUCTIONS
WARNING :
• Moving parts can cause personal injury. Be careful when test-running unit. Do not operate
unit with front grille removed .
• Be sure to use an exclusive power source.
• Contact service man for replacement of power cord.
;;
;;
;;
;;;;
;;;;
;
;
;
;
;
;;
;;
;;
;;
;;
minimum
1m
minimum
60cm
OUTLET
INLET
Wall or
Fence
North or East
45˚
45˚
45˚
Indoor Indoor
;;
;;
;;
;;
minimum30cm minimum30cm
maximum23cm
maximum23cm
Indoor Outdoor
;;
;;
;;
;;
Indoor Outdoor
Outdoor Outdoor
minimum
minimum
minimum
CAUTION
•The air conditioner shall be installed in accordance with the national wiring regulation.
1. Install an exclusive main power switch (main circuit breaker) or GFI (Ground Fault Interrupted)
Switch.
2. Be sure to use grounded power source.
3. Power source for DWA-122R, DWA-151R is 208~230V and DWB-122R is 220~230V
and DWB-123R is 240V.
4. Consumer must pay charges for wiring and installation.
3

4

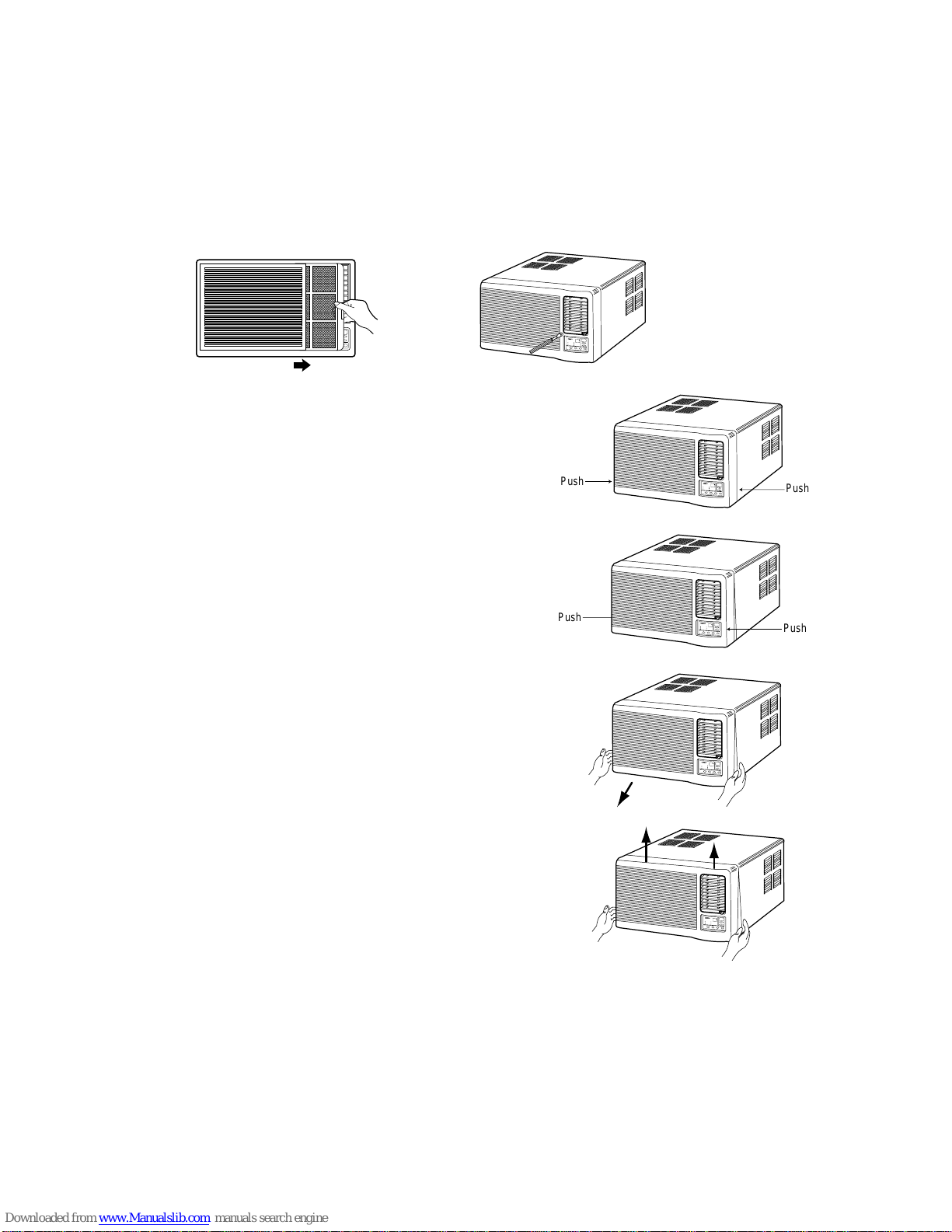

• HOW TO REMOVE THE FRONT GRILLE
1. Pull the Air-filter out of the Front Grille.
2. Loosen screw which fasten Front Grille with driver.
3. Disassemble Front Grille from Chassis.
–Front Grille and chassis are fixed with snap-fit.
1) Release right-lower snap-fit.
–Push the right lower side of chassis to the left, with pushing
left side of Front Grille to the right until the snap-fit is released.
2) Release left-lower snap-fit.
–Push the left-lower side of chassis to the right, with pushing
right side of Front Grille to the right until the snap-fit is
released.
3) Pull lower side of the Front Grille until it is separated from the
chassis.
4) Push base side of the Front Grille to upper side until it is
separated from the chassis.
;;;;;
;
;;;
;
;
;;;
;
;
;;;
;
;;;;;
;;;;;
;
;;;
;
;
;;;
;
;;;;;
;;;;;
;
;;;
;
;
;;;
;
;;;;;
;;;;
;
;;
;
;
;;
;
;
;;
;
;;;;
;;;;
;
;;
;
;
;;
;
;;;;
;;;;
;
;;
;
;
;;
;
;;;;
Push
Push
Push Push

4. Reinstall the unit, side screws, front grille.
CAUTION
•When the front grille is reinstalled, the DOOR VENT should be in position first so that it would not
be bent by grille.
Door Vent
5

6
• HOW TO INSTALL THE DRAIN CAP
Install the drain cap like Fig. of the right side.
There are two kinds of method to install the drain cap.
The first method is that the shape of hole like
It is good for the household.
The second method is that the shape of hole is like
It is good for the shop.
• WINDOW INSTALLATION
1. Determine Window Location.
Determine a suitable location.
The window where the Air Conditioner is to be installed should have enough strength to bear the weight of the Air
Conditioner.
2. Measure unit’s dimensions
3. Install the Mounting Angle at the Proper Location.
Install the Air Conditioner using the Mounting Angle or other Hardware to be installed as shown in Fig.1
For proper drainage, Rear side of the unit should be declined about 5mm lower.
4. Insert unit in window.
With 2 people, lift unit and insert it into the window opening.
5. Finish opening
Close up the gap between unit and window using the sponge or tape for insulation as shown in Fig. 1
* If through the wall installation is required, you may choose to consult an independent servicing Dealer.
CAUTION : Two people must work together to avoid personal injury.
Close up the gap Mounting Angle
unit
wall
5mm
Fig. 1 Mounting Angle Installation.
The rear side of the unit
Drain Cap
SEAL DRAIN
M4x8 SCREW: Use Screw(M4x8) only.

7
NAMES OF MAJOR COMPONENTS
•DWA-122R/DWB-122R/DWB-123R/DWA-151R
NO PART NAME
1 AIR FILTER
2 GRILLE FRONT
3 CABINET
4 BLADE VERTICAL
5 PANEL CONTROL
6 REMOTE CONTROLLER
NO PART NAME
7 BLADE HORIZENTAL
8 AIR VENT
9 FRAME GUIDE TOP
10 FRAME WINDOW KIT
11 SHUTTER WINDOW
6
9
3
2
0
7
q
4
8
5
3
2
7
4
8
5
1
1

8
•DISPLAY
OPERATION INSTRUCTIONS
Room Air-conditioner
FAN
TURBO
COOLING
ROOM TEMP
TEMP
DESIRED TEMP
TIMER
SENSOR
MODE POWER
FAN
SPEED AUTO SWING
88
TEMP./TIMER DISPLAY
•It displays the temperature and the timer.
MODE DISPLAY
•It displays the operating mode.
REMOTE SIGNAL RECEIVER
TEMPERATURE SET
•It is the button to set the desired
room temperature.
The temperature can be set
within a range from 16°C (60°F)
to 32°C (90°F) by 1°C (1°F)
POWER ON/OFF SWITCH
•To turn the unit ON, push this button.
To turn the unit OFF, push this
button again.
MODE SELECT
•Everytime you push this button, It is selected as
follow. (COOLING→TURBO→FAN→COOLING)
FAN SPEED
•Everytime you push this button, It is selected as
follow. (High→Mid→Low→High)
AUTO SWING
•Everytime you push this button, the auto swing mode is toggled.

9

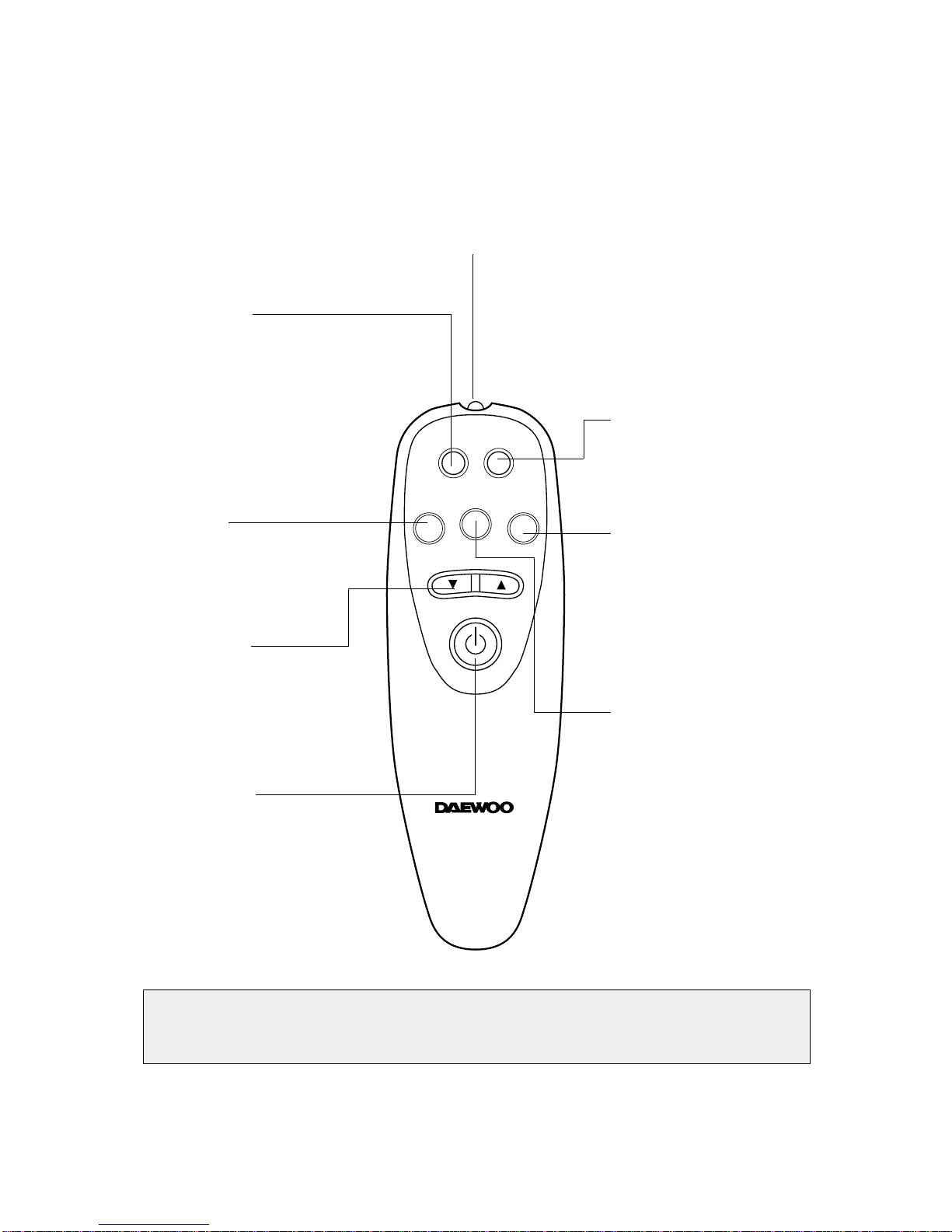

•REMOTE CONTROL
REMOTE SIGNAL TRANSMITTER
TIMER/CANCEL
•Everytime you push this button,
timer is set as follow.
(1Hr→2Hr→3Hr→4Hr→5Hr→6Hr
→8Hr→10Hr→12Hr→16Hr→20Hr
→24Hr→CANCEL).
After the unit is timed, if this
button is pushed, timer is
canceled.
SLEEP
•SLEEP mode is selected as
follow. (L1→L2→Cancel)
MODE
•Everytime you push this
button, it is selected as follow.
(COOLING→TURBO→FAN→
COOLING)
AUTO SWING
•Everytime you push this
button, the auto swing mode
is toggled.
TEMPERATURE
•It is the button to set the room in
the desired room temp.
The temp. can be set within a
range from 16°C (60°F) to 32°C
(90°F) by 1°C (1°F)
POWER ON/OFF
•To turn the unit ON, push this
button. To turn the unit OFF,
push this button, again.
FAN SPEED
•Everytime you push this button,
it is selected as follow.
(High→Mid→Low→High)
TIMER/
CANCEL
FAN SPEED
TEMP
SLEEP
MODE
AUTO
SWING
✽ Do not use the REMOTE CONTROLLER before the lamp lights. If use, the “°F”temperature
display can change to “°C”temperature display (only “°F”temperature display model).

10

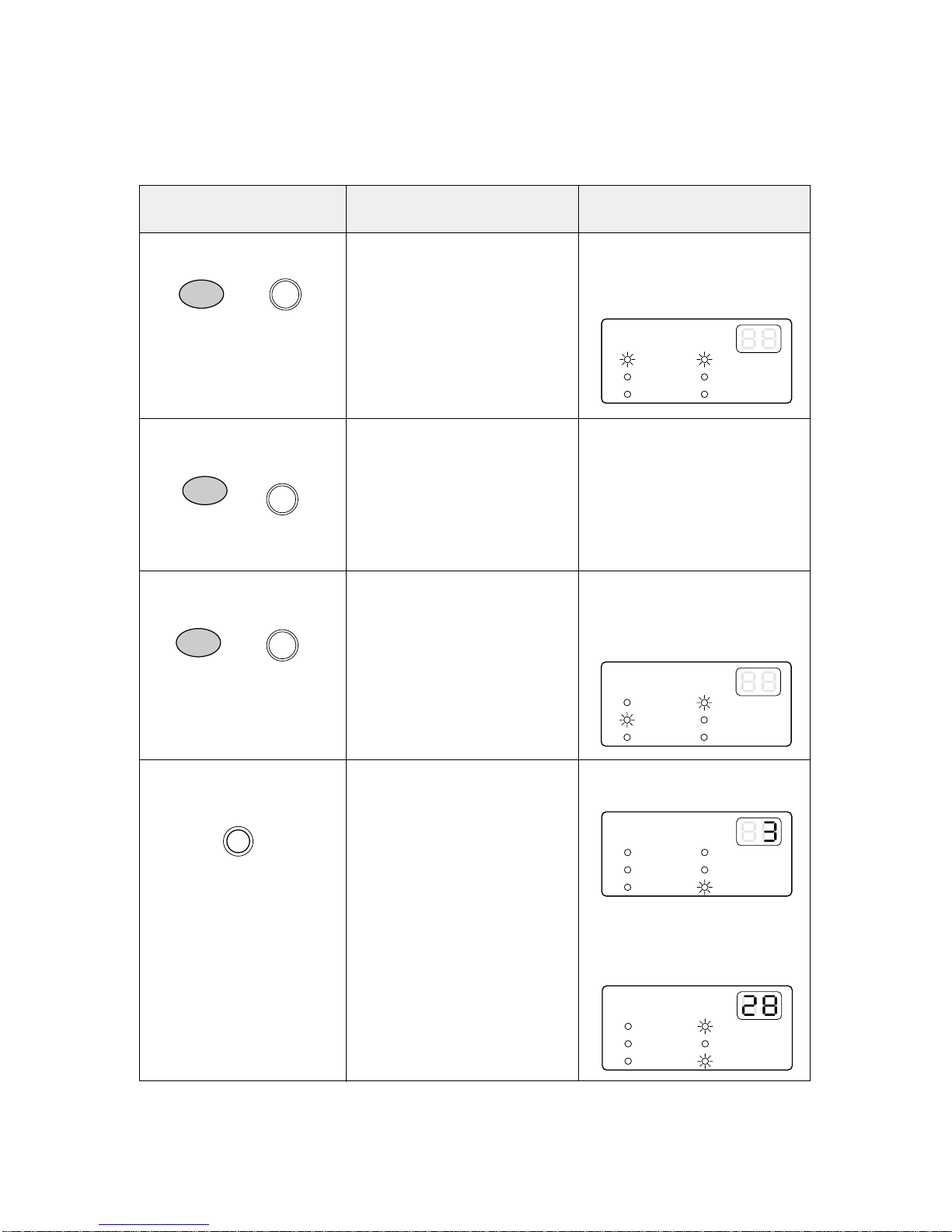

FUNCTION
POWER ON
Push POWER button
COOLING MODE
Push the ‘MODE’button until
‘COOLING’lamp lights.
Change desired room
temperature
Push the ‘TEMP▲▼’button.
Change ‘FAN SPEED’
Push the ‘FAN SPEED’button.
OPERATION
1. The unit starts working.
(It is delayed 3 minutes after main
power source is supplied.)
2. Default mode is ‘COOLING’mode.
3. Default desired room temperature
is ‘26°C’(79°F).
And fan speed is ‘HIGH’.
1. Operating modes are changed as
follows by pushing “MODE”button.
(COOLING→TURBO→FAN→
COOLING)
2. The compressor and fan work.
3. In this mode you can change fan
speed and desired temperature at
any time.
4. SLEEP mode and ON/OFF TIMER
can be selected.
(By remocon button only)
1. The desired room temperature is
changed within a range from 16°C
(60°F) to 32°C (90°F) by 1°C (°F)
1. FAN SPEED is changed as follows
by pushing “FAN SPEED”button.
(HIGH→MID→LOW→HIGH)
DISPLAY
1. Current room temperature is
displayed.
2. ‘COOLING’lamp lights.
3. ‘ROOM TEMP’lamp lights.
1. Current room temperature is
displayed.
2. ‘COOLING’lamp lights.
3. ‘ROOM TEMP’lamp lights.
1. It display desired room
temperature when ‘TEMP’button
is pushed.
2. ‘DESIRED TEMP’lamp lights.
3. After a few seconds, display is
changed to current room
temperature and ‘ROOM TEMP’
lamp lights.
1. It displays as follows.
2. After a few seconds, display is
changed to current room
temperature.
FAN
TURBO
COOLING
ROOM TEMP
DESIRED TEMP
TIMER
FAN
TURBO
COOLING
ROOM TEMP
DESIRED TEMP
TIMER
FAN
TURBO
COOLING
ROOM TEMP
DESIRED TEMP
TIMER
HIGH MID LOW
FUNCTION
POWER ON
Push POWER button
COOLING MODE
Push the ‘MODE’button until
‘COOLING’lamp lights.
Change desired room
temperature
Push the ‘TEMP▲▼’button.
Change ‘FAN SPEED’
Push the ‘FAN SPEED’button.
OPERATION
1. The unit starts working.
(It is delayed 3 minutes after main
power source is supplied.)
2. Default mode is ‘COOLING’mode.
3. Default desired room temperature
is ‘26°C’(79°F).
And fan speed is ‘HIGH’.
1. Operating modes are changed as
follows by pushing “MODE”button.
(COOLING→TURBO→FAN→
COOLING)
2. The compressor and fan work.
3. In this mode you can change fan
speed and desired temperature at
any time.
4. SLEEP mode and ON/OFF TIMER
can be selected.
(By remocon button only)
1. The desired room temperature is
changed within a range from 16°C
(60°F) to 32°C (90°F) by 1°C (°F)
1. FAN SPEED is changed as follows
by pushing “FAN SPEED”button.
(HIGH→MID→LOW→HIGH)
DISPLAY
1. Current room temperature is
displayed.
2. ‘COOLING’lamp lights.
3. ‘ROOM TEMP’lamp lights.
1. Current room temperature is
displayed.
2. ‘COOLING’lamp lights.
3. ‘ROOM TEMP’lamp lights.
1. It display desired room
temperature when ‘TEMP’button
is pushed.
2. ‘DESIRED TEMP’lamp lights.
3. After a few seconds, display is
changed to current room
temperature and ‘ROOM TEMP’
lamp lights.
1. It displays as follows.
2. After a few seconds, display is
changed to current room
temperature.
FAN
TURBO
COOLING
ROOM TEMP
DESIRED TEMP
TIMER
FAN
TURBO
COOLING
ROOM TEMP
DESIRED TEMP
TIMER
FAN
TURBO
COOLING
ROOM TEMP
DESIRED TEMP
TIMER
HIGH MID LOW
POWER
MODE
TEMP
MODE
TEMP
FAN
SPEED
FAN SPEED
or
or
or
or

11
FAN
TURBO
COOLING
ROOM TEMP
DESIRED TEMP
TIMER
FAN
TURBO
COOLING
ROOM TEMP
DESIRED TEMP
TIMER
FAN
TURBO
COOLING
ROOM TEMP
DESIRED TEMP
TIMER
FAN
TURBO
COOLING
ROOM TEMP
DESIRED TEMP
TIMER
AUTO
SWING
AUTO
SWING
MODE
MODE
TIMER/
CANCEL
MODE
MODE
or
or
or
FUNCTION
FAN MODE
Push the ‘MODE’button until
‘FAN’lamp lights.
ON/OFF AUTO SWING
Push the ‘AUTO SWING’
button.
TURBO MODE
Push the ‘MODE’button until
‘TURBO’lamp lights.
OFF TIMER
Push the ‘TIMER/CANCEL’
button when unit is working.
(REMOCON ONLY)
OPERATION
1. The Fan works only.
2. In this mode, the unit circulate
room air.
3. Fan speed can be changed.
1. Auto swing function is toggled.
2. Air out-flow direction is changed
automatically. (left/right direction)
1. Fan speed is set to ‘HIGH’and
desired temperature to 18°C
(64°F).
1. Timer is set to as follows by
pushing “TIMER/CANCEL”button.
(1hr→2hr→3hr→4hr→5hr→6hr→
8hr→10hr→12hr→16hr→20hr→
24hr→cancel)
2. Unit is off after timer is over.
3. If you want to cancel timer, push
this button again at any time.
DISPLAY
1. Current room temperature is
displayed.
2. ‘FAN’lamp lights.
3. ‘ROOM TEMP’lamp lights.
There is no change in display.
1. Current room temperature is
displayed.
2. ‘TURBO’lamp lights.
3. ‘ROOM TEMP’lamp lights.
1. ‘TIMER’lamp lights.
2. Set time is displayed.
3. After a few seconds, display is
changed to current room
temprature. and ‘ROOM TEMP’
lamp lights.

12
FUNCTION
ON TIMER
Push the ‘TIMER/CANCEL’
button when unit is off.
(REMOCON ONLY)
SLEEP MODE
Push the ‘SLEEP’button in
‘COOLING’mode. (REMOCON
ONLY)
OPERATION
1. Timer is changed to as follows by
pushing “TIMER/CANCEL”button.
(1hr→2hr→3hr→4hr→5hr→6hr→8hr
→10hr→12hr→16hr→20hr→24hr→
cancel)
2. The unit starts working after set
time is over in cooling mode with
last temperature set.
3. If you want to cancel timer, push
this button again at any time.
1. SLEEP MODE is changed as
follows by pushing “SLEEP”button.
(L1→L2→cancel)
* L1 Mode
–The unit is off after 4 hours.
–The desired Temp is increased
3°C (5.4°F) for 4 hours.
–Auto swing is selected.
–Fan speed is set to ‘LOW’.
* L2 MODE
–The unit works as follow.
–Auto swing is selected.
–Fan speed is set to ‘LOW’.
2. Set proper desired room
temperature, fan speed and auto-
swing mode.
3. This mode can be selected in
‘COOLING’mode only.
DISPLAY
1. ‘TIMER’lamp lights.
2. Setting time is displayed.
3. After a few seconds, display is
changed to current room
temperature. and ‘ROOM TEMP’
lamp lights.
1. ‘L1’or ‘L2’is displayed.
2. ‘ROOM TEMP’and ‘DESIRED
TEMP’lamp is off.
TIMER/
CANCEL
SLEEP
ON
OFF 2hr 2hr 2hr 2hr 2hr
+1°C+1°C
FAN
TURBO
COOLING
ROOM TEMP
DESIRED TEMP
TIMER
•ROOM TEMPERATURE DISPLAY.
Over 45°C or 100°F5°C~45°C or 41°F~99°F Below 5°C (41°F)
DISPLAY TEMPERATURE

13
•HOW TO INSERT BATTERIES
Remove the COVER from the
back of the remote controller.
•Slide the Cover according to
the arrow direction
Insert two battaries.
•Be sure that the (+) and (–)
directions are correct
•Be sure that both batteries
are new
Re-attach the cover.
•Slide it back into position
•Do not use rechargeable batteries such batteries differ from standard dry cells in shape,
dimensions, and performance.
•Remove the batteries from the remote controller if the air conditioner is not going to be used for
an extended length of time.
1 2 3
–+
–+

14
•AIR FLOW AROUND UNIT
Check in door grill and outdoor louvers for air flow obstructions. Do not block air flow to and from unit. The
outdoor coil should be checked and periodically cleaned for debris that may collect and block unit air flow.
If air flow is obstructed or deflected back into unit, the compressor may cycle on and off rapidly, causing
early compressor failure.
•DRAIN HOLE AND WATER DRIPPING OUTSIDE
Locate drain hole at the rear or on the bottom of unit. Water in base pan is picked up by the fan blade and
thrown onto the warm outdoor coil where it evaporates. The air conditioner must be installed level or tilted
slightly to the outside for proper water disposal. On exceptionally hot and humid days the air conditioner
may permit excess water to pass thru rear drain hole or overflow. This should be considered normal.
•DOOR VENT
The door vent for the room air ventilation is lever type.
If the door vent lever moves to the left, then close the
vent and moves to the rght, then open the vent.
GENERAL INFORMATION
Close Vent → Open
→
Door Vent

15
•AIR FILTER
Clean the air filter, which removes dust inside the room.
It should be washed at least once every week during operation.
1. Remove the Air Filter from the front grille by pulling to right.
2. Clean Air Filter with a vacuum cleaner or lukewarm, soapy water.
3. Shake it when clean to remove moisture completely. Reinstall.
•CLEANING THE AIR CONDITIONER
1. At least once a year, remove cabinet and thoroughly clean air
conditioner. Have the unit inspected by an authorized service
man to ensure unit is functioning properly.
2. Wash air conditioner with lukewarm, soapy water as needed.
Rinse and dry thoroghly.
3. If using concentrated liquid detergent, dilute in warm water first.
4. Front grille may be wiped off with a cloth dampened in a mild
detergent solution.
5. Cabinet may be washed with mild soap or detergent and
lukewarm water, then polished with liquid wax for appliances.
6. Condenser and Evaporator coils should be cleaned at the
beginning of each cooling season. Use a soft brush or vacuum
cleaner to clean them, making sure that the Condenser and Evaporator coils are not damaged.
7. Do not use abrasive cleaners. These items scrach, crack and discolor surfaces.
CARE AND MAINTENANCE
CAUTION
To avoid death or personal injury due to electrical shock, turn fan control OFF and unplug power cord
before cleaning or performing maintenance. After cleaning or performing maintenance, reconnect power.
NOTE
A dirty Air Filter reduces air flow and the cooling capacity.
Do not operate unit without Air Filter.
NOTE
To assure continued peak efficiency, condenser coils (weather side of unit) should be checked
periodically and cleaned if clogged with soot or dirt from the atmosphere.
;;
;;
;;
;;
;;
;;
;;
;;
;;
;;
;;

16
•ELECTRICAL GROUNDING INSTRUCTIONS
This appliance is equipped with a three-prong(grounding) plug for protection against possible shock
hazards. If a two-prong wall receptacle is encountered, the customer is required to contact a qualified
electrician and have the two-prong wall receptacle replaced with a properly grounded three-prong wall
receptacle in accordance with the National Electrical Code.
•USE OF EXTENSION CORD SET.
Because of potential safety hazards under certain conditions, we strongly recommend against the use of
an extension cord set. However, if you still elect to use an extension cord, it is absolutely necessary that it
is earthed and the marked rating of the extension cord set should be 250V, 10A (Min.).
The socket-outlet shall be installed near the equipment and shall be easily accessible.
•REPLACEMENT OF SUPPLY FLEXIBLE CORD.
If the supply flexible cord is damaged, it must be replaced by the manufacturer or its service agent or
similarly qualified person in order to avoid a hazard.
ELECTRICAL REQUIREMENTS
WARNING :
To avoid death, personal injury or properly damage due to electrical shock, this unit must be grounded.
Do not under any circumstances cut or remove the round grounding prong from the plug.
Do not use a two prong adapter.
WARNING :
To avoid death, personal injury or properly damage due to electrical shock, do not use an extension
cord or pinch the power cord.
Do not remove the warning tag from the power cord.
CAUTION :
The appliance shall be installed in accordance with national wiring regulations.

17
BEFORE CALLING FOR SERVICE
When you find something wrong with your room air conditioner, please carefully check the following items.
If you are unable to find the cause of trouble, contact your service dealer.
Difficulty
•Air conditioner does
not operate.
•Little or no cooling
•Noisy unit
•Ordors from unit
•Water in base pan.
Possible Cause
•No power to unit.
•Compressor lockout on initial
plug in.
•Dirty air filter
•Is there anything blocking the
front?
•Air conditioner undersized for
application.
•Loose parts
•Weak building construction.
•Water hitting fan.
•Mold, mildew or algae formation
on wet surfaces.
•Normal for operation in humid
areas.
Suggested Solution
• Confirm power cord is plugged in.
• Verify main power switch
(main circuit breaker) or fuse
of the unit is good.
•Wait 3 to 4 minutes and restart
the unit.
•Clean air filter.
•When blocked by curtains,
blinds, or furnitures, etc., the air
flow is restricted and cooling
performance is affected.
•Check with dealer to determine
proper unit capacity for
application.
•Tighten any loose parts.
•Provide additional support.
•Normal in high humidity.
•Stop noise by allowing water to
drain from base fan through
drain hole.
•Place algaecide tablet in base
pan
•Remove water in base pan
through drain hole.
•Water in base pan is picked up
by the fan blade and thrown onto
the warm outdoor coil where
water then evaporates.

MODEL #: DWA-122R
DWB-122R
DWB-123R
DWA-151R
ROOM AIR CONDITIONER
USE & CARE MANUAL
WINDOW TYPE ROOM AIR CONDITIONER
Please read carefully and thoroughly this manual before operating
the unit.
If you still have any difficulties or problems, consult your
dealer for help or ELECTRONICS.
Please keep this manual well.
W1
R
CUS
LISTED
UL and
CUL listed
