Daewoo DWC-121C User manual

Manual de servicio
Acondicionador de Aire Tipo Ventana
Modelo:

1
TABLE OF CONTENTS
1. PRECAUTION...............................................................................2
2. GENERAL SPECIFICATIONS ................................................................3
3. NAMES OF MAJOR COMPONENTS.......................................................4~5
4. FUNCTION OF MAIN COMPONENTS ........................................................6
5. GENERAL INFORMATIONS .................................................................7
6. CARE AND MAINTENANCE .................................................................8
7. TROUBLE SHOOTING GUIDE ...............................................................9
8. HOW TO DISASSEMBLE...................................................................11
9. WIRING DIAGRAM.........................................................................14

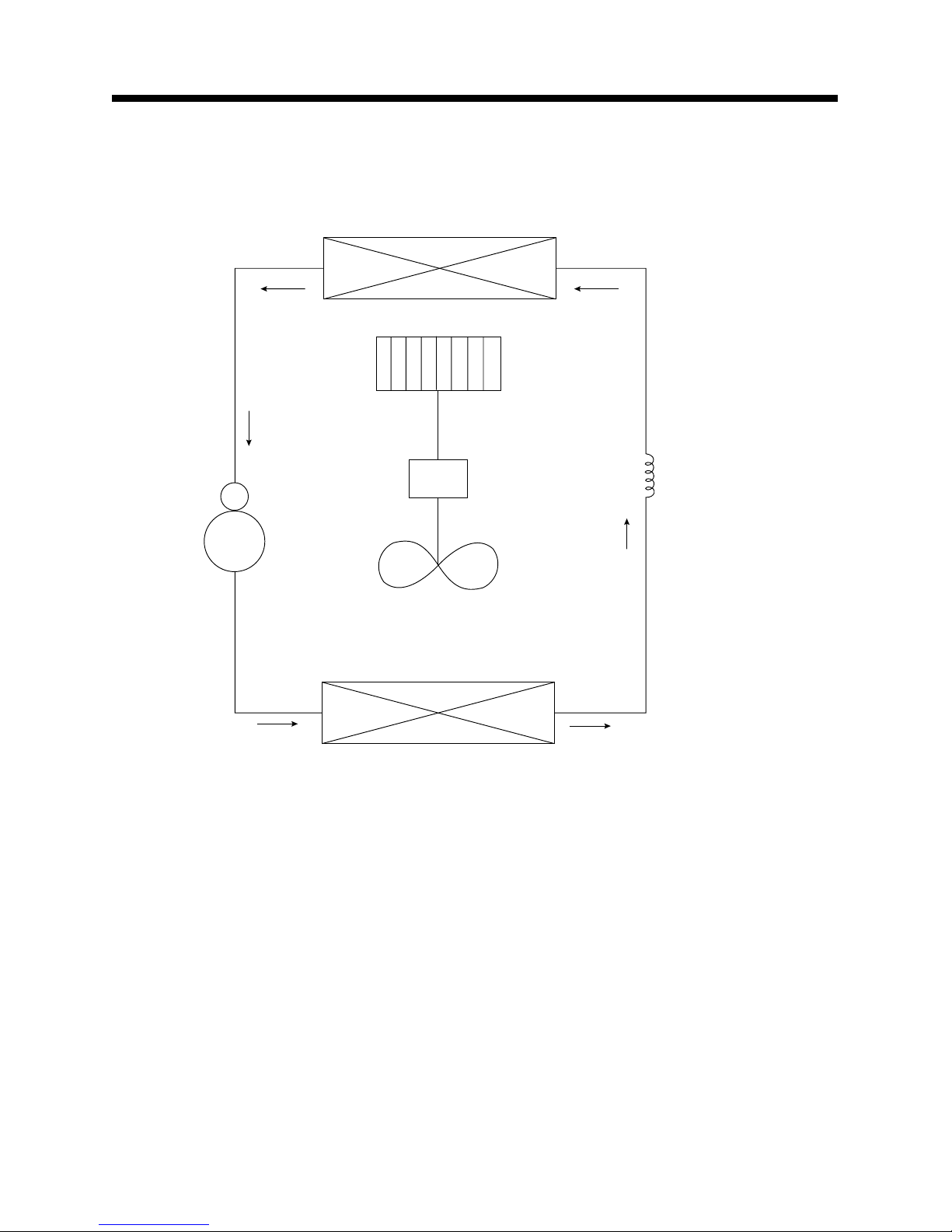

10. REFRIGERANT CYCLE ...................................................................15

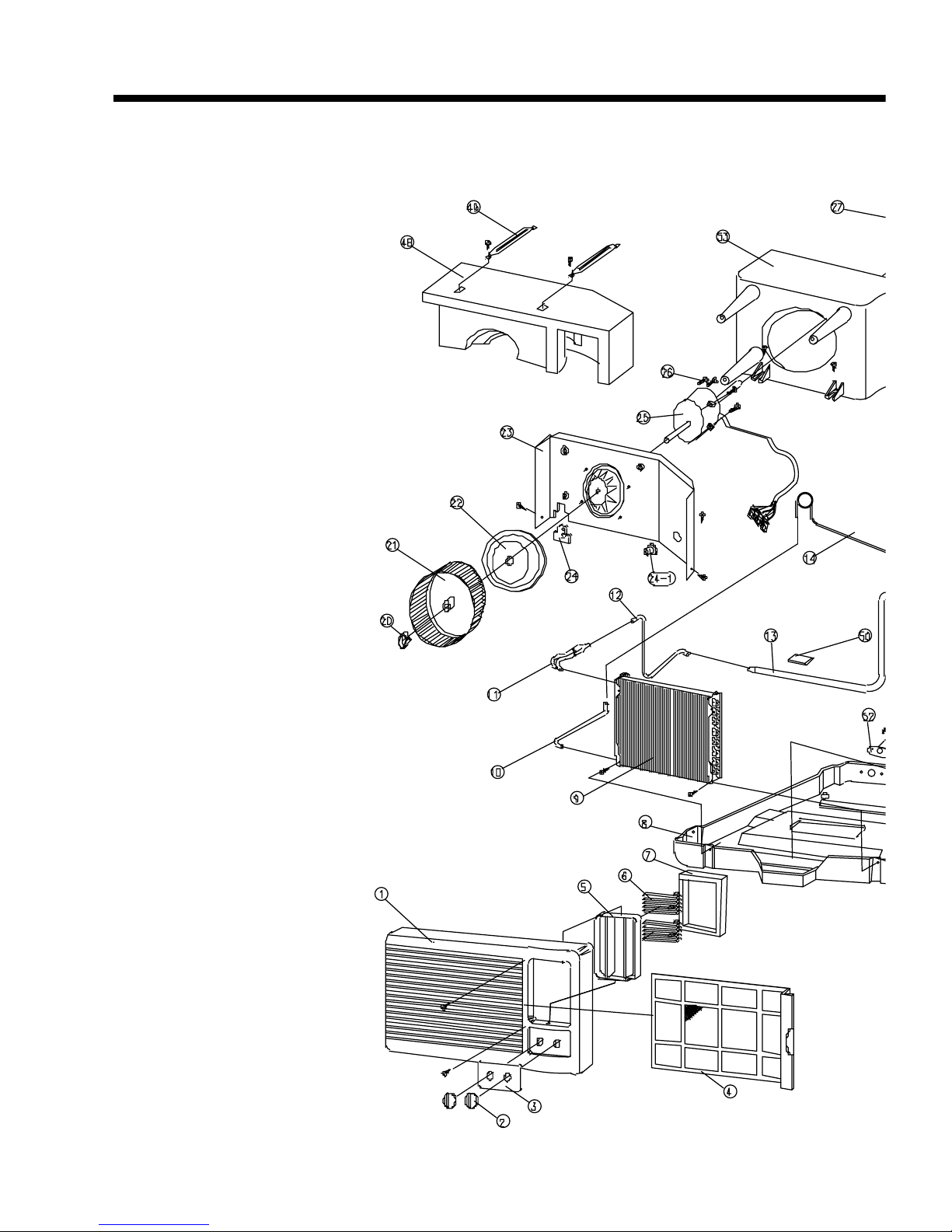

11. EXPLODED DIAGRAM AND PARTS LIST ..................................................16

2
1. PRECAUTION
Please observe the following instructions.
1. Turn off unit.
Make sure the unit is OFF and the AC cord is unplugged before repairing or servicing.
2. In case of checking the circuit unavoidably while the unit is connected with power source, be careful
not to connect with the part of electric charge.
You may cause electric shock.
3. Use of proper part if you need to replace the part, be sure to use genuine part of servicing model.
Do not repair or replace the electric contact part.
Consumer must not repair the unit, because it is dangerous.
4. Use of proper tool.
You must use the proper tool to repair the unit, and use the measuring appliance adjusted accurately.
5. Damage of electric wire and power cord when servicing.
Check electric wire and a surely replace a damage electric wire and a damage power cord.
6. Never use connecting the middle of wire, after cutting the middle of wire.
It may cause a fire and trouble.
7. Checking the insulation resistance.
After you complete the assembly of unit, surely check the insulation resistance.
Confirm that the insulation resistance of the power line and the ground terminal is over 30MΩby measuring insulation
resistance.
8. Checking the ground.
After checking the ground, servicing it completely.
9. Checking the installation.
After checking the installation, servicing it completely.
10. Care children.
When servicing, do not make the children approach the air-conditioner.

3
ITEM MODEL
Function
Power source AC 115V, 60Hz
Btu/h 12,100 12,000 12,000 11,700 12,000 11,500 14,018 14,000
Kcal/h 3,050 3,024 3,024 2,950 3,024 2,898 3,533 3,528
Btu/wh 10.1 10.2 10.1 9.9 10.0 10.0 9.4 9.8
Kcal/wh 2.55 2.57 2.55 2.49 2.52 2.52 2.38 2.47
Dehumidification
Pts/h 3.40 3.61 3.14 3.30 2.66 2.71 4.04 3.93
g/h 1,545 1,640 1,427 1,500 1,209 1,232 1,836 1,786
Power Input (W) 1,200 1,175 1,184 1,180 1,150 1,150 1,487 1,420
Running Current (A) 11.5 5.5 5.5 5.2 5.4 5.4 6.7 6.5
Type Rotary
Compressor Model QK164CN12 QK164KN12 RBA115A001 QK196PN13A RBB110A011 RBF110A011 QJ196KC23 RCA135A001
Capacitor 40µF/370VAC 35µF/400VAC 30µF/400VAC 35µF/400VAC
Model
Motor Capacitor
12µF/370VAC
Indoor-Fan Blower-Fan
Outdoor-Fan Propeller-Fan
Control Capillary
Charge Q’ty (g) 24.0 oz (680g) 26.1 oz (740g) 27.9 oz (790g) 25.7 oz (730g) 24.3 oz (690g) 26.8 oz (760g) 27.9 oz (790g) 27.5 oz (780g)
Dimensions
Unit (WxHxD)
Packing (WxHxD)
Weight Net Weight
88 lbs (38.8Kg)
Gross Weight 89 lbs (40.3 Kg)
2. GENERAL SPECIFICATIONS
A2925CA070/OBM-2501P2
5µF/400VAC
25µF/370VAC
AM12 DWD11/OBM-2503U1
4µF/370VAC
88 lbs (38.8Kg)
89 lbs (40.3 Kg)
90.2 lbs (39.8Kg)
97.5 lbs (43 Kg)
23.6(W) x 14.9(H) x 21.0(D) Inch (600(W) x 380(H) x 535(D) mm)
26.1(W) x 18.1(H) x 22.6(D) inch (663(W) x 460(H) x 573(D) mm)
92 lbs (42Kg)
96 lbs (43.5Kg)
AC 208~230V, 60Hz AC 220~240V, 50Hz AC 220~230V, 50Hz AC 240V, 50Hz
25µF/370VAC
AM12DWD12/OBM-2502U1
5µF/370VAC
AC 208~230V, 60Hz
Energy
Efficiency
Ratio
Electrical
Data
Refrigerant
(R-22)
AM12DWD10/
OBM-2501K1
Cooling only
Cooling
Capacity
DWC-121C/CS
(DWC-124C/CS) DWA-121C/CS DWA-122C/CS (DWA-124C/CS) DWB-121C/CS DWB-122C/CS (DWB-124C/CS) DWB-123C/CS DWA-150C/CS DWA-151C/CS (DWA-152C/CS)
• DWA-124C/CS, DWB-124C/CS, DWC-124C/CS, DWA-152C/CS;
Except detachable Double Grille Front, the general spec of this model is same to one of the old models.

4
3.NAMES OF MAJOR COMPONENTS
6
12
5
2
1
3
7
4
8
11
10
9
6
12
5
2
1
3
7
4
8
NO PART NAME
1 AIR FILTER
2 GRILL FRONT
3 CABINET
4 BLADE VERTICAL
5 KNOB THERMOSTAT
6 KNOB SELECTOR
NO PART NAME
7 BLADE HORIZENTAL
8 AIR VENT
9 PLATE WINDOW TOP
10 FRAME WINDOW KIT
11 SHUTTER WINDOW
12 AUTO LOUVER S/W (DW✻-121CS/DW✻-122CS/DWB-123CS/DWA-150CS/DWA-151CS)
• DW✻-121CS / DW✻-122CS / DWB-123CS / DWA-150CS / DWA-151CS
6
5
2
1
3
7
4
8
11
10
9
6
5
2
1
3
7
4
8
• DW✻-121C / DW✻-122C / DWB-123C / DWA-150C / DWA-151C
NOTE: ✻ → A or B or C

5
NO PART NAME
1 AIR FILTER
2 GRILLE
3 CABINET
4 BLADE VERTICAL
5 KNOB THERMOSTAT
6 KNOB SELECTOR
7 BLADE HORIZENTAL
NO PART NAME
8 AIR VENT
9 FRAME GRILLE
10 FRAME GUIDE TOP
11 FRAME WINDOW KIT
12 SHUTTER WINDOW
13 AUTO LOUVER S/W (DW✽-124CS/DWA-152CS)
• DW✽-124CS / DWA-152CS
NOTE: ✽→A or B or C
4
0
q
7
w
8
3
2
56
1
9 9
3
4
8
2
7
1
56
99
4
0
q
7
w
8
3
2
56
1
e
3
4
8
2
7
1
56
e
• DW✽-124C / DWA-152C
NOTE: ✽→A or B or C

6
4. FUNCTION OF MAIN COMPONENTS
1. ROTARY SWITCH (SELECTOR)
Please refer to the part of selector in the chapter 9 (Wiring Diagram).
The rotary switch (selector) controls the fan motor’s rotation speed, and has six positions.
The function of the six position is as follow.
• OFF: This position stops all operations of the air conditioner.
• HIGH COOL: This position provides the maximum air flow for rapid
cooling, dehumidifying and dust removing operations.
(Use this position on sultry summer days.)
• MED COOL: This position provide the medium air flow for cooling
dehumidifying and dust removing operations
• LOW COOL: This position provides the minimum air flow for quiet
cooling, dehumidifying operations.
(Use this position on suitable for night-time.)
• HIGH FAN: This position provides the maximum air fiow alone fan
operation without cooling operation.
• LOW FAN: This position provides the minimum air flow air flow alone
fan operation without cooling operation.
2. THERMOSTAT (TEMPERATURE CONTROL)
• The Thermostat automatically starts and stops operation in order to keep
the room temperature at a proper level, and this results in efficient use of
power and economical cooling.
• Turn clockwise for a cooler room temperature.
• Turn counter-clockwise for a warmer room temperature.
3. MOTOR
The motor is used to rotate the indoor and outdoor fan so that the room air can be recirculated.
4. FAN
• BLOEWR FAN: The Blower draws hot air from the room through the Evaporator and then discharges it back into the
cool air. It circulates the room air.
• PROPELLER FAN: The propeller draws outdoor air through louvering and cools Condenser, and then blows the hot
air out.
5. CAPACITOR
The Capacitor enlarges the difference of phase between main coil and sub coil so that the Compressor and Fan Motor
starts well.
6. ACCUMULATOR
The Accumulator blocks the unflow of liquid refrigerant and impurities into the Compressor.

7
5. GENERAL INFORMATIONS
1. CHANGING AIR FLOW DIRECTION
Air flow deflectors divert air from center flow to left or right and up or down.
Adjust deflectors for desired air flow pattern.
2. AIR FLOW AROUND UNIT
Check in door grill and outdoor louvers for air flow obstructions. Do not block air flow to and from unit. The outdoor coil
should be checked and periodically cleaned for debris that may collect and block unit air flow. If air flow is obstructed
or deflected back into unit, the compressor may cycle on and off rapidly, causing early compressor failure.
3. Electrical Grounding Instructions.
This appliance is equipped with a three-prong(grounding) plug for protection against possible shock hazards. If a two-
prong wall receptacle is encountered, the customer is required to contact a qualified electrician and have the two-
prong wall receptacle replaced with a properly grounded three-prong wall receptacle in accordance with the National
Electrical Code.
4. USE OF EXTENSION CORDS
Because of potential safety hazards under certain conditions we strongly recommend against the use of an extension
cord. However, if you still elect to use an extension cord, it is absolutely necessary that it be a UL listed 3-wire
grounding type appliance extension cord rated has a 3-blade grounding plug and a 3-slot receptacle that will plug into
appliance.
5. DRAIN HOLE AND WATER DRIPPING OUTSIDE
Locate drain hole at the rear of unit. Water in base pan is picked up by the fan blade and thrown onto the warm
outdoor coil where it evaporates. The air conditioner must be installed level or tited or slightly to the outside for proper
water disposal. On exceptionally hot and humid days the air conditioner may permit excess water to pass thru rear
drain hole or overflow. This should be considered normal.

8
6. CARE AND MAINTENANCE
1. AIR FILTER
Clean the air filter, which removes dust inside the room.
It should be washed at least once every week during operation.
•All models except DW*-124C/CS, DWA-152C/CS (
✽→A or B or C)
1. Remove the Air Filter from the front grill by pulling to right.
2. Clean Air Filter with a vacuum cleaner or lukewarm, soapy water.
3. Shake it when clean to remove moisture completely. Reinstall.
•Only DW*-124C/CS, DWA-152C/CS (
✽→A or B or C)
1. Open the inlet grille upward by pulling out the bottom of the inlet grille, lift it.
2. Using the tab, pull up slightly on the filter to release it and pull it down.
3. Clean Air Filter with a vacuum cleaner or lukewarm, soapy water.
4. Shake it when clean to remove moisture completely. Reinstall.
2. CLEANING THE AIR CONDITIONER
1. At least once a year, remove cabinet and thoroughly clean air conditioner. Have the unit inspected by an authorized
servicer to ensure unit is functioning properly.
2. Wash air conditioner with lukewarm, soapy water as needed. Rinse and dry thoroughly.
3. If using concentrated liquid detergent, dilute in warm water first.
4. Front grill may be wiped off with a cloth dampened in a mild detergent solution.
5. Cabinet may be washed with mild soap or detergent and lukewarm water, then polished with liquid wax for
appliances.
6. Condenser and Evaporator coils should be cleaned at the beginning of each cooling season. Use a soft brush or
vacuum cleaner to clean them, making sure that the Condenser and Evaporator coils are not damaged.
7. Do not use abrasive cleaners. These items scratch, crack and discolor surfaces.

9
7. TROUBLE SHOOTING GUIDE
TROUBLE SITUATION ANALYSIS CAUSE REMEDY
Fan motor and
compressor do not
run
Switch is in “cool”
position but the
compressor does not
run
1. Power failure
2. Power is supplied,
but the equipment
does not run
1. Not operating at all
2. Compressor
3. Frequent start and
stop
1) Power plug
2) Circuit breaker
1) receptacle
2) Operation switch
3) Cord or lead wire to
the switch
1) Compressor
2) Thermostat
3) Selector switch
4) O.L.P
5) Capacitor
1) Electricity
2) Room temperature
and outside
temperature
3) Compressor
4) O.L.P
5) Capacitor
1) Thermostat
2) Capacitor
3) O.L.P
1) Power failure
2) Circuit breaker is tripped
3) Power plug is not contacting
• Disconnection
• Mechanical failure of switch
1) Disconnection
2) Malfunction of contact
• Disconnection or burned-out
1) Failure
2) Malfunction
3) Knob is not set to the proper
setting
• Failure of malfunction of proper
setting
1) Disconnection
2) Malfunction of contact
• Lack of capacity
• Disconnection
1) The voltage exceeded allowed
range
2) Capacity of wire is not
sufficient
• Extremely high
• Burned-out
• Malfunction
• Lack of capacity
• Malfunction
• Lack of capacity
• Malfunction
• Consult your electric company
• In case of a breaker, turn it on
and off a few times
• Replace the power plug
• Repair or replace the
receptacle
• Replace the cord or lead wire
• Replace the compressor or
connection wire
• Replace
• Repair or replace
• Turn knob for cooler setting
• Repair or replace the swtting
• Repair
• Repair or replace
• Replace
• Repair
• Consult your electric company
• Check the capacity of wire
• Ventilate well and remove the
heat source
• Replace
• Replace
• Replace
• Replace
• Replace
• Replace

10
TROUBLE SITUATION ANALYSIS CAUSE REMEDY
The compressor runs
but the motor doesn’t
run
Both fan motor and
compressor are
running but cooling is
bad
Vibration & Noise
Water leakage into
room
Electric shock
(Leakage of current)
Not cooling at all
Insufficient cooling
1) Fan
2) Fan motor
3) Capacitor
4) Fan motor circuit
Refrigerant system
1) Refrigerant system
2) Filter
3) Heat exchanger of
condenser
1) Installation place
2) Fan
3) Fixing screws
4) Electric
components
• Installation condition
• Insulation of
components
• Blocked by others
• Disconnection or burned-out
electric cord
• Failure malfunction of contact
• Disconnection of malfunction of
contact
1) Refrigerant system is choked
2) Compressor failure
3) Leakage of refrigerant gas
1) Refrigerant system is choked
2) Compressor failure
3) Leakage of refrigerant gas
4) Refrigerant charge is too high
• Clogged up with dust
1) Fin is cogged up with dust
2) The ventilation is not good
3) The unit is exposed to the
sunlight
4) Other heat source is added in
the room
• Installation of the unit is
imperfectly done
1) Fan is contacted with
obstacles
2) Fixing bolt
• Have a screw loose
• Electrical noise
• The front is lower than rear side
1)Insulation defect of wiring and
lead wire
2) Leakgae of current due to the
dew or rust
• Repair
• Replace the fan motor
• Replace
• Check the circuit
• Repair
• Repair
• Recharge refrigerant gas
• Check and repair refrigerant
system
• Replace
• Check a part of Leakage and
repair
• Repair and recharge
• Clean the air fiter
• Clean the unit
• Shade the unit from the
sunlight
• Remove the added heat source
• Install the unit perfectly
• Remove obstacles
• Tighten the bolt
• Tighten the screw
• Exchange the components
• Make rear side of the unit lower
than the front
• Check the unit’s Leakage of
current.
• Replace the defective parts or
components

11
8. HOW TO DISASSEMBLE
1 Before service of 1. Stop the unit, remove the power cord from the receptacles.
any part. 2. Move the unit to the safe location for the suitable work.
2 Ass’y Fan Motor
- Fan Motor
- Propeller Fan
- Blower Fan
3 Ass’y Control Box 1. Same as the procedure 1 to 5 in the Item 2.
-
Rotary Switch (selector)
- Thermostat
- Capacitor
- Power Cord
4 O.L.P 1. Same as the procedure 1 to 2 in the Item 2.
2. Remove Terminal Cover from Compressor.
- Remove hex-nut (1 point).
Please refer to the chapter 11 (Exploded diagram and parts list).
•Only DW*-124C/CS, DWA-152C/CS
1. Remove Front Grille
- Open the grille upward by pulling out the bottom of the grille, lift it.
- Remove screw which fasten Frame Grille with driver.
- Pull knobs out of the control.
(when the knobs are too tight to release, leave them.)
- Disassemble Frame Grille from chassis.
•All models except DW*-124C/CS, DWA-152C/CS
1. Remove Front Grille.
- Remove Filter Pre.
- Remove screw(2 point) in Front Grille with driver.
- Disassemble Front Grille from chassis.
2. Remove the unit from Cabinet.
- Remove screws (2 point) from the unit’s sides.
- Pull the unit from cabinet.
3. Remove Holder Scroll.
4. Remove Scroll upper
5. Remove Ass’y Control Box
- Remove screws (4 point).
- Remove wires in the each components.
6. Remove wires in the Panel Housing.
7. Remove screws (4 point) from Ass’y Fan Motor’s sides.
- Ass’y Fan Motor is assembly of Fan Motor, Propeller and Blower Fan,
Orifice and Panel Housing.
8. Lift the Ass’y Fan Motor from the unit.
9. Remove Clip Fan (2 point) from the shaft of Fan Motor.
10. Remove Propeller Fan from the shaft of Fan Motor.
11. Remove Blower Fan from the shaft of Fan Motor.
12. Remove Fan Motor from Panel Housing.
- Remove screws (4 point).
(NOTE: ✽→A or B or C)

12
• HOW TO REMOVE THE FRONT GRILLE FOR ALL MODELS EXCEPT DW✽-124C/CS,
DWA-152C/CS
1. Pull the Air-filter out of the Front Grille.
2. Loosen screw which fasten Front Grille with driver.
3. Pull knobs out of the control.
(when the knobs are too tight to release, leave them.)
4. Disassemble Front Grille from Chassis.
–Front Grille and chassis are fixed with snap-fit.
1) Release right-lower snap-fit.
–Push the right lower side of chassis to the left, with pushing left side of Front
Grille to the right until the snap-fit is released.
2) Release left-lower snap-fit.
–Push the left-lower side of chassis to the right, with pushing right side of Front
Grille to the right until the snap-fit is released.
3) Pull lower side of the Front Grille until it is separated from the chassis. (when
knobe remain, pull Front Grille until knobs are released from control)
4) Push base side of the Front Grille to upper side until it is separated from the
chassis.
5) After front grille is removed, remove two screws located in both side of
chassis.
6) Grip the handle of base pan and pull out the unit from chassis.
;;;;;
;
;;;
;
;
;;;
;
;
;;;
;
;;;;;
;;;;;
;
;;;
;
;
;;;
;
;;;;;
;;;;;
;
;;;
;
;
;;;
;
;;;;;
;;;;
;
;;
;
;
;;
;
;
;;
;
;;;;
;;;;
;
;;
;
;
;;
;
;;;;
;;;;
;
;;
;
;
;;
;
;;;;
Push
Push
Push Push

13
• HOW TO REMOVE THE FRONT GRILLE FOR ONLY DW✽-124C/CS, DWA-152C/CS
1. Open the grille upward by pulling out the bottom of the grille,
lift it.
2. Remove screw which fasten Frame Grille with driver.
3. Pull knobs out of the control.
(when the knobs are too tight to release, leave them.)
4. Disassemble Frame Grille from Chassis.
– Frame Grille and chassis are fixed with snap-fit.
1) Release right-lower snap-fit.
–Push the right lower side of chassis to the left, with pushing left side of Frame Grille
to the right until the snap-fit is released.
2) Release left-lower snap-fit.
–Push the left-lower side of chassis to the right, with pushing right side of Frame
Grille to the right until the snap-fit is released.
3) Pull lower side of the Frame Grille until it is separated from the chassis. (when
knobe remain, pull Frame Grille until knobs are released from control)
4) Push base side of the Frame Grille to upper side until it is separated from the
chassis.
5) After frame grille is removed, remove two screws located in both side of
chassis.
6) Grip the handle of base pan and pull out the unit from chassis.
Push
Push
Push
Push

14
9. WIRING DIAGRAM
OFF
YEL
RED
GRY
BLU
BLUWHTYEL
LC
16
72
4
8
HIGH
COOL MED COOL LOW COOL LOW FAN MED FAN
FAN
MOTOR
COMP
SELECTOR SWITCH
THERMOSTAT
SWITCH
O.L.P
CAPACITOR
H
GRN(GRN/YEL)
RED
BLK
WHT(BLU)
BLK(BRN)
GRN(GRN/YEL)
R
S
C
ORG
BLK(BRN)
CF
• DW✻-121C / 122C / 123C / 124C / 150C / 151C / 152C WIRING DIAGRAM
OFF
YEL
RED
GRY
BLU
BLUWHT
WHT
YEL
LC
16
72
4
8
HIGH
COOL MED COOL LOW COOL LOW FAN MED FAN
FAN
MOTOR
COMP
SWING
MOTOR
AUTO
LOUVER
SWITCH
SELECTOR SWITCH
THERMOSTAT
SWITCH
O.L.P
CAPACITOR
H
GRN(GRN/YEL)
RED
BLK
BLK BRN
WHT(BLU)
BLK(BRN)
GRN(GRN/YEL)
R
S
C
ORG
BLK(BRN)
CF
• DW✻-121CS / 122CS / 123CS / 124CS / 150CS / 151CS / 152CS WIRING DIAGRAM
NOTE: ✻ → A or B or C
(3103523900)
(3103523910)

15
Condenser
Propeller fan
Capillary tube
Compressor
Accumulator
Blower fan
Evaporator
M MOTOR
10. REFRIGERANT CYCLE

16
11. EXPLODED DIAGRAM AND PARTS LIST.
■ DWA-121C/CS,DWA-122C/CS(124C/CS),DWB-121C/CS,DWB-122C/CS(124C/CS),DWB-123C/CS,
DWC-121C/CS(124C/CS), DWA-150C/CS,DWA-151C/CS(152C/CS) PARTS LIST
NO CODE COMPONENTS Q'TY SPECIFICATION REMARK
13102402400 GRILLE FRONT 1 HIPS ALL MODELS EXCEPT DW*-124C/CS,DWA-152C/CS
3112200400 FRAME GRILLE 1 HIPS DW*-124C/CS,DWA-152C/CS(ONLY)
1-1 3112401600 GRILLE 1 HIPS DW*-124C/CS,DWA-152C/CS(ONLY)
2 3103400700 KNOB 2 HIPS
33101600600 DECORATE FRONT 1 PC FILM DW*-121C,122C,123C,124C,150C,151C,152C(ONLY)
3101601200 DECORATE FRONT 1 PC FILM DW*-121CS,122CS,123CS,124CS,150CS,151CS,152CS(ONLY)
43101902100 FILTER PRE 1 HIPS ALL MODELS EXCEPT DW*-124C/CS,DWA-152C/CS
3111901400 FILTER PRE 1 HIPS DW*-124C/CS,DWA-152C/CS(ONLY)
5 3106501800 BLADE VERTICAL 1 HIPS
6 3106501700 BLADE HORIZENTAL 2 PP(H-540)
7 3108503600 SEAL GRILLE 1 F-US
83108100900 PAN BASE 1 SGCC T1.0 DW*-121C/CS,122C/CS,123C/CS,124C/CS(ONLY)
3108100910 PAN BASE 1 SGCC T1.0 DWA-150C/CS,151C/CS,152C/CS(ONLY)
9 3107400800 ASS'Y EVAPORATOR 1 2R2C, ø9.52
10 3104421100 PIPE EVA IN 1 C1220T-O OD9.52
11 3100063600 PIPE EVA OUT AS 1 C1220T-O OD9.52
12 3104421700 PIPE EVA OUT 1 1 C1220T-O OD9.52
3104423100 PIPE SUCTION 1 C1220T-O OD12.7 DW*-121C/CS,124C/CS(ONLY)
13 3100023120 PIPE SUCTION 1 C1220T-O OD12.7 DWA,B-122C/CS,123C/CS,124C/CS(ONLY)
3104423110 PIPE SUCTION 1 C1220T-O OD12.7 DWA-150C/CS,151C/CS,152C/CS(ONLY)
3100061600 PIPE CAPILLARY AS 1 C1220T-O ID1.6L800 DWA,C-121C/CS,124C/CS(ONLY)
14 3100061620 PIPE CAPILLARY AS 1 C1220T-O ID1.6L600 DWA-150C/CS,151C/CS,152C/CS(ONLY)
3100061610 PIPE CAPILLARY AS 1 C1220T-O ID1.6L900 DWB-121C/CS,DWA,B-122C/CS,123C/CS,124C/CS(ONLY)
3100064700 COMP AS 1 LG-QK164CN12 DWC-121C/CS,124C/CS(ONLY)
3100069400 COMP AS 1 LG-QK164KN12 DWA-121C/CS(ONLY)
3107103300 COMP AS 1 DW-RBA115A001 DWA-122C/CS,124C/CS(ONLY)
15 3100069600 COMP AS 1 LG-QJ196KC23 DWA-150C/CS(ONLY)
3107103400 COMP AS 1 DW-RCA135A001 DWA-151C/CS,152C/CS(ONLY)
3100071100 COMP AS 1 LG-QK196PN13A DWB-121C/CS(ONLY)
3107103200 COMP AS 1 DW-RBB110A011 DWB-122C/CS,124C/CS(ONLY)
3107103210 COMP AS 1 DW-RBF110A011 DWB-123C/CS(ONLY)
16 3104425800 PIPE DISCHARGE 1 C1220T-O OD7.94 DW*-121C/CS,DWC-124C/CS(ONLY)
NOTE: ✽→A or B or CNOTE: ✽→A or B or C
✔ Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)

NO CODE COMPONENTS Q'TY SPECIFICATION REMARK
3104425820 PIPE DISCHARGE 1 C1220T-O OD7.94 DWA,B-122C/CS,123C/CS,124C/CS(ONLY)
16 3104425810 PIPE DISCHARGE 1 C1220T-O OD7.94 DWA-150C/CS(ONLY)
3104425830 PIPE DISCHARGE 1 C1220T-O OD7.94 DWA-151C/CS,152C/CS(ONLY)
17 3100063500 PIPE COND OUT AS 1 C1220T-O OD7 DW*-121C/CS,122C/CS,123C/CS,124C/CS(ONLY)
3100063510 PIPE COND OUT AS 1 C1220T-O OD7 DWA-150C/CS,151C/CS,152C/CS(ONLY)
3100063400 PIPE COND IN AS 1 C1220T-O OD7 DW*-121C/CS,122C/CS,123C/CS,124C/CS(ONLY)
18 3100063410 PIPE COND IN AS 1 C1220T-O OD7 DWA-150C/CS(ONLY)
3100063420 PIPE COND IN AS 1 C1220T-O OD7 DWA-151C/CS,152C/CS(ONLY)
19 3106800300 ASS'Y CONDENSOR 1 3R2C, ø7
19-1 3108504300 SEAL COND TOP 1 F-US
20 3101202800 CLIP FAN 2 SK-5
21 3101802600 PAN BLOWER 1 ABS
22 3101404100 COVER MOTOR 1 EPS
23 3104202000 PANEL HOUSING 1 SGCC T1.0
24 3102000500 FIXTURE RUBBER 1 NBR
24-1 3100000010 BUSHING GUIDE 1 NBR
3108004920 MOTOR FAN 1 DAEWOO MOTOR (AM 12DWD10) DWC-121C/CS,124C/CS(ONLY)
3108005020 MOTOR FAN 1 DAEWOO MOTOR (AM 12DWD12) DWA-121C/CS,DWA-122C/CS,124C/CS(ONLY)
3108006000 MOTOR FAN 1 OBM2502U1 DWA-121C/CS,DWA-122C/CS,124C/CS(ONLY)
25 3108005110 MOTOR FAN 1 DAEWOO MOTOR (A9525CA070) DWB-121C/CS,DWB-122C/CS,123C/CS,124C/CS(ONLY)
3108006100 MOTOR FAN 1 OBM2501P2 DWB-121C/CS,DWB-122C/CS,123C/CS,124C/CS(ONLY)
3108005220 MOTOR FAN 1 DAEWOO MOTOR (AM 12DWD11) DWA-150C/CS,151C/CS,152C/CS(ONLY)
3108006200 MOTOR FAN 1 OBM2503U1 DWA-150C/CS,151C/CS,152C/CS(ONLY)
26 7007501211 SCREW HEX 4 5x12 MFZN
27 3101802700 FAN PROPELLER 1 ABS+GF20%
28 3102201100 WINDOW KIT FRAME(L) 1 HIPS
29 3102201000 WINDOW KIT FRAME(R) 1 HIPS
30 3100604200 PLATE WINDOW TOP 1 SGCC T1.2
31 3100801400 CABINET ASSY 1 SGCC T0.8
32 3100604300 BRACKET WINDOW LOWER 2 SGCC T0.8
33 3100604500 BRACKET SILL 2 SGCC T1.6
34 3106600600 SCROLL LOWER 1 EPS
35 3103700100 LEVER VENT 1 PP
36 3103700100 WASHER VENT 1 PP
37 3104600100 RING VENT 1 NBR
17
NOTE: ✽→A or B or CNOTE: ✽→A or B or C

NO CODE COMPONENTS Q'TY SPECIFICATION REMARK
38 3106700400 CAM 1 POM DW*-121CS,122CS,123CS,124CS,150CS,151CS,152CS(ONLY)
39 5S10405620 S/W ROCKER 1 R19A-2(250VAC6A) DW*-121CS,122CS,123CS,124CS,150CS,151CS,152CS(ONLY)
40 3107000100 CLIP THERMO 1 ABS
41 5S0101800 THERMOSTAT AS 1 PFA-602GF-02(PCC)
42 5S10405100 SWITCH ROTARY 1 SR6B-416-10D
3101300300 POWER CORD 1 KKP-30B,13A 125V DWC-121C/CS,124C/CS(ONLY)
43 3103001600 POWER CORD 1 WS-001I 250V 13A DWA-121C/CS,122C/CS,124C/CS,150C/CS,151C/CS,152C/CS(ONLY)
3101300600 POWER CORD 1 KKP-4819R 250V 10A DWB-121C/CS,DWB-122C/CS,123C/CS,124C/CS(ONLY)
3109503100 CAPACITOR 1 12/40µF,370VAC DWC-121C/CS,124C/CS(ONLY)
3109503110 CAPACITOR 1 12/40µF,370VAC DWC-121C/CS,124C/CS(ONLY)
3109503200 CAPACITOR 1 5/25µF,370VAC DWA-121C/CS,122C/CS,124C/CS(ONLY)
3109503210 CAPACITOR 1 5/25µF,370VAC DWA-121C/CS,122C/CS,124C/CS(ONLY)
3109505100 CAPACITOR 1 5/35µF,400VAC DWB-121C/CS,123C/CS(ONLY)
44 3109505110 CAPACITOR 1 5/35µF,400VAC DWB-121C/CS,123C/CS(ONLY)
3109507700 CAPACITOR 1 5/35µF,400VAC DWB-121C/CS,123C/CS(ONLY)
3109507710 CAPACITOR 1 5/35µF,400VAC DWB-121C/CS,123C/CS(ONLY)
3109507000 CAPACITOR 1 5/30µF,400VAC DWB-122C/CS,124C/CS(ONLY)
3109507010 CAPACITOR 1 5/30µF,400VAC DWB-122C/CS,124C/CS(ONLY)
3109503410 CAPACITOR 1 4/25µF,370VAC DWA-150C/CS,151C/CS,152C/CS(ONLY)
45 3101201600 CLAMP CAPACITOR 1 SGCC T0.8
3108004800 MOTOR SWING 1 120VAC 60HZ DWC-121CS,124CS(ONLY)
46 3108009700 MOTOR SWING 1 200/220V 50/60HZ DWA-121CS,122CS,124CS,150CS,151CS,152CS
DWB-121CS,122CS,123CS,124CS(ONLY)
47 3100508500 BOX CONTROL 1 SGCC T0.8
48 3106600500 SCROLL UPPER 1 EPS
49 3103002800 HOLDER SCROLL 2 SGCC
50 3104409300 PIPE RUBBER BUTYL 1
3102707500 HANESS COMP AS 1 UL1015-14,BLK,RED,WHT DWC-121C/CS,124C/CS(ONLY)
51 3102708801 HANESS COMP AS 1 UL1015-16,BLK,RED,WHT DWA-121C/CS,122C/CS,124C/CS,150C/CS,151C/CS,152C/CS
DWB-121C/CS,122C/CS,123C/CS,124C/CS(ONLY)
52 3103200500 CAP DRAIN 1 ABS
53 3101404200 COVER ORIFICE 1 PP(H-540)
18
NOTE: ✻ →A or B or C

■ DWA-121C/CS, DWA-122C/CS, DWB-121C/CS, DWB-122C/CS, DWB-123C/CS, DWC
