Daewoo Video recorder User manual

Instruction manual
The following standard functions are available on this set.
NTSC playback See page 14
MESECAM tape playback See page 14
Index scan See page 15
Wide-screen pictures See page 16
Commercial skip See page 16
High-speed rewind
See back cover for quick - start guide
Helpline number: 0118 925 2577
With queries, please quote the page number, reference number and model number.

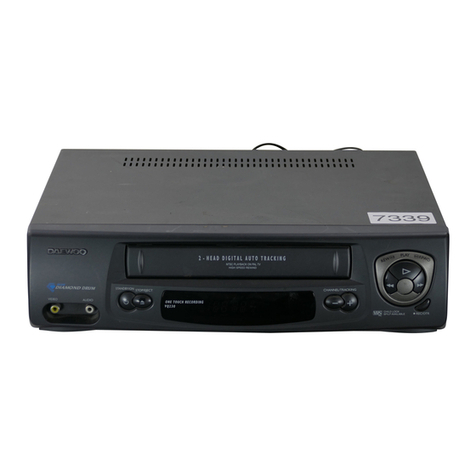

Video recorder
For model number, see the front display of your video.
This manual covers the ‘VQ’ range.
4156
Important: If you switch the video off at the mains
supply overnight, you do not have to retune the
video. Simply press and then MENU on the
remote control to restore all the programme
settings.

7/1997

Wo r t h
k n o w i n g
Please keep the video’s guarantee sheet (pages 29 and 30) and receipt for your video in
a safe place.
◆Read this booklet carefully.
◆Make sure the rating of your household electricity supply matches
that shown on the back of the video recorder.
◆Read this chapter and the ‘Setting up your video’ chapter to help
you set up and adjust your video recorder.
◆Do not put the video recorder in a hot or humid place (to avoid the
risk of fire and electric shock).
◆ Do not open the video recorder. Get a qualified technician to carry
out any repairs.
◆Do not connect the video recorder to the power supply if you have
just moved it from a cold environment to a warm room. This can
lead to condensation inside the video which can seriously damage
the video and cassettes. Wait around two hours to allow it to reach
room temperature.
◆Put the video on a steady, flat surface.
◆Make sure there is good ventilation all around the video.
◆Only clean the video with a soft, lint-free cloth. Do not use harsh or
alcohol-based cleaning agents.
For your own safety!
◆There are no parts in this video recorder you can service
or repair yourself.
◆Do not open the case of the video recorder. Only allow a
qualified engineer to repair or service your video.
◆This video recorder is designed to work continuously.
Switching it off (onto stand-by) does not disconnect it
from the mains. To disconnect it from the mains, you
have to unplug it.
PAL
The power cable must be fitted with a fused plug approved
by ASTA or BSI to BS 1362 and provided with a 5A fuse.
The fuse cover must always be securely replaced. If the
video recorder is not working, the fuse may need replacing
(see also ‘Electrical connection’ on page 26).
Precautions
“People are always telling me that instructions for using electrical goods are the most difficult to understand.
We have worked closely with Daewoo to make these instructions crystal clear. I hope this instruction book helps
you to use your new video. We would be interested to hear your views. Please write to us at
PO Box 3, New Mills, High Park, England. SK22 4QP”.
Chrissie Maher OBE, MA
Founder and Director, Plain English Campaign

3
Contents
Before you do anything with the video, please read
the chapter ‘Setting up the video’.
◆On the following pages, the pictures show the buttons you need to press on the remote control and
what you should see on the television screen or video display.
Setting up the video
Connecting your video through RF lead, Connecting your video through a
scart lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connecting your video to the satellite system, Connecting your video
to the hi-fi system (Option 1)
Connecting your video to the hi-fi system (Option 2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
How to connect your video to another video, How to connect your video
to a camcorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Tuning to the TV using an antenna cable (RF cable), What to do if you
get picture interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Tuning your video recorder to the television, setting time and date . . . . . . . . . . . . 8
Decoder or 2nd scart socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Tuning in new stations
Manual tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Station names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Sorting programme locations, Clearing programme locations . . . . . . . . . . . . . . . . . . 12
Front panel controls, Digital Shuttle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Playing cassettes
Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Still, Variable picture search, Variable slow motion,
Finding new recordings (index scan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
16-9 Wide screen-format, commercial skip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Child lock device, Remote lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Recording cassettes
Simple recording, One-touch recording-OTR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Timer recording using VideoPlus+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Normal timer recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Timer review – changing and erasing record settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
More functions
Clock and counter display, Remaining time and cassette length,
Finding the counter zero position, Resetting the counter to zero. . . . . . . . . . . . . . 22
Cassettes, Power-saving features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Choice of sound output, The Q-sound system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
The hi-fi system - What you can listen to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
S-VHS quasi playback (SQPB), Audio dubbing (A.D.). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Connections and copying
Electrical connection, Moulded Plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Appendix
Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Problem-solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Quick-start guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4
Before you start, unplug all the equipment from the mains supply.
With this connection, if your video is receiving BBC1 and your TV is showing CH4, when you press the TV/VCR button on the remote control, your
TV will automatically display BBC1.
In most cases you will not be able to change channels using the controls on your TV until you turn this feature off by pressing
TV/VCR on your remote control.
Before you start, unplug all the equipment from the mains supply.
You will get better picture and sound quality if you connect your video with a scart lead.
This lead is supplied in your accessory kit.
Aerial
The type of aerial depends
on local interference and
how far you are from the
transmitter. You should
contact a local electrical
shop if you have any
questions about your aerial.
Television
Television Aerial
Back view of your video
Scart lead (if supplied)
Back view of your video
AC230V
50Hz
Setting up your video (Option 1) – Connecting your video through RF lead
Setting up your video (Option 2) – Connecting your video through a scart lead
1
2
AC230V
50Hz
If you have connected your video as shown in option 1, turn to page 7.
If you have connected your video as shown in option 2, turn to page 8.
Put the batteries into the remote control. Make sure the (+) and (-) signs on the batteries agree with the (+) and (-) signs
in the battery compartment.

5
Before you start, unplug all the equipment from the mains supply.
Before you start, unplug all the equipment from the mains supply
You can use this connection
if your video has two scart
sockets. This will improve
sound and picture quality
when you are recording
from satellite.
To use this function, see
page 9
Television
Television Aerial
Hi-fi
Aerial
Video
Video
Satellite
AC230V
50Hz
Television Aerial
Hi-fi
Video
AC 230V
50Hz
Connecting your video through extra equipment
Connecting your video to the satellite system
Connecting your video to the hi-fi system - Option 1
Before you start, unplug all the equipment from the mains supply
Connecting your video to the hi-fi system - Option 2
Plug a phono cable into the
‘Audio L/R’ socket on the
back panel and into the
audio socket on any audio
amplifier, if needed. If your
video does not have this
conection, see below
(Option 2).
3
4
5
AC230V
50Hz
L❍
R❍
You can also use a scart lead to improve picture and sound quality from your video.
Make sure the satellite receiver is switched to Sky One.
Plug a scart to phono cable
into the ‘AVI’ socket on the
back panel and into the
audio socket on any audio
amplifier, if needed.

Before you start, unplug all the equipment from the mains supply.
Before you start, unplug all the equipment from the mains supply.
1) Put the tape you want to record on into the first video.
2) Put the tape you want to record from into the second video. Press the play button on the second video.
3) Press the record button on the first video.
The video will start recording.
If your video has two scart sockets, you can use the other socket to connect other equipment.
First video
Second video
Aerial
or
Television
Video
Camcorder
If you have connected your video in this way, you can also connect a scart lead from ‘AV1’ on the back panel of the video to the
television.
To use this function, see page 9.
You can also connect the camcorder by using a phono cable if your video has front input sockets . Check the
front of your video for this connection.
AC230V
50Hz
AC230V
50Hz
AC230V
50Hz
6
7
How to connect your video to another video
How to connect your video to a camcorder
VIDEO L AUDIO R
❍
❍❍ ❍❍ ❍
6

8
Tuning your video recorder to the television
Press on your remote control.
If you do not see this picture, check that the video is connected
properly.
Press OK for ‘Auto Set’ or ‘AutoSearch’.
Unless you are living in an area with poor reception,’Auto Set’ or ‘Auto Search’
tunes in all the stations you can receive in your country and sorts them in a common
order, for example, BBC1 on programme 1, BBC2 on programme 2 and so on.
See page 11 and page 12 if you need to change any of the automatic settings. You
should finish stage 4 before you go to page 11 or page 12.
The clock is also set automatically. If the clock has not been set, the clock setting
screen will appear.
Please see ‘Setting time and date’ below.
If you want to change the station names, see page 11.
If you want to change the programme locations see page 12. You need to change
programme locations if the stations are not in order, for example, BBC1 on
programme 1, BBC2 on programme 2 and so on.
Press MENU to end.
Important: If you switch the video off at the mains supply overnight, you do
not have to retune the video. Simply press and then MENU on the
remote control to restore all the programme settings. See below to set the
time and date.
Setting time and date
If the ‘CLOCK SET’ display is not already on the screen press MENU.
Choose ‘VCR SET UP’ by pressing PR- twice, then press OK.
Choose ‘CLOCK SET’ by pressing OK.
Once the ‘CLOCK SET’ display is on the screen, move to the position
you want to change by pressing or .
Use the number buttons 0to 9on the remote control to enter the
correct time and date.
Press OK to confirm the settings, and press MENU to end.
Auto Set or Search!
OK:confirm MENU:end
AUTO SET or SEARCH
MENU:end
PR03
UHF ------------ ----
76%
setting
Please wait...
MANUAL SET
PR01 P-01 PRO6 P-06
PR02 P-02 PRO7 P-07
PR03 P-03 PRO8 P-08
PR04 P-04 PRO9 P-09
PR05 P-05 PR1O ----
PR+/-:select
OK:confirm MENU:end
AUTO SET or SEARCH
CLOCK SET
0-9:setup(hour)
/ :correct
OK:confirm MENU:end
Time 11:41
Date 20/09/1999(MON)
CLOCK SET
0-9:setup(minute)
/ :correct
OK:confirm MENU:end
Time 11:41
Date 20/09/1999(MON)
◆The video’s automatic tuning system usually gets the best results. In poor reception areas, fine tuning
may improve reception. Choose the station and tune it in using the and buttons. Use the number
buttons on the remote control to enter the programme number you want to store the station on.
‘Autoset’ only will appear on your screen if your video has this function.
‘Autosearch’ only will appear on your screen if your video has this function.
1
2
3
1
2
3
4

9
23 1
456
789
0
SV/V+
TV/VCR
AV
A
Q.S
EJECT
MENUSP/LP PR +
OK
PAL/SEC
A.SEL
PR –
INDEX
–+
A.D 30
Decoder or 2nd scart socket
If your video has the output, shown in the diagram below, you can connect other equipment as
seen on pages 5 and 6.
Tuning equipment to the video
Press MENU and choose ‘VCR Setup’ by pressing PR- twice then
OK.
Choose ‘2nd SCART Set’ by pressing PR- twice then OK.
Extra equipment Pay TV equipment
AV2 Decoder
For example, camcorder,
another video or a satellite
system.
Choose ‘AV2’ by pressing OK.
Press MENU to end.
For example a satellite or cable
system.
Choose ‘Decoder’ by pressing
PR- then OK.
Press MENU to end.
Decoder mode: In this mode when your satellite or cable system is switched on, it
controls your video. Satellite and cable systems can also work in AV2 mode. In this case
put your video into AV2 to watch or record satellite or cable television.
Read your satellite decoder and TV instruction manuals to get the best
connections for your home entertainment system.
2nd scart

7
Tuning your video to the TV using an antenna cable (RF cable)
Use the following method to tune your video in if you have connected it through RF cable (as
shown in diagram 1 on page 4)
Press on the remote control and RF52 will be displayed on the
front of your video.
If you have connected your video through the scart connection (diagram 2 on page 4), go to page 8.
What to do if you get picture interference
Option 2
aContact your local broadcaster to find the correct RF output. Change this by pressing
the number buttons on the remote control.
bRe-tune the unused channel station on your TV for video input. If you still get
interference, try option 3.
Option 3
Buy a scart lead from your local electrical shop. Connect the scart lead as shown on page
4, diagram 2.
If you want to change the RF output in the future due to new broadcasting stations or equipment and so on, press and
hold the OK button on the remote control until RF52 is displayed on the front of the video. Then go to option 1 above.
Option 1
a You can use the number buttons on the remote control to change RF52 to 21, and
re-tune the unused channel station on your TV for video input.
bIf you still get interference, adjust the number in steps of 2 (for example, 21 to 23, 23
to 25).
c You can change the RF output from 21 to 69. If you still get interference, try option 2.
Tune the TV, using the pre-set functions on your TV as
described in its manual, until you see a blue ‘Auto Set’ or
‘Auto Search’ screen. Store this setting on the TV and go to
page 8.
Once you have carried out the steps in ‘Setting up your video’ (diagram 1 on page 4), switch on
your TV.
RF 52
OK:confirm MENU:end
Auto Set or Auto Search
1
2
The RF output can be adjusted from 21 to 69. If other broadcasts are causing
picture interference, you can change the RF output until your television has a
noise-free channel for your video.

10
Manual tuning
Press MENU..
Choose ‘PR Preset’ by pressing PR- then OK.
Choose ‘Manual Set’ by pressing PR- then OK.
Press PR+ or PR- to select any programme
number that is not being used, for example ‘----’ or
‘P-xx’.
Press OK to confirm.
Press PR+ or PR- to tune in the station you want.
When ‘Manual Set’ comes back on the screen,
press and hold button to see the picture.
If it isn’t the station you want, or the picture is
of poor quality, carry on tuning by pressing
PR+ or PR-.
Press OK to store the picture you want.
Tune in other stations (by following step 3 onwards)
or press MENU to leave the tuning mode.
Your video has 99 available channel slots. It will only store programmes that are available in your area. You
can tune in other stations in any channel slot that is not already being used.
PR PRESET
Auto Set
Manual Set
PR Erase
PR Align
PR+/-:select
OK:confirm MENU:end
MANUAL SET
PR01 BBC1 PRO8 SKYS
PR02 BBC2 PRO9 MTVE
PR03 ITV PR10 P-10
PR04 CHA4 PR11 P-11
PR05 SKY1 PR12 ----
PRO6 SKYN PR13 ----
PRO7 SKYM PR14 ----
PR+/-:select
OK:confirm MENU:end
MANUAL SET
PR+/-:search up/down
MENU :end
PR29
UHF ----------- -----
68%
MANUAL SET
PR+/-:search up/down
:name correct
:PR view
OK:confirm MENU:end
PR29 P-29
MANUAL SET
PR+/-:search up/down
:name correct
:PR view
OK:confirm MENU:end
PR29 P-29
Manual tuning allows you to tune in new stations or equipment such as a satellite receiver and so on.
When your video is in certain AV modes you cannot use ‘PR Preset’. Press AV until P--- is displayed on
the front of the video.
1
2
4
5
6
These buttons
are used on the
following two
pages.
23 1
456
789
0
SV/V+
TV/VCR
AV
A
Q.S
EJECT
MENUSP/LP PR +
OK
PAL/SEC
A.SEL
PR –
INDEX
–+
A.D 30

11
Station names
◆The video’s automatic tuning system usually gets the best results. In poor reception areas, fine tuning may
improve reception. Choose the station and tune it in using the and buttons. Use the number buttons on
the remote control to enter the programme number you want to store the station on.
If your video is showing no station name or is showing a station name incorrectly, you can change this.
When your video is in certain AV modes you cannot use ‘PR Preset’. Press AV until P--- is displayed on the
front of the video.
Press MENU.
Choose ‘PR Preset’ by pressing PR- then OK.
Choose ‘Manual Set’ by pressing PR- then OK.
Move to the details you want to correct by pressing PR+ or PR-
then OK.
Select ‘name correct’ by pressing .
MANUAL SET
PR+/-:search up/down
:name correct
:PR view
OK:confirm MENU:end
PR29 P-29
Use PR+ or PR- to select the name from the stored list or select
‘name create’ again and enter a four-digit name.
To enter a four-digit name, change the letters with the PR+ or
PR- buttons, or move to the next letter with the or
buttons.
MANUAL SET
PR+/-:name change
:name correct
OK:confirm MENU:end
PR01 E-01
Press OK to confirm and
MENU to end.
MANUAL SET
PR01 BBC1 PRO8SKYS
PR02 BBC2 PRO9 MTVE
PR03 ITV PR10 P-10
PR04 CHA4 PR11 P-11
PR05 SKY1 PR12 ----
PRO6 SKYN PR13 ----
PRO7 SKYM PR14 ----
PR+/-:select
OK:confirm MENU:end
1
2
3
4

12
Sorting programme locations
Clearing programme locations
Sorting programme locations allows you to put the video programme in the same order as your TV.
When your video is in certain AV modes you cannot use ‘PR Preset’. Press AV until P--- is displayed on the
front of the video.
PR ERASE
PR01 BBC1 PRO8 SKYS
PR02 BBC2 PRO9 MTVE
PR03 ITV PR10 P-10
PR04 CHA4 PR11 P-11
PR05 SKY1 PR12 ----
PRO6 SKYN PR13 ----
PRO7 SKYM PR14 ----
PR+/-:select
:PR View
OK:erase MENU:end
Press PR+ or PR-to select the programme
you want to swap.
Confirm by pressing the OK button.
Press PR+ or PR- to move the station to the
program number you want to store it on.
Confirm with the OK button.
Press MENU to end.
Press PR+ or PR- to select the station you
want to clear.
Press OK to confirm.
Press and hold to watch the picture.
PR ALIGN
PR01 BBC1 PRO8 SKYS
PR02 BBC2 PRO9 MTVE
PR03 ITV PR10 P-10
PR04 CHA4 PR11 P-11
PR05 SKY1 PR12 ----
PRO6 SKYN PR13 ----
PRO7 SKYM PR14 ----
PR+/-:align
:PR View
OK:confirm MENU:end
:PR view
OK:confirm MENU:end
PR03 P-03
IMPORTANT
The ‘OK’ button will
erase this PR.
Press MENU.
Choose ‘PR Preset’ by pressing PR- then OK.
Choose ‘PR Align’ by pressing PR+ then OK.
Press MENU.
Choose ‘PR Preset’ by pressing PR- then OK.
Choose ‘PR Erase’ by pressing PR+ twice and then OK.
Clearing programme locations allows you to erase any stored programmes you no longer want.
When your video is in certain AV modes you cannot use ‘PR Preset’. Press AV until
P--- is displayed on the front of the video.
1
2
3
1
2
3
These buttons
are used on the
following two
pages.
23 1
456
789
0
SV/V+
TV/VCR
AV
A
Q.S
EJECT
MENUSP/LP PR +
OK
PAL/SEC
A.SEL
PR –
INDEX
–+
A.D 30
If you want to erase the station, press OK.
Press MENU to end.
If you don’t want to erase the station, press
MENU.

13
Front panel controls
Change the station.
Record or one-touch record
Every time you press the button the recording time is increased by 30 minutes.
Rewind or fast forward a cassette from stop, or picture search backwards or
forwards if the video is playing a cassette.
Play
Power on or off (stand-by).
Stop or eject.
Front input sockets for connecting a stereo camcorder (left and right
channels). This is only available on some models. Check the front of your
video to see if this connection is available.
REW F.FWD
PLAY
RECORD
OTR
CH. / TRK
VIDEO L AUDIO R
STOP/EJECT
POWER
The following buttons are on the front of your video.
Digital shuttle
Digital shuttle is available on models with the ‘power-drive shuttle’ knob, see picture above.
It allows controlled picture search for editing.
In stop mode
Turn the power-drive shuttle knob to make the cassette fast forward or rewind.
In play mode
Turn the power-drive shuttle knob to fast forward or rewind the cassette with pictures but no
sound.
Turn the power-drive shuttle knob by different amounts to speed up or slow down the picture
movement.
nREC/OTR
POWER DRIVE
SHUTTLE
PLAY

14
Play
Push the cassette smoothly and squarely into the cassette bay, with its windows pointing up.
Start playback.
If you hear an unclear, mixed
sound output in different
languages, select one of the
sound options.
Stop playback.
Eject the cassette.
◆When you load a protected cassette such as pre-recorded film (see page 23) playback will start automatically.
◆When you are playing tapes of poor quality or tapes which have been recorded on another machine, you can use
the PR + or PR– buttons while the cassette is playing to reduce horizontal interference stripes.
◆Playing NTSC tapes on PAL TV: If you play cassettes which have been recorded on the NTSC colour system (as
used in the USA), you can watch the pictures on most PAL TVs.
On older TVs, some black lines may appear at the top and bottom of the screen. The picture may also roll up or
down. To prevent these problems adjust the V-HOLD knob on your television.
NTSC: National Television Systems Committee.
◆This video can also play MESECAM cassettes.
23 1
456
789
0
SV/V+
TV/VCR
AV
A
Q.S
EJECT
MENUSP/LP PR +
OK
PAL/SEC
A.SEL
PR –
INDEX
–+
A.D 30
PLAY
VCR
P-07
VCR
17:15
VCR
FF
VCR
REW
VCR
PLAY SP Hi-Fi
L+R
EJECT
A.SEL
L
A.Sel is only available on some models. If this screen does not appear
when you press the button, A.Sel is not available on your video.
R
L
L
L
R
R
L R
R
These buttons
are used on the
following two
pages.
Playing cassettes
The screen will only appear if you use a hi-fi tape or play a hi-fi or
NICAM recording.
n
Fast forward or rewind the
cassette from stop.

PLAYING cassettes
15
Still
Variable picture search
Variable slow motion
Finding new recordings (index scan)
Still picture from playback.
Each press of the button moves the picture on one frame. The
play display will blink during still mode.
Press the play button to switch back to normal playback.
After approximately five minutes on still, the cassette will automatically
switch to normal playback.
If the still picture is jumping, you can steady it by using the PR+ and PR–
buttons.
Keep pressing to vary the forward search speed.
Keep pressing to vary the rewind search speed.
Starting from playback you can keep pressing to control
slow motion speed in six steps.
Press the play button to switch back to normal playback.
Press INDEX + or INDEX – to search forwards or
backwards.
The video will now wind to the beginning of a recording,
play it for about six seconds, then wind on to the next one.
When you see the recording you want to watch,
press play.
The video index search system allows you to find the beginning of any recording you have made on your video. Your
video automatically records index marks on the tape whenever a recording is started.
PLAY
VCR
SCH
VCR +
SCH
VCR
SLOW
VCR
FF SP
INDEX 01
0:11:09
Press to switch back to normal playback.
There must be a cassette in the video.
–

16
16 : 9 Wide-screen format
CM skip (commercial skip)
23 1
456
789
0
SV/V+
TV/VCR
AV
A
Q.S
EJECT
MENUSP/LP PR +
OK
PAL/SEC
A.SEL
PR –
INDEX
–+
A.D 30
16:9 Wide-screen format is only available through wide-screen broadcasts. Your TV must
have 16:9 wide-screen function and you must connect your TV and video using an A/V
scart lead. (See page 4, diagram 2.)
16:9 Set !
-AUTO : The video will check whether the cassette is
recorded in wide screen format (16:9) or normal TV
format (4:3), and will play the cassette with the
appropriate format.
-ON : For recording and playing the programme
with 16:9 wide-screen format.
-OFF : For recording and playing the programme
with 4:3 normal TV format.
If you press the 30 button on the remote control, the video will picture
search forward for 30 seconds.
Choose ‘16:9 set’ by pressing MENU. Press PR- twice then OK. Press PR+ then OK.
Press PR- to choose the setting you want, for example, -AUTO,
-ON or -OFF. Confirm the setting with OK.
VCR SETUP
Clock Set
RF Output Set
2nd Scart Set
16:9 Set
PR+/-:select
OK:confirm MENU:end
16:9 SET
AUTO
OFF
ON
PR+/-:select
OK:confirm MENU:end
1
2
3

17
Child lock
This child lock is suitable for this model only. Do not try to use it any other
videos.
Inserting the child lock
Make sure there is no cassette in the video recorder.
Insert the child lock the right way up, as shown in the diagram above.
Removing the child lock
You must press the button in the centre of the child lock you are removing it.
You will need to use both hands.
Remote lock
You can only set the remote lock with your remote control.
You can prevent anyone from using the controls on the remote control or the front
display. Press and hold the button until is displayed on the front of your
video. Your video cannot be used, only timer recordings will work.
Keep your remote control in a safe place. To release the remote lock, press
and hold until disappears from the front display.
n
n

18
Simple recording
One-touch recording – OTR
Load a cassette with its safety tab in place (see page
23).
Press to start your recording.
Press II if you want to stop the recording for a
short while.
‘REC’ on the front display will blink.
Press to continue recording.
Press to stop your recording.
Press PR+ or PR- to choose the station you want to
record.
Press SP/LP if you want to double the length of the
cassette’s recording time.
For example, on an E240 cassette you can record for
up to four hours when SL is displayed, or up to eight
hours when LP is displayed.
◆To cancel OTR press and hold the button for about five seconds
until the video stops recording.
23 1
456
789
0
SV/V+
TV/VCR
AV
A
Q.S
EJECT
MENUSP/LP PR +
OK
PAL/SEC
A.SEL
PR –
INDEX
–+
A.D 30
Press PR+ or PR- to choose the station you want to record. Every time you
press , the recording time will increase by 30 minutes. It is possible to
record for up to 10 hours if there is enough room on the cassette.
P-01
REC
VCR
VCR
REC
VCR
P-01
VCR
R0:30
VCR
TMR
STOP SP PRO1 BBC1
STEREO ON
.
L R
LR
LR
L R
LR
These buttons
are used on the
following two
pages.
◆If you want to record from other equipment that is connected to your video,
see pages 5, 6 and 9.
