Daikin MC40VBFVM3 User manual

Model
MC40VBFVM3
Floor standing or desktop type
Floor standing or desktop type
OPERATION MANUAL
Air purifier
• Thank you for purchasing this air purifier.
• Please read the operation manual carefully and follow it for correct use.
•Please read the “Safety Precautions” section before use.
Please keep the operation manual in a safe place for later reference.
Air Purifier
►
Page 3, 4
3P629501-5 2020/08/17
For internal
use only
3P629501-5
English

1
Features
Streamer Technology
This technology employs a “streamer discharge”, a
type of plasma discharge comprising high-speed
electrons with powerful oxidative capacity, that is
generated inside the air purifier. The discharge
swiftly removes odours. (The high-speed
electrons are generated and then adsorbed within
the unit to ensure your safety.)
Streamer operation is conditional on the degree of air impurity.
During operation, the streamer discharge may generate a hissing sound, however, this does not indicate a defect.
In addition, the sound may lessen or change in tone depending on the operating environment, however, such changes are normal.
In some cases the air outlet may emit a slight odour as trace amounts of ozone are generated. However, the amount is
negligible and is not harmful to your health.
Powerful and swift suction action driven by large airflow
Suction of house dust and odours with large airflow.
3 filter layer structure ensures thorough and rapid purification of the ambient air.
Streamer discharge decomposes adsorbed odour.
Elimination of 99% of 0.1-2.5μm particles (*1).
Controlling PM2.5
These results were obtained in a 32m³ airtight space. They are not demonstrable effects in customer environments.
• Does not take into account inflow of new particles from outdoors owing to ventilation etc.
• PM2.5 is a generic term for particulate matter that is 2.5μm or less in size.
• Elimination of particulate matter that is less than 0.1μm in size by this air purifier has not been verified.
This product cannot eliminate all airborne toxic substances.
(*1) Test methodology: The Japan Electrical Manufacturers’ Association standard (JEM1467)
Decision criteria: Elimination of 99% of 0.1-2.5μm particulate matter in a 32m³ airtight space in 90 minutes or less.
Equivalent value for 32m³ test space.
• Decomposition cycle that maintains deodorising capacity.
Substances that can be controlled/broken down
Substances that can be trapped
Pollen Allergens such as
dust mite droppings
and remains
Odours NOxMould Diesel
particulate
matter
Dust
Formaldehyde Yellow sand
Adsorption
Deodorising catalyst
adsorbs odour.
Decomposition
Streamer discharge
decomposes odour.
Recovery
Odour adsorption
capacity is restored.
Odour
Deodorising catalyst
This cycle
maintains
deodorising
capacity.
Replacement of
the deodorising
catalyst is
unnecessary.
Read First
01_EN_3P549982-1A.indd 1 2018/12/04 13:16:02

2
Contents
Troubleshooting
About the Indicator Lamps ............................................... 17
FAQs ............................................................................... 18
Troubleshooting .............................................................. 19
Speci cations ................................................................. 22
Useful Functions
Operating the Unit in a MODE ........................................ 10
AUTO FAN / ECONO / ANTI-POLLEN
Adjusting Indicator Lamp Brightness ................................ 11
Advanced Settings Setting Dust/PM2.5 Sensor Sensitivity ........................... 12
Operation Using the Air Purifying Operation ................................... 9
Changing the Air ow Rate .............................................. 9
Maintenance
Maintenance ................................................................... 13
Replacing the Streamer Unit ............................................ 15
Separately Sold Parts /
When Not Using the Unit for Long Time Periods ............ 16
Features .......................................................................... 1
Safety Precautions .......................................................... 3
Names of Parts and Operations ...................................... 5
Preparation Before Operation.......................................... 7
Read First
Read First
01_EN_3P549982-1A.indd 2 2018/12/04 13:16:03

3
Safety Precautions
Observe these precautions in order to prevent property damage or injury.
The consequences of incorrect use are categorised as follows.
WARNING CAUTION
Failure to follow these instructions properly
may result in personal injury or loss of life.
Failure to follow these instructions properly may
result in property damage or personal injury, which
may be serious depending on the circumstances.
Precautions to be observed are categorised using symbols.
Never attempt. Be sure to follow the instructions.
WARNING Observe in order to prevent res, electric shocks or severe injury.
Concerning the power supply plug and cord
• Do not unplug while the unit is in operation. (Fire or an electric shock may result from heating)
• Do not plug or unplug with wet hands. (An electric shock may result)
• Do not use in such a way that the ratings of the power socket or wiring appliances
are exceeded or use a voltage outside of the range AC220-240V.
(Fire may result from heating if the ratings of multi-socket power adapters, etc., are exceeded)
• Do not pull on the power supply cord when unplugging. (Heating or re may result from wire breakage)
• Do not subject to acts that might damage them.
–Such acts include damaging, modifying, forcibly bending, pulling, twisting, bundling up, placing heavy objects on,
etc., the power supply plug or cord. If the power supply plug or cord is damaged, it must be replaced by the
manufacturer, its service agent, or a similar qualied person in order to avoid a hazard.
(An electric shock, short circuiting, or re may result from use while damaged)
• Insert the power supply plug rmly all the way in.
–Do not use a damaged power supply plug or a loosely tted power socket.
(An electric shock or re, due to heating or short circuiting, may result if the power supply plug is not rmly inserted)
• Periodically wipe dust off the power supply plug with a dry cloth.
–If the unit is not to be used for an extended period of time, unplug the power supply plug.
(Fire or overheating may be caused by defective insulation resulting from moisture etc.)
• When performing maintenance, inspecting, or moving the unit, make sure to turn off
and unplug the appliance. (An electric shock or injury could result)
Do not use in the following places
• Places where oil or ammable gases are used or may leak. (Fire or smoke may result from
ignition or suction toward the unit, or injury may result from degradation or cracking of plastic)
• Places where there is corrosive gas or metal dust particles.
(Fire or smoke may result from ignition or suction toward the unit)
• Places where temperature and humidity levels are high or water may scatter, such
as a bathroom.
(Fire or an electric shock may result from electrical leakage)
• Places accessible to small children. (An electric shock or injury may result)
During use
• Do not use chlorinated or acidic detergents. (Injury may result from the degradation or cracking of
plastic, or harm may be caused to health from the production of toxic gases)
• Keep burning cigarettes or incense sticks away from the unit.
(Fire or smoke may result from ignition or suction toward the unit)
• Do not attempt to disassemble, reconstruct or repair the unit yourself.
(Fire, an electric shock, or injury may result) For repairs, please contact the place of purchase.
• Do not insert ngers, sticks, or any other item, into the air inlets or air outlet.
(An electric shock, injury, or damage may result)
• Do not pour water on to the air outlet or the unit. (Fire or an electric shock may result)
• Do not use ammable substances (hair spray, insecticide, etc.) near the unit.
Do not wipe the unit with benzine or thinner. (An electric shock, re, or cracking may result)
Read First
01_EN_3P549982-1A.indd 3 2018/12/04 13:16:03

4
WARNING Observe in order to prevent res, electric shocks or severe injury.
Immediately turn off and unplug the unit if there are any signs of abnormality or damage
Examples of abnormality or damage
•
The unit does not operate even if the switch is turned on.
• Current passes through the cord only sometimes if the cord is moved.
• There are abnormal sounds or vibrations during operation.
• The casing of the unit has deformed or is abnormally hot.
• There is a burnt smell. (Malfunctioning, an electric shock, smoke, re, etc., may result if the abnormality is not
addressed and the unit continues to be used)
Contact the place of purchase.
CAUTION
Observe in order to prevent short circuiting, injury or property damage.
During use
• Small children or immobile persons (due to illness or injury) should not operate the
unit by themselves.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
–Children should be supervised to ensure that they do not play with the appliance.
–Persons who are heavily intoxicated or have taken sleep medication should not operate the unit.
(An electric shock, injury or poor health may result)
• Do not use products, such as cosmetics, that contain ne powder, near the unit.
(An electric shock or malfunctioning may result)
• Do not operate the unit when fumigating insecticide is in use.
–After using insecticide, make sure to sufciently ventilate the room before operating the unit.
(Harm may be caused to health from an outow of accumulated chemical compounds from the outlet)
• Do not use near a smoke detector.
–If out owing air ows in the direction of a smoke detector, the response of the smoke detector may be delayed or it
may fail to detect smoke.
• Frequently ventilate the room when using the unit together with combustion-based
heating devices.
–Usage of this product is not a substitute for ventilation. (Potential cause of carbon monoxide poisoning)
This product cannot eliminate carbon monoxide.
• If the unit is placed within reach of a pet, be careful that the pet does not urinate on
the unit or chew on the power supply cord. (Fire, an electric shock, or injury may result)
Concerning the unit body
• Do not obstruct the air inlets or air outlet with laundry, cloth, curtains, etc.
(Overheating or re may result from poor circulation)
• Do not climb, sit or lean on the unit. (Injury may result from falling or toppling)
When moving the unit
• When picking up the unit to move it, handle the unit with caution.
–Make sure to always hold the unit using the correct grips. Do not hold the unit using the grip on the deodorising lter
unit. (Injury may result from falling)
CJO001
Read First
01_EN_3P549982-1A.indd 4 2018/12/04 13:16:03

5

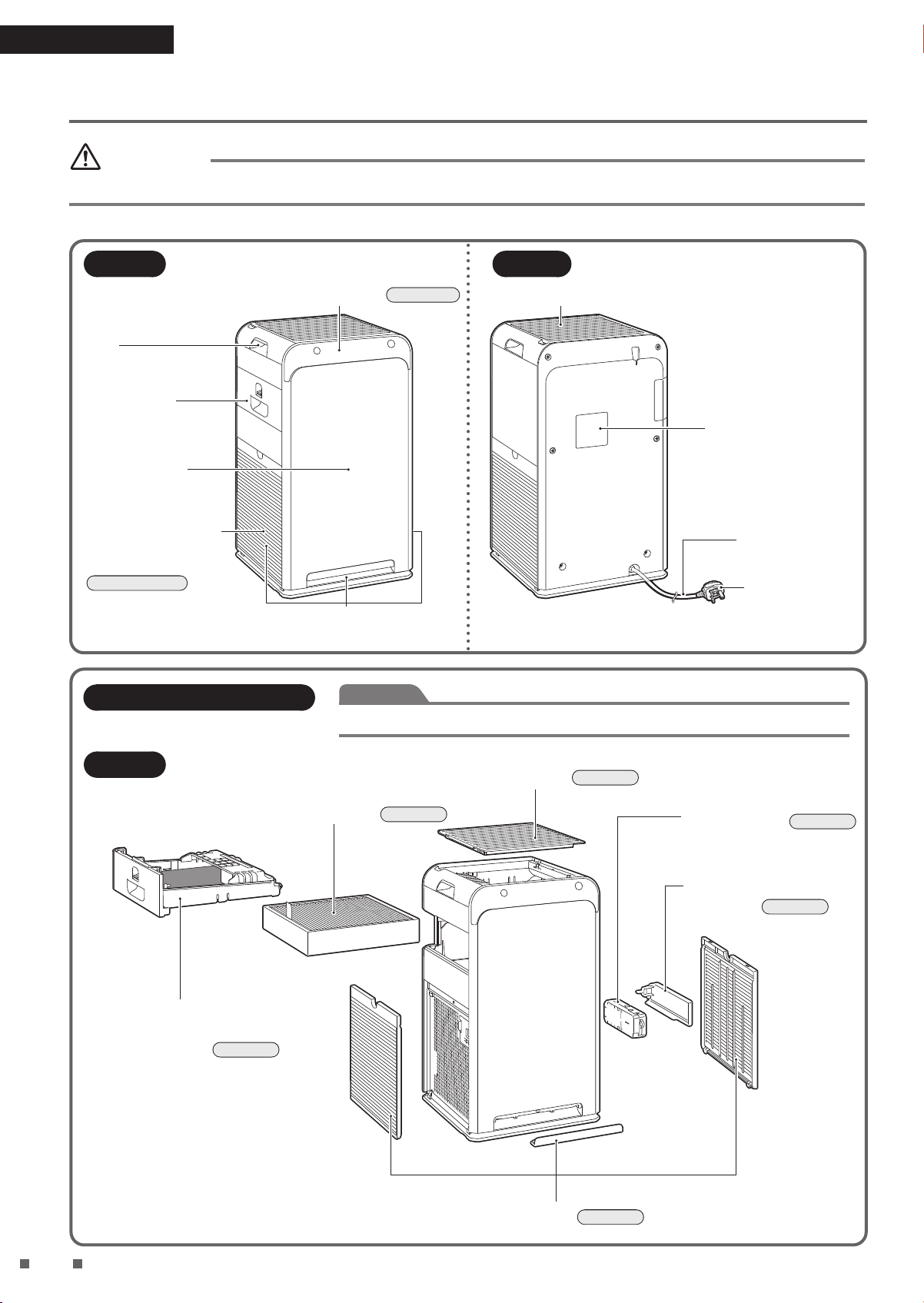

Names of Parts and Operations
Read First
CAUTION
Do not lift up the unit holding the grip on the deodorising  lter unit. (May lead to falling over)
Front
Front
Back
Operating/Indicator panel
►
Page 6, 7
Deodorising
 lter unit
Odour sensor
Inside the unit.
Grip
(for carrying the unit)
Dust/PM2.5 sensor
Inside the air inlet
(left-side).
►
Page 6, 12, 13
Model name /
Production no.
Air inlets
Front/Side
Power supply
cord
Air outlet
Power supply
plug
Main Removable Parts
Pre- lter
►
Page 13
Out ow grille
►
Page 13
Streamer unit cover
►
Page 15
Deodorising  lter unit
(Black  lter: Deodorising  lter)
►
Page 14
Dust collection  lter
(electrostatic HEPA  lter)
(White  lter)
►
Page 14 Streamer unit
►
Page 15
Attention
To prevent malfunctioning, make sure to only operate the unit with all parts attached.
01_EN_3P549982-1A.indd 5 2018/12/04 13:16:03

6

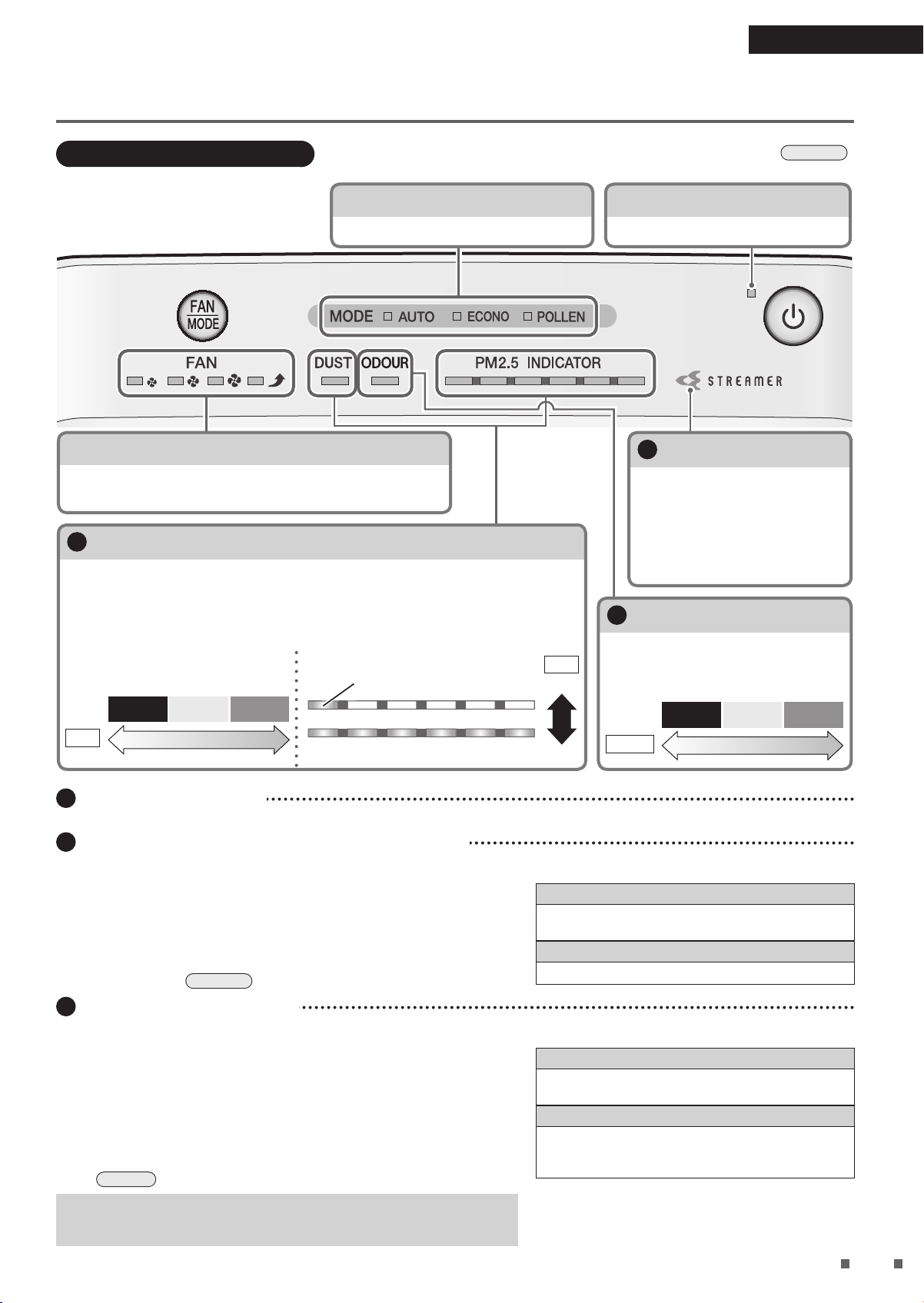

1About the streamer lamp
• This lamp lights up when the streamer is operating. The streamer operates depending on the degree of air impurity.
2About the dust sensor lamp / PM2.5 INDICATOR lamp
• After operation is started, the lamp will light green for the  rst minute
(approx.) regardless of air impurity level.
• The responsiveness of the dust/PM2.5 sensor may be poor during FAN setting
“Turbo” or when air ow is high in AUTO FAN MODE. The strong air ow causes dust
to be drawn into the air inlets before it can be detected by the dust/PM2.5 sensor.
This is normal (not a malfunction).
• If the responsiveness of the dust/PM2.5 sensor is poor, change the sensitivity
setting of the sensor.
►
Page 12
Dust/PM2.5 sensor detection range
Detectable matter
house dust, tobacco smoke, pollen, mites, pet hairs,
diesel particulate matter
Sometimes detectable
steam, oil smoke
3About the odour sensor lamp
• If operation is started immediately after the power supply plug is inserted, the
lamp will light green for the  rst minute (approx.).
• If odour intensity levels are unchanging, the sensor may not respond even if there
is a strong odour in the air.
• The sensor may not respond to some odours such as pet odours (excluding
ammonia), garlic odour, etc.
• As odour perception varies by person, in some cases an odour may be sensed
even when the lamp is green.
If the odour bothers you, switch to manual air ow rate, and select a high air ow
rate.
►
Page 9
The ambient odour level in the  rst minute after the unit is plugged in serves as
the reference level upon which the sensitivity of the odour sensor is determined.
Insert the power supply plug when the air is clean (odour-free).
Odour sensor detection range
Detectable matter
tobacco odours, cooking odours, pet odours, toilet
smells, waste smells, mould odours, sprays, alcohol
Sometimes detectable
sudden changes in temperature/humidity, steam, oil
smoke, gas emitted from combustion-based heating
devices
Read First
Operating/Indicator panel When a lamp is blinking
►
Page 17
MODE lamps [green]
Indicate the MODE in operation.
ON/OFF lamp [green]
Lamp will light up when the power is ON.
FAN lamps [green]
Indicates the active FAN setting (4 settings: Quiet, Low, Standard,
Turbo).
2Dust sensor lamp / PM2.5 INDICATOR lamp
Light indicates the volume of ambient dust.
• Green indicates that the air is clean.
• The dust sensor lamp / PM2.5 INDICATOR lamp can detect small (approx. 1.0-2.5μm) and
large (approx. 2.5μm and above) dust particles. The PM2.5 INDICATOR lamp light in
response to small particles and the dust lamp lights in response to large dust particles.
Green Orange Red
Low High
Lamp
colour
Dust
[Dust sensor lamp]
Low
High
Green
Green
Lit up
Yellow Orange Red Purple Brown
Dust
[PM2.5 INDICATOR lamp]
1Streamer lamp [blue]
Lights up when the streamer is active
•
The streamer turns ON and OFF
automatically depending on the
degree of air impurity and FAN setting.
• Turns off when the streamer is
inactive.
3Odour sensor lamp
Indicates the intensity of odours in 3
colours: green, orange, red.
• Green indicates that the air is clean.
Green Orange Red
Low High
Lamp
colour
Odours
01_EN_3P549982-1A.indd 6 2018/12/04 13:16:04

7

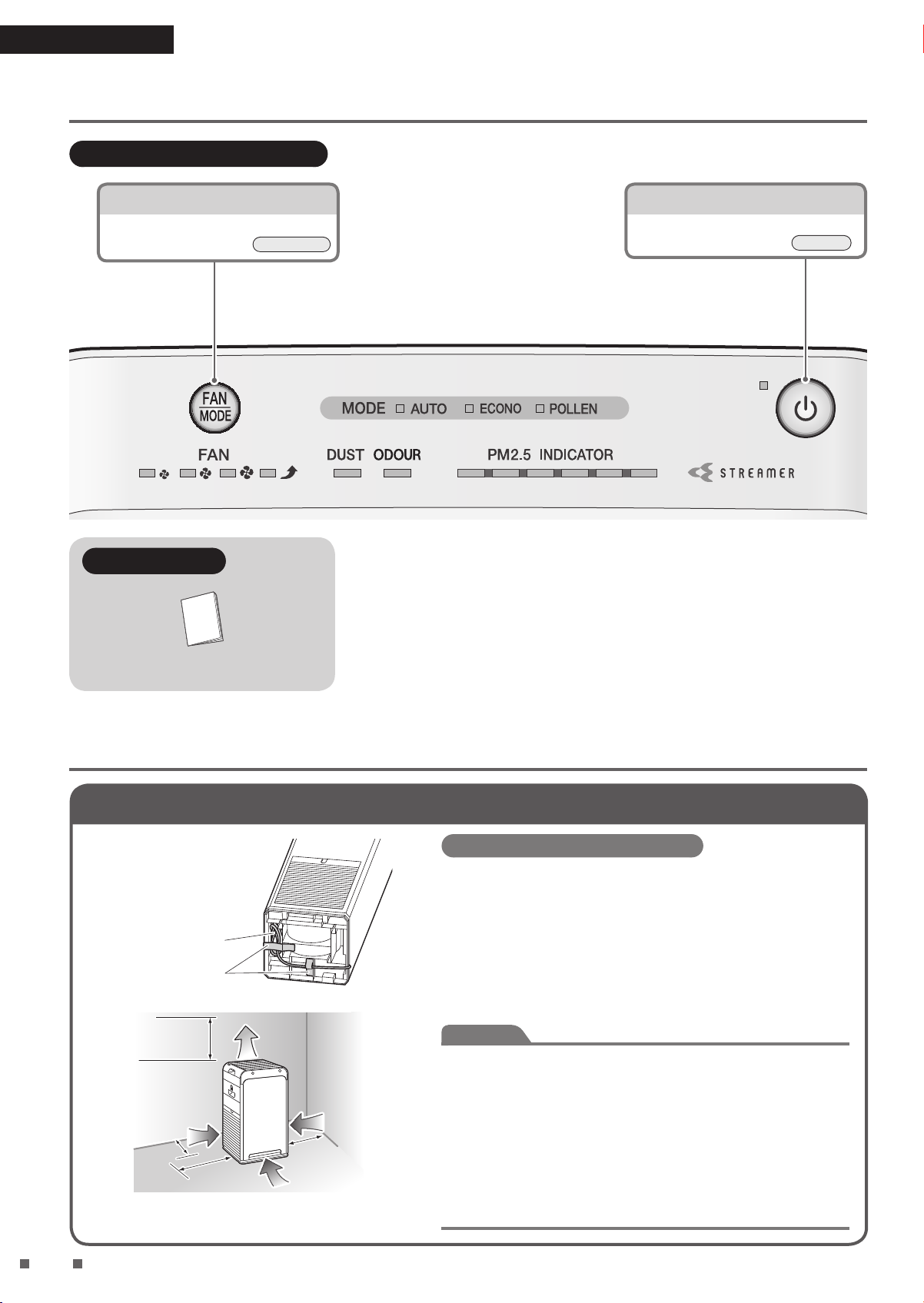

Names of Parts and Operations
Preparation Before Operation
Read First
Operating/Indicator panel
FAN/MODE button
Press to cycle between FAN settings
and MODEs.
►
Page 9-11
ON/OFF button
Press to turn the power ON or OFF.
►
Page 9
1Positioning the unit
Before installation, peel off the
tape fixing the power supply
cord to the bottom of the unit
and draw out the power supply
cord.
Power supply cord
Tape (blue)
Pointers for good positioning
• Choose a position from where air ow can reach all areas of the room.
•Place on a stable surface. If the unit is placed on an unstable
surface, vibrations from the unit may be ampli ed.
• If you  nd that interference from the power circuit inside the unit
or cables causes interference on your TV screen or static noise
to be emitted from nearby radios or stereos, move the unit to at
least 2m away from the device.
Keep cordless phones and radio-controlled clocks away from the
unit also.
Attention
• To avoid staining of walls, position the unit in accordance with
the positioning measurements in the illustration. However, note
that since this unit draws in dirty air, certain types of wall may be
stained even if the measurements are adhered to.
In such cases, make sure to maintain suf cient distance
between the unit and the wall.
•When used for a long period of time in the same location, the
 oor and surrounding walls may get stained as air is drawn into
air inlets near the base of the unit. It is recommended to clean
the unit periodically.
At least 100cm
away from ceiling
At least 30cm
away from wall
Air  ow
At least 10cm
away from wall
At least 30cm
away from wall
Accessories
Operation manual ....... 1
01_EN_3P549982-1A.indd 7 2018/12/04 13:16:04

8
Preparation Before Operation
Read First
2Insert the power supply plug into the socket
• The sensitivity of the odour sensor will be determined
by odour levels in the rst minute (approx.) after the
power supply plug is inserted.
Insert the power supply plug when the air is clean
(odour-free).
Power supply plug
Power socket
About streamer discharge
In some cases the air outlet may emit a slight odour as trace
amounts of ozone are generated. However, the amount is
negligible and is not harmful to your health.
This product cannot eliminate the toxic substances in
tobacco smoke (carbon monoxide etc.)
Do not use in the following places
Places exposed to direct sunlight
(Discolouration may result)
Positions near combustion-based heating and other
high temperature devices
(Discolouration or deformation may result)
Places where chemicals and pharmaceuticals are
used such as hospitals, factories, laboratories, beauty
salons, and photographic laboratories
(Volatilised chemicals and solvents may degrade
mechanical parts and lead to malfunction)

Places with high levels of electromagnetic waves such
as near an electromagnetic cooker, speakers, etc.
The unit may not function correctly.
Places exposed to soot (conductive dust) released by
candles, aromatic candles, etc.
The performance of the lters may be impaired, causing
the room to become dirty due to the build-up of dust that
is not captured.
Do not use cosmetics etc., containing silicone* near
the unit.
* Hair care products (split ends coating agents, hair
mousse, hair treatment agents etc.), cosmetics,
antiperspirants, antistatic agents, waterproof sprays,
lustering agents, glass cleaners, chemical wiping
cloths, wax, etc.
•If an insulator such as silicone adheres to the needle of
the streamer unit, the streamer discharge may not be
generated.
• The dust collection lter may become clogged up
resulting in reduced air purifying capacity.
Do not use an ultrasonic humidier or similar
appliance near the unit.
The dust collection lter may become clogged up
resulting in reduced air purifying capacity.
Keep out of
direct sunlight
Do not obstruct air
inlets or air outlet
Do not expose to direct airow
Keep TVs and radios
at least 2m away
01_EN_3P549982-1A.indd 8 2018/12/04 13:16:04

9
Operation WARNING
Do not turn off the unit by unplugging it from the power socket. (Fire or an electric shock may result from heating)
Operation
Changing the Air ow Rate
Select the desired FAN setting.
* The size of the symbols varies in accordance
with the FAN setting.
: Turbo
: Standard: Quiet
* * *
: Low
Press .
• Each press cycles between the FAN lamps [green] and MODE lamps [green].
FAN
(Quiet) (Low) (Standard) (Turbo)
MODE
(ECONO)
(ANTI-POLLEN) (AUTO FAN)
About FAN settings
Quiet
A gentle breeze is emitted. Recommended for use during sleep hours.
To quickly eliminate odours from a room, it is recommended that the FAN setting be set to Standard or above
otherwise deodorising capacity is reduced.
Turbo
The ambient air is quickly puri ed using a large air ow. Recommended for use while you are cleaning up a room.
Using the Air Purifying Operation (turning operation ON/OFF)
Cleans the air in the room.
Press .
• ON/OFF lamp [green] lights up.
• Press again to turn OFF.
Attention
• Do not move the unit, or attach or remove parts to/from the unit while it is in operation. Breakage or malfunctioning may result.
Note
• At the time of purchase, the unit is set to Air purifying operation, AUTO FAN MODE.
• When the unit is unplugged or turned OFF, it will operate with the settings last used the next time it is turned ON.
• Operation settings cannot be changed for about 2 seconds immediately after the power supply plug is inserted.
01_EN_3P549982-1A.indd 9 2018/12/04 13:16:04

10
Useful Functions
Useful Functions
Operating the Unit in a MODE
Select a MODE speci c to your needs.
Air ow is adjusted automatically when the unit is running in a MODE.
Press .
• Each press cycles between the MODE lamps [green] and FAN lamps [green].
MODE
(Low)
(Turbo)(
Standard )(Quiet)
FAN
(ECONO) (ANTI-POLLEN)(AUTO FAN)
MODE Usage and Function
AUTO FAN
Automatic airflow rate adjustment
FAN setting (Quiet, Low, Standard, High) is automatically adjusted according to the degree of air impurity.
Purifying capacity increases as air ow rate rises.
• Degree of air impurity corresponds to the volume of dust and the intensity of odours in the ambient air.
ECONO
Saving energy
In Power saving mode within ECONO MODE, the FAN setting automatically switches between
Quiet and Low only. Power consumption (*1) and operating sounds are minimised.
If the air is clean, after a short while, Monitoring mode automatically activates.
Recommended for use during sleep hours.
*1 By comparison to AUTO FAN MODE (approx. 9.2Wh), power consumption in ECONO MODE
(approx. 6.5Wh) is approx. 2.7Wh lower.
Test conditions: operation in 10m2 area over 1 hour. Assuming 1 cigarette was smoked immediately
after the unit was turned on.
Power saving mode Monitoring mode
FAN setting switches
automatically between
Quiet and Low.
Streamer OFF
• The fan starts and stops periodically. Dust
and odours are monitored.
• The following functions are turned off, further
reducing power consumption.
If the air is clean, after
a short while...
If dust or odours are
detected...
• As the FAN setting is limited to Quiet and Low, air purifying capacity is reduced.
•
As air is not drawn in when the fan has stopped, the dust/PM2.5 sensor, and odour sensor reduce in sensitivity.
• FAN setting is adjusted automatically. Air ow cannot be adjusted manually.
ANTI-
POLLEN
Reducing pollen levels
A gentle air current is created by switching every 5 minutes between the FAN setting Standard
and Low so that pollen can be drawn in and caught before it reaches the  oor.
• FAN setting is adjusted automatically. Air ow cannot be adjusted manually.
01_EN_3P549982-1A.indd 10 2018/12/04 13:16:05

11
Useful Functions
Useful Functions
Adjusting Indicator Lamp Brightness
Indicator lamp brightness is adjustable.
Press for 3 seconds.
• Press to cycle between settings.
BRIGHT DIM OFF
• The FAN setting and MODE of operation will also switch. After switching to the desired brightness, press and select
FAN setting and MODE of operation again.
Note
•This function is useful if the lamps bother you during sleep hours etc.
•The ON/OFF lamp does not turn off even if the brightness is set to OFF.
These lamps will be set to DIM.
•
If the is pressed when brightness is set to OFF, brightness will change to DIM and return to OFF after about 10 seconds.
01_EN_3P549982-1A.indd 11 2018/12/04 13:16:05

12
Advanced Settings
When the sensitivity of the dust/PM2.5 sensor does not meet your preferences
*Setting at time of purchase
Setting Dust/PM2.5 Sensor Sensitivity High
Normal* Low
1. Hold down for about 5 seconds and when a short beep sounds, press while pressing .
• This setting change can be performed when the unit is on or off.
2. When a short beep sounds, release and .
• One of the FAN lamps ( (Low), (Standard), (Turbo)) will blink for about 5 seconds and then the lamp
corresponding to the currently set sensitivity will light up.
3. Press to change the sensitivity setting.
• Each press cycles between the FAN lamps allowing you to change the sensitivity.
To set sensitivity High
Select the FAN lamp (Turbo).
The sensor is
highly receptive.
Setting at time
of purchase
The sensor is
slightly receptive.
(Standard)
(Turbo)
(Low)
High
Normal
Low
To set sensitivity Low
Select the FAN lamp (Low).
• Setting is indicated using the FAN lamps. If the FAN lamp does not change, unplug the unit, wait at least 5 seconds, then
reinsert the power supply plug and repeat the above procedure from the beginning.
4. Press after selecting the new setting.
• A short beep sounds and the new setting will blink. Unplug the unit while the lamp is blinking, wait at least 5 seconds,
and then reinsert the power supply plug. Setting is now complete.
• If this procedure is not performed, the unit will not return to regular operation mode.
Note
• Settings are remembered even if the unit is unplugged.
High Normal* Low
Advanced Settings
01_EN_3P549982-1A.indd 12 2018/12/04 13:16:05

13
Maintenance
WARNING
Before cleaning and maintenance work, make sure to
unplug the unit. (An electric shock or injury may result)
Maintenance
(Left-side) (Front)
(Right-
side)
Out ow grille
When dirt becomes an issue Wipe Wash/Rinse
• Wipe up dirt with a soft damp
cloth and rinse with water.
•Do not use a hard brush etc.
(Breakage may result)
•
When dirt buildup is severe,
leave the part soaking in
lukewarm or room temperature
water mixed with kitchen-use
neutral detergent, thoroughly
rinse off the detergent, and leave
the part in shade to dry off.
Removing
Place a  nger
into the notch
in the top of
the unit and lift.
Attaching
Pay attention
to orientation
and attach
securely.
Unit
When dirt becomes an issue Wipe
• Wipe up dirt with a soft damp cloth.
• When dirt buildup is severe, wet a cloth with kitchen-use neutral
detergent and wipe up the dirt.
•Do not use a hard brush etc. (Damage may result)
Pre- lter (Front/Left-side/Right-side)
About every 2 weeks
Vacuum clean
Wash/Rinse
•After removing any dust using a
vacuum cleaner, remove and
wash the  lter with water and
then leave it in shade to dry off.
• Use a soft brush when cleaning
the spaces in the grid.
Attention
•Do not use a cotton bud or hard
brush etc.
(Partial breakage of the  lter may
result)
•Do not apply heavy force.(Partial
breakage/damage of the  lter may
result)
Removing
Grip the indent in the
pre- lter and pull.
1Grip either end of
the pre- lter resting
your thumb against
the unit.
2 Pull toward
you.
Attaching
Insert the hooks
(2 places) into
the unit and
press until a
catching sound
is heard.
Hooks
( 2 places )
Insert the hook
(1 place) into the
unit.
Push both ends
until securely
attached.
Hook (1 place)
Viewed from above
Reverse side
• When dirt buildup is severe,
leave the part soaking in
lukewarm or room temperature
water mixed with kitchen-use
neutral detergent, thoroughly
rinse off the detergent and leave
the part in shade to dry off.
Dust/PM2.5 sensor
When dust has built up
Vacuum clean
1 Remove the pre- lter (left-side).
2
Vacuum off any dust that has adhered to
the air intake for dust/PM2.5 sensor using
the vacuum cleaner crevice tool or similar.
1
2
2
Move the
catch and pull
Lens
(internal
part)
Air intake for dust/PM2.5 sensor
About every 3 months Wipe
1 Remove the pre- lter (left-side) and the
cover for the air intake for dust/PM2.5
sensor.
2
Wipe the lens with a dry cotton bud.
Lens
Use a light if hard
to see
Use the vacuum cleaner crevice tool or similar to
remove any dust that has built up around the lens.
3Place the cover on securely.
(Malfunction may result if the cover is off)
01_EN_3P549982-1A.indd 13 2018/12/04 13:16:06

14
WARNING
• Do not use petrol, benzine, thinner, polishing compound, parafn, alcohol, etc. (An electric shock, re, or cracking may result)
• Do not wash the main body of the unit with water. (An electric shock, re, or malfunctioning/breakage may result)
Maintenance
Deodorising lter unit
When concerned about odours or dirt
Vacuum clean Do not use water
• Remove from the unit together with the frame
and remove dust using a vacuum cleaner.
•
If odour becomes an issue, wet the surface lightly
with an atomiser etc., and then leave the part to dry
in a shaded area with good ventilation. (about 1 day)
•Do not scrub the surface.
• Do not use water when cleaning. (If water is
used, the part will lose its shape and become
unusable.)
►
Page 18
Removing
Hold the lever and grip of the deodourising lter
unit and remove.
Lever
Grip
Attaching
Fully insert the deodourising lter unit.
Push until you
hear a catching
sound.
• If the deodourising lter unit is removed or incorrectly
installed, the odour sensor lamp will blink.
Dust collection lter
About every 10 years Replace
Do not use water Do not vacuum clean
• Do not use a vacuum cleaner or use water
when cleaning.
(If the lter is damaged or holes are opened
etc., dust will pass through the lter and
capacity for dust collection will be reduced.)
About part replacement timing
• Replacement timing depends on usage patterns
and the location of the unit.
If the unit is used daily in a home where 5 cigarettes
are smoked a day, the lter should be replaced
about every 10 years. (Calculation based on testing
method of Japan Electrical Manufacturers
Association JEM1467 standard.)
If the impurity content of the ambient air is high, the
lter will need more frequent replacement.
If the lter is failing to perform, it is time to replace it.
About purchasing and disposal
• Refer to “Separately Sold Parts”.
►
Page 16
Removing
1 Remove the deodorising lter unit.
Dust collection lter
2
Pull the tag
upward.
3
Hold the lower part of the dust
collection lter and lift it out.
Attaching
1 Install the new dust collection lter, being
careful of the orientation.
Side with tag and
markings should face
outward and arrow should
point up
2
Attach the deodorising lter unit.
Do not detach
the deodorising
lter from frame
Attention
• Make sure that the dust collection lter and deodorising lter unit are attached to the unit when the unit is operating.
If these parts are not attached when the unit is operated, breakage/malfunctioning may result.
• Follow the advice below to prevent discolouration or deformation.
–If detergent was used, make sure to wipe it up thoroughly so none remains.
–If hot water is used, make sure that it is 40ºC or less.
–Do not leave parts to dry in direct sunlight.
–Do not dry parts using a dryer.
–Do not apply re to parts.
•If using a vacuum cleaner, make sure to not apply force to or knock the part. (Damage may result)
01_EN_3P549982-1A.indd 14 2018/12/04 13:16:06

15
Maintenance
WARNING
Before cleaning and maintenance work, make sure to
unplug the unit. (An electric shock or injury may result)
Maintenance
Replacing the Streamer Unit
If the streamer lamp blinks
The streamer unit will not need to be replaced. However, depending on where the unit is used
(places where oils are present, or dust and humidity is abundant, or sprays and chemical agents
are used, etc.) replacement may become necessary.
►
Page 17
Contact the place of purchase.
1. Remove the pre- lter on the left side from the
back of the unit.
►
Page 13
2. Flip up the protective covers and remove the
streamer unit cover.
Streamer unit cover
Viewed from rear
Place your  nger on the hook
and pull it towards you.
Protective
covers
Hook
3. Remove the streamer unit.
1 Remove the streamer unit connector.
1. Push the hook on the connector
2. Pull it out while pushing the hook
The lock will not release unless
the hook is pushed
(Pulling forcibly may cause damage)
2
1
Connector
Hook
2Push in the left side of the streamer unit so the right
side comes out.
You will hear a
catching sound.
3 Remove the streamer unit.
4. Attach the new streamer unit.
1Insert the streamer unit from the left side, and push
until the hook makes a catching sound.
Catching sound
2Make sure the hook is facing to the right, and insert
the connector as deeply as it will go.
5. Attach the streamer unit cover.
Push until you
hear a catching
sound
Secure the hooks (2 locations)
on the left side of the streamer
unit cover
Hook
• Ensure you don’t trap the connector cord.
• If the streamer unit cover is not properly attached the
safety switch will engage, and the unit cannot operate.
6. Attach the pre- lter.
►
Page 13
7. Insert the power supply plug while pressing
on the unit, and wait until a short beep
sounds.
• The streamer lamp will turn off.
• If you release
and attempt operation before the
short beep sounds, the streamer lamp will blink again.
• If you perform this step and the streamer lamp still blinks,
please check that the connector is properly
inserted.
01_EN_3P549982-1A.indd 15 2018/12/04 13:16:07

16

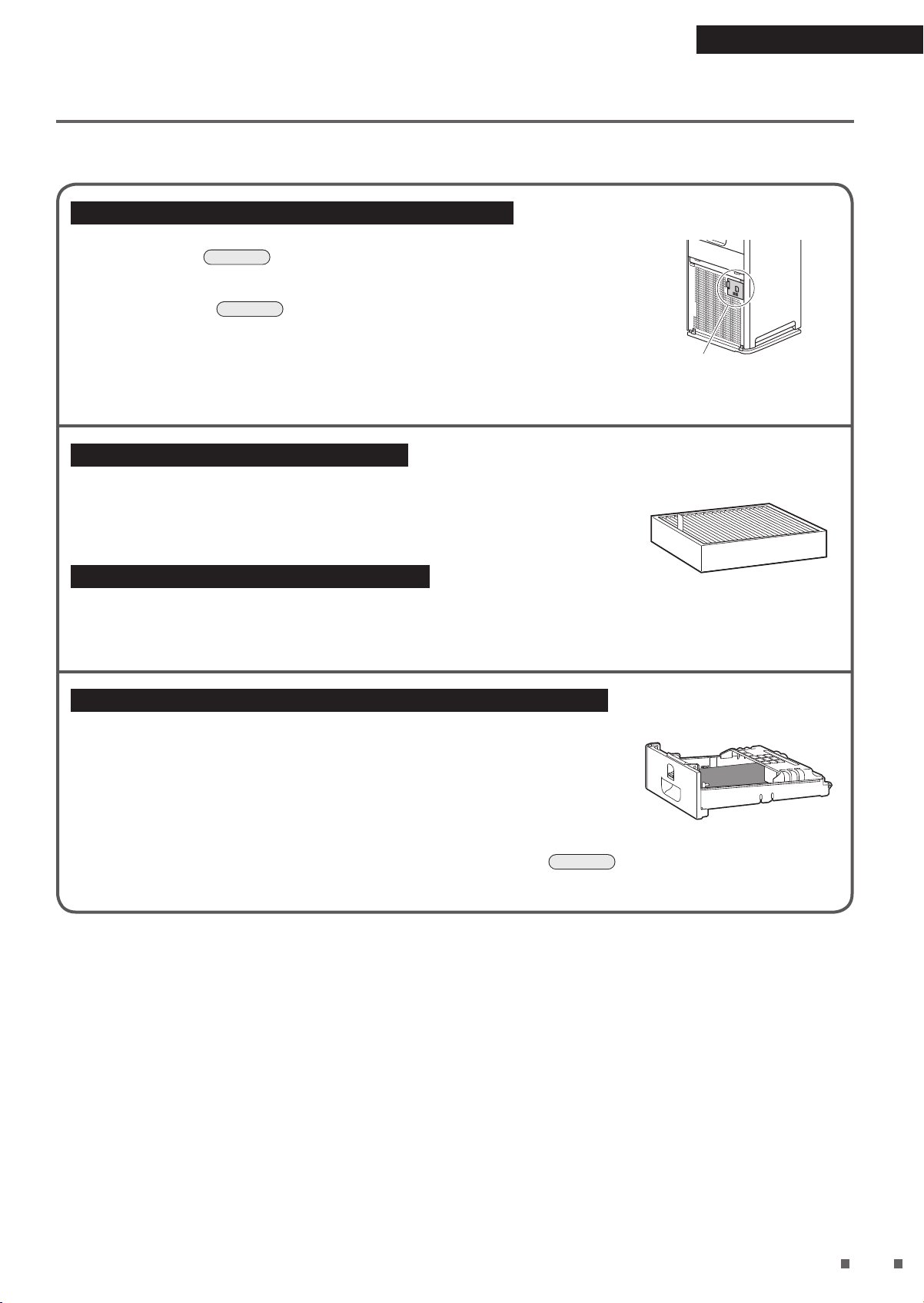

Separately Sold Parts Contact the place of purchase.
Replacement part
Dust collection lter (electrostatic HEPA lter) (1 piece)
Model: KAFP080B4E
• Replace about every 10 years.
•Catches dust and pollen.
• Failure to clean parts properly could result in:
• Reduced air purifying capacity.
• Reduced deodorising capacity.
•Emission of odours.
• Observe local waste separation rules when disposing of the dust collection lter (made of polyester and polypropylene).
Maintenance
When Not Using the Unit for Long Time Periods
1. Remove the power supply plug.
2. Clean the parts.
►
Page 13, 14
• In particular, components cleaned with water should be completely dry. (Mould may result from remaining moisture)
3. Cover the air outlet and other openings with a plastic bag or similar to prevent dust entry, and store
the unit upright in a dry place.
(Malfunctioning/breakage may result from storing the unit upside down or on its side)
01_EN_3P549982-1A.indd 16 2018/12/04 13:16:07

17
About the Indicator Lamps
Troubleshooting
Operating/Indicator panel
Check the indicator lamps and respond as indicated below.
Indicator lamp Cause/Solution
Odour sensor lamp is
blinking. This lamp blinks if the deodorising filter unit has become detached or is not attached properly.
Attach the deodorising  lter unit properly.
►
Page 14
Streamer sensor lamp is
blinking. It is time to replace the streamer unit.
►
Page 15
All 3 MODE lamps are
blinking simultaneously. An electrical component is faulty.
Contact the place of purchase.
All 4 FAN lamps are
blinking simultaneously.
Are the pre- lter, out ow grille,
and dust collection  lter attached?
These lamps may blink if the unit
is operated without a part
attached.
If all parts are attached
An electrical component is faulty.
Contact the place of purchase.
If one or more components are not attached
Remove the power supply plug, reattach the parts
and then turn the unit on again.
Is there a buildup of dust on the
pre-filter?
If there is no dust buildup
An electrical component is faulty.
Contact the place of purchase.
If there is a dust buildup
Remove the power supply plug, clean the pre- lter
and then turn the unit on again.
►
Page 13
Is the air outlet blocked?
If the air outlet is not blocked
An electrical component is faulty.
Contact the place of purchase.
If the air outlet is blocked
Remove any obstacles blocking the air outlet and
then turn the unit on again.
These lamps may blink if there is a sudden drop in voltage.
►
Page 20
01_EN_3P549982-1A.indd 17 2018/12/04 13:16:08

18
FAQs
Please check the following before contacting us.
Troubleshooting
Q: The dust/PM2.5 sensor seems to have poor sensitivity...
A: Perform periodic cleaning of the dust/PM2.5 sensor as dirt on its lens can lead to
poor sensitivity.
►
Page 13
In addition, the response time of the dust/PM2.5 sensor varies depending on room
size. Make adjustments in accordance with the procedure for setting dust/PM2.5
sensor sensitivity.
►
Page 12
The responsiveness of the dust/PM2.5 sensor may be poor during FAN setting
“Turbo” or when airow is high in AUTO FAN MODE.
The strong airow causes dust to be drawn into the air inlet before it can be
detected by the dust/PM2.5 sensor. This is normal (not a malfunction). Dust/PM2.5 sensor
Q: Can the dust collection lter be cleaned?
A: No. Do not attempt to clean it with a vacuum cleaner or water.
(Reduced performance of the dust collection lter may result)
Replace it if dirt buildup is severe.
Q: The dust collection lter easily turns black...
A: The blackening does not affect dust collection performance. However, it can be
replaced if it is an issue.
Q: Can the deodorising lter be cleaned with water? Or should it be replaced?
A: It cannot be cleaned with water.
(If water is used, the part will lose its shape and become unusable.)
If you have inadvertently washed it with water, consult the place of purchase.
Remove the deodorising lter unit from the main body and vacuum off dust with a
vacuum cleaner.
It is not necessary to replace the lter.
If odour becomes an issue, wet the surface lightly with an atomiser etc., and then
leave the part to dry in a shaded area with good ventilation. (about 1 day)
►
Page 14
01_EN_3P549982-1A.indd 18 2018/12/04 13:16:08

19
Troubleshooting
Before making an inquiry or a request for repair, please check the following.
If the problem persists, contact the place of purchase.
In the event of malfunction during operation
If the indicator lamps light up abnormally, or become inoperable, due to a lightning strike etc., remove the power supply plug, wait
at least 5 seconds then reinsert the power supply plug and turn the unit on again.
Not a problem
This case is not a problem.
Check
Please check again before requesting repairs.
Unit does not respond
Phenomenon Check points
No response even if is pressed •To protect the system, the unit may stop operating after sudden large
voltage  uctuations.
If operating at the time, operation will resume automatically once voltage
returns to normal.
Voltage range protection: 180V-264V
Unit will not operate •Is the streamer unit cover attached?
If it is not attached the safety switch will engage, and the unit cannot operate.
Install the streamer unit cover properly and attempt operation again.
►
Page 15
Sounds can be heard
Phenomenon Check points
Hissing sound during operation • While the streamer is operating, the streamer unit will emit a hissing sound
when conducting streamer discharge.
Depending on usage conditions, the sound may fall in volume or change to
a crackling, whirring, or guzzling sound, however, this is normal.
If the sounds are an issue, try moving the unit to a different location.
Whistling and  uttering sound during
operation
•Is there a buildup of dust on the pre- lter?
Clean this part.
►
Page 13
•Is the dust collection  lter clogged up?
Depending on usage conditions, the dust collection filter may become
clogged up, shortening its service life.
►
Page 8
Replace the dust collection filter.
►
Page 14
Operating sound is loud •Is the dust collection  lter attached properly?
If it is not properly attached, operating sounds may become louder.
►
Page 14
Indicator lamps
Phenomenon Check points
Indicator lamps do not light up
Indicator lamps turn off about 10
seconds after the unit is turned on
•Is indicator lamp brightness set to OFF?
If indicator lamp brightness is set to OFF, all lamps except the ON/OFF
lamp will remain off.
If indicator lamp brightness is set to OFF, after the unit is turned on, the
brightness of the indicator lamps will be DIM for about 10 seconds and
then turn OFF.
►
Page 11
Troubleshooting
01_EN_3P549982-1A.indd 19 2018/12/04 13:16:08
