Daikin BRC1E52A Instruction manual

BRC1E52A - BRC1E52B
EEDEN12-204
Air Conditioners
Wired remote control
Technical Data

BRC1E52A - BRC1E52B
EEDEN12-204
Air Conditioners
Wired remote control
Technical Data

• Accessories • Wired remote control 1
• Wired remote control • BRC1E52A - BRC1E52B
TABLE OF CONTENTS
BRC1E52A - BRC1E52B
1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4 Explanation of buttons and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

• Wired remote control • BRC1E52A - BRC1E52B
1
1
• Accessories • Wired remote control
2
1 Features
Accessories BRC1E52A- Wiredremot • User friendly remote control with contemporary design
• Easy to use: all main functions directly accessible
• Easy setup: clear graphical user interface for advanced menu
settings
• Optimise your air conditioning system by activating a series of energy
saving functions (temperature range limit, setback function, off timer,
…)
• Keep track of your energy consumption with the kWh indication
showing an indicative electricity consumption
• Set up to 3 independent schedules, so the user can easily change the
schedule himself throughout the year (e.g. summer, winter, mid-
season)
• Real time clock with auto update to daylight saving time
• Supports multiple languages (English, German, Dutch, Spanish,
Italian, Portuguese, French, Greek, Russian, Turkish and Polish)
• Possibility to individually restrict menu functions
• When a power failure occurs all settings remain stored up to 48 hours
thanks to the built-in backup power
• Home leave operation maintains the indoor temperature at your
specified comfort level during absence, thus saving energy

3
1
2
• Accessories • Wired remote control 3
• Wired remote control • BRC1E52A - BRC1E52B
2 Specifications
Notes
* BRC1E52A contains languages English, German, French, Dutch, Spanish, Italian, Greek, Portuguese, Russian, Turkish and Polish
* BRC1E52B contains languages English, German, Albanian, Bulgarian, Croatian, Czech, Hungarian, Romanian, Serbian, Slovak and Slovenian
2-1 Technical Specifications BRC1E52A* / BRC1E52B*
Casing Colour Fresh White
Button cover No
Operation LED Colour Green
Dimensions Unit
HeightxWidthxDepth mm 120x120x19
Packed unit
HeightxWidthxDepth mm 150x160x55
Weight Unit kg 0.200
Packed unit kg 0.415
Packing Material Carton
Weight kg 0.050
LCD Type Full dot (160 x 255)
Dimensions Height mm 43.2
Width mm 68.85
Back light Colour White
Temperature setting Resolution ºC 1
Setpoint range Cooling ºC Depends on the indoor unit
Heating ºC Depends on the indoor unit
Ambient temperature Operation Min. ºC -10
Max. ºC 50
Storage Min. ºC -20
Max. ºC 70
Relative humidity \< % 95
2-2 Electrical Specifications BRC1E52A* / BRC1E52B*
Wiring connections Type of wires Sheathed vinyl cord or cable
Size mm² 0.75 / 1.25
For connection with
indoor
Quantity 2
Remark P1-P2 wired connection from indoor unit
Wiring length Max. m 500
Back-up for power failure Yes (The clock will keep functioning for a period not exceeding 48 hours)

• Wired remote control • BRC1E52A - BRC1E52B
1
3
• Accessories • Wired remote control
4

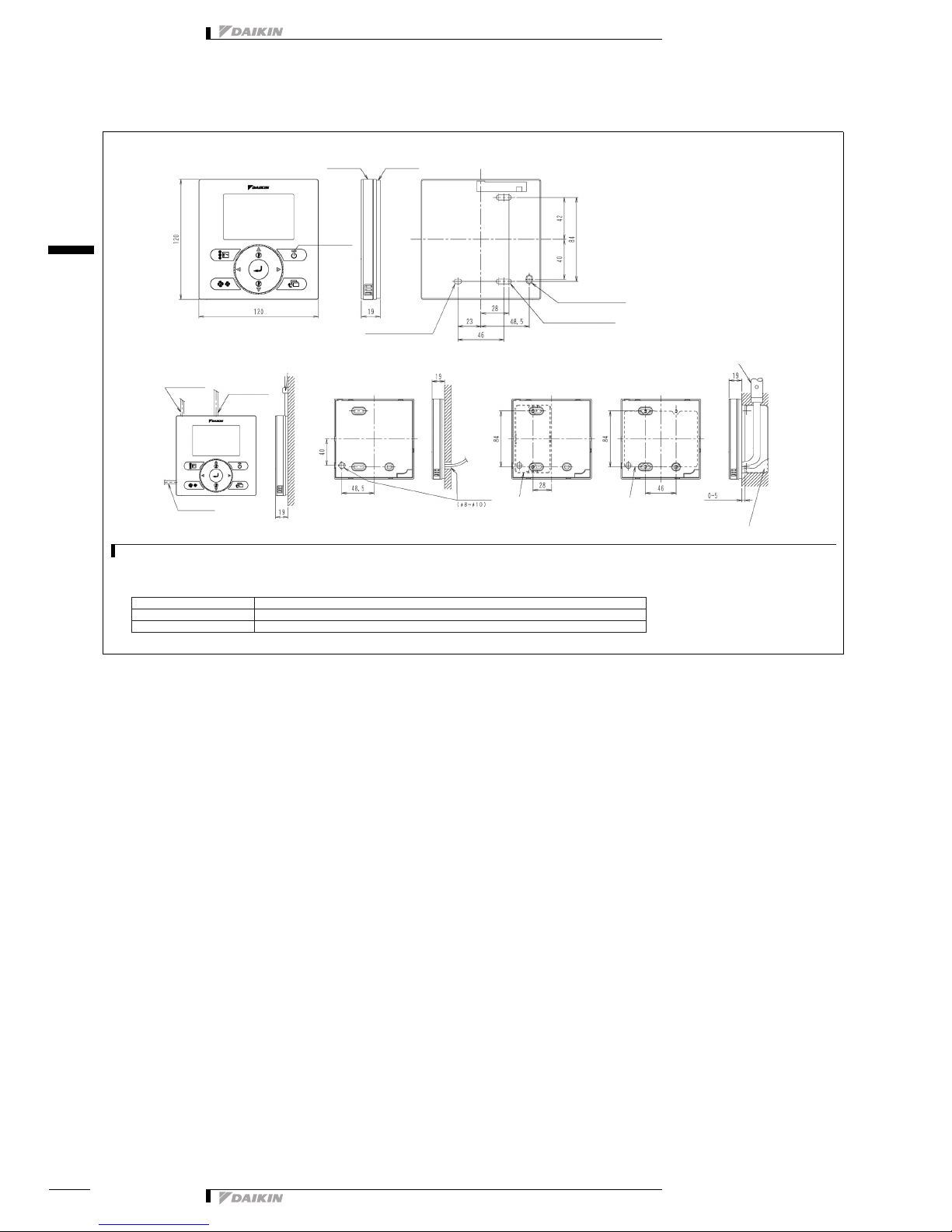

3 Dimensional drawings
3 - 1 Dimensional Drawings
2SHUDWLRQODPS
[REORQJKROH
[REORQJKROH
6WDSOH
/HIWRXWOHW
/RZHUFDVHSRUWLRQ
/RZHUFDVHSRUWLRQ
6ZLWFKER[IRURQHVZLWFK
H[.-%$RSWLRQDODFFHVVRU\ 6ZLWFKER[IRUWZRVZLWFK
H[.-%$
RSWLRQDODFFHVVRU\
%HWZHHQUHPRWHFRQWURO
DQGFRQWUROER[
6ZLWFKER[
>)LHOGVXSSOLHGSDUW@
1RWH
WKURXJKKROH
&RQGLW
8SSHUFHQWHURXWOHW
8SSHURXWOHW
&RGHRXWOHWKROH
/RZHUFDVH8SSHUFDVH
JUHHQ
 5HPRWHFRQWUROGLPHQVLRQV
 ,QVWDOODWLRQPHWKRG
$([SRVHG&RUG %(PEHGGHG&RUG &(PEHGGHG&RUG8VH6ZLWFK%R[
127(6
 5HPRWHFRQWUROFRUGDQGVWDSOHDUHQRWDWWDFKHGWKH\DUH¿HOGVXSSOLHGSDUWV
6SHFL¿FDWLRQVRIFRUG
7\SH 9LQ\OFRUGZLWKVKHDWKRUFDEOHLQVXODWHGWKLFNQHVVPPRUPRUH
6L]H aPPð
7RWDOOHQJWK P
 ,IWKHKROHVL]HLVWRRODUJHRUWKHORFDWLRQLVQRWSURSHUWKHKROHPD\FRPHRXWIURPWKHUHPRWHFRQWURO
'
%5&($
%5&(%

• Accessories • Wired remote control 5
• Wired remote control • BRC1E52A - BRC1E52B
3
2
4
4 Explanation of buttons and functions

direction setting
button
3. Menu/Enter button
8. On/Off button
10. Cancel button
9. Operation lamp
11. LCD (with backlight)
4. Up button
5. Down button
6. Right button
7. Left button
1. Operation mode
selector button


settings) are set from the menu screen.
AccessoriesWired rem ote control BRC1E52A-BRC1E52B

• Wired remote control • BRC1E52A - BRC1E52B
• Accessories • Wired remote control
6
2
4
4 Explanation of buttons and functions
1. Operation mode selector button
Press this button to select the operation
mode of your preference. (See page 21.)
* Available modes vary with the connecting
model.
2. 
setting button

direction setting screen. (See page 14.)
* 
vary with the connecting model.
3. Menu/Enter button
Used to indicate the main menu.
(See page 25 for the menu items.)
Used to enter the setting item selected.
4. Up button (Be sure to press the
part with the symbol )
Used to raise the set temperature.
The next items on the upper side will be
highlighted.
(The highlighted items will be scrolled
continuously when the button is kept
pressed.)
Used to change the item selected.
5. Down button (Be sure to press
the part with the symbol )
Used to lower the set temperature.
The next items on the lower side will be
highlighted.
(The highlighted items will be scrolled
continuously when the button is kept
pressed.)
Used to change the item selected.
6. Right button (Be sure to press
the part with the symbol )
Used to highlight the next items on the
right-hand side.
Each screen is scrolled in the right-hand
direction.
7. Left button (Be sure to press
the part with the symbol )
Used to highlight the next items on the
left-hand side.
Each screen is scrolled in the left-hand
direction.
8. On/Off button
Press this button and system will start.
Press this button again and system will
stop.
9. Operation lamp (Green)
This lamp lights up during operation.
This lamp blinks if a error occurs.
10.Cancel button
Used to return to the previous screen.
11.LCD (with backlight)
The backlight will be light for approximately
30 seconds by pressing any operation
button. Operate buttons excluding the On/
Off button while the backlight is lit.
If 2 remote controllers are used to control a
single indoor unit, the backlight of the
remote controller operated earlier than the
other one will be lit.

• Accessories • Wired remote control 7
• Wired remote control • BRC1E52A - BRC1E52B
3
2
4
4 Explanation of buttons and functions
Liquid Crystal Display
Two types of liquid crystal display (LCD) are available. The standard display is by
default set.

To go to the detailed display, select the detailed display in the main menu. (See page 53.)
The displayed contents of the screen vary with the operation mode of the equipment
interlocked. (The following display will appear when the air conditioner is in automatic
heating operation.)
Standard display
Auto
This function not available
<Standard display example>
2.Fan speed
1.Operation mode
11.Setback
7.( ) display
5.Message
8.( ) display
Set to
Cool
Heat
28°C
20°C
6.Ventilation/
purifying
9.Under centralized
control
10.Changeover under control
3.Set/Setback
temperature display
4.Defrost/Hot start
Detailed display
!
on the detailed display screen in addition to the items appearing
on the standard display.
Room
20°C
Auto
Return Setting
Cool
Heat 28°C
20°C
Setback
Fri
11:03
14.Detailed selection
(with room
temperature settings)
12.Airflow direction
(Displayed only when
the air conditioner is in
operation.)
13.Clock (12/24 hours
real time clock)
<Detailed display example 1>
3.Set/Setback
temperature display
Auto
Return Setting
--
:
--
Cool
Heat 28
°C
20 °C
Set to
<Detailed display example 2>
12.Airflow direction
(with no airflow direction
function)
2.Fan speed
(with no fan speed
control function)
14. Detailed selection
(with no detailed
items selected)
13. Clock display
(with no clock settings)
15. ( ) display

• Wired remote control • BRC1E52A - BRC1E52B
• Accessories • Wired remote control
8
2
4
4 Explanation of buttons and functions
1. Operation mode
Used to display the present operation
mode Cool, Heat, Vent, Fan, Dry or Auto
mode.
2. Fan speed
Used to display the fan speed that is set for
the air conditioner.
The fan speed will not be displayed if the
air conditioner does not have fan speed
control function.
3. Set/Setback temperature
display
When the unit is turned on, Set to indicates
the temperatures that are set for the air
conditioner.
When the unit is turned off, Setback
indicates the temperatures that are set for
the setback function.
4. Defrost/Hot start "
"
(See page 16.)
If Ventilating operation " " is displayed:
Displayed when a total heat exchanger
unit, such as the Ventiair, is connected.
For details, refer to the Operation Manual
of the Ventiair.
5. Message
The following messages are displayed.
"This function not available."
Displayed for a few seconds when an
operation button is pressed if the indoor
unit is not provided with the corresponding
function.
If a number of indoor units are in operation,
the message will appear only if none of the
indoor units is provided with the
corresponding function, i.e., the message
will not appear if at least one of the indoor
units is provided with the corresponding
function.
"Error: Press Menu Button."
"Warning: Press Menu Button."
Displayed if an error or a warning is
detected (see page 63).
"Quick Start" (SkyAir only)
Displayed if the quick cooling/heating
function is turned ON (see page 32).
#$#
"Time to clean element."
#$#

or element has come (see page 61).
6. Ventilation/Purifying
Displayed when a total heat exchanger
unit, such as the Ventiair, is connected.
 Ventilation mode icon." "
These icons indicate the current ventilation
mode (HRV only) (AUTOMATIC, ENERGY
RECLAIM VENTILATION, BYPASS).
 %&'*+%,-#; "
This icon indicates that the air cleaning unit
(option) is operational.
7. display (See page 23.)
Displayed when the key lock is set.
8. display (See page 42 and
49.)
Displayed if the schedule timer or
OFF timer is enabled.
9. Under Centralized control " "
Displayed if the system is under the
management of central control equipment
(optional accessories) and the operation of
the system through the remote controller is
prohibited.
10.Changeover under control " "
(VRV only)
Displayed on the remote controller if the
remote controller has no cooling/heating
selection eligibility mode (see page 21).

• Accessories • Wired remote control 9
• Wired remote control • BRC1E52A - BRC1E52B
3
2
4
4 Explanation of buttons and functions
11.Setback " " (See page 19.)

turned on under the setback control.
12.# "

swing are set (see page 15).
This item is not displayed if the system is

directions.
13.Clock (12/24 hours real time
clock)
Displayed if the clock is set (see
page 57).
If the clock is not set, " -- : -- " will be
displayed.
14.Detailed selection
Displayed if the detailed display mode is
selected (see page 53).
No detailed items are by default selected.
15. display
Displayed to inform that the clock needs to
be set again.
The schedule timer function will not work
unless the clock is set again.

Naamloze Vennootschap - Zandvoordestraat 300, B-8400 Oostende - Belgium - www.daikin.eu - BE 0412 120 336 - RPR Oostende EEDEN12-204 • CD • 03/12 • Copyright Daikin The present publication supersedes EEDEN11-204 Prepared in Belgium by Lannoo (www.lannooprint.be), a company whose concern for the environment is set in the EMAS and ISO 14001 systems. Responsible Editor: Daikin Europe N.V., Zandvoordestraat 300, B-8400 Oostende
Daikin’s unique position as a manufacturer of air
conditioning equipment, compressors and refrigerants
has led to its close involvement in environmental issues.
For several years Daikin has had the intention to become
a leader in the provision of products that have limited
impact on the environment. This challenge demands the
eco design and development of a wide range of products
and an energy management system, resulting in energy
conservation and a reduction of waste.
Daikin products are distributed by:
VRV® products are not within the scope of the
Eurovent certification programme.
The present publication is drawn up by way of information only and does not
constitute an offer binding upon Daikin Europe N.V.. Daikin Europe N.V. has
compiled the content of this publication to the best of its knowledge. No express
or implied warranty is given for the completeness, accuracy, reliability or fitness
for particular purpose of its content and the products and services presented
therein. Specifications are subject to change without prior notice. Daikin Europe
N.V. explicitly rejects any liability for any direct or indirect damage, in the broadest
sense, arising from or related to the use and/or interpretation of this publication.
All content is copyrighted by Daikin Europe N.V..
