• Split Sky Air • Indoor Units 1
• Indoor Units • R-410A • FBQ-C7VEB
TABLE OF CONTENTS
FBQ-C7VEB
1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
For indoor units only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 Safety device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . 7
Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Piping diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

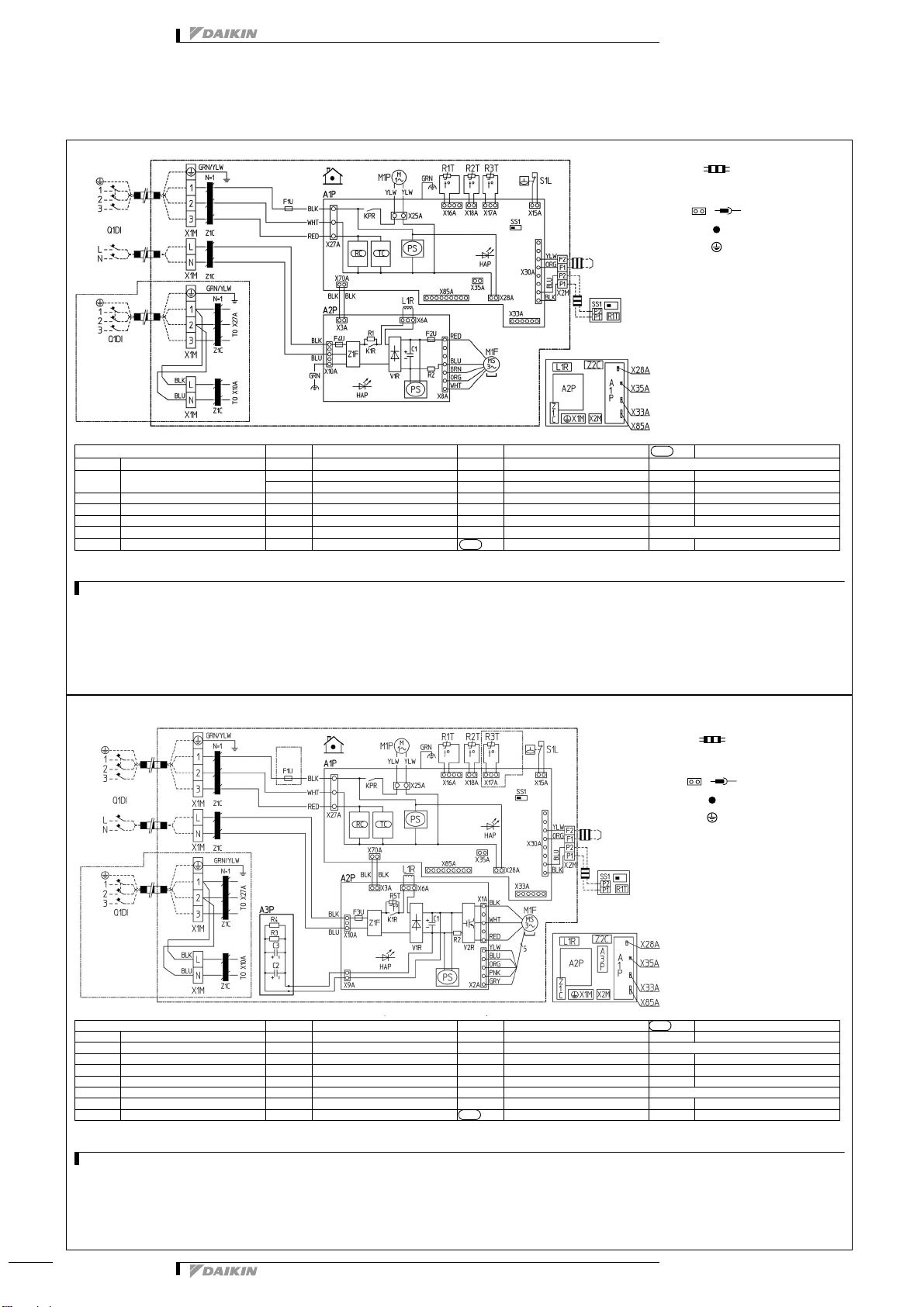

7 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

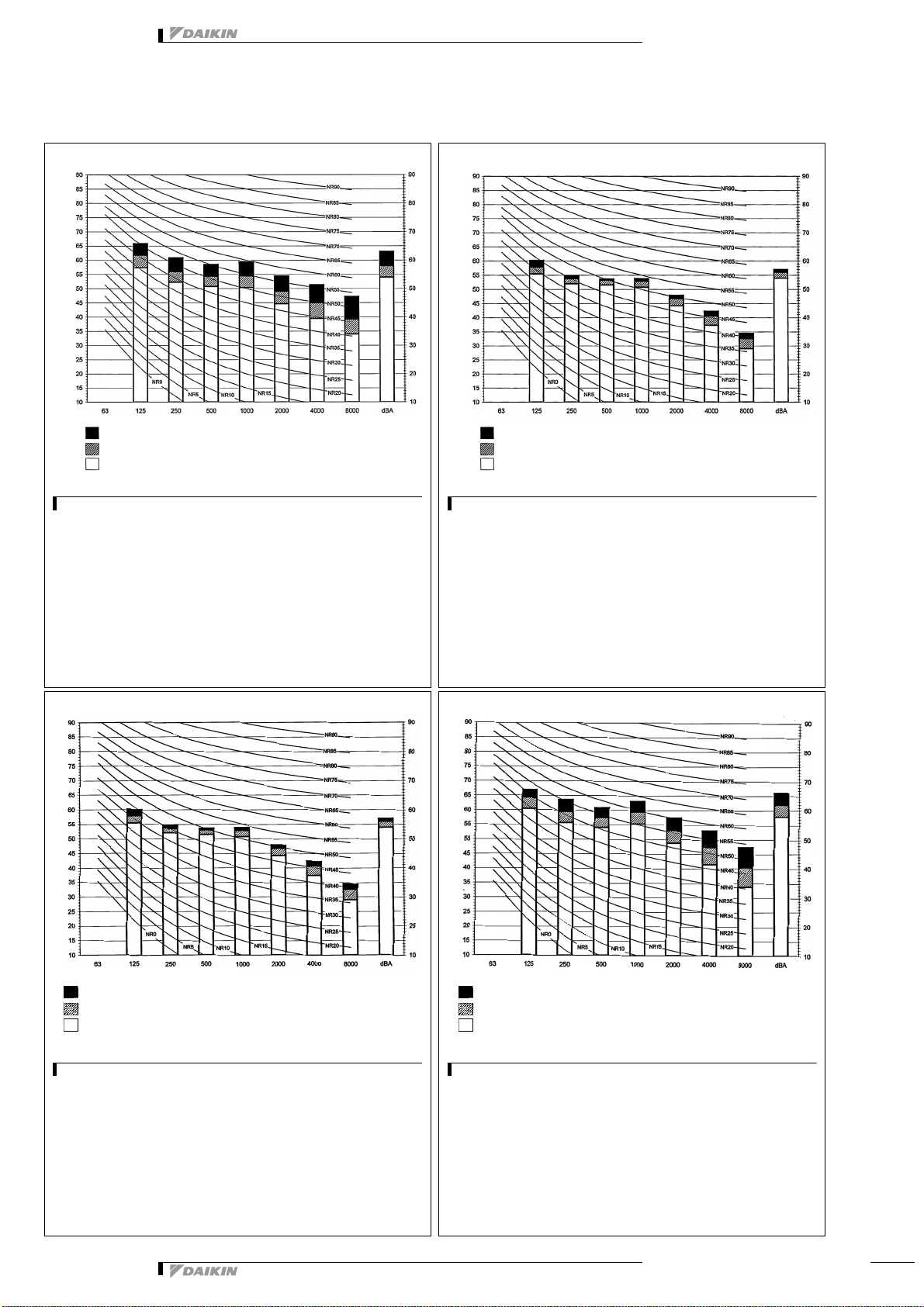

8 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

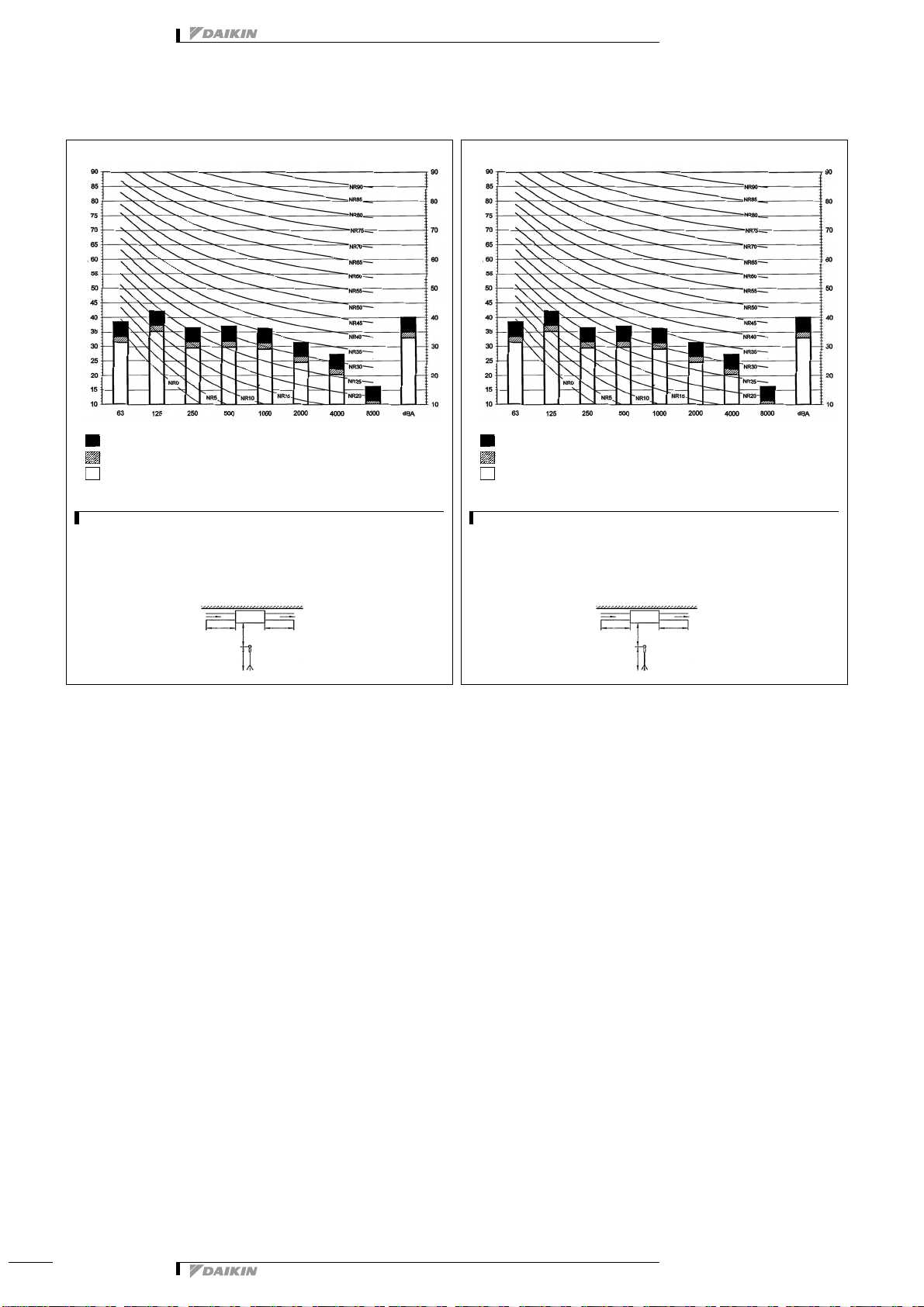

Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Sound power spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9 Fan characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
10 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Installation method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Filter installation method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Switch box connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

• Indoor Units • R-410A • FBQ-C7VEB
• Split Sky Air • Indoor Units
2
1 Features
IndoorUnit SplitSky FBQ-C7VEB R-410a • Reduction in power consumption thanks to DC inverter fans
• Improved comfort thanks to 3-step airflow control
• Maximum external static pressure (ESP) is 100Pa
• Possibility to change ESP through wired remote control allows
optimisation of the supply air volume
• Blends unobtrusively with any interior décor: only the suction and
discharge grilles are visible
• Energy efficient: up to class A energy labels
• Home leave operation saves energy during absence
• Whisper quiet operation: down to 26 dBA sound pressure level
• Standard air filter: removes airborne dust particles to ensure a steady
supply of clean air
• Easy installation thanks to automatic air flow adjustment towards
nominal air flow rate
• Built-in drain pump as standard increases reliability of the drain
system
optional standard 3 steps
via wired
remote control
optional

• Split Sky Air • Indoor Units 3
• Indoor Units • R-410A • FBQ-C7VEB
2 Specifications
2-1 For indoor units only FBQ35C7VEB FBQ50C7VEB FBQ60C7VEB FBQ71C7VEB FBQ100C7VEB FBQ125C7VEB FBQ140C7VEB
Nominal input (Indoor
only)
Cooling kW 0.14 0.14 0.35 0.35 0.35 0.35 0.35
Heating kW 0.14 0.14 0.35 0.35 0.35 0.35 0.35
2-2 Technical Specifications FBQ35C7VEB FBQ50C7VEB FBQ60C7VEB FBQ71C7VEB FBQ100C7VEB FBQ125C7VEB FBQ140C7VEB
Casing Colour Non painted
Material Galvanised steel
Dimensions Packing Height mm 355 355 355 355 355 355 355
Width mm 920 920 1,220 1,220 1,620 1,620 1,620
Depth mm 900 900 900 900 900 900 900
Unit Height mm 300 300 300 300 300 300 300
Width mm 700 700 1,000 1,000 1,400 1,400 1,400
Depth mm 700 700 700 700 700 700 700
Weight Unit kg 25 25 34 34 45 45 45
Packed Unit kg 28 28 41 41 53 53 53
Required Ceiling Void mm >350
Heat Exchanger Dimensions Length mm 440 440 740 740 1,140 1,140 1,140
NrofRows 3333333
Fin Pitch mm 1.75 1.75 1.75 1.75 1.75 1.75 1.75
Nr of Passes 4 4 7 7 11 11 11
Face Area m² 0.148 0.148 0.249 0.249 0.383 0.383 0.383
Nr of Stages 16 16 16 16 16 16 16
Tube type Hi-XSS (7)
Fin Type Symmetric waffle louvre
Treatment Hydrophilic
Fan Type Sirocco fan
Quantity 1 1 22333
AirFlowRateCooling High m³/min16161818323939
Low m³/min 11 11 15 15 23 28 28
Heating High m³/min16161818323941
Low m³/min 11 11 15 15 23 28 29
Fan Max High Pa 100 100 100 100 120 120 120
Standard Pa 30 30 30 30 40 50 50
Motor Quantity 1111111
Model Brushless DC
Numberofsteps 101088999
Motor Speed (cooling) High rpm 1,186 1,186 942 942 1,060 1,218 1,218
Low rpm 875 875 823 823 813 920 920
Speed (heating) High rpm 1,186 1,186 942 942 1,060 1,218 1,280
Low rpm 875 875 823 823 813 920 967
Fan Motor Output (high) W 140 140 350 350 350 350 350
Drive Direct drive
Cooling Sound Power High dBA 63 63 57 57 61 66 66
Sound Pressure High dBA 37 37 37 37 38 40 40
Low dBA29292929323333
Heating Sound Pressure High dBA 37 37 37 37 38 40 41
Low dBA29292929323334
Refrigerant Type R-410A
Piping connections Liquid (OD) Type Flare connection
Diameter (OD) mm 6.35 6.35 6.35 9.52 9.52 9.52 9.52
Gas Type Flare connection
Diameter (OD) mm 9.52 12.7 12.7 15.9 15.9 15.9 15.9
Drain Diameter (OD) mm VP25 (O.D. 32 / I.D. 25)
Heat Insulation Both liquid and gas pipes
Drain-up Height mm 625 625 625 625 625 625 625

• Indoor Units • R-410A • FBQ-C7VEB
• Split Sky Air • Indoor Units
4
2 Specifications
Decoration Panel Model BYBS45DJW1 BYBS45DJW1 BYBS71DJW1 BYBS71DJW1 BYBS125DJW1 BYBS125DJW1 BYBS125DJW1
Colour White (10Y9/0,5)
DimensionsH mm55555555555555
W mm 800 800 1,100 1,100 1,500 1,500 1,500
D mm 500 500 500 500 500 500 500
Weight kg 3.5 3.5 4.5 4.5 6.5 6.5 6.5
Air Filter Resin net with mold resistance
Safety Devices PC board fuse
PC board fuse (fan driver)
Drain pump fuse
Notes Nominal cooling capacities are based on : indoor temperature : 27°CDB, 19°CWB, outdoor temperature
: 35°CDB, equivalent refrigerant piping : 7.5m, level difference : 0m.
Nominal heating capacities are based on : indoor temperature : 20°CDB, outdoor temperature : 7°CDB,
6°CWB, equivalent refrigerant piping : 7.5m, level difference : 0m
Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat.
The sound pressure values are mentioned for a unit installed with rear suction
Remote Control Wired BRC1D528
2-2 Technical Specifications FBQ35C7VEB FBQ50C7VEB FBQ60C7VEB FBQ71C7VEB FBQ100C7VEB FBQ125C7VEB FBQ140C7VEB

• Split Sky Air • Indoor Units 5
• Indoor Units • R-410A • FBQ-C7VEB
3 Safety device settings
4 Options
Safety devices 35 50 60 71 100 125 140
FBQ
PC Board Fuse 250V 3.15A 250V 3.15A 250V 3.15A 250V 3.15A 250V 3.15A 250V 3.15A 250V 3.15A
PC Board Fuse (Fan Driver) 250V 5A 250V 5A 250V 6.3A 250V 6.3A 250V 6.3A 250V 6.3A 250V 6.3A
Fan Motor Thermal Protector °C
———————
Drain Pump Fuse °C 145 145 145 145 145 145 145
FBQ35-140C
3TW31279-3D
Options
Operation Control
(*1): Electrical heater and humidifier are field supply. These parts should not be installed inside the equipment (refer to installation manual EKRP1B2A)
(*2): If installing an electrical heater, an option PCB for external electrical heater (EKRP1B2) for each indoor unit is required.
(*3): Mounting plate KRP4A96 is required for these options. Maximum 2 option PCB’s can be mounted.
(*4): Decoration panel option EKBYBSD is required for direct mounting of the decoration panel on the unit.
Contents of accessory bag
Item FBQ35,50 FBQ60,71 FBQ100,125,140
Panel related Decoration panel (*4) BYBS45D BYBS71D BYBS125D
Air inlet and air discharge outlet related Air discharge adapter for round duct KDAJ25K56A KDAJ25K71A KDAJ25K140A
Panel related Decoration panel option EKBYBSD
Item FBQ35,50 FBQ60,71 FBQ100,125,140
Remote Control Wired Type BRC1D528 / BRC1E51A
Wireless Type HP BRC4C65
CO BRC4C66
Option BCB for external el. heater, humidifier and/or hour meter (*1), (*3) EKRP1B2A
Adapter for wiring (interlock for fresh air intake fan) (*3) KRP1C64
Wiring adapter for electrical appendices (*3) KRP4A51
Remote sensor KRCS01-4B
Central remote control DCS302CA51
Unified ON/OFF controller DCS301BA51
Schedule timer DST301BA51
Remote ON/OFF and FORCED OFF kit EKRORO3
Mounting plate for adapter PCB KRP4A96
Description Quantity
FBQ35,50,60,71,100,125,140
Hexagon tapping screw (M5x16) 16
Round plain washer for wood 8
Installation and operation manual 1
Hose band 1
Insulation for joint (GAS) 1
Insulation for joint (LIQUID) 1
Drain hose 1
Drain hose sealing material 1
Sealing material 2
NOTES

• Indoor Units • R-410A • FBQ-C7VEB
• Split Sky Air • Indoor Units
6
4 Options
3TW31601-1
EKRORO3
Standard
setting:
’forced off’

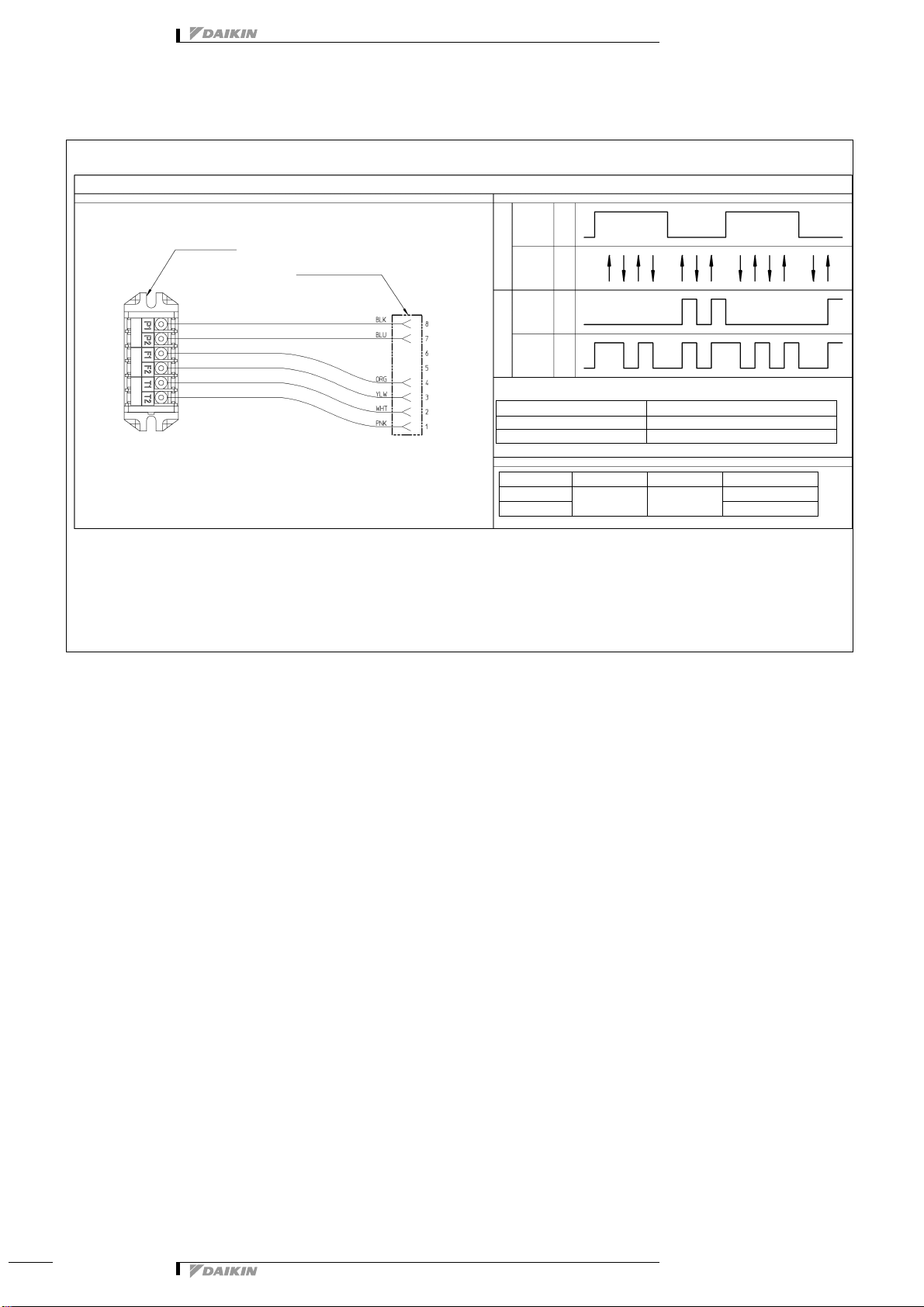

Selection of ’FORCED OFF’ and ’ON/OFF’ operation
Input ’ON’ = closed contact.
Remote
controller
T1,T2Switch
Alternative
setting:
’on/off’
Terminal X2M
Connector (White)
connect to indoor
PCB (X30A)
On
Off
On
Off
On
Off
On
Off
unit INPUT
Operating method
Wire specifications
Forced off On/off operation
Input ’on’ stops operation + disables control Input off→on: starts operation, remote control is still enabled.
Input ’off’ enables control Input on→off: stops operation, remote control is still enabled.
Setting Mode No. First code NO Second code NO
Forced off
12 (22) 1 01
On/off operation
02
Screw to control box
replacing the original
terminal

• Split Sky Air • Indoor Units 7
• Indoor Units • R-410A • FBQ-C7VEB
5 Dimensional drawing & centre of gravity
5 - 1 Dimensional drawing
FBQ35C
3TW31274-1A
631 (suspension position)
suspension bolt
(Suspension position)
500 or more
(service space)
(service space)
75 or more
View A-A Detail B
Detail B
Item Name Description
1 Liquid pipe connection Ø6.35 flare connection
2 Gas pipe connection Ø9.52 flare connection
3 Drain pipe connection VP25 (OD Ø32, ID Ø25)
4 Remote control wiring connection -
5 Power supply connection -
6 Drain hole VP25 (OD Ø32, ID Ø25)
7 Air filter -
8 Air suction side -
9 Air discharge side -
10 Nameplate -
NOTES
1 Refer to ‘outlook drawing for installing optional
accessories’ when installing optional accessories.
2 The required ceiling depth varies according to the
configuration of the specific system.
3 For maintenance of the air filter, it is necessary to
provide a service access panel.
Refer to the ‘filter installation method’ drawing
Fresh air intake position
(Knock out hole)
(On circumference)
FBQ50C
3TW31214-1A
NOTE
1 Refer to ‘outlook drawing for installing optional
accessories’ when installing optional accessories.
2 The required ceiling depth varies according to the
configuration of the specific system.
3 For maintenance of the air filter, it is necessary to
provide a service access panel.
Refer to the ‘filter installation method’ drawing.
View A-A Detail B
Suspension bolt
(Service space)
Detail B
350 or more
(Service space)
(Suspension position)
or more
Nr Name Description
1 Liquid pipe connection ø 6.35 flare (connection)
2 Gas pipe connection ø 12.70 (flare connection)
3 Drain pipe connection VP25 (O.D. ø 32 /I.D. ø 25)
4 Remote control wiring connection
5 Power supply connection
6 Drain hole VP25 (OD
ø 32 /I.D. ø 25 )
7Airfilter
8 Air suction side
9 Air discharge side
10 Nameplate
(Suspension position)
Fresh air intake position
(Knock out hole)
(On circumference)

• Indoor Units • R-410A • FBQ-C7VEB
• Split Sky Air • Indoor Units
8
5 Dimensional drawing & centre of gravity
5 - 1 Dimensional drawing
FBQ60C
3TW31294-1
NOTE
1 Refer to ‘outlook drawing for installing optional
accessories’ when installing optional accessories.
2 The required ceiling depth varies according to the
configuration of the specific system.
3 For maintenance of the air filter, it is necessary to
provide a service access panel.
Refer to the ‘filter installation method’ drawing.
Nr Name Description
1 Liquid pipe connection ø 6.35 flare (connection)
2 Gas pipe connection ø 12.70 (flare connection)
3 Drain pipe connection
VP25 (O.D. ø 32 /I.D. ø 25)
4 Remote control wiring connection
5 Power supply connection
6 Drain hole VP25 (OD
ø 32 /I.D. ø 25 )
7 Air filter
8 Air suction side
9 Air discharge side
10 Nameplate
View A-A
Detail B
Suspension bolt
(Service space)
Detail B
350 or more
(Service space)
(Suspension position)
(Suspension position)
or more
FBQ71C
3TW31234-1A
NOTE
1 Refer to ‘outlook drawing for installing optional
accessories’ when installing optional accessories.
2 The required ceiling depth varies according to the
configuration of the specific system.
3 For maintenance of the air filter, it is necessary to
provide a service access panel.
Refer to the ‘filter installation method’ drawing.
View A-A
Detail B
Suspension bolt
(Service space)
Detail B
350 or more
(Service space)
(Suspension position)
(Suspension position)
or more
Fresh air intake position
(Knock out hole)
(On circumference)
Nr Name Description
1 Liquid pipe connection ø 9.52 flare (connection)
2 Gas pipe connection ø 15.90 (flare connection)
3 Drain pipe connection
VP25 (O.D. ø 32 /I.D. ø 25)
4 Remote control wiring connection
5 Power supply connection
6 Drain hole VP25 (OD
ø 32 /I.D. ø 25 )
7 Air filter
8 Air suction side
9 Air discharge side
10 Nameplate

• Split Sky Air • Indoor Units 9
• Indoor Units • R-410A • FBQ-C7VEB
5 Dimensional drawing & centre of gravity
5 - 1 Dimensional drawing
FBQ100-140C
3TW31254-1A
NOTE
1 Refer to ‘outlook drawing for installing optional
accessories’ when installing optional accessories.
2 The required ceiling depth varies according to the
configuration of the specific system.
3 For maintenance of the air filter, it is necessary to
provide a service access panel.
Refer to the ‘filter installation method’ drawing.
View A-A
Detail B
Suspension bolt
(Service space)
Detail B
350 or more
(Service space)
(Suspension position)
631 (Suspension position)
500 or more
Fresh air intake position
(Knock out hole)
(On circumference)
Nr Name Description
1 Liquid pipe connection ø 9.52 flare (connection)
2 Gas pipe connection ø 15.90 (flare connection)
3 Drain pipe connection VP25 (O.D. ø 32 /I.D. ø 25)
4 Remote control wiring connection
5 Power supply connection
6 Drain hole VP25 (OD
ø 32 /I.D. ø 25 )
7 Air filter
8 Air suction side
9 Air discharge side
10 Nameplate

• Indoor Units • R-410A • FBQ-C7VEB
• Split Sky Air • Indoor Units
10
5 Dimensional drawing & centre of gravity
5 - 2 Centre of gravity
FBQ35-140C
4TW31189-1B
Model A B
FBQ35,50 283 700
FBQ60,71 441 1000
FBQ100~140 619 1400

• Split Sky Air • Indoor Units 11
• Indoor Units • R-410A • FBQ-C7VEB
6 Piping diagram
FBQ35-140C
3TW31275-1
Heat exchanger
Liquid pipe connection port
Gas pipe connection port
Refrigerant flow
Cooling
Heating
Refrigerant pipe connection port diameters
Model Gas Liquid
FBQ35C 9.52 6.35
FBQ50C 12.70 6.35
FBQ60C 12.70 6.35
FBQ71C 15.90 9.52
FBQ100C 15.90 9.52
FBQ125C 15.90 9.52
FBQ140C 15.90 9.52

• Indoor Units • R-410A • FBQ-C7VEB
• Split Sky Air • Indoor Units
12
7 Wiring diagram
7 - 1 Wiring diagram
2TW31276-1A
NOTES
1 Use copper conductors only.
2 When using the central remote controller, see manual for connection to the unit.
3 The remote control model varies according to the combination system.
See technical materials and catalogues, etc. before connecting.
4 Refer to installation manual.
Indoor unit
M1F Motor (fan) SS1 Selector switch (emergency) TC Signal transmission circuit
A1P Printed circuit board M1P Motor (drain pump) S1L Float switch
Connector optional accessory
A2P Printed circuit board (fan) PS Switching power supply V1R Diode bridge X28A Connector (Power supply for wiring)
C1 Capacitor Q1DI Earth leak detector V2R Power module X33A Connector (for wiring)
F1U, F2U Fuse (T, 5A, 250V) R1 Resistor (current limiting) X1M Terminal strip (power supply) X35A Connector (adapter)
F4U Fuse (T, 6.3A, 250V) R2 Current sensing device X2M Terminal strip (control) X85A Connector (for multi zoning)
HAP
Light emitting diode (Service monitor green) R1T Thermistor (suction air) Z1C Noise filter (ferrite core) X33A Connector (for wiring)
KPR, K1R Magnetic relay R2T Thermistor (liquid) Z1F Noise filter
Wired remote control
L1R Reactor R3T Thermistor (gas) RC Signal receiver circuit SS1 Selector switch (emergency)
1N~220-240V 50Hz
1N~220V 60Hz
indoor
Common
power supply
note 4
Transmission
wiring central
remote control
note 2
wired remote control
(optional accessory)
Switch box (indoor)
norm.emg
Colors
BLK : Black
BLU : Blue
BRN : Brown
GRY : Gray
ORG : Orange
PNK : Pink
RED : Red
WHT : White
YLW : Yellow
GRN : Green
: Field wiring
L
: Live
N
: Neutral
: Connector
: Wire clamp
: Protective earth
(screw)
,
FBQ35-50C7VEB
FBQ60-140C7VEB
2TW31296-1A
NOTES
1 Use copper conductors only.
2 When using the central remote controller, see manual for connection to the unit.
3 The remote control model varies according to the combination system. See technical materials and catalogues, etc. before connecting.
4 Refer to installation manual.
Indoor unit L1R Reactor R3T Thermistor (gas) TC Terminal strip (control)
A1P Printed circuit board M1F Motor (fan) R5T Thermistor NTC (Current limiting) Y1E Electronic expansion valve
A2P Printed circuit board (fan) M1P Motor (drain pump) SS1 Selector switch (emergency) Connector optional accessory
A3P Printed circuit board (capacitor) PS Switching power supply S1L Float switch X33A Connector (for wiring)
C1, C2, C3 Capacitor Q1DI Earth leak detector V1R Diode bridge X35A Connector (adapter)
F1U Fuse (T, 5A, 250V) R2 Current sensing device V2R Power module X38A Connector (for wiring)
F3U Fuse (T, 6.3A, 250V) R3, R4 Resistor (electric discharge) Z1C Noise filter (ferrite core) Wired remote control
HAP
Light emitting diode (service monitor green) R1T Thermistor (suction air) Z1F Noise filter R1T Thermistor (air)
KPR, K1R Magnetic relay R2T Thermistor (liquid) RC Terminal strip (power supply) SS1 Selector switch (main/sub)
1N~220-240V 50Hz
1N~220V 60Hz
only for
60 class
Common
power supply
note 4
Transmission
wiring central
remote control
note 2
Wired remote control
(optional accessory)
Switch box (indoor)
NORM . EMG
only for
60 class
Colors
BLK : Black
BLU : Blue
BRN : Brown
GRY : Gray
ORG : Orange
PNK : Pink
RED : Red
WHT : White
YLW : Yellow
GRN : Green
: Field wiring
L
: Live
N
: Neutral
: Connector
: Wire clamp
: Protective earth
(screw)
,

• Split Sky Air • Indoor Units 13
• Indoor Units • R-410A • FBQ-C7VEB
8 Sound data
8 - 1 Sound pressure spectrum
3TW31217-2
NOTES
1 Data is valid at free field condition
2 Data is valid at nominal operation condition
3 dBA= A-weighted sound pressure level. (A-scale according to IEC)
4 Reference acoustic pressures 0dB = 20μPa
5 Location of microphone
Sound pressure level [dB]
FBQ35-50C
Octave band center frequency (Hz)
High-tap
Medium-tap
Low-tap
Unit
Microphone
Discharge
Suction
3TW31297-2
NOTES
1 Data is valid at free field condition
2 Data is valid at nominal operation condition
3 dBA= A-weighted sound pressure level. (A-scale according to IEC)
4 Reference acoustic pressures 0dB = 20μPa
5 Location of microphone
Sound pressure level [dB]
FBQ60C
Octave band center frequency (Hz)
High-tap
Medium-tap
Low-tap
Unit
Microphone
Discharge
Suction
FBQ71C
3TW31297-2
Notes
1 Data is valid at free field condition
2 Data is valid at nominal operation condition
3 dBA = A-weighted sound power level. (A-scale according to IEC)
4 Reference acoustic pressures 0dB = 20μPa
5 Location of microphine
Sound pressure level [dB]
Octave band center frequency [dB]
1.5m
Microphone
Unit
2m 2m
1.5m
1m
High-tap
Medium-tap
Low-tap
DischargeSuction
FBQ100C
3TW31257-2
Notes
1 Data is valid at free field condition
2 Data is valid at nominal operation condition
3 dBA = A-weighted sound power level. (A-scale according to IEC)
4 Reference acoustic pressures 0dB = 20μPa
5 Location of microphine
Sound pressure level [dB]
Octave band center frequency [dB]
1.5m
Microphone
Unit
2m 2m
1.5m
1m
High-tap
Medium-tap
Low-tap
DischargeSuction

• Indoor Units • R-410A • FBQ-C7VEB
• Split Sky Air • Indoor Units
14
8 Sound data
8 - 1 Sound pressure spectrum
FBQ125C
3TW31267-2
Notes
1 Data is valid at free field condition
2 Data is valid at nominal operation condition
3 dBA = A-weighted sound power level. (A-scale according to IEC)
4 Reference acoustic pressures 0dB = 20μPa
5 Location of microphine
Sound pressure level [dB]
Octave band center frequency [dB]
1.5m
Microphone
Unit
2m 2m
1.5m
1m
High-tap
Medium-tap
Low-tap
DischargeSuction
FBQ140C
3TW31337-2
Notes
1 Data is valid at free field condition
2 Data is valid at nominal operation condition
3 dBA = A-weighted sound power level. (A-scale according to IEC)
4 Reference acoustic pressures 0dB = 20μPa
5 Location of microphine
Sound pressure level [dB]
Octave band center frequency [dB]
1.5m
Microphone
Unit
2m 2m
1.5m
1m
High-tap
Medium-tap
Low-tap
DischargeSuction

• Split Sky Air • Indoor Units 15
• Indoor Units • R-410A • FBQ-C7VEB
8 Sound data
8 - 2 Sound power spectrum
3TW31217-1
NOTES
1 dBA= A-weighted sound power level. (A-scale according to IEC)
2 Reference acoustic intensity 0dB = 10E-6μW/m2
3 Measured according to ISO 3744
Sound power level [dB]
FBQ35-50C
Octave band center frequency (Hz)
High-tap
Medium-tap
Low-tap
3TW31297-1
NOTES
1 dBA= A-weighted sound power level. (A-scale according to IEC)
2 Reference acoustic intensity 0dB = 10E-6μW/m2
3 Measured according to ISO 3744
Sound power level [dB]
FBQ60C
Octave band center frequency (Hz)
High-tap
Medium-tap
Low-tap
FBQ71C
3TW31297-1
Notes
1 dBA = A-weighted sound power level. (A-scale according to IEC)
2 Reference acoustic intensity 0dB = 10E-6μW/m2
3 Measured according to ISO 3744
Sound pressure level [dB]
Octave band center frequency [dB]
High-tap
Medium-tap
Low-tap
FBQ100C
3TW31257-1
Notes
1 dBA = A-weighted sound power level. (A-scale according to IEC)
2 Reference acoustic intensity 0dB = 10E-6μW/m2
3 Measured according to ISO 3744
Sound pressure level [dB]
Octave band center frequency [dB]
High-tap
Medium-tap
Low-tap

• Indoor Units • R-410A • FBQ-C7VEB
• Split Sky Air • Indoor Units
16
8 Sound data
8 - 2 Sound power spectrum
FBQ125-140C
3TW31267-1
Notes
1 dBA = A-weighted sound power level. (A-scale according to IEC)
2 Reference acoustic intensity 0dB = 10E-6μW/m2
3 Measured according to ISO 3744
Sound pressure level [dB]
Octave band center frequency [dB]
High-tap
Medium-tap
Low-tap

• Split Sky Air • Indoor Units 17
• Indoor Units • R-410A • FBQ-C7VEB
9 Fan characteristics
FBQ35-50C
3TW31218-1
Fan characteristics (1) Fan characteristics (3)
(airflow auto adjustment)
Fan characteristics (2)
(Field setting with remote control)
External static pressure [Pa]
External static pressure [Pa]
External static pressure [Pa]
Airflow [m
3
/min]Airflow [m
3
/min]
Airflow [m
3
/min]
Range of available air flow rate (H)
L
M
H
Upper limint of ESPby
airflow auto adjustment
Upper limint of ESPby
airflow auto adjustment
Upper limint of ESP
Lower limit of ESP
Upper limint of ESP
(max ESP)
Lower limit of ESP
(std ESP)
Lower limit of ESP
(max ESP)
Upper limint of ESP
(std ESP)
L (max ESP)
M (max ESP)
H (max ESP)
L (std ESP)
H (std ESP)
M (std ESP)
NOTES
1 Fan characteristics as shown are in “fan only” mode.
2ESP: External static pressure
FBQ60C
3TW31298-1
Fan characteristics (1) Fan characteristics (3)
(airflow auto adjustment)
Fan characteristics (2)
(Field setting with remote control)
External static pressure [Pa]
External static pressure [Pa]External static pressure [Pa]
Airflow [m
3
/min]Airflow [m
3
/min]
Airflow [m
3
/min]
Range of available air flow rate (H)
L
M
H
Upper limint of ESPby
airflow auto adjustment
Upper limint of ESPby
airflow auto adjustment
Upper limint of ESP
Lower limit of ESP
Upper limint of ESP
(max ESP)
Lower limit of ESP
(std ESP)
Lower limit of ESP
(max ESP)
Upper limint of ESP
(std ESP)
L (max ESP)
M (max ESP)
H (max ESP)
L (std ESP)
H (std ESP)
M (std ESP)
NOTES
1 Fan characteristics as shown are in “fan only” mode.
2ESP: External static pressure

• Indoor Units • R-410A • FBQ-C7VEB
• Split Sky Air • Indoor Units
18
9 Fan characteristics
FBQ71C
3TW31298-1
Fan characteristics (1) Fan characteristics (3)
(Airflow auto adjustment)
Airflow [m³/min] Airflow [m³/min]
Fan characteristics (2)
(Field setting with remote control)
Range of available air flow rate (H)
Airflow [m³/min]
NOTES
1 Fan characteristics as shown ar in “fan only”mode.
2 ESP: External static pressure
Upper limit of ESP
(max. ESP)
H (max. ESP)
M (max. ESP)
L (max. ESP)
Lower limit of ESP
(max. ESP)
H (std ESP)
M (std ESP)
L (std ESP) Lower limit of ESP
(std. ESP)
Upper limit of ESP
(std. ESP)
Upper limit of ESP
Upper limit of ESP by
airflow auto adjustment
Lower limit of ESP by
airflow auto adjustment
Lower limit of ESP
External static pressure [Pa]
External static pressure [Pa]
H
M
L
External static pressure [Pa]
FBQ100C
3TW31258-1
Fan characteristics (1) Fan characteristics (3)
(Airflow auto adjustment)
Airflow [m³/min] Airflow [m³/min]
Fan characteristics (2)
(Field setting with remote control)
Range of available air flow rate (H)
Airflow [m³/min]
NOTES
1 Fan characteristics as shown ar in “fan only”mode.
2 ESP: External static pressure
Upper limit of ESP
(max. ESP)
H (max. ESP)
M (max. ESP)
L (max. ESP)
Lower limit of ESP
(max. ESP)
H (std ESP)
M (std ESP)
L (std ESP)
Lower limit of ESP
(std. ESP)
Upper limit of ESP
(std. ESP)
Upper limit of ESP
Upper limit of ESP
by airflow auto
adjustment
Lower limit of ESP by
airflow auto adjustment
Lower limit of ESP
External static pressure [Pa]
External static pressure [Pa]
H
M
L
External static pressure [Pa]
