Daikin FT18JV1B User manual

FT18JV1B FTY18JV1B
FT25JV1B FTY22JV1B
FT35JV1B FTY35JV1B
Operation Manual
MODELS
DAIKIN ROOM AIR CONDITIONER
ENGLISH
DEUTSCH
FRANÇAIS
NEDERLANDS
ESPAÑOL
ITALIANO
EËËHNIKA
PORTUGUES
DANSK
NORSK
SUOMI

1
READ BEFORE OPERATION
■Safety Precautions ................................................. 2
■Names of Parts
●Indoor unit, Receiver explanation ................. 5
●Outdoor unit, Remote controller ................... 6
■Preparation Before Operation
●Remote controller ......................................... 7

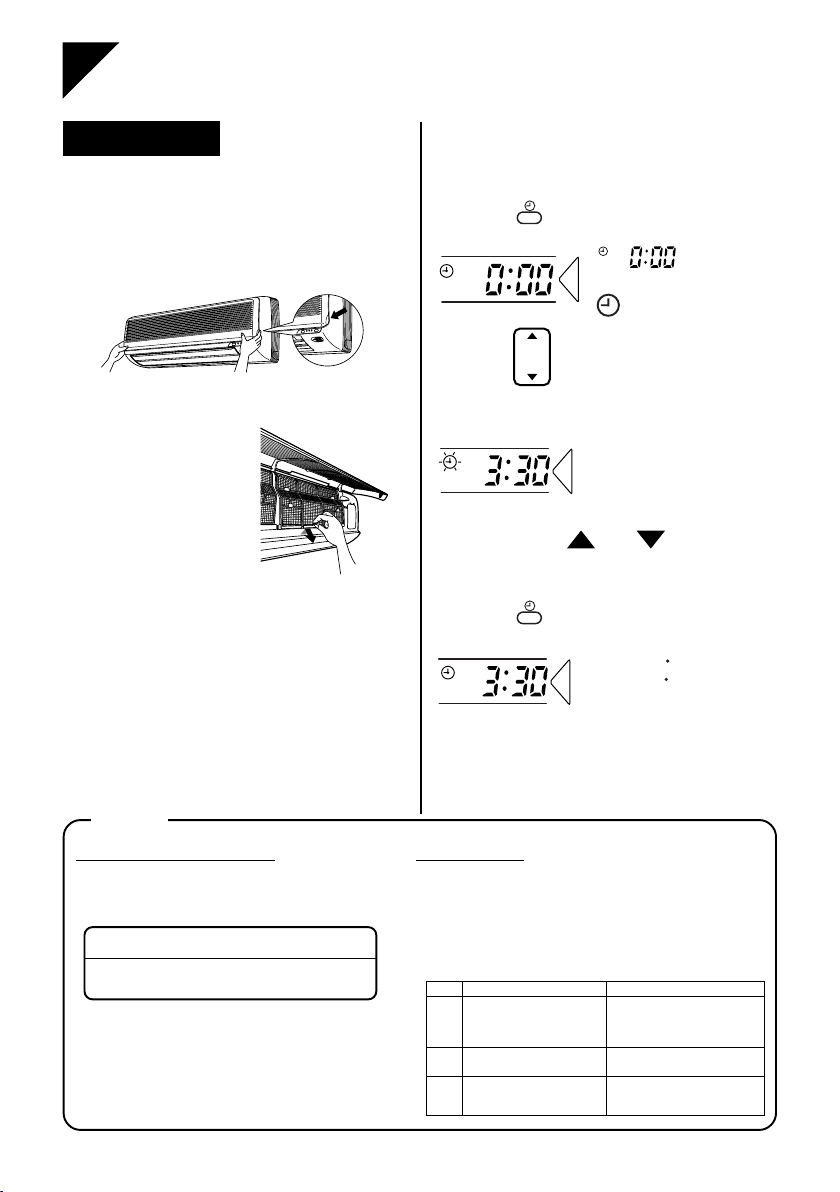

●Indoor unit ..................................................... 8
OPERATION

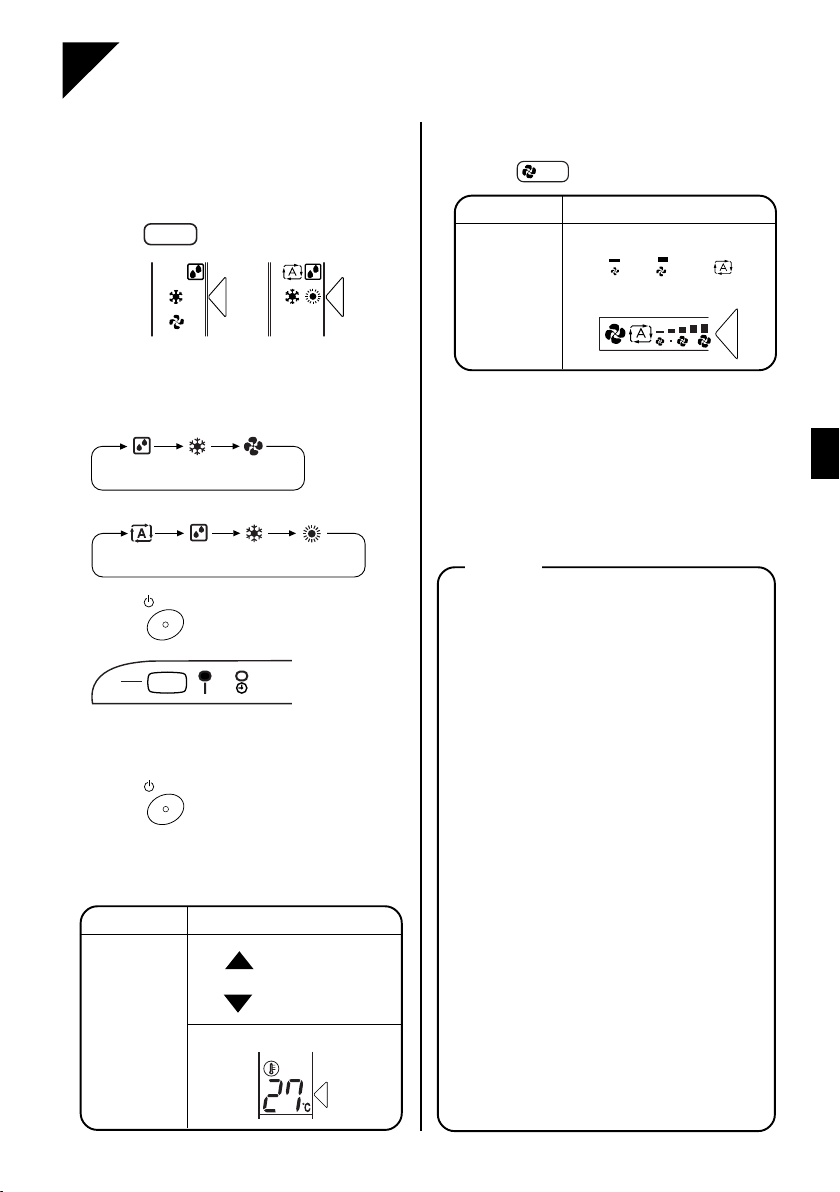

■AUTO • DRY • COOL • HEAT • FAN Operation ...... 9

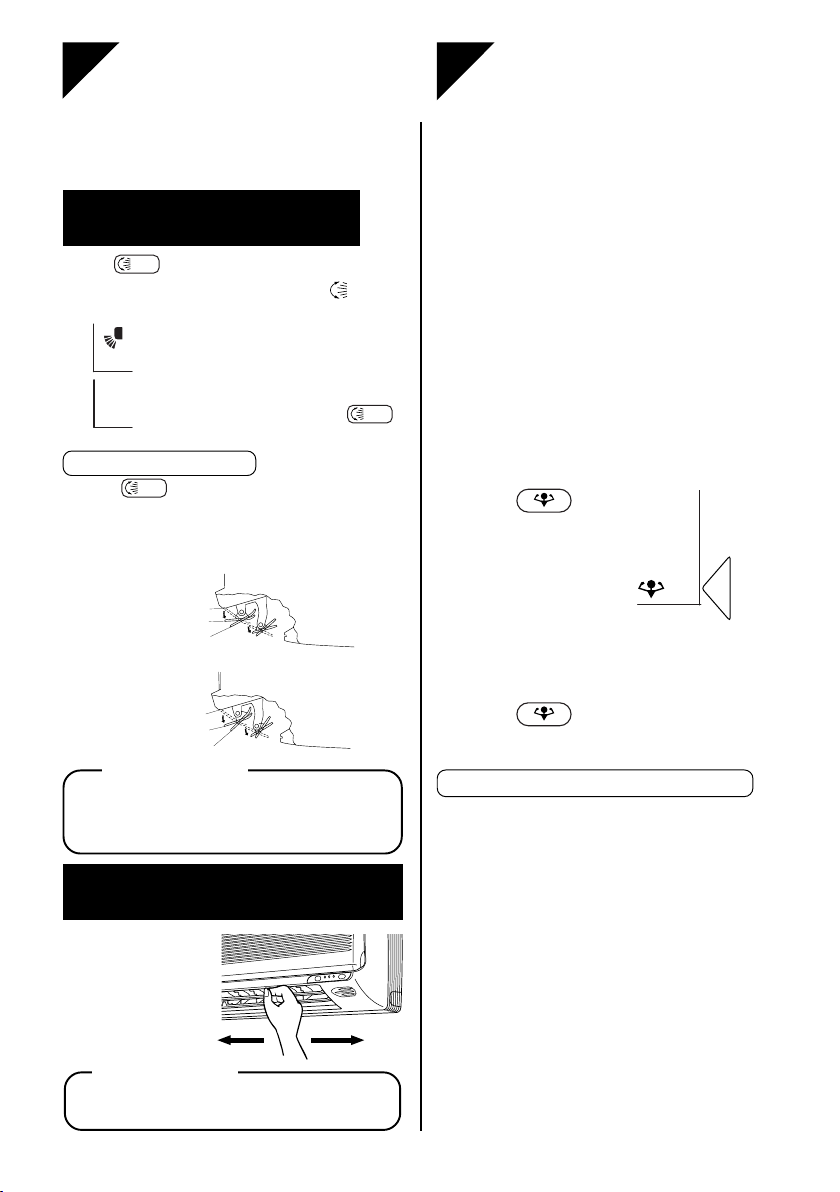

■Adjusting the Air Flow Direction
●Adjusting the horizontal blade (flap) ........... 10
●Adjusting the vertical blade (louvre) ........... 10
■POWERFUL Operation ........................................ 10

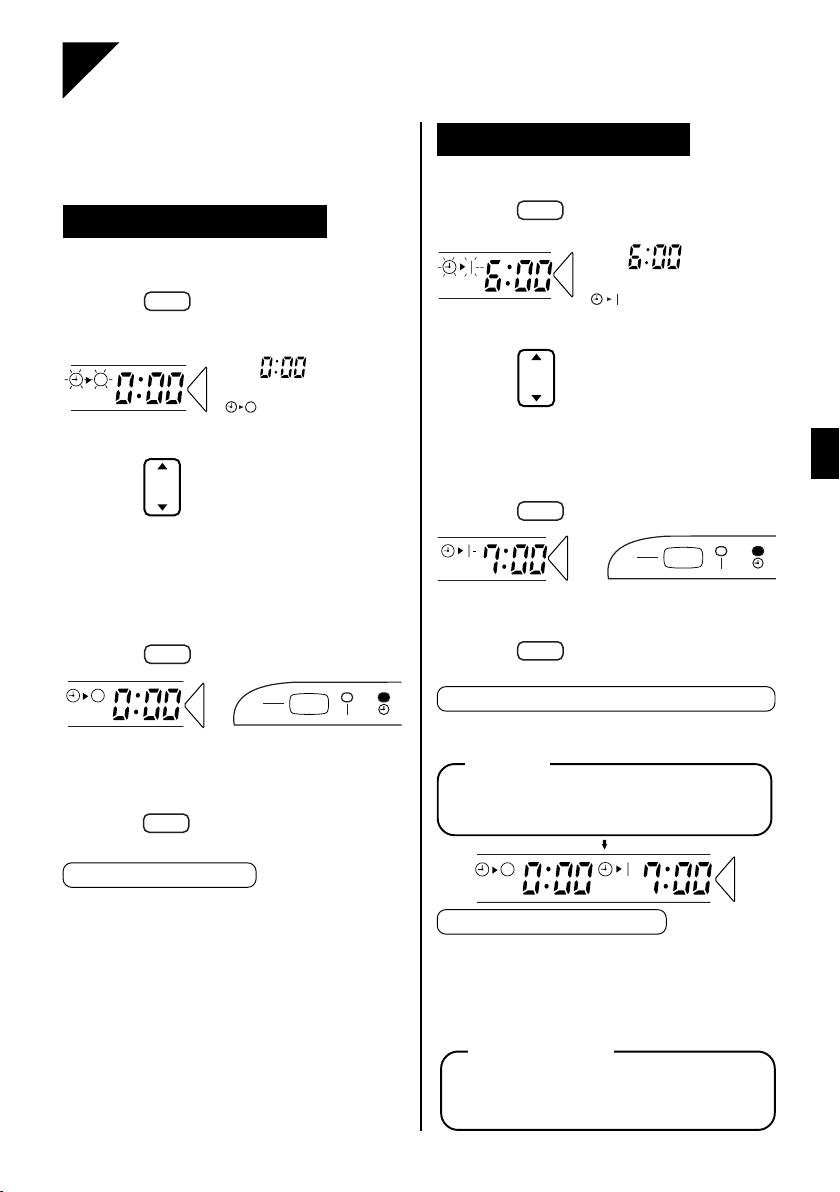

■Timer Operation
●OFF TIMER operation ................................ 11
●ON TIMER operation .................................. 11
CARE

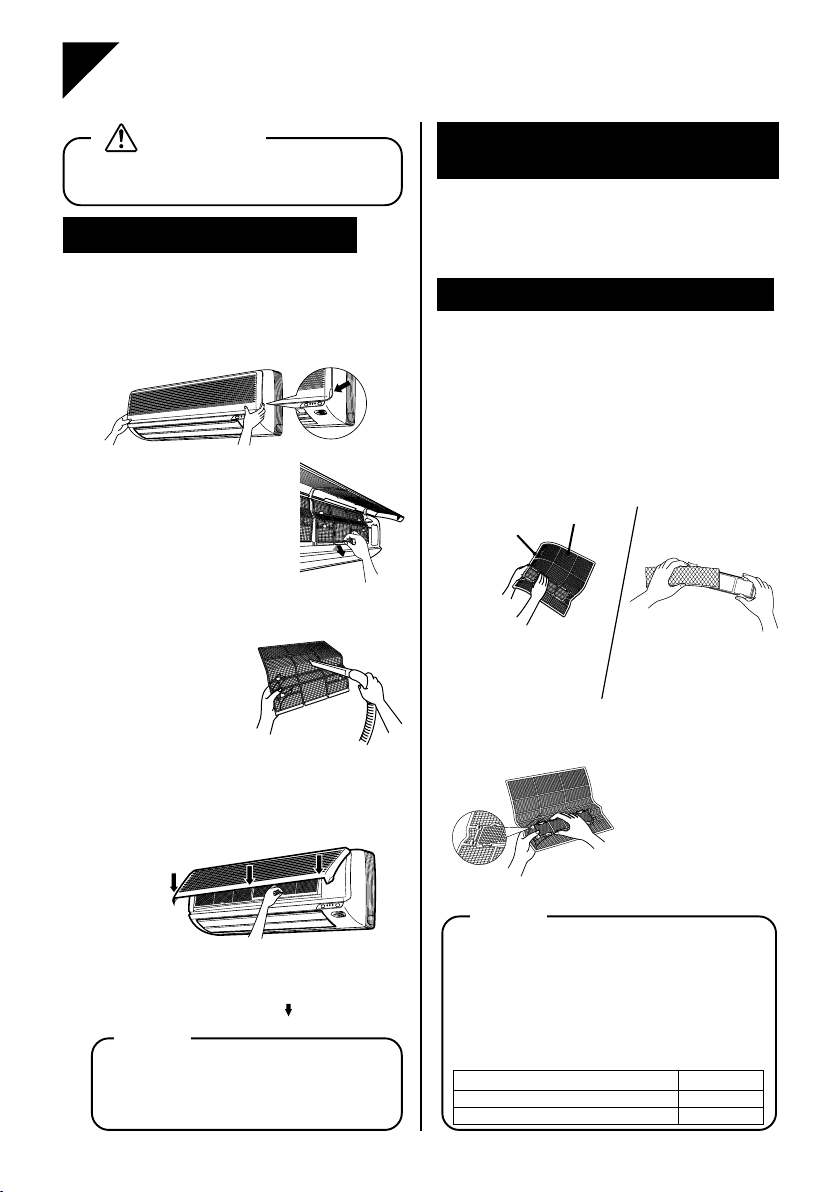

■Care and Cleaning
●Cleaning the air filters ................................. 12
●Cleaning the indoor and outdoor units
and the remote controller ............................ 12
●Replacing air purifying filters ...................... 12
●Cleaning the front grille ............................... 13
●Check .......................................................... 13
●Before a long idle period ............................. 13
TROUBLE SHOOTING
■Trouble Shooting
●These cases are not troubles ..................... 14
●Check again ................................................ 15
●Call the service shop immediately .............. 16
●Fault diagnosis ............................................ 17
CONTENTS

2
Safety Precautions
■Read the following warnings and cautions
carefully before operating the system and
use it correctly.
■This manual classifies the precautions to the
user into the following two categories.
Be sure to follow all as they are all important
to ensure safety.
■After reading this manual, keep it in a place
easily accessible to the user for future
reference.
WARNING
● Do not expose your body to the cool (heat) air for a long time, do not cool (heat) the room too much.
It will affect your physical conditions and cause health problems.
●Do not put a finger, a rod or other objects into the air outlet or inlet.
As the fan is rotating at a high speed, it will cause injury.
●Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself.
Incorrect work will cause electric shocks, fire etc. For repairs and reinstallation, consult the shop
where you bought the air conditioner.
●If anything abnormal such as a burning smell occurs, stop the operation immediately and
turn the breaker OFF.
Continued abnormal operation will cause troubles, electric shocks, fire etc. If anything is
abnormal, consult the shop where you bought the air conditioner.
●If the air conditioner is not cooling or heating properly, the refrigerant may be leaking, so
see the dealer where the unit was purchased. Check with a qualified repairman before
attempting any repairs, which might accompany addition of refrigerant.
The refrigerant used in the air conditioner is safe. Although leaks should not occur, if for some reason any
refrigerant happens to leak into the room, make sure it does not come in contact with any flame, such as
fan heaters, kerosene heaters, or gas ranges, as this may result noxious substances being generated.
CAUTION
●Do not use the air conditioner for preservation purposes.
Do not use it for preserving precision instruments, foods, plants, animals, works of fine arts etc.
Performance or quality may deteriorate and animal or plant life may be shorter.
●Do not operate the air conditioner with a wet hand.
It may cause an electric shock.
●Ventilate the room from time to time.
Be careful especially when using a burning appliance in the same room. Insufficient ventilation
may cause shortage of oxygen.
●Before cleaning, be sure to stop the operation and turn the breaker OFF.
As a fan is rotating at a high speed, cleaning during operation may cause injury.
●After a long use, check the unit stand and fittings for damage.
The unit may drop and cause injury if damage is left unrepaired.
WARNING
Failure to follow a warning is very likely
to result in such grave consequences as
death or serious injury.
CAUTION
Failure to follow a caution may result in
serious injury or property damage, and
in certain conditions, may result in a
grave consequence.

3
●Do not stand or sit on the outdoor unit. Do not place any object on the unit.
The object or the person may fall down or drop, causing injury.
●Do not place under the indoor or outdoor unit anything which must be kept away from
moisture.
Indoor unit : moisture in the air may condense and drip in certain conditions.
outdoor : during cooling operation, condensation may drip from the piping connections.
●Do not wash the unit with water.
It may cause an electric shock.
●Do not place a burning appliance in places exposed to the air flow from the unit or
under the indoor unit.
It may cause incomplete combustion or deformation of the unit from heat.
●Do not place a vessel containing water on the unit.
Water may penetrate into the unit and degrade electrical insulations, resulting in an electric
shock.
●Do not expose plants or animals directly to the air flow.
It may cause adverse effects on the plant or the animal.
●Do not block air inlets nor outlets.
Impaired air flow may result in insufficient performance or troubles.
●Do not allow children to mount on the outdoor unit or avoid placing any object on it.
Falling or tumbling may result in injury.
Installation
WARNING
●Do not attempt to install the air conditioner by yourself.
Consult the service shop or a qualified technician.
Incorrect work will result in water leakage, electric shocks or fire. For installation, consult the
service shop where you bought the unit or a qualified technician.
●The air conditioner must be earthed.
Incomplete earthing may result in electric shocks. Do not connect the earth line to a gas pipe,
water pipe, lightening rod, or a telephone earth line.
CAUTION
●Depending on the environment, an earth leakage breaker must be installed.
Lack of an earth leakage breaker may result in electric shocks.
●Do not install the air conditioner in places where flammable gas may leak.
If leaked gas should accumulate near the unit, fire may occur.
●Arrange the drain hose to ensure smooth drainage.
Incomplete drainage may cause wetting of the building, furniture etc.
●Do not connect the air conditioner to a power supply different from the specification.
It may cause trouble or fire.
●Do not place objects in direct proximity of the outdoor unit and do not let leaves and
other debris accumulate around the unit.
Leaves are a hotbed for small animals which can enter the unit. Once in the unit, such animals
can cause malfunctions, smoke or fire when making contact with electrical parts.

4
Installation site
■To install the air conditioner in the following types of environments, consult the shop.
●Places with an oily ambient or where steam or soot occurs.
●Salty environment such as coastal areas.
●Places where sulfide gas occurs such as hot springs.
●Places where snow may block the outdoor unit.
The drain from the outdoor unit must be discharged to a place of good drainage.
Consider nuisance to your neighbours from noises
■For installation, choose a place as described below.
●A place solid enough to bear the weight of the unit which does not amplify the operation noise
or vibration.
●A place from where the air discharged from the outdoor unit or the operation noise will not
annoy your neighbours.
Electrical work
●For power supply, be sure to use a separate power circuit dedicated to the air conditioner.
System relocation
●Relocating the air conditioner requires specialized knowledge and skills. Please consult the shop
where you bought the air conditioner if relocation is necessary for moving or remodeling.

5

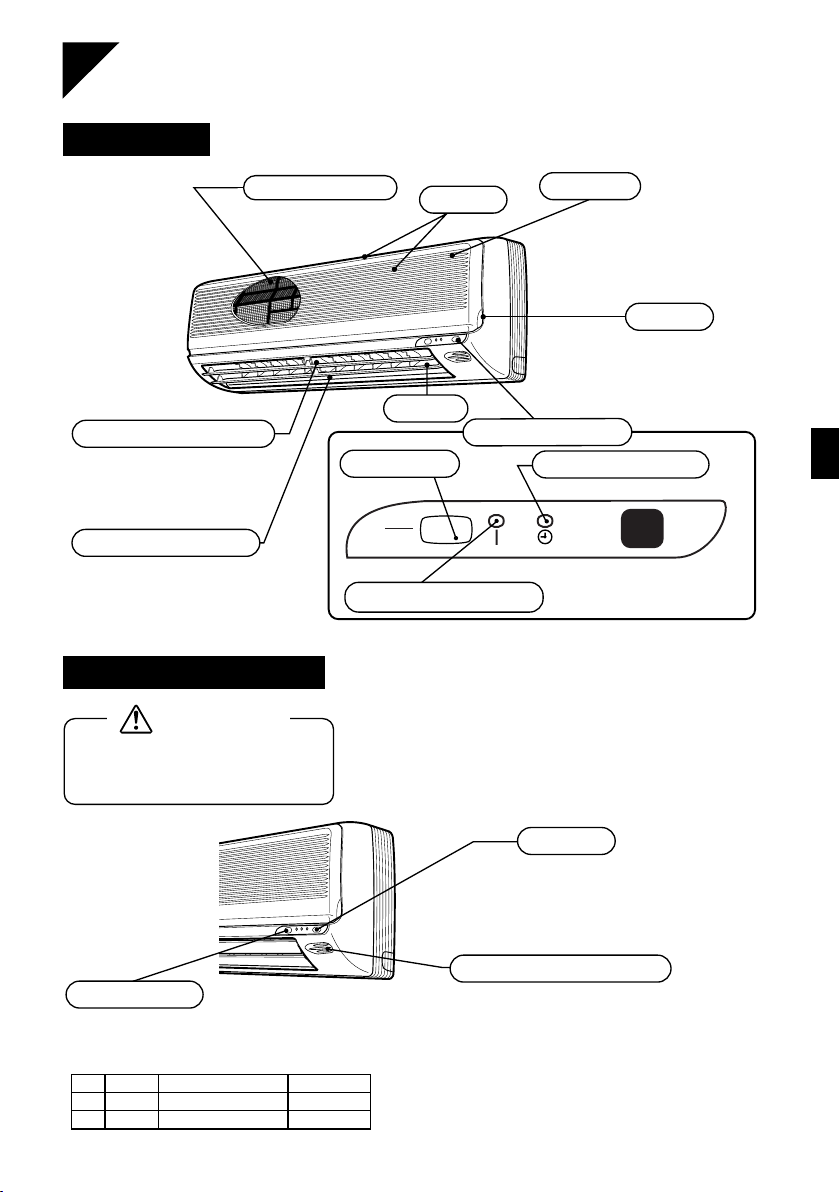

Indoor unit
Receiver explanation
Names of Parts
Room temperature sensor:
•It senses the air temperature around the unit.
FT
FTY
Mode
COOL
AUTO
Air flow rate
AUTO
AUTO
Temperature setting
22˚C
25˚C
•The operation mode refers to the following table.
•Push this button once to start operation. Push once again to stop it.
•This button is useful when the remote controller is missing.
ON/OFF button
•It receives signals from the
remote controller.
•When the unit receives a signal,
you will hear a short beep.
Before opening the front grille, be sure to
stop the operation and turn the breaker
OFF. If the power is on, the fan may rotate
inside and may cause injury.
CAUTION
Receiver:
ON
OFF
Front grille
Indicator lamps
Grille tab
Operation lamp (green)
Flap (horizontal blade)
(See page 10.)
TIMER lamp (orange)
The louvre is inside of the air
outlet.
(See page 10.)
Air outlet
Louvre (vertical blades)
ON/OFF button
Air inlet
Air purifying filter
Air purifying filters are
attached to the inside of
the air filters.
(See page 11.) (See page 11.)

6
C
ON
AMPM AMPM
TEMP
ON/OFF
MODE
ON
OFF
TIMER
FAN
SWING
CANCEL
POWERFUL
Transmitter
It sends signals to the indoor unit.
ON/OFF button
Press it once to start operation.
To stop it, press it once again.
CLOCK button
(See page 8.)
TIMER CANCEL button
It cancels the timer setting.
FAN setting button
It selects the air flow rate setting.
SWING button
(See page 10.)
It changes the temperature
setting.
Display
It displays the
current settings.
(In this illustration,
each section is
shown with all its
displays ON for the
purpose of
explanation. Some
models may not
show all its
indications.)
ON TIMER button
(See page 11.)
TIMER Setting button
It changes the time setting
MODE selector button
It selects the operation mode.
POWERFUL button
(See page 10.)
TEMPERATURE
adjustment buttons
Open
the
cover.
OFF TIMER button
: DRY
: COOL
: FAN
: AUTO
: DRY
: COOL
: HEAT
<FT> <FTY>
< ARC423A17, A18 >
(See page 11.)
Drain hose
Earth terminal
Air outlet
Air inlet
Refrigerant piping
and inter-unit cable
(Back and side)
It is inside of this part.
Appearance of the outdoor unit may differ
from some models.
Outdoor unit
Names of Parts
Remote controller

7
Remote
controller
holder
Set.
Receiver
Preparation Before Operation
+–
–+
2
3
1
Position + and
–correctly!
About batteries
●When replacing the batteries, use
batteries of the same type, and replace
the two old batteries together.
●When the system is not used for a long
time, take the batteries out.
●When the operation display screen of the
remote controller is hard to see and the
reception become hard, replace the
batteries with new AAA batteries.
●The attached batteries are provided for the
initial use of the system.
The usable period of the batteries may be
short depending on the manufactured date
of the air conditioner.
Remote controller
Press with a finger and slide the front
cover to take it off.
Set two dry batteries (AAA).
Set the front cover as before.
●This will cause the figures on the display
to flash. Set the clock at this point.
1
2
3
■■
■■
■Operating the remote controller
● To use the remote controller, aim the transmitter at
the indoor unit. If there is anything to block signals
between the unit and the remote controller, such as
a curtain, the unit will not operate.
● Do not drop the remote controller. Do not get it wet.
● The maximum distance for communication is about
7 m.
● To remove, pull it upwards.
■■
■■
■To fix the remote controller
holder on the wall
Choose a place from where the signals
reach the unit.
Fix the holder to a wall, a pillar, etc. with the
screws supplied with the holder.
Place the remote control in the remote
control holder.
1
2
3
About the remote controller
●Never expose the remote controller to
direct sunlight.
●Dust on the signal transmitter or receiver
will reduce the sensitivity. Wipe off dust
with soft cloth.
●Signal communication may be disabled if
an electronic-starter-type fluorescent lamp
(such as inverter-type lamps) is in the
room. Consult the shop if that is the case.
●If the remote control signals happen to
operate another appliance, move that
appliance to somewhere else, or consult
the shop.
■■
■■
■Setting the batteries
ATTENTION
ATTENTION

8
Preparation Before Operation
■■
■■
■Setting the air purifying filters
Indoor unit
●Holding down ( ) or ( ) button
rapidly increases or decreases the time display.
■■
■■
■Setting the clock
Press .
Press
TIMER
to set the clock to the present
time.
■■
■■
■Turn the breaker ON
●Turning ON the breaker opens the flap, then
closes it again. (This is a normal procedure.)
Pull out the air filters.
●Push upwards the
tab at the center of
each air filter, then
pull it down.
2
Open the front grille.
●Hold the grille by the tabs on the two sides
and lift it until it stops with a click.
(about 60°)
1
Set the air purifying filters.
●Attach an air purifying filter to each air filter.
(See page 12 “Care and cleaning”)
Set the air filters in their original
positions and close the front grille.
●Operation without air filters may result in
troubles as dust will accumulate inside the
indoor unit.
3
4
1
AM
is displayed.
2
AM
Display
blinks.
3Press .
blinks.
(Now the clock is set.)
PM
Display
PM
Display
NOTE
Please note
●The air conditioner always consumes 7 watts of
electricity even while it is not operating.
●If you are not going to use the air conditioner for
a long period, for example in spring or autumn,
turn the breaker OFF.
●Use the air conditioner in the following
conditions.
Mode
COOL
HEAT
DRY
Operating conditions
Outdoor temperature : 19 to 46 °C
Indoor temperature : 18 to 32 °C
Indoor humidity : 80% max.
Outdoor temperature : –10 to 21 °C
Indoor temperature : 27 °C max.
Outdoor temperature : 19 to 46 °C
Indoor temperature : 18 to 32 °C
Indoor humidity : 80% max.
If operation is continued out of this range
•A safety device may work to stop the operation.
(In multi system, it may work to stop
the operation of the outdoor unit only.)
•Condensation may occur on the indoor unit and drip.
•A safety device may work to stop the operation.
•A safety device may work to stop the operation.
•Condensation may occur on the indoor unit and drip.
Tips for saving energy
●Be careful not to cool the room too much.
Keeping the temperature setting at a
moderate level helps save energy.
Recommended temperature setting
For cooling: 26°C –28°C
For heating: 20°C –24°C
●Cover windows with a blind or a curtain.
Blocking sunlight and air from outdoors
increases the cooling effect.
●Clogged air filters cause inefficient
operation and waste energy. Clean them
once in about every two weeks.

9
The air conditioner operates with the settings of
your choice.
From the next time on, the air conditioner will
operate with the same settings.
Press
MODE
and select a mode.
●Each pressing of the button advances the
mode setting in sequence.
Press
ON/OFF
.
Then OPERATION lamp lights up.
■■
■■
■To stop:
Press
ON/OFF
once again.
Then OPERATION lamp goes off.
■■
■■
■ To change the temperature setting:
■■
■■
■To change the air flow direction:
(See page 10.)
●At smaller air flow rates, the cooling effect is
also smaller.
AUTO • DRY • COOL • HEAT • FAN Operation
1
2
AUTO or HEAT or COOL mode
Press to raise the temperature and
press
to lower the temperature.
Set to the temperature you like.
DRY or FAN mode
The temperature
setting is not
variable.
■■
■■
■ To change the air flow rate setting:
AUTO or HEAT or COOL or FAN mode
Five levels of air flow rate setting
from “”to “”plus “”are
available.
DRY mode
The air flow rate
setting is not
variable.
Press
FAN
.
<FT>
<FTY>
NOTE
<Note on HEAT mode operation>
●Since this air conditioner heats the room by
taking heat from outdoor air to indoors, the
heating capacity becomes smaller in lower
outdoor temperatures. If the heating effect is
insufficient, it is recommended to use another
heating appliance in combination with the air
conditioner.
●The heat pump system heats the room by
circulating hot air around all parts of the room.
After the start of heating operation, it takes
some time before the room gets warmer.
●In heating operation, frost may occur on the
outdoor unit and lower the heating capacity. In
that case, the system switches into defrosting
operation to take away the frost.
●During defrosting operation, hot air does not
flow out of indoor unit.
<Note on AUTO operation>
●In AUTO operation, the system selects a
temperature setting and an appropriate mode
(COOL or HEAT) based on the room
temperature at the start of the operation.
●The system automatically reselects setting at a
regular interval to bring the room temperature
to user-seetting level.
●If you do not like AUTO operation, you can
select manually, you like the mode and setting.
<FT> <FTY>
Display Display
ON
OFF
Display
Display

10
POWERFUL
Operation
POWERFUL operation quickly maximizes the
cooling (heating) effect in any operation mode.
You can get the maximum capacity with a touch
of a button.
●Pressing the (POWERFUL) button during
operation starts POWERFUL operation.
●POWERFUL operation ends in 20 minutes.
Then the system automatically operates
again with the settings which were used
before POWERFUL operation.
●During you use “POWERFUL operation”, the
other functions will not go on.
Press .
■■
■■
■To cancel POWERFUL operation:
1
Notes on POWERFUL operation
●In COOL and HEAT mode
To maximize the cooling and heating effect,
the capacity of outdoor unit must be
increased and the air flow rate be fixed to the
maximum setting.
The temperature and air flow settings are not
variable.
●In DRY mode
The temperature setting is lowered by 3°C
and the air flow rate is slightly increased.
●In FAN mode
The air flow rate is fixed to the maximum
setting.
Display
Press .
ON
No display
Adjusting the Air
Flow Direction
You can adjust the air flow direction to increase
your comfort.
Adjusting the horizontal
blade (flap)
....... To stop the flap at an
angle you like, press
SWING
.
● When
SWING
is selected, the flap swinging range
depends on the operation mode. (See the figure.)
● The real flap angles are differ from the display of
remote controller.
Press
SWING
.
●Every time the button is pressed, “”
appears or disappears.
....... The flap automatically
swings up and down.
ATTENTION
●Always use a remote controller to adjust
the flap angle. If you attempt to move it
forcibly with hand when it is swinging,
the mechanism may be broken.
ATTENTION
Hold the knob and
move the louvre.
(You will find a
knob on the left-
side and the right-
side blades.)
Notes on flap angles
● Be careful when adjusting the louvre. Inside
the air outlet, a fan is rotating at a high speed.
Adjusting the vertical blade
(louvre)
In FAN mode or COOL mode
In HEAT or FAN mode
When stop operation
Upper limit in cooling
Lower limit in cooling
0˚
25˚
20˚
45˚
When stop operation
Upper limit in heating
Lower limit in heating

11
Timer Operation
● Check that the clock is correct.
If not, set the clock to the present time. (See page 8.)
Timer functions are useful for automatically
switching the air conditioner on or off at night or
in the morning. You can also use OFF TIMER
and ON TIMER in combination.
● NIGHT SET MODE
When the OFF TIMER is set, the air
conditioner automatically adjusts the
temperature setting (0.5°C up in COOL) to
prevent excessive cooling (heating) for your
pleasant sleep.
Press
OFF
while the air conditioner
is operating.
Press
CANCEL
.
■■
■■
■To cancel the timer:
Press
OFF
once again.
Then the TIMER lamp goes off.
Press
TIMER
until the time setting
reaches the point you like.
● Every pressing of either button increases or
decreases the time setting by 10 minutes. Holding
down either button changes the setting rapidly.
2
3
Then the TIMER lamp
lights up.
AM
is displayed.
blinks.
* Previous time setting
appears on display.
OFF TIMER operation
1
Notes on OFF TIMER
ON TIMER operation
Press
ON
while the air conditioner is
not operating.
Press
ON
once again.
■■
■■
■To cancel the timer:
Then the TIMER lamp goes off.
●Check that the clock is correct. If not, set the
clock to the present time (See page 8).
1
is displayed.
blinks.
* Previous time setting
appears on display.
2
Press
TIMER
until the time setting
reaches the point you like.
●Every pressing of either button increases
or decreases the time setting by 10
minutes. Holding down either button
changes the setting rapidly.
3
Then the TIMER lamp lights up.
Combining ON TIMER and OFF TIMER
Present time: 11:00 PM
(The unit operating)
OFF TIMER at 0:00 a.m.
ON TIMER at 7:00 a.m. Combined






(Example)
ATTENTION
■In the following cases, set the timer again.
●After a breaker has turned OFF.
●After a power failure.
●After replacing batteries in the remote controller.
● When TIMER is set, the present time is not displayed.
●Once you set ON, OFF TIMER, the time setting is
kept in the memory. (The memory is canceled when
remote controller batteries are replaced.)
●When operating the unit via the ON/OFF Timer, the
actual length of operation may vary from the time
entered by the user. (Maximum approx. 10 minutes)
●A sample setting for combining the two timers
is shown below.
Notes on ON, OFF TIMER
AM
Display
AM
Display
ON
OFF
AM
Display
AM
AM
Display
ON
OFF
AM AM
Display
Press
CANCEL
.

12
Push
Air filter
Air purifying
filter frame
• Hold the recessed
parts of the frame
and unhook the four
claws.
Care and Cleaning
Detach the
filter element
and attach a
new one.
Set the air
filters as they
were and
close the front
grille.
(Push the grille
at the 3 points,
two at both sides
and in the
middle.)
5
Before cleaning, be sure to stop the
operation and turn the breaker OFF.
Open the front grille.
● Hold the grille by the tabs on the two sides
and lift it unitl it stops with a click. (about 60°)
Pull out the air filters.
●Push a little upwards the
tab at the center of each
air filter, then pull it down.
1
32
Take off the air purifying filters and
clean them.
● Wash them with
water, or clean them
with a vacuum
cleaner.
● If the dust does not
come off easily, wash
them with neutral
detergent thinned
with lukewarm water,
then dry them up in the shade.
Set the air purifying filters and the
air filters as they were and close the
front grille.
4
(It is recommended to clean them every two weeks.)
Open the front grille and pull out the
air filters.
Take off the air
purifying filters.
●Wipe them with dry soft cloth.
For cleaning, do not use water hotter than 40°C,
benzine, gasoline, thinner, nor other volatile
oils, polishing compound, scrubbing brushes
nor other hard stuff.
(It is recommended to replace them every
three months.)
● Air purifying filters need to be replaced regularly.
Attach the air
purifying filter.
CAUTION
NOTE
● Insert claws of the filters into slots of the front
panel. The front grille should lock at both sides
and at the point in the middle. Push the grille
at the 3 points indicated by .
● In a dusty environment, clean the air
filters at least once in every two weeks.
● Operation with dusty air filters lowers
the cooling capacity and wastes energy.
NOTE
●To order air purifying filters, contact the
service shop where you bought the air
conditioner.
●Once the air purifying filter element gets
dirty, it is not reusable but must be thrown
away.
●Operation with dirty air purifying filters :
•cannot clean the air.
•results in poor cooling.
•may cause odour.
Cleaning the indoor and outdoor
units and the remote controller
Replacing air purifying filters
Item
Air purifying filter (with frame)
Air purifying filter (without frame)
Part No.
KAF918A41
KAF918A42
4
1
3
2
Cleaning the air filters

13
Fit the key
into the slot.
Slide up the knob.
Care and Cleaning
CAUTION
Clean the front grille.
● You may wipe it with a soft cloth soaked in water.
● Only neutral detergent may be used.
● You may wash the grille with water. After washing,
dry it with cloth, then dry it up in the shade.
Remove the front grille.
● Supporting the front grille with one hand, release
the lock by sliding down the knob with the other
hand.
● To remove the front grille, pull it toward yourself
with both hands.
Cleaning the front grille
You may remove the front grille for cleaning.
● When removing or attaching the front grille, use a
robust and stable stool and watch your steps carefully.
● When removing or attaching the front grille, support
the grille securely with hand to prevent it from falling.
● For cleaning, do not use water hotter than 40°C, benzine,
gasoline, thinner, nor other volatile oils, polishing
compound, scrubbing brushes nor othe hard stuff.
● After cleaning, make sure that the front grille is securely
fixed.
1
3
2
4Attach the front grille.
● Set the 3 keys of the front grille into the slots
and push them in all the way.
● Supporting the front grille with one hand, fit the
lock by sliding up the knob with the other hand.
● Close the front grille slowly in this state. (Push
the grille at the 3 points, two at both sides and
in the middle.)
Open the front grille.
●Hold the grille by the tabs on the two sides
and lift it until it stops with a click.
Before a long idle period
1
2
Press
MODE
and select “”.
Press
ON/OFF
.
1 Operate the fan alone for several
hours on a fine day to dry out the
inside.
<FT>
2 Clean the air filters and set them
again.
3 Take out batteries from the remote
controller.
4 Turn OFF the breaker for the room air
conditioner.
<FTY>
1
2
Press
MODE
and select “”.
Press
TEMP
and set the
temperature to 32°C
3Press
ON/OFF
.
•Perform this operation when the room
temperature is under 28°C.
Check that the base, stand and other
fittings of the outdoor unit are not
decayed or corroded.
Check that nothing blocks the air
inlets and the outlets of the indoor
unit and the outdoor unit.
Check that the earth wire is not
disconnected or broken.
Check that the drain comes smoothly
out of the drain hose during COOL or
DRY operation.
●If no drain water is seen, water may be
leaking from the indoor unit. Stop
operation and consult the service shop
if this is the case.
Check

14
Trouble Shooting
●●
●●
●These cases are not troubles.
The following cases are not air conditioner troubles but have some reasons. You may just continue
using it.
Case
Operation does not start soon.
●When ON/OFF button was
pressed soon after operation
was stopped.
●When the mode was reselected.
Hot air does not flow out soon
after the start of heating
operation.
The heating operation stops
suddenly and a flowing sound is
heard.
The outdoor unit emits water or
steam.
Mists come out of the indoor unit.
The indoor unit gives out odour.
The outdoor fan rotates while the
air conditioner is not in operation.
The operation stopped suddenly.
(OPERATION lamp is on)
Explanation
●This is to protect the air conditioner.
You should wait for about 3 minutes.
●The air conditioner is warming up.You should wait for 1 to 4 minutes.
(The system is designed to start discharging air only after it has reached
a certain temperature.)
●The system is taking away the frost on the outdoor unit.
You should wait for about 3 to 10 minutes.
■In HEAT mode
•The frost on the outdoor unit melts into water or steam when the air
conditioner is in defrost operation.
■In COOL or DRY mode
•Moisture in the air condenses into water on the cool surface of
outdoor unit piping and drips.
■This happens when the air in the room is cooled into mist by the cold
air flow during cooling operation.
■This happens when smells of the room, furniture, or cigarettes are
absorbed into the unit and discharged with the air flow.
(If this happens, we recommend you to have the indoor unit washed
by a technician. Consult the service shop where you bought the air
conditioner.)
■After operation is stopped:
•The outdoor fan continues rotating for another 60 seconds for system
protection.
■While the air conditioner is not in operation:
•When the outdoor temperature is very high, the out door fan starts
rotating for system protection.
■For system protection, the air conditioner may stop operating on a
sudden large voltage fluctuation.
It automatically resumes operation in about 3 minutes.

15
Trouble Shooting
●●
●●
●Check again
Please check again before calling a repair person.
Case
The air conditioner does not
operate.
(OPERATION lamp is off)
Cooling or Heating effect is
poor.
Operation stops suddenly.
(OPERATION lamp blinks.)
An abnormal functioning
happens during operation.
Check
●Hasn’t a breaker turned OFF or a fuse blown?
●Isn’t it a power failure?
●Are batteries set in the remote controller?
●Is the timer setting correct?
●Are the air filters clean?
●Is there anything to block the air inlet or the outlet of the indoor and the
outdoor units?
●Is the temperature setting appropriate?
●Are the windows and doors closed?
●Are the air flow rate and the air direction set appropriately?
●Are the air filters clean?
●Is there anything to block the air inlet or the outlet of the indoor and the
outdoor units?
Clean the air filters or take all obstacles away and turn the breaker OFF.
Then turn it ON again and try operating the air conditioner with the remote
controller. If the lamp still blinks, call the service shop where you bought the
air conditioner. If the lamps stop blinking after the above steps, there is no
malfunction.
●The air conditioner may malfunction with lightening or radio waves. Turn the
breaker OFF, turn it ON again and try operating the air conditioner with the
remote controller.

16
Trouble Shooting
●●
●●
●Call the service shop immediately.
WARNING
■When an abnormality (such as a burning smell) occurs, stop operation and
turn the breaker OFF.
Continued operation in an abnormal condition may result in troubles, electric shocks
or fire. Consult the service shop where you bought the air conditioner.
■Do not attempt to repair or modify the air conditioner by yourself.
Incorrect work may result in electric shocks or fire.
Consult the service shop where you bought the air conditioner.
If one of the following symptoms takes place, call the service shop immediately.
■The power cord is abnormally hot or damaged.
■An abnormal sound is heard during operation.
■The safety breaker, a fuse, or the earth leakage
breaker cuts off the operation frequently.
■A switch or a button often fails to work properly.
■There is a burning smell.
■Water leaks from the indoor unit.
Turn the breaker
OFF and call the
service shop.
■After a power failure
The air conditioner automatically resumes
operation in about three minutes. You
should just wait for a while.
■Lightening
If lightening may strike the neighbouring
area, stop operation and turn the breaker
OFF for system protection.
We recommend periodical maintenance
In certain operating conditions, the inside of the air conditioner may get foul after several
seasons of use, resulting in poor performance. It is recommended to have periodical
maintenance by a specialist aside from regular cleaning by the user. For specialist
maintenance, contact the service shop where you bought the air conditioner.
The maintenance cost must be born by the user.
Disposal requirements
Dismantling of the unit, treatment of the refrigerant, oil and eventual other parts, should
be done in accordance with the relevant local and national regulations.

17
FAULT DIAGNOSIS BY REMOTE CONTROLLER
IN THE EVENT OF AN ABNORMALITY, THE RELEVANT ABNORMALITY CODE APPEARS FLASHING
IN THE REMOTE CONTROLLER'S TEMPERATURE DISPLAY.
Trouble Shooting
●●
●●
●Fault diagnosis
MEANING
NORMAL
REFRIGEMENT SHORTAGE
POWER FACTOR MODULE ABNORMALITY
INCORRECT INTERUNIT WIRING(INTERUNIT)
INCORRECT INTERUNIT WIRING
(INDOOR UNIT-REMOTE CONTROLLER)
FREEZE-UP PROTECTOR "OR STOPPED
BY HIGH PRESSURE CONTROL"
FAN MOTOR FAULT
FAULTY HEAT EXCHANGER SENSOR
FAULTY SUCTION AIR TEMPERATURE SENSOR
CODE
00
U0
U2
U4
U5
A5
A6
C4 OR C5
C9
SYSTEM
INDOOR
UNIT
MEANING
INTERNAL THERMOSTAT WORKED OR
HIGH DISCHARGE PIPE TEMPERATURE
FAULTY COMPRESSOR START
CT ABNORMALITY
FAULTY SUCTION AIR
TEMPERATURE SENSOR
FAULTY DISCHARGE PIPE
TEMPERATURE SENSOR
FAULTY HEAT EXCHANGER SENSOR
FAULTY GAS PIPE TEMPERATURE SENSOR
HIGH TEMPERERATURE AT
INVERTER CIRCUIT HEATSINK
FAULTY INVERTER CIRCUIT HEATSINK
TEMPERATURE SENSOR
CODE
E5
E6
H8
H9
J3
J6
J9
L4
P4
OUTDOOR
UNIT

3P062628-1L M00B035B (0507)
HT
