Daikin FTV-A Series Dimension Guide

TM-FTV-1020-F
Split Unit Air Conditioner
Wall Mounted
FTV-A/P/PS Series
Cooling Only [50Hz]

Table of Contents
i
Table of Contents
Introduction.........................................................................................................................2
Model Name and Power Supply ....................................................................................2
Nomenclature ................................................................................................................3
Functions ............................................................................................................................5
Specications .....................................................................................................................6

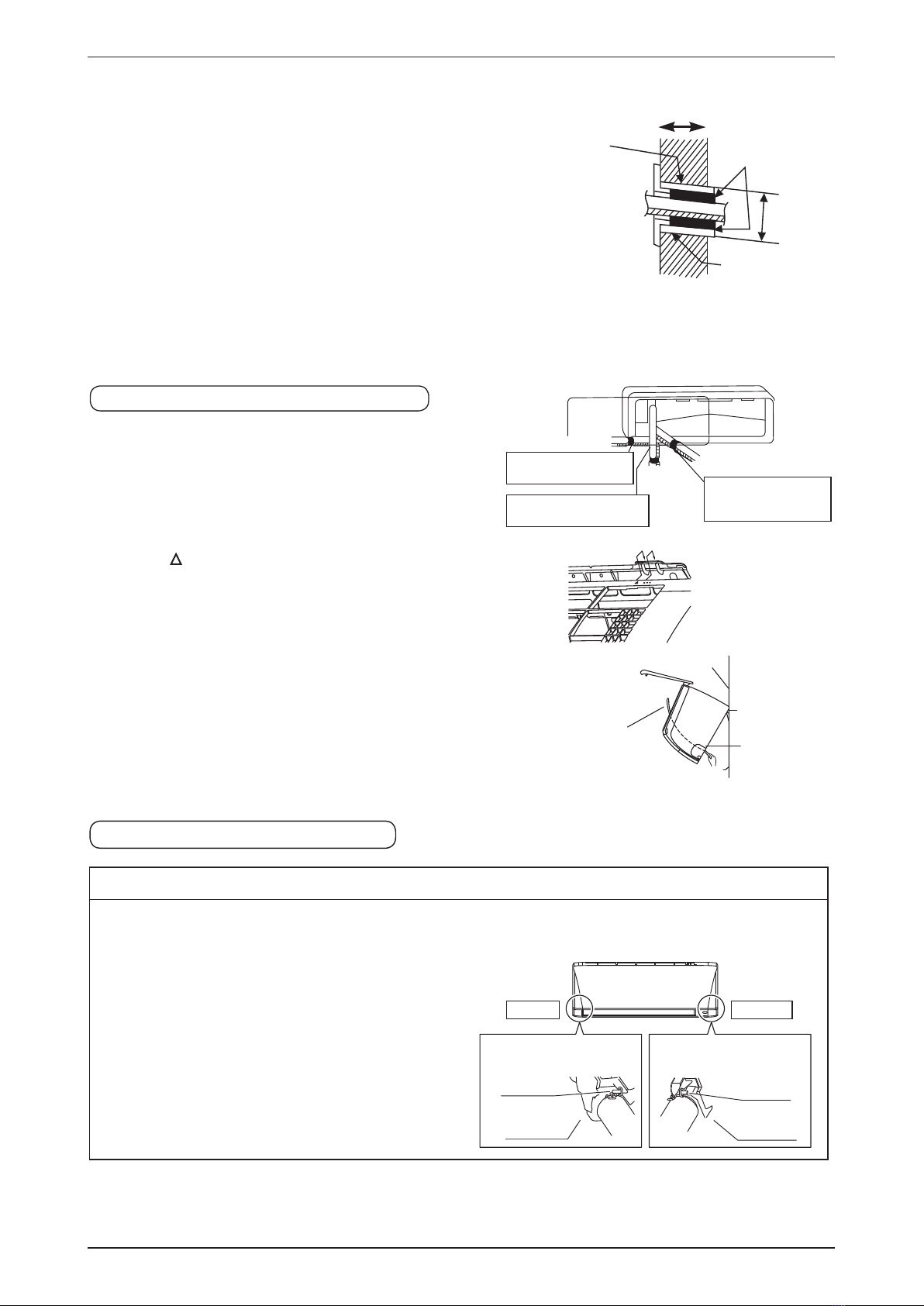

Installation Guideline .........................................................................................................9
Dimensions .......................................................................................................................25
Wiring Diagrams...............................................................................................................32
Piping Diagrams ...............................................................................................................37
Capacity Tables ................................................................................................................43
Capacity Tables ...........................................................................................................43
Capacity Correction Factor .........................................................................................52
Operation Limit.................................................................................................................57
Sound Level ......................................................................................................................58
Measuring Location .....................................................................................................58
Sound Pressure Level & NC Curve .............................................................................59
Electric Characteristic......................................................................................................67
Service and Maintenance.................................................................................................69
Troubleshooting ...............................................................................................................71

2
Introduction
Introduction
Model Name and Power Supply
Model : FTV-A
Indoor Unit Outdoor Unit Power Supply
FTV28AV1MF RV28AV1M
1Phase, 220-240V , 50Hz
RV28AGV1M
FTV35AV1MF RV35AV1M
RV35AGV1M
FTV50AV1MF RV50AV1M
RV50AGV1M
FTV60AV1MF RV60AV1M
RV60AGV1M
FTV28AV1MW RV28AV1M
RV28AGV1M
FTV35AV1MW RV35AV1M
RV35AGV1M
FTV50AV1MW RV50AV1M
RV50AGV1M
FTV60AV1MW RV60AV1M
RV60AGV1M
Model : FTV-P
Indoor Unit Outdoor Unit Power Supply
FTV28PV1EF RV28FV1M
1Phase, 220-240V , 50Hz
RV28FGV1M
FTV35PV1LF RV35FV1R
RV35FGV1R
FTV50PV1LF RV50CV1P
RV50CGV1P
FTV60PV1LF RV60CV1P
FTV28PV1EW RV28FV1M
RV28FGV1M
FTV35PV1M RV35FV1R
RV35FGV1R
FTV50PV1M RV50CV1P
RV50CGV1P
FTV60PV1M RV60CV1P

3
Introduction
Model : FTV-PS
Indoor Unit Outdoor Unit Power Supply
FTV85PSV1MF RC85AV1M
1Phase, 220-240V, 50Hz
FTV85PSV1MW RC85AGV1M

4
Introduction
Nomenclature
Indoor Unit
Denition Description
Unit Category F: Air-Cooled Split Indoor Unit
Product Type T : Wall Mounted
System V : Non-Inverter , R32, Cooling Only
Capacity Indication* 28 : 2.8 kW
Major Design Category A : A Series or P: P Series or PS : P Series
Power Supply V1 : 1Phase / 50Hz / 220-240V
Country M : Malaysia
Minor Design Category F / EF / LF / MF : Wireless Controller with Network Adaptor
W / EW / M / MW : Wired Controller
Outdoor Unit
Denition Description
Unit Category R: Air-Cooled Split Outdoor Unit
System V : Non-Inverter , R32, Cooling Only
Capacity Indication* 28 : 2.8 kW
Major Design Category A : A Series or C: C Series or F: F Series
Fin Specication “-”
G
: Blue Fin
: Gold Fin
Power Supply V1 : 1Phase / 50Hz / 220-240V
Country M : Malaysia
Remark:
*Capacity value under Nomenclature is an indication.
Please refer to Engineering and Physical Data for exact capacity value.

5
Functions
Functions
Category Functions
FTV28/35/50A
RV28/35/50A
FTV60A
RV60A
FTV28/35/50/60P
FTV85PS
RC85A
Basic Function Operation Limit for Cooling (°CDB)(O/D) 19-46 19-46 19-46 19-46
Operation Limit for Cooling (°FDB)(O/D) 66.2-114.8 66.2-114.8 66.2-114.8 66.2-114.8
Compressor Rotary Compressor ●●●●
Comfortable Airow
Wide angle louvers ●●●●
Vertical Auto-Swing (Up and Down) ●●●●
Horizontal Auto-Swing(Right and Left) ● ● - -
3D Airow ● ● - -
Breeze Airow ● ● - -
Comfort Control Auto Fan Speed ●●●●
Operation Programme Dry Function ●●●●
Fan Only ●●●●
Lifestyle Convenience
Powerful Operation (Non Inverter) ●●●●
Eco+ ● ● - -
Sleep Mode ●●●●
Indoor Unit On/Off button ●●●●
Signal receiving sign (Remote Controller) ●●●●
Set Temperature Display
(Remote Controller) ●●●●
Health & Clean
Saranet Filter - - ● ●
Green Tea Filter ● ● - -
PM 2.5 Filter (Optional Accessory) ●●●●
Plasma ● ● - -
Wipe clean at panel ● ● ● ●
Timer 24-hour ON/OFF Timer ● ● ● ●
Worry Free
(Reliability & Durability)
Auto Restart (after Power Failure) ●●●●
Self-Diagnosis (Handset) Display ●●●●
Anticorrosion Treatment of Outdoor Heat
Exchanger (Optional) ● ● ●* ●
Flexibility Pre-charged piping length 7.5m 7.5m 7.5m 7.5m
Either Side Drain (Right or Left) ●●●●
Remote Control BAG Connectivity ●●●●
WIFI Connectivity ●●●●
Remote Controller
Wireless ARC485A1 ARC485A1 DGS01 DGS01
Wired*1DSLM8 DSLM8 DSLM8 DSLM8
Wired (backlight) (Optional)*1 BRC51D61 BRC51D61 BRC51D61 BRC51D61
Note: ● : Available
- : Not Available
●* : Available for RV60C only. RV28F/35F/50C models are optional function.
*1 : Network Adaptor and Wired Remote Controller cannot be used together, user to unplug Network Adaptor if want to use for
Wired Remote Controller and vice versa

6
Specication Data
Specication Data
FTV-A
MODEL INDOOR UNIT FTV28A FTV35A FTV50A FTV60A
OUTDOOR UNIT RV28A RV35A RV50A RV60A
Rated Capacity kW 2.78 3.66 5.28 7.03
Btu/h 9,500 12,500 18,000 24,000
Rated Running Current A 3.76 4.77 7.35 9.88
Rated Power Consumption W840 1,075 1,650 2,220
EER W/W 3.31 3.41 3.20 3.17
CSPF Wh/Wh 3.52 3.62 3.40 3.36
Power Factor (Rated) 0.971 0.980 0.976 0.977
Piping
Connections
Liquid mm 6.35
Gas mm 9.52 12.70
Refrigerant Type R32
Charge kg 0.50 0.68 1.10 1.10
Max. Interunit Piping Length m25 30
Max. Interunit Height Difference m15 20
INDOOR UNIT FTV28A FTV35A FTV50A FTV60A
Front Panel Colour WHITE
Airow Rate
Turbo CFM 410 650 580 800
High CFM 380 410 425 690
Medium CFM 310 320 350 605
Low CFM 270 300 305 545
Quiet CFM 240 240 280 500
Sound Pressure Level (H/M/L/Q) dBA 38/33/30/28 40/35/33/28 42/38/35/33 44/41/39/37
Fan Type CROSS FLOW
Drive DIRECT
Fan Motor
Type 1-PHASE SCR
Motor Output W21 21 21 35
Running Current (Rated) A 0.20 0.20 0.20 0.36
Power Consumption (Rated) W37 42 44 77
Air Direction Control UP , DOWN, LEFT, RIGHT
Air Filter GREEN TEA
Dimensions (H x W x D) mm 288 x 770 x 234 297 x 990 x 273
Packaged Dimensions (H x W x D) mm 327 x 830 x 363 371 x 1,073 x 375
Weight kg 9.0 9.0 9.5 13.0
Condensate Drain Size mm 19.05
OUTDOOR UNIT RV28A RV35A RV50A RV60A
Casing Colour IVORY WHITE
Airow Rate CFM 927 827 1,400 1,400
Sound Pressure Level dBA 46 48 49 52
Fan Type PROPELLER
Drive DIRECT
Fan Motor
Type 1-PHASE FIXED SPEED
Index of protection (IP) 23 44
Insulation Grade B F
Running Current (Rated) A 0.22 0.23 0.41 0.41
Power Consumption (Rated) W50 51 92 92
Motor Output W20 60
Poles 6
Compressor
Type ROTARY
Oil type FW50S DAPHNE
FW68DA
RM-LP56EG or
equivalent
RM-LP56EG /
RmM68EA or
equivalent
Oil amount cm3300 270 450 570
Running Current (Rated) A 3.34 4.34 6.74 9.11
Power Consumption (Rated) W753 982 1,514 2,051
Heat Exchanger Type FIN TUBE
Dimensions (H x W x D) mm 550 x 658 x 273 615 x 845 x 300
Packaged Dimensions (H x W x D) mm 580 x 775 x 355 679 x 992 x 414
Weight kg 25 28 42 46
1)ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
2)ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
Cooling
INDOOR: 27°CDB / 19°CWB
OUTDOOR: 35°CDB

7
Specication Data
FTV-P
MODEL INDOOR UNIT
FTV28P FTV35P FTV50P FTV60P
OUTDOOR UNIT RV28F RV35F RV50C RV60C
Rated Capacity kW 2.78 3.52 5.28 6.45
Btu/h 9,500 12,000 18,000 22,000
Rated Running Current A 3.86 5.03 8.12 9.76
Rated Power Consumption W 865 1,135 1,835 2,215
EER W/W 3.22 3.10 2.87 2.91
CSPF Wh/Wh 3.42 3.29 3.05 3.09
Power Factor (Rated) 0.978 0.981 0.982 0.986
Piping
Connections
Liquid mm 6.35
Gas mm 9.52 12.70
Refrigerant Type R32
Charge kg 0.50 0.76 0.75 0.70
Max. Interunit Piping Length m25 30
Max. Interunit Height Difference m15
INDOOR UNIT
FTV28P FTV35P FTV50P FTV60P
Front Panel Colour WHITE
Airow Rate
Turbo CFM 358 372 594 641
High CFM 342 355 531 614
Medium CFM 282 298 474 537
Low CFM 225 242 422 474
Quiet CFM 209 225 381 418
Sound Pressure Level (H/M/L/Q) dBA 37/33/27/25 39/35/29/28 42/39/36/35 46/43/39/37
Fan Type CROSS FLOW
Drive DIRECT
Fan Motor
Type 1-PHASE SCR
Motor Output W 18 18 26 30
Running Current (Rated) A 0.19 0.21 0.30 0.34
Power Consumption (Rated) W 37 42 61 72
Air Direction Control UP & DOWN
Air Filter SARANET
Dimensions (H x W x D) mm 288 X 800 X 212 310 X 1,065 X 228
Packaged Dimensions (H x W x D) mm 344 X 874 X 274 386 X 1,136 X 314
Weight kg 9.0 9.0 14.0 14.0
Condensate Drain Size mm 19.05
OUTDOOR UNIT
RV28F RV35F RV50C RV60C
Casing Colour IVORY WHITE
Airow Rate CFM 927 827 1,430 1,590
Sound Pressure Level dBA 46 48 51 52
Fan Type PROPELLER
Drive DIRECT
Fan Motor
Type 1-PHASE FIXED SPEED
Index of protection (IP) 23
Insulation Grade B F
Running Current (Rated) A 0.22 0.23 0.34 0.53
Power Consumption (Rated) W 50 51 78 121
Motor Output W 20 20 32 60
Poles 6
Compressor
Type ROTARY
Oil type
FW50S DAPHNE FW68DA FW50S
Oil amount cm3
350 270 670 670
Running Current (Rated) A 3.45 4.59 7.48 8.89
Power Consumption (Rated) W 778 1,042 1,696 2,022
Heat Exchanger Type FIN TUBE MICRO
CHANNEL
Dimensions (H x W x D) mm 550 X 658 X 273 654 X 855 X 328
Packaged Dimensions (H x W x D) mm 580 X 775 X 355 693 X 990 X 415
Weight kg 25 28 41
ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
Cooling
INDOOR: 27°CDB / 19°CWB
OUTDOOR: 35°CDB

8
Specication Data
FTV-PS
MODEL INDOOR UNIT
FTV85PS
OUTDOOR UNIT RC85A
Rated Capacity kW 8.79
Btu/h 30,000
Rated Running Current A 13.10
Rated Power Consumption W 2,900
EER W/W 3.03
CSPF Wh/Wh 3.22
Power Factor (Rated) 0.96
Piping
Connections
Liquid mm 9.52
Gas mm 15.90
Refrigerant Type R32
Charge kg 1.60
Max. Interunit Piping Length m50
Max. Interunit Height Difference m30
INDOOR UNIT
FTV85PS
Front Panel Colour WHITE
Airow Rate
Turbo CFM 950
High CFM 931
Medium CFM 760
Low CFM 661
Quiet CFM 569
Sound Pressure Level (H/M/L/Q) dBA 51/46/42/39
Fan Type CROSS FLOW FAN
Drive DIRECT
Fan Motor
Type 1-PHASE SCR
Motor Output W 70
Running Current (Rated) A 0.51
Power Consumption (Rated) W 107
Air Direction Control UP, DOWN, LEFT, RIGHT
Air Filter SARANET
Dimensions (H x W x D) mm 310 X 1,289 X 240
Packaged Dimensions (H x W x D) mm 396 X 1,382 X 316
Weight kg 16.0
Condensate Drain Size mm 19.0
OUTDOOR UNIT
RC85A
Casing Colour IVORY WHITE
Airow Rate CFM 1,930
Sound Pressure Level dBA 54
Fan Type PROPELLER
Drive DIRECT
Fan Motor
Type AC
Index of protection (IP) 23
Insulation Grade F
Running Current (Rated) A 0.58
Power Consumption (Rated) W 133
Motor Output W 66
Poles 6
Compressor
Type TWIN ROTARY
Oil type
RM-LP56EG OR EQUIVALENT
Oil amount cm3
840
Running Current (Rated) A 12.0
Power Consumption (Rated) W 2660
Heat Exchanger Type FIN TUBE
Dimensions (H x W x D) mm 695 X 930 X 350
Packaged Dimensions (H x W x D) mm 760 X 1,084 X 473
Weight kg 53
ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
Cooling
INDOOR: 27°CDB / 19°CWB
OUTDOOR: 35°CDB
