TABLE OF CONTENTS
FXDQ-PBVE
1 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Electrical Specifications (50Hz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical Specifications (60Hz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Safety device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cooling capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Heating capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . 8
Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6 Piping diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

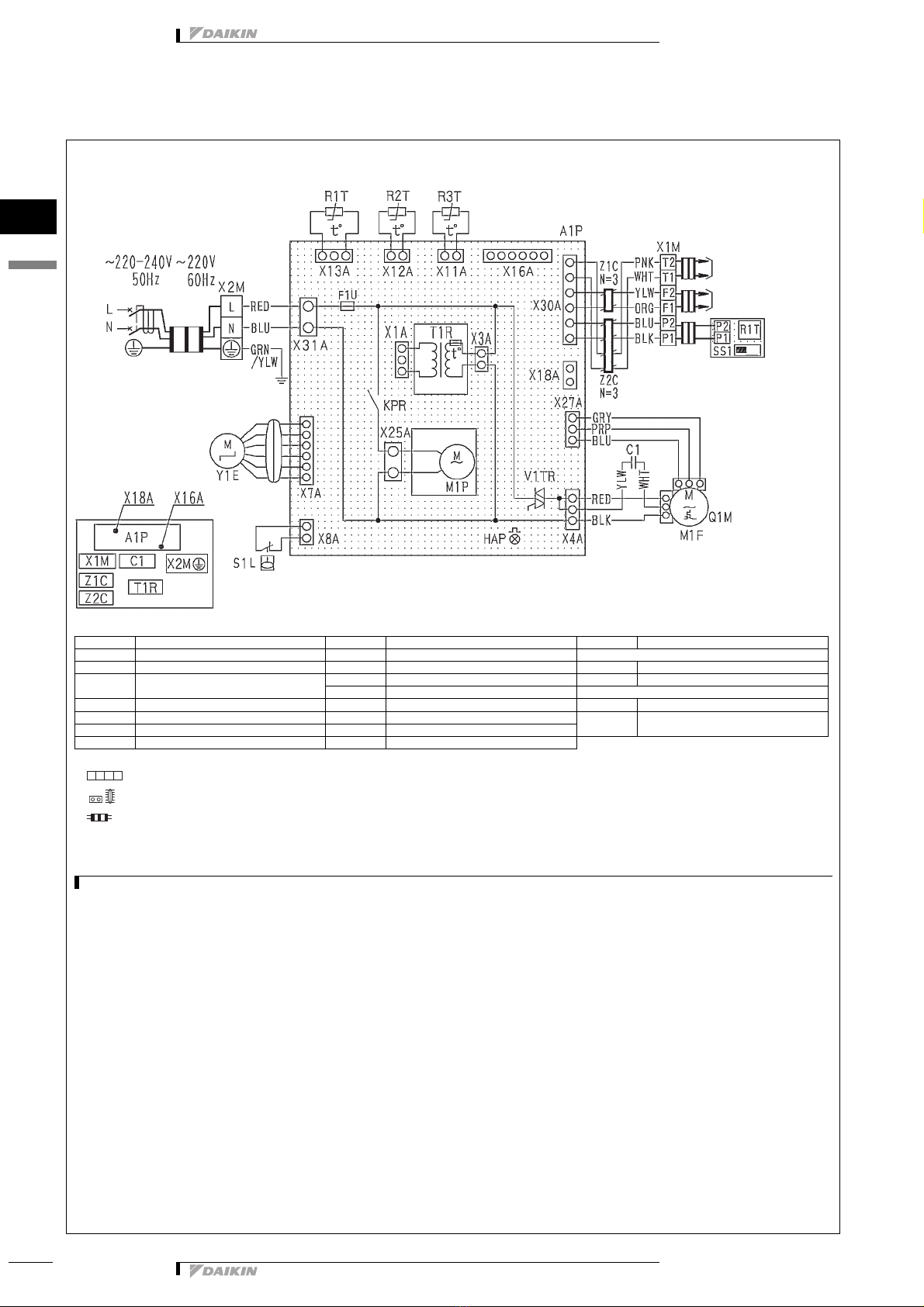

7 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
8 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
9 Fan characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

• Indoor Units • SLIM CONCEALED CEILING UNIT • FXDQ-PBVE
1
1
•VRV
®Systems • Indoor Units
2
1 Specifications
IndoorUnit VRV
®
Systems FXDQ-PBVE SlimConcea
1-1 TECHNICAL SPECIFICATIONS FXDQ20PBVE FXDQ25PBVE FXDQ32PBVE
Capacity Cooling kW 2.2 2.8 3.6
Heating kW 2.5 3.2 4.0
Power Input
(50Hz)
Cooling kW 0.086 0.086 0.089
Heating kW 0.067 0.067 0.070
Power Input
(60Hz)
Cooling kW 0.092 0.092 0.095
Heating kW 0.073 0.073 0.076
Casing Material Galvanised steel plate
Dimensions Unit Height mm 200 200 200
Width mm 700 700 700
Depth mm 620 620 620
Weight Unit kg 23 23 23
Heat
Exchanger
Dimensions Nr of Rows 2 2 3
Fin Pitch mm 1.5 1.5 1.5
Face
Area
m² 0.126 0.126 0.126
Nr of Stages 12 12 12
Fan Type Sirocco fan
Air Flow Rate Cooling High high m³/min 8.0 8.0 8.0
High m³/min 7.2 7.2 7.2
Low m³/min 6.4 6.4 6.4
Fan External static
pressure
High Pa 30 30 30
Standard Pa 10 10 10
Motor Output
(high)
W62 62 62
Drive Direct drive
Cooling Sound
Pressure
High high dBA 33 33 33
High dBA 31 31 31
Low dBA 29 29 29
Piping
connections
Liquid (OD) Type Flare connection
Diameter mm 6.35 6.35 6.35
Gas Type Flare connection
Diameter mm 12.7 12.7 12.7
Drain Diameter mm VP20 (I.D. 20/O.D. 26)
Sound absorbing insulation Foamed polyethylene
Air Filter Removable/washable/Mildew proof
Refrigerant control Electronic expansion valve
Temperature control Microprocessor thermostat for cooling and heating
Safety devices Fuse
Fan motor thermal protector
Standard
Accessories
Standard Accessories Operation manual
Installation manual
Drain hose
Sealing pads
Clamps
Washer
Insulation for fitting
Clamp metal
Washer fixing plate
Screws for duct flanges
Air filter
Product Quality Certificate

3
1
1
•VRV
®Systems • Indoor Units 3
• Indoor Units • SLIM CONCEALED CEILING UNIT • FXDQ-PBVE
1 Specifications
Notes Nominal cooling capacities are based on : indoor temperature : 27°CDB, 19°CWB, outdoor temperature : 35°CDB,
equivalent refrigerant piping : 7.5m (horizontal)
Nominal heating capacities are based on : indoor temperature : 20°CDB, outdoor temperature : 7°CDB, 6°CWB,
equivalent refrigerant piping : 7.5m (horizontal)
Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat.
External static pressure is changeable to set by the remote control; this pressure means : high static pressure -
standard static pressure.
The operation sound levels are conversion values in anechoic chamber. In practice, sound levels tend to be higher
than the specified values due to ambient noise or reflection. When the suction place is changed to bottom suction,
sound level will increase
1-2 ELECTRICAL SPECIFICATIONS
(50HZ) FXDQ20PBVE FXDQ25PBVE FXDQ32PBVE
Power Supply Name VE
Phase 1~
Frequency Hz 50
Voltage V 220-240
Current
Minimum circuit amps (MCA) A0.8 0.8 0.8
Maximum fuse amps (MFA) A 15 15 15
Full load amps (FLA) A 0.6 0.6 0.6
Voltage range Minimum V -10%
Maximum V +10%
Notes Voltage range : units are suitable for use on electrical systems where voltage supplied to unit terminals is not below
or above listed range limits.
Maximum allowable voltage range variation between phases is 2%.
MCA/MFA : MCA = 1.25 x FLA
MFA is smaller than or equal to 4 x FLA
Next lower standard fuse rating minimum 15A
Select wire size based on the MCA
Instead of a fuse, use a circuit breaker
1-3 ELECTRICAL SPECIFICATIONS
(60HZ) FXDQ20PBVE FXDQ25PBVE FXDQ32PBVE
Power Supply Name VE
Phase 1~
Frequency Hz 60
Voltage V 220
Current
Minimum circuit amps (MCA) A0.9 0.9 0.9
Maximum fuse amps (MFA) A 15 15 15
Full load amps (FLA) A 0.7 0.7 0.7
Voltage range Minimum V -10%
Maximum V +10%
Notes Voltage range : units are suitable for use on electrical systems where voltage supplied to unit terminals is not below
or above listed range limits.
Maximum allowable voltage range variation between phases is 2%.
MCA/MFA : MCA = 1.25 x FLA
MFA is smaller than or equal to 4 x FLA
Next lower standard fuse rating minimum 15A
Select wire size based on the MCA
Instead of a fuse, use a circuit breaker
1-1 TECHNICAL SPECIFICATIONS FXDQ20PBVE FXDQ25PBVE FXDQ32PBVE

• Indoor Units • SLIM CONCEALED CEILING UNIT • FXDQ-PBVE
1
2
•VRV
®Systems • Indoor Units
4
2 Safety device settings
3 Options
FXDQ20,25,32PB
FXDQ40,50,63NB
4D060926
Kit name FXDQ20PB FXDQ25PB FXDQ32PB
PC boad (A1P) fuse 250V 5A
Fan motor thermal protector OFF: 250V 5A
 5°C OFF
ON: 83
 15°C ON
FXDQ40NB FXDQ50NB FXDQ63NB
FXDQ20,25,32PB
FXDQ40,50,63NB
Individual control systems
Centralized control system
Other options
4D060939
Kit name
FXDQ20PBVE
FXDQ25PBVE
FXDQ32PBVE
FXDQ40NBVE
FXDQ50NBVE FXDQ63NBVE
Wired remote control BRC1D52
Infrared remote
control
H/P BRC4C65
C/O BRC4C66
Simplified remote control BRC2C51
Remote control for hotel use BRC3A61
Kit name
FXDQ20PBVE
FXDQ25PBVE
FXDQ32PBVE
FXDQ40NBVE
FXDQ50NBVE FXDQ63NBVE
Central remote control DCS302CA51
Unified on/off control DCS301BA51
Schedule timer DST301BA51
Kit name
FXDQ20PBVE
FXDQ25PBVE
FXDQ32PBVE
FXDQ40NBVE
FXDQ50NBVE FXDQ63NBVE
Adapter for wiring KRP1B56
Wiring adapter for electrical
appendices (1) KRP2A53
Wiring adapter for electrical
appendices (2) KRP4A54
Remote sensor KRCS01-1B
Installation box for adapter
PCB. KBP1BA101
Electrical box
with earth
terminal
2 blocks KJB212AA
3 blocks KJB311AA
Noise filter (for
electromagnetic interface
use only)
DST301BA51
External control adapter for
outdoor unit (must be
installed on indoor units)
DTA104A53
Insulation kit for high
humidity KDT25N32 KDT25N50 KDT25N63

3
1
4
•VRV
®Systems • Indoor Units 5
• Indoor Units • SLIM CONCEALED CEILING UNIT • FXDQ-PBVE
4 Capacity tables
4 - 1 Cooling capacity tables
FXDQ20,25,32PB
ED39226A
TC: Total capacity;kW – SHC: Sensible capacity;kW
Unit
size
Nominal
capacity
Outdoor
air temp.
Indoor air temperature
14.0WB 16.0WB 18.0WB 19.0WB 20.0WB 22.0WB 24.0WB
20.0DB 23.0DB 26.0DB 27.0DB 28.0DB 30.0DB 32.0DB
°CDB TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC
20 2.2 10.0 1.5 1.4 1.8 1.6 2.1 1.8 2.2 1.9 2.3 1.9 2.6 1.8 2.9 2.0
12.0 1.5 1.4 1.8 1.6 2.1 1.8 2.2 1.9 2.3 1.9 2.6 1.8 2.9 2.0
14.0 1.5 1.4 1.8 1.6 2.1 1.8 2.2 1.9 2.3 1.9 2.6 1.8 2.8 1.9
16.0 1.5 1.4 1.8 1.6 2.1 1.8 2.2 1.9 2.3 1.9 2.6 1.8 2.8 1.9
18.0 1.5 1.4 1.8 1.6 2.1 1.8 2.2 1.9 2.3 1.9 2.6 1.8 2.7 1.9
20.0 1.5 1.4 1.8 1.6 2.1 1.8 2.2 1.9 2.3 1.9 2.6 1.8 2.7 1.9
21.0 1.5 1.4 1.8 1.6 2.1 1.8 2.2 1.9 2.3 1.9 2.6 1.8 2.7 1.9
23.0 1.5 1.4 1.8 1.6 2.1 1.8 2.2 1.9 2.3 1.9 2.6 1.8 2.6 1.9
25.0 1.5 1.4 1.8 1.6 2.1 1.8 2.2 1.9 2.3 1.9 2.6 1.8 2.6 1.9
27.0 1.5 1.4 1.8 1.6 2.1 1.8 2.2 1.9 2.3 1.9 2.5 1.8 2.6 1.9
29.0 1.5 1.4 1.8 1.6 2.1 1.8 2.2 1.9 2.3 1.9 2.5 1.8 2.5 1.8
31.0 1.5 1.4 1.8 1.6 2.1 1.8 2.2 1.9 2.3 1.9 2.4 1.7 2.5 1.8
33.0 1.5 1.4 1.8 1.6 2.1 1.8 2.2 1.9 2.3 1.9 2.4 1.7 2.5 1.8
35.0 1.5 1.4 1.8 1.6 2.1 1.8 2.2 1.9 2.3 1.9 2.4 1.7 2.4 1.8
37.0 1.5 1.4 1.8 1.6 2.1 1.8 2.2 1.9 2.3 1.9 2.3 1.7 2.4 1.8
39.0 1.5 1.4 1.8 1.6 2.1 1.8 2.2 1.9 2.2 1.9 2.3 1.6 2.3 1.8
25 2.8 10.0 1.9 1.6 2.3 1.9 2.6 2.1 2.8 2.1 3.0 2.2 3.4 2.2 3.7 2.3
12.0 1.9 1.6 2.3 1.9 2.6 2.1 2.8 2.1 3.0 2.2 3.4 2.2 3.6 2.2
14.0 1.9 1.6 2.3 1.9 2.6 2.1 2.8 2.1 3.0 2.2 3.4 2.2 3.6 2.2
16.0 1.9 1.6 2.3 1.9 2.6 2.1 2.8 2.1 3.0 2.2 3.4 2.2 3.5 2.2
18.0 1.9 1.6 2.3 1.9 2.6 2.1 2.8 2.1 3.0 2.2 3.4 2.2 3.5 2.2
20.0 1.9 1.6 2.3 1.9 2.6 2.1 2.8 2.1 3.0 2.2 3.4 2.2 3.4 2.2
21.0 1.9 1.6 2.3 1.9 2.6 2.1 2.8 2.1 3.0 2.2 3.4 2.2 3.4 2.2
23.0 1.9 1.6 2.3 1.9 2.6 2.1 2.8 2.1 3.0 2.2 3.3 2.2 3.4 2.1
25.0 1.9 1.6 2.3 1.9 2.6 2.1 2.8 2.1 3.0 2.2 3.3 2.2 3.3 2.1
27.0 1.9 1.6 2.3 1.9 2.6 2.1 2.8 2.1 3.0 2.2 3.2 2.2 3.3 2.1
29.0 1.9 1.6 2.3 1.9 2.6 2.1 2.8 2.1 3.0 2.2 3.2 2.1 3.2 2.1
31.0 1.9 1.6 2.3 1.9 2.6 2.1 2.8 2.1 3.0 2.2 3.1 2.1 3.2 2.1
33.0 1.9 1.6 2.3 1.9 2.6 2.1 2.8 2.1 3.0 2.2 3.1 2.1 3.1 2.1
35.0 1.9 1.6 2.3 1.9 2.6 2.1 2.8 2.1 3.0 2.2 3.0 2.1 3.1 2.0
37.0 1.9 1.6 2.3 1.9 2.6 2.1 2.8 2.1 2.9 2.2 3.0 2.0 3.0 2.0
39.0 1.9 1.6 2.3 1.9 2.6 2.1 2.8 2.1 2.9 2.1 2.9 2.0 3.0 2.0
32 3.6 10.0 2.4 2.0 2.9 2.3 3.4 2.4 3.6 2.6 3.8 2.7 4.3 2.8 4.7 2.9
12.0 2.4 2.0 2.9 2.3 3.4 2.4 3.6 2.6 3.8 2.7 4.3 2.8 4.7 2.9
14.0 2.4 2.0 2.9 2.3 3.4 2.4 3.6 2.6 3.8 2.7 4.3 2.8 4.6 2.8
16.0 2.4 2.0 2.9 2.3 3.4 2.4 3.6 2.6 3.8 2.7 4.3 2.8 4.6 2.8
18.0 2.4 2.0 2.9 2.3 3.4 2.4 3.6 2.6 3.8 2.7 4.3 2.8 4.5 2.8
20.0 2.4 2.0 2.9 2.3 3.4 2.4 3.6 2.6 3.8 2.7 4.3 2.8 4.4 2.8
21.0 2.4 2.0 2.9 2.3 3.4 2.4 3.6 2.6 3.8 2.7 4.3 2.8 4.4 2.7
23.0 2.4 2.0 2.9 2.3 3.4 2.4 3.6 2.6 3.8 2.7 4.2 2.8 4.3 2.7
25.0 2.4 2.0 2.9 2.3 3.4 2.4 3.6 2.6 3.8 2.7 4.2 2.7 4.3 2.7
27.0 2.4 2.0 2.9 2.3 3.4 2.4 3.6 2.6 3.8 2.7 4.1 2.7 4.2 2.7
29.0 2.4 2.0 2.9 2.3 3.4 2.4 3.6 2.6 3.8 2.7 4.1 2.7 4.2 2.6
31.0 2.4 2.0 2.9 2.3 3.4 2.4 3.6 2.6 3.8 2.7 4.0 2.6 4.1 2.6
33.0 2.4 2.0 2.9 2.3 3.4 2.4 3.6 2.6 3.8 2.7 3.9 2.6 4.0 2.6
35.0 2.4 2.0 2.9 2.3 3.4 2.4 3.6 2.6 3.8 2.7 3.9 2.6 4.0 2.5
37.0 2.4 2.0 2.9 2.3 3.4 2.4 3.6 2.6 3.7 2.6 3.8 2.6 3.9 2.5
39.0 2.4 2.0 2.9 2.3 3.4 2.4 3.6 2.6 3.7 2.6 3.8 2.5 3.8 2.5

• Indoor Units • SLIM CONCEALED CEILING UNIT • FXDQ-PBVE
1
4
•VRV
®Systems • Indoor Units
6
4 Capacity tables
4 - 2 Heating capacity tables
FXDQ20,25,32PB
ED39226A
Unit Size Nominal
capacity
Outdoor
air temperature
Indoor air temperature °CDB
16.0 18.0 20.0 21.0 22.0 24.0
°CDB °CWB kW kW kW kW kW kW
20 2.5 -19.8 -20.0 1.5 1.5 1.5 1.5 1.5 1.5
-18.8 -19.0 1.5 1.5 1.5 1.5 1.5 1.5
-16.7 -17.0 1.6 1.6 1.6 1.6 1.6 1.6
-14.7 -15.0 1.7 1.7 1.7 1.7 1.7 1.7
-12.6 -13.0 1.8 1.8 1.8 1.8 1.8 1.8
-10.5 -11.0 1.9 1.9 1.9 1.9 1.9 1.9
-9.5 -10.0 1.9 1.9 1.9 1.9 1.9 1.9
-8.5 -9.1 2.0 2.0 1.9 1.9 1.9 1.9
-7.0 -7.6 2.0 2.0 2.0 2.0 2.0 2.0
-5.0 -5.6 2.1 2.1 2.1 2.1 2.1 2.1
-3.0 -3.7 2.2 2.2 2.2 2.2 2.2 2.2
0.0 -0.7 2.3 2.3 2.3 2.3 2.3 2.2
3.0 2.2 2.5 2.5 2.4 2.4 2.3 2.2
5.0 4.1 2.5 2.5 2.5 2.4 2.3 2.2
7.0 6.0 2.6 2.6 2.5 2.4 2.3 2.2
9.0 7.9 2.7 2.7 2.5 2.4 2.3 2.2
11.0 9.8 2.8 2.7 2.5 2.4 2.3 2.2
13.0 11.8 2.8 2.7 2.5 2.4 2.3 2.2
15.0 13.7 2.8 2.7 2.5 2.4 2.3 2.2
25 3.2 -19.8 -20.0 1.9 1.9 1.9 1.9 1.9 1.9
-18.8 -19.0 1.9 1.9 1.9 1.9 1.9 1.9
-16.7 -17.0 2.1 2.1 2.0 2.0 2.0 2.0
-14.7 -15.0 2.2 2.2 2.2 2.2 2.2 2.1
-12.6 -13.0 2.3 2.3 2.3 2.3 2.3 2.3
-10.5 -11.0 2.4 2.4 2.4 2.4 2.4 2.4
-9.5 -10.0 2.5 2.4 2.4 2.4 2.4 2.4
-8.5 -9.1 2.5 2.5 2.5 2.5 2.5 2.5
-7.0 -7.6 2.6 2.6 2.6 2.6 2.6 2.6
-5.0 -5.6 2.7 2.7 2.7 2.7 2.7 2.7
-3.0 -3.7 2.8 2.8 2.8 2.8 2.8 2.8
0.0 -0.7 3.0 3.0 3.0 3.0 3.0 2.8
3.0 2.2 3.1 3.1 3.1 3.1 3.0 2.8
5.0 4.1 3.3 3.2 3.2 3.1 3.0 2.8
7.0 6.0 3.4 3.4 3.2 3.1 3.0 2.8
9.0 7.9 3.5 3.4 3.2 3.1 3.0 2.8
11.0 9.8 3.6 3.4 3.2 3.1 3.0 2.8
13.0 11.8 3.6 3.4 3.2 3.1 3.0 2.8
15.0 13.7 3.6 3.4 3.2 3.1 3.0 2.8
32 4.0 -19.8 -20.0 2.4 2.4 2.3 2.3 2.3 2.3
-18.8 -19.0 2.4 2.4 2.4 2.4 2.4 2.4
-16.7 -17.0 2.6 2.6 2.6 2.6 2.6 2.5
-14.7 -15.0 2.7 2.7 2.7 2.7 2.7 2.7
-12.6 -13.0 2.9 2.8 2.8 2.8 2.8 2.8
-10.5 -11.0 3.0 3.0 3.0 3.0 3.0 3.0
-9.5 -10.0 3.1 3.1 3.1 3.1 3.0 3.0
-8.5 -9.1 3.1 3.1 3.1 3.1 3.1 3.1
-7.0 -7.6 3.2 3.2 3.2 3.2 3.2 3.2
-5.0 -5.6 3.4 3.4 3.4 3.4 3.4 3.4
-3.0 -3.7 3.5 3.5 3.5 3.5 3.5 3.5
0.0 -0.7 3.7 3.7 3.7 3.7 3.7 3.5
3.0 2.2 3.9 3.9 3.9 3.9 3.7 3.5
5.0 4.1 4.1 4.1 4.0 3.9 3.7 3.5
7.0 6.0 4.2 4.2 4.0 3.9 3.7 3.5
9.0 7.9 4.3 4.3 4.0 3.9 3.7 3.5
11.0 9.8 4.5 4.3 4.0 3.9 3.7 3.5
13.0 11.8 4.5 4.3 4.0 3.9 3.7 3.5
15.0 13.7 4.5 4.3 4.0 3.9 3.7 3.5

3
1
5
•VRV
®Systems • Indoor Units 7
• Indoor Units • SLIM CONCEALED CEILING UNIT • FXDQ-PBVE
5 Dimensional drawing & centre of gravity
5 - 1 Dimensional drawing
FXDQ20,25,32PB
3D049799B
300 or more 300 or more
300 or less
(Service space)
50060
23
47
90
100
50
170
550
Adjustable (0-600)
620
(Suspension bolt pitch)
740
4 x P150 = 600
680
30 330
130 63
280
(In case of
bottom suction)
400 or more
620
⺑
Allow view ⺑
Inspection door
(Ceiling opening)
16-M5 Holes
(All around)
< In case of back-suction>
5 x P100 = 500
580
600
100 160 180
50 20 10
620
140
100
90
80
< Service space >
20 or more
240 or more
300700300
20 or more
Ceiling
33
140
100
90
80
5 x P100 = 500
580
600
620
< In case of bottom-suction >
80
153 170
57.5 21 12.5
50 20 10
200
100 160 180 200
660
5 x P100 = 500
(All around)
16 - Ø 4.7 hole
(All around)
(Suspension bolt pitch)
Suspension bolt
4 - M8 ~ M10
14 - M4 Holes
(All around)
16 - M4 Holes
700
(Service space of installation
box for adaptor PCB)
NOTES
1 In case of back-suction, mount chamber cover to bottom side
of the unit.
In case of bottom-suction, mount chamber cover to back side
of the unit.
2 Location of unit’s name plate: control box cover.
3 Mount the air filter at the suction side.
(Select its colorimethod (gravity method) 50% or more).
It can not be equipped with air filter (accessory) when
connecting duct to suction side.
Nr Part name Description
1 Liquid pipe connection ø 6.4 (Flare connection)
2 Gas pipe connection ø 12.7 (Flare connection)
3 Drain pipe connection VP20 (O.D. ø 26 / I.D. ø 20)
4 Drain hose (Accessory) I.D. ø 25 (Outlet)
5 Control box
6 Transmission wiring connection
7 Power supply connection
8 Suspension bracket
9 Inspection door
10 Socket for drain
11 Protection for drain
12 Air filter (Accessory)

• Indoor Units • SLIM CONCEALED CEILING UNIT • FXDQ-PBVE
1
5
•VRV
®Systems • Indoor Units
8

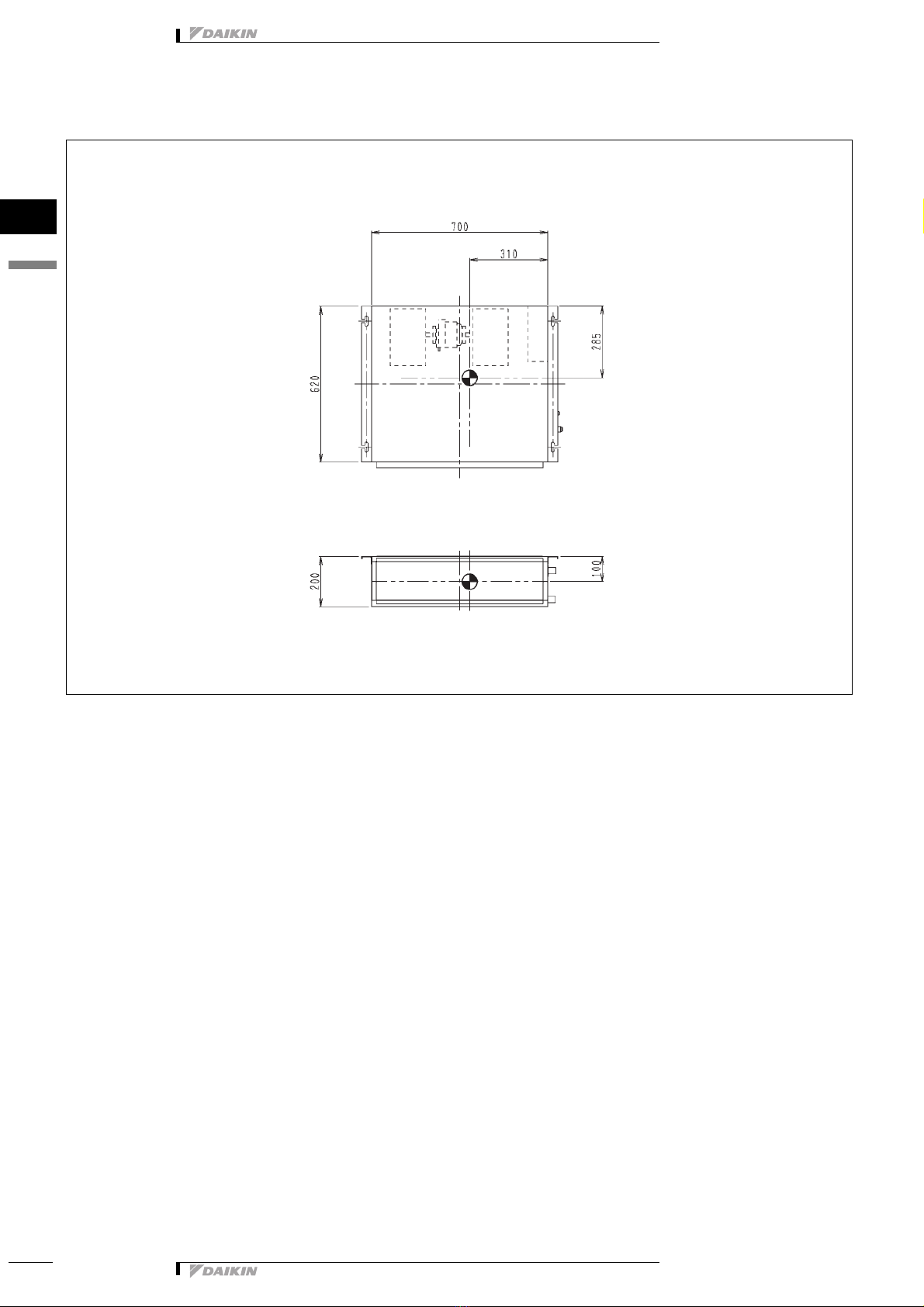

5 Dimensional drawing & centre of gravity
5 - 2 Centre of gravity
FXDQ20,25,32PB
4D049300D

3
1
6
•VRV
®Systems • Indoor Units 9
• Indoor Units • SLIM CONCEALED CEILING UNIT • FXDQ-PBVE
6 Piping diagram
FXDQ20,25,32PB
FXDQ40,50,63NB
4D060927
Gas side
Liquid side
Electronic expansion
valve
Filter Filter
Indoor heat exchanger
Fan

• Indoor Units • SLIM CONCEALED CEILING UNIT • FXDQ-PBVE
1
7
•VRV
®Systems • Indoor Units
10
7 Wiring diagram
7 - 1 Wiring diagram
FXDQ20,25,32PB
FXDQ40,50,63NB
3D060547
NOTES
1 In case of using central remote control, connect it to the unit in accordance with the attached installation manual.
2 Remote control model varies according to the combination system, confirm enineering materials and catalogs, etc. before connecting.
3 When connecting the input wires from outside, forced off or on/off control operation can be selected by remote control.
In details, refer to the installation manual attached to the unit.
A1P Printed circuit board R1T Thermistor (air) Z1C • Z2C Noise filter (ferrite core)
C1 Capacitor (M1F) R2T Thermistor (coil - 1) Wired remote control
F1U Fuse (F5A, 250V) R3T Thermistor (coil - 2) R1T Thermistor (air)
HAP Light emitting diode
(service monitor-green)
S1L Float switch SS1 Selector switch (main/sub)
T1R Transformer (220V/22V) Connector for optional parts
KPR Magnetic relay (M1P) V1TR Phase control circuit X16A Connector (adapter for wiring)
M1F Motor (indoor fan) X1M Terminal block X18A Connector (wiring adapter for electrical
appendices)
M1P Motor (drain pump) X2M Terminal block
Q1M Thermal protector (M1F embedded) Y1E Electronic expansion valve
: Terminal Colors: BLK: Black ORG: Orange WHT: White
: Connector BLU: Blue PNK: Pink YLW: Yellow
: Field wiring GRY: Gray PRP: Purple
GRN: Green RED: Red
POWER SUPPLY
Note: 3
Input from outside
Note: 1
Transmission wiring central
remote control
Wired remote
control
Control box
,

3
1
8
•VRV
®Systems • Indoor Units 11
• Indoor Units • SLIM CONCEALED CEILING UNIT • FXDQ-PBVE

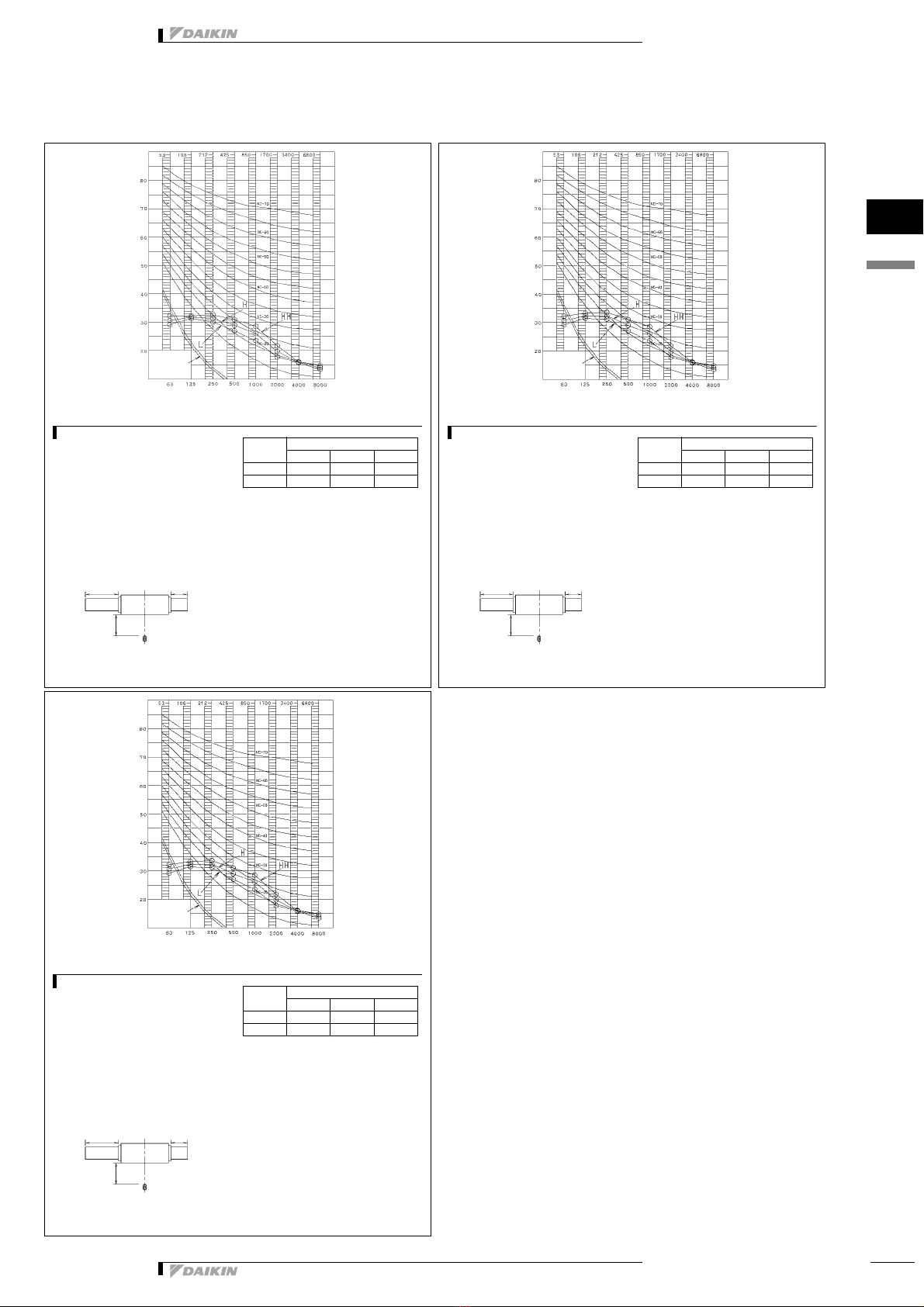

8 Sound data
8 - 1 Sound pressure spectrum
4D060945
NOTE
1 Over All (dB):
(B, G, N is already rectified)
2 Operating conditons:
• Power source: 220~240V 50Hz / 220V 60Hz
• Cooling: Return air temperature: 27°C DB, 19°C WB
Outdoor temperature: 35°C DB, 24 °C WD
• Heating: Return air temperature: 20°C DB, 15°C WB
Outdoor temperature: 7°C DB, 6°C WB
3 Measuring place: Anechoic chamber
4 Location of microphone
5 The operation condition is external static pressure 10 Pa. Operation noise differ with
operation and ambient conditions.
Octave band sound pressure level dB(0dB=0.0002μbar)
Octave band center frequency (Hz)
Approximate
threshold hearing
for continuous
noise
FXDQ20PB
Scale Air flow rate
HH H L
A 33.0 31.0 29.0
C 39.0 37.5 36.0
Discharge Suction
DuctDuct
1m2m
1,5m
Microphone
4D060946
NOTE
1 Over All (dB):
(B, G, N is already rectified)
2 Operating conditons:
• Power source: 220~240V 50Hz / 220V 60Hz
• Cooling: Return air temperature: 27°C DB, 19°C WB
Outdoor temperature: 35°C DB, 24 °C WD
• Heating: Return air temperature: 20°C DB, 15°C WB
Outdoor temperature: 7°C DB, 6°C WB
3 Measuring place: Anechoic chamber
4 Location of microphone
5 The operation condition is external static pressure 10 Pa. Operation noise differ with
operation and ambient conditions.
Octave band sound pressure level dB(0dB=0.0002μbar)
Octave band center frequency (Hz)
Approximate
threshold hearing
for continuous
noise
FXDQ25PB
Scale Air flow rate
HH H L
A 33.0 31.0 29.0
C 39.0 37.5 36.0
Discharge Suction
DuctDuct
1m2m
1,5m
Microphone
4D060947
NOTE
1 Over All (dB):
(B, G, N is already rectified)
2 Operating conditons:
• Power source: 220~240V 50Hz / 220V 60Hz
• Cooling: Return air temperature: 27°C DB, 19°C WB
Outdoor temperature: 35°C DB, 24 °C WD
• Heating: Return air temperature: 20°C DB, 15°C WB
Outdoor temperature: 7°C DB, 6°C WB
3 Measuring place: Anechoic chamber
4 Location of microphone
5 The operation condition is external static pressure 15 Pa. Operation noise differ with
operation and ambient conditions.
Octave band sound pressure level dB(0dB=0.0002μbar)
Octave band center frequency (Hz)
Approximate
threshold hearing
for continuous
noise
FXDQ32PB
Scale Air flow rate
HH H L
A 33.0 31.0 29.0
C 39.0 37.5 36.0
Discharge Suction
DuctDuct
1m2m
1,5m
Microphone

• Indoor Units • SLIM CONCEALED CEILING UNIT • FXDQ-PBVE
1
9
•VRV
®Systems • Indoor Units
12

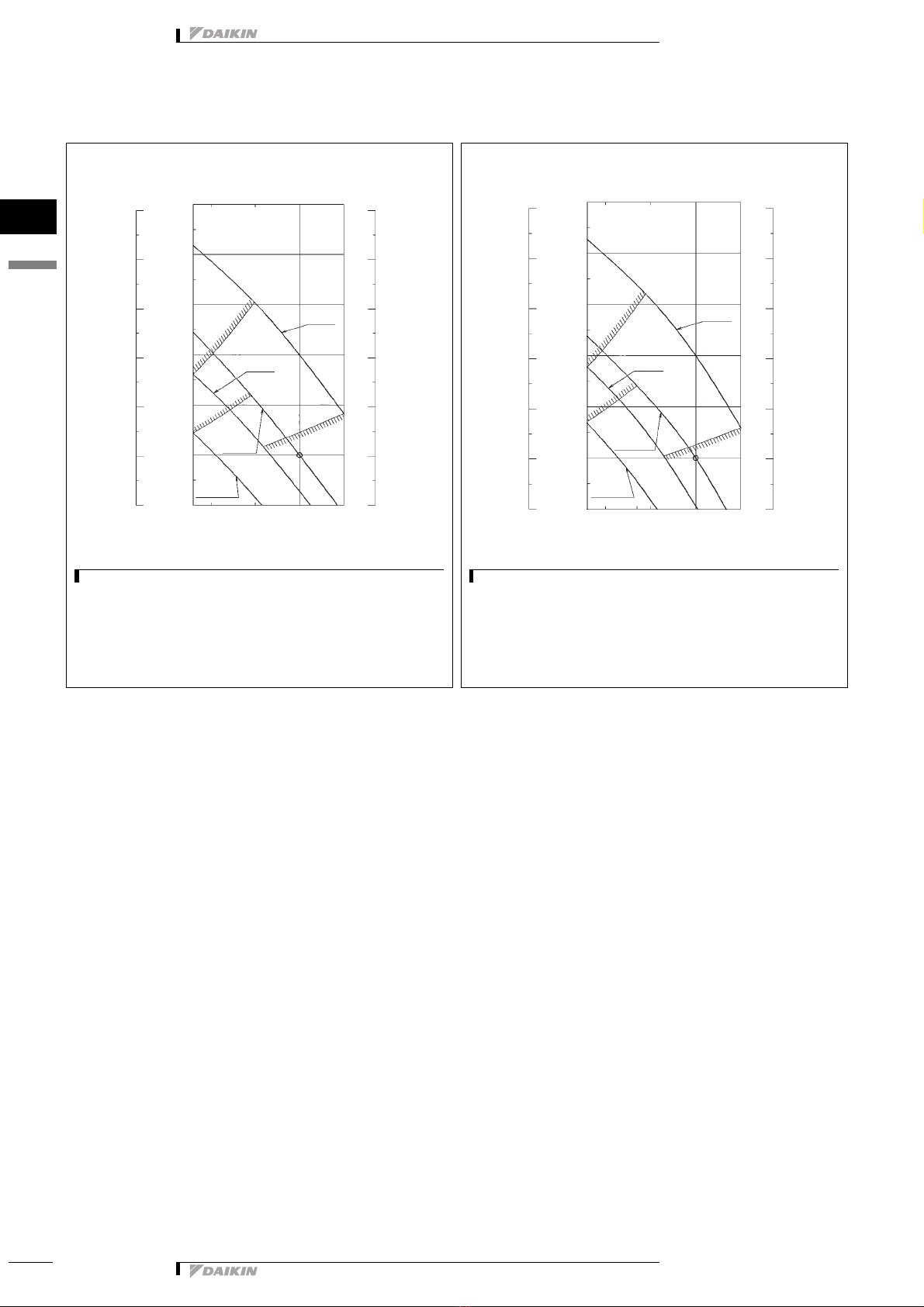

9 Fan characteristics
NOTES
1 The remote control can be used to switch between “high” and
“low”.
2 The air flow is set to “standard” before leaving the factory.
It is possible to switch between “standard ESP” and “high ESP” by
the remote control.
FXDQ20,25PB 3D052156A
(mmH
2
O)
(mmH
2
O)
(mmH
2
O)
(mmH
2
O)
(Pa)
6
6789
5
4
3
2
1
6
5
4
3
2
1
60
50
40
30
20
10
(Pa)
High
(standard ESP)
Upper limit of external
static pressure
(standard ESP)
Upper limit of external
static pressure
(high ESP)
Lower limit of external
static pressure
(high ESP)
Low
(standard ESP)
Low
(high ESP)
High
(high ESP)
Air flow rate (m
3
/min)
External static pressure
NOTES
1 The remote control can be used to switch between “high” and
“low”.
2 The air flow is set to “standard” before leaving the factory.
It is possible to switch between “standard ESP” and “high ESP” by
the remote control.
FXDQ32PB 3D052157A
(mmH2O)
(mmH2O)
(Pa)
6789
6
5
4
3
2
1
(mmH2O)
(mmH2O)
6
5
4
3
2
1
60
50
40
30
20
10
(Pa)
High
(standard ESP)
Upper limit of external
static pressure
(standard ESP)
Upper limit of external
static pressure
(high ESP)
Lower limit of external
static pressure
(high ESP)
Low
(standard ESP)
Low
(high ESP)
High
(high ESP)
Air flow rate (m3/min)
External static pressure

ÉEEDEN09-204eËÍ
Daikin Europe N.V. is approved by LRQA for its
Quality Management System in accordance with
the ISO9001 standard. ISO9001 pertains to
quality assurance regarding design,
development, manufacturing as well as to
services related to the product.
Daikin units comply with the European
regulations that guarantee the safety of the
product.
EEDEN09-204 • 07/2008 • Copyright © Daikin The present publication supersedes EEDEN08-204 Printed in Belgium by Lannoo (www.lannooprint.be), a company whose concern for the environmont is set in the EMAS and ISO 14001 systems. Responsible Editor: Daikin Europe N.V., Zandvoordestraat 300, B- 8400 Oostende
The present publication is drawn up by way of information
only and does not constitute an offer binding upon Daikin
Europe N.V.. Daikin Europe N.V. has compiled the content of
this publication to the best of its knowledge. No express or
implied warranty is given for the completeness, accuracy,
reliability or fitness for particular purpose of its content and the
products and services presented therein. Specifications are
subject to change without prior notice. Daikin Europe N.V.
explicitly rejects any liability for any direct or indirect damage,
in the broadest sense, arising from or related to the use and/or
interpretation of this publication. All content is copyrighted by
Daikin Europe N.V..
VRV®products are not within the scope of the
Eurovent certification programme.
Naamloze Vennootschap
Zandvoordestraat 300
B-8400 Oostende, Belgium
www.daikin.eu
BTW: BE 0412 120 336
RPR Oostende
Daikin’s unique position as a manufacturer
of air conditioning equipment, compressors
and refrigerants has led to its close
involvement in environmental issues. For
several years Daikin has had the intension to
become a leader in the provision of products
that have limited impact on the
environment. This challenge demands the
eco design and development of a wide
range of products and an energy
management system, resulting in energy
conservation and a reduction of waste. ISO14001 assures an effective environmental
management system in order to help protect
human health and the environment from the
potential impact of our activities, products and
services and to assist in maintaining and
improving the quality of the environment.
