Daikin FTXS20D3VMW Instruction manual

technical data
FTXS-D3VMW_D2VMW
Wall Mounted Unit
air conditioning systems
Split
Sky Air

• Split Sky Air • Indoor Units 1
• Indoor Units • R-410A • FTXS-D3VMW_D2VMW
TABLE OF CONTENTS
FTXS-D3VMW_D2VMW
1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
For indoor units only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . 5
Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4 Piping diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

• Indoor Units • R-410A • FTXS-D3VMW_D2VMW
1
• Split Sky Air • Indoor Units
2
1 Features
IndoorUnit SplitSky FTXS-D3VMW_D2 R-410A • Comfort mode reassures draught-free operation
• Vertical auto-swing function moves the discharge flaps up and down
for efficient air distribution throughout the room
• You have the choice out of 5 fan speeds to select
• Daikin’s special dry programme reduces humidity in the room without
variation in room temperature
• Night set mode saves energy by preventing overcooling or
overheating during night time
• Powerful mode can be selected for rapid cooling or heating
• Indoor unit silent operation: "Silent" button on the remote control
lowers the operation sound of the indoor unit by 3dB(A).
• The new titanium apatite photocatalytic air purification filter increases
the active surface area for effective purification and deodorisation
• ECONO mode decreases power consumption so that other
appliances that need large power supply can be used
• The movement sensor saves power consumption in unoccupied
rooms
• Daikin remote controls give you easy control at your fingertips.
optional
5 steps standard
(integrated
titanium apatite)

3
2
• Split Sky Air • Indoor Units 3
• Indoor Units • R-410A • FTXS-D3VMW_D2VMW
2 Specifications
2-1 FOR INDOOR UNITS ONLY FTXS20D3VMW FTXS25D3VMW FTXS35D3VMW FTXS50D2V1W
Nominal Input Cooling kW 0.035 0.035 0.040 0.048
Heating kW 0.035 0.035 0.040 0.048
2-2 TECHNICAL SPECIFICATIONS FTXS20D3VMW FTXS25D3VMW FTXS35D3VMW FTXS50D2V1W
Casing Colour White
Dimensions Packing Height mm 340 340 340 340
Width mm 855 855 855 855
Depth mm 265 265 265 265
Unit Height mm 283 283 283 283
Width mm 800 800 800 800
Depth mm 195 195 195 195
Weight Unit kg 9.0 9.0 9.0 9.0
Packed Unit kg 12.0 12.0 12.0 12.0
Heat
Exchanger
Dimensions Length mm 610 610 610 610
Nr of Rows 2 2 2 2
Fin Pitch mm 1.40 1.40 1.40 1.40
Nr of Stages 12 12 12 14
Tube type Hi-XA (7)
Fin Type ML fin (Multi louver)
Fan Type Cross flow fan
Air Flow Rate Cooling High m³/min 8.7 8.7 8.9 11.4
Medium m³/min 6.7 6.7 6.9 9.3
Low m³/min 4.7 4.7 4.8 7.1
Silent
Operation
m³/min 3.9 3.9 4.0 6.2
Heating High m³/min 9.4 9.4 9.7 11.4
Medium m³/min 7.6 7.6 7.9 9.4
Low m³/min 5.8 5.8 6.0 7.4
Silent
Operation
m³/min 5.0 5.0 5.2 6.3
Fan Motor Quantity 1 1 1 1
Model KFD-28040-8B KFD-280-40-8B KFD-280-40-8B KFD-280-40-8B
Number of steps 5 steps, silent and auto
Motor Speed
(cooling)
High rpm 1250 1250 1270 1580
Medium rpm 1030 1030 1050 1330
Low rpm 810 810 830 1090
Silent
Operation
rpm 710 710 730 980
Speed
(heating)
High rpm 1280 1280 1320 1520
Medium rpm 1090 1090 1120 1290
Low rpm 900 900 920 1060
Silent
Operation
rpm 820 820 840 960
Fan Motor Output
(high)
W40 40 40 40
Cooling Sound Power High dBA 56.0 56.0 57.0 62.0
Sound
Pressure
High dBA 38.0 38.0 39.0 46.0
Medium dBA 41.0
Low dBA 25.0 25.0 26.0 35.0
Silent
Operation
dBA 22.0 22.0 23.0 32.0
Heating Sound Power High dBA 56.0 56.0 57.0 62.0
Sound
Pressure
High dBA 38.0 38.0 39.0 46.0
Medium dBA 40.0
Low dBA 28.0 28.0 29.0 34.0
Silent
Operation
dBA 25.0 25.0 26.0 31.0
Refrigerant Type R-410A

• Indoor Units • R-410A • FTXS-D3VMW_D2VMW
2
• Split Sky Air • Indoor Units
4
2 Specifications
Piping
connections
Liquid (OD) Diameter
(OD)
mm 6.4 6.4 6.4 6.4
Gas Diameter
(OD)
mm 9.5 9.5 9.5 12.7
Drain Diameter
(OD)
mm 18 18 18 18
Heat Insulation Both liquid and gas pipes
Air Filter Removable/washable/Mildew proof
Air direction control Left, right, up and downwards
Temperature control Microcomputer control
Standard
Accessories
Item Titanium apatite photocatalytic air purification filter
Quantity 2222
Item Operation manual
Quantity 1111
Item Installation manual
Quantity 1111
Item Infrared remote control
Quantity 1111
Item Batteries
Quantity 2222
Item Remote control holder
Quantity 1111
Item Indoor unit fixing screws
Quantity 2222
Item Mounting plate
Quantity 1111
Notes Sound values are measured in an anechoic room.
Sound pressure level is a relative value, depending on the distance and acoustic environment. For more details,
please refer to sound level drawings of this chapter.
The sound power level is an absolute value indicating the power which a sound source generates.
2-3 ELECTRICAL SPECIFICATIONS FTXS20D3VMW FTXS25D3VMW FTXS35D3VMW FTXS50D2V1W
Power Supply Name VM VM VM V1
Phase 1111
Frequency Hz 50/60 50/60 50/60 50
Voltage V 220-240/220-230 220-240/220-230 220-240/220-230 220-240
Current Nominal
running current
(RLA)
Cooling A 0.16 0.16 0.18 0.21
Heating A 0.16 0.16 0.18 0.21
Wiring
connections
For Power
Supply
Quantity 3333
Remark 4 for interunit wiring (included earth wiring)
Voltage range Minimum -10%
Maximum +10%
Power Supply Intake Outdoor unit only
2-2 TECHNICAL SPECIFICATIONS FTXS20D3VMW FTXS25D3VMW FTXS35D3VMW FTXS50D2V1W

3
• Split Sky Air • Indoor Units 5
• Indoor Units • R-410A • FTXS-D3VMW_D2VMW

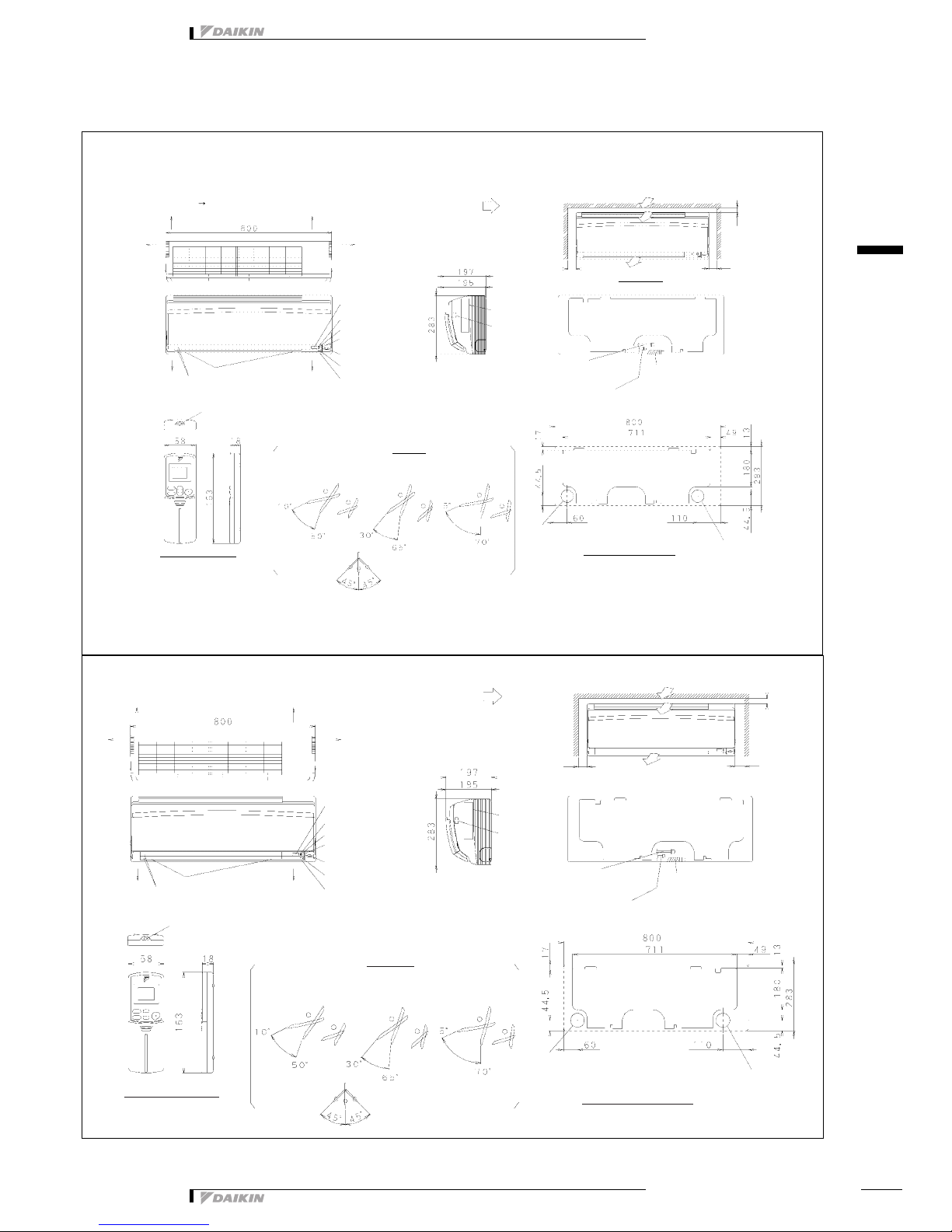

3 Dimensional drawing & centre of gravity
3 - 1 Dimensional drawing
FTXS-D
3D047234A
Gas pipe 9.5 CuT
(The length of pipe outside the
unit: about 390)
Left Right
Blade angle
Wall hole for embedded piping
ø 65 hole
Standard locations of wall holes
Rear Rear
The mark shows piping direction
Bottom
Frontpanel fixed screws (inside)
Signal transmitter
Flaps
Intelligent eye lamp
Signal receiver
Room temp. thermistor (inside)
Intelligent eye sensor
Timer lamp
Operation lamp
Indoor unit on/off switch
Wireless remote controller
(ARC433A50)
Right/left (manual)
Up/down (automatic)
Fan
Wall hole
ø 65 hole
Drain hose
(connecting part I.D. ø 14.0, O.D. ø 18.0)
(The hose length of outside the unit is
approx. 440)
Liquid pipe 6.4 CuT
(The length of pipe outside the
unit: about 340)
(space for
performance)
(space for performance)
(space for
performance)
Name plate
Terminal block with
earth terminal
Air flow (indoor)
including mounting
plate
Cooling, dry
Required space
Heating
50 min. 50 min.
30 min.
3D047237B
FTXS50D unit (mm)
Left
Rear
Right
The mark (Y) shows piping direction
Signal receiver
Bottom
Flaps
Front panel fixed screws
(inside)
(Inside)
Timer lamp
Operation lamp
Signal transmitter
Infrared remote control
Up/down (automatic)
Blade angle
Right/left (manual)
Air flow (indoor)
(space for
maintenance)
(Including
mounting plate)
Name plate
Terminal block with
earth terminal
(space for performance)
(space for
maintenance)
Liquid pipe J6.4 CuT (the length of pipe outside
the unit: about 340)
Gas pipe 12.7Cut (The length of pipe
outside the unit: about 390) Drain hose (connecting part I.D. J14.0, O.D. J
18.0)
(The hose length on the outside of the
unit is approx. 440)
Wall hole for embedded piping
J65 hole Wall hole J65
hole
Standard locations of wall holes
Cooling, dry
Indoor unit ON/OFF switch
Fan
Intelligent eye lamp
Room temp. thermistor (Inside)
(ARC433A50)
Intelligent eye sensor
50 Min. 50 Min.
30 Min.
Required space
Heating

• Indoor Units • R-410A • FTXS-D3VMW_D2VMW
3
• Split Sky Air • Indoor Units
6
3 Dimensional drawing & centre of gravity
3 - 2 Centre of gravity
FTK/XS20,25,35DVMW/L
4D048210
4D048210D
FTK/XS50D

4
• Split Sky Air • Indoor Units 7
• Indoor Units • R-410A • FTXS-D3VMW_D2VMW
4 Piping diagram
FTK/XS20,25,35DW/L
4D047912
Thermistor on
heat exch.
Cross flow fan
Field piping
(6.4 CuT)
Field piping
(12.7 CuT)
Fan motor
Refrigerant flow
Cooling
Heating
9.5 Cu T
Heat exchanger
6.4 CuT
Indoor unit
7.0 CuT
Maffler assy
7.9 CuT
6.4 CuT
6.4 CuT
4D047913D
FTXS50D Indoor unit
Heat exchanger
Cross flow fan
Fan motor
Field piping
Field piping
Refrigerant flow
Thermistor on heat
exchanger
Cooling
Heating
Maffler assy

• Indoor Units • R-410A • FTXS-D3VMW_D2VMW
5
• Split Sky Air • Indoor Units
8

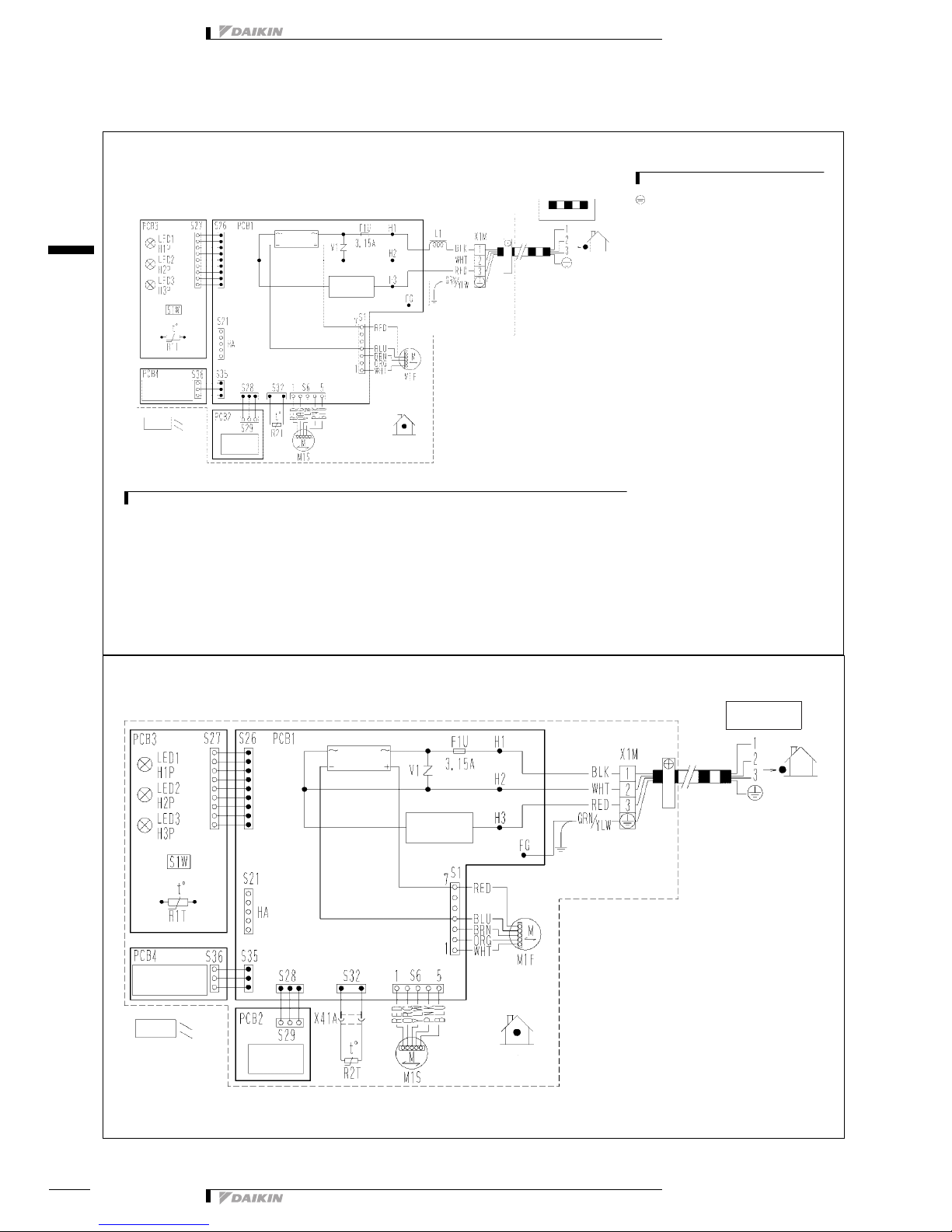

5 Wiring diagram
5 - 1 Wiring diagram
FTK/XS20,25,35DW/L
3D047523
Rectifier
Wireless
remote
controller
indoor
outdoor
Tran smission
circuit
Field wiring
Signal receiver
Intelligent eye sensor
LEGEND
Protective earth
FG Frame ground
F1U Fuse
H1P~H3P Pilot lamp
L1 Coil
M1F Fan motor
M1S Swing motor
PCB1~PCB4 Printed circuit board
R1T, R2T Thermistor
S1~S38 Connector
S1W Operation switch
X1M Terminal strip
NOTES
1 Size: length 70 x width 120.
2 Refer to purchasing specification AS303002, unless otherwise specified.
3 This drawing was drawn on CAD system.
4 Caution: Note that operation will restart automatically if the main power supply is turned off and then back on again.
3D051652
FTK/XS50D g
Field wiring
Outdoor
Indoor
Infrared remote
control
R: Protective earth
FG : Frame ground
F1U : Fuse
H1P∼H3P : Pilot lamp
M1F : Fan motor
M1S : Swing motor
PCB1∼PCB4 : Printed circuit board
R1T,R2T : Thermistor
S1∼S38, X41A : Connector
S1W : Operation switch
X1M : Terminal strip
Signal
receiver
CAUTION
Note that operation will restart
automatically if the main power
supply is turned off and then back
on again.
Intelligent eye
sensor
Rectifier
Transmission
circuit

6
• Split Sky Air • Indoor Units 9
• Indoor Units • R-410A • FTXS-D3VMW_D2VMW

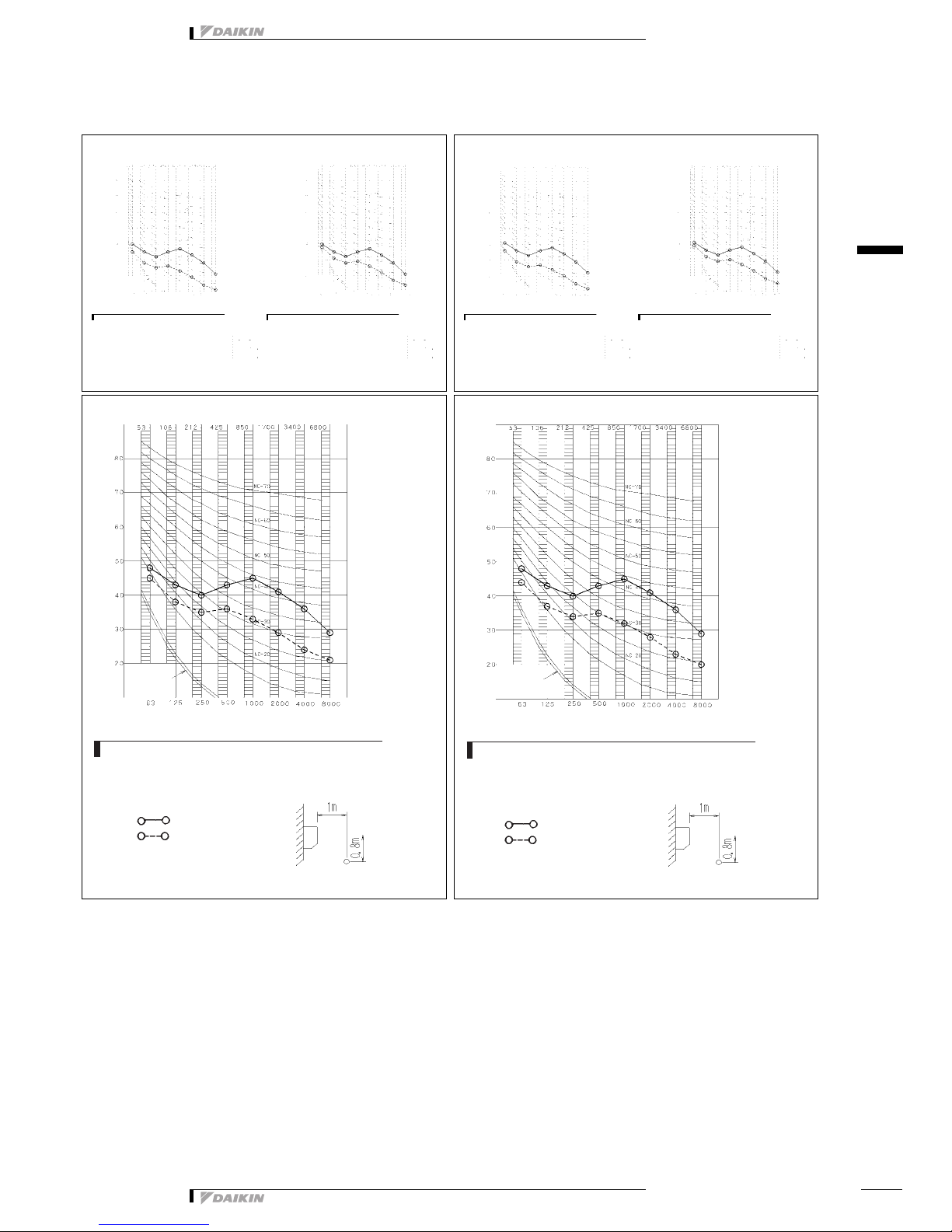

6 Sound data
6 - 1 Sound pressure spectrum
FTXS20,25D
3D048221
Approxi mate
threshold hearing
for cont inuous
noise
Approxi mate
threshold hearing
for cont inuous
noise
Octave band center frequencyOctave band center frequency
Octave band sound pressurelevel (0dB = 0.0002µbar)
Octave band soundpressure level (0dB = 0.0002µbar)
NOTES
1 Measurement was taken in an anechoic room.
2 The operation noise measuring method is in accordance with
JISC9612.
3 Operating conditions:
Power source = 230 V, 50 Hz
o------o H (A = 39), o- - - -o L (A = 26)
4 Operation noise differs with operation and ambient conditions. Location of
microphone
NOTES
1 Measurement was taken in an anechoic room.
2 The operation noise measuring method is in accordance with
JISC9612.
3 Operating conditions:
Power source = 230 V, 50 Hz
o------o H (A = 39), o- - - -o L (A = 29)
4 Operation noise differs with operation and ambient conditions. Location of
microphone
Cooling Heating
1m
0.8m
1m
0.8m
FTXS35D
3D048222
Approxi mate
threshold hearing
for cont inuous
noise
Approxi mate
threshold hearing
for cont inuous
noise
Octave band center frequencyOctave band center frequency
Octave band sound pressurelevel (0dB = 0.0002µbar)
Octave band soundpressure level (0dB = 0.0002µbar)
NOTES
1 Measurement was taken in an anechoic room.
2 The operation noise measuring method is in accordance with
JISC9612.
3 Operating conditions:
Power source = 230 V, 50 Hz
o------o H (A = 39), o- - - -o L (A = 26)
4 Operation noise differs with operation and ambient conditions. Location of
microphone
NOTES
1 Measurement was taken in an anechoic room.
2 The operation noise measuring method is in accordance with
JISC9612.
3 Operating conditions:
Power source = 230 V, 50 Hz
o------o H (A = 39), o- - - -o L (A = 29)
4 Operation noise differs with operation and ambient conditions. Location of
microphone
Cooling Heating
1m
0.8m
1m
0.8m
3D051098
Octave band sound pressure level
dB:(0dB = 0.0002 µbar)
Octave band center frequency (Hz)
FTXS50D (Cooling)
approximate threshold
hearing for continuous
noise
Legend
50Hz 220-240V(H)
50Hz 220-240V(L)
NOTE
1 Operation noise differs with operation and
ambient conditions.
Location of microphone
3D051098
Octave band sound pressure level
dB:(0dB = 0.0002 µbar)
Octave band center frequency (Hz)
FTXS50D (Heating)
approximate threshold
hearing for continuous
noise
Legend
50Hz 220-240V(H)
50Hz 220-240V(L)
NOTE
1 Operation noise differs with operation and
ambient conditions.
Location of microphone

• Indoor Units • R-410A • FTXS-D3VMW_D2VMW
6
• Split Sky Air • Indoor Units
10
6 Sound data
6 - 1 Sound pressure spectrum

ISO14001 assures an effective environmental
management system in order to help protect
human•health•and the environment from the potential
impact of our activities, products and services and to
assist in maintaining and improving the quality of
the•environment.
Daikin Europe N.V. is approved by LRQA for its Quality
Management System in accordance with the ISO9001
standard. ISO9001 pertains to quality assurance regarding
design, development, manufacturing as well as to services
related to the product.
Daikin units comply with the European
regulations that guarantee the safety of
the product.
Zandvoordestraat 300
B-8400 Ostend - Belgium
www.daikineurope.com
EEDE06-1/3 • 05/2006 Prepared in Belgium by Lannoo
The present publication is drawn up by way of
information only and does not constitute an offer
binding upon Daikin Europe N.V.. Daikin Europe N.V.
has compiled the content of this publication to the
best of its knowledge. No express or implied warranty
is given for the completeness, accuracy, reliability or
fitness for particular purpose of its content and the
products and services presented therein. Specifications
are subject to change without prior notice. Daikin
Europe N.V. explicitly rejects any liability for any direct
or indirect damage, In the broadest sense, arising from
or related to the use and/or interpretation of this
publication. All content is copyrighted by Daikin
Europe N.V..
ÉEEDE06-1/3ÇËÍ
Split - Sky Air
Daikin Europe N.V. is participating in the
EUROVENT Certification Programme.
Products are as listed in the EUROVENT
Directory of Certified Products.
