Daikin FTXG25EVMAW User manual

FTXG25EVMAW FTXG25EVMAS
FTXG35EVMAW FTXG35EVMAS
MODELS
DAIKIN ROOM AIR CONDITIONER
Operation Manual
00_CV_3P166462-1.fm Page 1 Monday, October 3, 2005 7:50 PM

1
CONTENTS
READ BEFORE OPERATION
Safety precautions ......................................... 2
Names of parts............................................... 4
Preparation Before Operation ........................ 7
OPERATION
AUTO · DRY · COOL · HEAT · FAN
Operation ..................................................... 10

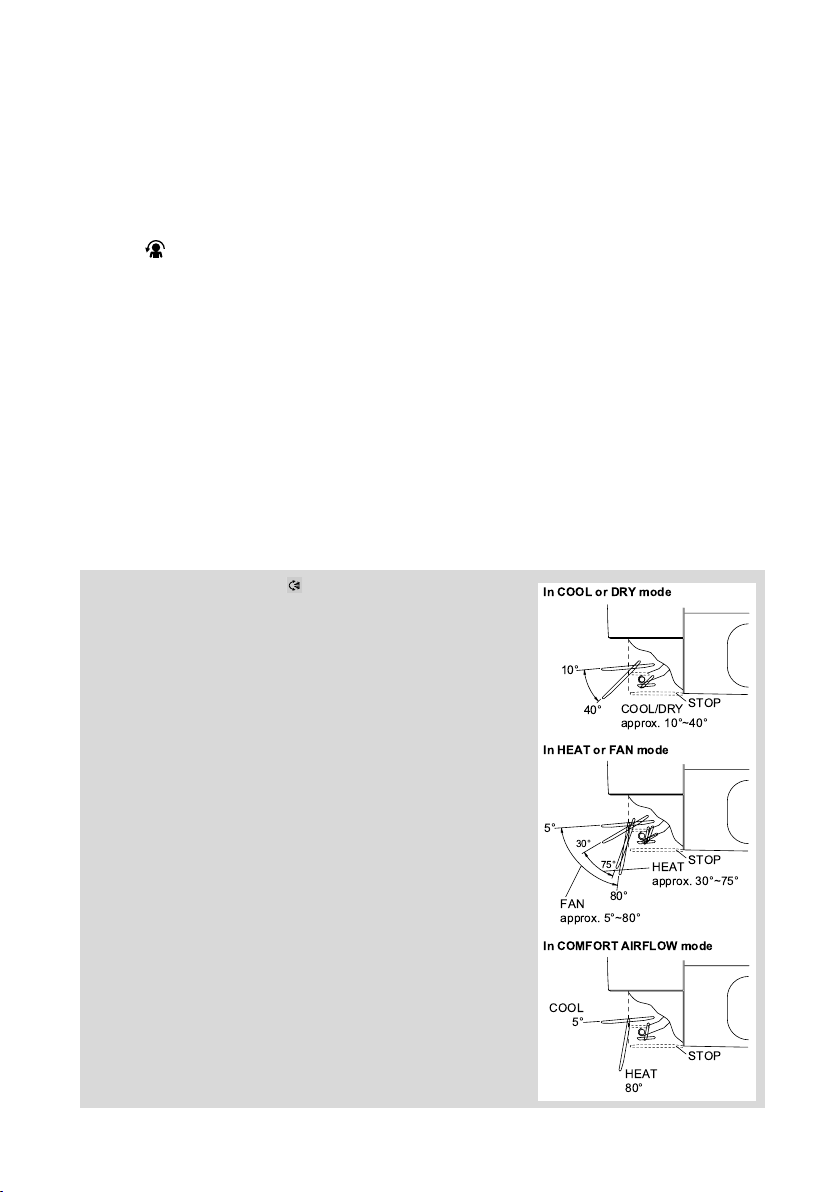

Adjusting the Air Flow Direction ................... 12
POWERFUL Operation ................................ 14

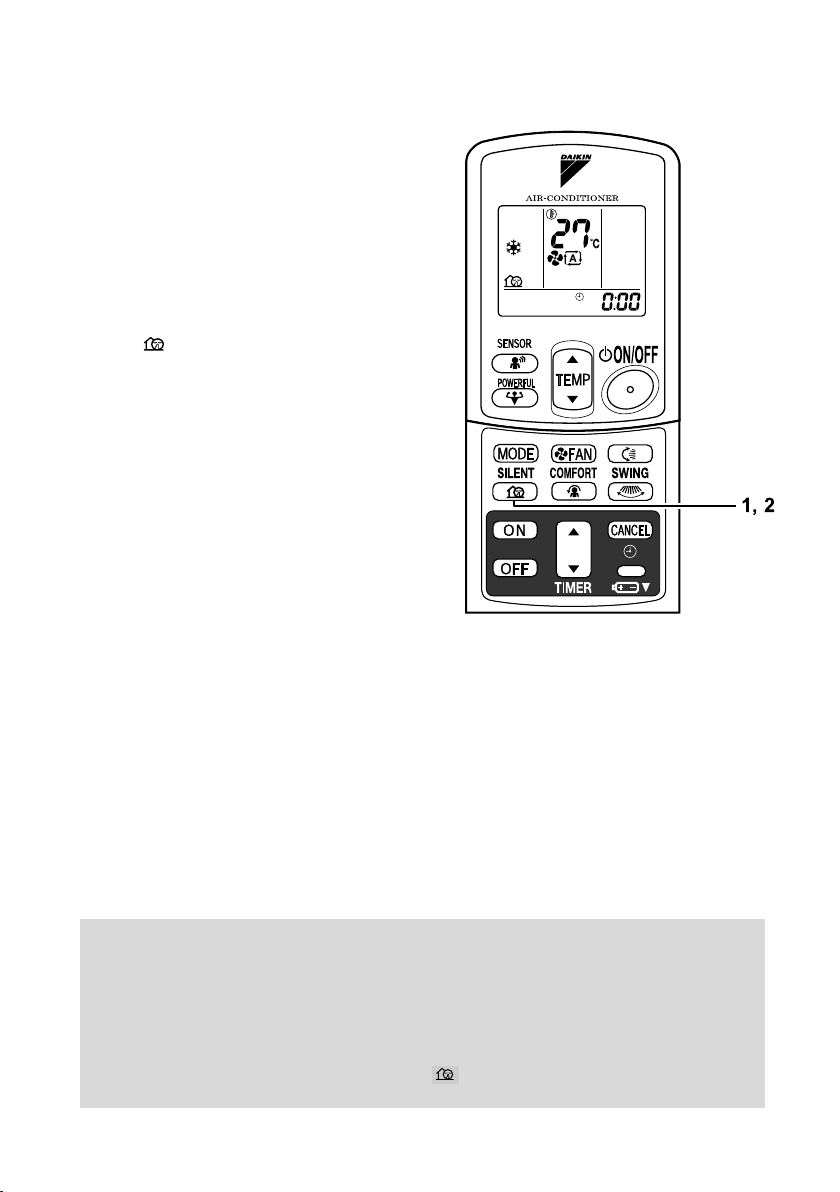

OUTDOOR UNIT SILENT Operation .......... 15
INTELLIGENT EYE Operation ..................... 16
TIMER Operation ......................................... 18
CARE
Care and Cleaning ....................................... 20
TROUBLE SHOOTING
Trouble Shooting.......................................... 23
01_EN_3P166462-1.fm Page 1 Tuesday, September 20, 2005 5:08 PM

2
READ BEFORE OPERATION

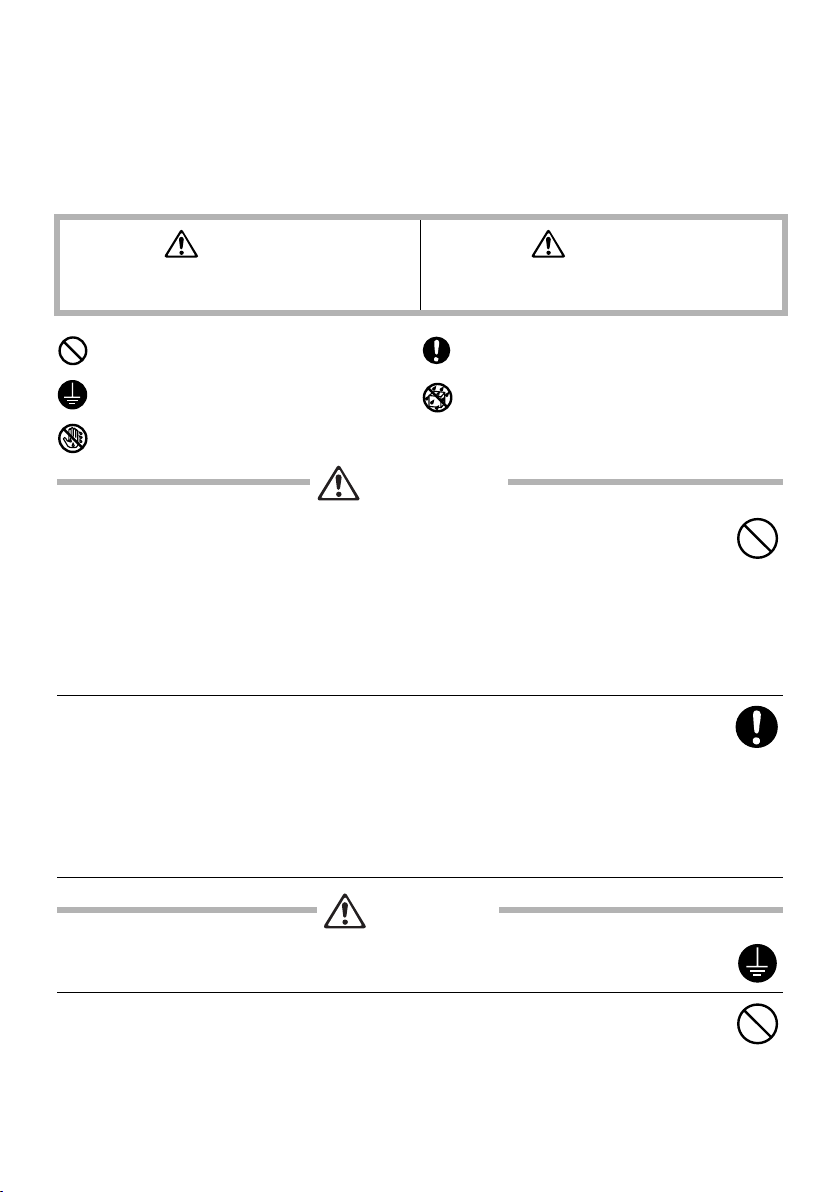

Safety precautions
•
Keep this manual where the operator can easily find them.
•
Read this manual attentively before starting up the unit.
•
For safety reason the operator must read the following cautions carefully.
•
This manual classifies precautions into WARNING and CAUTION. Be sure to follow all precautions below: they are all
important for ensuring safety.
WARNING
•
In order to avoid fire, explosion or injury, do not operate the unit when harmful, among which flammable or
corrosive gases, are detected near the unit.
•
It is not good for health to expose your body to the air flow for a long time.
•
Do not put a finger, a rod or other objects into the air outlet or inlet. As the fan is rotating at a high speed, it will
cause injury.
•
Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work will cause electric
shocks, fire etc.
For repairs and reinstallation, consult your Daikin dealer for advice and information.
•
Do not insert fingers, poles, or other objects into the moving parts of the front panel or the outlet vent panel.
•
The refrigerant used in the air conditioner is safe. Although leaks should not occur, if for
some reason any refrigerant happens to leak into the room, make sure it does not come in
contact with any flame as of gas heaters, kerosene heaters or gas range.
•
If the air conditioner is not cooling (heating) properly, the refrigerant may be leaking, so call your dealer.
When carrying out repairs accompanying adding refrigerant, check the content of the repairs with our service staff.
•
Do not attempt to install the air conditioner by your self. Incorrect work will result in water leakage, electric shocks or
fire. For installation, consult the dealer or a qualified technician.
•
In order to avoid electric shock, fire or injury, if you detect any abnormally such as smell of fire, stop the operation and
turn off the breaker. And call your dealer for instructions.
CAUTION
•
The air conditioner must be earthed. Incomplete earthing may result in electric shocks. Do not connect the
earth line to a gas pipe, water pipe, lightning rod, or a telephone earth line.
•
In order to avoid any quality deterioration, do not use the unit for cooling precision instru-
ments, food, plants, animals or works of art.
•
Never expose little children, plants or animals directly to the air flow.
•
Do not place appliances which produce open fire in places exposed to the air flow from the unit or under the
indoor unit. It may cause incomplete combustion or deformation of the unit due to the heat.
WARNING
If you do not follow these instructions exactly, the unit may
cause property damage, personal injury or loss of life.
CAUTION
If you do not follow these instructions exactly, the unit may
cause minor or moderate property damage or personal injury.
Never do. Be sure to follow the instructions.
Be sure to earth the air conditioner. Never cause the air conditioner (including the remote
controller) to get wet.
Never touch the air conditioner (including the remote
controller) with a wet hand.
01_EN_3P166462-1.fm Page 2 Tuesday, September 20, 2005 5:08 PM

3
•
Do not block air inlets nor outlets. Impaired air flow may result in insufficient performance or trouble.
•
Do not stand or sit on the outdoor unit. Do not place any object on the unit to avoid injury, do not remove the fan guard.
•
Do not place anything under the indoor or outdoor unit that must be kept away from moisture. In certain conditions,
moisture in the air may condense and drip.
•
After a long use, check the unit stand and fittings for damage.
•
Do not touch the air inlet and aluminum fins of outdoor unit. It may cause injury.
•
The appliance is not intended for use by young children or infirm persons without supervision.
•
Young children should be supervised to ensure that they do not play with the appliance.
•
To avoid oxygen deficiency, ventilate the room sufficiently if equipment with burner is used
together with the air conditioner.
•
Before cleaning, be sure to stop the operation, turn the breaker off or pull out the supply cord.
•
Do not connect the air conditioner to a power supply different from the one as specified. It may cause trou-
ble or fire.
•
Depending on the environment, an earth leakage breaker must be installed. Lack of an earth leakage breaker may
result in electric shocks.
•
Arrange the drain hose to ensure smooth drainage. Incomplete draining may cause wetting of the building, furniture
etc.
•
Do not place objects in direct proximity of the outdoor unit and do not let leaves and other debris accumulate around
the unit.
Leaves are a hotbed for small animals which can enter the unit. Once in the unit, such animals can cause malfunc-
tions, smoke or fire when making contact with electrical parts.
•
Do not operate the air conditioner with wet hands.
•
Do not wash the indoor unit with excessive water, only use a slightly wet cloth.
•
Do not place things such as vessels containing water or anything else on top of the unit. Water may pene-
trate into the unit and degrade electrical insulations, resulting in an electric shock.
■
To install the air conditioner in the following types of environments, consult the dealer.
•
Places with an oily ambient or where steam or soot occurs.
•
Salty environment such as coastal areas.
•
Places where sulfide gas occurs such as hot springs.
•
Places where snow may block the outdoor unit.
The drain from the outdoor unit must be discharged to a place of good drainage.
■For installation, choose a place as described below.
•
A place solid enough to bear the weight of the unit which does not amplify the operation noise or vibration.
• A place from where the air discharged from the outdoor unit or the operation noise will not annoy
your neighbours
.
•
For power supply, be sure to use a separate power circuit dedicated to the air conditioner.
•
Relocating the air conditioner requires specialized knowledge and skills. Please consult the dealer if reloca-
tion is necessary for moving or remodeling.
Installation site.
Consider nuisance to your neighbours from noises.
Electrical work.
System relocation.
01_EN_3P166462-1.fm Page 3 Tuesday, September 20, 2005 5:08 PM

4
Names of parts
■Indoor Unit
15
14
18
12
13
17
134
6
2
11
16
5
7 8 9
10
(With the panel closed)
01_EN_3P166462-1.fm Page 4 Tuesday, September 20, 2005 5:08 PM

5
■Outdoor Unit
■
■■
■
Indoor Unit
1. Air filter
2. Titanium Apatite Photocatalytic
Air-Purifying Filter:
• These filters are attached to the inside of
the air filters.
3. Air inlet
4. Front panel
5. Supporting plate:
• The supporting plate is used to support the
front panel during maintenance.
6. Panel tab
7. Flap (horizontal blade): (page 12.)
8. Air outlet
9. Louvers (vertical blades):
• The louvers are inside of the air outlet.
(page 12.)
10. Outlet vent panel
11. Display
12. Indoor Unit ON/OFF switch: (page 10.)
•
Push this switch once to start operation.
Push once again to stop it.
• The operation mode refers to the following
table.
•
This switch is useful when the remote controller
is missing.
13. Room temperature sensor:
•
It senses the air temperature around the unit.
14. Operation lamp (green)
15. TIMER lamp (yellow): (page 18.)
16.
INTELLIGENT EYE lamp (green)
: (page 16.)
17. INTELLIGENT EYE sensor:
•
It detects the movements of people and auto-
matically switches between normal operation
and energy saving operation. (page 16.)
18. Signal receiver:
•
It receives signals from the remote controller.
•
When the unit receives a signal, you will hear a
short beep.
•
Operation start .............beep-beep
•
Settings changed..........beep
•
Operation stop ..............beeeeep
■
■■
■
Outdoor Unit
19. Air inlet: (Back and side)
20. Air outlet
21. Refrigerant piping and inter-unit cable
22. Drain hose
23. Earth terminal:
• It is inside of this cover.
Appearance of the outdoor unit may differ from some models.
21
22
23
20
19
Mode Tempera-
ture setting
Air flow
rate
FTXG
AUTO 25°CAUTO
01_EN_3P166462-1.fm Page 5 Tuesday, September 20, 2005 5:08 PM

6
■Remote Controller
1. Signal transmitter:
•
It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section is shown with all
its displays ON for the purpose of explanation.)
3. SENSOR button: INTELLIGENT EYE
operation (page 16.)
4. POWERFUL button:
POWERFUL operation (page 14.)
5. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
6. ON/OFF button:
•
Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
• It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN) (page 10.)
8. SILENT button: OUTDOOR UNIT SILENT
operation
(page 15.)
9. FAN setting button:
• It selects the air flow rate setting.
10. SWING button: (page 12.)
• Flap (Horizontal blade)
11. SWING button: (page 12.)
• Louvers (Vertical blades)
12. COMFORT AIRFLOW mode button:
(page 13.)
13. ON TIMER button: (page 19.)
14. OFF TIMER button: (page 18.)
15. TIMER Setting button:
• It changes the time setting.
16. TIMER CANCEL button:
• It cancels the timer setting.
17. CLOCK button: (page 9.)
1
5
6
9
10
11
12
16
17
< ARC433A41 >
2
13
15
14
3
4
7
8
01_EN_3P166462-1.fm Page 6 Tuesday, September 20, 2005 5:08 PM

7
Preparation Before Operation

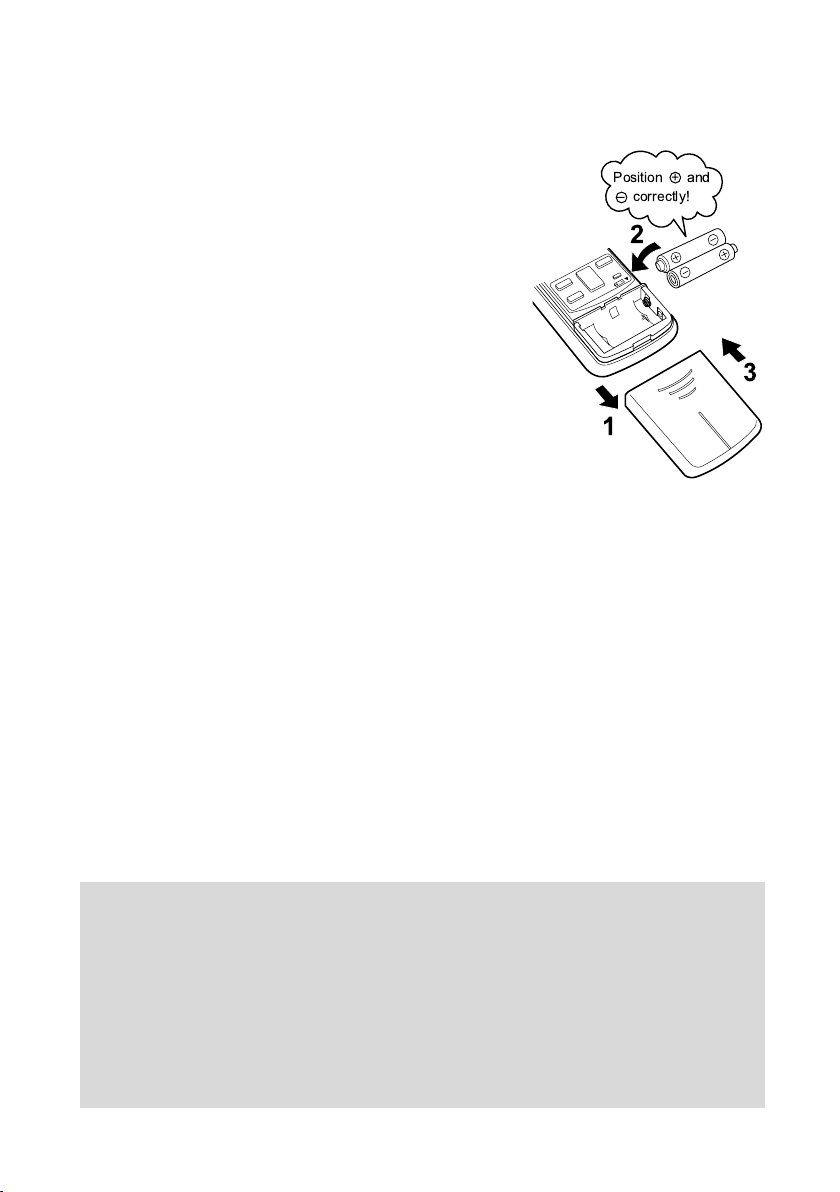

■To set the batteries
1. Slide the front cover to take it off.
2. Set two dry batteries (AAA).
3. Set the front cover as before.
ATTENTION
■
■■
■
About batteries
•
When replacing the batteries, use batteries of the same type, and replace the two old batteries
together.
•
When the system is not used for a long time, take the batteries out.
•
We recommend replacing once a year, although if the remote controller display begins to fade or if
reception deteriorates, please replace with new alkali batteries. Do not use manganese batteries.
•
The attached batteries are provided for the initial use of the system.
The usable period of the batteries may be short depending on the manufactured date of the air
conditioner.
■
■■
■
Replacing the Batteries
•
When replacing the battery, remove the old battery, wait one minute, and then insert the new battery.
2
3
1
Position + and
 correctly!
01_EN_3P166462-1.fm Page 7 Tuesday, September 20, 2005 5:08 PM

8
Preparation Before Operation

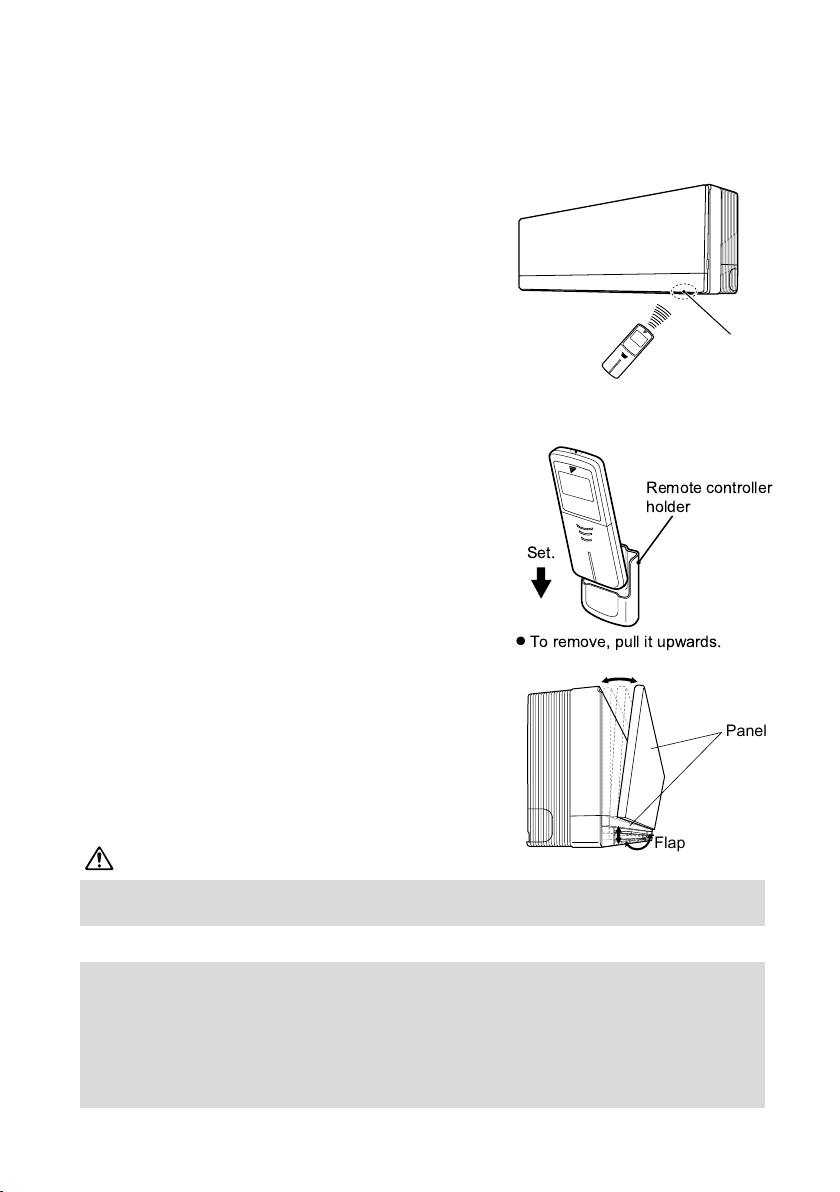

■To operate the remote controller
• To use the remote controller, aim the transmitter at the
indoor unit. If there is anything to block signals
between the unit and the remote controller, such as a
curtain, the unit will not operate.
• Do not drop the remote controller. Do not get it wet.
•
The maximum distance for communication is about 7m.
■To fix the remote controller holder on the wall
1. Choose a place from where the signals
reach the unit.
2. Fix the holder to a wall, a pillar, or similar
location with the screws procured locally.
3. Place the remote controller in the
remote controller holder.
■Turn on the power breaker
• Turning on the power breaker will cause the panel and
flap to open once and then close again.
(This is a normal procedure.)
CAUTION
ATTENTION
• During operation (i.e. when the panel is open or being opened or closed), do not touch the
panel with your hands.
■
■■
■
About remote controller
• Never expose the remote controller to direct sunlight.
•
Dust on the signal transmitter or receiver will reduce the sensitivity. Wipe off dust with soft cloth.
• Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such
as inverter-type lamps) is in the room. Consult the shop if that is the case.
• If the remote controller signals happen to operate another appliance, move that appliance
to somewhere else, or consult the shop.
Receiver
Remote controller
holder
Set.
●
To remove, pull it upwards.
Panel
Flap
01_EN_3P166462-1.fm Page 8 Tuesday, September 20, 2005 5:08 PM

9
■To set the clock
1. Press “CLOCK button”.
is displayed.
blinks.
2. Press “TIMER setting button” to
set the clock to the present time.
Holding down “ ”or “ ” button rap-
idly increases or decreases the time dis-
play.
3. Press “CLOCK button”.
blinks.
NOTE
■
■■
■
Tips for saving energy
• Be careful not to cool (heat) the room too much.
Keeping the temperature setting at a moderate level helps save energy.
• Cover windows with a blind or a curtain.
Blocking sunlight and air from outdoors increases the cooling (heating) effect.
• Clogged air filters cause inefficient operation and waste energy. Clean them
once in about every two weeks.
■
■■
■
Please note
• The air conditioner always consumes 15-35 watts of electricity even while it is not operating.
• If you are not going to use the air conditioner for a long period, for example in spring or autumn, turn the breaker OFF.
• Use the air conditioner in the following conditions.
• Operation outside this humidity or temperature range may cause a safety device to disable the system.
1, 3
2
Recommended temperature setting
For cooling:26 ° C – 28 °
°°
° C
For heating:20 ° C – 24 ° C
Mode Operating conditions If operation is continued out of this range
COOL Outdoor temperature: 10 to 46°C
Indoor temperature: 18 to 32°C
Indoor humidity: 80% max.
• A safety device may work to stop the operation.
• Condensation may occur on the indoor unit and drip.
HEAT Outdoor temperature: –15 to 20°C
Indoor temperature: 10 to 30°C
• A safety device may work to stop the operation.
DRY Outdoor temperature: 10 to 46°C
Indoor temperature: 18 to 32°C
Indoor humidity: 80% max.
• A safety device may work to stop the operation.
• Condensation may occur on the indoor unit and drip.
01_EN_3P166462-1.fm Page 9 Tuesday, September 20, 2005 5:08 PM

10
OPERATION
AUTO · DRY · COOL · HEAT · FAN Operation
The air conditioner operates with the operation mode of
your choice.
From the next time on, the air conditioner will operate
with the same operation mode.
■To start operation
1. Press “MODE selector button”
and select a operation mode.
• Each pressing of the button advances the
mode setting in sequence.
:AUTO
:DRY
: COOL
:HEAT
:FAN
2. Press “ON/OFF button”.
• The operation lamp will light up and the panel will open.
■To stop operation
3. Press “ON/OFF button” again.
• The operation lamp will go off and the panel will close.
■To change the temperature setting
4. Press “TEMPERATURE adjustment button”.
DRY or FAN mode AUTO or COOL or HEAT mode
The temperature setting is not variable.
Press “ ” to raise the temperature and press
“ ” to lower the temperature.
Set to the temperature you like.
2, 3
4
5
1
01_EN_3P166462-1.fm Page 10 Tuesday, September 20, 2005 5:08 PM

11

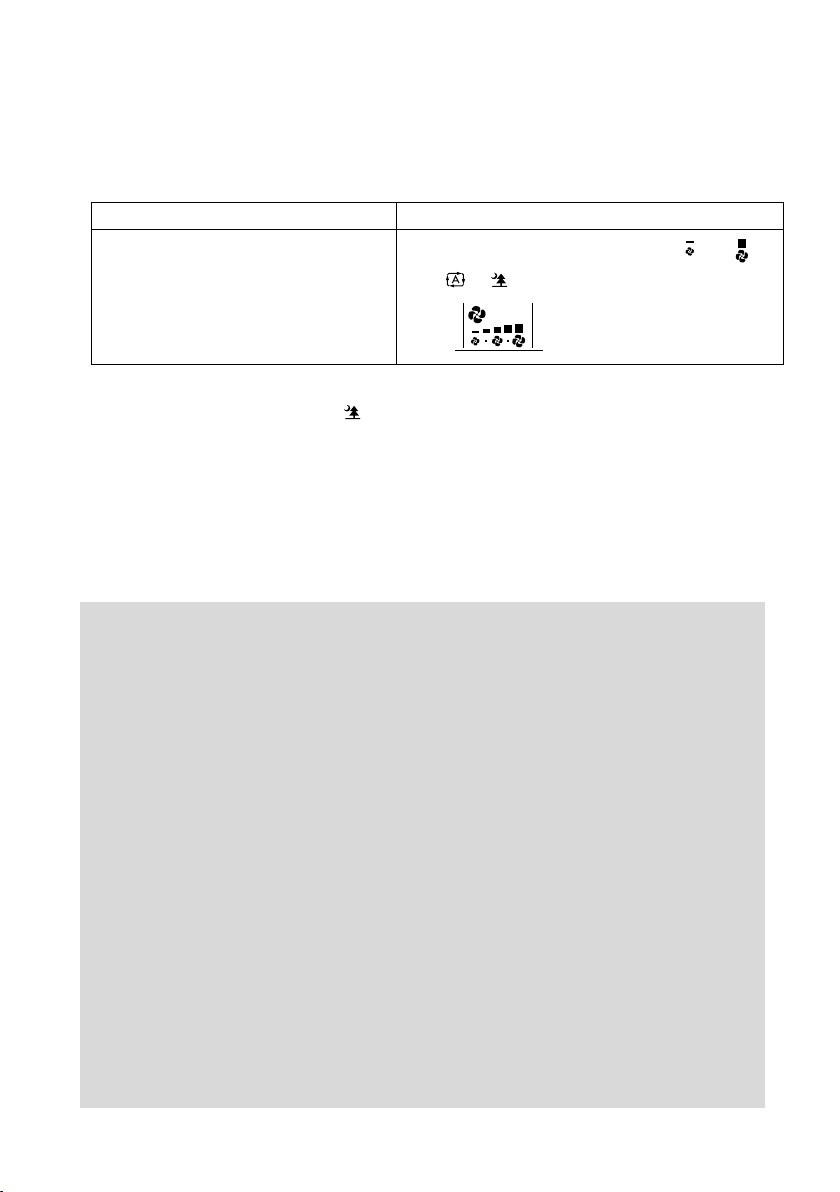

■To change the air flow rate setting
5. Press “FAN setting button”.
• Indoor unit quiet operation
When the air flow is set to “ ”, the noise from the indoor unit will become quieter.
Use this when making the noise quieter.
The unit might lose capacity when the air flow rate is set to a weak level.
NOTE
DRY mode AUTO or COOL or HEAT or FAN mode
The air flow rate setting is not variable.
Five levels of air flow rate setting from “ ” to “ ”
plus “ ” “ ” are available.
■
■■
■
Note on HEAT operation
•
Since this air conditioner heats the room by taking heat from outdoor air to indoors, the heating
capacity becomes smaller in lower outdoor temperatures. If the heating effect is insufficient, it is rec-
ommended to use another heating appliance in combination with the air conditioner.
•
The heat pump system heats the room by circulating hot air around all parts of the room. After the
start of heating operation, it takes some time before the room gets warmer.
•
In heating operation, frost may occur on the outdoor unit and lower the heating capacity. In that case,
the system switches into defrosting operation to take away the frost.
•
During defrosting operation, hot air does not flow out of indoor unit.
■
■■
■
Note on COOL operation
• This air conditioner cools the room by blowing the hot air in the room outside, so if the
outside temperature is high, performance drops.
■
■■
■
Note on DRY operation
• The computer chip works to rid the room of humidity while maintaining the temperature as
much as possible. It automatically controls temperature and air flow rate, so manual
adjustment of these functions is unavailable.
■
■■
■
Note on AUTO operation
•
In AUTO operation, the system selects an appropriate operation mode (COOL or HEAT) based on
the room temperature at the start of the operation.
•
The system automatically reselects setting at a regular interval to bring the room temperature to user-
setting level.
•
If you do not like AUTO operation, you can manually select the operation mode and setting
you like.
■
■■
■
Note on air flow rate setting
•
At smaller air flow rates, the cooling (heating) effect is also smaller.
01_EN_3P166462-1.fm Page 11 Tuesday, September 20, 2005 5:08 PM

12

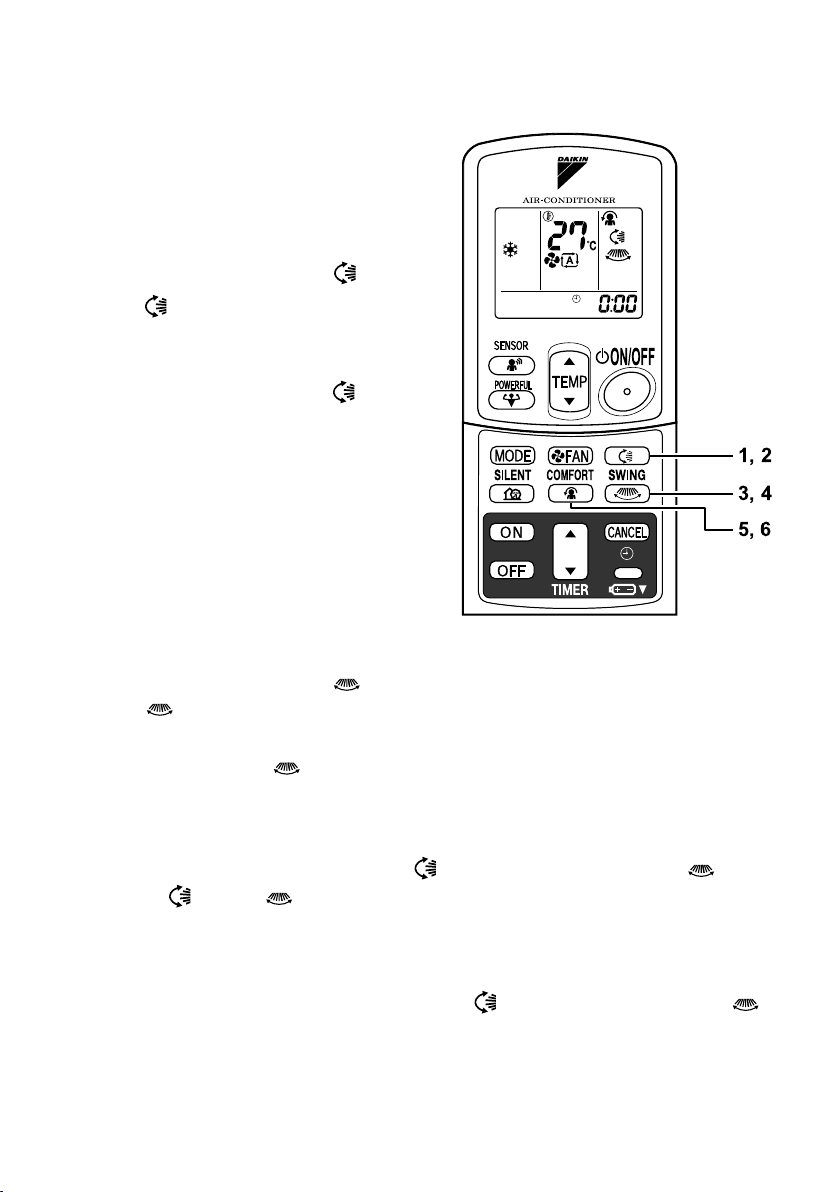

Adjusting the Air Flow Direction
You can adjust the air flow direction to increase your
comfort.
■To adjust the horizontal
blade (flap)
1. Press “SWING button ”.
• “ ” is displayed on the LCD.
2. When the flap has reached the
desired position,
press “SWING button ” once
more.
• The flap will stop moving.
■To adjust the vertical
blades (louvers)
3. Press “SWING button ”.
• “ ” is displayed on the LCD.
4. When the louvers have reached the desired position, press the
“SWING button ” once more.
• The louvers will stop moving.
■To 3-D Airflow
1. 3. Press the “SWING button ” and the “SWING button ”:
the “ ” and “ ” display will light up and the flap and louvers will
move in turn.
■To cancel 3-D Airflow
2. 4. Press either the “SWING button ” or the “SWING button ”.
1, 2
3, 4
5, 6
01_EN_3P166462-1.fm Page 12 Tuesday, September 20, 2005 5:08 PM

13
■To start COMFORT AIRFLOW operation
5. Press “COMFORT AIRFLOW button”.
The flap orientation will change, preventing air from blowing directly on the
occupants of the room.
• “ ” is displayed on the LCD.
〈COOL/DRY〉The flap will go up.
〈HEAT〉The flap will go down.
■To cancel COMFORT AIRFLOW operation
6. Press “COMFORT AIRFLOW button” again.
NOTE
• When “SWING button ” is selected, the flap swinging
range depends on the operation mode. (See the figure.)
Three-Dimensional (3-D) Airflow
• Using three-dimensional airflow circulates cold air, which
tends to collected at the bottom of the room, and hot air,
which tends to collect near the ceiling, throughout the
room, preventing areas of cold and hot developing.
Comfort Airflow
• The air flow is set automatically.
• The air direction is as shown in the figure at right.
■
■■
■
ATTENTION
• Always use a remote controller to adjust the flap angle.
If you attempt to move it forcibly with hand when it is
swinging, the mechanism may be broken.
• Always use a remote controller to adjust the louvers
angles.
5°
10°
40°
80°
75°
30°
COOL/DRY
approx. 10°~40°
FAN
approx. 5°~80°
HEAT
approx. 30°~75°
In COOL or DRY mode
In HEAT or FAN mode
STOP
STOP
HEAT
80°
COOL
5°
In COMFORT AIRFLOW mode
STOP
01_EN_3P166462-1.fm Page 13 Tuesday, September 20, 2005 5:08 PM

14
POWERFUL Operation
POWERFUL operation quickly maximizes the
cooling (heating) effect in any operation mode.
You can get the maximum capacity.
■To start POWERFUL
operation
1. Press “POWERFUL button”.
•
POWERFUL operation ends in 20 minutes.
Then the system automatically operates
again with the settings which were used
before POWERFUL operation.
• When using POWERFUL operation,
there are some functions which are not
available.
• “ ” is displayed on the LCD.
■To cancel POWERFUL
operation
2. Press “POWERFUL button”
again.
NOTE
■
■■
■
Notes on POWERFUL operation
• POWERFUL Operation cannot be used together with SILENT, or COMFORT Operation.
Priority is given to the function of whichever button is pressed last. (This does not include
SILENT operation.)
• POWERFUL Operation can only be set when the unit is running. Pressing the operation
stop button causes the settings to be canceled, and the “ ” disappears from the LCD.
•In COOL and HEAT mode
To maximize the cooling (heating) effect, the capacity of outdoor unit must be increased
and the air flow rate be fixed to the maximum setting.
The temperature and air flow settings are not variable.
•In DRY mode
The temperature setting is lowered by 2.5°C and the air flow rate is slightly increased.
•In FAN mode
The air flow rate is fixed to the maximum setting.
1, 2
01_EN_3P166462-1.fm Page 14 Tuesday, September 20, 2005 5:08 PM

15
OUTDOOR UNIT SILENT Operation
OUTDOOR UNIT SILENT operation lowers the noise
level of the outdoor unit by changing the frequency and
fan speed on the outdoor unit. This function is
convenient during night.
■To start OUTDOOR UNIT
SILENT operation
1. Press “SILENT button”.
• “ ” is displayed on the LCD.
■To cancel OUTDOOR UNIT
SILENT operation
2. Press “SILENT button” again.
NOTE
■
■■
■
Note on OUTDOOR UNIT SILENT operation
•
This function is available in COOL, HEAT, and AUTO modes.
(This is not available in FAN and DRY mode.)
• POWERFUL operation and OUTDOOR UNIT SILENT operation cannot be used at the
same time.
Priority is given to POWERFUL operation.
• If operation is stopped using the remote controller or the main unit ON/OFF switch when
using OUTDOOR UNIT SILENT operation, “ ” will remain on the remote controller
display.
1, 2
01_EN_3P166462-1.fm Page 15 Tuesday, September 20, 2005 5:08 PM

16
INTELLIGENT EYE Operation
“INTELLIGENT EYE” is the infrared sensor which
detects the human movement.
■To start INTELLIGENT
EYE operation
1. Press “SENSOR button”.
• “ ” is displayed on the LCD.
■To cancel the
INTELLIGENT EYE
operation
2. Press “SENSOR button” again.
[EX.]
When somebody in the room
•Normal operation.
•
The INTELLIGENT EYE lamp lights up.
When nobody in the room
•
20 min. after, start
energy saving
operation
.
•
The INTELLIGENT EYE lamp goes off.
Somebody back in the room
•
Back to normal operation.
•
The INTELLIGENT EYE lamp lights up.
1, 2
01_EN_3P166462-1.fm Page 16 Tuesday, September 20, 2005 5:08 PM

17
“INTELLIGENT EYE” is useful for Energy Saving
Notes on “INTELLIGENT EYE”
CAUTION
■
■■
■
Energy saving operation
• Change the temperature –2
°
C in heating / +2
°
C in cooling / +2
°
C in dry mode from set temperature.
• Decrease the air flow rate slightly in fan operation. (In FAN mode only)
• Application range is as follows.
• Sensor may not detect moving objects further than 7m away. (Check the application range)
• Sensor detection sensitivity changes according to indoor unit location, the speed of
passersby, temperature range, etc.
• The sensor also mistakenly detects pets, sunlight, fluttering curtains and light reflected off of
mirrors as passersby.
• INTELLIGENT EYE operation will not go on during powerful operation.
• Night set mode (page 18.) will not go on during you use INTELLIGENT EYE operation.
• Do not place large objects near the sensor.
Also keep heating units or humidifiers outside the sensor’s detection area. This sensor can
detect objects it shouldn’t as well as not detect objects it should.
• Do not hit or violently push the INTELLIGENT EYE sensor. This can lead to damage and
malfunction.
90°
55° 55°
Vertical angle 90°
(Side View) Horizontal angle 110° (Top View)
7m
7m
01_EN_3P166462-1.fm Page 17 Tuesday, September 20, 2005 5:08 PM

18
TIMER Operation
Timer functions are useful for automatically switching
the air conditioner on or off at night or in the morning.
You can also use OFF TIMER and ON TIMER in
combination.
■To use OFF TIMER
operation
• Check that the clock is correct.
If not, set the clock to the present time.
(page 9.)
1. Press “OFF TIMER button”.
is displayed.
blinks.
2. Press “TIMER Setting button” until
the time setting reaches the point
you like.
• Every pressing of either button increases or
decreases the time setting by 10 minutes.
Holding down either button changes the
setting rapidly.
3. Press “OFF TIMER button” again.
• The TIMER lamp lights up.
■To cancel the OFF TIMER operation
4. Press “CANCEL button”.
• The TIMER lamp goes off.
NOTE
•
When TIMER is set, the present time is not displayed.
•
Once you set ON, OFF TIMER, the time setting is kept in the memory. (The memory is canceled when
remote controller batteries are replaced.)
•
When operating the unit via the ON/OFF Timer, the actual length of operation may vary from the time
entered by the user.
■
■■
■
NIGHT SET MODE
When the OFF TIMER is set, the air conditioner automatically adjusts the temperature setting (0.5°C
up in COOL, 2.0°C down in HEAT) to prevent excessive cooling (heating) for your pleasant sleep.
4
2
1, 3
01_EN_3P166462-1.fm Page 18 Tuesday, September 20, 2005 5:08 PM

19
■To use ON TIMER operation
• Check that the clock is correct. If not, set the
clock to the present time.
(page 9.)
1. Press “ON TIMER button”.
is displayed.
blinks.
2. Press “TIMER Setting button” until
the time setting reaches the point
you like.
• Every pressing of either button increases or
decreases the time setting by 10 minutes.
Holding down either button changes the
setting rapidly.
3. Press “ON TIMER button” again.
•
The TIMER lamp lights up.
■To cancel ON TIMER
operation
4. Press “CANCEL button”.
• The TIMER lamp goes off.
■To combine ON TIMER and OFF TIMER
• A sample setting for combining the two timers is shown below.
ATTENTION
■
■■
■
In the following cases, set the timer again.
•
After a breaker has turned OFF.
•
After a power failure.
•
After replacing batteries in the remote controller.
4
2
1, 3
(Example)
Present time: 11:00 p.m.
(The unit operating)
OFF TIMER at 0:00 a.m.
ON TIMER at 7:00 a.m. Combined
Display
01_EN_3P166462-1.fm Page 19 Tuesday, September 20, 2005 5:08 PM
