Daikin Super Multi NX FVXS25FV1B User manual

[Applied Models]
zInverter Pair : Cooling Only
zInverter Pair : Heat Pump
SiBE06 - 708
Inverter Pair
Floor Standing Type F-Series

SiBE06-708
Table of Contents i
Inverter Pair
F-Series
zCooling Only
Indoor Unit
FVXS25FV1B
FVXS35FV1B
FVXS50FV1B
Outdoor Unit
RKS25F2V1B
RKS35F2V1B
RKS50F2V1B
zHeat Pump
Indoor Unit
FVXS25FV1B
FVXS35FV1B
FVXS50FV1B
Outdoor Unit
RXS25F2V1B
RXS35F2V1B
RXS50F2V1B

SiBE06-708
ii Table of Contents
1. Introduction .............................................................................................v
1.1 Safety Cautions ........................................................................................v
1.2 Used Icons .............................................................................................. ix
Part 1 List of Functions ................................................................ 1
1. List of Functions ......................................................................................2
Part 2 Specifications .................................................................... 5
1. Specifications ..........................................................................................6
1.1 Cooling Only.............................................................................................6
1.2 Heat Pump ...............................................................................................8
Part 3 Printed Circuit Board Connector Wiring Diagram ........... 11
1. Printed Circuit Board Connector Wiring Diagram..................................12
1.1 Indoor Unit..............................................................................................12
1.2 Outdoor Unit ...........................................................................................14
Part 4 Function and Control........................................................ 19
1. Main Functions......................................................................................20
1.1 Frequency Principle................................................................................20
1.2 Wide Angle Louvers and Auto-Swing.....................................................22
1.3 Fan Speed Control for Indoor Units........................................................23
1.4 Programme Dry Function .......................................................................24
1.5 Automatic Operation...............................................................................25
1.6 Thermostat Control.................................................................................26
1.7 Night Set Mode.......................................................................................27
1.8 Inverter POWERFUL Operation .............................................................28
1.9 Other Functions......................................................................................29
1.10 WEEKLY TIMER ....................................................................................30
2. Function of Thermistor ..........................................................................31
3. Control Specification .............................................................................32
3.1 Mode Hierarchy ......................................................................................32
3.2 Frequency Control..................................................................................33
3.3 Controls at Mode Changing / Start-up....................................................35
3.4 Discharge Pipe Temperature Control.....................................................38
3.5 Input Current Control..............................................................................39
3.6 Freeze-up Protection Control .................................................................40
3.7 Heating Peak-cut Control .......................................................................40
3.8 Fan Control.............................................................................................41
3.9 Liquid Compression Protection Function 2.............................................41
3.10 Defrost Control .......................................................................................41
3.11 Electronic Expansion Valve Control .......................................................43
3.12 Malfunctions ...........................................................................................46
3.13 Forced Operation Mode .........................................................................47
3.14 Additional Function.................................................................................48
3.15 Facility Setting Switch (cooling at low outdoor temperature)..................49

SiBE06-708
Table of Contents iii
Part 5 System Configuration....................................................... 51
1. System Configuration............................................................................52
2. Instruction..............................................................................................53
2.1 Safety Precautions .................................................................................53
2.2 Names of Parts.......................................................................................55
2.3 Preparation Before Operation ................................................................58
2.4 AUTO • DRY • COOL • HEAT • FAN Operation .....................................61
2.5 Adjusting the Air Flow Direction .............................................................63
2.6 POWERFUL Operation ..........................................................................65
2.7 OUTDOOR UNIT QUIET Operation.......................................................66
2.8 ECONO Operation .................................................................................67
2.9 TIMER Operation ...................................................................................68
2.10 WEEKLY TIMER Operation ...................................................................70
2.11 Care and Cleaning .................................................................................75
2.12 Troubleshooting......................................................................................78
Part 6 Service Diagnosis............................................................. 81
1. Caution for Diagnosis............................................................................82
2. Problem Symptoms and Measures .......................................................83
3. Service Check Function ........................................................................84
4. Troubleshooting ....................................................................................87
4.1 Error Codes and Description ..................................................................87
4.2 Indoor Unit PCB Abnormality .................................................................88
4.3 Freeze-up Protection Control or High Pressure Control.........................89
4.4 Fan Motor (DC Motor) or Related Abnormality.......................................91
4.5 Thermistor or Related Abnormality (Indoor Unit)....................................93
4.6 Signal Transmission Error (between Indoor and Outdoor Units)............94
4.7 Unspecified Voltage (between Indoor and Outdoor Units) .....................96
4.8 Outdoor Unit PCB Abnormality...............................................................97
4.9 OL Activation (Compressor Overload) ...................................................98
4.10 Compressor Lock ...................................................................................99
4.11 DC Fan Lock ........................................................................................100
4.12 Input Over Current Detection ...............................................................101
4.13 Four Way Valve Abnormality................................................................104
4.14 Discharge Pipe Temperature Control...................................................108
4.15 High Pressure Control in Cooling .........................................................110
4.16 Compressor System Sensor Abnormality ............................................112
4.17 Position Sensor Abnormality ................................................................115
4.18 DC Voltage / Current Sensor Abnormality............................................116
4.19 CT or Related Abnormality ...................................................................117
4.20 Thermistor or Related Abnormality (Outdoor Unit)...............................119
4.21 Electrical Box Temperature Rise..........................................................121
4.22 Radiation Fin Temperature Rise ..........................................................123
4.23 Output Over Current Detection.............................................................127
4.24 Insufficient Gas.....................................................................................129
4.25 Low-voltage Detection or Over-voltage Detection................................133
4.26 Signal Transmission Error on Outdoor Unit PCB .................................135
5. Check ..................................................................................................136
5.1 How to Check .......................................................................................136

SiBE06-708
iv Table of Contents
Part 7 Removal Procedure ........................................................ 147
1. Indoor Unit...........................................................................................148
1.1 Removal of the Air Filter / Front Panel .................................................148
1.2 Removal of the Horizontal Blade..........................................................152
1.3 Removal of the Electrical Box ..............................................................153
1.4 Removal of the PCB.............................................................................155
1.5 Removal of the Vertical Blade ..............................................................159
1.6 Removal of the Heat Exchanger ..........................................................162
1.7 Removal of the Fan Rotor / Fan Motor.................................................163
2. Outdoor Unit : 50 Class.......................................................................165
2.1 Removal of the Panels and Plates .......................................................165
2.2 Removal of the Fan Motor / Propeller Fan ...........................................169
2.3 Removal of the Electrical Box ..............................................................173
2.4 Removal of the PCB.............................................................................177
2.5 Removal of the Sound Blanket.............................................................180
2.6 Removal of the Four Way Valve...........................................................182
2.7 Removal of the Compressor.................................................................184
Part 8 Others ............................................................................. 187
1. Others .................................................................................................188
1.1 Test Run from the Remote Controller ..................................................188
1.2 Jumper Settings ...................................................................................189
Part 9 Appendix......................................................................... 191
1. Piping Diagrams..................................................................................192
1.1 Indoor Units ..........................................................................................192
1.2 Outdoor Units .......................................................................................193
2. Wiring Diagrams..................................................................................195
2.1 Indoor Units ..........................................................................................195
2.2 Outdoor Units .......................................................................................196
Index ............................................................................................. i
Drawings & Flow Charts ................................................................ v

SiBE06-708 Introduction
v
1. Introduction
1.1 Safety Cautions
Cautions and
Warnings
Be sure to read the following safety cautions before conducting repair work.
The caution items are classified into “ Warning” and “ Caution”. The “ Warning”
items are especially important since they can lead to death or serious injury if they are not
followed closely. The “ Caution” items can also lead to serious accidents under some
conditions if they are not followed. Therefore, be sure to observe all the safety caution items
described below.

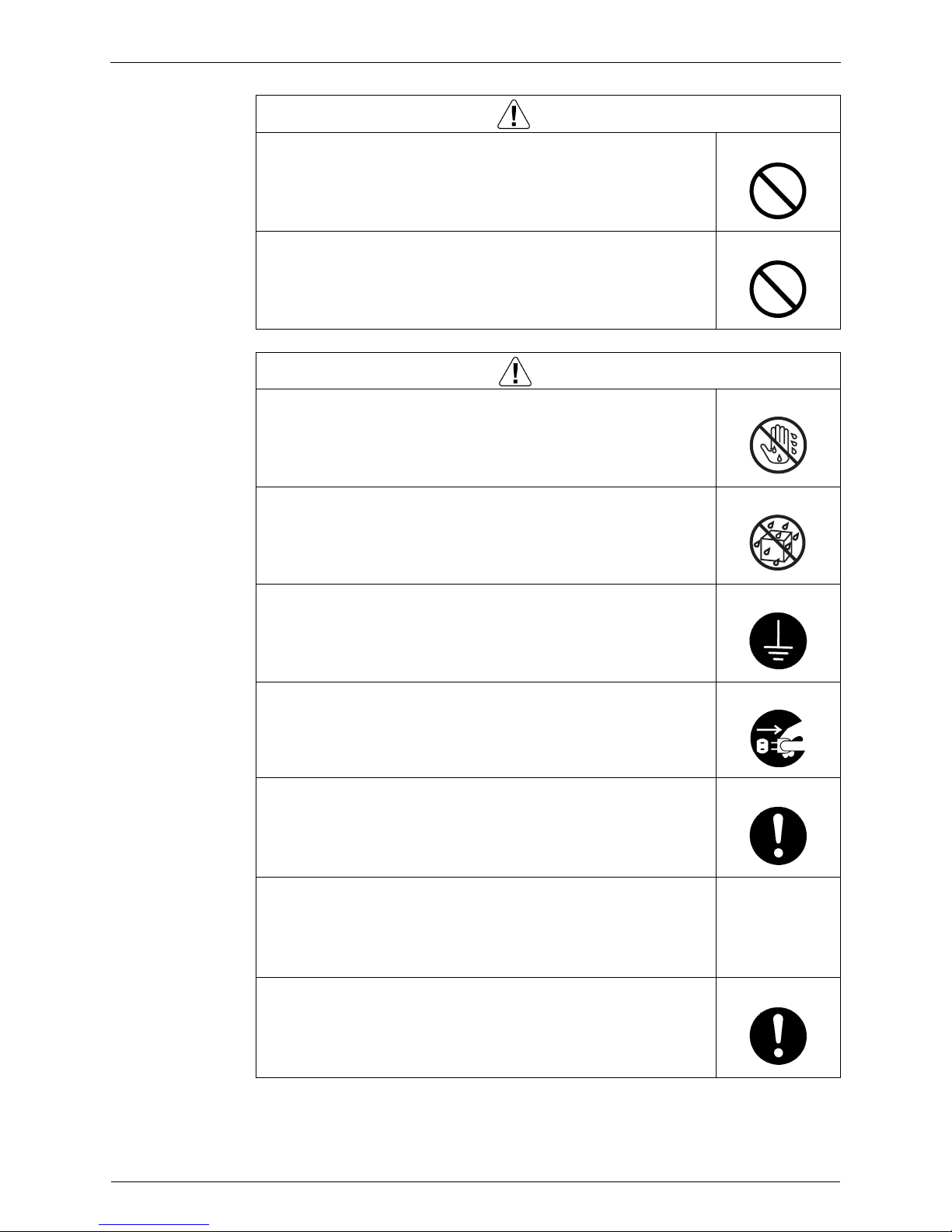

About the pictograms
This symbol indicates the item for which caution must be exercised.
The pictogram shows the item to which attention must be paid.
This symbol indicates the prohibited action.
The prohibited item or action is shown in the illustration or near the symbol.
This symbol indicates the action that must be taken, or the instruction.
The instruction is shown in the illustration or near the symbol.
After the repair work is complete, be sure to conduct a test operation to ensure that the
equipment operates normally, and explain the cautions for operating the product to the
customer.
1.1.1 Cautions Regarding Safety of Workers
Warning
Be sure to disconnect the power cable plug from the plug socket before
disassembling the equipment for repair.
Working on the equipment that is connected to the power supply may cause an
electrical shook.
If it is necessary to supply power to the equipment to conduct the repair or
inspecting the circuits, do not touch any electrically charged sections of the
equipment.
If the refrigerant gas is discharged during the repair work, do not touch the
discharged refrigerant gas.
The refrigerant gas may cause frostbite.
When disconnecting the suction or discharge pipe of the compressor at the
welded section, evacuate the refrigerant gas completely at a well-ventilated
place first.
If there is a gas remaining inside the compressor, the refrigerant gas or
refrigerating machine oil discharges when the pipe is disconnected, and it may
cause injury.
If the refrigerant gas leaks during the repair work, ventilate the area. The
refrigerant gas may generate toxic gases when it contacts flames.
The step-up capacitor supplies high-voltage electricity to the electrical
components of the outdoor unit.
Be sure to discharge the capacitor completely before conducting repair work.
A charged capacitor may cause an electrical shock.
Do not start or stop the air conditioner operation by plugging or unplugging the
power cable plug.
Plugging or unplugging the power cable plug to operate the equipment may
cause an electrical shock or fire.

Introduction SiBE06-708
vi
Be sure to wear a safety helmet, gloves, and a safety belt when working at a
high place (more than 2m). Insufficient safety measures may cause a fall
accident.
In case of R410A refrigerant models, be sure to use pipes, flare nuts and tools
for the exclusive use of the R410A refrigerant.
The use of materials for R22 refrigerant models may cause a serious accident
such as a damage of refrigerant cycle as well as an equipment failure.
Warning
Caution
Do not repair the electrical components with wet hands.
Working on the equipment with wet hands may cause an electrical shock.
Do not clean the air conditioner by splashing water.
Washing the unit with water may cause an electrical shock.
Be sure to provide the grounding when repairing the equipment in a humid or
wet place, to avoid electrical shocks.
Be sure to turn off the power switch and unplug the power cable when cleaning
the equipment.
The internal fan rotates at a high speed, and cause injury.
Be sure to conduct repair work with appropriate tools.
The use of inappropriate tools may cause injury.
Be sure to check that the refrigerating cycle section has cooled down enough
before conducting repair work.
Working on the unit when the refrigerating cycle section is hot may cause
burns.
Use the welder in a well-ventilated place.
Using the welder in an enclosed room may cause oxygen deficiency.

SiBE06-708 Introduction
vii
1.1.2 Cautions Regarding Safety of Users
Warning
Be sure to use parts listed in the service parts list of the applicable model and
appropriate tools to conduct repair work. Never attempt to modify the
equipment.
The use of inappropriate parts or tools may cause an electrical shock,
excessive heat generation or fire.
If the power cable and lead wires have scratches or deteriorated, be sure to
replace them.
Damaged cable and wires may cause an electrical shock, excessive heat
generation or fire.
Do not use a joined power cable or extension cable, or share the same power
outlet with other electrical appliances, since it may cause an electrical shock,
excessive heat generation or fire.
Be sure to use an exclusive power circuit for the equipment, and follow the local
technical standards related to the electrical equipment, the internal wiring
regulations, and the instruction manual for installation when conducting
electrical work.
Insufficient power circuit capacity and improper electrical work may cause an
electrical shock or fire.
Be sure to use the specified cable for wiring between the indoor and outdoor
units. Make the connections securely and route the cable properly so that there
is no force pulling the cable at the connection terminals.
Improper connections may cause excessive heat generation or fire.
When wiring between the indoor and outdoor units, make sure that the terminal
cover does not lift off or dismount because of the cable.
If the cover is not mounted properly, the terminal connection section may cause
an electrical shock, excessive heat generation or fire.
Do not damage or modify the power cable.
Damaged or modified power cable may cause an electrical shock or fire.
Placing heavy items on the power cable, and heating or pulling the power cable
may damage the cable.
Do not mix air or gas other than the specified refrigerant (R410A / R22) in the
refrigerant system.
If air enters the refrigerating system, an excessively high pressure results,
causing equipment damage and injury.
If the refrigerant gas leaks, be sure to locate the leaking point and repair it
before charging the refrigerant. After charging refrigerant, make sure that there
is no refrigerant leak.
If the leaking point cannot be located and the repair work must be stopped, be
sure to perform pump-down and close the service valve, to prevent the
refrigerant gas from leaking into the room. The refrigerant gas itself is
harmless, but it may generate toxic gases when it contacts flames, such as fan
and other heaters, stoves and ranges.
When relocating the equipment, make sure that the new installation site has
sufficient strength to withstand the weight of the equipment.
If the installation site does not have sufficient strength and if the installation
work is not conducted securely, the equipment may fall and cause injury.

Introduction SiBE06-708
viii
Check to make sure that the power cable plug is not dirty or loose, then insert
the plug into a power outlet securely.
If the plug has dust or loose connection, it may cause an electrical shock or fire.
Be sure to install the product correctly by using the provided standard
installation frame.
Incorrect use of the installation frame and improper installation may cause the
equipment to fall, resulting in injury.
For unitary type
only
Be sure to install the product securely in the installation frame mounted on the
window frame.
If the unit is not securely mounted, it may fall and cause injury.
For unitary type
only
When replacing the coin battery in the remote controller, be sure to disposed
of the old battery to prevent children from swallowing it.
If a child swallows the coin battery, see a doctor immediately.
Warning
Caution
Installation of a leakage breaker is necessary in some cases depending on the
conditions of the installation site, to prevent electrical shocks.
Do not install the equipment in a place where there is a possibility of
combustible gas leaks.
If the combustible gas leaks and remains around the unit, it may cause a fire.
Check to see if the parts and wires are mounted and connected properly, and
if the connections at the soldered or crimped terminals are secure.
Improper installation and connections may cause excessive heat generation,
fire or an electrical shock.
If the installation platform or frame has corroded, replace it.
Corroded installation platform or frame may cause the unit to fall, resulting in
injury.
Check the grounding, and repair it if the equipment is not properly grounded.
Improper grounding may cause an electrical shock.

SiBE06-708 Introduction
ix
1.2 Used Icons
Icons are used to attract the attention of the reader to specific information. The meaning of each
icon is described in the table below:
Be sure to measure the insulation resistance after the repair, and make sure
that the resistance is 1 MΩor higher.
Faulty insulation may cause an electrical shock.
Be sure to check the drainage of the indoor unit after the repair.
Faulty drainage may cause the water to enter the room and wet the furniture
and floor.
Do not tilt the unit when removing it.
The water inside the unit may spill and wet the furniture and floor.
Be sure to install the packing and seal on the installation frame properly.
If the packing and seal are not installed properly, water may enter the room and
wet the furniture and floor.
For unitary type
only
Caution
Icon Type of
Information
Description
Note:
Note A “note” provides information that is not indispensable, but may
nevertheless be valuable to the reader, such as tips and tricks.
Caution
Caution A “caution” is used when there is danger that the reader, through
incorrect manipulation, may damage equipment, loose data, get
an unexpected result or has to restart (part of) a procedure.
Warning
Warning A “warning” is used when there is danger of personal injury.
Reference A “reference” guides the reader to other places in this binder or
in this manual, where he/she will find additional information on a
specific topic.

Introduction SiBE06-708
x

SiBE06-708
List of Functions 1
Part 1
List of Functions
1. List of Functions ......................................................................................2

List of Functions SiBE06-708
2List of Functions
1. List of Functions
Category Functions
FVXS25/35/50FV1B RKS25/35/50F2V1B
Category Functions
FVXS25/35/50FV1B RKS25/35/50F2V1B
Basic
Function
Inverter (with Inverter Power Control) {Health &
Clean Air Purifying Filter —
Operation Limit for Cooling (°CDB)

1–10
~46
Operation Limit for Heating (°CWB) — Photocatalytic Deodorizing Filter —
PAM Control {Air Purifying Filter with Photocatalytic
Deodorizing Function —
Compressor Oval Scroll Compressor — Titanium Apatite Photocatalytic
Air-Purifying Filter {
Swing Compressor {
Rotary Compressor — Mold Proof Air Filter {
Reluctance DC Motor {Wipe-clean Flat Panel {
Comfortable
Airflow
Power-Airflow Flap — Mold Proof Operation —
Power-Airflow Dual Flaps — Heating Dry Operation —
Power-Airflow Diffuser — Washable Grille —
Wide-Angle Louvers {Good-Sleep Cooling Operation —
Vertical Auto-Swing (Up and Down) {Timer Weekly Timer {
Horizontal Auto-Swing (Right and Left) — 24-Hour On/Off Timer {
3-D Airflow — Night Set Mode {
Comfort Airflow Mode — Worry Free
“Reliability &
Durability”
Auto-Restart (after Power Failure) {
3-Step Airflow (H/P Only) {Self-Diagnosis (Digital, LED) Display {
Comfort
Control
Auto Fan Speed {Wiring Error Check —
Indoor Unit Quiet Operation {Anticorrosion Treatment of Outdoor
Heat Exchanger {
Night Quiet Mode (Automatic) —
Outdoor Unit Quiet Operation (Manual)
{Flexibility Multi-Split / Split Type Compatible
Indoor Unit {
Intelligent Eye —
Quick Warming Function — Flexible Voltage Correspondence —
Hot-Start Function — Chargeless 10m
Automatic Defrosting — Either Side Drain (Right or Left) —
Operation Automatic Operation — Power Selection —
Programme Dry Function {Remote
Control
5-Rooms Centralized Controller
(Option) {
Fan Only {Remote Control Adaptor
(Normal Open-Pulse Contact)
(Option)
{
Lifestyle
Convenience
New Powerful Operation (Non-Inverter) —
Inverter Powerful Operation {Remote Control Adaptor
(Normal Open Contact) (Option) {
Priority-Room Setting —
Cooling / Heating Mode Lock — DIII-NET Compatible (Adaptor)
(Option) {
Home Leave Operation — Remote
Controller
Wireless {
ECONO Mode {Wired —
Indoor Unit On/Off Switch {
Signal Reception Indicator {
Temperature Display —
Note: {: Holding Functions
— : No Functions
1: Lower limit can be extended to –15°C by cutting
jumper (25/35 class) or turning switch (50 class).
(facility use only)

SiBE06-708 List of Functions
List of Functions 3
Category Functions
FVXS25/35/50FV1B RXS25/35/50F2V1B
Category Functions
FVXS25/35/50FV1B RXS25/35/50F2V1B
Basic
Function
Inverter (with Inverter Power Control) {Health &
Clean Air Purifying Filter —
Operation Limit for Cooling (°CDB)

1–10
~46
Operation Limit for Heating (°CWB)
–15
~18
Photocatalytic Deodorizing Filter —
PAM Control {Air Purifying Filter with Photocatalytic
Deodorizing Function —
Compressor Oval Scroll Compressor — Titanium Apatite Photocatalytic
Air-Purifying Filter {
Swing Compressor {
Rotary Compressor — Mold Proof Air Filter {
Reluctance DC Motor {Wipe-clean Flat Panel {
Comfortable
Airflow
Power-Airflow Flap — Mold Proof Operation —
Power-Airflow Dual Flaps — Heating Dry Operation —
Power-Airflow Diffuser — Washable Grille —
Wide-Angle Louvers {Good-Sleep Cooling Operation —
Vertical Auto-Swing (Up and Down) {Timer Weekly Timer {
Horizontal Auto-Swing (Right and Left) — 24-Hour On/Off Timer {
3-D Airflow — Night Set Mode {
Comfort Airflow Mode — Worry Free
“Reliability &
Durability”
Auto-Restart (after Power Failure) {
3-Step Airflow (H/P Only) {Self-Diagnosis (Digital, LED) Display {
Comfort
Control
Auto Fan Speed {Wiring Error Check —
Indoor Unit Quiet Operation {Anticorrosion Treatment of Outdoor
Heat Exchanger {
Night Quiet Mode (Automatic) —
Outdoor Unit Quiet Operation (Manual)
{Flexibility Multi-Split / Split Type Compatible
Indoor Unit {
Intelligent Eye —
Quick Warming Function {Flexible Voltage Correspondence —
Hot-Start Function {Chargeless 10m
Automatic Defrosting {Either Side Drain (Right or Left) —
Operation Automatic Operation {Power Selection —
Programme Dry Function {Remote
Control
5-Rooms Centralized Controller
(Option) {
Fan Only {Remote Control Adaptor
(Normal Open-Pulse Contact)
(Option)
{
Lifestyle
Convenience
New Powerful Operation (Non-Inverter) —
Inverter Powerful Operation {Remote Control Adaptor
(Normal Open Contact) (Option) {
Priority-Room Setting —
Cooling / Heating Mode Lock — DIII-NET Compatible (Adaptor)
(Option) {
Home Leave Operation — Remote
Controller
Wireless {
ECONO Mode {Wired —
Indoor Unit On/Off Switch {
Signal Reception Indicator {
Temperature Display —
Note: {: Holding Functions
— : No Functions
1: Lower limit can be extended to –15°C by cutting
jumper (25/35 class) or turning switch (50 class).
(facility use only)

List of Functions SiBE06-708
4List of Functions

SiBE06-708
Specifications 5
Part 2
Specifications
1. Specifications ..........................................................................................6
1.1 Cooling Only.............................................................................................6
1.2 Heat Pump ...............................................................................................8

Specifications SiBE06-708
6Specifications
1. Specifications
1.1 Cooling Only
Note: The data are based on the conditions shown in the table below.
SL : The silent fan level of the air flow rate setting.
50Hz 220-230-240V
Model Indoor Units FVXS25FV1B FVXS35FV1B
Outdoor Units RKS25F2V1B RKS35F2V1B
Capacity
Rated (Min.~Max.)
kW 2.5 (1.3~3.0) 3.5 (1.40~3.80)
Btu/h 8,500 (4,400~10,200) 11,900 (4,800~13,000)
kcal/h 2,150 (1,120~2,580) 3,010 (1,200~3,270)
Moisture Removal L/h 1.2 1.9
Running Current (Rated) A 3.5-3.3-3.2 4.9-4.7-4.5
Power Consumption
Rated (Min.~Max.) W 570 (300~920) 1,020 (300~1,250)
Power Factor % 74.0-75.1-74.2 94.6-94.4-94.4
COP (Rated) W/W 4.39 3.43
Piping
Connections
Liquid mm φ 6.4 φ 6.4
Gas mm φ 9.5 φ 9.5
Drain mm φ 20.0 φ 20.0
Heat Insulation Both Liquid and Gas Pipes Both Liquid and Gas Pipes
Max. Interunit Piping Length m 20 20
Max. Interunit Height Difference m 15 15
Chargeless m 10 10
Amount of Additional Charge of
Refrigerant g/m 20 20
Indoor Unit FVXS25FV1B FVXS35FV1B
Front Panel Color White White
Air Flow Rate m³/min
(cfm)
H 8.2 (290) 8.5 (300)
M 6.5 (229) 6.7 (237)
L 4.8 (169) 4.9 (174)
SL 4.1 (146) 4.5 (158)
Fan
Type Turbo Fan Turbo Fan
Motor Output W 48 48
Speed Steps 5 Steps, Quiet, Auto 5 Steps, Quiet, Auto
Air Direction Control Right, Left, Horizontal, Downward Right, Left, Horizontal, Downward
Air Filter Removable / Washable / Mildew Proof Removable / Washable / Mildew Proof
Running Current A 0.14-0.13-0.12 0.14-0.13-0.12
Power Consumption W 15 15
Power Factor % 48.7-50.2-52.1 48.7-50.2-52.1
Temperature Control Microcomputer Control Microcomputer Control
Dimensions (H×W×D) mm 600×700×210 600×700×210
Packaged Dimensions (H×W×D) mm 696×786×286 696×786×286
Weight kg 14 14
Gross Weight kg 18 18
Operation
Sound H/M/L/SL dBA 38 / 32 / 26 / 23 39 / 33 / 27 / 24
Sound Power H dBA 54 55
Outdoor Unit RKS25F2V1B RKS35F2V1B
Casing Color Ivory White Ivory White
Compressor
Type Hermetically Sealed Swing Type Hermetically Sealed Swing Type
Model 1YC23NXD 1YC23NXD
Motor Output W 600 600
Refrigerant
Oil
Model FVC50K FVC50K
Charge L 0.375 0.375
Refrigerant Model R-410A R-410A
Charge kg 1.0 1.0
Air Flow Rate m³/min (cfm) H 33.5 (1,183) 33.5 (1,183)
L 23.4 (826) 23.4 (826)
Fan Type Propeller Propeller
Motor Output W 23 23
Running Current A 3.4-3.2-3.1 4.8-4.6-4.4
Power Consumption W 555 1,005
Power Factor % 74.2-75.4-74.6 95.1-95.0-95.1
Starting Current A 3.5 4.9
Dimensions (H×W×D) mm 550×765×285 550×765×285
Packaged Dimensions (H×W×D) mm 617×882×363 617×882×363
Weight kg 34 34
Gross Weight kg 40 40
Operation
Sound H/L dBA 46 / 43 47 / 44
Sound Power H dBA 61 62
Drawing No. 3D056295 3D056296
Conversion Formulae
kcal/h=kW×860
Btu/h=kW×3414
cfm=m³/min×35.3
Cooling Piping Length
Indoor ; 27°CDB/19°CWB
Outdoor ; 35°CDB/24°CWB 7.5m

SiBE06-708 Specifications
Specifications 7
Note: The data are based on the conditions shown in the table below.
SL : The silent fan level of the air flow rate setting.
50Hz 220-230-240V
Model Indoor Units FVXS50FV1B
Outdoor Units RKS50F2V1B
Capacity
Rated (Min.~Max.)
kW 5.0 (1.4~5.9)
Btu/h 17,100 (4,800~19,100)
kcal/h 4,300 (1,200~4,820)
Moisture Removal L/h 2.9
Running Current (Rated) A 7.2-6.8-6.6
Power Consumption
Rated (Min.~Max.) W 1,550 (500~2,000)
Power Factor % 99.2-99.1-99.4
COP (Rated) W/W 3.23
Piping
Connections
Liquid mm φ 6.4
Gas mm φ 12.7
Drain mm φ 20.0
Heat Insulation Both Liquid and Gas Pipes
Max. Interunit Piping Length m 30
Max. Interunit Height Difference m 20
Chargeless m 10
Amount of Additional Charge of
Refrigerant g/m 20
Indoor Unit FVXS50FV1B
Front Panel Color White
Air Flow Rate m³/min
(cfm)
H 10.7 (378)
M 9.2 (326)
L 7.8 (274)
SL 6.6 (233)
Fan
Type Turbo Fan
Motor Output W 48
Speed Steps 5 Steps, Quiet, Auto
Air Direction Control Right, Left, Horizontal, Downward
Air Filter Removable / Washable / Mildew Proof
Running Current A 0.18-0.17-0.16
Power Consumption W 27
Power Factor % 68.1-69.1-70.3
Temperature Control Microcomputer Control
Dimensions (H×W×D) mm 600×700×210
Packaged Dimensions (H×W×D) mm 696×786×286
Weight kg 14
Gross Weight kg 18
Operation
Sound H/M/L/SL dBA 44 / 40 / 36 / 32
Sound Power H dBA 56
Outdoor Unit RKS50F2V1B
Casing Color Ivory White
Compressor
Type Hermetically Sealed Swing Type
Model 2YC36BXD
Motor Output W 1,100
Refrigerant
Oil
Model FVC50K
Charge L 0.65
Refrigerant Model R-410A
Charge kg 1.5
Air Flow Rate m³/min (cfm)
HH 50.9 (1,797)
H 48.9 (1,727)
L 41.7 (1,472)
Fan Type Propeller
Motor Output W 53
Running Current A 7.02-6.64-6.44
Power Consumption W 1,523
Power Factor % 98.6-99.7-98.5
Starting Current A 7.2
Dimensions (H×W×D) mm 735×825×300
Packaged Dimensions (H×W×D) mm 797×960×390
Weight kg 48
Gross Weight kg 52
Operation
Sound H/L dBA 47 / 44
Sound Power H dBA 61
Drawing No. 3D056297
Conversion Formulae
kcal/h=kW×860
Btu/h=kW×3414
cfm=m³/min×35.3
Cooling Piping Length
Indoor ; 27°CDB/19°CWB
Outdoor ; 35°CDB/24°CWB 7.5m

Specifications SiBE06-708
8Specifications
1.2 Heat Pump
Note: The data are based on the conditions shown in the table below.
SL : The silent fan level of the air flow rate setting.
50Hz 220-230-240V
Model
Indoor Units FVXS25FV1B FVXS35FV1B
Outdoor Units RXS25F2V1B RXS35F2V1B
Cooling Heating Cooling Heating
Capacity
Rated (Min.~Max.)
kW 2.5 (1.3~3.0) 3.4 (1.3~4.5) 3.5 (1.4~3.8) 4.5 (1.4~5.0)
Btu/h 8,500 (4,400~10,200) 11,600 (4,400~17,100) 11,900 (4,800~13,000) 15,400 (4,800~17,100)
kcal/h 2,150 (1,120~2,580) 2,920 (1,120~4,300) 3,010 (1,200~3,270) 3,870 (1,200~4,300)
Moisture Removal L/h 1.2 — 1.9 —
Running Current Rated A 3.5-3.3-3.2 4.5-4.3-4.1 4.9-4.7-4.5 5.9-5.6-5.4
Power Consumption
Rated (Min.~Max.) W 570 (300~920) 790 (290~1,390) 1,020 (300~1,250) 1,220 (310~1,880)
Power Factor % 74.0-75.1-74.2 79.8-79.9-80.3 94.6-94.4-94.4 94.0-94.7-94.1
COP
Rated (Min.~Max.) W/W 4.39 4.30 3.43 3.69
Piping
Connections
Liquid mm φ 6.4 φ 6.4
Gas mm φ9.5 φ9.5
Drain mm φ20 φ20
Heat Insulation Both Liquid and Gas Pipes Both Liquid and Gas Pipes
Max. Interunit Piping Length m 20 20
Max. Interunit Height Difference m 15 15
Chargeless m 10 10
Amount of Additional Charge of
Refrigerant g/m 20 20
Indoor Unit FVXS25FV1B FVXS35FV1B
Front Panel Color White White
Air Flow Rate m³/min
(cfm)
H 8.2 (290) 8.8 (311) 8.5 (300) 9.4 (332)
M 6.5 (229) 6.9 (244) 6.7 (237) 7.3 (258)
L 4.8 (169) 5.0 (178) 4.9 (174) 5.2 (184)
SL 4.1 (146) 4.4 (155) 4.5 (158) 4.7 (168)
Fan
Type Turbo Fan Turbo Fan
Motor Output W 48 48
Speed Steps 5 Steps, Quiet, Auto 5 Steps, Quiet, Auto
Air Direction Control Right, Left, Horizontal, Downward Right, Left, Horizontal, Downward
Air Filter Removable / Washable / Mildew Proof Removable / Washable / Mildew Proof
Running Current (Rated) A 0.14-0.13-0.12 0.15-0.14-0.13 0.14-0.13-0.12 0.15-0.14-0.13
Power Consumption (Rated) W 15 17 15 17
Power Factor % 48.7-50.2-52.1 51.5-52.8-54.5 48.7-50.2-52.1 51.5-52.8-54.5
Temperature Control Microcomputer Control Microcomputer Control
Dimensions (H×W×D) mm 600×700×210 600×700×210
Packaged Dimensions (H×W×D) mm 696×786×286 696×786×286
Weight kg 14 14
Gross Weight kg 18 18
Operation
Sound H/M/L/SL dBA 38 / 32 / 26 / 23 38 / 32 / 26 / 23 39 / 33 / 27 / 24 39 / 33 / 27 / 24
Sound Power dBA 54 54 55 55
Sound Power H dBA 61 62 62 63
Outdoor Unit RXS25F2V1B RXS35F2V1B
Casing Color Ivory White Ivory White
Compressor
Type Hermetically Sealed Swing Type Hermetically Sealed Swing Type
Model 1YC23NXD 1YC23NXD
Motor Output W 600 600
Refrigerant
Oil
Model FVC50K FVC50K
Charge L 0.375 0.375
Refrigerant Model R-410A R-410A
Charge kg 1.0 1.0
Air Flow Rate m³/min (cfm) H 33.5 (1,183) 30.2 (1,066) 33.5 (1,183) 30.2 (1,066)
L 23.4 (826) 28.3 (999) 23.4 (826) 28.3 (999)
Fan Type Propeller Propeller
Motor Output W 23 23
Running Current (Rated) A 3.4-3.2-3.1 4.4-4.2-4.0 4.8-4.6-4.4 5.8-5.5-5.3
Power Consumption (Rated) W 555 773 1,005 1,203
Power Factor (Rated) % 74.2-75.4-74.6 80.3-80.0-80.5 95.1-95.0-95.1 94.3-95.1-94.6
Starting Current A 4.5 5.9
Dimensions (H×W×D) mm 550×765×285 550×765×285
Packaged Dimensions (H×W×D) mm 617×882×363 617×882×363
Weight kg 34 34
Gross Weight kg 40 40
Operation
Sound H/L dBA 46 / 43 47 / 44 47 / 44 48 / 45
Sound Power dBA 54 54 55 55
Sound Power H dBA 61 62 62 63
Drawing No. 3D056274 3D056275
Conversion Formulae
kcal/h=kW×860
Btu/h=kW×3414
cfm=m³/min×35.3
Cooling Piping Length
Indoor ; 27°CDB/19°CWB
Outdoor ; 35°CDB/24°CWB 7.5m

SiBE06-708 Specifications
Specifications 9
Note: The data are based on the conditions shown in the table below.
SL : The silent fan level of the air flow rate setting.
50Hz 220-230-240V
Model
Indoor Units FVXS50FV1B
Outdoor Units RXS50F2V1B
Cooling Heating
Capacity
Rated (Min.~Max.)
kW 5.0 (1.4~5.6) 5.8 (1.4~8.1)
Btu/h 17,100 (4,800~19,100) 19,800 (4,800~27,600)
kcal/h 4,300 (1,200~4,820) 4,990 (1,200~6,970)
Moisture Removal L/h 2.9 —
Running Current (Rated) A 7.2-6.8-6.6 7.3-7.0-6.7
Power Consumption
Rated (Min.~Max.) W 1,550 (500~2,000) 1,600 (500~2,600)
Power Factor % 99.2-99.1-99.4 99.6-99.3-99.5
COP (Rated) W/W 3.23 3.63
Piping
Connections
Liquid mm φ 6.4
Gas mm φ 12.7
Drain mm φ 20.0
Heat Insulation Both Liquid and Gas Pipes
Max. Interunit Piping Length m 30 30
Max. Interunit Height Difference m 20 20
Chargeless m 10 10
Amount of Additional Charge of
Refrigerant g/m 20 20
Indoor Unit FVXS50FV1B
Front Panel Color White
Air Flow Rate m³/min
(cfm)
H 10.7 (378) 11.8 (417)
M 9.2 (326) 10.1 (358)
L 7.8 (274) 8.5 (300)
SL 6.6 (233) 7.1 (250)
Fan
Type Turbo Fan
Motor Output W 48
Speed Steps 5 Steps, Quiet, Auto
Air Direction Control Right, Left, Horizontal, Upward
Air Filter Removable / Washable / Mildew Proof
Running Current A 0.18-0.17-0.16 0.20-0.19-0.18
Power Consumption W 27 34
Power Factor % 68.1-69.1-70.3 77.3-77.8-78.7
Temperature Control Microcomputer Control
Dimensions (H×W×D) mm 600×700×210
Packaged Dimensions (H×W×D) mm 696×786×286
Weight kg 14
Gross Weight kg 18
Operation
Sound H/M/L/SL dBA 44 / 40 / 36 / 32 45 / 40 / 36 / 32
Sound Power H dBA 56 57
Outdoor Unit RXS50F2V1B
Casing Color Ivory White
Compressor
Type Hermetically Sealed Swing Type
Model 2YC36BXD
Motor Output W 1,100
Refrigerant
Oil
Model FVC50K
Charge L 0.65
Refrigerant Model R-410A
Charge kg 1.5
Air Flow Rate m³/min (cfm)
HH 50.9 (1,797) —
H 48.9 (1,727) 45.0 (1,589)
L 41.7(1,472) 45.0 (1,589)
Fan Type Propeller
Motor Output W 53
Running Current A 7.02-6.64-6.44 7.14-6.83-6.54
Power Consumption W 1,523 1,566
Power Factor % 98.6-99.7-98.5 99.7-99.7-99.8
Starting Current A 7.3
Dimensions (H×W×D) mm 735×825×300
Packaged Dimensions (H×W×D) mm 797×960×390
Weight kg 48
Gross Weight kg 53
Operation
Sound H/L dBA 47 / 44 48 / 45
Sound Power H dBA 61 62
Drawing No. 3D056276
Conversion Formulae
kcal/h=kW×860
Btu/h=kW×3414
cfm=m³/min×35.3
Cooling Piping Length
Indoor ; 27°CDB/19°CWB
Outdoor ; 35°CDB/24°CWB 7.5m
