Daikin VRVIII-S Series Instruction manual

technical data
4-Way Blow Ceiling Suspended Cassette
FXUQ-MAV1_BEVQ-MAVE
air conditioning systems
EEDEN08-204
2e

•VRV
®Systems • Indoor Units 1
• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • FXUQ-MAV1
TABLE OF CONTENTS
FXUQ-MAV1
1 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Safety device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
4 Control systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
5 Capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cooling capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Heating capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . 7
Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

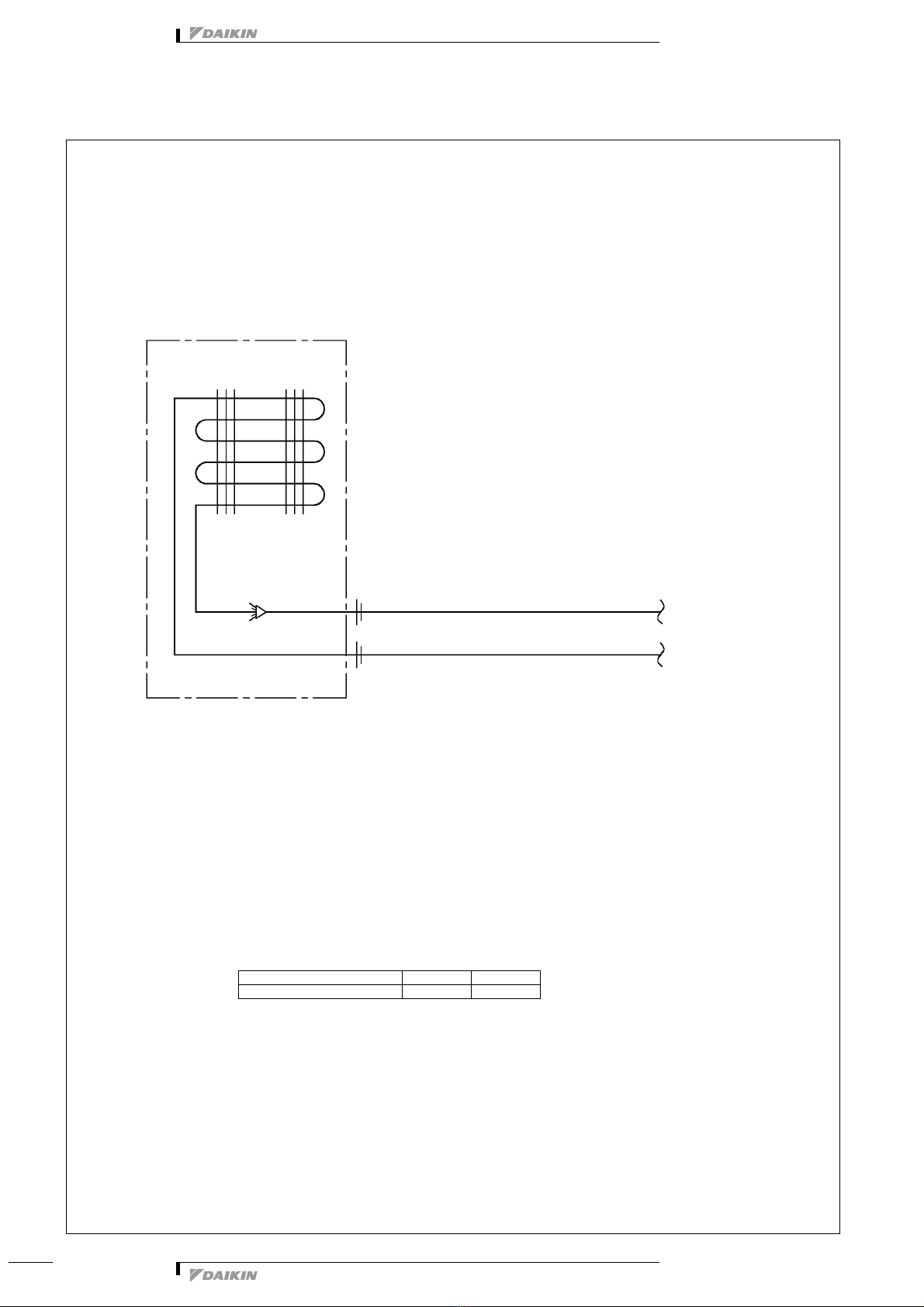

7 Piping diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

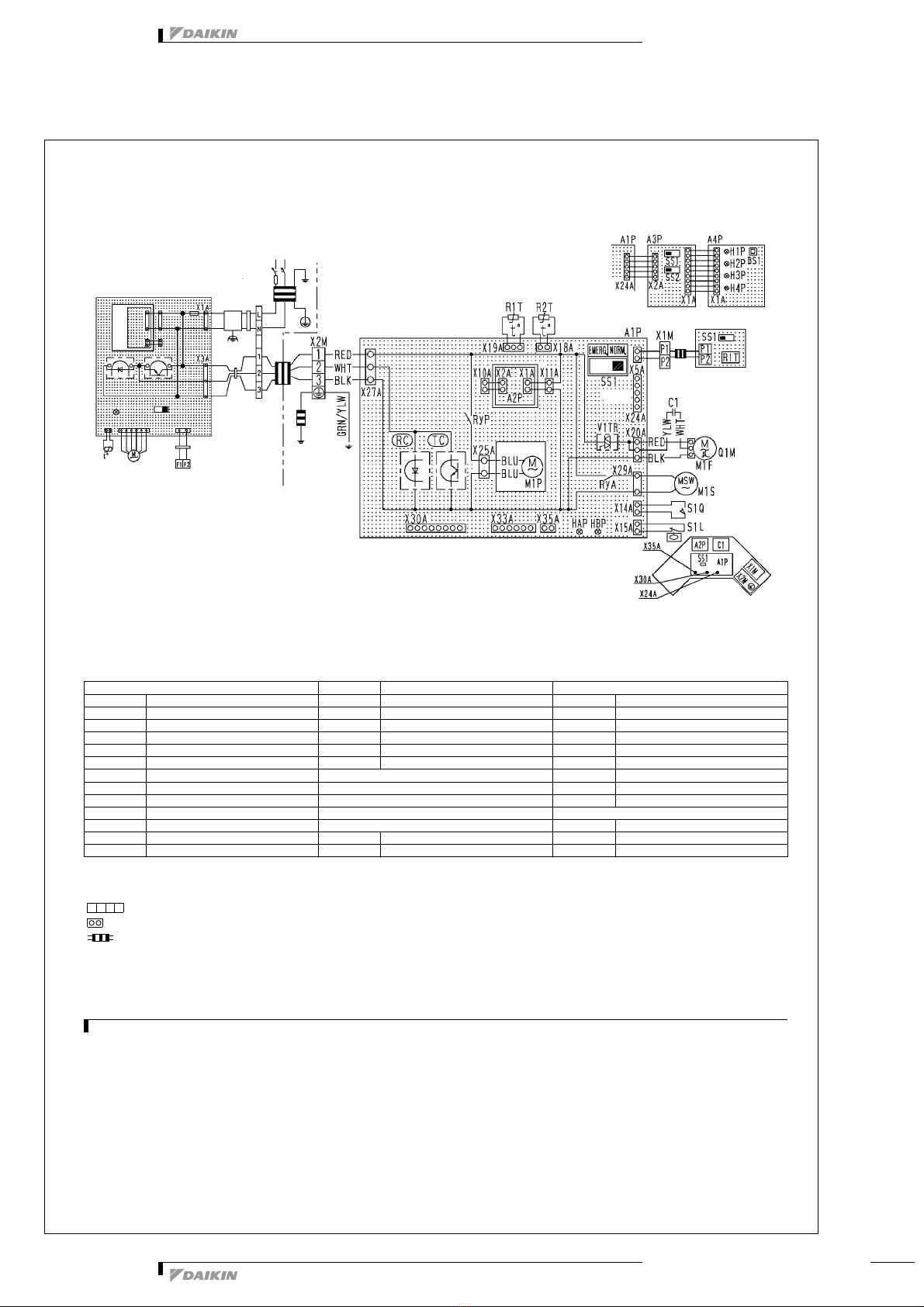

8 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
9 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

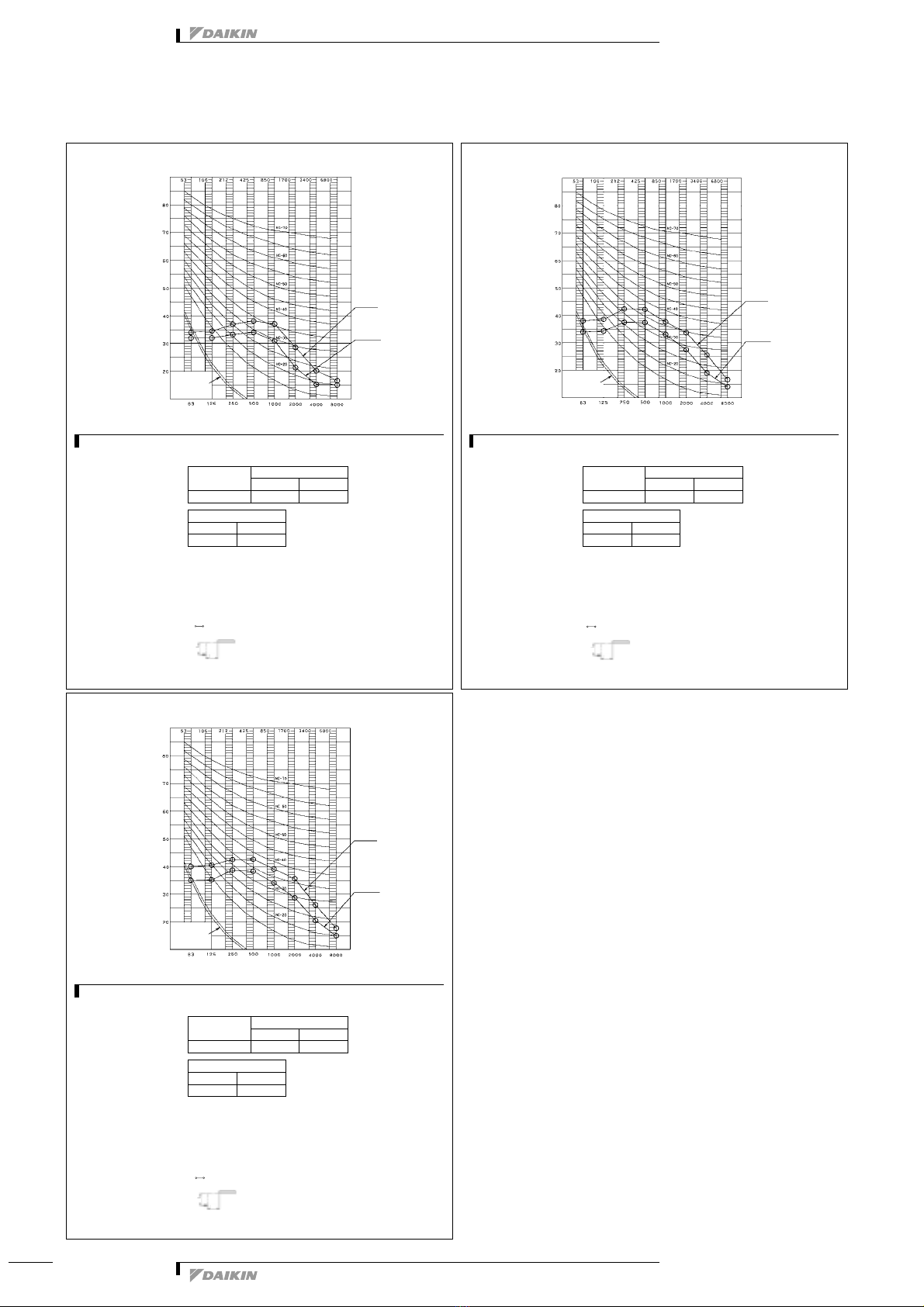

Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

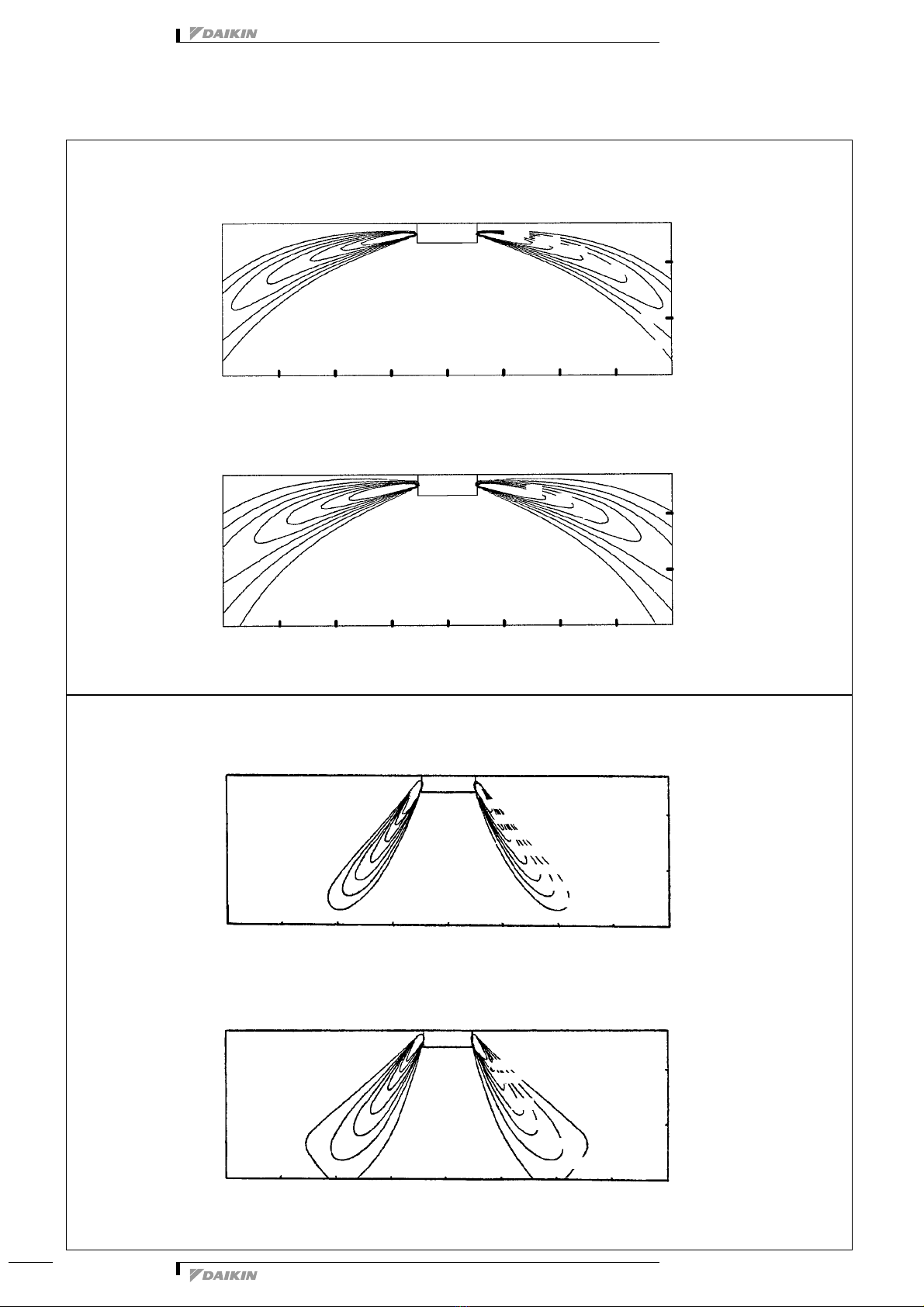

10 Air flow pattern. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
11 Junction box - BEVQ-MAVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

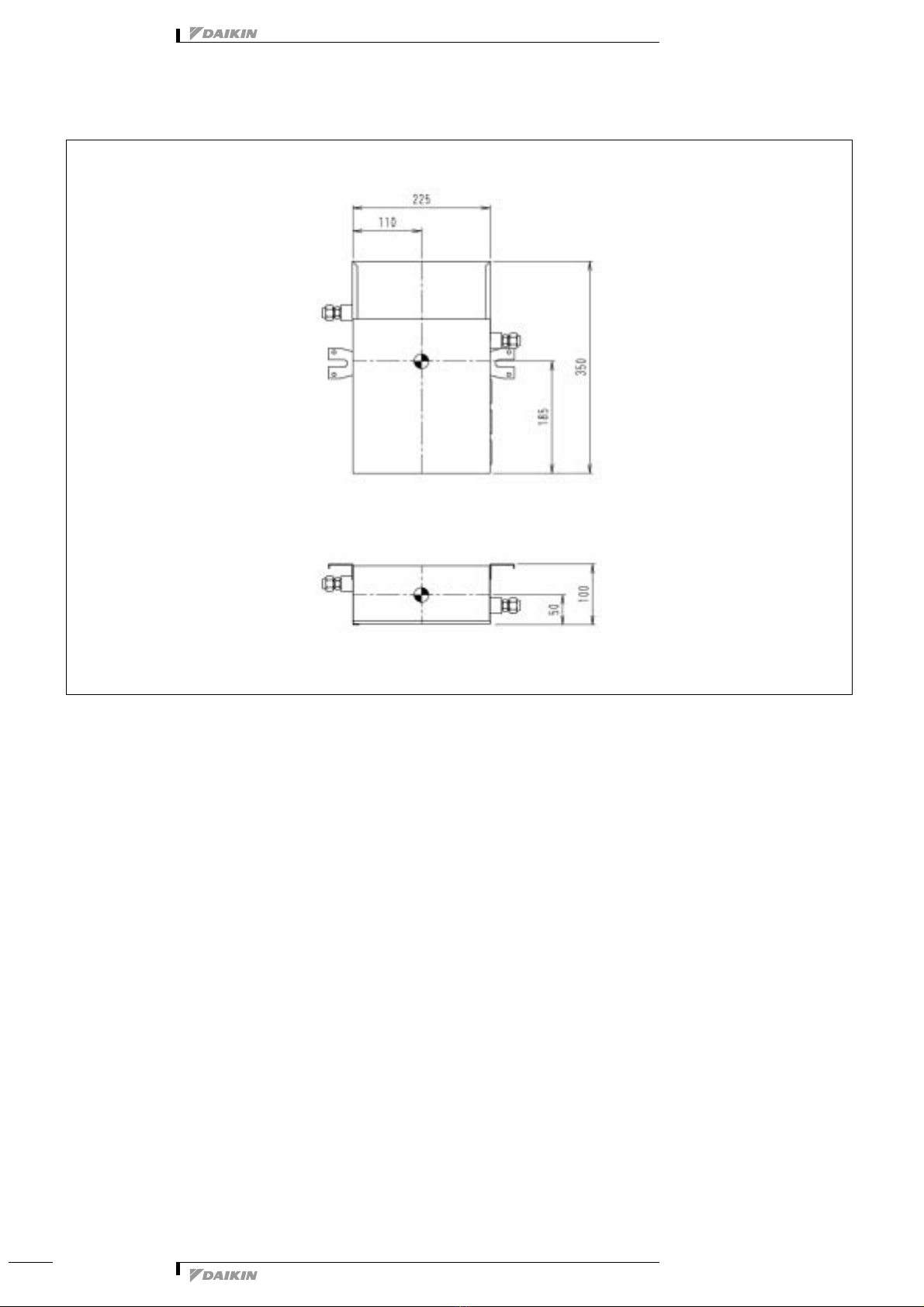

Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Piping diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

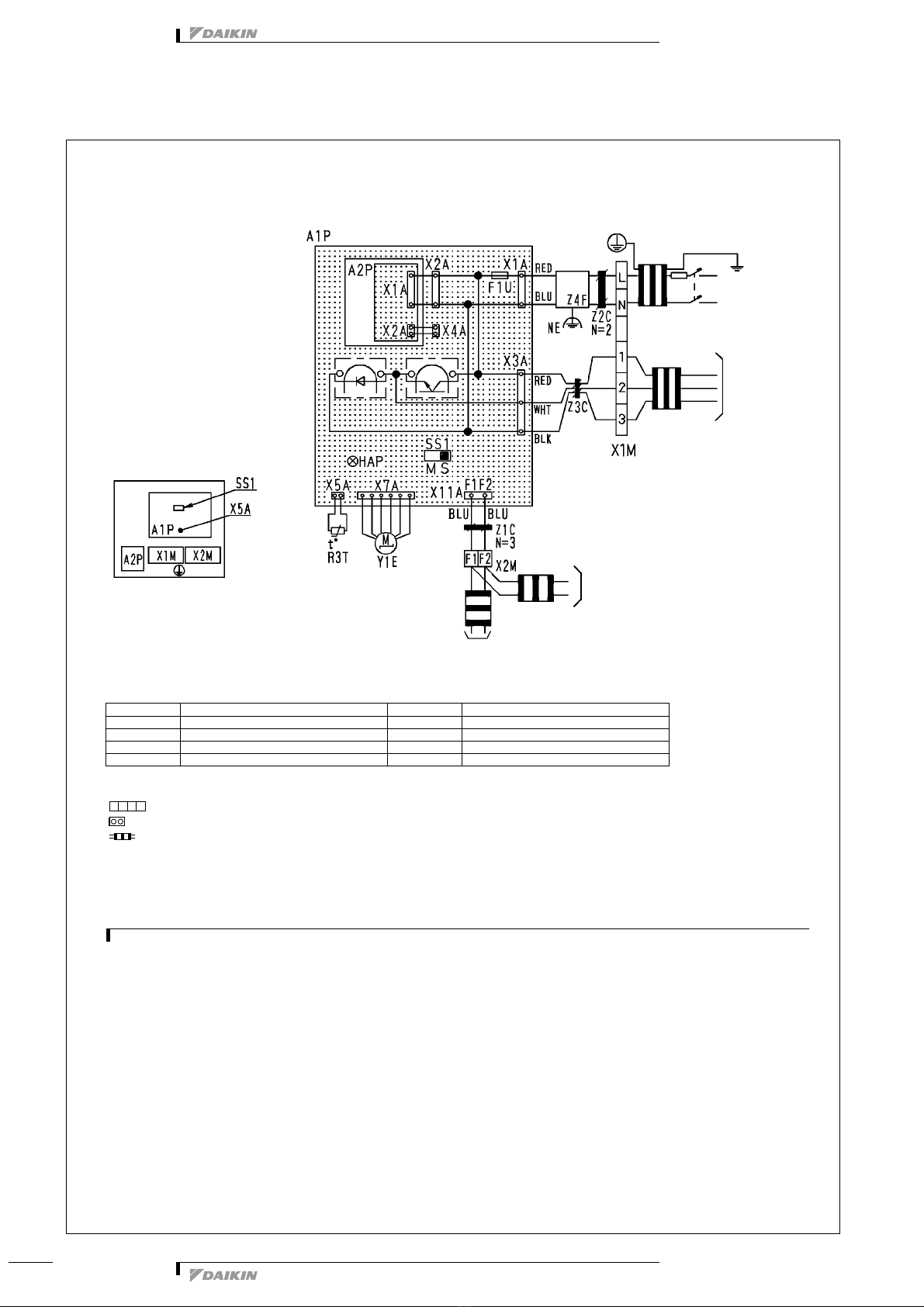

Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • FXUQ-MAV1
•VRV
®Systems • Indoor Units
2
1 Specifications
3
IndoorUnit VRV
®
Systems FXUQ-MAV1 4-WayBlow
1-1 TECHNICAL SPECIFICATIONS FXUQ71MAV1 FXUQ100MAV1 FXUQ125MAV1
Power input
(Nominal)
Cooling kW 0.180 0.289 0.289
Heating kW 0.160 0.269 0.269
Casing Colour White
Material Resin
Dimensions Packing Height mm 230 295 295
Width mm 960 960 960
Depth mm 960 960 960
Unit Height mm 165 230 230
Width mm 895 895 895
Depth mm 895 895 895
Weight Unit kg 25 31 31
Packed Unit kg 35 42 42
Heat
Exchanger
Dimensions Length mm 2101 2101 2101
Nr of Rows 3 3 3
Fin Pitch mm 1.50 1.50 1.50
Nr of Passes 8 8 12
Face
Area
m² 0.265 0.353 0.353
Nr of Stages 6 8 8
Empty Tubeplate
Hole
4
Fin Fin type Cross fin coil (Multi louver fins and N-hix tubes)
Fan Type Turbo fan
Quantity 111
Air Flow Rate Cooling High m³/min 19.00 29.00 32.00
Low m³/min 14.00 21.00 23.00
Heating High m³/min 19.00 29.00 32.00
Low m³/min 14.00 21.00 23.00
Fan Motor Steps 2 2 2
Output
(high)
W45 90 90
Refrigerant Name R-410A
Sound Level Cooling Sound
power
(nominal)
dBA 56.0 59.0 60.0
Cooling Sound
Pressure
High dBA 40.0 43.0 44.0
Low dBA 35.0 38.0 39.0
Heating Sound
Pressure
High dBA 40.0 43.0 44.0
Low dBA 35.0 38.0 39.0
Piping
connections
Liquid (OD) Type Flare connection
Diameter mm 9.5 9.5 9.5
Gas Type Flare connection
Diameter mm 15.9 15.9 15.9
Drain Diameter mm I.D. 20/O.D. 26
Heat Insulation Heat resistant foamed polyethylene, regular foamed polyethylene
Air Filter Resin net with mold resistance
Safety devices Fan motor thermal protector
Standard
Accessories
Standard Accessories Installation and operation manual
Drain hose
Clamp metal
Insulation for fitting
Sealing Pads
Clamps
Washer

•VRV
®Systems • Indoor Units 3
• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • FXUQ-MAV1
1 Specifications
3
2 Safety device settings
3 Options
1-2 ELECTRICAL SPECIFICATIONS FXUQ71MAV1 FXUQ100MAV1 FXUQ125MAV1
Power Supply Name V1
Phase 1 1 1
Frequency Hz 50 50 50
Voltage V 220-240
Current Full load amps (FLA) A 0.60 1.00 1.00
Note For more details concerning conditional connections, see http://extranet.daikineurope.com, select "E-Data Books”.
Finally, click on the document title of your choice.
4D013856E
FXUQ71MA FXUQ100MA FXUQ125MA
FAN MOTOR THERMAL PROTECTOR COFF:130
5
3D045452A
FXUQ71MA FXUQ100MA FXUQ125MA
SEALING MEMBER OF AIR DISCHARGE OUTLET KDBHJ49F80 KDBHJ49F140
DECORATION PANEL FOR AIR DISCHARGE KDBTJ49F80 KDBTJ49F140
VERTICAL FLAP KIT KDGJ49F80 KDGJ49F140
REPLACEMENT LONG-LIFE FILTER KAFJ495F140
L CONNECTION PIPING KIT KHFP49M140

• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • FXUQ-MAV1
•VRV
®Systems • Indoor Units
4
4 Control systems
3
Individual control systems
Centralised control systems
Others
3D045452A
NOTES
1KInstallation box for adapter PCB (KRP1B97) is necessary.
FXUQ71MA FXUQ100MA FXUQ125MA
WIRED REMOTE CONTROL BRC1D52
INFRARED REMOTE CONTROL Heat pump BRC7C528W
Cooling only BRC7C529W
FXUQ71MA FXUQ100MA FXUQ125MA
CENTRALISED REMOTE CONTROL DCS302B51
UNIFIED ON/OFF CONTROL DCS301B51
SCHEDULE TIMER DST301B51
FXUQ71MA FXUQ100MA FXUQ125MA
GROUP CONTROL ADAPTOR K1KRP4A53
INTERFACE ADAPTER FOR SKY AIR SERIES DTA102A52
INSTALLATION BOX FOR ADAPTER PCB KRP1B97
REMOTE SENSOR KRCS01-1
CONNECTOR FOR FORCED ON, FORCED OFF EKR0R0

•VRV
®Systems • Indoor Units 5
• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • FXUQ-MAV1
5 Capacity tables
5 - 1 Cooling capacity tables
3
FXUQ-MA
ED39335P11
TC: Total capacity;kW – SHC: Sensible capacity;kW
Unit size Nominal
capacity
Outdoor
air temp.
Indoor air temperature
14.0WB 16.0WB 18.0WB 19.0WB 20.0WB 22.0WB 24.0WB
20.0DB 23.0DB 26.0DB 27.0DB 28.0DB 30.0DB 32.0DB
CDBTCSHCTCSHCTCSHCTCSHCTCSHCTCSHCTCSHC
71 8.0 10.0 5.4 4.8 6.4 5.2 7.5 5.8 8.0 6.0 8.5 6.0 9.6 6.2 10.5 6.3
12.0 5.4 4.8 6.4 5.2 7.5 5.8 8.0 6.0 8.5 6.0 9.6 6.2 10.4 6.2
14.0 5.4 4.8 6.4 5.2 7.5 5.8 8.0 6.0 8.5 6.0 9.6 6.2 10.3 6.2
16.0 5.4 4.8 6.4 5.2 7.5 5.8 8.0 6.0 8.5 6.0 9.6 6.2 10.1 6.1
18.0 5.4 4.8 6.4 5.2 7.5 5.8 8.0 6.0 8.5 6.0 9.6 6.2 10.0 6.0
20.0 5.4 4.8 6.4 5.2 7.5 5.8 8.0 6.0 8.5 6.0 9.6 6.2 9.8 5.9
21.0 5.4 4.8 6.4 5.2 7.5 5.8 8.0 6.0 8.5 6.0 9.6 6.2 9.8 5.9
23.0 5.4 4.8 6.4 5.2 7.5 5.8 8.0 6.0 8.5 6.0 9.4 6.2 9.6 5.8
25.0 5.4 4.8 6.4 5.2 7.5 5.8 8.0 6.0 8.5 6.0 9.3 6.1 9.5 5.7
27.0 5.4 4.8 6.4 5.2 7.5 5.8 8.0 6.0 8.5 6.0 9.2 6.0 9.4 5.7
29.0 5.4 4.8 6.4 5.2 7.5 5.8 8.0 6.0 8.5 6.0 9.0 5.9 9.2 5.7
31.0 5.4 4.8 6.4 5.2 7.5 5.8 8.0 6.0 8.5 6.0 8.9 5.8 9.1 5.6
33.0 5.4 4.8 6.4 5.2 7.5 5.8 8.0 6.0 8.5 6.0 8.7 5.8 8.9 5.6
35.0 5.4 4.8 6.4 5.2 7.5 5.8 8.06.08.46.08.65.78.85.5
37.0 5.4 4.8 6.4 5.2 7.5 5.8 8.0 5.9 8.3 6.0 8.5 5.8 8.7 5.4
39.0 5.4 4.8 6.4 5.2 7.5 5.8 8.0 6.1 8.1 5.9 8.3 5.6 8.5 5.4
100 11.2 10.0 7.6 6.6 9.0 7.1 10.5 8.0 11.2 8.2 11.9 8.3 13.4 8.4 14.7 8.5
12.0 7.6 6.6 9.0 7.1 10.5 8.0 11.2 8.2 11.9 8.3 13.4 8.4 14.5 8.4
14.0 7.6 6.6 9.0 7.1 10.5 8.0 11.2 8.2 11.9 8.3 13.4 8.4 14.4 8.3
16.0 7.6 6.6 9.0 7.1 10.5 8.0 11.2 8.2 11.9 8.3 13.4 8.4 14.2 8.2
18.0 7.6 6.6 9.0 7.1 10.5 8.0 11.2 8.2 11.9 8.3 13.4 8.4 14.0 8.1
20.0 7.6 6.6 9.0 7.1 10.5 8.0 11.2 8.2 11.9 8.3 13.4 8.4 13.8 8.0
21.0 7.6 6.6 9.0 7.1 10.5 8.0 11.2 8.2 11.9 8.3 13.4 8.4 13.7 7.9
23.0 7.6 6.6 9.0 7.1 10.5 8.0 11.2 8.2 11.9 8.3 13.2 8.2 13.5 7.8
25.0 7.6 6.6 9.0 7.1 10.5 8.0 11.2 8.2 11.9 8.3 13.0 8.1 13.3 7.7
27.0 7.6 6.6 9.0 7.1 10.5 8.0 11.2 8.2 11.9 8.3 12.8 8.0 13.1 7.7
29.0 7.6 6.6 9.0 7.1 10.5 8.0 11.2 8.2 11.9 8.3 12.6 7.9 12.9 7.6
31.0 7.6 6.6 9.0 7.1 10.5 8.0 11.2 8.2 11.9 8.3 12.4 7.9 12.7 7.6
33.0 7.6 6.6 9.0 7.1 10.5 8.0 11.2 8.2 11.9 8.3 12.2 7.8 12.5 7.6
35.0 7.6 6.6 9.0 7.1 10.5 8.0 11.2 8.2 11.8 8.3 12.1 7.7 12.3 7.4
37.0 7.6 6.6 9.0 7.1 10.5 8.0 11.2 8.2 11.6 8.3 11.9 7.7 12.2 7.3
39.0 7.6 6.6 9.0 7.1 10.5 8.0 11.2 8.2 11.4 8.2 11.7 7.6 12.0 7.3
125 14.0 10.0 9.5 8.0 11.3 9.0 13.1 9.9 14.0 10.4 14.9 10.6 16.8 10.7 18.4 10.8
12.0 9.5 8.0 11.3 9.0 13.1 9.9 14.0 10.4 14.9 10.6 16.8 10.7 18.2 10.7
14.0 9.5 8.0 11.3 9.0 13.1 9.9 14.0 10.4 14.9 10.6 16.8 10.7 18.0 10.5
16.0 9.5 8.0 11.3 9.0 13.1 9.9 14.0 10.4 14.9 10.6 16.8 10.7 17.7 10.4
18.0 9.5 8.0 11.3 9.0 13.1 9.9 14.0 10.4 14.9 10.6 16.8 10.7 17.5 10.2
20.0 9.5 8.0 11.3 9.0 13.1 9.9 14.0 10.4 14.9 10.6 16.8 10.7 17.2 10.1
21.0 9.5 8.0 11.3 9.0 13.1 9.9 14.0 10.4 14.9 10.6 16.8 10.7 17.1 10.0
23.0 9.5 8.0 11.3 9.0 13.1 9.9 14.0 10.4 14.9 10.6 16.5 10.5 16.9 9.9
25.0 9.5 8.0 11.3 9.0 13.1 9.9 14.0 10.4 14.9 10.6 16.3 10.4 16.6 9.9
27.0 9.5 8.0 11.3 9.0 13.1 9.9 14.0 10.4 14.9 10.6 16.1 10.2 16.4 9.8
29.0 9.5 8.0 11.3 9.0 13.1 9.9 14.0 10.4 14.9 10.6 15.8 10.1 16.2 9.7
31.0 9.5 8.0 11.3 9.0 13.1 9.9 14.0 10.4 14.9 10.6 15.6 10.0 15.9 9.6
33.0 9.5 8.0 11.3 9.0 13.1 9.9 14.0 10.4 14.9 10.6 15.3 9.9 15.7 9.6
35.0 9.5 8.0 11.3 9.0 13.1 9.9 14.0 10.4 14.8 10.5 15.1 9.9 15.4 9.4
37.0 9.5 8.0 11.3 9.0 13.1 9.9 14.0 10.4 14.5 10.5 14.9 9.8 15.2 9.4
39.0 9.5 8.0 11.3 9.0 13.1 9.9 14.0 10.4 14.3 10.2 14.6 9.6 15.0 9.3

• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • FXUQ-MAV1
•VRV
®Systems • Indoor Units
6
5 Capacity tables
5 - 2 Heating capacity tables
3
FXUQ-MA
ED39335P12
Unit Size Nominal capacity
Outdoor
air temperature
Indoor air temperature CDB
16.0 18.0 20.0 21.0 22.0 24.0
CDB CWBkWkWkWkWkWkW
71 9.0 -19.8 -20.0 5.3 5.3 5.3 5.3 5.3 5.3
-18.8 -19.0 5.5 5.5 5.4 5.4 5.4 5.4
-16.7 -17.0 5.8 5.8 5.8 5.7 5.7 5.7
-14.7 -15.0 6.1 6.1 6.1 6.1 6.1 6.1
-12.6 -13.0 6.4 6.4 6.4 6.4 6.4 6.4
-10.5 -11.0 6.7 6.7 6.7 6.7 6.7 6.7
-9.5 -10.0 6.9 6.9 6.9 6.9 6.9 6.8
-8.5 -9.1 7.1 7.0 7.0 7.0 7.0 7.0
-7.0 -7.6 7.3 7.3 7.3 7.3 7.2 7.2
-5.0 -5.6 7.6 7.6 7.6 7.6 7.5 7.5
-3.0 -3.7 7.9 7.9 7.9 7.9 7.9 7.9
0.0 -0.7 8.4 8.4 8.3 8.3 8.3 7.9
3.0 2.2 8.9 8.8 8.8 8.7 8.4 7.9
5.0 4.1 9.1 9.1 9.0 8.7 8.4 7.9
7.0 6.0 9.5 9.4 9.0 8.7 8.4 7.9
9.0 7.9 9.8 9.6 9.0 8.7 8.4 7.9
11.0 9.8 10.1 9.6 9.0 8.7 8.4 7.9
13.0 11.8 10.1 9.6 9.0 8.7 8.4 7.9
15.0 13.7 10.1 9.6 9.0 8.7 8.4 7.9
100 12.5 -19.8 -20.0 7.4 7.4 7.3 7.3 7.3 7.3
-18.8 -19.0 7.6 7.6 7.6 7.5 7.5 7.5
-16.7 -17.0 8.0 8.0 8.0 8.0 8.0 8.0
-14.7 -15.0 8.5 8.5 8.4 8.4 8.4 8.4
-12.6 -13.0 8.9 8.9 8.9 8.9 8.9 8.8
-10.5 -11.0 9.4 9.3 9.3 9.3 9.3 9.3
-9.5 -10.0 9.6 9.6 9.5 9.5 9.5 9.5
-8.5 -9.1 9.8 9.8 9.7 9.7 9.7 9.7
-7.0 -7.6 10.1 10.1 10.1 10.1 10.1 10.0
-5.0 -5.6 10.6 10.5 10.5 10.5 10.5 10.5
-3.0 -3.7 11.0 11.0 10.9 10.9 10.9 10.9
0.0 -0.7 11.6 11.6 11.6 11.6 11.6 10.9
3.0 2.2 12.3 12.3 12.2 12.1 11.7 10.9
5.0 4.1 12.7 12.7 12.5 12.1 11.7 10.9
7.0 6.0 13.1 13.1 12.5 12.1 11.7 10.9
9.0 7.9 13.5 13.3 12.5 12.1 11.7 10.9
11.0 9.8 14.0 13.3 12.5 12.1 11.7 10.9
13.0 11.8 14.1 13.3 12.5 12.1 11.7 10.9
15.0 13.7 14.1 13.3 12.5 12.1 11.7 10.9
125 14.0 -19.8 -20.0 8.3 8.2 8.2 8.2 8.2 8.2
-18.8 -19.0 8.5 8.5 8.4 8.4 8.4 8.4
-16.7 -17.0 9.0 9.0 9.0 8.9 8.9 8.9
-14.7 -15.0 9.5 9.5 9.5 9.4 9.4 9.4
-12.6 -13.0 10.0 10.0 10.0 10.0 9.9 9.9
-10.5 -11.0 10.5 10.5 10.4 10.4 10.4 10.4
-9.5-10.010.810.710.710.710.710.6
-8.5 -9.1 11.0 10.9 10.9 10.9 10.9 10.8
-7.0 -7.6 11.3 11.3 11.3 11.3 11.2 11.2
-5.0 -5.6 11.8 11.8 11.8 11.8 11.7 11.7
-3.0 -3.7 12.3 12.3 12.3 12.2 12.2 12.2
0.0 -0.7 13.0 13.0 13.0 13.0 13.0 12.2
3.0 2.2 13.8 13.7 13.7 13.6 13.1 12.2
5.0 4.1 14.2 14.2 14.0 13.6 13.1 12.2
7.0 6.0 14.7 14.7 14.0 13.6 13.1 12.2
9.0 7.9 15.2 14.9 14.0 13.6 13.1 12.2
11.0 9.8 15.6 14.9 14.0 13.6 13.1 12.2
13.0 11.8 15.8 14.9 14.0 13.6 13.1 12.2
15.0 13.7 15.8 14.9 14.0 13.6 13.1 12.2

•VRV
®Systems • Indoor Units 7
• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • FXUQ-MAV1
6 Dimensional drawing & centre of gravity
6 - 1 Dimensional drawing
3
FXUQ71MA
3D013860D
790 Suspension position
Drain connection
location for upper
piping
Brand name plate (Note 2) 790 Suspension position
1500mm
or more
1500mm
or more
1500mm
or more
1500mm
or more
Required space
1000mm or more (Requierd space)
Height of suspension bracket
Suspension bolt
4-M3~M10
Drain pipe can
be raised up to 0mm from the top surface of the product.
Drain connection
location for rear
piping
When closing the discharge grill, the required space is
30mm or more. (Note 3)
50
NOTES
1 Location for manufacture’s label: on bell mouth.
2 This is where the signal of infrared remote control is received.
Refer to the drawing of infrared remote control in detail.
3 When closing the discharge grill (2 or 3 way discharge), direction of pipe
connection will be limited, please refer to Installation manual..
Nr Part name Description
1 Liquid pipe connection ø9.5 Flare connection
2 Gas pipe connection ø15.9 Flare connection
3 Drain pipe connection VP20
4Airoutlet
5 Air suction grille
6 Corner decoration cover
7 Right pipe/wiring connection
8 Rear pipe/wiring connection
9 Pipe through cover
10 Accessory drain elbow
FXUQ100-125MA
3D044898B
Drain connection
location for upper
piping
Drain connection
location for rear
piping
Drain pipe can be
raised up to 500mm from the top surface of the product.
Brand name plate (Note 2) 790 Suspension position
1500mm
or more
1500mm
or more
1500mm
or more
1500mm
or more
Required space
When closing the discharge grill, the required space is
30mm or more. (Note 3)
790 Suspension position
1000mm or more (Requierd space)
Height of suspension bracket
Suspension bolt
4-M3~M10
NOTES
1 Location for manufacture’s label: on bell mouth.
2 This is where the signal of infrared remote control is received.
Refer to the drawing of infrared remote control in detail.
3 When closing the discharge grill (2 or 3 way discharge), direction of pipe
connection will be limited, please refer to Installation manual..
Nr Part name Description
1 Liquid pipe connection ø9.5 Flare connection
2 Gas pipe connection ø15.9 Flare connection
3 Drain pipe connection VP20
4Airoutlet
5 Air suction grille
6 Corner decoration cover
7 Right pipe/wiring connection
8 Rear pipe/wiring connection
9 Pipe through cover
10 Accessory drain elbow

• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • FXUQ-MAV1
•VRV
®Systems • Indoor Units
8
7 Piping diagram
3
FXUQ-MA
4D037995F
Piping connection diameters
Models A B
FXUQ70,100,125MA ø9.5 ø15.9
Indoor heat exchanger
Indoor unit
Field piping ø A C1220T -0
Field piping ø B C1220T -0 To outdoor unit

•VRV
®Systems • Indoor Units 9
• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • FXUQ-MAV1
8 Wiring diagram
8 - 1 Wiring diagram
3
FXUQ-MA
3D044973A
Note 1
BEV unit
Power Supply
50
~
220-240V
Indoor unit
(Note 3)
Receiver/display unit
Wired remote
control
Control box
Note 5
NOTES
1 The BEV unit shows an outline, please refer to a wiring diagram of BEV unit pasting in detail.
2 In case using central remote control, connect it to the unit in accordance with the attached installation manual.
3 X24A is connected when the infrared remote control kit is being used.
4 Remote control model varies according to the combination system, confirm engineering materials and catalogs, etc. before connecting.
5 Confirm the method of setting the selector switch (SS1, SS2) of wired remote control and infrared remote control by installation manual and engineering data, etc.
Indoor Unit S1L Float switch Receiver/Display unit (Attached to infrared remote control)
A1P Printed circuit board SS1 Selector switch (Emergency) A3P Printed circuit board
A2P Printed circuit board (Transformer 220~240V/16V) V1TR Phase controle circuit A4P Printed circuit board
C1R Capacitor (M1F) X1M Terminal strip BS1 Push button (ON/OFF)
HAP Light emitting diode (Service monitor-green) X2M Terminal strip H1P Light emitting diode (ON-Red)
M1S Motor (Swing flap) RC Signal receiver H2P Light emitting diode (Timer-Green)
M1F Motor (Indoor fan) TC Signal transmission circuit H3P Light emitting diode (Filter sign-Red)
M1P Motor (Drain pump) H4P Light emitting diode (Defrost-Orange)
Q1M Thermo switch (M1F embedded) SS1 Selector switch (Main/Sub)
R1T Thermistor (Air) SS2 Selector switch (Wireless address set)
R2T Thermistor (Coil) Connector for optional parts
RYA Magnetic relay (M1A) Wired remote control X24A Connector (Infrafed remote control)
RYP Magnetic relay (M1P) R1T Thermistor (Air) X30A Connector (Interface adapter for sky air series)
S1Q Limit switch (Swing flap) SS1 Selector Switch (Main/Sub) X35A Connector (Group control adapter)
: Terminal
: Connector
: Field wiring
COLORS : RED : Red BLK : Black
WHT : White YLW : Yellow
GRN : Green BLU : Blue

• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • FXUQ-MAV1
•VRV
®Systems • Indoor Units
10
9 Sound data
9 - 1 Sound pressure spectrum
3
NOTES
1Overall(dB):
2 Power level (dB):
3 Measuring place: Anechoic chamber
4 Operating conditons:
• Power source: 230V 50Hz
• Cooling: Return air temperature: 27C DB, 19C WB; Outdoor temperature: 35C DB, 24C WB
• Heating: Return air temperature: 20C DB, 15C WB; Outdoor temperature: 7C DB, 6C WB
5 Directions discharge
6 Location of microphone
7 Operating noise differs with operation and ambient conditions.
FXUQ71MA 4D014037D
Approximate
threshold hearing for
continuous noise
Octave band center frequency (Hz)
Low (230V)
HI (230V)
Octave band sound pressure level dB (0 dB=0.0002μbar)
Scale 230V
Hi Low
A4035
230V
Hi Low
56 51
230V
1m
1m
NOTES
1Overall(dB):
2 Power level (dB):
3 Measuring place: Anechoic chamber
4 Operating conditons:
• Power source: 230V 50Hz
• Cooling: Return air temperature: 27C DB, 19C WB; Outdoor temperature: 35C DB, 24C WB
• Heating: Return air temperature: 20C DB, 15C WB; Outdoor temperature: 7C DB, 6C WB
5 Directions discharge
6 Location of microphone
7 Operating noise differs with operation and ambient conditions.
FXUQ100MA 4D0140038D
Approximate
threshold hearing for
continuous noise
Octave band center frequency (Hz)
Low (230V)
HI (230V)
Octave band sound pressure level dB (0 dB=0.0002μbar)
Scale 50 Hz 240V
Hi Low
A4338
230V
Hi Low
59 54
230V
1m
1m
NOTES
1Overall(dB):
2 Power level (dB):
3 Measuring place: Anechoic chamber
4 Operating conditons:
• Power source: 230V 50Hz
• Cooling: Return air temperature: 27C DB, 19C WB; Outdoor temperature: 35C DB, 24C WB
• Heating: Return air temperature: 20C DB, 15C WB; Outdoor temperature: 7C DB, 6C WB
5 Directions discharge
6 Location of microphone
7 Operating noise differs with operation and ambient conditions.
FXUQ125MA 4D0140039D
Approximate
threshold hearing for
continuous noise
Octave band center frequency (Hz)
Low (230V)
HI (230V)
Octave band sound pressure level dB (0 dB=0.0002μbar)
Scale 230V
Hi Low
A4439
230V
Hi Low
60 55
230V
1m
1m

•VRV
®Systems • Indoor Units 11
• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • FXUQ-MAV1
10 Air flow pattern
3
FXUQ71MA
Cooling - air velocity distribution
4-way discharge, air flow direction: horizontal
Cooling - air temperature distribution
4-way discharge, air flow direction: horizontal
4D028396C
2.0m/s
1.75m/s
1.5m/s
1.25m/s
1.0m/s
0.75m/s
0.5m/s
2.7m
2m
1m
0m
0m1m2m3m4m 1m 2m 3m 4m
20°C21°C22°C
23°C
24°C
25°C
26°C
0m1m2m3m4m 1m 2m 3m 4m
2.7m
2m
1m
0m
FXUQ100MA
Cooling - air velocity distribution
4-way discharge, air flow direction: horizontal
Cooling - air temperature distribution
4-way discharge, air flow direction: horizontal
4D028397C
2.0m/s 1.75m/s 1.5m/s
1.25m/s
1.0m/s
0.75m/s
0.5m/s
2.7m
2m
1m
0m
0m1m2m3m4m 1m 2m 3m 4m
2.7m
2m
1m
0m
20°C21°C
22°C
23°C
24°C
25°C
26°C
0m1m2m3m4m 1m 2m 3m 4m

• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • FXUQ-MAV1
•VRV
®Systems • Indoor Units
12
10 Air flow pattern
3
FXUQ125MA
Cooling - air velocity distribution
4-way discharge, air flow direction: horizontal
Cooling - air temperature distribution
4-way discharge, air flow direction: horizontal
4D028398C
11
1
1
0m1m2m3m4m 1m 2m 3m 4m
2.0m/s .75m/s .5m/s
.25m/s
.0m/s
0.75m/s
0.5m/s
2.7m
2m
1m
0m
20°C21°C
22°C
23°C
24°C
25°C
26°C
0m1m2m3m4m 1m 2m 3m 4m
2
.
7
m
2m
1m
0m
FXUQ71MA
Heating - air velocity distribution
4-way discharge, air flow direction: down
Heating - air temperature distribution
4-way discharge, air flow direction: down
4D013863D
0m1m2m3m4m 1m 2m 3m 4m
2.0m/s
1.75m/s
1.5m/s
1.25m/s
1.0m/s
0.75m/s
0.5m/s
2.7m
2m
1m
0m
32°C
30°C
28°C
26°C
24°C
22°C
0m1m2m3m4m 1m 2m 3m 4m
2.7m
2m
1m
0m

•VRV
®Systems • Indoor Units 13
• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • FXUQ-MAV1
10 Air flow pattern
3
FXUQ100MA
Heating - air velocity distribution
4-way discharge, air flow direction: down
Heating - air temperature distribution
4-way discharge, air flow direction: down
4D014054D
0m1m2m3m4m 1m 2m 3m 4m
2.0m/s
1.75m/s
1.5m/s
1.25m/s
1.0m/s
0.75m/s
0.5m/s
2.7m
2m
1m
0m
32°C
30°C
28°C
26°C
24°C
22°C
0m1m2m3m4m 1m 2m 3m 4m
2.7m
2m
1m
0m
FXUQ125MA
Heating - air velocity distribution
4-way discharge, air flow direction: down
Heating - air temperature distribution
4-way discharge, air flow direction: down
4D014055D
0m1m2m3m4m 1m 2m 3m 4m
2.0m/s
1.75m/s
1.5m/s
1.25m/s
1.0m/s
0.75m/s 0.5m/s
2.7m
2m
1m
0m
32°C
30°C
28°C
26°C24°C22°C
0m1m2m3m4m 1m 2m 3m 4m
2.7m
2m
1m
0m

• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • BEVQ-MAVE
• VRV Systems • Indoor Units
14
11 Junction box - BEVQ-MAVE
11 - 1 Specifications
3
IndoorUnit VRVSystems BEVQ-MAVE 4-WayBlow
11-1-1Technical Specifications BEVQ71MAVE BEVQ100MAVE BEVQ125MAVE
Power input
(Nominal)
Cooling kW 0.189 0.298 0.298
Heating kW 0.169 0.278 0.278
Casing Material Galvanised steel plate
Dimensions Packing Height mm 100 100 100
Width mm 350 350 350
Depth mm 225 225 225
Sound absorbing thermal insulation material Flame and heat resistant foamed polyetherene
Weight Unit kg 3.0 3.0 3.5
Indoor Units Liquid (OD) Type Flare connection
Diameter mm 9.5 9.5 9.5
Gas Type Flare connection
Diameter mm 15.9 15.9 15.9
Outdoor Unit Liquid (OD) Type Flare connection
Diameter mm 9.5 9.5 9.5
Suction gas
(OD)
Type Flare connection
Diameter mm 15.9 15.9 15.9
Standard
Accessories
Item Installation manual
Gas piping connections
Insulation for fitting
Sealing material
Clamps
11-1-2Electrical Specifications BEVQ71MAVE BEVQ100MAVE BEVQ125MAVE
Power Supply Name VE
Phase 1˜
Frequency Hz 50/60
Voltage V 220-240
Voltage range Minimum V -10%
Maximum V +10%
Total circuit Minimum circuit amps
(MCA)
A0.8 1.3 1.3
Maximum fuse amps (MFA) A 15 15 15
Notes Voltage range: units are suitable for use on electrical systems where voltage supplied to unit terminals is not below
or above listed range limits.
Maximum allowable voltage range variation between phases is 2%.
MCA/MFA: MCA=1.25 X FLA
Select wire size based on MCA
Instead of a fuse, use a circuit breaker
MFA is smaller than or equal to 4 x FLA
Next lower standard fuse rating minimum 15A

• VRV Systems • Indoor Units 15
• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • BEVQ-MAVE
11 Junction box - BEVQ-MAVE
11 - 2 Dimensional drawing & centre of gravity
3
BEVQ-MA
3TW045389
100 or more
(Servicing space) (Servicing space)
Note 2
(165.5)
(Suspension bolt pitch)
4-M4 Mounting
(Servicing space)
500 or more
(Servicing space)
200 or more
(Servicing space)
200 or more
INSTALLATION FIGURE
(When installing the unit on wall) NOTES
1 Be sure to install wire connection port to be sure to become
downward.
2 Be sure to secure the space which can be the thightening work of
the flare nut.
Nr. Part name Description
1 Liquid pipe connection port ø9.5 Flare connection
2 Gas pipe connection port ø15.9 Flare connection
3 Electric parts box
4 Suspension bolt
5 Wire connection port (Indoor unit conncection)
6 Wire connection port (Power supply • Ground)
7 Wire connection port (Transmission (VRV) • Gas pipe thermistor)
BEVQ-MA
3TW0453
100 or more
(Servicing space) (Servicing space)
Note 2
(165.5)
(Suspension bolt pitch)
(Suspension bolt pitch)
(Servicing space)
200 or more
(Servicing space)
200 or more
Inspection hatch
INSTALLATION FIGURE
(When hanging the unit from the ceiling)
NOTES
1 Be sure to install wire connection port to be sure to become
downward.
2 Be sure to secure the space which can be the thightening work of
the flare nut.
3 Be sure to secure the space of 400 mm or more when you cannot
install the inspection hatch right under the unit.
Nr. Part name Description
1 Liquid pipe connection port ø9.5 Flare connection
2 Gas pipe connection port ø15.9 Flare connection
3 Electric parts box
4 Suspension bolt
5 Wire connection port (Indoor unit conncection)
6 Wire connection port (Power supply • Ground)
7 Wire connection port (Transmission (VRV) • Gas pipe thermistor)
90

• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • BEVQ-MAVE
• VRV Systems • Indoor Units
16
11 Junction box - BEVQ-MAVE
11 - 2 Dimensional drawing & centre of gravity
3
BEVQ-MA
3D030851D

• VRV Systems • Indoor Units 17
• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • BEVQ-MAVE
11 Junction box - BEVQ-MAVE
11 - 3 Piping diagram
3
BEVQ-MA
4D034127B
Liquid piping
connection port
Gas piping
connection port
Liquid piping
connection port
Gas piping
connection port
FilterFilter
Electronic
expansion valve

• Indoor Units • 4-WAY BLOW CEILING SUSPENDED CASSETTE • BEVQ-MAVE
• VRV Systems • Indoor Units
18
11 Junction box - BEVQ-MAVE
11 - 4 Wiring diagram
3
BEVQ-MA
3D044901B
Control box
To outdoor unit
Note 4
To interface adaptor for sky
air series of indoor unit.
To indoor unit
Power Supply
50
~
220-240V
60
~
220V
NOTES
1 TThis wiring diagram only shows the BEV unit. See the wiring diagrams and installation manuals for the wiring and settings for the indoor, outdoor, and BS units.
2 See the indoor unit’s wiring diagram when installing optional parts for the indoor unit.
3 Only one indoor unit may be connected to the BEV unit. See the indoor unit's wiring diagram when connecting the remote control.
4 Always use the sky air connection adapter for the indoor unit when using a central control unit. Refer to the manual attached the unit when connecting.
5 Cool/Heat changeover of indoor units connected to BEV unit cannot be carried out unless they are connected to BS unit.
In cas of a system with BEV unit only, Cool/Heat selector is required.
6 Set the SS1 tot “M” only for the BEV unit connected to the indoor unit which is to have Cool/Heat switching capability, when connecting the BS unit.
The “M/S” on the SS1 stands for “Main/Sub”.
This is set to “S” when shipped from the factory.
7 Connect the attached thermistor to the R3T.
A1P Printed circuit board Assy SS1 Selector switch (M/S)
A2P Power supply printed circuit board Assy (220-240V/16V) X1M Terminal strip (Power)
F1U Fuse (훾, 10A/250V) X2M Terminal strip (Transmission)
HAP Light emitting diode (Service monitor-green) Y1E Electronic expansion valve
R3T Thermistor (Gas) Z1C ~ Z3C / Z4F Noise filter
: Terminal
: Connector
: Field wiring
COLORS : BLU : Blue RED : Red
WHT : White BLK : Black

2e
ÈEEDEN08-204aËÍ
Daikin Europe N.V. is approved by LRQA for its
Quality Management System in accordance with the
ISO9001 standard. ISO9001 pertains to quality
assurance regarding design, development,
manufacturing as well as to services related to the
product.
Daikin units comply with the European
regulations that guarantee the safety of
the product.
EEDEN08-204 • 01/2008 • Copyright © Daikin The present publication supersedes EEDEN07-200 Prepared in Belgium by Lannoo (www.lannooprint.be), a company whose concern for the environmont is set in the EMAS and ISO 14001 systems. Responsible Editor: Daikin Europe N.V., Zandvoordestraat 300, B- 8400 Oostende
The present publication is drawn up by way of information only and
does not constitute an offer binding upon Daikin Europe N.V.. Daikin
Europe N.V. has compiled the content of this publication to the best
of its knowledge. No express or implied warranty is given for the
completeness, accuracy, reliability or fitness for particular purpose of
its content and the products and services presented therein.
Specifications are subject to change without prior notice. Daikin
Europe N.V. explicitly rejects any liability for any direct or indirect
damage, In the broadest sense, arising from or related to the use
and/or interpretation of this publication. All content is copyrighted
by Daikin Europe N.V..
VRV®products are not within the scope of the
Eurovent certification programme.
Naamloze Vennootschap
Zandvoordestraat 300
B-8400 Oostende, Belgium
www.daikin.eu
BTW: BE 0412 120 336
RPR Oostende
Daikin’s unique position as a manufacturer of air
conditioning equipment, compressors and
refrigerants has led to its close involvement in
environmental issues. For several years Daikin
has had the intension to become a leader in the
provision of products that have limited impact
on the environment. This challenge demands
the eco design and development of a wide
range of products and an energy management
system, resulting in energy conservation and a
reduction of waste. ISO14001 assures an effective environmental
management system in order to help protect human
health and the environment from the potential
impact of our activities, products and services and to
assist in maintaining and improving the quality of the
environment.
