Daikin ECOLLECTRMX User manual

About these operating instructions
EN
2ECOLLECTRMX
1 About these operating instructions
These operating instructions describe the heating circuit manifold
"ECOLLECTRMX" (also referred to as "product" in these operating instruc-
tions). These operating instructions are part of the product.
• You may only use the product if you have fully read and understood these
operating instructions.
• Verify that these operating instructions are always accessible for any type
of work performed on or with the product.
• Pass these operating instructions as well as all other product-related doc-
uments on to all owners of the product.
• If you feel that these operating instructions contain errors, inconsisten-
cies, ambiguities or other issues, contact the manufacturer prior to using
the product.
These operating instructions are protected by copyright and may only be
used as provided for by the corresponding copyright legislation. We reserve
the right to modifications.
The manufacturer shall not be liable in any form whatsoever for direct or con-
sequential damage resulting from failure to observe these operating instruc-
tions or from failure to comply with directives, regulations and standards and
any other statutory requirements applicable at the installation site of the prod-
uct.

Information on safety
EN
3
ECOLLECTRMX
2 Information on safety
2.1 Safety messages and hazard categories
These operating instructions contain safety messages to alert you to poten-
tial hazards and risks. In addition to the instructions provided in these oper-
ating instructions, you must comply with all directives, standards and safety
regulations applicable at the installation site of the product. Verify that you are
familiar with all directives, standards and safety regulations and ensure com-
pliance with them prior to using the product.
Safety messages in these operating instructions are highlighted with warning
symbols and warning words. Depending on the severity of a hazard, the
safety messages are classified according to different hazard categories.
In addition, the following symbols are used in these operating instructions:
WARNING
WARNING indicates a potentially hazardous situation, which, if not avoided,
can result in serious injury or equipment damage.
NOTICE
NOTICE indicates a hazardous situation, which, if not avoided, can result in
equipment damage.
This is the general safety alert symbol. It alerts to injury haz-
ards or equipment damage. Comply with all safety instruc-
tions in conjunction with this symbol to help avoid possible
death, injury or equipment damage.

Information on safety
EN
4ECOLLECTRMX
2.2 Intended use
This product may only be used for the distribution of media in panel heating
system and refrigeration systems in buildings in conjunction with the follow-
ing media:
• Heating water as per VDI 2035
• Water/glycol mixtures with a maximum admixture of 50 %
Any use other than the application explicitly permitted in these operating
instructions is not permitted and causes hazards.
Verify that the product is suitable for the application planned by you prior to
using the product. In doing so, take into account at least the following:
• All directives, standards and safety regulations applicable at the installa-
tion site of the product
• All conditions and data specified for the product
• The conditions of the planned application
In addition, perform a risk assessment in view of the planned application,
according to an approved risk assessment method, and implement the
appropriate safety measures, based on the results of the risk assessment.
Take into account the consequences of installing or integrating the product
into a system or a plant.
When using the product, perform all work and all other activities in conjunc-
tion with the product in compliance with the conditions specified in the oper-
ating instructions and on the nameplate, as well as with all directives, stand-
ards and safety regulations applicable at the installation site of the product.

Information on safety
EN
5
ECOLLECTRMX
2.3 Predictable incorrect application
The product must never be used in the following cases and for the following
purposes:
• Distribution of drinking water
2.4 Qualification of personnel
Only appropriately trained persons who are familiar with and understand the
contents of these operating instructions and all other pertinent product doc-
umentation are authorized to work on and with this product.
These persons must have sufficient technical training, knowledge and expe-
rience and be able to foresee and detect potential hazards that may be
caused by using the product.
All persons working on and with the product must be fully familiar with all
directives, standards and safety regulations that must be observed for per-
forming such work.
2.5 Personal protective equipment
Always wear the required personal protective equipment. When performing
work on and with the product, take into account that hazards may be present
at the installation site which do not directly result from the product itself.
2.6 Modifications to the product
Only perform work on and with the product which is explicitly described in
these operating instructions. Do not make any modifications to the product
which are not described in these operating instructions.

Transport and storage
EN
6ECOLLECTRMX
3 Transport and storage
The product may be damaged as a result of improper transport or storage.
NOTICE
INCORRECT HANDLING
• Verify compliance with the specified ambient conditions during transport or
storage of the product.
• Use the original packaging when transporting the product.
• Store the product in a clean and dry environment.
• Verify that the product is protected against shocks and impact during trans-
port and storage.
Failure to follow these instructions can result in equipment damage.

Product description
EN
7
ECOLLECTRMX
4 Product description
4.1 Overview
standard version
A. Vent valve
B. Stroke valve
C. Heating circuit manifold line (depends on
version)
D. Flow meter
E. End cap
F. Flow valve
G. Boiler filling and drain valve KFE
H. Thermometer
Accessories (optional)
1. Actuator
1
A
E
D
H
F
C
B
G

Product description
EN
8ECOLLECTRMX
4.2 Dimensions and connections
Heating
circuits 2345678910 11 12
Distance A 79 129 129 129 129 179 179 179 229 229 229
Distance B 100 100 100 150 200 200 200 250 250 300 300
DistanceC232373737373123123123123173
ABC
G1
G3/4

Product description
EN
9
ECOLLECTRMX
~327 mm
220 mm
30 mm
46 mm
79 mm

Product description
EN
10 ECOLLECTRMX
4.3 Function
The product distributes the medium in pipe loops.
4.4 Technical data
Parameter Value
General specifications
Main connection G1 with union nut
Heating circuit connection G3/4eurocone
Operating temperature and pressure Max. 60 °C at 6 bar
Max. 90 °C at 3 bar
Flow coefficient Kvs flow/return valve Max. 3.5 m3/h
Available sizes
RMX n n =Number of heating circuits (2 to
12)
RMX-EWS2 Extension kit (EWS) for a heating
circuit (this allow for a maximum of
14 heating circuits per product)

Mounting
EN
11
ECOLLECTRMX
5 Mounting
The product is mounted in a manifold cabinet, surface-mounted or concealed
cabinet, to the wall.
Verify that there is no pressure in the system.

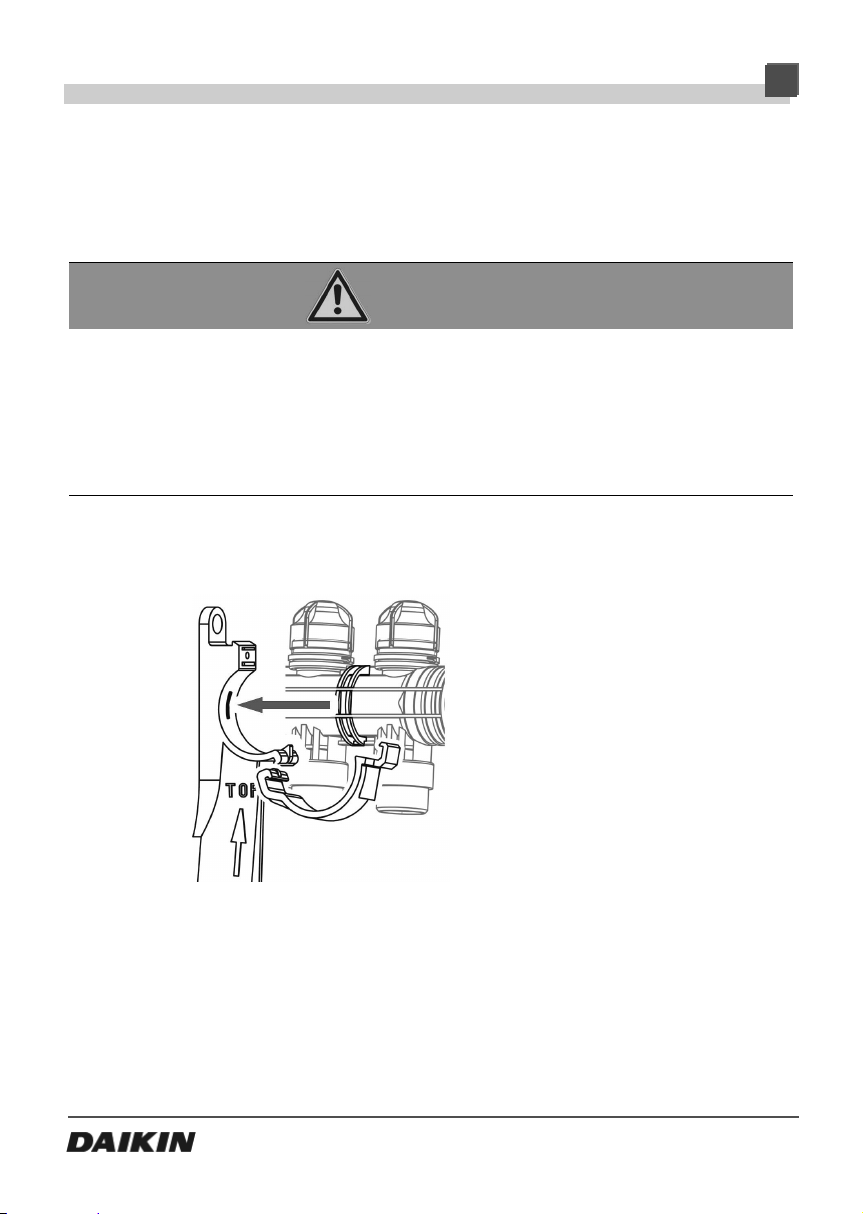

5.1 Mounting the product
1. Fasten the product to the holder.
WARNING
HOT LIQUID
Media in heating systems are under high pressure and can have temperatures
of more than 100 °C.
• Verify that the medium has cooled down before mounting the product.
Failure to follow these instructions can result in death, serious injury or
equipment damage.
Verify that the recess at
the manifold is properly
positioned in the bar of the
holder.

Mounting
EN
12 ECOLLECTRMX

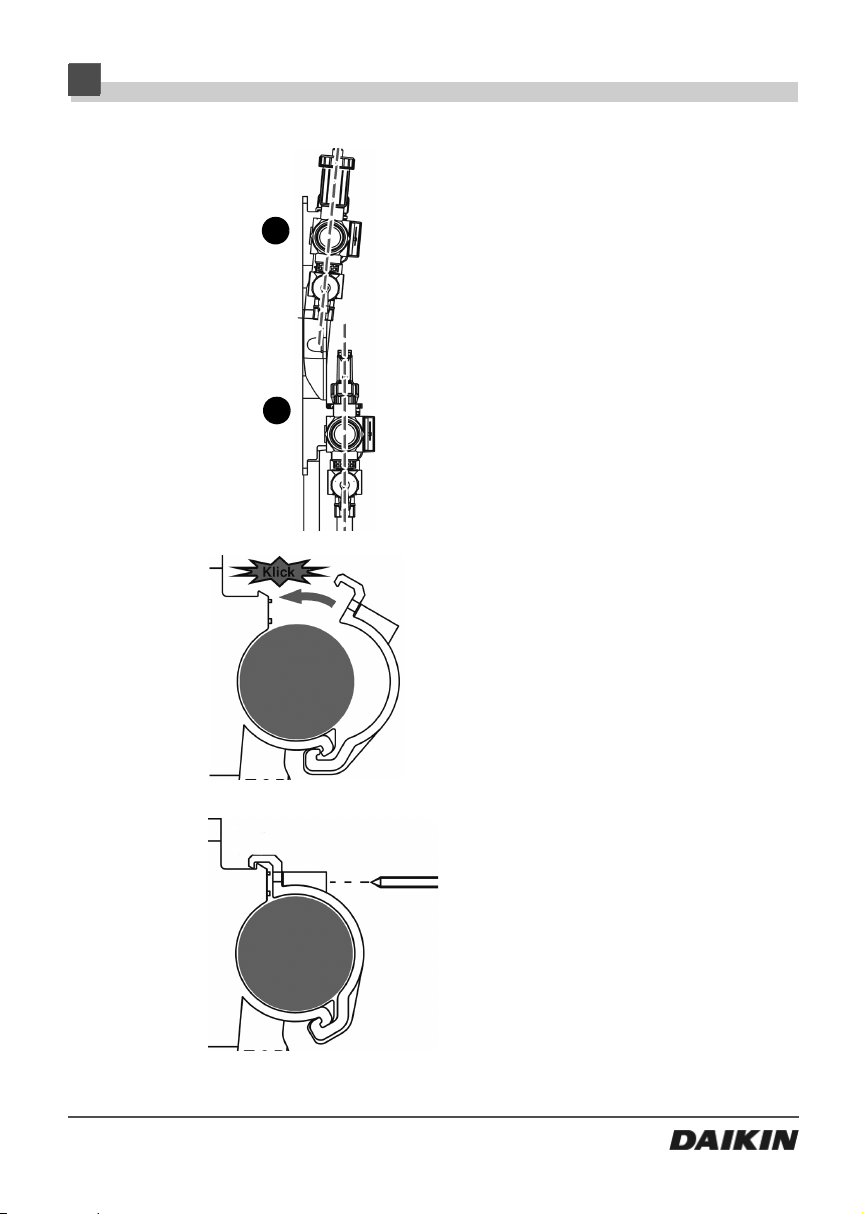

Verify that the upper man-
ifold (A) is slightly tilted
and manifold B is straight.
2. Click-fit the clip towards
the top (must snap in).
3. Fixate the clip with a
screw.
A
B

Commissioning
EN
13
ECOLLECTRMX

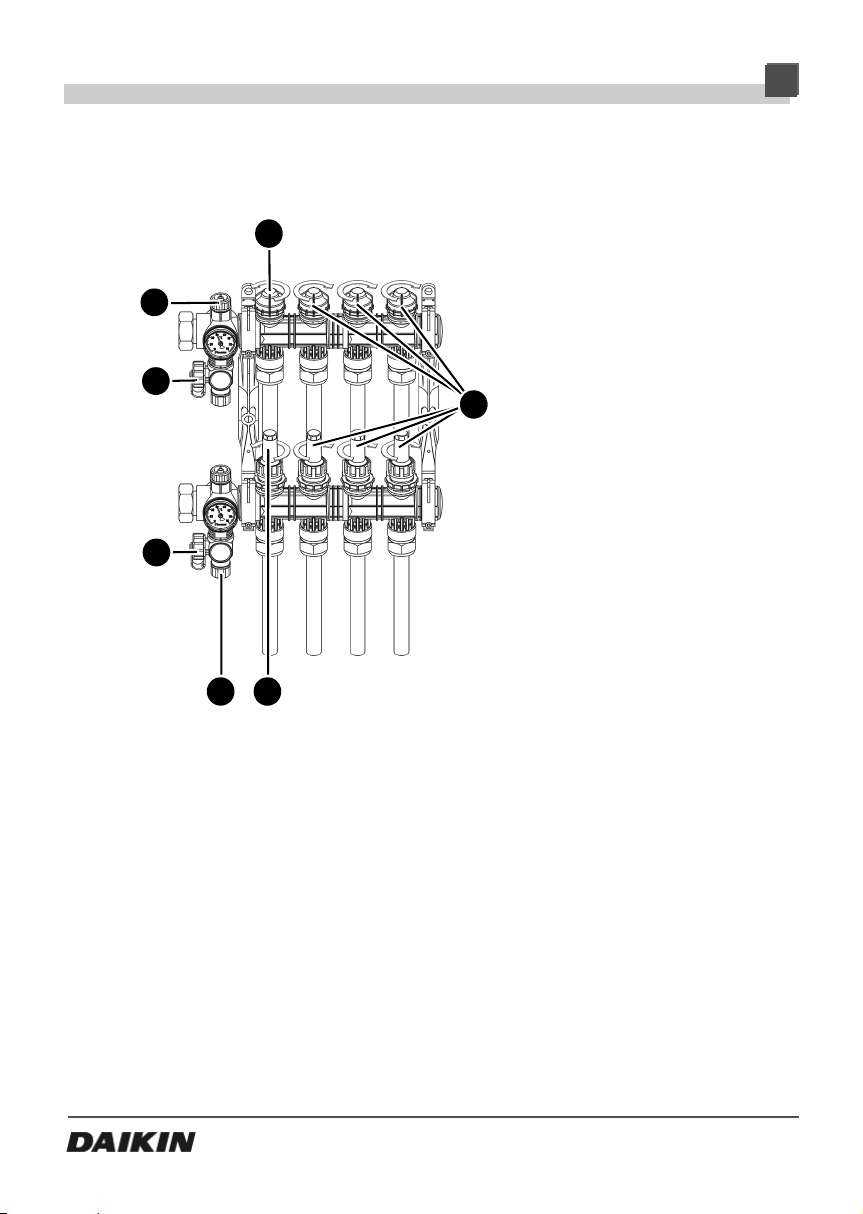

6 Commissioning
6.1 Commissioning the product
1. Connect a hose to the boiler
filling and drain valve KFE
(5).
2. Open the hand wheel (4) for
filling and flushing.
3. Open the return valve (1) of
the first heating circuit.
4. Slightly open the flow valve
(3) of the first heating circuit.
5. Close all other valves (2).
6. Fill the heating circuit with a
maximum of 5 bar and flush
it.
7. Fully open the flow valve (3)
as soon as water flows into
the heating circuit.
8. Close the flow valve and the
return valve of the filled
heating circuit.
9. Vent the system by opening
the vent valve (6).
10.Repeat this procedure for all
other heating circuits.
5
4
1
2
5
6
3

Commissioning
EN
14 ECOLLECTRMX
6.2 Performing the pressure test and the function test
1. Perform a pressure test with 6 bar.
- The system pressure must remain constant for at least two hours (max-
imum pressure drop 0.2 bar).
2. Perform a leak test after the two hours have passed.
3. Fill the system with water until the operating pressure is reached.
6.3 Adjusting the flow valves
1. Open the flow valve at the red
adjustment ring until the calcu-
lated water volume is indicated at
the flow meter (1).
2. Pull the white adjustment ring up
to unlock.
1

Commissioning
EN
15
ECOLLECTRMX
3. Turn the white adjustment ring all
the way to the mechanical stop of
the flow valve.
4. Push the white adjustment ring
down to lock.

Maintenance
EN
16 ECOLLECTRMX
7 Maintenance
The product is maintenance-free.
8 Troubleshooting
Malfunctions may only be repaired by the manufacturer or by qualified per-
sons.
9 Decommissioning, disposal
Dispose of the product in compliance with all applicable directives, standards
and safety regulations.
1. Dismount the product (see chapter "Mounting", reverse sequence of
steps).
2. Dispose of the product properly.
The operator is responsible for proper disposal in compliance with all regula-
tions applying at the installation site.
10 Returning the device
Get in touch with us before returning your product.
11 Spare parts and accessories
NOTICE
INCORRECT DISPOSAL
• Have the waste recycled by the waste disposal companies in charge.
• Dispose of the waste according to type.
Failure to follow these instructions can result in environmental damage.
NOTICE
UNSUITABLE PARTS
• Only use genuine spare parts and accessories provided by the manufac-
turer.
Failure to follow these instructions can result in equipment damage.

Über diese Betriebsanleitung
DE
2ECOLLECTRMX
1 Über diese Betriebsanleitung
Diese Betriebsanleitung beschreibt den Heizkreisverteiler
„ECOLLECTRMX“ (im Folgenden auch „Produkt“). Diese Betriebsanleitung
ist Teil des Produkts.
• Sie dürfen das Produkt erst benutzen, wenn Sie die Betriebsanleitung
vollständig gelesen und verstanden haben.
• Stellen Sie sicher, dass die Betriebsanleitung für alle Arbeiten an und mit
dem Produkt jederzeit verfügbar ist.
• Geben Sie die Betriebsanleitung und alle zum Produkt gehörenden
Unterlagen an alle Benutzer des Produkts weiter.
• Wenn Sie der Meinung sind, dass die Betriebsanleitung Fehler, Wider-
sprüche oder Unklarheiten enthält, wenden Sie sich vor Benutzung des
Produkts an den Hersteller.
Diese Betriebsanleitung ist urheberrechtlich geschützt und darf ausschließ-
lich im rechtlich zulässigen Rahmen verwendet werden. Änderungen vorbe-
halten.
Für Schäden und Folgeschäden, die durch Nichtbeachtung dieser Betriebs-
anleitung sowie Nichtbeachten der am Einsatzort des Produkts geltenden
Vorschriften, Bestimmungen und Normen entstehen, übernimmt der Herstel-
ler keinerlei Haftung oder Gewährleistung.
