Dalton DLQ Series User manual

OPERATING AND PARTS MANUAL
DLQ & DLQHD LIQUID APPLICATORS
2019
DaltonAg.com 800.342.7498
602 E. Van Buren Lenox, Iowa 50851
100% Employee Owned

TABLE OF CONTENTS
TO YOU THE OWNER.............................................................................................................................. 1
LIMITED WARRANTY STATEMENT........................................................................................................... 2
NEW MACHINE CHECKOUT..................................................................................................................... 3
IMPLEMENT SAFETY................................................................................................................................ 4
PRE-SEASON CHECK................................................................................................................................ 5
BOLT TORQUE CHART.............................................................................................................................. 6
LOADED RADIUS OF VARIOUS TIRES....................................................................................................... 7
LIQUID INJECTOR NOZZLE CHART............................................................................................................ 8
GPA TABLE............................................................................................................................................... 9
DLQ TONGUE - JACK AND HITCH OPTIONS.............................................................................................. 11
DLQ TOOLBAR CONTROL ARM................................................................................................................ 12
DLQSTD AXLE, SPINDLE, AND HUB.......................................................................................................... 13
1002194, 819 8-BOLT HUB ASSEMBLY, COMPLETE.................................................................................. 14
DLQHD AXLE, SPINDLE, AND HUB............................................................................................................ 15
4410248, 873 10-BOLT HUB ASSEMBLY, COMPLETE................................................................................ 16
DLQHD 2000 AXLE, SPINDLE, AND HUB................................................................................................... 17
4410337, 881 10-BOLT HUB ASSEMBLY, COMPLETE................................................................................ 18
DLQ ADJUSTABLE AXLE............................................................................................................................ 19
4410449, 891 10-BOLT HUB ASSEMBLY, COMPLETE............................................................................... 20
DLQ SINGLE FOLD TOOLBAR.................................................................................................................... 21
DLQ FRONT FOLD TOOLBAR.................................................................................................................... 22
DLQ DOUBLE FOLD TOOLBAR.................................................................................................................. 23
DLQHD 60’ TOOLBAR............................................................................................................................... 24
TOOLBAR CYLINDER STOP........................................................................................................................ 25
DLQ LIGHT KIT.......................................................................................................................................... 26
CYLINDER LINKAGE AND DOWNPRESSURE.............................................................................................. 27
DLQ WING LOCK...................................................................................................................................... 28
2 PIN GAUGE WHEEL AND BRACKET........................................................................................................ 29
4410086, 888 6-BOLT HUB ASSEMBLY, COMPLETE.................................................................................. 30
GROUND DRIVE ASSEMBLY...................................................................................................................... 31
DLQ 3-SHUTOFF RAVEN PLUMBING........................................................................................................ 32
YETTER COULTER ASSEMBLY.................................................................................................................... 33
NOZZLE AND COULTER ASSEMBLY........................................................................................................... 34
GROVE COULTER ASSEMBLY.................................................................................................................... 35
GROVE KNIFE AND INJECTION................................................................................................................ 36
DLQ DOWNPRESSURE KIT - GULL WING PLUMBING............................................................................... 37
DECAL LAYOUT......................................................................................................................................... 38
PARTS ORDERING PROCEDURE............................................................................................................... 39

1
TO YOU, THE OWNER
Your Dalton Ag Equipment is the most modern, up-to-date, versale, machine available for ferlizer
applicaon. The machine is the result of many years of experience, research, development and tesng of
equipment for ferlizer applicaon. It is soundly engineered and carefully built to rigid specicaons. It is of
rugged and simple construcon, with a minimum of moving parts.
However, to obtain maximum performance from your Dalton Ag Equipment, it is necessary to follow the
instrucons and safety suggesons in this manual. Each secon has been carefully prepared for the purpose
of providing needed and valuable informaon to the owner and operator. Each operator of this unit should be
familiar with the contents of this manual. Keep it in a safe and convenient locaon. THERE ARE MANY SAFETY
SUGGESTIONS (CAUTION AREAS) PRINTED THROUGHOUT THIS MANUAL. CAREFULLY READ THEM ALL BEFORE
OPERATING THIS UNIT.
DESIGN IMPROVEMENTS
Dalton Ag Products follows a policy of connuous products improvement. We therefore reserve the right to
make design improvements, and changes in specicaons and prices, without incurring obligaons to make
revisions or addions to equipment previously sold.
REGISTER
WARRANTY
ONE OF
FOUR WAYS
• Register on-line at:
www.daltonag.com
• Fax your completed warranty registraon form to:
641-333-4429
• Email your completed warranty registraon form to:
o[email protected]
• Mail your completed warranty registraon form to:
Dalton Ag, Inc.
P.O. Box 70
Lenox, IA 50851

2
LIMITED WARRANTY STATEMENT

3
NEW MACHINE CHECKOUT
1. All hardware properly ghtened.
2. Lubricaon of grease ngs.
3. Wheel bolts ghtened to proper specs.
4. Check hydraulic hoses and ngs.
MAINTENANCE
1. Visually inspect machine daily.
2. Repair or replace any worn or damaged parts.
LUBRICATION SCHEDULE
Careful observance of the following lubricaon schedule is the best preventave maintenance program for
your Dalton Ag Equipment. We recommend that you establish a rm program to insure lubricaon in strict
compliance with the following schedule. Use only good grade pressure gun type grease unless otherwise specied.
Daily Lubricaon
Hinge points
Weekly Lubricaon
Wheel bearings
Coulters
Annual Lubricaon
Check all bearings - repack or replace as needed

4
IMPLEMENT SAFETY
In addion to design and conguraon of equipment, safety and accident prevenon are dependent upon the aware-
ness, concern, and proper training of personnel involved in the operaon, transport, maintenance, and storage of equip-
ment. Failing to follow these safety messages can result in machine damage, personal injury, and/or death.
• Before operang your applicator, thoroughly read and understand your operator’s manual. If you do not understand
any poron of the operator’s manual, contact your local Dalton Ag dealer immediately for claricaon.
• Furnish this manual to a new operator.
• Tow with tractor only. Never transport applicator unit in excess of 20 MPH. Maintain a safe speed.
• Use a Slow-Moving-Vehicle (SMV) emblem when transporng.
• Be sure safety decals are readable. All safety related decals must be replaced if the applicator is painted or the de-
cals are otherwise rendered unreadable.
• Install transport link before transporng.
• Always check for overhead obstacles in transporng applicator and before folding or unfolding the wings of the unit.
• Never permit riders on the applicator or tractor.
• Proceed slowly on rough or slippery roadways, on side hills, and around curves to avoid pping.
• Reduce speed when approaching ditches and corners. Do not make sharp turns with brakes.
• Machinery should be operated only by persons familiar to the tractor, applicator unit, and the safety related items.
• Do not stand on, or straddle tongue when unhitching.
• Do not modify or permit anyone to modify this applicator and any of its components without rst consulng your
Dalton Ag dealer.
• Do not lubricate, adjust, or repair when applicator unit is in moon.
• Use only approved replacement parts.
• To prevent serious injury from high pressure uid, NEVER aempt to inspect, service, or disassemble any part of the
hydraulic system unl all pressure is relieved by lowering the toolbar to the ground (or secure with cylinder transport
stops provided).
• High-pressure uid is nearly invisible but has enough force to penetrate the skin. Never use the hands to search
out a suspected leak. If injured by escaping uid, obtain medical aenon at once to minimize chance of infecon.
Wear safety glasses or goggles to avoid eye injury when working on the hydraulic system.
• Always check torque on wheel bolts before transporng.

5
PRE-SEASON CHECK
1. Carefully review the safety suggesons in this manual.
2. Check all bolts for proper ghtness. When the implement is new, check aer one hour and every few
hours of operaon.
3. Replace ground tools that are severely worn, broken or damaged.
4. Check res for proper inaon. All res should be inated equally to avoid side dra.
5. Check the wheel lug bolts daily, keep wheel bolts ght.
6. Grease all ngs.
7. Inspect, repack, or replace (if necessary) wheel bearings and seals.
8. Check hoses, hose roung and hydraulic cylinders. Any indicaon of leakage or fraying of hoses
should be corrected.
OFF-SEASON STORAGE
Following these suggesons will extend service life and sasfacon:
1. A lile me and eort spent cleaning your machine before storing will repay in longer service, easier
operaon and higher resale value.
2. Inspect for worn or damaged parts. Replace, if required, and avoid delays the next season.
3. Repaint all areas where the original paint is worn o.
4. Lubricate your implement.
5. Grease all exposed metal surfaces of ground tools.
6. Store the unit inside a shed to protect from weather and on a level area with wings down. The ground
working parts should rest on boards.
7. Disconnect the rod end of the li cylinders and retract the rod into the cylinder to prevent the cylinder
rod from rusng.
8. Cap or plug all hydraulic oil lines, if the cylinders are removed. This is to prevent any contaminants
from entering the hydraulic system.
9. Raise res o ground or remove and store in cool dry locaon out of sunlight.

6
IMPORTANT : Over ghtening hardware can be as damaging as under ghtening.
Tightening beyond recommended torque will reduce the fastener’s shock load capacity.
WARNING: Never work around any raised implement while in the
raised posion without using safety lockups.

7
LOADED RADIUS OF VARIOUS TIRES -
FOR USE IN SETTING JOHN BLUE
GROUND-DRIVEN PUMPS
TIRE SIZE
LOADED
RADIUS TIRE SIZE
LOADED
RADIUS
6.70-15SL 12.9 9.00-20 19.0
7.60-15SL 13.4 10.0-20 19.6
9.5L-15SL 13.6 11.0-20 20.1
10.0-15SL 15.1 12.0-20 20.6
11L-15SL 13.5 15.0-22.5 20.0
12.5L-15SL 14.5
9.00-16SL 14.7
11L-16SL 13.9
12.5L-16SL 15.0
13.5L-16.1SL 17.5
16.5L-16.1SL 17.3
4.8-8 7.5
18-9.5 7.8
16 X 6.50-8 7.4

8
LIQUID INJECTOR NOZZLE CHART
NOZZLE SELECTION
1. To select the proper nozzle size, rst determine the gallons per acre and speed that is going to be used. Go
to the table for the proper row spacing.
2. Find the speed across the top, go down to the “Gallon Per Acre” and read the nozzle size in the box.
3. Order nozzle by m.p.h. and gallons per acre.
FORMULA TO CONVERT POUNDS PER ACRE TO GALLONS PER ACRE
Pounds per Acre/Percent of Nitrogen = Total Pounds per Acre/pounds per Gallon = Gallons per Acre
EXAMPLE: 100 (# per Acre) / .28 (28%) = 357 (# per Acre) / 10.65 (#per Gallon) = 33.5 (GPA)
NOTE: If 1/2 rate is needed on outside shanks, order two nozzles with half the capacity. If 1 1/2 rate is needed on
outside shanks, order two nozzles with 1 1/2 mes the capacity.
***REFER TO THE FOLLOWING RATE CHART FOR TIPS AND APPLICATION***

9
GPA 30” SPACING
gallons per acre x 1.15 = water per acre
TIP NUMBER ORIFICE
DIAM.
PSI
CAP .1
NOZZLE
GPM
5 MPH
GPA
6 MPH
GPA
7 MPH
GPA
8 MPH
GPA
9 MPH
GPA
10 MPH
GPA
TP0004 .055 20 .28 11 9 8 7 6
H1/4U-SS0004 30 .35 14 12 10 9 8 7
40 .40 16 13 11 10 9 8
50 .45 18 15 13 11 10 9
60 .49 19 16 14 12 11 10
TP0005 .061 20 .35 14 12 10 9
H1/4U-SS0005 30 .43 17 14 12 11 9 8
40 .50 20 16 14 12 11 10
50 .56 22 18 16 14 12 11
60 .61 24 20 17 15 13 12
TP0006 .067 20 .42 17 14 12 10 9 8
H1/4U-SS0006 30 .52 20 17 15 13 11 10
40 .60 24 20 17 15 13 12
50 .67 26 22 18 17 15 13
60 .73 28 24 20 18 16 15
TP0008 .078 20 .57 23 19 16 14 13 11
H1/SS0008 30 .69 27 22 19 17 15 13
40 .80 32 26 22 20 17 16
50 .89 53 29 25 22 19 17
60 .98 32 28 24 21 19
TP00010 .086 20 .71 28 23 20 18 16 14
H1/4U-SS0010 30 .87 34 28 24 21 19 17
40 1.00 39 33 28 24 22 20
50 1.12 44 36 32 28 24 22
60 1.22 48 40 34 30 26 24
TP00015 .107 20 1.06 42 35 30 26 23 21
H1/4U-SS0015 30 1.30 51 42 36 32 28 26
40 1.50 59 49 42 37 33 30
50 1.68 66 55 47 41 36 33
60 1.84 72 60 51 45 40 36
TP00020 .125 20 1.41 56 47 40 35 28
H1/4U-SS0020 30 1.73 68 57 50 43 38 34
40 2.00 80 66 56 50 44 40
50 2.24 88 74 64 56 49 44
60 2.44 96 80 70 60 53 48
TP00030 .140 20 2.12 84 70 60 52 42
H1/4U-SS0030 30 2.60 102 86 74 64 57 51
40 3.00 99 84 74 66 59
**** 15” ROW CONVERSION - X 2
**** 36” ROW CONVERSION - X .83

10
To determine the orice plates you need, use the following equaons:
GPM = GPA x MPH x W W = Nozzle spacing (in inches)
(per nozzle) 5,940 for broadcast spraying.
= Spray width (in inches) for
GPA = 5,940 x GPM (per nozzle) single nozzle, band spraying
MPH x W or boomless spraying.
= Row spacing (in inches) divided
by the number of nozzles per row
for directed spraying.
NOTE: Always insert Orice Plate
with the side marked with the
number facing the outlet.
Tabulated ow rates are for spraying water into air at
atmospheric pressure. If your applicaon creates
backpressure, or if spraying into a liquid, measure and
calibrate to ensure proper applicaon rates.

11
4440918 BULL PULL HITCH, CAT 4
150010 NUT, .625 NC, PLTD
150222 LOCK WASHER, .625, PLTD
4434269 HOSE STAND BACKING PLATE
152422 BOLT, .625 NC X 8, G5
4420262 PIN, 1 X 7.25, HEADED
150008 NUT, .5 NC, PLTD
150005 NUT, .375 NC, PLTD
152206 BOLT .5 NC X 1.5, G5, PLTD
151811 BOLT, .375 NC X 2, G5, PLTD
4420323 GAUGE MOUNT BRACKET WELDMENT
151805 BOLT, .375 NC X 1.25, PLTD
TB 4435097 HOSE CADDY HOSE CLAMP
Available:
4441023 SAFETY CHAIN, PAIR
(OR)
4420532-HD HITCH CLEVIS
4420839 SIDE WIND JACK, DLQ
4420325 HOSE STAND TOP WELDMENT
4410351 DLQ HOSE STAND ASSEMBLY
4420845 DLQ LONG HOSE STAND
GG100 100 LB GLYCERIN FILLED GAUGE
4440967 .375 HOSE BARB, .25 NPT MALE, STAINLESS
4410378 PRESSURE GAUGE BRACKET ASSEMBLY, DLQ
4441048 CLEVIS PIN
CHECKED BY
Sheet1
A
RICH SMOTHERS
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
DALTON AG. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF DALTON AG IS
PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
DRAWN BY
CONFIG.
PRINT DATE
COMMENTS:
DWG:
SIZE
A
SHEET TITLE:
REV
SCALE: 1:16
Default
5/31/2017
6/2/2014
SHEET 1 OF 1
DLQ TONGUE - JACK AND HITCH OPTIONS
w w w . D a l t o n A g . c o m
DLQ TONGUE - JACK AND HITCH OPTIONS

12
4434173 PIN, 1 X 6.25, HEADLESS
4434172 PIN, 1.25 X 8.375, HEADLESS
DLQ 4420558 LOWER CONTROL ARM
DLQ 4420556 UPPER CONTROL ARM
4420840 DLQ FLOW MONITOR PANEL, 1
(OR)
4420841 DLQ FLOW MONITOR PANEL, 2
4420842 RAVEN VALVE MOUNT, 3 SHUT-OFF
(OR)
4420917 RAVEN VALVE MOUNT, 5 SHUT-OFF
4434172 PIN, 1.25 X 8.375, HEADLESS
TB 4410231-10, CYLINDER LOCKUP
WITH 640028 SAFETY PIN
HYDRAULIC CYLINDER, 3.5 X 10 X 1.5
CHECKED BY
Sheet1
A
RICH SMOTHERS
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
DALTON AG. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF DALTON AG IS
PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
DRAWN BY
CONFIG.
PRINT DATE
COMMENTS:
DWG:
SIZE
A
SHEET TITLE:
REV
SCALE: 1:18
Default
5/19/2017
6/2/2014
SHEET 1 OF 1
DLQ HD TOOLBAR CONTROL ARM
w w w . D a l t o n A g . c o m
DLQ TOOLBAR CONTROL ARM

13
4420489 AXLE, 8B, 120, WELDMENT
1002188 SPINDLE, 2.75X19.25
1002194, 819 8-BOLT HUB ASSEMBLY, COMPLETE
4410196 AXLE, 8B, 120, ASSEMBLY
CHECKED BY
Sheet1
A
RICH SMOTHERS
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
DALTON AG. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF DALTON AG IS
PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
DRAWN BY
CONFIG.
PRINT DATE
COMMENTS:
DWG:
SIZE
A
SHEET TITLE:
REV
SCALE: 1:16
Default
3/17/2017
9/18/2015
SHEET 1 OF 1
DLQSTD AXLE, SPINDLE, AND HUB
w w w . D a l t o n A g . c o m
DLQSTD AXLE, SPINDLE, AND HUB

14
1002194, 819 8-BOLT HUB ASSEMBLY, COMPLETE
1002191, 819 8-BOLT HUB W RACES
1002200 SEAL
1002198 BEARING
1002196 RACE
641024 LUG BOLT
641022 LUGNUT, .5625 NC
1002197 RACE
1002199 BEARING
140364 SPINDLE WASHER, 1 INCH
4441100 SLOTTED NUT, 1 NC FULL
4440736 COTTER PIN, .1875 X 3
641021 DUST CAP 1604
(OR)
641221 SPINDLE WASHER, .875
(OR)
641220 SLOTTED NUT, .875 NC
4450041 HUB REBUILD KIT
-INCLUDES BEARINGS, RACES, AND SEALS
1002194, 819 8-BOLT HUB ASSEMBLY, COMPLETE
SHEET 1 OF 1
5/4/2009
12/2/2016
Default
SCALE: 1:4
REV
SHEET TITLE:
A
SIZE
DWG:
COMMENTS: PRINT DATE CONFIG. DRAWN BY
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
DALTON AG. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF DALTON AG IS
PROHIBITED.
5
4
3
2
1
RICH SMOTHERS
A
602 E. VAN BUREN ST., LENOX, IA 50851
Sheet1
CHECKED BY
1002194, 819 8-BOLT HUB ASSEMBLY, COMPLETE
1002194, 819 8-BOLT HUB ASSEMBLY, COMPLETE

15

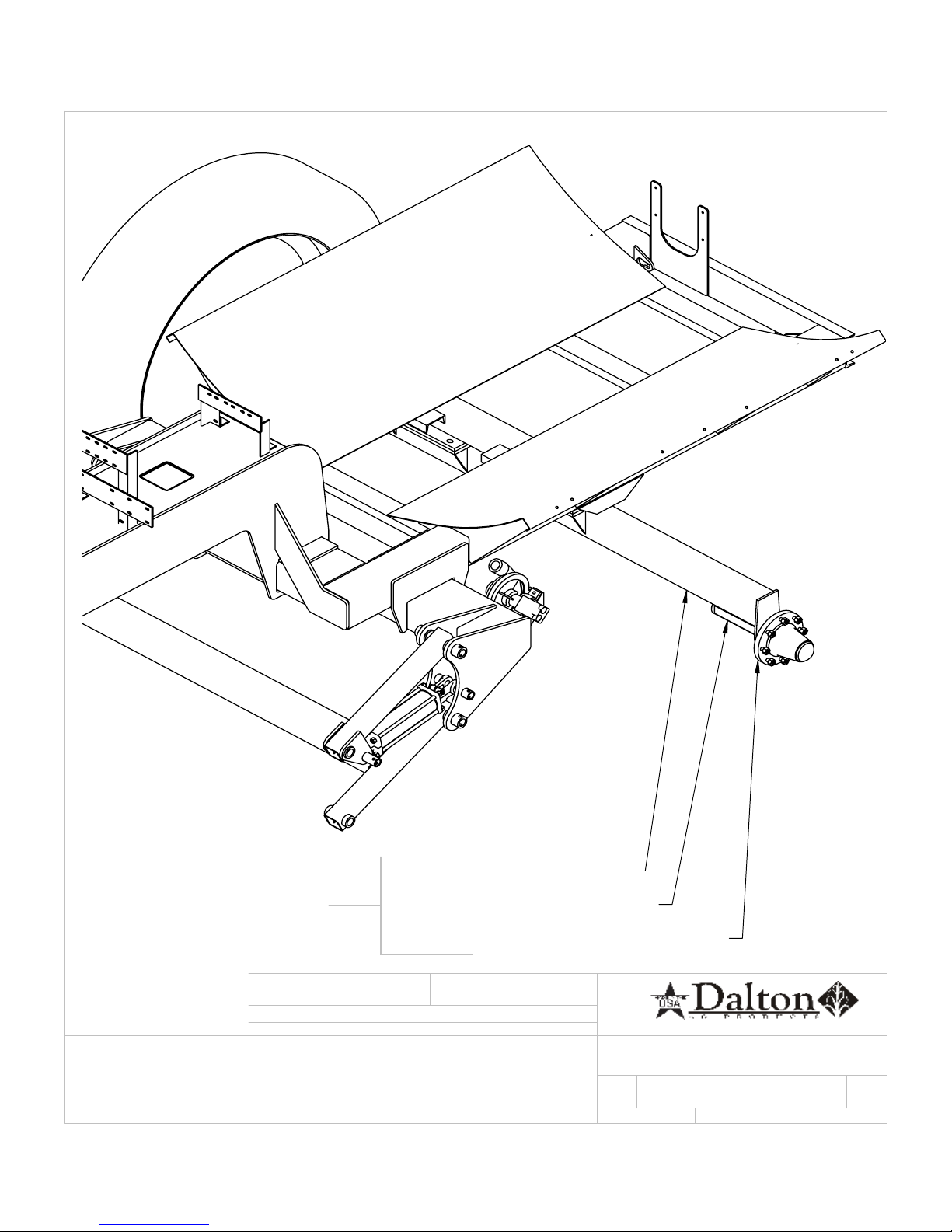

4420492 AXLE, 10B, 120, TRUSSED, WELDMENT
S-5296-L-12 SPINDLE, 3.50X16
4410248, 873 10-BOLT HUB ASSEMBLY, COMPLETE
4410352 AXLE, 10B, 120, TRUSSED, ASSEMBLY
CHECKED BY
Sheet1
A
RICH SMOTHERS
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
DALTON AG. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF DALTON AG IS
PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
DRAWN BY
CONFIG.
PRINT DATE
COMMENTS:
DWG:
SIZE
A
SHEET TITLE:
REV
SCALE: 1:16
Default
3/17/2017
1/21/2015
SHEET 1 OF 1
DLQHD AXLE, SPINDLE, AND HUB
w w w . D a l t o n A g . c o m
DLQHD AXLE, SPINDLE, AND HUB
(EXCLUDING DLQHD 2000)

16
158032 FLANGE NUT, .75 LUG NUT
4440850 RACE
4440833 BEARING
602127 SEAL
P151409 LUG BOLT
4410249, 873 10-BOLT HUB W RACES
4410248, 873 10-BOLT HUB ASSEMBLY, COMPLETE
4440832 RACE
4440834 BEARING
301808 SPINDLE WASHER
4440845 SLOTTED NUT, 1.25 NC
401904 COTTER PIN
4440846 GASKET, 502016 DUST CAP
4440835 DUST CAP 502016 4440847 BOLT, .3125 X .75
4450043 HUB REBUILD KIT
-INCLUDES BEARINGS, RACES, AND SEALS
4410248, 873 10-BOLT HUB ASSEMBLY, COMPLETE
SHEET 1 OF 1
5/4/2009
12/5/2016
Default
SCALE: 1:4
REV
SHEET TITLE:
A
SIZE
DWG:
COMMENTS: PRINT DATE CONFIG. DRAWN BY
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
DALTON AG. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF DALTON AG IS
PROHIBITED.
5
4
3
2
1
RICH SMOTHERS
A
602 E. VAN BUREN ST., LENOX, IA 50851
Sheet1
CHECKED BY
4410248, 873 10-BOLT HUB ASSEMBLY, COMPLETE
4410248, 873 10-BOLT HUB ASSEMBLY, COMPLETE

17

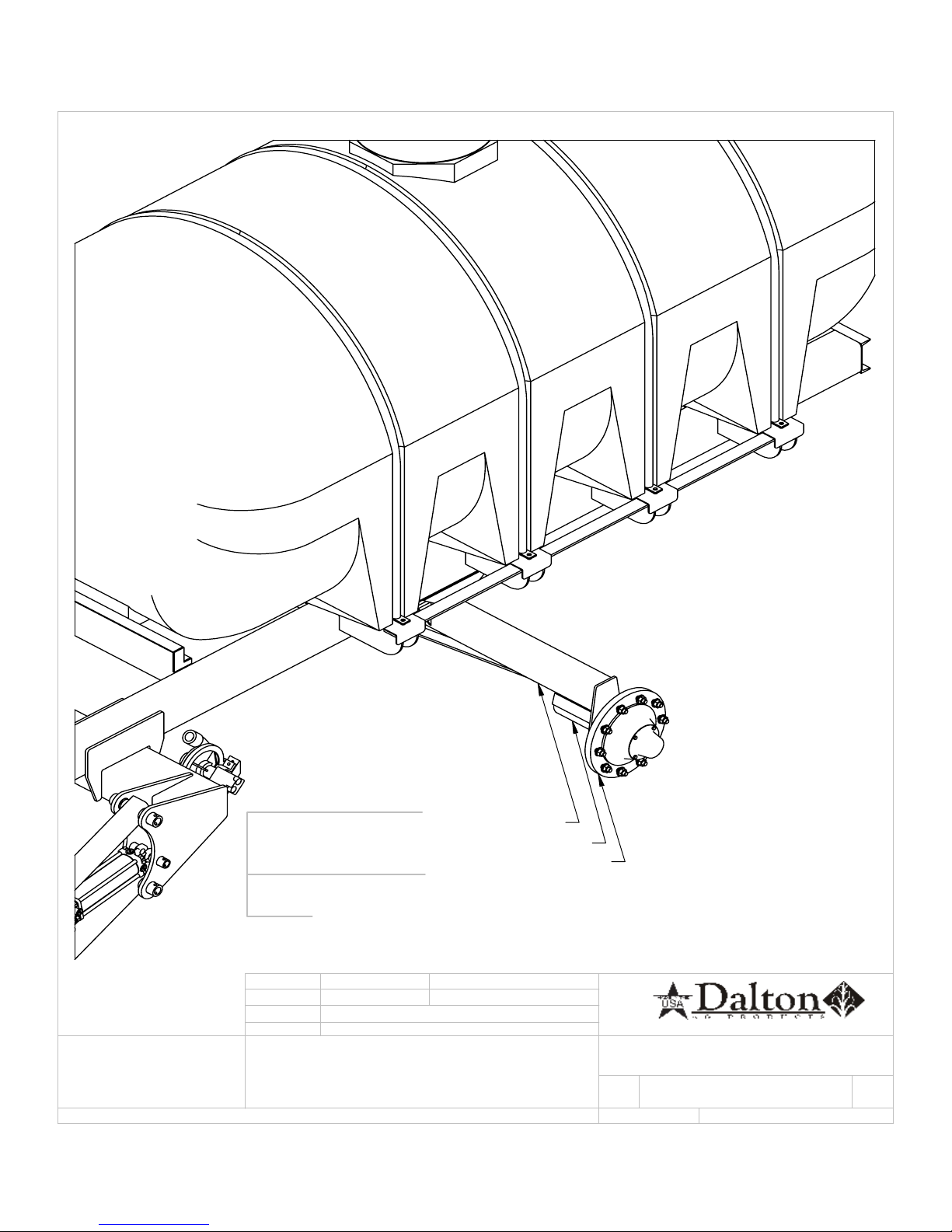

4420846 DLQ AXLE, 10B, 120, TRUSSED, 2000
G281914 SPINDLE
4410337, 881 10-BOLT HUB ASSEMBLY
4410353 AXLE, 10B, 120, TRUSSED, 2000, ASSEMBLY
CHECKED BY
Sheet1
A
RICH SMOTHERS
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
DALTON AG. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF DALTON AG IS
PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
DRAWN BY
CONFIG.
PRINT DATE
COMMENTS:
DWG:
SIZE
A
SHEET TITLE:
REV
SCALE: 1:16
Default
3/17/2017
6/2/2014
SHEET 1 OF 1
DLQHD 2000 AXLE, SPINDLE, AND HUB
w w w . D a l t o n A g . c o m
DLQHD 2000 AXLE, SPINDLE, AND HUB
