Dantherm CD 400-18 User manual

Instructionmanual

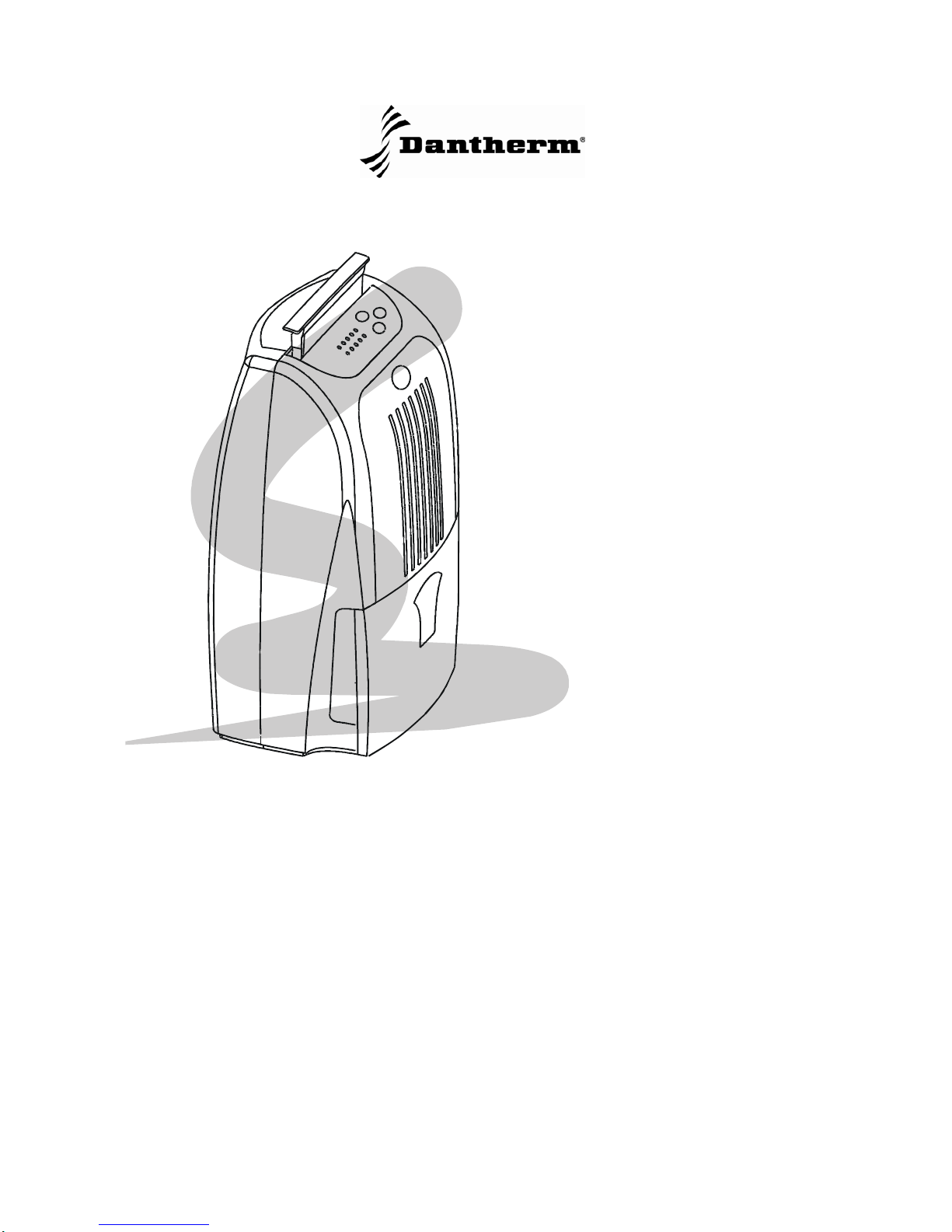

Dehumidifier model: CD 400-18

CONTENTS
▉Precautions 2
▉ Operation and performance 5
▉ Parts names and functions 6
▉ For selecting functions properly 8
▉ Preparation and checking before operation 10
▉ How to operate 11
▉ For maintenance 14
▉ For continuous draining 16
▉ Specification 17
▉ Trouble-shooting 17
Please read this instruction manual carefully before operating your dehumidifier.
Please save it for your further reference.
1

Precautions
Please read "Precautions" carefully before operating your dehumidifier.
The warnings and the cautions stated in "Precautions" must be observed for safe operation.
!
Warning means improper handling may result in a death or a serious injury to a person.
!
Cautions means improper handling may result in an injury or damage to properties.
Shows Prohibition
Shows Compulsion
Shows Caution
!
Warnings
■ In case of any abnormality, be sure to turn off the dehumidifier,
Disconnect the plug and make contact to the seller of your appliance.
(Abnormal operation may result in a failure of the unit, electric
shock, fire, or the like.)
■ Never attempt to turn off the dehumidifier by disconnecting the plug.
■ Never modify the dehumidifier. Do not attempt to disassemble or
service the unit by yourself.
■ To avoid the risk of the electric shock, never connect or disconnect
the plug by your hand Wet.
■ This unit is intended for the connection to the power source of 220
volts alternative current.
■ Remove any dust from the blades of the power plug and insert the
plug into an outlet securely.
■ To avoid the risk of fire or explosion, do not spray onto the dehumidifier.
Do not put any inflammables or chemicals near the unit.
■ To prevent resin parts from melting or catching on fire, do not place
the dehumidifier near heating appliances.
2
Use alternation power 220V

■ Do not connect the dehumidifier to an outlet having the electrical
ratings below the dehumidifier's.
■ The power cord must not be damaged or modified. Do not put anything
hot or heavy on the cord. Do not pull it out , or bundle it during operation.
■ To avoid damages to the power cord, do not pinch the cord in a door.
■ Never put rods or objects into the openings of the dehumidifier. Because
this unit contains a fan running at high speed, contact with the moving
fan will cause serious injury.
■ Remove water that has been collected in the tank.
(Accidentally drinking of the water or using it for other purpose may
cause illness and /or unforeseen accidents.)
!
Cautions
■ The dehumidifier must be used on a level and stable surface.
■ To prevent the water from freezing, do not use the dehumidifier and
the drain hose at ambient temperature below 0 C
■ Do not use the dehumidifier outside. Exposure to direct sunlight or
rain may result in overheating, electric shock and fire.
■ Do not put a water vessel on the dehumidifier
(In case of any spill of water, the water gets into the unit and
deteriorates the insulation.)
■ Never attempt to use the dehumidifier for special uses, such as food
or preservation of art objects, or the like. The deterioration of
preserving quality may be caused.
■ Do not use the dehumidifier where any leakage of oil or flammable gas
may take place.
3

■ Do not use the unit in places subject to chemicals.
■ For continuous draining, make sure that the drain hose is set properly without
a rising slope.
■ Be careful that a heating appliance is not exposed to the air outlet from the
dehumidifier.
■ Do not use the dehumidifier as a chair or a footstool.
■ For safety purpose, disconnect the power plug if the unit is not in use for a long time.
■ Be sure to take hold of the power plug when plugging in and out of an outlet.
■ In case of using the dehumidifier in a closet, be sure to prevent children from
getting in the closet.
■ Do not remove the float lever from the water tank.
■ To avoid damages to the power cord, do not pull out the cord when moving the unit.
■ Do not block up the air intakes and the air outlets. Do not cover the unit with
washed clothes.
■ Prior to continuous operation for a long duration, periodical checking is required
especially for the air clean filter, the drain hose, or the like.
■ Turn off the unit and disconnect the power plug before starting any cleaning or
other routine maintenance.
■ To avoid the risk of electric shock, never sprinkle or spill water on the
dehumidifier when cleaning.
■ Turn off the unit and empty the water tank before moving the
unit. Be sure to hold the handle when moving.
4

Operation and Performance
Defrosting operation
The evaporator within the dehumidifier builds up ice during the dehumidifying operation at room temperature of
approx. 15℃or less. For removing ice the defrosting device works automatically at an interval of approx. 30
minutes or more (for duration of approx. 5 minutes).
■ Both the dehumidifying function and the air cleaning function stop during the defrosting operation.
■ Do not disconnect the plug of the unit or turn off the unit during the defrosting operation.
This dehumidifier is not suitable for keeping the humidity very low (approx. 50 % RH or less)
This dehumidifier is designed to remove uncomfortable humidity in daily life and for auxiliary drying of washed
clothes indoors. It is not suitable for keeping the humidity very low.
Room temperature rises during the operation.
This dehumidifier does not have a cooling function. It produces heat during the operation and room temperature
rises by 1 C to 4 C. The temperature gets higher while it is operated in a closet, or the like. Furthermore, room
temperature rises because doors and windows are closed and heat is produced from other appliances in the room
and the sun radiation.
5

Parts Names and Functions
Front Back
Controls
Upward Air
Outlet
Handle
Rating Labble
Air Intakes
Water Tank
Power Cord
Downward Air Outlet
Upward Air Outlet
B
c:20mo
akcormre
Air Intakes
r
:
c
mr
r
e
Font10
omo
2mre
Rig
ht0cmoo
:r
fmrr
Let:20comoe
Up: 30cm or more
UpwardAir Outlet
Installation
For efficient operation of the dehumidifier,
spacings are required as shown below.
Note
In case TV sets,radio etc.are disturbed with noises,keep them apart form the dehumidifier by 70cm or more.
6
H
an
dl
e
U
pwar
d
Ai
r
O
ut
l
e
t
Downward Air Outlet
Power Cord
U
pwar
d
Ai
r
Outlete
C
ontro
l
s
Rating Lab
el
Air Intakes
W
ater
T
an
k
Upward Air Outlet
Up: 30cm or more
Air Intakes

Controls
Press "Timer Select"
switch to set the timer
for automatic stops.
Press "ON/OFF switch to
start the operation, to
stop the operation,
press the switch again.
AutomaticDry ClothesAir Clean
ON/OFF
TIMER
MODE
"
Continuous
HUMIDITY
INDICATOR
Full Hi Med Lo
Press "Mode" switch
to select the modes
of operation
The timer lamps show
The indicationof current
environment humidity.
the remaining time
of operation
Lamp lights up and
the operation stops
automatically when the
water (approx. 4.0L)
2 4 8
7
This M/I light indication method
Light off
Light on
Light flashing
Lamp lights up an
d
the operation
stops automatically when the water
tank is filled with water (approx.
4.5L)
Indication of current
environment humidity.
The timer lamps
show the remaining
time of operation
Press "Timer Select"
switch to set the timer
for automatic stops.
Press "Mode" switch
to select the modes of
operation
Press “ON/OFF” switch
to start the operation, to
stop the operation, press
the switch a
g
ain.
Air Clean Dry Clothes Continuous Automatic

For Selecting Functions Properly
MODE
To dehumidify a room for comfortable humidity or protect a
ceiling and/or walls from getting damp and mouldy.
Built-in micro computer memorizes the operation of the dehumidifier, once
it is set. The unit repeats the same operation by pressing "Power"
switch. (In case of disconnection by unplugging or power failure,
start over the setting again.)
To dehumidify a room or keep a
ceiling and/or walls from dew
consideration and getting moldy AUTOMATIC
To dehumidify
a closet CONTINUOUS
To dry washed
clothes faste
r
DRY CLOTHES
To dry a carpet or
a rug DRY CLOTHES
To dehumify a small
spacing or dry shoes
room DRY CLOTHES
To make the air clean
in a room AIR CLEAN

8
9
Operation mode "Automatic"
■ Open either the upward flap or the downward flap
■ The dehumidifying operation stops automatically when the
relative humidity is below approx. 60 %. The dehumidifier
continues the air cleaning operation only ("Automatic
operation lamp remains lighting up.)
Operation mode "Continuous"
■ Open either the upward flap or the downward flap
■ In "continuous"mode, you can press "Timer Select" switch to
set the timer 2H or 4H or 8H.
■ Be sure to put the dehumidifier in a closet with the tank side
toward the closet door.
■ Try to close the closet doors to a degree that the power cord
may not be pinched in the doors.
Continuous operation with additional air flow
■ Open either the upward flap or the downward flap for drying
washed clothes uniformly.
Continuous operation with the downward flap open.
■ Open the downward flap of air outlet only.
Continuous operation with the spot flap open.
■ Open the spot flap of air outlet only.
Air Clean
■ This unit is not intended for use as an exclusive air cleaner.
■ Open either the upward flap or the downward flap.
■ Air cleaning function does not work without air clean filter.
To open the upward air
outlet fla
p
.
To open the downward air
outlet fla
p
.

Preparation and Checking before Operation
10
Handle
How to Operate
■ Your dehumidifier will stop automatically after the hours set by the timer (2H, 4H or 8H)
■ In any mode, you can press "Timer Select" switch to set the timer 2H or 4H or 8H.
Make sure that the water tank is set properly.
Your dehumidifier cannot be operated when the water tank
is full of water or it is not set properly.
How to remove
Draw the water tank gently toward you by holding the
concave part of the tank.
How to set
Push the tank horizontally and gently. The handle lies down
by itself.
When you empty water from a water tank
1. Remove the water tank from the dehumidifier.
2. Hold the tank by the handle and carry it gently.
3. Tilt the tank to the direction as shown and slowly empty
the water out of the tank.
4. Set the tank in the dehumidifier.
Note
After the dehumidifying operation, water is
collected in the water tank. When the tank is full of
water, the dehumidifier stops operating
automatically and the buzzer sounds. The buzzer
sounds for 10 seconds when the tank is taken out
during the operation. For continuous draining, see
the page 16.
Plug in the dehumidifier to an outlet.
■ "Automatic"mode lamp will sound" beep"one time.
■ "Humidity indicator" mode lamp will light up and show the room
humidity.
■ Make sure that the water tank is set properly.
Open one of the air outlet flaps suitable for the desired operation.
Handle

Continuous
Humidity indicator
ON/OFF
Set the unit to the desired operation by pressing "Mode" switch.
■ Every timer you press the "mode" switch, the mode select lamps light up in turn as shown and the
operation mode will be changed.
11
Press "Power" switch.
■"Automatic"mode lamp will light up.
Continuous
Humidit
y
indicato
r

MODE
8
42 SELECT
TIMER
■ With the lapse of time, the timer lamp lighting up will indicate the remaining time.
The unit will stop operating after the lapse of the set time.
!
Prohibit
!
Prohibit
Stop operating
Press "Power" switch again
■ The mode select lamp will go off and the unit will stop operating.
■ Close the flap.
12
Humidity Indicator Automati Continuous Dry Clothes Air Clean
Warning
Warning
To avoid damages to the power cord, do not pinch the cord in a door.
Be sure to prevent children from getting in a closet when using the unit in the
closet.

Buzzer
Whenever a switch is pressed, the buzzer will sound.
Notes
■Except "Continuous"mode operation the timer setting will be
cancelled whenever 'Mode"switch is pressed. Set the cancelled
whenever 'Mode"switch is pressed.
■The timer stops when the water tank is full of water.
After the tank is emptied, the timer will start again.
13
Note
Be sure to open one of the flaps. If the flap is not opened fully during operation,the overheat
prevention device will work and the unit will stop operating.
Due to the protetive function for the machine,the dehumidifying operation will be started after
approx.3 minutes,when the unit is plugged in or restarted immediately after stopped.
After recovery from a Power failure,” Automatic” mode lamp will flash. Press” power “switch
again to start the operation.
Efficiency of the dehumidifier is influenced by the air outside the room. For operating
efficiently, try to avoid opening and closing the windows and the doors.
For proper performance, operate the dehumidifier under the usable operating temperature. For
safety purpose, the dehumidifying operation will be stopped automatically and changed to the
air cleaning operation when the ambient temperature is higher than approx. 36 C.
Circulation of the refrigerant may cause sound within the dehumidifier when the operation is
started. After the circulation is stable, the sound will be lower.
To change the timer set
Press”Timer Select” Switch
to set the desired time.
To cancel the timer operation
Press” Timer Select” Switch
and the timer lamp will go off.
To stop the timer operation
Press "Power" switch again

For maintenance
!
!
When the unit is not in use for a long time.
1. Unplug the unit, bundle the power cord, and hang the bundled cord at the back of the unit.
2. Empty the water out of water tank,wipe the tank with cloth and replace in position.
3. Clean the air clean filter.
4. For storing,stand the unit upright and avoid the exposure to the direct sunlight.
Request
■ To avoid malfunction or abnormal sound, keep the unit upright.
Warning
Caution
To avoid of the risk of electric shock, never connect and
disconnect the plug with your hand wet.
Turn off the unit and disconnect the power plug before
cleaning or Other routine maintenance.
Do not remove the float lever from the water tank.
Prohibit wet hand
Prohibit
Dehumidifier body
Wipe the dehumidifier with a dry and soft cloth.
■ To remove heavy dirt, wipe it with a cloth wrung
tightly.(Never use a wet cloth for cleaning the controls).
■ To avoid deformation or cracking, do not use petrol.
thinner or liquid cleaners.
■ Chemical cloth may cause the change in color or the unit.
Water tank
■ Pull out the water tank and take it out.
■ Wash the inside of the tank with water.
■ The tank may be scratched, if you scrub it strongly with a
brush.
■ Do not remove the float lever from the tank.
■ Wipe off the water on the outside of tank with a cloth and
replace the tank as it was.
tank handle
float lever

Front & SideAir Intakes (maintenance every 3 months)
■ The dehumidifying capacity will be lowered when the
filter gets clogged.
■ Pull the cover toward you and remove it from the unit. Remove the filter from the filter holder.
■ To dislodge the dust from these filters, use a vacuum cleaner or pat them lightly.
■ If the filters are fouled seriously, wash in water including neutral detergent, rinse well with water and
leave until dry.
Set the cover in position.
(1)
(2)
filter
filter holder
filter holder cover
For easy installation, please
install bottom first and then
the top.

!
For continuous draining with hose
■ For continuous draining, make sure that the drain hose is set properly without a
rising slope.
■ To prevent the water from freezing, do not use the dehumidifier and drain hose at
ambient temperature below 0 C.
The continuous operation enables the dehumidifying operation for hours and it is not necessary to empty the
water tank.
Before operating continuous draining, be sure to turn off the dehumidifier and disconnect the power plug.
Preparation for continuous draining:
Hose connection for draining (enclosed)
Make the hose opening
■ To make the opening, remove the cover for the drain
hose by means of a screwdriver or eqvivalent.
Fit the drain hose.
■ Fit the hose connection to the small connecting piece in top inside
the dehumidifieridifier by means of the enclosed screw.
■ Put on a hose and connect the hose to the drain.
Set the water tank as it was before
■ The unit cannot operate without the water tank.
16
!
Cautions
Ensure drain
Prohibit

Specifications
Model CD400-18
PowerSupply 220V-240V (50Hz)
Dehumidity Capacity 18 ltr./24 hours (30℃/80 % RH)
Power Consumption 340W
Capacity of water tank Approx.4,5 L
Weight 13kg
Dimensions Height 575mm, Length380mm, Width 225mm
RoomTemperature 5℃-35℃
The specification may be subject to change
without notice for purpose of improvement.
Trouble- Shooting
Prior to requesting to repair, please check for the following:
Malfunction Points to be checked Measures to be taken Ref.Page
Check if the power plug is
disconnected. Insert the plug into an electric outlet fully
and securely. 2
Check if the water tank is full of
water. Empty the water out of the tank. 2
Check if the water tank is not set
properly in position.
Set the tank to the unit properly in
position. 11
No operation
Check if all the flaps are closed. Open one of the flaps. 13
Check if the filters get dirty. Clean the filters as specified. 13
Check to see if the air openings are
blocked up. Remove obstacles from the air openings. 13
Dehumidified
volume is small Check if the dehumidifier is in air
clean mode.
Change the operation mode to the
dehumidifying mode. 13
Loud sound
while operating
Check to see if the unit is not
installed as specified. Install the unit on a level and stable floor. 13
Operation stops
during spot
dehumidifying
Check if the room temperature is
higher than the usable operating
temperature.
The dehumidifying operation will be
started automatically when the
temperature lowers.
13
Check if washed clothes are not
exposed to the air from the unit.
Try to expose the washed clothes to the air
flow. 13
Washed clothes
are not dried Check if the room temperature is too
low.
Washed clothes are hard to be dried under
low temperature conditions. 13
17

Nothing is wrong with your dehumidifier in case of the following phenomena
Phenomenon Reason
Operation stops occasionally The unit is defrosting (See page 5).
Dehumidified volume is small
Dehumidifier volume less when the room temperature
is low (see page 6) The unit stops operating when the
room temperature is below approx.. 5 C. The unit stops
dehumidifying because the humidity in a room drops to
60 % or less in "Automatic" mode. (See page 5).
he humidity in a room is still high
The room size may be too large. (see page 5) The doors
or the windows of the room may be opened and /or
closed frequently. (See page 5) .
Bad smell during operation Smell is emitted from the walls, furniture or other
objects.
Sound is produced within the unit Circulation of the refrigerant may cause sound until it is
stable.
Water is left in the water tank The water is left because the unit was subjected to
dehumidifying test in the factory.
The buzzer sounds The buzzer sounds when the water tank is full of water.
(See page 11).
18
