DAPAudio CDMP-2200 User manual

CDMP-2200
ORDERCODE D1166
Highlite International B.V.
Vestastraat 2
6468 EX Kerkrade
The Netherlands

Congratulations!
You have bought a great, innovative product from DAP Audio.
The DAP Audio CDMP-2200 brings excitement to any venue. Whether you want simple plug-&-play action
or a sophisticated show, this product provides the effect you need.
You can rely on DAP Audio, for more excellent audio products.
We design and manufacture professional audio equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
For more information: [e-mail]
You can get some of the best quality, best priced products on the market from DAP Audio.
So next time, turn to DAP Audio for more great audio equipment.
Always get the best -- with DAP Audio !
Thank you!

1
Dap Audio
Dap Audio CDMP-2200™ Product Guide
Warning ..........................................................................................................................................................................2
Unpacking Instructions ...........................................................................................................................................2
Safety-instructions ..................................................................................................................................................2
Operating determinations.....................................................................................................................................3
Return Procedure ....................................................................................................................................................4
Claims........................................................................................................................................................................4
Description.....................................................................................................................................................................5
Overview...................................................................................................................................................................5
Front ...........................................................................................................................................................................6
Back...........................................................................................................................................................................7
Installation......................................................................................................................................................................7
Set Up and operation...................................................................................................................................................7
Functions ........................................................................................................................................................................8
Operations .................................................................................................................................................................. 10
Opening and closing of the disc holder ......................................................................................................... 10
Loading CD’s ........................................................................................................................................................ 10
Selecting tracks .................................................................................................................................................... 10
Starting playback................................................................................................................................................. 11
Stop playback ...................................................................................................................................................... 11
Pausing................................................................................................................................................................... 11
Setting a cue point .............................................................................................................................................. 11
Setting a hot cue Point ....................................................................................................................................... 11
Cueing.................................................................................................................................................................... 11
Frame search ........................................................................................................................................................ 12
Scanning (fast forward/fast backward)............................................................................................................. 12
Time display........................................................................................................................................................... 12
Changing the pitch of the song ....................................................................................................................... 12
Program play ........................................................................................................................................................ 13
Loop play............................................................................................................................................................... 13
Set auto loop length............................................................................................................................................ 13
Auto loop play...................................................................................................................................................... 13
Reloop .................................................................................................................................................................... 13
Creating a hot loop............................................................................................................................................. 13
Relay play.............................................................................................................................................................. 13
Before switching off the power ............................................................................................................................... 14
CD’s ........................................................................................................................................................................ 14
Precaution on storage ........................................................................................................................................ 14
Maintenance.............................................................................................................................................................. 14
Troubleshooting ......................................................................................................................................................... 14
Product Specifications.............................................................................................................................................. 15

2
WARNING
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
• DAP CDMP-2200
• 2x control cable - 2m
• User manual
SAFETY INSTRUCTIONS
Every person involved with the installation, operation and maintenance of this system has to:
-be qualified
-follow the instructions of this manual
Before you initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the system.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the system are not subject to
warranty.
This system contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-
observance of this manual or any unauthorized modification to the system.
Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never leave any cables lying around.
Do not insert other objects then CD’s in the CD slot.
Do not connect this system to a dimmerpack.
CAUTION!
Keep this system away from rain and moisture!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dangerous electric shock when touching the wires!
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!

3
Do not switch the system on and off in short intervals, as this would reduce the system’s life.
Do not open the device and do not modify the device.
Only use system indoor, avoid contact with water or other liquids.
Avoid flames and do not put close to flammable liquids or gases.
Always disconnect power from the mains, when system is not used. Only handle the power-cord
by the plug. Never pull out the plug by tugging the power-cord.
Make sure you don’t use the wrong kind of cables or defective cables.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged. Check the system and the power-
cord from time to time.
Please turn off the power switch, when changing a signal cable.
If the device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do
not switch it on immediately. The arising condensation water might damage your system. Leave
the system switched off until it has reached room temperature.
If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Dap Audio dealer for
service.
Repairs, servicing and electric connection must be carried out by a qualified technician.
For replacement use fuses of same type and rating only.
WARRANTY: Till one year after date of purchase.
OPERATING DETERMINATIONS
This system is not designed for permanent operation. Consistent operation breaks will ensure that the
system will serve you for a long time without defects.
If this system is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.
You endanger your own safety and the safety of others!
Improper installation can cause serious damage to people and property !
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
1) Your name
2) Your address
3) Your phone number
4) A brief description of the symptoms

4
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.

5
Description of the device
Features
The CDMP-2200 is a professional DJ CD/MP3 Player from DAP Audio.
• LCD display with blue backlight
• Pitch control +/- 8/16/100%
• Electronic anti shock buffer (8 seconds)
• Seamless loop function
• Beat related auto loop function
• Scratch function
• Cue function
• 2 hot cues
• Program function
• USB stick/hard disk port
• Relay function
• Master tempo function
• Auto BPM function

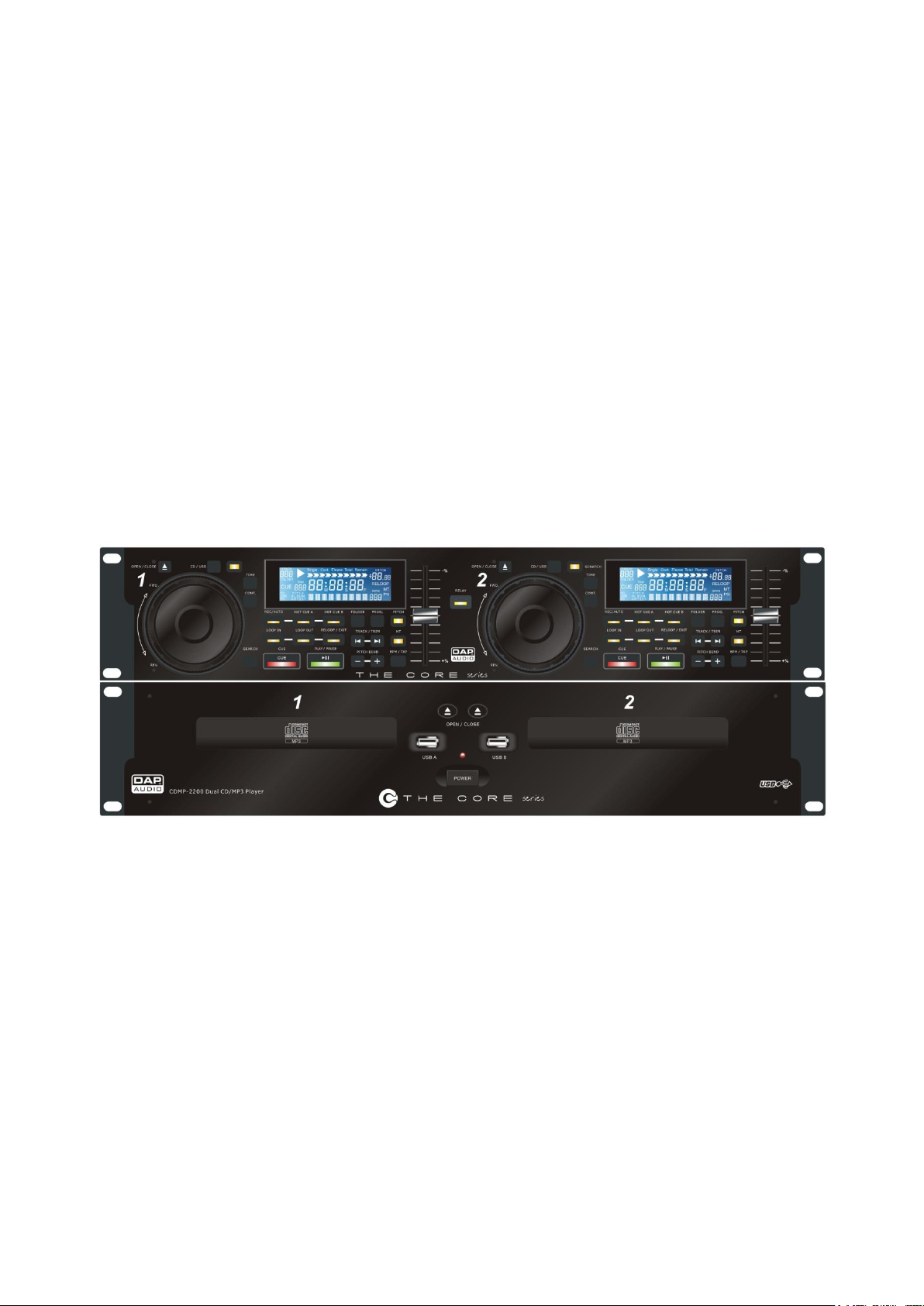

Overview

6
Front
Fig. 1
1) Open/close button 17)Loop out button
2) CD/USB button 18)Reloop/exit
3) Scratch button 19)Track/trim button
4) Time button 20) Track/trim button
5) Rec/auto button 21) MT button
6) Hot cue A button 22) Cont. button
7) Hot cue B button 23) Cue button
8) Folder button 24)Play/pause button
9) Prog. button 25)Pitch - Button
10) Pitch button 26) Pitch + Button
11) Pitch control fader 27)BPM/tap button
12) Relay button 28)Disc holder
13) LCD display 29) Open/close button
14) Jogwheel 30) USB port
15) Search button 31) Power on/off
16) Loop in button 32) Power LED

7

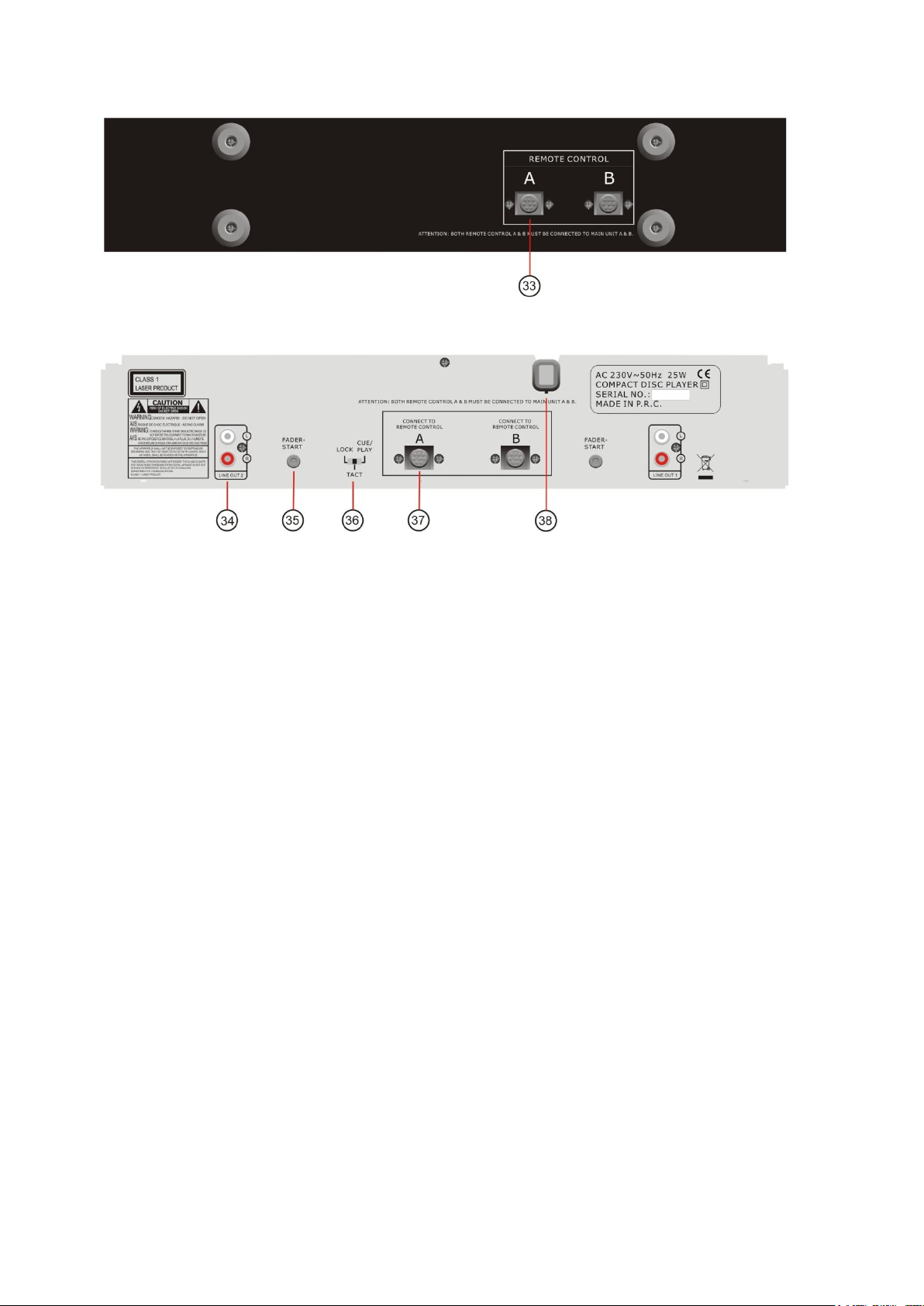

Back
Fig. 2
33)Controller- Main unit connector
34)Line out L/R
35)Fader start jack
36)Lock –tact - cue/play switch
37)Main unit –Controller connector
38)AC Power
Installation
Remove all packing materials from the CD Player. Check that all foam and plastic padding is removed.
Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. The power supply is printed on the back of the device.
Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connections
1. Turn off the power (31) switch.
2. Connect the line out L/R (34)outputs to the input of your mixer.
Caution: Be sure that the power is off, when connecting the cables.

8
Functions
NAMES AND FUNCTIONS
Below is a description of the functions of the controls.
1/29. Open/ close button
Use this button to open and close the disc holder. The disc holder cannot be opened during
Playback. Stop playback before opening the disc holder.
2. CD/ USB button
Use this button to select CD or USB mode.
3. Scratch button
Use this button to toggle the scratch mode on or off. The built in LED Indicates the CDMP-2200 is in
scratch mode.
4. Time button
Use this button to switch the TIME indication in the LCD display (13) between the elapsed time and
remaining time. The selected mode is indicated by ELAPSED or REMAIN.
5. Rec/auto button
Pushing this button allows you to store a hot cue.
Pushing and holding the rec/auto (5) button and dialing the jogwheel (14).
allows you to set the length of the auto Loop. See page 13 “Auto loop recording”
6. Hot cue A button
Use this button to store a hot cue point. See page 12 “Setting a hot cue point”.
7. Hot cue B button
Use this button to store a hot cue point. See page 12 “Setting a hot cue point”.
8. Folder button
Use this button to open the folder menu. While in the folder menu, Folder will appear in the display.
Select a folder by pushing the Track/trim (19) and Track/trim (20) buttons and open the
folder by pushing the folder (8) button again.
9. Prog button
This button allows toggle program mode on or off. See page 13 “Program play”.
10. Pitch button
This button allows you to select the maximum pitch range deactive the pitch control fader.

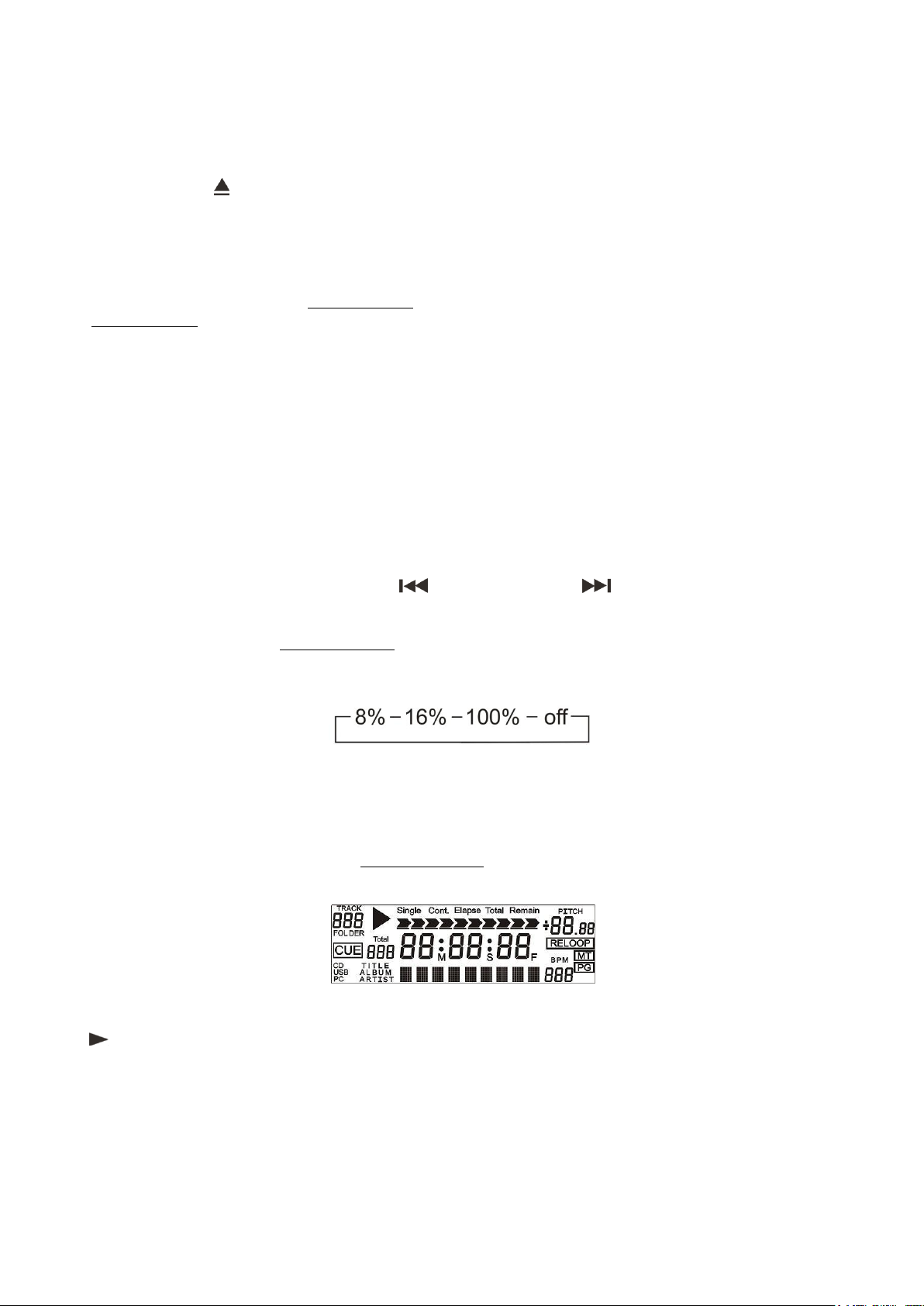

Fig. 3
11. Pitch Control Fader
Use this fader to adjust the CD pitch. Move the fader upwards to decrease the pitch, move the fader
downwards to increase the pitch.
12. Relay button
This button allows you to toggle the relay play mode on or off.
13. LCD Display
Fig. 4
TOTAL TRACK: Shows the current track number or the folder number while selecting folders.
: Indicates that the unit is in playback mode.
CUE: indicates that a cue point has been memorized.
CD: Indicates that the unit is in CD mode.
USB: Indicates that the unit is in USB mode.
PC: No function in the CDMP-2200.
SINGLE: When lit, the unit is in continuous play mode and will not stop after each track.
CONT: When lit, the unit is in continuous play mode and will not stop after each track.
ELAPSE: Shows the actual playing time.
TOTAL: Shows the total paying time for the complete CD.
REMAIN: Shows how much time is left for the track playing at this moment.
