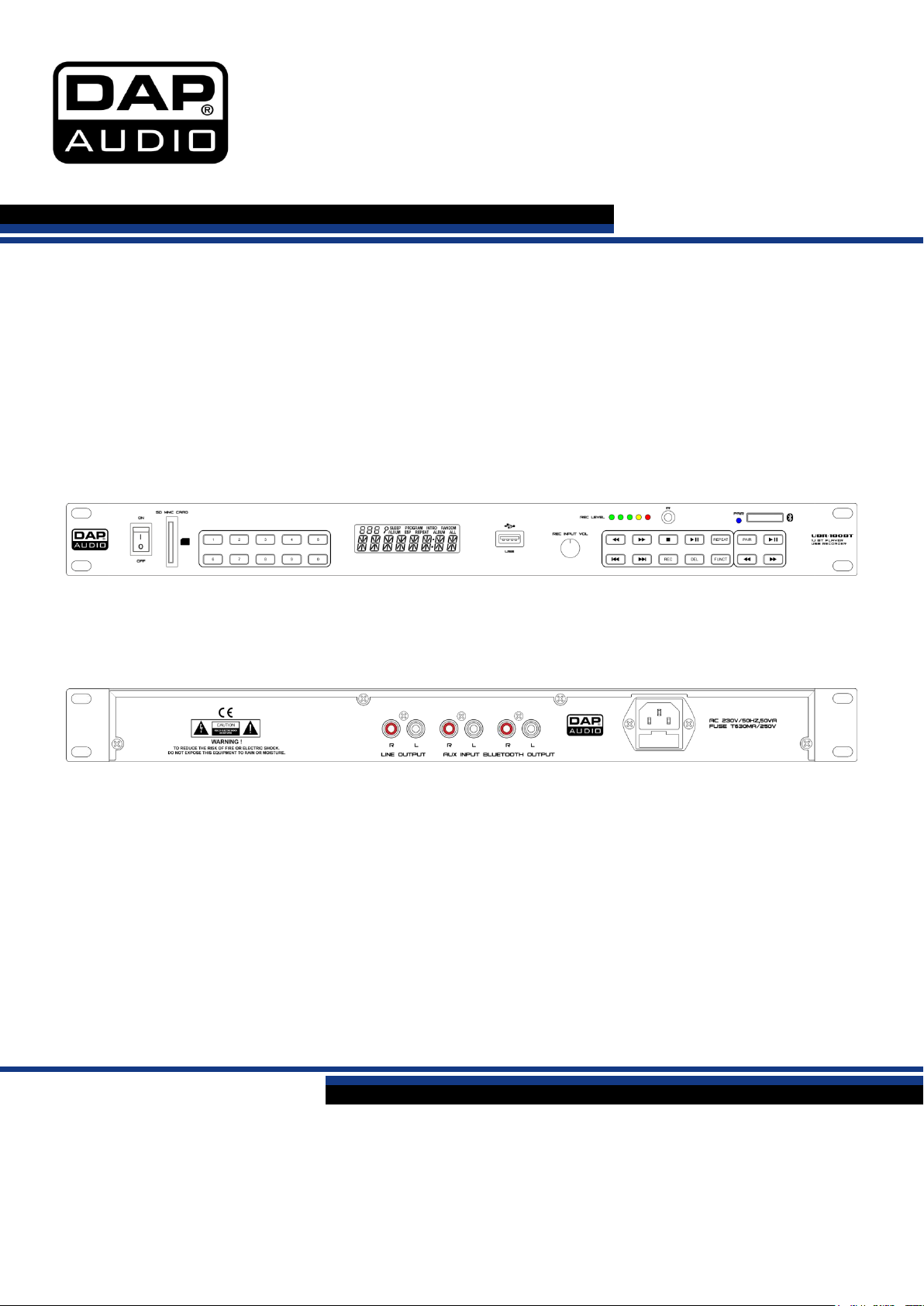

DAPAudio ubr-180bt User manual

UBR-180BT
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Ordercode: D1258
MANUAL
ENGLISH

1
UBR-180BT
Ordercode: D1258
Table of contents
Warning ...............................................................................................................................................................................2
Unpacking Instructions.................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................3
Connection with the mains.........................................................................................................................................4
Return Procedure..........................................................................................................................................................4
Claims..............................................................................................................................................................................4
Description of the device.................................................................................................................................................5
Features ..........................................................................................................................................................................5
Frontside..........................................................................................................................................................................5
Rear Side.........................................................................................................................................................................6
Remote Control.............................................................................................................................................................6
Installation...........................................................................................................................................................................7
Set Up and Operation .......................................................................................................................................................7
Names and Functions.......................................................................................................................................................7
Operations ........................................................................................................................................................................10
1. Play Modes ...........................................................................................................................................................10
2. Selecting Tracks Forward ...................................................................................................................................10
3. Selecting Tracks Backwards ..............................................................................................................................10
4. Selecting Folders Forward..................................................................................................................................10
5. Selecting Folders Backwards.............................................................................................................................10
6. Starting Playback.................................................................................................................................................10
7. Stop Playback ......................................................................................................................................................11
8. Pausing ..................................................................................................................................................................11
9. Recording..............................................................................................................................................................11
10. Delete a track ....................................................................................................................................................12
11. Program Play ......................................................................................................................................................12
12. Loop Play.............................................................................................................................................................12
Maintenance....................................................................................................................................................................13
Replacing a Fuse ........................................................................................................................................................13
Troubleshooting ...............................................................................................................................................................13
Product Specifications....................................................................................................................................................14
Dimensions........................................................................................................................................................................14

2
UBR-180BT
Ordercode: D1258
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
DAP UBR-180BT
Remote Control
IEC power cable (2,50m)
User manua
Safety Instructions
Every person involved with the installation, operation and maintenance of this system has to:
be qualified
follow the instructions of this manual
Before you initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the system.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the system are not subject to
warranty.
This system contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the system.
Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.

3
UBR-180BT
Ordercode: D1258
Never leave any cables lying around.
Do not insert objects into air vents.
Do not connect this system to a dimmerpack.
Do not switch the system on and off in short intervals, as this would reduce the system’s life.
Do not open the device and do not modify the device.
Do not drive the inputs with a signal level bigger, than required to drive the equipment to full output.
Only use system indoor, avoid contact with water or other liquids.
Avoid flames and do not put close to flammable liquids or gases.
Always disconnect power from the mains, when system is not used. Only handle the power-cord by
the plug. Never pull out the plug by tugging the power-cord.
Always operate the unit with the AC ground wire connected to the electrical system ground.
Make sure you don’t use the wrong kind of cables or defective cables.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged. Check the system and the power-
cord from time to time.
Please turn off the power switch, when changing the power cord or signal cable, or select the input
mode switch.
Extreme frequency boosts in connection with a high input signal level may lead to overdriving your
equipment. Should this occur, it is necessary to reduce the input signal level by using the INPUT
control.
Avoid ground loops! Always be sure to connect the power amps and the mixing console to the
same electrical circuit to ensure the same phase!
If system is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your system. Leave the
system switched off until it has reached room temperature.
If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Dap Audio dealer for service.
Repairs, servicing and electric connection must be carried out by a qualified technician.
For replacement use fuses of same type and rating only.
WARRANTY: Till one year after date of purchase.
Operating Determinations
This system is not designed for permanent operation. Consistent operation breaks will ensure that the
system will serve you for a long time without defects.
If this system is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.
You endanger your own safety and the safety of others!
Improper installation can cause serious damage to people and property !

4
UBR-180BT
Ordercode: D1258
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
FASE
N
BLUE
BLACK
SILVER
NULL
YELLOW/GREEN
GREEN
GREEN
EARTH
Make sure that the device is always connected properly to the earth!
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
agreed otherwise in writing.
Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of
the invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement from which the obligation is resulting.
Return Procedure

5
UBR-180BT
Ordercode: D1258
Description of the device
Features
The UBR-180BT is a SD/MMC/USB compatible MP3 Player/ Bluetooth player /Recorder from DAP Audio.
Bluetooth connect
USB slot
SD/MMC card slot
Program mode
Full function infrared remote control
Stereo output RCA (Line out)
Stereo output RCA (Bluetooth out)
Stereo input RCA (Aux in)
Frontside
Fig. 01
Power On/Off button
Bluetooth status
SD/MMC card connector
Bluetooth sensor
Direct Access Buttons
Bluetooth pair button
LCD (Liquid Crystal Display)
Bluetooth Play/Pause button
USB stick connector
Bluetooth Fwd (Forward) Skip button
Rev(Reverse)Skip / Fast Backwards Button
Bluetooth Rev(Reverse)Skip button
Fwd (Forward) Skip / Fast Forward Button
Func (Function) Button
Rec Level Meter
Delete Button
Remote Sensor
Rec (Record) Button
Stop Button
Fwd (Forward) Skip Folder
Play / Pause Button
Rev (Reverse) Skip Folder
Repeat Button
Rec Input Volume Control

6
UBR-180BT
Ordercode: D1258
Rear Side
Fig. 02
Stereo RCA Output
Bluetooth RCA Output
Stereo RCA AUX Input
AC Inlet with integrated Fuse Holder
Remote Control
Fig. 03
Direct Access Buttons
Prog Button
Fwd (Forward) Skip Folder Button
ID3 Tag Button
Rev (Reverse) Skip Folder Button
Random Button
Repeat Button
Rev (Skip) Button
Rec Button
Cue (Skip) Button
Intro Button
Function Button
Del Button
A-B Button
Play/Pause button
Mute Button
Stop Button
Play 1 Button

7
UBR-180BT
Ordercode: D1258
Installation
UBR-108BT Installation
Remove all packing materials from the device. Check that all foam and plastic padding is removed.
Screw the device in a 19“ Rack. Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. The power supply is printed on the back of the device.
Do not attempt to operate a 115V specification product on 230V power, or vice versa.
Connections
01) Turn off the Power (1) switch.
02) Connect the Line Output (25) and the Bluetooth Output (27) to the inputs of your mixer.
03) Connect the source you want to record to the Aux Input (26) input.
Be sure that the power is off, when connecting the cables.
Names and Functions
Below is a description of the functions of the controls.
1) Power On/Off:
When the power switch is pressed the device turns on.
2) SD MMS card:
Use this port to connect your SD/MMS card for playback/recording.
3, 29) Direct Access buttons:
Press track 0-9 buttons to select tracks directly.

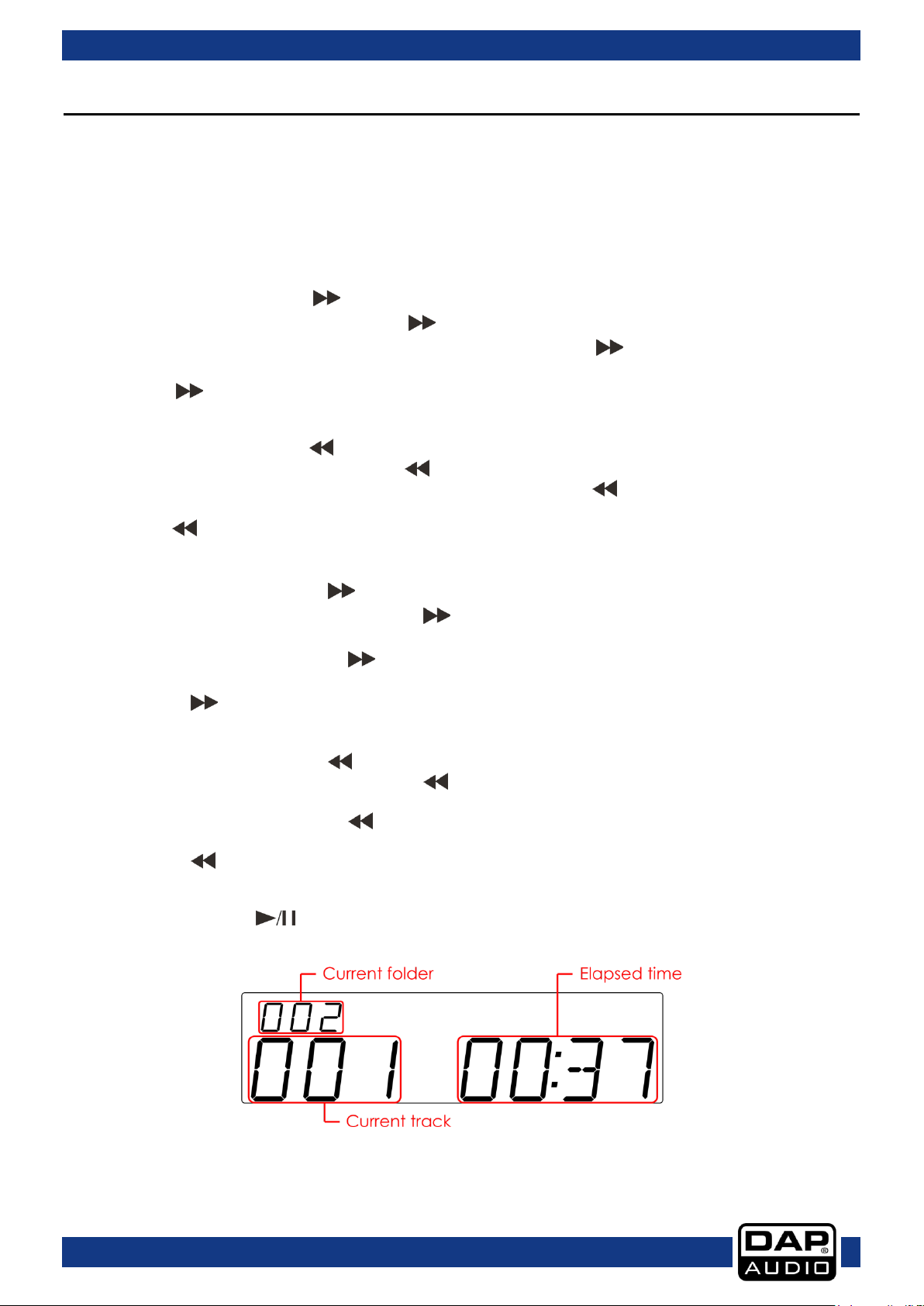

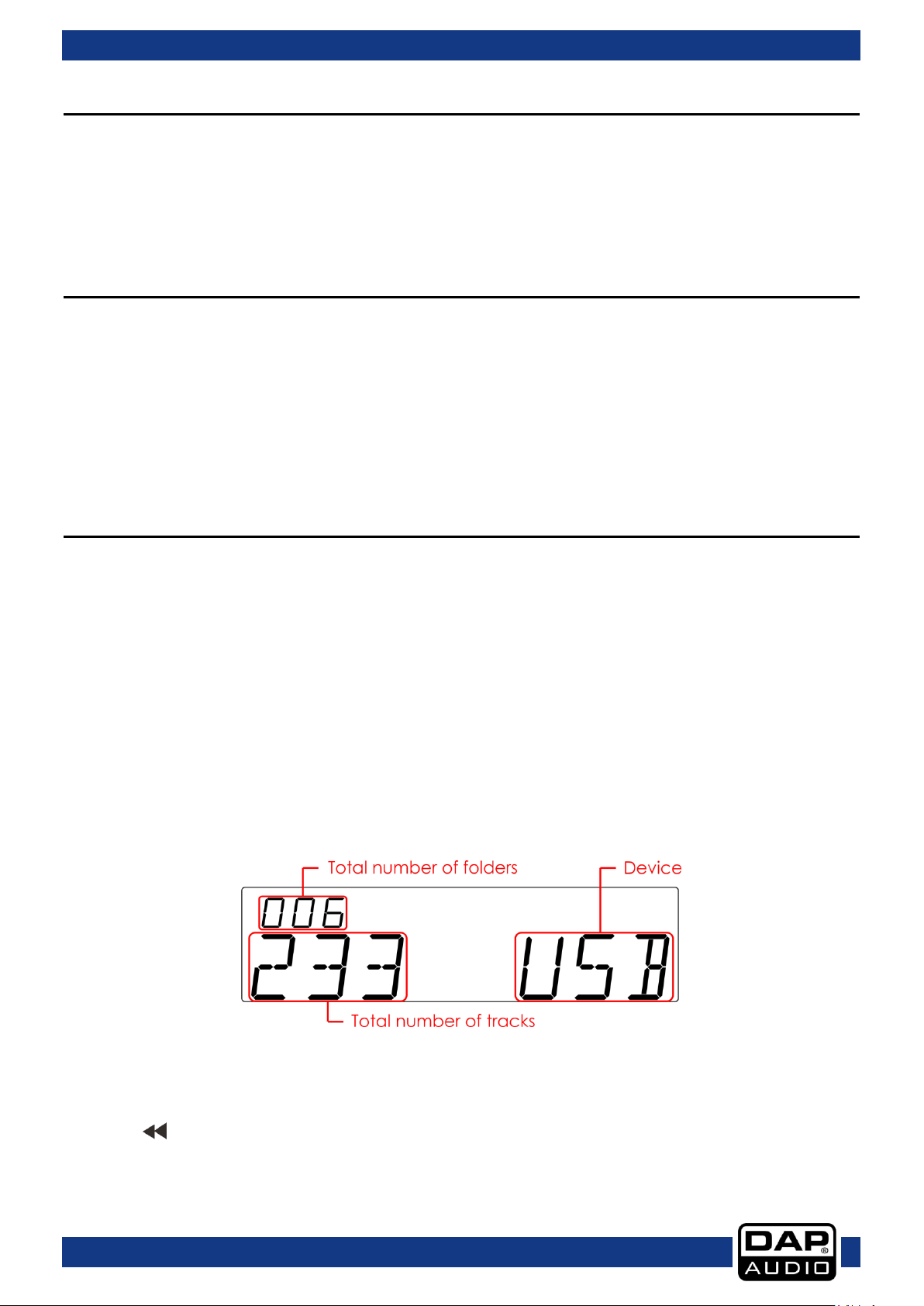

4) LCD:
When powering on the UBR-108BT without a USB stick or a SD/MMC card inserted, the UBR-108BT
will start searching for a source, indicated by “USB” in the display. If the UBR-108BT does not
detect a source within approximately 6 seconds, the display will show “WAIT”. If you insert a USB
stick or a SD/ MMC card, the display will look as shown in figure 4.
Fig. 04
5) USB:
Use this port to connect your USB stick for playback/recording.
6, 41) Rev
Press this button to go back to the beginning of the current track or select a previous track for
playing. Press and hold this button to play the track fast backwards.

8
UBR-180BT
Ordercode: D1258
7, 42) Cue :
Press this button to skip to the next track. Press and hold this button to play the track fast forward.
8) Rec level VU meter:
Allows you to monitor the Aux in (26) input to record without distortion by using the Rec input vol (24)
control.
9) Remote sensor:
This sensor receives the information of the remote control. Don’t place any object or sticker in front of
the sensor.
10, 37) Stop
Press this button to stop playback.
11, 36) Play/Pause
Use this button to start playback. Press once to start playback, twice to set the pause mode. Press
again to resume playback.
12, 32) Repeat:
Use this button to repeat one track, one folder or all tracks of the medium. See Play Modes on page 10
for more info.
13) Bluetooth connectivity LED:
LED blinks: Bluetooth is not paired
LED Steady on: Bluetooth is paired
14) Bluetooth sensor:
Bluetooth sensor
15) Bluetooth Pair/Unpair button:
Press this button for 3 seconds to connect to another Bluetooth device
To cancel the pair: Press this button for 5 seconds
16) Bluetooth PLAY/PAUSE:
Press once: the Bluetooth device starts playing
Press once again: The Bluetooth device will stop playing
17) Bluetooth Next track:
Press this button to skip to the next track.
18) Bluetooth Previous track:
Press this button to go back to the beginning of the current track or select a previous track for
playing.
19, 43) Function:
Press this button to select between USB, SD-Card or AUX input as recording source.
20, 35) Delete:
The delete button enables you to delete a track from either the USB-stick or the SD/MMC-card. See
Delete a track on page 12.
21, 33) Record:
This button activates the recording mode. See Recording on page 11 for more info.
22, 30) Folder
Press this button to skip to the next folder’s first track.
23, 31) Folder
Press this button to skip to the previous folder’s first track.

9
UBR-180BT
Ordercode: D1258
24) Rec input vol:
Use this control to adjust the level of the Aux in (26) input. Make sure the red LED of the Rec level (8)
VU meter does not light and that the orange LED only lights up occasionally.
25) Line out:
Connect to the line input of the Mixer.
26) Aux in:
Connect an external device from which you want to record.
27) Bluetooth output:
Connect to the line input of the Mixer.
28) AC Inlet with integrated fuse holder:
This connector is meant for the connection of the supplied main cord. Connect one end of the power
cord to the connector, the other end to the mains, then turn on the power switch to operate the unit.
Note: Please make sure that the supply voltage matches the operation voltage before connecting
the unit to mains. Replace the fuse only with a fuse of same specification (T630mA).
34) Intro Button:
When this key is pressed, the UBR-108BT will play each track for 10 seconds.
38) Program Button:
Press the Stop button to stop playback. Now press the Program button to enter program mode. See
Program Play on page 12 for more info.
39) ID3 button:
This button toggles the ID3 (track info) on or off.
40) Random button:
Pressing this button toggles the random function on or off. When the random mode is activated all tracks
will be played back in random order.
44) A-B Button:
Allows you to set a loop. See Loop Play on page12.
45) Mute Button:
When this key is pressed, the UBR-108BT will mute the Line Output (25).
46) Play 1 button:
Allows you to play the current track once.
