DAPAudio DVMP-150 User manual

DVMP-150 V1
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Ordercode: D1132
MANUAL
ENGLISH

1
Ordercode: D1132
DVMP-150
Table of contents
Warning ...............................................................................................................................................................................2
Unpacking Instructions .............................................................................................................................................2
Safety Instructions......................................................................................................................................................2
Operating Determinations.......................................................................................................................................3
Connection with the mains .....................................................................................................................................4
Return Procedure ......................................................................................................................................................4
Claims ..........................................................................................................................................................................4
Description of the device.................................................................................................................................................5
Frontside ......................................................................................................................................................................5
Backside......................................................................................................................................................................5
Remote Control .........................................................................................................................................................6
Names and functions........................................................................................................................................................7
Installation...........................................................................................................................................................................9
Set Up and Operation .......................................................................................................................................................9
Operations ........................................................................................................................................................................10
01) Preparation.......................................................................................................................................................10
02) Normal Playback.............................................................................................................................................10
03) Pause .................................................................................................................................................................10
04) Stop ....................................................................................................................................................................10
05) Previous and next............................................................................................................................................10
06) Fast Forward/ Reverse ....................................................................................................................................10
07) Video Mode .....................................................................................................................................................10
08) OSD (On Screen Display) ...............................................................................................................................10
09) Subtitle ...............................................................................................................................................................11
10) Step ....................................................................................................................................................................11
11) Repeat...............................................................................................................................................................11
12) Loop play ..........................................................................................................................................................11
13) Slow ....................................................................................................................................................................11

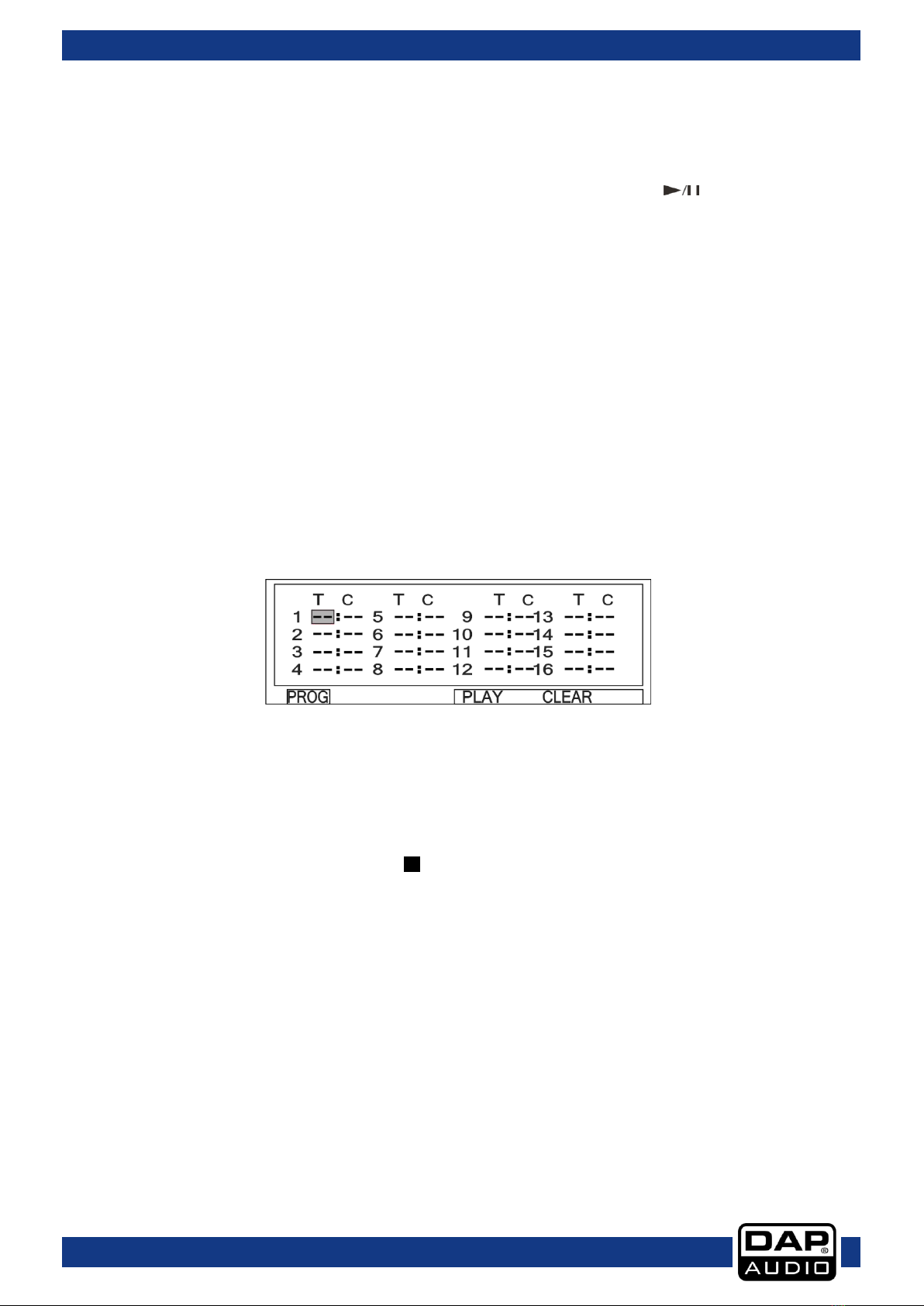

14) Program.............................................................................................................................................................11
15) Zoom ..................................................................................................................................................................11
16) Volume and Mute ...........................................................................................................................................11
17) Menu..................................................................................................................................................................11
18) Title .....................................................................................................................................................................11
19) Angle .................................................................................................................................................................12
20) Language selection........................................................................................................................................12
Before switching off the power .....................................................................................................................................12
System Setup ....................................................................................................................................................................13

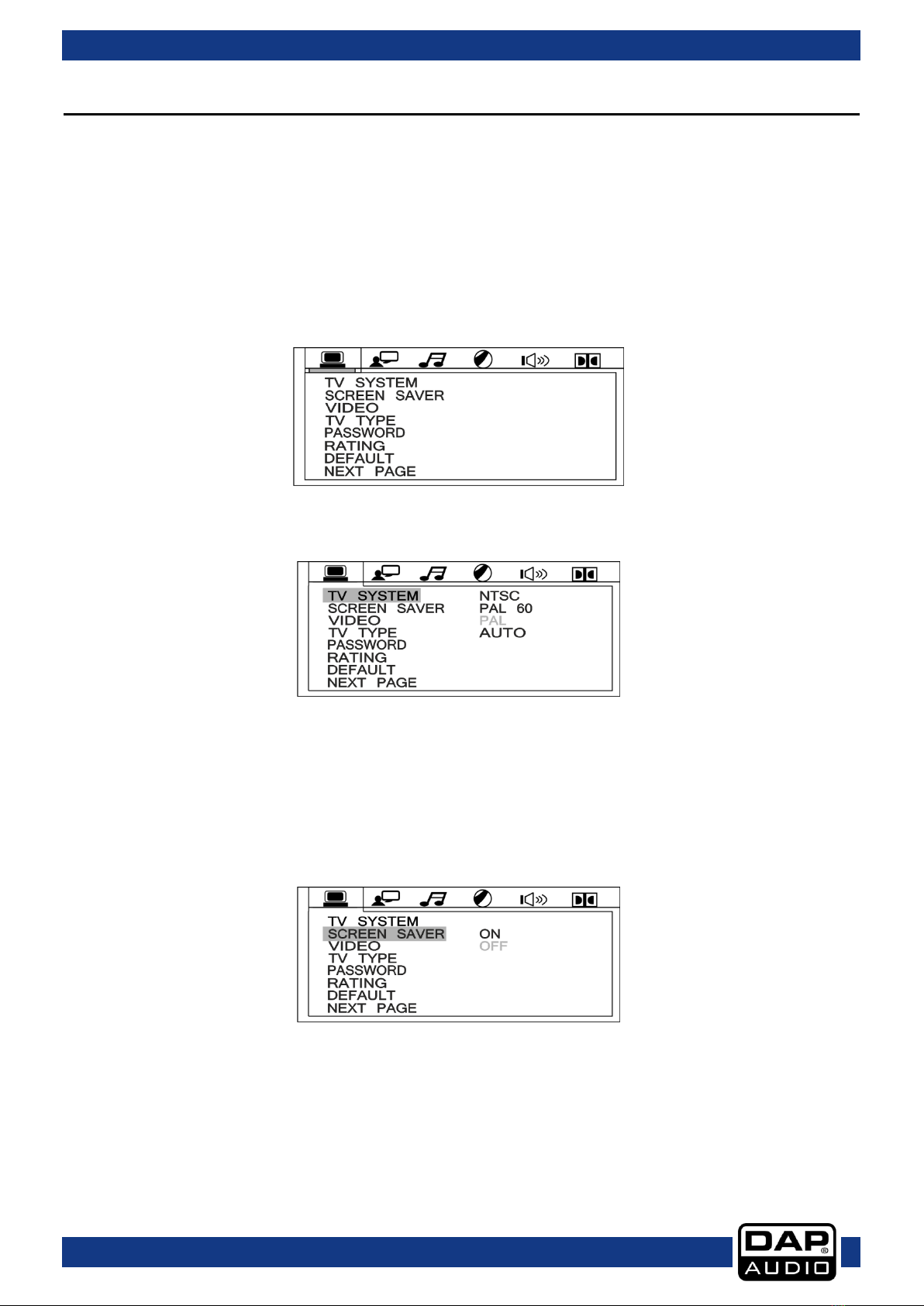

A. General Setup...................................................................................................................................................13

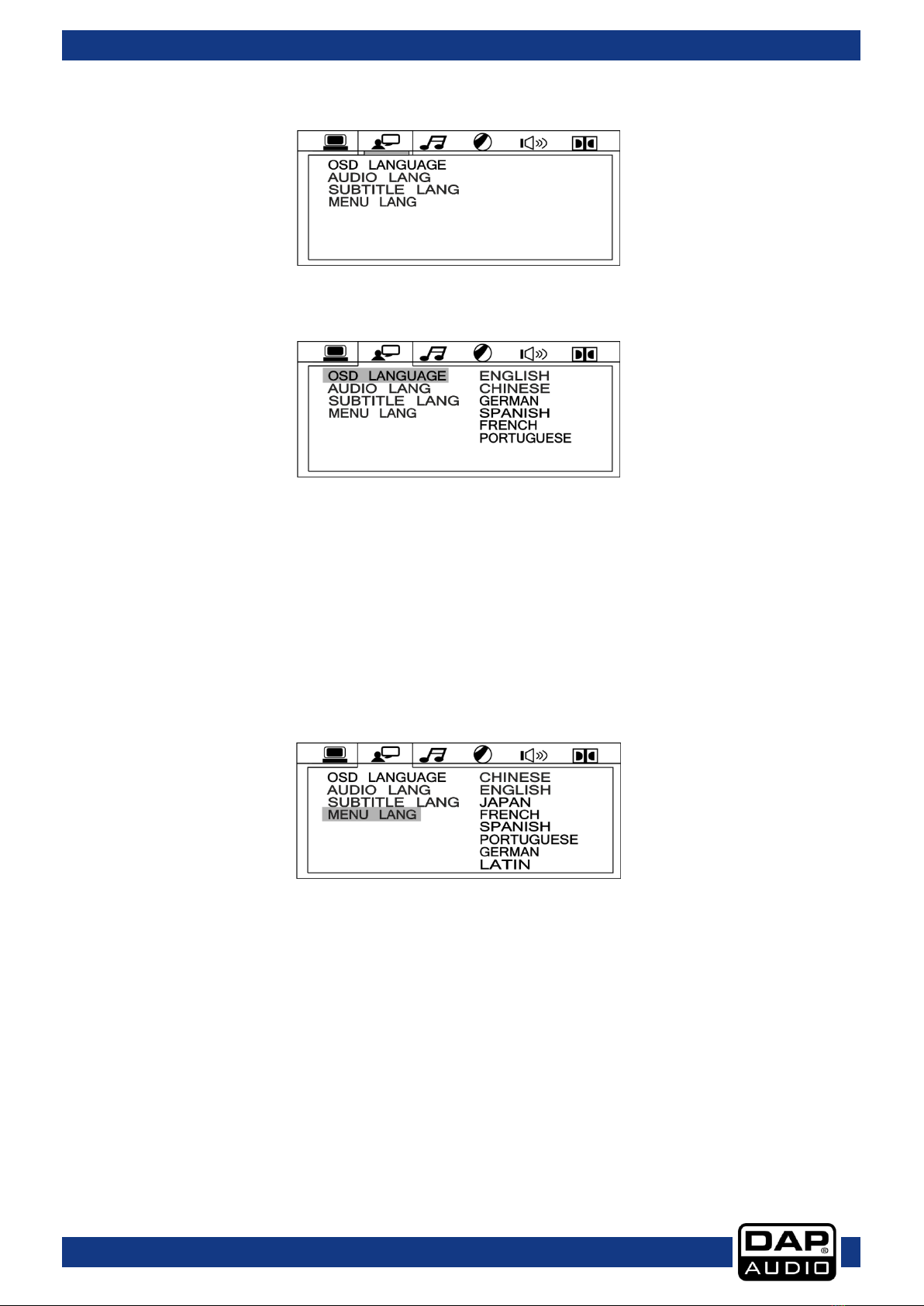

B. Language setup ...............................................................................................................................................17
C. Audio Setup.......................................................................................................................................................18

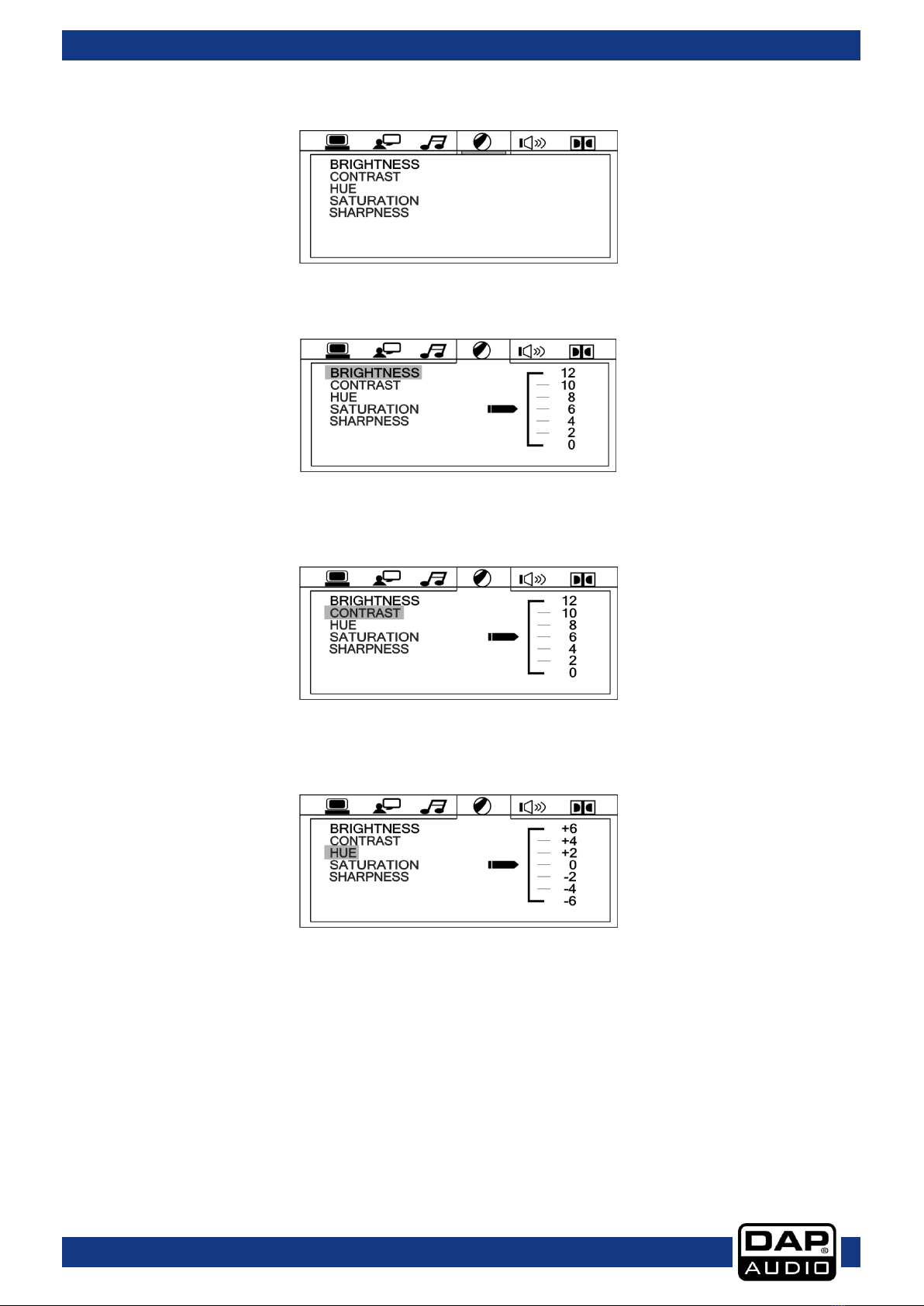

D. Video Setup.......................................................................................................................................................19
E. Downmix ............................................................................................................................................................20
F. Stereo setup ......................................................................................................................................................21
Setup examples ...............................................................................................................................................................22
Connection of a television set..............................................................................................................................22
Connection of a television set using an A/V- cable ........................................................................................22
Connection to an audio system and TV-set using the component outputs ...............................................22
Connection to an amplifier with digital audio input and TV-set ...................................................................23
Maintenance....................................................................................................................................................................24
Troubleshooting ...............................................................................................................................................................24
Product Specifications....................................................................................................................................................25
Notes ..................................................................................................................................................................................26

2
Ordercode: D1132
DVMP-150

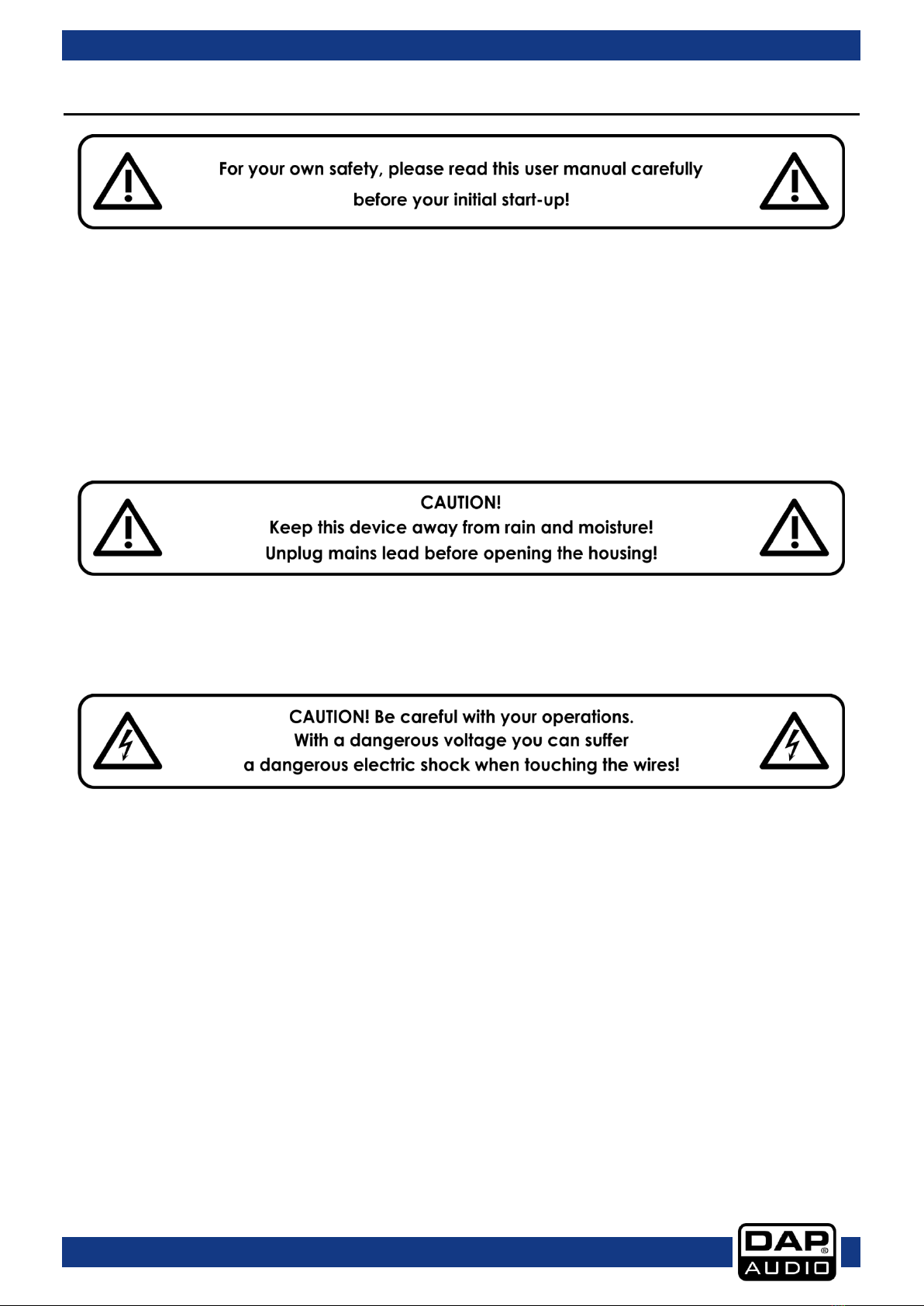

Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
• DAP DVMP-150
• IR Remote control
•User manual
Safety Instructions
Every person involved with the installation, operation and maintenance of this system has to:
•be qualified
•follow the instructions of this manual
Before the initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the system.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the system are not subject to
warranty.
This system contains no user-serviceable parts. Refer servicing to qualified technicians only.

3
Ordercode: D1132
DVMP-150
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the system.
Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never leave any cables lying around.
Do not insert objects into air vents.
Do not connect this system to a dimmerpack.
Do not switch the system on and off in short intervals, as this would reduce the system’s life.
Do not open the device and do not modify the device.
Do not drive the inputs with a signal level bigger, than required to drive the equipment to full output.
Only use system indoor, avoid contact with water or other liquids.
Avoid flames and do not put close to flammable liquids or gases.
Always disconnect power from the mains, when system is not used. Only handle the power-cord by
the plug. Never pull out the plug by tugging the power-cord.
Make sure you don’t use the wrong kind of cables or defective cables.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged. Check the system and the power-
cord from time to time.
Please turn off the power switch, when changing the power cord or signal cable, or select the input
mode switch.
Avoid ground loops! Always be sure to connect the power amps and the mixing console to the
same electrical circuit to ensure the same phase!
If system is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your system. Leave the
system switched off until it has reached room temperature.
If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Dap Audio dealer for service.
Repairs, servicing and electric connection must be carried out by a qualified technician.
For replacement use fuses of same type and rating only.
WARRANTY: Till one year after date of purchase.
Operating Determinations
This system is not designed for permanent operation. Consistent operation breaks will ensure that the
system will serve you for a long time without defects.
If this system is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.
You endanger your own safety and the safety of others!
Improper installation can cause serious injuries and damage of property !

4
Ordercode: D1132
DVMP-150
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
FASE
N
BLUE
BLACK
SILVER
NULL
YELLOW/GREEN
GREEN
GREEN
EARTH
Make sure that the device is always connected properly to the earth!
Improper installation can cause serious damage to people and property!
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.

5
Ordercode: D1132
DVMP-150
Description of the device
Features
The DAP-audio DVMP-150 is a 1 U Karaoke DVD player
• Supports all common audio/video formats
• Balanced XLR audio outputs
• 19” Rack mounts included
• IR Remote control included
Frontside
Fig. 01
Power switch
USB A connector
Disc holder
LCD Display
T button
IR Remote Sensor
Eject button
Play/pause button
Direct access buttons
Repeat button
Stop button
Slow button
Previous button
S/C button
Next button
Loop button
Fast reverse button
L/R button
Fast forward button
P/N button
Backside
Fig. 02
Component RCA Video Out
S-Video out
Audio stereo RCA unbalanced out
Optical out
Coaxial RCA out
Audio stereo XLR balanced out
Composite RCA Video Out
IEC Power connector 100-240V

6
Ordercode: D1132
DVMP-150
Remote Control
Fig. 03
Mute button
Mic button
Eject button
Vol - button
Direct access buttons
Vol + button
Step button
Angle button
A-B button
Language button
Video button
Subtitle button
Cursor up button
Clear button
Cursor left button
Cursor right button
Enter button
Cursor down button
Time button
R/L button
Play/pause button
Stop button
Fast forward button
Next button
Menu button
Setup button
Fast reverse button
Previous button
Repeat button
Slow button
OSD button
Zoom button
PBC button
Remain button
Prog. button
Title button
P/N button
Return button

7
Ordercode: D1132
DVMP-150
Names and functions
Below is a description of the functions of the controls.
01) Power switch
This is the main power switch. Push to turn the device on.
02) Disc Holder
Place a disc in the holder. Push the eject (30) button to open and close the disc holder.
03) T button
Use this button to switch TIME indication on the LCD display (12)between the elapsed time and the
remaining time. The selected mode is indicated by ELAPSED or REMAIN.
04/30) Eject button
Push this button to open and close the disc holder (02).
05/31) Direct access buttons
Use these buttons to select a track directly. Use the +10 buttons to move forward by 10 tracks. E.g. if
your current track is 5, pushing the +10 button will select track 15.
06/58) Stop button
Push this button to stop playback.
07/61) Previous button
Use this button to go back to the beginning of the current track or select the previous track to be
played.
08/59) Next button
Use this button to skip to the following track.
09/42) Fast reverse button
Push and hold this button to play a track in fast reverse.
10/40) Fast forward button
Push and hold this button to play a track in fast forward.
11) USB A port
Use this port to connect a USB flash drive.
12) LCD Display
13) Remote sensor
14/39) Play/pause button
This button allows you to toggle between pause mode and playback mode.
15/43) Repeat button
Use this button to repeat one track or all tracks from a medium. See the section Repeat on page 11.
16/62) Slow button
Use this button to play a track at a lower speed.
17) S/C button
Use this button to switch between single play mode and continuous play mode.
The selected mode is indicated by Single or Cont. on the LCD display (12).
In single play mode, the unit stops playing after each track.
In continuous play mode, the unit plays all tracks and then stops.
18/33) Loop/A-B button
Push this button once to set the start point (Repeat A will appear on screen). Push again to set the
endpoint of a loop (Repeat B will appear on screen). As soon as the endpoint is set, loop play will
start. Push for the third time to exit loop play.
19/57) L/R button
This button allows you to assign the DVD/MP3 player’s left channel, right channel or both (stereo)
channels to the main mix.
20/47) P/N button
Use this button to select your TV system: PAL/NTSC
21) Component video out
Connect the component video input of your TV-set to this output.
22) Audio stereo unbalanced out
Connect the unbalanced line input of your mixer/ amplifier to this output.
23) Coaxial out
Connect the coax video input of your TV-set to this output.
24) Composite video out
Connect the composite video input of your TV-set to this output.

8
Ordercode: D1132
DVMP-150
25) S-Video out
Connect the S-video input of your TV-set to this output.
26) Optical out
Connect the optical audio input of your mixer/amplifier to this output.
27) Audio stereo XLR balanced out
Connect the balanced line input of your mixer/ amplifier to this output.
28) IEC Power connector 100-240V
This connector is meant for the connection of the supplied power cord. Connect one end of the
power cord to the connector, the other end to the mains, and turn on the power (01) switch to
operate the unit.
29) Mute button
Push this button to mute the audio outputs.
30) Eject button
Push this button to open or close the DVD tray.
32) Step button
Pushing this button allows you to step through your frames, one frame at a time.
34) Video button
Push this button to select between Interlace-YUV, TV-RGB, PC-VGA or S-Video.
35/36/55/56) Cursor buttons
Use these buttons to navigate through the onscreen menu.
37) Enter button
Confirm your selection in the onscreen menu by pushing this button.
38) Time button
Pushing this button opens the OSD bar in which the clock is displayed.
41) Menu button
Push this button to open the DVD menu.
44) OSD button
Push this button to open a bar in the top of the screen which gives you track information, clock etc.
45) PBC button
This playback control button allows you to switch PBC on or off. While playing VCDs or SVCDs, PBC
allows the user to have interactive control over the content of these discs via the remote control.
46) Prog. button
Stop playback and push this button, the player will enter program mode. For more information, see
the section Program on page 11.
48) Mic button
Not functional in the DVMP-150.
49) Volume –button
Pushing this button allows you to decrease the volume level of the audio outputs.
50) Volume + button
Pushing this button allows you to increase the volume level of the audio outputs.
51) Angle button
Push this button to change the camera angle. This button is only functional if a DVD disc has this
option.
52) Language button
Push this button to change the audio language or channel.
53) Subtitle button
Push this button to change the subtitling language or switch the subtitles off.
54) Clear button
Use this button to clear the numbers, previously entered by using the direct access (05/31) buttons.
60) Setup button
Push this button to open the onscreen setup menu.
63) Zoom button
Pushing this button allows you to change the zoom factor.
64) Remain button
Pushing this button allows you to switch between remaining time and clock.
65) Title button
Pushing this button will show a DVD’s title menu.
66) Return button
Push this button to return to a previous menu.

9
Ordercode: D1132
DVMP-150
Installation
Remove all packing materials from the device. Check that all foam and plastic padding is removed.
Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. The power supply is printed on the back of the device.
Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connection:
01) Turn off the Power (01) switch.
02) Connect the DVMP-150 to your amplifier using the proper cables.
CAUTION: Be sure that the power is off, when connecting the cables.
Installing batteries
01) Remove the cover (67) of the battery housing.
02) Insert batteries. Make sure that the terminals correspond to the symbols shown in the presented
drawing.
03) Put the cover back on its place.
Note:
The batteries must be placed correctly.
Do not recharge, heat, open or short circuit the batteries. Do not throw the batteries into open fire.
Do not mix different types or old and new batteries.
If the remote control does not work properly, or if the range is reduced, all batteries should be
replaced.
