Datex-Ohmeda Aestiva/5 User manual

Aestiva/5
Operation Manual - Part 1
Software Revision 4.X
System Controls, Operation, Checkout

User Responsibility
This Product will perform in conformity with the description thereof contained
in this Operation manual and accompanying labels and/or inserts, when
assembled, operated, maintained, and repaired in accordance with the
instructions provided. This Product must be checked periodically. A defective
Product should not be used. Parts that are broken, missing, plainly worn,
distorted, or contaminated should be replaced immediately. Should repair or
replacement become necessary, Datex-Ohmeda recommends that a
telephonic or written request for service advice be made to the nearest
Datex-Ohmeda Customer Service Center. This Product or any of its parts
should not be repaired other than in accordance with written instructions
provided by Datex-Ohmeda and by Datex-Ohmeda trained personnel. The
Product must not be altered without the prior written approval of
Datex-Ohmeda. The user of this Product shall have the sole responsibility for
any malfunction which results from improper use, faulty maintenance,
improper repair, damage, or alteration by anyone other than Datex-Ohmeda.
w CAUTION U.S. Federal law restricts this device to sale by or on the order of a
licensed medical practitioner. Outside the U.S.A., check local
laws for any restriction that may apply.
Datex-Ohmeda products have unit serial numbers with coded logic which
indicates a product group code, the year of manufacture, and a sequential
unit number for identification.
AAA F 12345
This alpha character indicates the year of product
manufacture and when the serial number was
assigned; “D” = 2000, “E” = 2001, “F” = 2002, etc.
“I” and “O” are not used.
Aestiva, S/5, PSVPro, Tec 5, Tec 6 and Tec 7 are registered trademarks of
Datex-Ohmeda Inc.
Other brand names or product names used in this manual are trademarks or
registered trademarks of their respective holders.

Table of Contents
1006-0938-000
i
i
1/Introduction
How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
What is an Aestiva?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Ventilators and monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Symbols used in the manual or on the equipment . . . . . . . . . . . . . . . . . . . . 1-5
2/System Controls and Menus
Anesthesia system controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Breathing system controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Vaporizer controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-9
Ventilator controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-11
Optional features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-11
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-11
How to set controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-14
How to use the menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-15
Menu map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-16
More about menu functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-17
How to change menu settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-18
Optional flowmeter and suction regulators . . . . . . . . . . . . . . . . . . . . . . . . .2-19
Suction regulator controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-20
External flowmeter controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-20
Optional CO
2
Bypass mode operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-21
3/Operation and Tutorial
Turn On the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Set the alarm loudness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Show or hide alarm limits and units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Adjust patient data for Heliox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Turn the volume alarms on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Set alarm limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Set an audible alarm for circuit leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-11
Set Cardiac Bypass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-12

Aestiva
ii
1006-0938-000
ii
Start mechanical ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Stop mechanical ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Set the ventilation mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Set ventilator controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18
Optional features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18
Ventilator controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19
Volume Control mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
Pressure Control mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
SIMV mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
PSVPro mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Set inspiratory pause (volume mode) . . . . . . . . . . . . . . . . . . . . . . . . 3-22
Set SIMV and PSVPro controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24
Silence alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
Reading the pressure waveform (Paw) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
Scales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
Measure circuit compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Show the service settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
Optional Passive AGSS operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33
Optional Active AGSS operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-34
Connecting Active AGSS with a flow indicator . . . . . . . . . . . . . . . . . . 3-35
Connecting Active AGSS without a flow indicator . . . . . . . . . . . . . . . 3-36
4/Preoperative Checklist
Every day before the first patient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Every time a different clinician uses the system . . . . . . . . . . . . . . . . . .4-3
Before every patient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Appendix - Preoperative Tests
Test Intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-2
Every day before the first patient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-3
Inspect the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-3
Minimize alarms (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-5

Table of Contents
1006-0938-000
iii
iii
Pipeline and cylinder tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5
Flow control tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7
Vaporizer back pressure test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8
Power failure test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-9
Precase steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-11
Every time a different clinician uses the system . . . . . . . . . . . . . . . . . . . . .A-12
Low-pressure leak test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-12
Before every patient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-16
Inspect the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-16
Minimize alarms (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-18
Breathing system tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-19
Monitor and ventilator tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-21
Index
Warranty

Aestiva
iv
1006-0938-000
iv

1006-0938-000 1-1
1 Introduction 1-1
In this section How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
What is an Aestiva?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Symbols used in the manual or on the equipment . . . . . . . . . . . . . . . . . . . .1-5

Aestiva
1-2 1006-0938-000
1-2
How to use this manual
The Aestiva comes with several user manuals. This manual describes the
controls and how to use them.
Section 1 shows the different models and supplies information about the
symbols used on the equipment.
Section 2 shows control locations.
Section 3 tells you how to use the controls.
Section 4 is a two-page, preoperative checklist.
The appendix provides complete instructions for the preoperative tests shown
on the checklist.
The Aestiva/5 7900 can be equipped with several optional ventilation
functions. References made in this manual to Heliox mode, and SIMV and
PSVPro modes, are only applicable to systems equipped with these functions.
Use this manual together with Part 2, which includes setup, troubleshooting,
calibration, and maintenance procedures.
What is an Aestiva?
The Aestiva is a flexible, accessible and intuitive anesthesia delivery system. A
wide selection of frames, gases, and vaporizers give you full control of the
system configuration.
Options include pendant mounted systems, extra gas cylinders or vaporizers,
and left or right-hand breathing systems.
Model 2 Vap. Trolley 3 Vap. Trolley Pendant
Number of vaporizers 2 3 2
Number of gases 2 or 3 2, 3, or 4 2 or 3
Optional gases (Heliox and CO2are
cylinder only)
Air or Heliox; CO2Air, Heliox, CO2(up to two) Air or Heliox; CO2
Breathing system and ventilator
display mounting
Left or right side Left or right side Left or right side
Total number of cylinders (maximum 2
per gas)
Up to 4 Up to 5 Up to 2

1 Introduction
1006-0938-000 1-3
1-3
Ventilators and monitors The system uses a microprocessor-controlled ventilator with internal monitors,
electronic PEEP, multiple modes of ventilation, and a pressure waveform dis-
play. Built-in connectors and communication software permit optional
cardiovascular and respiratory gas monitoring.

Aestiva
1-4 1006-0938-000
1-4

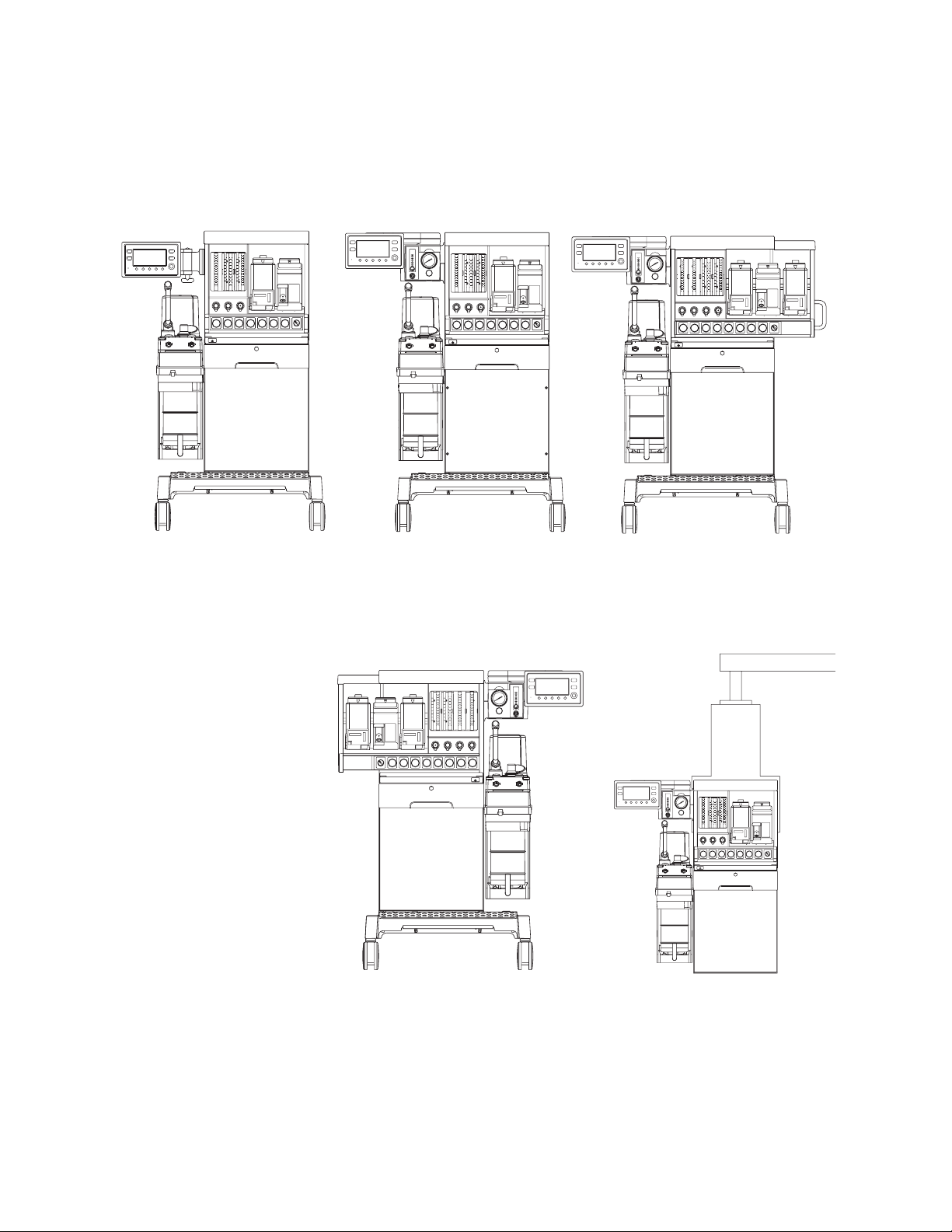

Figure 1-1 • Aestiva systems
Two vaporizer positions, left-hand
configuration with basic display
mount.
Two vaporizer positions, left-hand
configuration with arm display
mount.
Three vaporizer positions, left-hand
configuration with arm display
mount.
Three vaporizer positions, right-hand
configuration with arm display mount.
Pendant with arm display mount.
AA.96.025
AA.96.016
AA.96.019
AA.96.028
AA.96.102

1 Introduction
1006-0938-000 1-5
1-5
Symbols used in the manual or on the equipment
wWarnings and wCautions tell you about dangerous conditions that can
occur if you do not follow all instructions in this manual.
Warnings tell about a condition that can cause injury to the operator or the
patient.
Cautions tell about a condition that can cause damage to the equipment. Read
and follow all warnings and cautions.
Other symbols replace words on the equipment or in Datex-Ohmeda manuals.
No one device or manual uses all of the symbols. These symbols include:
l On (power) ÍNot autoclavable
OOff (power) mType B equipment
oStandby µType BF equipment
qStandby or preparatory state for part of
the equipment HType CF equipment
p“ON” only for part of the equipment wCaution, ISO 7000-0434
œ“OFF” only for part of the equipment wW Attention, refer to product
instructions, IEC 601-1
†Direct current
This way up
~Alternating current Dangerous Voltage
xProtective earth ground yEarth ground
Electrical input Electrical output
Pneumatic inlet Pneumatic outlet
N N

Aestiva
1-6 1006-0938-000
1-6

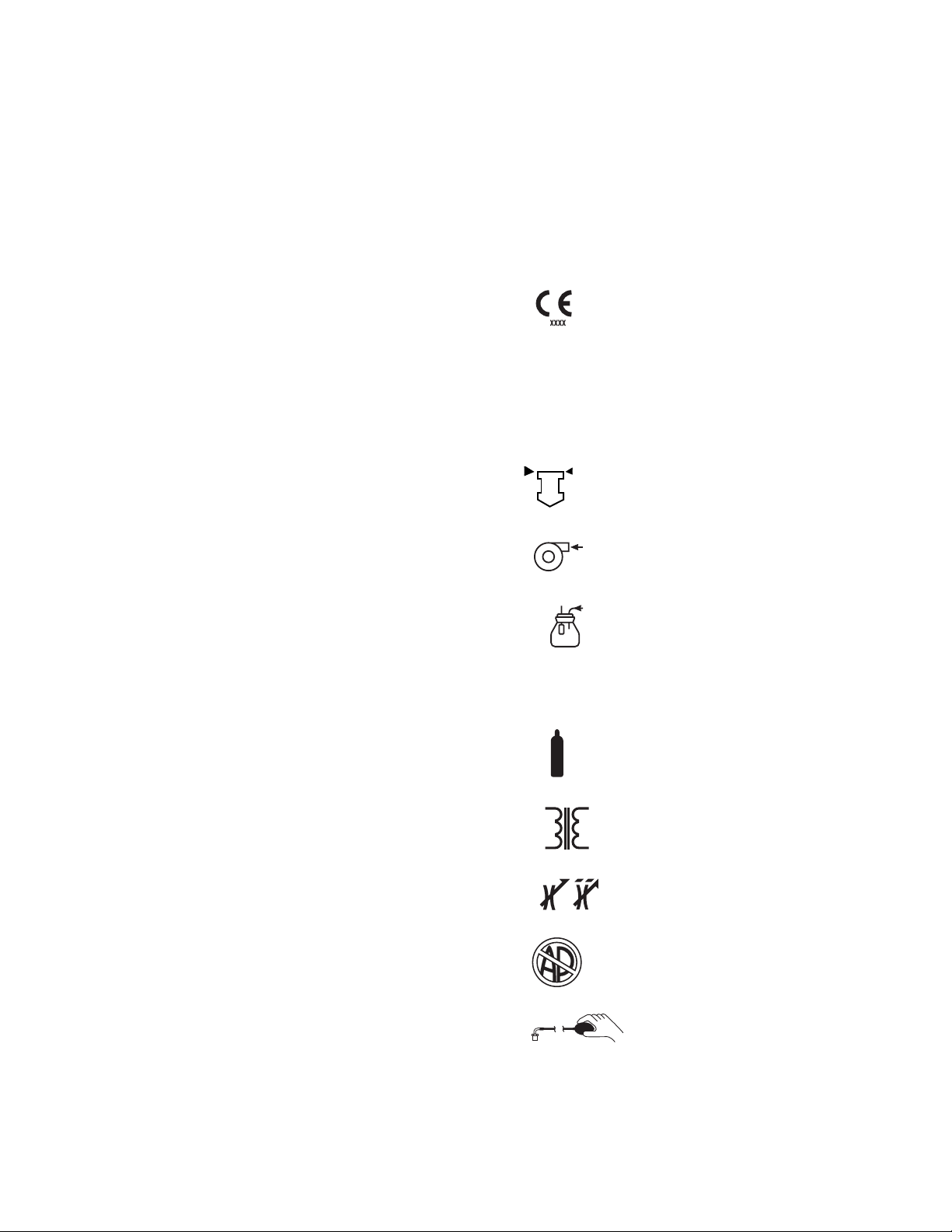

rFrame or chassis ground REF Stock Number
åAlarm silence button SN Serial Number
YEquipotential Systems with this mark agree with
the European Council Directive
(93/42/EEC) for Medical Devices
when they are used as specified in
their Operation and Maintenance
Manuals. The xxxx is the
certification number of the
Notified Body used by Datex-
Ohmeda’s Quality Systems.
tVariability Read top of float
TVariability in steps Vacuum inlet
+Plus, positive polarity Suction bottle outlet
- Minus, negative polarity O2+O2Flush button
PLamp, lighting, illumination Cylinder
NMovement in one direction Isolation transformer
ˆMovement in two directions Linkage system
zLock Risk of Explosion
ZUnlock Low pressure leak test

1 Introduction
1006-0938-000 1-7
1-7
134°CAutoclavable
RBag position/ manual ventilation rMechanical ventilation
uOpen drain (remove liquid) UClose drain
qInspiratory flow QExpiratory flow
tO2sensor connection End case

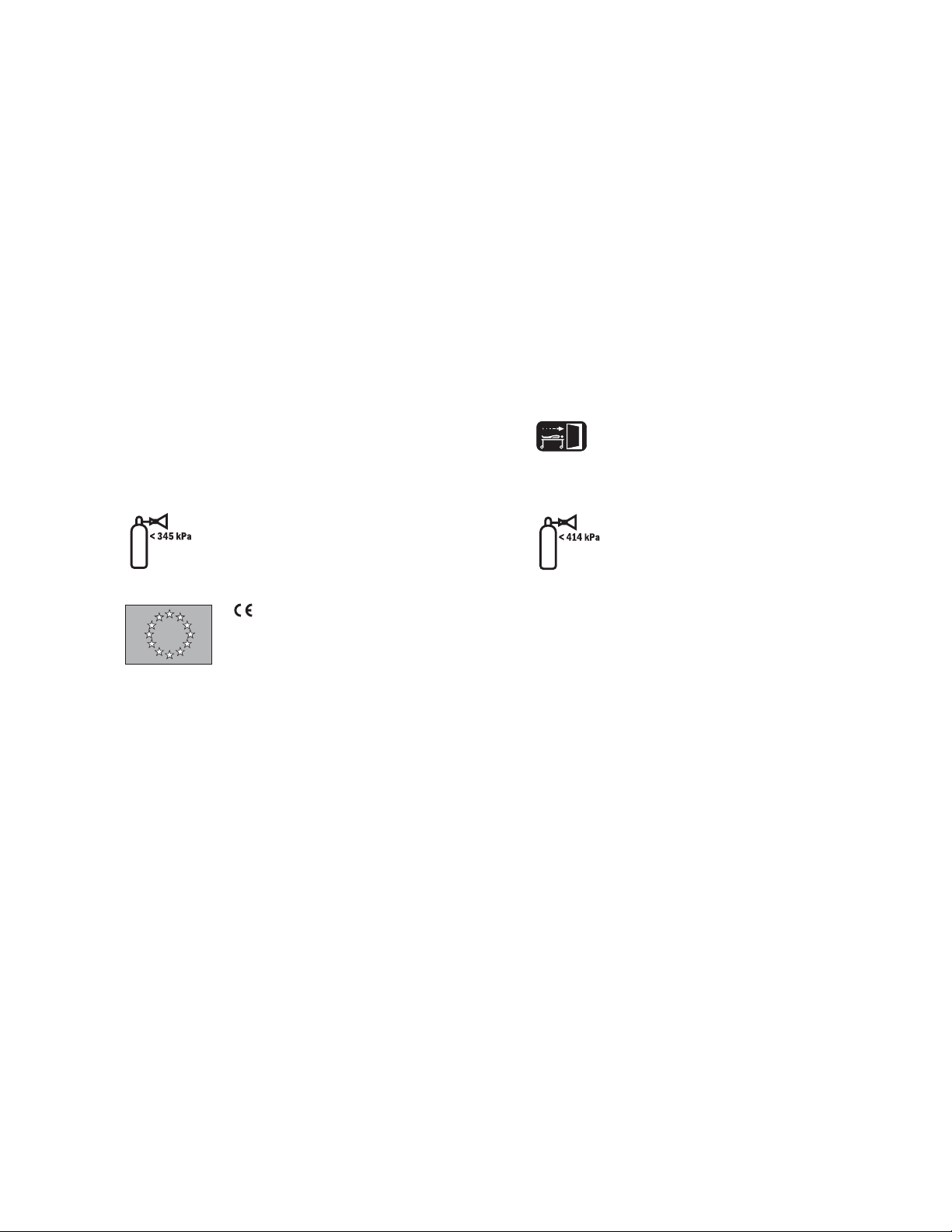

The primary regulator is set to pressure
less than 345 kPa.
The primary regulator is set to
pressure less than 414 kPa.
European Union Representative

Aestiva
1-8 1006-0938-000
1-8

1006-0938-000
2-1
2
In this section
Anesthesia system controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Breathing system controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Vaporizer controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Ventilator controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-11
Optional flowmeter and suction regulators . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-19
Optional CO
2
Bypass mode operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-21
2 System Controls
and Menus

Aestiva
2-2
1006-0938-000
Anesthesia system controls
w
WW
WWAA AARR RRNN NNIIIINN NNGG GG
Explosion Hazard. Do not use Aestiva systems with flammable
anesthetic agents.
w
WW
WWAA AARR RRNN NNIIIINN NNGG GG
Do not use antistatic breathing tubes or masks. They can cause
burns if you use them near high frequency surgical equipment.
1. Breathing system (Figure 2-3)
2. Flow controls
3. Ventilator/monitoring display (Figure 2-5)
4. Light switch and Gooseneck lamp connector (some models)
5. Light (some models)
6. Dovetail rails
7. Vaporizers (Figure 2-4)
8. Gauge (cylinder pressure)
9. Gauge (pipeline pressure)
10. System switch
11. Flush button
12. Brake
Figure 2-1 • Aestiva (front view)
1
2
35
7
10
8
9
11
12
6
4
AA.96.054

2 System Controls and Menus
1006-0938-000
2-3
2
Figure 2-1 shows these controls on the front of the Aestiva.
Item Description
System switch Set the switch to on to permit gas flow and to turn on the
monitoring.
Flow controls Turn the control counterclockwise to increase the flow and
clockwise to decrease. The system switch must be on.
O
2
flush Push O
2
Flush to supply high flows of O
2
to the breathing
system.
Light switch Turns the light on and off.
Brake Push down to lock. Lift to release.
On Standby
AA.96.103
Increase Decrease
AA.96.105
AA.96.106
Off On
AA.96.107
AA.96.100

Aestiva
2-4
1006-0938-000
The circuit breakers are on the rear panel of the Aestiva.
1. Circuit Breaker for Electrical Outlet
2. Electrical Outlet
3. Circuit Breaker for Total Outlet Current
4. Circuit Breaker for Mains Inlet
5. Mains Inlet
6. Ventilator fuse
7. Pneumatic Outlet
8. Pipeline Connection
Figure 2-2 • Aestiva rear view
Item Description (Figure 2-2)
Circuit Breakers
Closed
Open
(No Power) (Power)
System circuit breaker
Open
(No Power)
Outlet circuit breakers
Closed
(Power)
AA.96.108
AA.96.109
3
2
1
4
5
6
7
8
AA.96.053

2 System Controls and Menus
1006-0938-000
2-5
2
Breathing system controls
1. Canister release
2. Auxiliary common gas outlet (optional)
3. Outlet switch (Auxiliary Common Gas Outlet)
4. Door
5. Flow sensor /patient connection (circuit connections)
a.Inspiratory (Circle circuit module) or to-fro connection (Mapleson/Bain circuit module)
b.Expiratory (Circle circuit module) or fresh gas connection (Mapleson/Bain circuit module)
6. Breathing circuit module (Circle)
7. Bag arm
8. Bag/Vent switch
9. APL valve
10.Bellows
11.Pressure gauge
12.Check valves
13. O
2
sensor
Figure 2-3 • Breathing system parts
2
3
5a
10
11
6
4
7
8
9
1
5b
12
13
AB.23.003

Aestiva
2-6
1006-0938-000
.
Item Description
Bag/Vent switch When you first turn on the system, mechanical ventilation is always off. To start mechanical
ventilation, move the switch from Bag to Vent.
APL valve Limits breathing system pressure during manual ventilation. The scale shows approximate
pressures. Above 30 cmH
2
O, you will feel clicks as the knob turns.
Bag arm One arm is adjustable (push in and turn). The other is not.
Mechanical ventilation On (gas to bellows)
Mechanical ventilation Off (gas to bag arm)
AB.23.059
AB.23.060
~0 cmH2O~20 cmH2O
20
30
70
5
20
30
70
5
Increase
AB.23.064
Adjustable Not adjustable
AB.23.023
AB.23.024
,
