Days 0816-10-815 User manual

A. Support Frame (2)
B. Brace Bar
C. Base Frame
D. Legs (2)
E. Assist Bar
F. Storage Pouch
G. Strap
H. Adjustable Clips
Days Bed Assist Handle
0816-10-815
Read the following instructions, and if they are not clear, consult a professional caregiver or technician.
Before Assembly
Make sure all of the parts listed above are in the package. Check that nothing has been damaged immediately after you open the
package. Contact Patterson Medical if you find damage.
Assembly Instructions
Set Screw

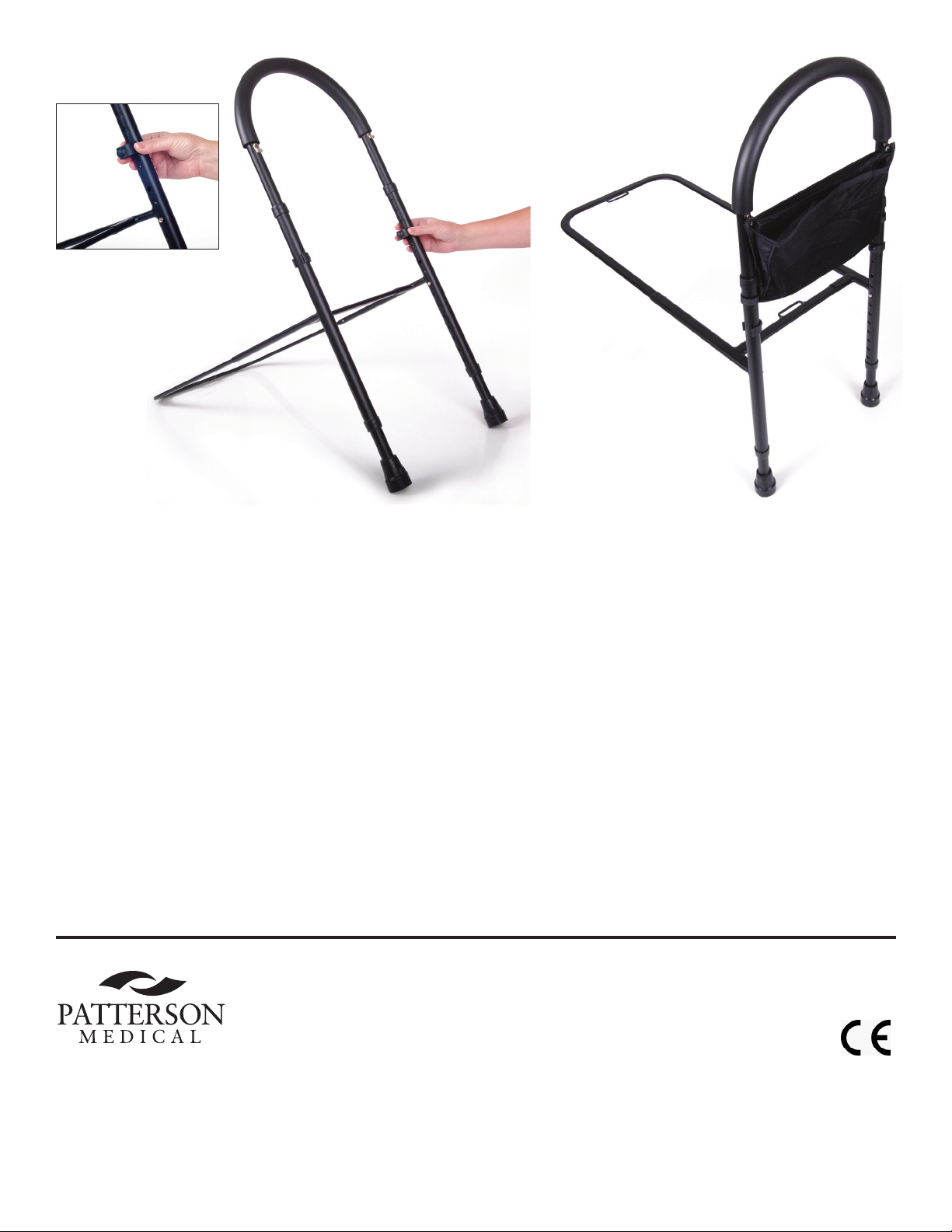

4. Flip the unit over onto
the legs (D), remove the
adjustment clips (H) and insert
the Assist Bar (E) with the
clips facing out, so the storage
pouch can hang off them.
3. Install the Base Frame (C)
to the Support Frame (A).
1. Start by installing the
Support Frames (A) to the
Brace Bar (B).
2. Locate the set screw on Support
Frame (A) and install the Legs (D)
to the opposite end of the Support
Frame (A).
A
BC
D
E
F
G
HH
Set Screw

Care
Use a mild cleaning product—no abrasive, scouring pads or solvents including
lacquer thinner, turpentine and acetone.
Limited Product Warranty
Patterson Medical warrants that all products shall be free from manufacturing defects for a
period of one year from the date of shipment. OTHER THAN THE FOREGOING WARRANTY,
PATTERSON MEDICAL MAKES NO REPRESENTATION OR WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
OR ANY OTHER MATTER RELATING TO THE PRODUCT. Customer must notify Patterson
Medical of any manufacturing defect within five days of discovery of the defect. Upon a
determination by Patterson Medical that the product is defective, Patterson Medical sole
and exclusive obligation shall be to provide customer with a replacement product or a full
refund of the purchase price, at the sole discretion of Patterson Medical, and to reimburse
customer for any return freight costs. In no event shall Patterson Medical be liable for
any other costs or expenses including lost profits or direct, indirect, consequential,
incidental or punitive damages. The warranty set forth herein shall govern all purchases,
notwithstanding any inconsistent terms and conditions of customer’s purchase of
customer’s purchase order.
Patterson Medical
1000 Remington Blvd., Suite 210
Bolingbrook, IL 60440
Phone: [phone]
Direct Phone: [phone]
Fax: [phone]
Direct Fax: [phone]
Authorized European
Representative
Patterson Medical, Ltd.
Nunn Brook Road
Huthwaite, Sutton-in-Ashfield
Nottinghamshire, NG17 2HU, UK
Patterson Medical
National Service Center
W68 N158 Evergreen Blvd.
Cedarburg, WI 53012
Phone: [phone]
Fax: [phone]
© December 2012
Patterson Medical Products, Inc.
081610815LIT
United Kingdom
Phone: [phone]
Fax: [phone]
International
Phone: [phone]
Fax: [phone]
Installing the Bed Assist Handle
Place the assembled Bed Assist Handle at the preferred location on the bed.
Adjust the height of the legs so they will stand firmly on the floor yet fit the bed
frame properly. After achieving the proper height, thread the strap through the
two loops on the base frame.
Attach the strap around the opposite side of the bed frame and tighten it
securely. When used on king size beds, there might only be room to thread the
strap only into one loop.
Position the mattress on the bed. The top height of the Assist Handle may need
to be adjusted by using the push button.
Precautions
Assistance or supervision must be provided for those who are too weak or
uncoordinated.
Ensure that all push buttons are locked in place before each use. Also
check that legs are level and securely positioned on the floor.
Do not exceed the weight capacity of 250 lbs. The frame does not support the
total weight of the user; it serves only as a stability aid. Do not use the handle
for fall prevention. It will not prevent individuals from rolling off the bed.
6. Clip on
Storage Pouch.
5. Position the Assist Bar (E) to the
proper height and insert adjustment
clips to hold the bar in place.
