Dolomite®Gloss®
enRollator
UserManual...............................3
deRollator
Gebrauchsanweisung........................21
esRollator
Manualdelusuario.........................39
frRollator
Manueld'utilisation.........................57
ptAndarilho
Manualdeutilização........................75
ThismanualMUSTbegiventotheuseroftheproduct.
BEFOREusingthisproduct,thismanualMUSTbereadandsavedfor
futurereference.

©2020InvacareCorporation
Allrightsreserved.Republication,duplicationormodicationinwholeorinpartisprohibited
withoutpriorwrittenpermissionfromInvacare.Trademarksareidentiedby™and®.Alltrademarks
areownedbyorlicensedtoInvacareCorporationoritssubsidiariesunlessotherwisenoted.
MakingLife'sExperiencesPossibleisaregisteredtrademarkintheU.S.A.
AlleRechtevorbehalten.DieWeiterveröffentlichung,VervielfältigungoderÄnderungimGanzenoder
inTeilenohnevorherigeschriftlicheGenehmigungvonInvacareistuntersagt.Markensinddurch
™und®gekennzeichnet.SoweitnichtandersangegebensindalleMarkenEigentumderInvacare
Corporationbzw.dererTochtergesellschaftenoderwerdenvondieseninLizenzgenutzt.
„MakingLife'sExperiencesPossible“isteineeingetrageneMarkeindenUSA.
Todoslosderechosreservados.Quedaprohibidovolverapublicar,copiaromodicarelpresente
documento,enparteoporcompleto,sinelprevioconsentimientoporescritodeInvacare.Las
marcascomercialesseidenticancon™y®.Todaslasmarcascomercialessonpropiedadde
InvacareCorporationodesusliales,obienInvacareCorporationosuslialescuentanconlas
correspondienteslicencias,amenosqueseestipulelocontrario.
MakingLife'sExperiencesPossibleesunamarcacomercialregistradaenEE.UU.
Tousdroitsréservés.Larepublication,laduplicationoulamodicationdetoutoupartieduprésent
documentestinterditesansl'accordécritpréalabled'Invacare.Lesmarquescommercialessont
identiéespar™et®.Touteslesmarquescommercialessontdétenuesparoucédéessouslicence
àInvacareCorporationousesliales,saufstipulationcontraire.
MakingLife'sExperiencesPossibleestunemarquedéposéeauxÉtats-Unis.
Todososdireitosreservados.Arepublicação,duplicaçãooumodicaçãototalouparcialestáinterdita
semaautorizaçãopréviaporescritodaInvacare.Asmarcascomerciaissãoidenticadaspelos
símbolos™e®.TodasasmarcascomerciaissãopropriedadedaouestãolicenciadasàInvacare
Corporationouàssuassubsidiárias,excetoquandoapresentadainformaçãoemcontrário.
MakingLife’sExperiencesPossibleéumamarcacomercialregistadanosE.U.A.

Contents
ThismanualMUSTbegiventotheuseroftheproduct.
BEFOREusingthisproduct,thismanualMUSTbereadandsaved
forfuturereference.
1General.........................................4
1.1Introduction..................................4
1.2SymbolsinthisDocument........................4
1.3Compliance...................................4
1.4ServiceLife...................................5
1.5WarrantyInformation...........................5
1.6LimitationofLiability............................5
2Safety..........................................6
2.1GeneralSafetyInformation.......................6
2.2LabelsandSymbolsontheProduct.................7
3ProductOverview.................................9
3.1ProductDescription.............................9
3.2IntendedUse.................................9
3.3IndicationsforUse.............................9
3.4ScopeofDeliveryandMainParts..................9
3.5Accessories...................................9
4Usage..........................................10
4.1BeforeUse...................................10
4.2FoldingandUnfolding..........................10
4.3AdjustingtheHandleHeight......................11
4.4Walking......................................11
4.5SittingDownonaChair.........................12
4.6RisingtoaStandingPosition......................12
4.7SittingontheWalkingAid........................13
4.8UsingtheHandBrakes..........................13
4.9AttachingtheBasket............................14
5Maintenance.....................................15
5.1GeneralMaintenanceInformation..................15
5.2InspectionChecklist.............................15
5.3CleaningandDisinfection........................15
5.3.1GeneralSafetyInformation.....................15
5.3.2CleaningIntervals............................16
5.3.3CleaningInstructions.........................16
6AfterUse........................................17
6.1Disposal.....................................17
6.2Reconditioning................................17
7TechnicalData....................................18
7.1DimensionsandWeights.........................18
7.2Material.....................................19

Dolomite®Gloss®
1General
1.1Introduction
Thisusermanualcontainsimportantinformationaboutthe
handlingoftheproduct.Toensuresafetywhenusingthe
product,readtheusermanualcarefullyandfollowthe
safetyinstructions.
Notethattheremaybesectionsinthisdocument,whichare
notrelevanttoyourproduct,sincethisdocumentapplies
toallavailablemodels(onthedateofprinting).Ifnot
otherwisestated,eachsectioninthisdocumentreferstoall
modelsoftheproduct.
Themodelsandcongurationsavailableinyourcountrycan
befoundinthecountry-specicsalesdocuments.
Invacarereservestherighttoalterproductspecications
withoutfurthernotice.
Beforereadingthisdocument,makesureyouhavethe
latestversion.YoundthelatestversionasaPDFonthe
Invacarewebsite.
Ifyoundthatthefontsizeintheprinteddocumentis
difculttoread,youcandownloadthePDFversionfromthe
website.ThePDFcanthenbescaledonscreentoafont
sizethatismorecomfortableforyou.
Formoreinformationabouttheproduct,forexample
productsafetynoticesandproductrecalls,contactyour
Invacaredistributor.Seeaddressesattheendofthis
document.
Incaseofaseriousincidentwiththeproduct,youshould
informthemanufacturerandthecompetentauthorityin
yourcountry.
1.2SymbolsinthisDocument
Symbolsandsignalwordsareusedinthisdocumentand
applytohazardsorunsafepracticeswhichcouldresultin
personalinjuryorpropertydamage.Seetheinformation
belowfordenitionsofthesignalwords.
WARNING
Indicatesahazardoussituationthatcouldresult
inseriousinjuryordeathifitisnotavoided.
CAUTION
Indicatesahazardoussituationthatcouldresult
inminororslightinjuryifitisnotavoided.
IMPORTANT
Indicatesahazardoussituationthatcouldresult
indamagetopropertyifitisnotavoided.
TipsandRecommendations
Givesusefultips,recommendationsand
informationforefcient,trouble-freeuse.
1.3Compliance
Qualityisfundamentaltothecompany’soperation,working
withinthedisciplinesofISO13485.
ThisproductfeaturestheCEmark,incompliancewiththe
MedicalDeviceRegulation2017/745ClassI.Thelaunchdate
ofthisproductisstatedintheCEdeclarationofconformity.
41637696-B
-A

General
Wearecontinuouslyworkingtowardsensuringthatthe
company’simpactontheenvironment,locallyandglobally,
isreducedtoaminimum.
WeonlyuseREACHcompliantmaterialsandcomponents.
1.4ServiceLife
Theexpectedservicelifeofthisproductisveyearswhen
useddailyandinaccordancewiththesafetyinstructions,
maintenanceintervalsandcorrectuse,statedinthismanual.
Theeffectiveservicelifecanvaryaccordingtofrequency
andintensityofuse.
1.5WarrantyInformation
Weprovideamanufacturer’swarrantyfortheproduct
inaccordancewithourGeneralTermsandConditionsof
Businessintherespectivecountries.
Warrantyclaimscanonlybemadethroughtheprovider
fromwhomtheproductwasobtained.
1.6LimitationofLiability
Invacareacceptsnoliabilityfordamagearisingfrom:
•Non-compliancewiththeusermanual
•Incorrectuse
•Naturalwearandtear
•Incorrectassemblyorset-upbythepurchaserora
thirdparty
•Technicalmodications
•Unauthorisedmodicationsand/oruseofunsuitable
spareparts
1637696-B5
-A

Dolomite®Gloss®
2Safety
2.1GeneralSafetyInformation
WARNING!
RiskofSeriousInjuryorDamage
Improperuseofthisproductmaycauseinjury
ordamage.
–Ifyouareunabletounderstandthewarnings,
cautionsorinstructions,contactahealthcare
professionalorproviderbeforeattemptingto
usethisequipment.
–Donotusethisproductoranyavailable
optionalequipmentwithoutrstcompletely
readingandunderstandingtheseinstructions
andanyadditionalinstructionalmaterialsuch
asusermanual,servicemanualorinstruction
sheetsuppliedwiththisproductoroptional
equipment.
WARNING!
RiskofSeriousInjury
Incorrectusecanleadtohazardoussituations.
–Donotuseonstairsoronescalators.
–Donotstandontheproduct.
–Becarefulwhenwalkingonslopingorslippery
groundoronunevensurfaces.
–Avoidwalkingagainstobstacles,bothforwards
andbackwards.
–Donotletchildrenplaywiththeproduct.
–Donotusetheproducttotransportaperson.
–Makesurethatnoclothes,suchaslongskirts,
cangetstuckinthewheels.
CAUTION!
RiskofInjury
Unbalancedorheavyloadmayleadto
overturning.
–Donothanganyloads,suchasbags,tothe
frame,thepushhandlesorhandknobs.
–Onlycarryloadswiththedesignated
equipment,likebasketortray.Donotexceed
themaximumloadfortheequipment.
–Thetotalload,includingtheweightoftheuser
andanyadditionalload,mustnotexceedthe
maximumuserweight.
–Refertochapter7TechnicalData,page18for
maximumuserweightandloadinformation.
61637696-B
-A

Safety
CAUTION!
RiskofInjury
Non-originalorwrongpartsmayaffectthe
functionandsafetyoftheproduct.
–Onlyuseoriginalpartsfortheproductinuse.
–Duetoregionaldifferences,refertoyour
localInvacarecatalogorwebsiteforavailable
optionsorcontactyourInvacaredistributor.
Seeaddressesattheendofthisdocument.
CAUTION!
RiskofFirstDegreeBurns
Partsoftheproductmayheatup,whenexposed
tohightemperatures(above41°C).
–Becarefuliftheproductisexposedtohigh
temperatures,e.g.directsunlight.
IMPORTANT!
Thereisariskofdamageduetowear,e.g.
corrosion.
–Donotusetheproductunderwater,e.g.in
pools.
–Donotusetheproductinhotareaslikesaunas.
–Donotstoretheproductinwetorhumid
environments.
2.2LabelsandSymbolsontheProduct
Identicationlabel
XX cm
XXX kg
XXXXX-XX-XX
G
O
0
0
0
-0
0
0
0
0
0
YYYY-MM
XXXXXXX XX
XX XXX XXXX
XX-XXXXXXX
XXXXXXX
XXXXXXX XXXXX
X XXXXXX XXXXXX
YYMXX0000
HMINR:XXXXX
CD F GE
A
B
AProductname
BPartnumber
CDateofmanufacture
DSerialnumber
EMaximumuserweight
FMaximumwidth
GManufactureraddress
Symbols
European
Conformity
MedicalDevice
Manufacturer Readusermanual
Dateof
manufacture
Serialnumber
1637696-B7
-A

Dolomite®Gloss®
Maximumwidth
Maximumuser
weight
Indoor/Outdoor
use
81637696-B
-A

ProductOverview
3ProductOverview
3.1ProductDescription
Thefour-wheeledwalkingaidisequippedwithacentral
seatthatcanbefoldedupforstorageandtransportation.
Frontwheelsaresteeringwheels.Rearwheelsareprovided
withabrakesystemforslowingdownandforlockingthe
wheels.Thewalkingaidisavailableindifferentsizesand
canbeequippedwithawiderangeofaccessories.
3.2IntendedUse
Thewalkingaidisintendedtosupportduringwalkingand
mayalsoserveasarestingseat.
Thewalkingaidissuitableforindoorandoutdooruseon
evenground.
Theintendeduserisanadultwithamaximumuserweight
asstatedontheproductlabelandinchapter7Technical
Data,page18.
3.3IndicationsforUse
Indications
Personswithimpairedmusclestrengthand/orbalance,
whoneedadditionalsupportwhilstwalking.Theremaining
walkingandcognitiveabilitymustbesufcientforsafeuse
ofawalkingaid.
Contraindications
Personswithsevereequilibriumdisordersorfunctional
perceptualdisorders.

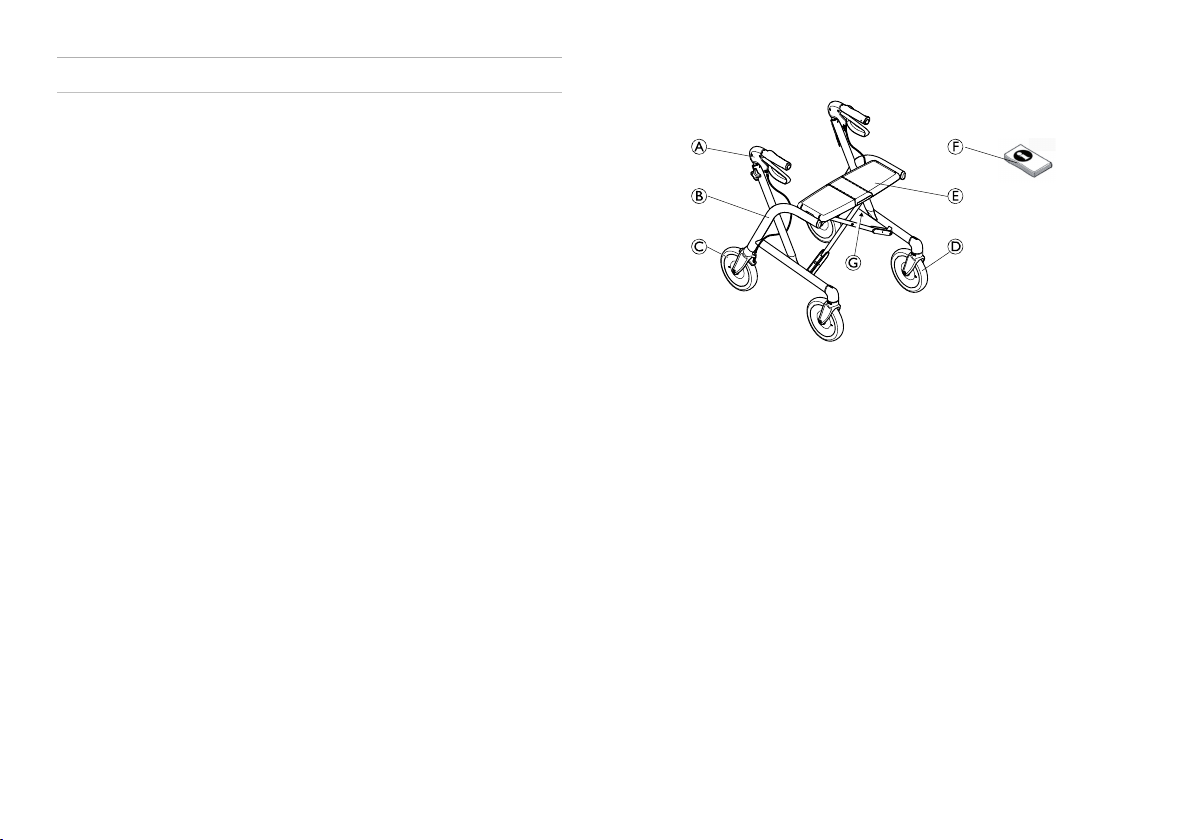

3.4ScopeofDeliveryandMainParts
A
G
EB
CD
F
APushhandleswithhandbrakes
BFrame
CRearwheelswithbrakesystem
DFrontwheels
ESeat
FUsermanual
GLocationoftheidenticationlabel
Theproductisdeliveredfullyassembled.
3.5Accessories
Variousaccessories,likeabasket/bag,areavailablefor
thisproductandcanbefoundinthecountry-specicsales
documents.Dependingonthecongurationaccessories
maybepre-assembled.
1637696-B9
-A

Dolomite®Gloss®
4Usage
4.1BeforeUse
CAUTION!
RiskofInjuryorDamagetoProperty
–Beforeuse,verifythegeneralfunctionalityof
theproduct.
–Beforeuse,checktheproductforanydefect.
–Donotuseadefectiveproduct.
Invacarepresumeahealthcareprofessionalhasmadean
individualassessmentoftheusertodeterminehisrisklevel
ortherapyrequirements.Providersandcarershaveassessed
thattheproductgivestherequiredsupportandthatits
adjustmentsareappropriatefortheuser.Careranduser
havebeenappropriatelytrainedbyahealthcareprofessional
onhowtousetheproductcorrectlyandsafely.
4.2FoldingandUnfolding
UnfoldingtoOperatingPosition
WARNING!
–Beforeuse,alwaysmakesurethattherollator
isfullyunfoldedandthelockisengaged.
1. 2. 3.
1.Releasethexationstrap,ifattached.
2.Pullthepushhandlesoutwards.
3.Pressontheseatuntiltherollatorisfullyunfolded.
Wheninoperatingposition,thereleasehandleofthe
seatwill“click”intoalockedposition.
Folding
CAUTION!
Riskofinjuryordamage
Whenliftingtheunfoldedrollatorattheseat,it
canaccidentlyfoldandcauseinjury.
–Alwayslifttherollatorattheframeandthe
pushhandles.
–Donottouchthereleasehandlewhenlifting
theunfoldedrollator.
CAUTION!
Riskofpinching
–Becarefulwhenfoldingtherollator.
1. 2. 3.
BC
A
1. Stand next to the rollator and pull the release handle A.
2. Lift the seat B upwards.
3. Press the push handles C inwards to fold the rollator.
Forstorageandtransport,therollatorcanbexedinfolded
position:
101637696-B
-A

Usage
A
1.AttachthexationstrapAtobothknobs.
4.3AdjustingtheHandleHeight
WARNING!
Riskoffalling
–Alwaysensurethatthehandknobsare
tightenedsecurelytopreventthehandlefrom
unintendedlowering.
–Donotsetthehandlesabovetheirhighest
allowedposition,indicatedbythemarkingon
thetubes.
Iftheuserisnotsupposedtoadjusttheheight
ofthehandles,e.g.forsafetyreasons,thehand
knobscanbereplacedbylockingscrews(available
asaccessory).
Recommendedheight:Thehandlesshouldbe
positionedatwristheightwhenstandingstraight
withrelaxedarms.Therapistmaysuggestdifferent
heightsdependingonspecicneedsoftheclient.
Max.
1.Loosenthehandknob,butdonotremoveit.
2.Adjustthehandletosuitableheight.
3.Retightenthehandknob.Pressonthehandletocheck
forsecuret.
4.Repeattheprocedureontheotherside.
Foramorecomfortablehandposition,youmayswivelthe
handlestopointinwards.Alockingmechanismprevents
exceedingthemaximumallowedangle.
20°
0° 20° 0°
4.4Walking
WARNING!
Riskoffalling
–Becarefulifthewheelsstopagainstan
obstacle,e.g.akerb.
1637696-B11
-A

Dolomite®Gloss®

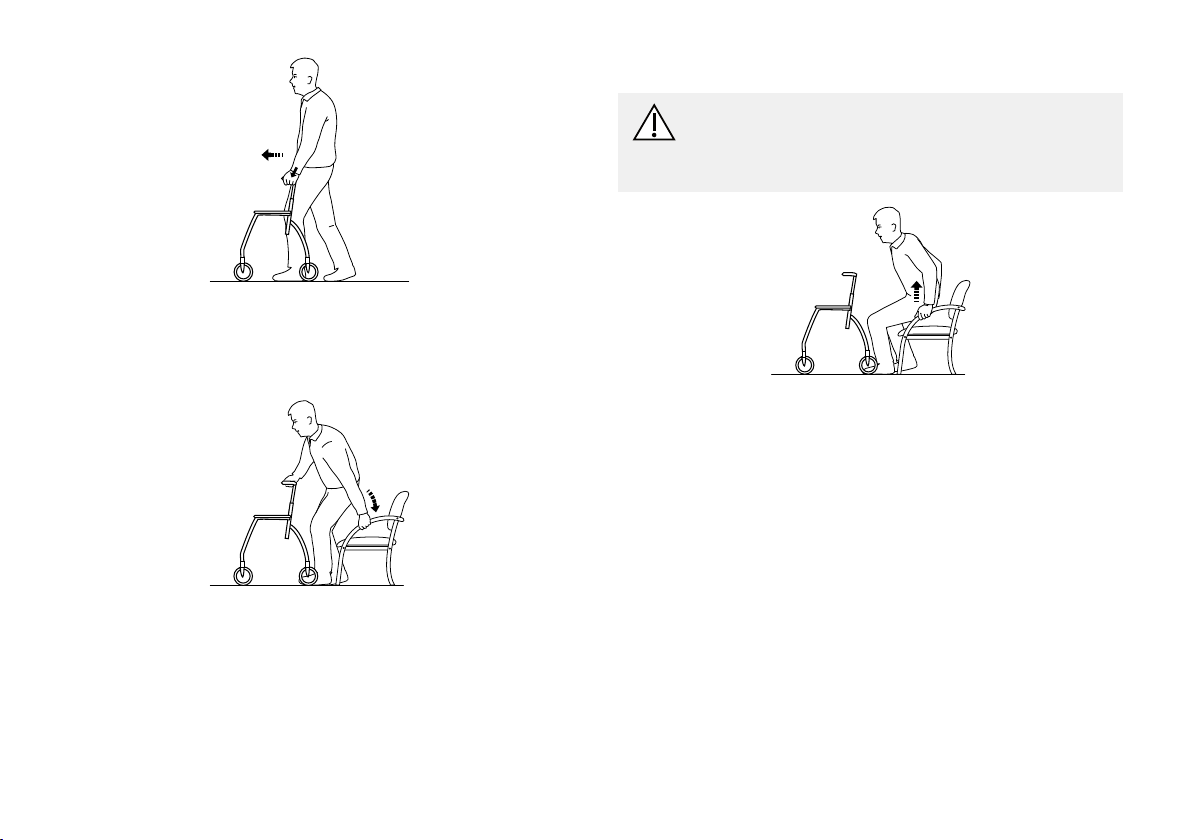

1.Placethewalkingaidslightlyinfrontofyouandtakea
steptowardsitwhileusingthehandgripsforsupport.
4.5SittingDownonaChair
1.Standinfrontofthechairwiththewalkingaid,the
backofyourlegsshouldtouchthechair.
2.Lockbothhandbrakesofthewalkingaid.
3.Placeyourhandsonthearmsofthechair,leanforward
slightlyandsitdowncarefully.
4.6RisingtoaStandingPosition
WARNING!
Riskoftipping
–Donotusethewalkingaidtopullyourselfup
fromasittingposition.
1.Placethewalkingaidinfrontofyouandlockboth
handbrakes.
2.Usethearmrestsofthechairassupportandrise
carefullytoastandingposition.
3.Oncestableinastandingposition,transferhandstothe
handgripsofthewalkingaid.
121637696-B
-A

Usage
4.7SittingontheWalkingAid
WARNING!
RiskofFalling
–Usethewalkingaidforstationaryseatingonly.
–Beforesittingdown,lockbothbrakesinparking
positionandmakesurethewalkingaidstands
stable.
–Alwayssitonthewalkingaidfromtherear
side.Donotsitdownfromthefrontside.
–Donotsitonthewalkingaidonslopingground.
–Donotmaneuverthewalkingaidwithyour
feetwhilesittingonit.
4.8UsingtheHandBrakes
1.Toslowdown,pullbothbrakehandlesupwards.
2.Tomoveagain,carefullyletgobothbrakehandles.
LockingtheHandBrakesinParkingPosition
1.Tolockthehandbrakes,pressbothbrakehandles
downwards.
Anaudibleclickindicatesthatthebrakeisinlocked
position.
2.Tounlockandreleasethehandbrakes,pullbothbrake
handlesupwards.
AdjustingtheBrakingEffect
WARNING!
RiskofInjury
Ifthebrakingeffectistoolow,therollatorcan
move,evenifhandbrakesarelockedinparking
position.
–Checkthebrakingeffectbyapplyingthebrake
andverifythatthewheelcannotrotate.
Ifthecounternutisnottightened,itcould
loosenandthehandbrakeswon’tworkanymore.
–Aftereachadjustment,makesurethatthe
counternutistightenedproperly.
1637696-B13
-A

Dolomite®Gloss®

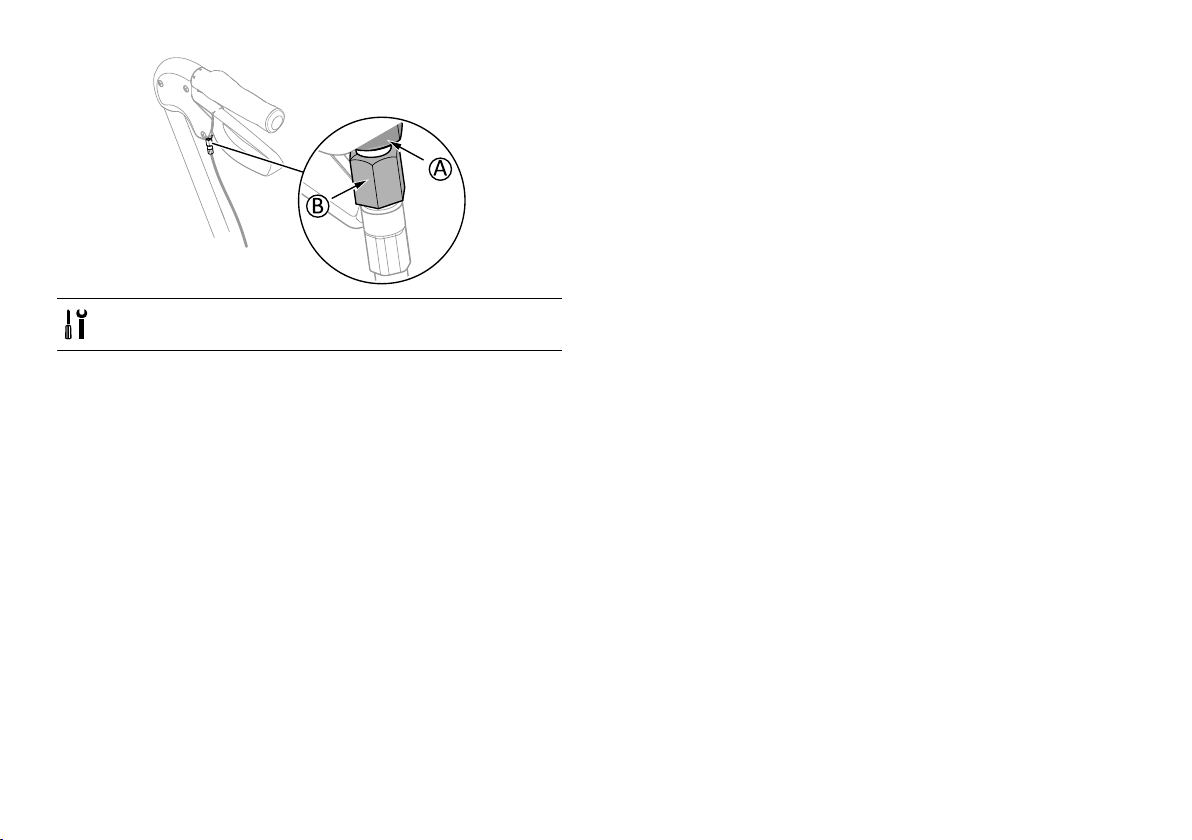

A
B
8+10mmspanner(notincluded)
Thebrakehandlemustbeinunlockedpositiontoadjust
thebrakingeffect.
1.LoosenthecounternutA.
2.Todecreasethebrakingeffect,turntheadjustingnut
Bclockwise.
Toincreasethebrakingeffect,turntheadjustingnut
Bcounterclockwise.
(Thedistancebetweenthebrakeclampandthewheel
shouldbe2mm.)
3.TightenthecounternutAproperlytoxthenew
adjustment.
4.9AttachingtheBasket
1.Hangthebasketontheattachmenthorns.
2.Fixatethebasketwithhook-and-loop-strapsonboth
sidestotheframe.
141637696-B
-A

Maintenance
5Maintenance
5.1GeneralMaintenanceInformation
WARNING!
RiskofInjury
–Maintenanceshouldbedoneatleastoncea
year.
–Donotuseadefectiveproduct.
–Donotattemptrepairsyourself.Forrepairs
contactyourprovider.
5.2InspectionChecklist
Toensuregoodperformanceandsafety,inspectyour
productregularly.
qEnsurethatallscrewsandadjustmentsareproperly
tightened.
qEnsurethathandgripsaretight.
Ifhandgripsareloosedonotusethewalkingaid.
Instructionsonhowtochangehandgripscanbe
obtainedfromyourproviderorInvacaredistributor.
qVerifybrakeoperation.
Ifbrakeadjustmentisrequired,seechapter4Usage,
page10.
qInspecttheframeandloadedpartsforcracks.
qInspectthewheels’tightness,wearanddamage.
qMakesurethatthewheelsarefreeofhair,lintand
otherdebris.
5.3CleaningandDisinfection
5.3.1GeneralSafetyInformation
CAUTION!
RiskofContamination
–Takeprecautionsforyourselfanduse
appropriateprotectiveequipment.
IMPORTANT!
Wronguidsormethodscanharmordamage
theproduct.
–Allcleaningagentsanddisinfectantsusedmust
beeffective,compatiblewithoneanotherand
mustprotectthematerialstheyareusedto
clean.
–Neverusecorrosiveuids(alkalines,acidetc.)
orabrasivecleaningagents.Werecommend
anordinaryhouseholdcleaningagentsuchas
dishwashingliquid,ifnotspeciedotherwisein
thecleaninginstructions.
–Neveruseasolvent(cellulosethinner,acetone
etc.)thatchangesthestructureoftheplastic
ordissolvestheattachedlabels.
–Alwaysmakesurethattheproductis
completelydriedbeforetakingitintouseagain.
Forcleaninganddisinfectioninclinicalorlong-term
careenvironments,followyourin-houseprocedures.
1637696-B15
-A

Dolomite®Gloss®
5.3.2CleaningIntervals
IMPORTANT!
Regularcleaninganddisinfectionenhances
smoothoperation,increasestheservicelifeand
preventscontamination.
Cleananddisinfecttheproduct
–regularlywhileitisinuse,
–beforeandafteranyserviceprocedure,
–whenithasbeenincontactwithanybody
uids,
–beforeusingitforanewuser.
5.3.3CleaningInstructions
Theproductcanbewashedinawashingmachineorby
hand.
Whenusingahigh-pressurecleaneroranordinaryjetof
water,donotaimthejettowardsbearings,drainingholes
orlabels.
Themaximumcleaningtemperatureis60°C.Donotuse
asteamcleaner.
1.Cleanthewalkingaidwithadampclothandmild
detergent.
2.Cleanthewheelswithabrush(nowirebrush).
3.Afterwashing,wipetheproductdry.
Disinfection
•Wipedownallgenerallyaccessiblesurfaceswith
disinfectant.
Informationonrecommendeddisinfectants
andmethodscanbefoundonhttps://vah-
online.de/en/for-users.
161637696-B
-A

AfterUse
6AfterUse
6.1Disposal
Beenvironmentallyresponsibleandrecyclethisproduct
throughyourrecyclingfacilityatitsendoflife.
Disassembletheproductanditscomponents,sothedifferent
materialscanbeseparatedandrecycledindividually.
Thedisposalandrecyclingofusedproductsandpackaging
mustcomplywiththelawsandregulationsforwaste
handlingineachcountry.Contactyourlocalwaste
managementcompanyforinformation.
6.2Reconditioning
Thisproductissuitableforreuse.Toreconditiontheproduct
foranewuser,carryoutthefollowingactions:
•Inspection
•Cleaninganddisinfection
Fordetailedinformation,see5Maintenance,page15and
theservicemanualforthisproduct.
Makesurethattheusermanualishandedoverwiththe
product.
Ifanydamageormalfunctionisdetected,donotreuse
theproduct.
1637696-B17
-A

Dolomite®Gloss®
7TechnicalData
7.1DimensionsandWeights
EA
D
B
C
[mm]Gloss450Gloss520Gloss600Gloss680
TotalwidthA520595600610
TotalheightB635–770725–860795–920915–1050
SeatwidthC370445445445
SeatheightD450520600680
TotallengthE615675720790
Widthwhenfolded240190190190
Front/rearwheeldiameter200
Front/rearwheelwidth40
Alldimensionsaresubjecttocertaintolerances.
[kg]Gloss450Gloss520Gloss600Gloss680
Weight15.96.36.56.8
1.Totalweightexcludingequipment.
181637696-B
-A

TechnicalData
Max.userweight2160
Max.loadbasket7.0
Max.loadtray5.0
7.2Material
FramePolyesterpowder-coatedaluminium
HandlebarsAnodisedaluminium
HandgripsTPE
WheelsPolypropylenewithtreadsofTPE
PlasticpartsMaterialaccordingtomarking(PA,PP)
ScrewsSteel,rustprotected
2.Thisweightlimitationincludestheweightoftheuser,whetherstandingorsitting,andanyadditionalload,e.g.thecontentofthebasket.
1637696-B19
-A

Notes
-A
