DeFelsko PosiTest AIR User manual

Instruction
Manual v. 1.0
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Introduction
Introduction
The portable, hand-operated PosiTest AIR Leak Tester tests the air
barrier integrity of single, two-ply and liquid membrane systems, including
air barriers, roofing systems, waterproofing and ground liners by locating
leaks.
In accordance with ASTM E 1186, the PosiTest AIR will indicate whether
leaks exist in the test area. It is a simple pass/fail test.
The PosiTest AIR can be utilized during construction and
post-construction. The practice consists of applying a leak detection liquid
(PosiTest AIR Test Solution) to the test specimen surface, sealing a
transparent chamber around the specimen and depressurizing the
chamber with a fan.
The location of an air leak is indicated by bubbling of the Test Solution.
An estimate of the relative size of the leak can be made based on the size
and speed with which the bubbles form.
Basic steps for performing a test with a PosiTest AIR:
Prepare for t e Test (pg. 3)
- Clean the test area.
- Set Mode of Operation - Automatic (default) or Manual
Perform Test (pg. 4)
- Apply Test Solution to test area.
Test Solution must be applied correctly. (pg. 4)
- Place test chamber firmly over test area.
- Initiate test and observe test area for bubbles;
determine pass or fail.
- Store test result in memory. (optional)
Page 1
Quick Start
Quick Start
The PosiTest AIR powers up and displays dashes when the
button is pressed. To preserve battery life, the instrument powers
down after 5 minutes of no activity or by holding for 2 seconds.
IMPORTANT:
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 2

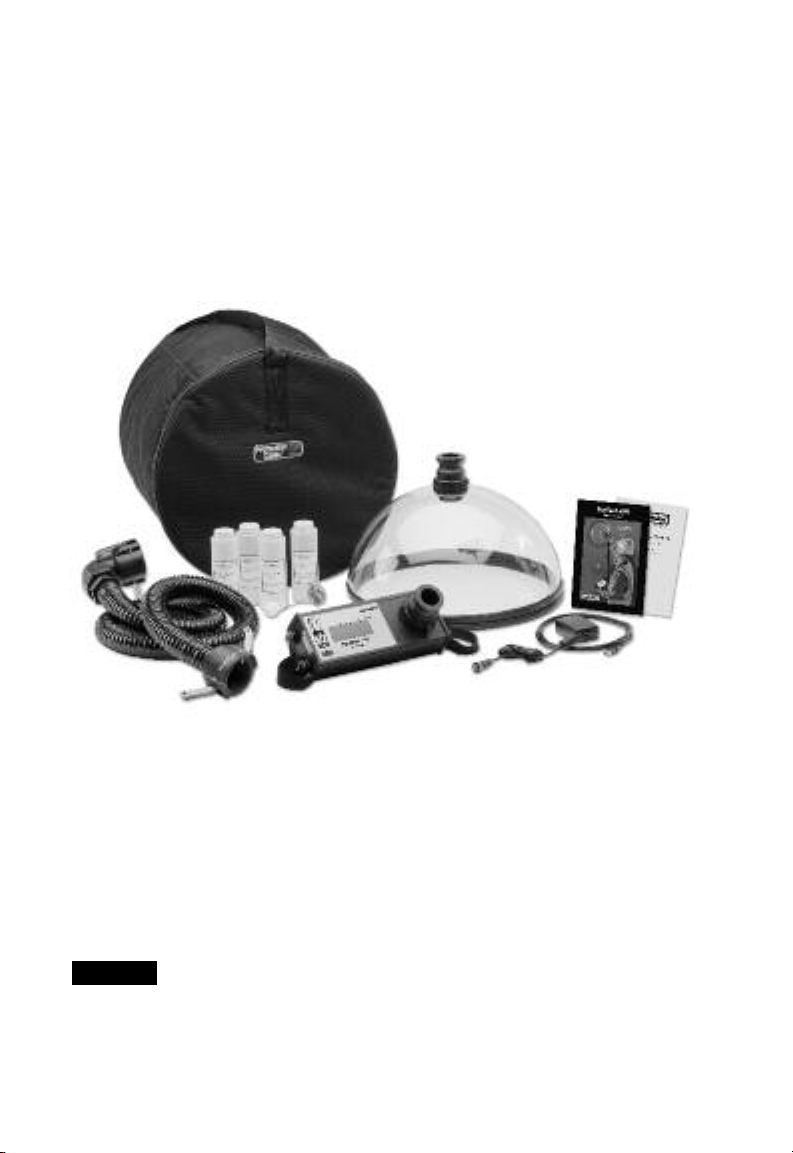

PosiTest AIR Leak Tester Kit Contents
- PosiTest AIR tester body
- igh impact, transparent, polycarbonate test chamber
- 5' (1.5 m) hose with quick disconnect couplings
- AC Power Supply
- (4) - 8 ounce (237ml) bottles of Test Solution each with dauber applicator
- Nylon carrying case with shoulder strap
- USB cable & PosiSoft 3.0 Desktop Software (available as download)
- Instruction Manual
- Certificate of Calibration traceable to N.I.S.T.
PosiTest
PosiTest AIR AIR Test Solution Test Solution
Every PosiTest AIR comes complete with (4) bottles of Test Solution.
The Test Solution is applied to the test area prior to initialization of the test.
The Test Solution has been specially formulated not to have any adverse
effects on waterproofing, roofing, air barrier membranes or the
PosiTest AIR unit. Do not use on spun polyolefin building wrap.
Additional Test Solution can be purchased by contacting your distributor.
All residual test solution should be removed from the test area
once testing has been completed. Wipe the test area with a clean,
dry cloth to remove the test solution.
NOTE:
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Preparing for t e Test
Preparing for t e Test
Clean t e Test Areas
Ensure that the test area is free of dirt, dust and debris. The test area
should not be hot (from torching), frosted or extremely wet.
Slight dampness around the test area will not compromise the results of
the test. The area being tested should be free of ice, which may act to
“plug” the leak.
Page 3
The PosiTest AIR has two modes of operation:
Automatic (default) and Manual
To view current operation mode, press .
Press again to switch between operation modes.
Automatic Mode Testing: (default and most commonly used mode)
The PosiTest AIR automatically depressurizes the test chamber at a
selected rate until the selected pressure limit has been achieved.
Common test parameters:
Pressure Differential Limit: 500 Pa
Rate of Depressurization: 25 Pa/sec
Press to display the current Pressure Differential Limit.
Press repeatedly to select Limit in increments of 100 Pa
(maximum of 900 Pa).
Manual Mode Testing:
The PosiTest AIR test chamber is manually depressurized using the
and buttons. Manual mode is ideal for quick spot checks
of multiple test areas.
Set Mode of Operation
Press to display the current Rate of Depressurization.
Press repeatedly to select Rate in increments of 5 Pa/sec
(maximum of 30 Pa/sec).
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

3. Initiate t e Test
Press to ready the PosiTest AIR for the test. Press it again to
begin test.
In Automatic Test Mode (pg. 3) the PosiTest AIR will automatically
increase fan speed until the set Pressure Differential Limit is reached or
the button is pressed.
In Manual Test Mode (pg. 3) the user manually adjusts fan speed to
depressurize test chamber as test is being performed. Press and hold
, to increase or to decrease fan speed.
During the test, if the solution around the test area bubbles,
a leak is resent.
For best results, test solution must be a lied correctly.
Rotate dauber as test solution is being applied over test area.•
Do not overapply or the solution will form a froth or foam.•
2. Place t e Test C amber over t e Test Area
Place and hold the test chamber firmly against test area to ensure
continuous contact with the substrate. Achieving a perfect seal between
the test chamber and test surface is not necessary. The PosiTest AIR
will adjust for any extraneous leakage that occurs.
Page 4
Performing te Test
Performing te Test
1. Apply Test Solution
Using the included dauber applicator, thoroughly
cover the prepared test area with a thin film of
Test Solution.
IMPORTANT:
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 5
Careful observation is important as bubbles of
different sizes can form anywhere within the test area
where solution is present. Bubbles may also form
and pop quickly. A very large leak may not form a
bubble, but rather blow solution away.
When a leak has been identified, the test can be halted by pressing the
button. In Automatic mode, the PosiTest AIR will automatically
stop when the pre-selected pressure limit is reached.
Let the pressure within the test chamber decrease before removing it
from the test surface. The test area can then be marked for further repair,
or the bubble can be photographed if documentation is required for the
particular job.
Upon completion of the test, the maximum pressure differential and
duration of the test will flash on the display.
4. Store Test Result (optional)
Press upon completion of the test. The PosiTest AIR will display
“PASS”.
Press to store a PASS result.
Press to store a FAIL result.
In addition to the PASS/FAIL result, the rate of depressurization,
maximum pressure differential and test duration is stored in memory.
Press repeatedly, to review test results stored in memory.
To remove all stored data:
Press and hold the button, then press the button.
The icon on the display will disappear.
Accessing Stored Test Results
Accessing Stored Test Results
Stored test results can be downloaded using the supplied USB cable and
PosiSoft 3.0 Deskto Software (available for download at
www.defelsko.com/posisoft). Test results are not erased from memory
after downloading.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 6
Power Source: Built-in rechargeable NiM battery (> 200 tests with full charge)
The symbol will appear when remaining battery power is below 35%.
The built-in rechargeable NiM batteries** are charged using the included
AC power supply. Ensure batteries are charged prior to use.
The symbol will blink while the instrument is charging and disappears when
fully charged. The charging process will take 2-3 hours depending on remaining
battery power.
The included AC power supply can be used to power the instrument while
charging is in progress.
The USB port will NOT charge or power the PosiTest AIR. The USB connection
will drain battery power when connected for an extended period of time.
**Do not attem t to remove or re lace the internal NiMH battery ack. In the
unlikely event ower issues are ex erienced, lease contact your dealer or
DeFelsko for technical su ort assistance.
Power Supply / Low Battery Indicator
Power Supply / Low Battery Indicator
NOTES:
Tec nical Data
Tec nical Data
Conforms to: ASTM E 1186 and others.
Specifications: Resolution: 1 Pa Accuracy: ±(10% + 10 Pa)
Calibration
Calibration
The PosiTest AIR Leak Detector is shipped with a Certificate of
Calibration showing traceability to a national standard. For organizations
with re-certification requirements, the PosiTest AIR Leak Detector may
be returned at regular intervals for calibration. DeFelsko recommends
that our customers establish the instrument calibration intervals based
upon their own experience and work environment. Based on our product
knowledge, data and customer feedback, a one year calibration interval
from either the date of calibration, date of purchase or date of receipt
is a typical starting point.
PosiTest AIR Storage Temperature: -22° to 149° F (-30° to 65° C)
Operating Temperature: 5° to 122° F (-15° to 50° C)
PosiTest AIR
Test Solution
Storage Temperature: -22° to 149° F (-30° to 65° C)
Operating Temperature: -22° to 149° F (-30° to 65° C)
