DeLaval IPR User manual

DeLaval in place ID reader IPR
Instruction Book
© DeLaval 2021. 89380401
2021-12-17, Version 6 Original instruction

EU Declaration of Conformity - DeLaval in place ID reader IPR..................................................... 5
Safety precautions.............................................................................................................................. 7
nDeLaval in place ID reader IPR
1 Foreword........................................................................................................................... 7
2 Disclaimer......................................................................................................................... 7
3 Definitions of admonishments........................................................................................... 7
4 Safety regulations............................................................................................................. 8
4.1 Safety regulations - General............................................................................. 8
5 Compliance with national regulations................................................................................ 9
5.1 FCC Compliance Statement............................................................................. 9
5.2 ISED Compliance Statement.......................................................................... 10
6 Type plate....................................................................................................................... 10
7 Warranty.......................................................................................................................... 10
8 Regulatory compliance.................................................................................................... 11
General description........................................................................................................................... 12
nDeLaval in place ID reader IPR
1 Introduction..................................................................................................................... 12
2 Technical data................................................................................................................. 14
Planning.............................................................................................................................................. 16
nDeLaval in place ID reader IPR
1 Suggested configuration layout....................................................................................... 16

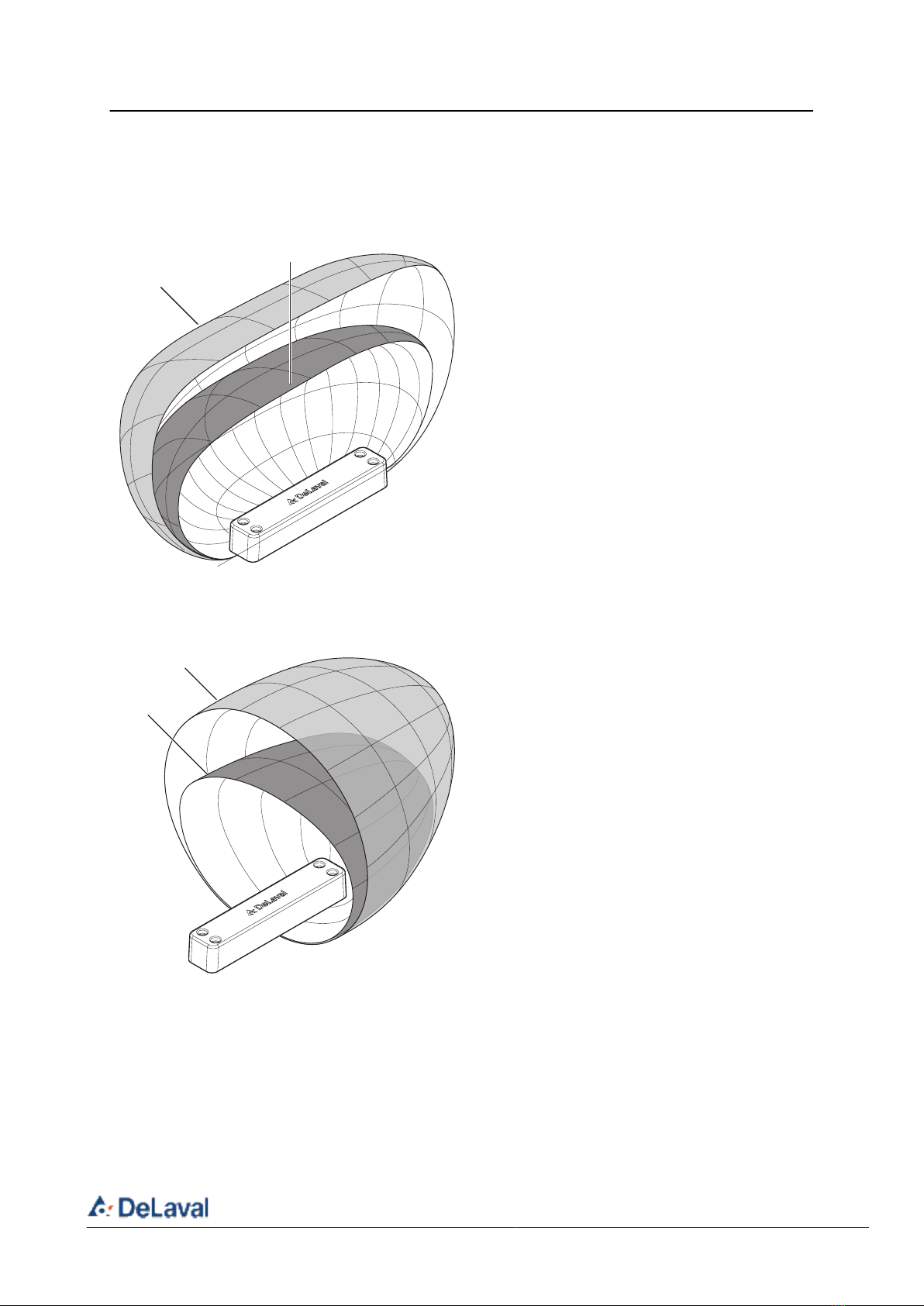

2 Reading volume.............................................................................................................. 17
Troubleshooting................................................................................................................................ 18
nDeLaval in place ID reader IPR
1 Problems with the in-place reader (IPR)......................................................................... 18
Disposal.............................................................................................................................................. 19
nDeLaval in place ID reader IPR
1 Disposal and recycling information ............................................................................... 19
1.1 Disposal of packaging material....................................................................... 19
1.2 Disposal of electrical and electronic equipment with or without battery.......... 19
DeLaval in place ID reader IPR
Table of contents
© DeLaval 2021.
2021-12-17, Version 6 3 (22) 89380401

DeLaval in place ID reader IPR
Table of contents
© DeLaval 2021.
2021-12-17, Version 6 4 (22) 89380401

EU Declaration of Conformity
Name of product: DeLaval in place ID reader IPR
Type/model: IPR
Report No. D0000106871
The product complies with requirements of the following directives:
Restriction of the use of certain hazardous substances (RoHS) - 2011/65/EU
Radio equipment directive RED 2014/53/EU
Harmonized standards which have been used or parts thereof:
EN 300 220-2 V2.4.1: 2012
EN 301 489-1 V2.2.0
EN 301 489-3 V2.1.1
Other technical standards and specifications used:
EN 55032:2012 + AC:2013
EN 62368-1:2014
Fulfills RoHS by design and purchase control
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Tumba 2020-06-19 Signed:
Name: Magnus Berg
Position: Executive Vice President
Department: Product Management & Develop-
ment
Person authorised to compile the technical file:
Product Manager
P.O. Box 39
SE 147 21 TUMBA
Sweden
© DeLaval 2021.
2021-12-17, Version 6 5 (22) 89380401

Name and address of manufacturer:
DeLaval International AB
P.O. Box 39
SE 147 21 TUMBA
Sweden
© DeLaval 2021.
2021-12-17, Version 6 6 (22) 89380401

Safety precautions
DeLaval in place ID reader IPR
1 Foreword
The safety and operational instructions must be
observed by any person involved with the use or
operation of this equipment. Under no circum-
stances must the equipment be used if it is dam-
aged or if the operation of the equipment is not
completely understood.
2 Disclaimer
The information, instructions and parts listed are
applicable and current on the date when issued.
DeLaval reserves the right to make changes with-
out notice.
3 Definitions of admonishments
Admonishments are safety related warning mes-
sages.
Admonishments provide important information
intended to prevent incorrect or hazardous use of
equipment, machinery or software, and support
risk assessment.
The following list defines the different types of
admonishments used in DeLaval documentation:
Danger: Refers to imminent and severe risk.
Failure to comply with instruction will result in
serious injury or death.
Warning: Refers to a potential but severe risk.
Failure to comply with instruction could result in
injury or death.
Caution: Refers to a limited risk. Failure to com-
ply with instruction could result in minor injury.
Mandatory: Refers to an action or behaviour
which is essential to safe and successful use of
the equipment.
Prohibited: Refers to an action or behaviour
which is incompatible to safe and successful use
of the equipment.
DeLaval in place ID reader IPR
Safety precautions
© DeLaval 2021.
2021-12-17, Version 6 7 (22) 89380401

Note! Is intended to draw attention to specific
points of importance in the text and advice to
prevent equipment damage.
This symbol signals risk of injury.
This symbol signals risk of electric shock.
For other symbol definitions see ISO 7010.
4 Safety regulations
4.1 Safety regulations - General
Warning!
Intended use
Do not use the equipment for any
other purposes than the intended
use.
Warning!
Keep safety signs legible!
Read all the safety signs on the
machine and in this manual.
Replace any lost or damaged signs.
Keep safety signs clean and legible
at all times.
Mandatory!
Read the instructions carefully
before using the equipment. Contact
the local DeLaval dealer if there are
parts of these instructions that are
not understood. Compliance with the
instructions ensures a correct and
safe use of the equipment. Save the
instructions for future reference.
DeLaval in place ID reader IPR
Safety precautions
© DeLaval 2021.
2021-12-17, Version 6 8 (22) 89380401

Prohibited!
Do not use inadequate parts or
consumables.
Using products which do not meet
specified requirements, for example
spare parts or consumables, or not
appropriately trained personnel for
the DeLaval product may lead to
risks or damage. Consequently it
may also void or limit the warranty.
5 Compliance with national regu-
lations
5.1 FCC Compliance Statement
This equipment was tested and found to comply
with the limits for a Class A digital device, pur-
suant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the equipment
is operated in a commercial environment. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instruction manual,
may cause harmful interference to radio commu-
nications.
Operation of this equipment in a residential area
is likely to cause harmful interference in which
case the user will be required to correct the inter-
ference at his own expense.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
To comply with FCC/IC RF exposure limits for
general population / uncontrolled exposure, the
antenna(s) used for this transmitter must be
installed to provide a separation distance of at
least 20 cm from all persons and must not be co-
located or operating in conjunction with any other
antenna or transmitter.
Note! Changes or modifications not expressly
approved by the party responsible for compli-
cance could void the user's authority to operate
the equipment.
DeLaval in place ID reader IPR
Safety precautions
© DeLaval 2021.
2021-12-17, Version 6 9 (22) 89380401

5.2 ISED Compliance Statement
This device contains licence-exempt transmit-
ter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada's
licence-exempt RSS(s). Operation is subject to
the following two conditions:
nThis device may not cause interference.
nThis device must accept any interference,
including interference that may cause unde-
sired operation of the device.
Note! Changes or modifications not expressly
approved by the party responsible for compliance
could void the user's authority to operate the
equipment.
6 Type plate
7 Warranty
Note! DeLaval will not take any responsibility for
damage resulting from faulty installation, opera-
tion, or for improper or inadequate care and
maintenance.
Note! Modification may create risks not covered
by the original construction. Do not make any
modifications which have not been approved by
DeLaval.
Model: IPR
MADE IN CHINA
ABC
JG
HFED
289358
Fig. 1: Type plate.
A: Product name
B: Model
C: Article number
D: Power
E: FCC ID
F: IC
G: European Conformity mark
H: China RoHS symbol
J: The symbol of crossed-out wheelie bin with the
horizontal bar beneath, see Ä Chapter 1 " Dis-
posal and recycling information " on page 19.
DeLaval in place ID reader IPR
Safety precautions
© DeLaval 2021.
2021-12-17, Version 6 10 (22) 89380401

8 Regulatory compliance
For more information on regulatory compliance,
see
http://www.delavalcorporate.com/sustainability/
our-operations/regulatory-Compliance/.
DeLaval in place ID reader IPR
Safety precautions
© DeLaval 2021.
2021-12-17, Version 6 11 (22) 89380401

General description
DeLaval in place ID reader IPR
1 Introduction
DeLaval in place ID reader IPR identifies animals
with B-transponders (for the neck), or with ISO
transponders (HDX and FDX transponders for
the ear).
279371
Fig. 2: B-transponder.
DeLaval in place ID reader IPR
General description
© DeLaval 2021.
2021-12-17, Version 6 12 (22) 89380401

The IPR is designed for various applications,
including milking systems and feeding systems.
The reader sends the scanned data to a receiving
unit, for example, a milking station controller,
when a transponder is within the range of the
reader. The data is later processed by the receiv-
ing unit. After the receiving unit processed the
data, the programmed action follows.
279372
Fig. 3: ISO transponder.
DeLaval in place ID reader IPR
General description
© DeLaval 2021.
2021-12-17, Version 6 13 (22) 89380401

2 Technical data
Technical data
Power supply 12 or 24 VDC
TX Frequency 134 200Hz
RX Frequency 95000
-138000 Hz
Supply current (transmitting) 6 W, 0.5 A (12
VDC) / 0.25 A
(24 VDC)
Supply current (standby) 2 W, 0.2 A (12
VDC) / 0.1 A
(24 VDC)
Weight 2.8 kg (includ-
ing the cable)
Minimum ambient temperature -25°C (during
operation)
Maximum ambient tempera-
ture
55°C (during
operation,
70°C during
storage)
Minimum ambient humidity 20%
Maximum ambient humidity 70%
Article number Description Type of animal transponder
2150015681 DeLaval in place ID reader IPR H/F ISO (HDX+FDX)
2150015688 DeLaval in place ID reader IPR B B-Transponder
60
360 305
70
34
27.5
18
260258

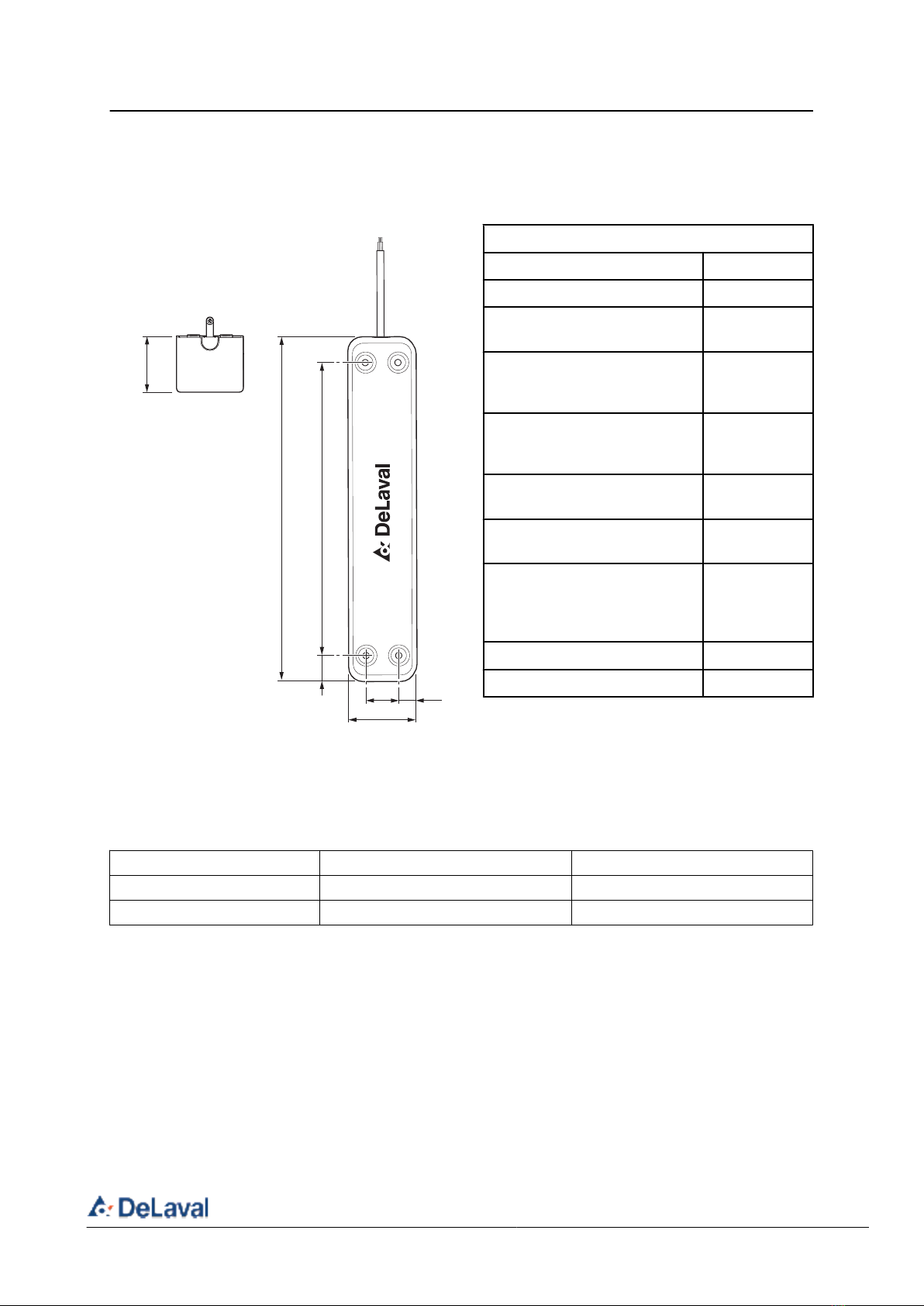

Fig. 4: DeLaval in place ID reader IPR dimensions.
DeLaval in place ID reader IPR
General description
© DeLaval 2021.
2021-12-17, Version 6 14 (22) 89380401

Wire description for 2150015681/2150015688 and 2150009406/2150009407
IPR wire number MPC connection terminal for rod reader Function
1 Red 12-24V DC
2 Black Ground
3 Green Data
4 White Synchronization
Wire description for 87486380 and 87486381
IPR wire colour MPC connection terminal for rod reader Function
Red Red 12-24V DC
Black Black Ground
Green Green Data
White White Synchronization
DeLaval in place ID reader IPR
General description
© DeLaval 2021.
2021-12-17, Version 6 15 (22) 89380401

Planning
DeLaval in place ID reader IPR
1 Suggested configuration layout
DeLaval in place ID reader IPR is fastened
directly with four bolts on the metal surface with-
out the need for additional protection. However,
the associated cable must be well protected.
The reader should not be located close to any
metal objects, as they can cause disruptions in
ID readings and reduce the reading distance. The
minimum required distance is 100 mm at the
sides and 500 mm at the front. Metal objects
(including the IPR bracket) placed directly behind
the reader do not affect system operation.
Note! Be aware that surrounding metal objects
may cause disturbance.
A
260284
Fig. 5: IPR positioning near metal objects.
A: More than 100 mm
DeLaval in place ID reader IPR
Planning
© DeLaval 2021.
2021-12-17, Version 6 16 (22) 89380401

2 Reading volume
The DeLaval in place ID reader IPR generates a
magnetic field around the reader which activates
the transponder. The magnetic field is automati-
cally tuned to give optimum performance within
certain limits in various applications.
The activation volume (reading volume) differs
depending on the transponder type (HDX, B or
FDX), see Fig. 6 and Fig. 7.
Note! Metal objects close to the reader may
impact the reading volume (reading perform-
ance).
The DeLaval in place ID reader IPR is capable of
handling different positions (angles) of the trans-
ponder, which guarantees a highly accurate
reading.
B-tranponder
HDX
FDX
279373
Fig. 6: Reading volume long side.
B-tranponder
HDX
FDX
279378
Fig. 7: Reading volume short side.
DeLaval in place ID reader IPR
Planning
© DeLaval 2021.
2021-12-17, Version 6 17 (22) 89380401

Troubleshooting
DeLaval in place ID reader IPR
1 Problems with the in-place
reader (IPR)
No. Symptom Cause Action
1 Decreased reading distance. Disturbances caused by metal
objects placed near the reader.
nRemove all metal objects
located within a distance of
less than 100 mm from the
sides or 500 mm at the front
of DeLaval in place ID
reader IPR.
nRestart the reader.
2 The IPR reports unexpected
ID numbers.
More than one transponder in
the reading area.
Ensure a single transponder
reading and eliminate cross-
reading.
3 The IPR does not read any
transponders.
No power supply connected to
the DeLaval in place ID reader
IPR or wire issues.
nCheck the power supply.
nCheck the supply voltage
(12 or 24 V DC).
nContact an authorised
service technician.
DeLaval in place ID reader IPR
Troubleshooting
© DeLaval 2021.
2021-12-17, Version 6 18 (22) 89380401

Disposal
DeLaval in place ID reader IPR
1 Disposal and recycling informa-
tion
When the product reaches end of life, dispose it
properly in accordance with local laws and regu-
lations.
1.1 Disposal of packaging material
(Packaging EU Directive 94/62/EC)
This symbol indicates that the product’s packag-
ing material can be recycled.
1.2 Disposal of electrical and electronic
equipment with or without battery
(WEEE European Directive 2012/19/EU)
(European Battery Directive 2006/66/EC)
These symbols with a crossed-out wheelie bin on
the product or its packaging indicate that the
equipment is electrical waste, with or without bat-
tery, and shall not be disposed of with household
waste.
A horizontal bar beneath the bin means that the
product is manufactured after August 13, 2005.
To prevent inappropriate waste handling of this
product, and its negative consequences on the
environment and human health, all products shall
be disposed of in accordance with local laws and
regulations. Hand it over to an official recycling
facility, or use a battery disposal facility when
available.
Please contact the local municipal office for infor-
mation on the nearest recycling station.
DeLaval in place ID reader IPR
Disposal
© DeLaval 2021.
2021-12-17, Version 6 19 (22) 89380401

DeLaval in place ID reader IPR
Disposal
© DeLaval 2021.
2021-12-17, Version 6 20 (22) 89380401
