Dell™ Wireless Dock
User Manual
Model Name: E16WD01
Model Type: E16WD01001
0HPCHA00.book Page 1 Thursday, October 22, 2009 4:05 PM

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if
instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
____________________
Information in this document is subject to change without notice.
© 2009 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarksusedinthistext:DellandtheDELLlogoaretrademarksofDellInc.;Microsoft, Windows,
Windows Vista, and Aero are either trademarks or registered trademarks of Microsoft Corporation in
the United States and/or other countries; Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Model E16WD01
September 2009 P/N 0HPCH Rev. A00
0HPCHA00.book Page 2 Thursday, October 22, 2009 4:05 PM

Contents 3
Contents
1 About Your Dell Wireless Dock . . . . . . . . . 5
Front and Back View. . . . . . . . . . . . . . . . . . . . 6
2 Configuring Your Dell Wireless Dock . . . . 7
Installing the Software . . . . . . . . . . . . . . . . . . 7
Turning Your Dell Wireless Dock On . . . . . . . . . . 16
Associating Your Dell Wireless Dock. . . . . . . . . . 16
Associating Your Dell Wireless Dock
Using Cable Association . . . . . . . . . . . . . . 17
Associating Your Dell Wireless Dock
Using PIN Association . . . . . . . . . . . . . . . 19
Setting Up Your Dell Wireless Dock . . . . . . . . . . 21
3 Using the Dell Wireless
USB Manager . . . . . . . . . . . . . . . . . . . . . 25
Connection Manager . . . . . . . . . . . . . . . . 25
UWB Radio and Host Settings . . . . . . . . . . . 26
4 Resetting the Dell Wireless Dock . . . . . . 29
0HPCHA00.book Page 3 Thursday, October 22, 2009 4:05 PM

4Contents
5 Troubleshooting . . . . . . . . . . . . . . . . . . . 31
General . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Video Output . . . . . . . . . . . . . . . . . . . . . . . 32
Audio Output . . . . . . . . . . . . . . . . . . . . . . . 33
6 Specifications . . . . . . . . . . . . . . . . . . . . 35
7 General Safety Information . . . . . . . . . . 37
General Power Safety . . . . . . . . . . . . . . . . . . 38
Earphone and Headphone Safety . . . . . . . . . . . . 39
Ergonomic Instructions . . . . . . . . . . . . . . . . . 39
Environmental Information. . . . . . . . . . . . . . . . 39
Recycling Information . . . . . . . . . . . . . . . 39
Waste Electrical and Electronic
Equipment (WEEE) Directive . . . . . . . . . . . . 39
Registration, Evaluation, and Authorization
of Chemicals (REACH) . . . . . . . . . . . . . . . 40
Finding Additional Information . . . . . . . . . . . . . 40
Export Regulations . . . . . . . . . . . . . . . . . . . . 40
Additional Country-Specific Safety, Regulatory,
and Environmental Information . . . . . . . . . . . . . 41
Korea (Korean) . . . . . . . . . . . . . . . . . . . 41
China (S. Chinese). . . . . . . . . . . . . . . . . . 41
0HPCHA00.book Page 4 Thursday, October 22, 2009 4:05 PM

About Your Dell Wireless Dock 5
About Your Dell Wireless Dock
The Dell™ Wireless Dock enables you to connect USB peripherals such as
external storages, printers, keyboards, mice, etc. to your notebook through
the wireless USB technology. You can also extend your notebook’s audio and
video support by connecting an external display and speakers.
NOTE: The Dell Wireless Dock supports a screen resolution of
up to 1680x1050 (wide screen) or 1600x1200 (standard screen) through
a DVI-I connector. If you need to connect a VGA display, you must
use a DVI to VGA adapter.
Wireless USB technology performs best within a one-meter range;
generally within a single room environment. The technology is different
from Wi-Fi®technology and is not discoverable by any Wi-Fi device.
You can associate up to sixteen different notebooks with the Dell Wireless Dock.
However, you can connect the Dell Wireless Dock to only one of the
associated hosts at a given time.
NOTE: When the seventeenth host is associated, the first associated host
will no longer be associated with the Dell Wireless Dock.
NOTE: The Dell Wireless Dock provides integrity checking along with
AES-128/CCM encryption.
0HPCHA00.book Page 5 Thursday, October 22, 2009 4:05 PM

6About Your Dell Wireless Dock

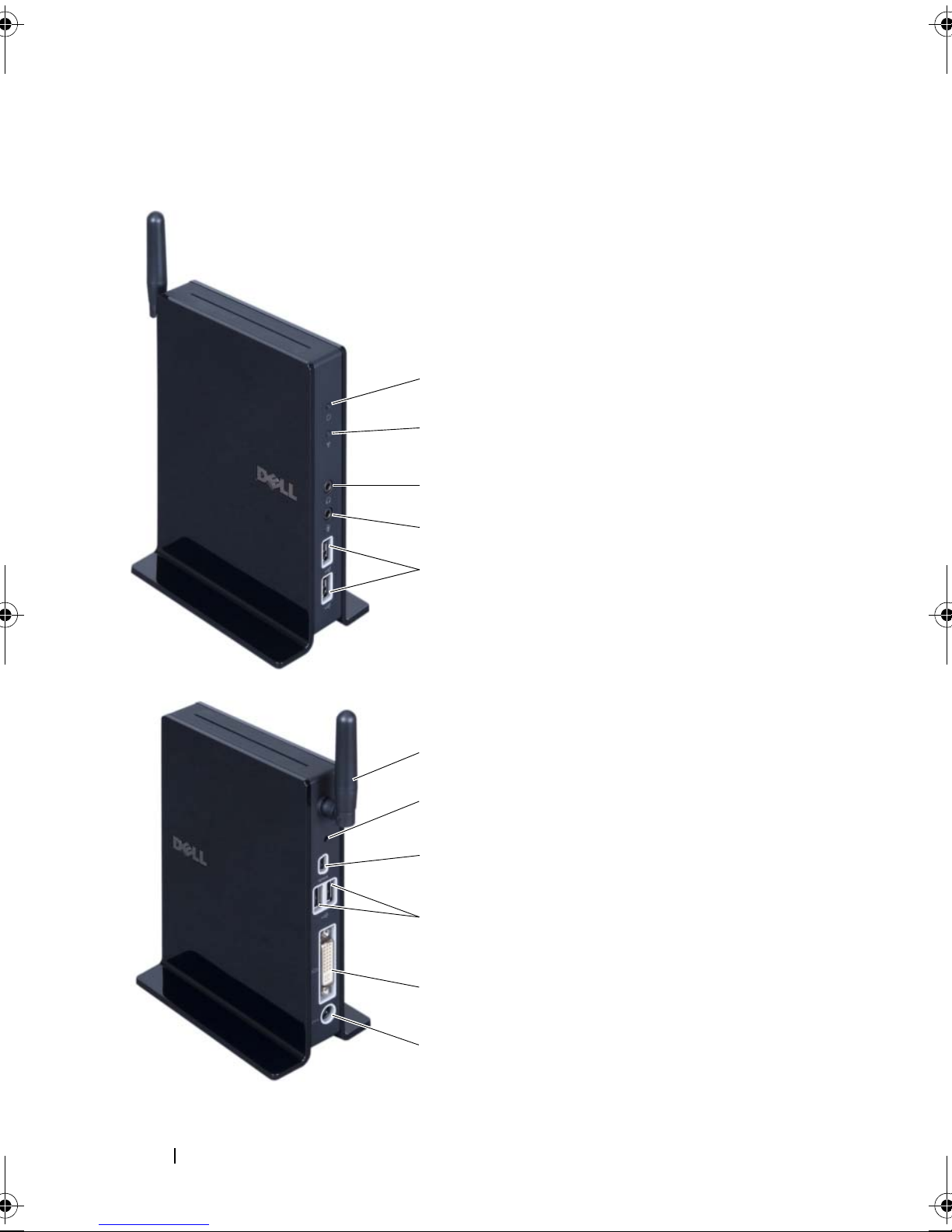

Front and Back View
1 power light
2 wireless link and
activity light
3 line out (speaker)
4 line in (microphone)
5 USB connectors (2)
6 antenna
7 reset button
8 mini-USB connector for
cable association
9 USB connectors (2)
10 DVI-I connector
11 DC-IN connector
6
4
5
3
1
2
7
8
9
10
11
0HPCHA00.book Page 6 Thursday, October 22, 2009 4:05 PM

Configuring Your Dell Wireless Dock 7
Configuring Your Dell Wireless
Dock

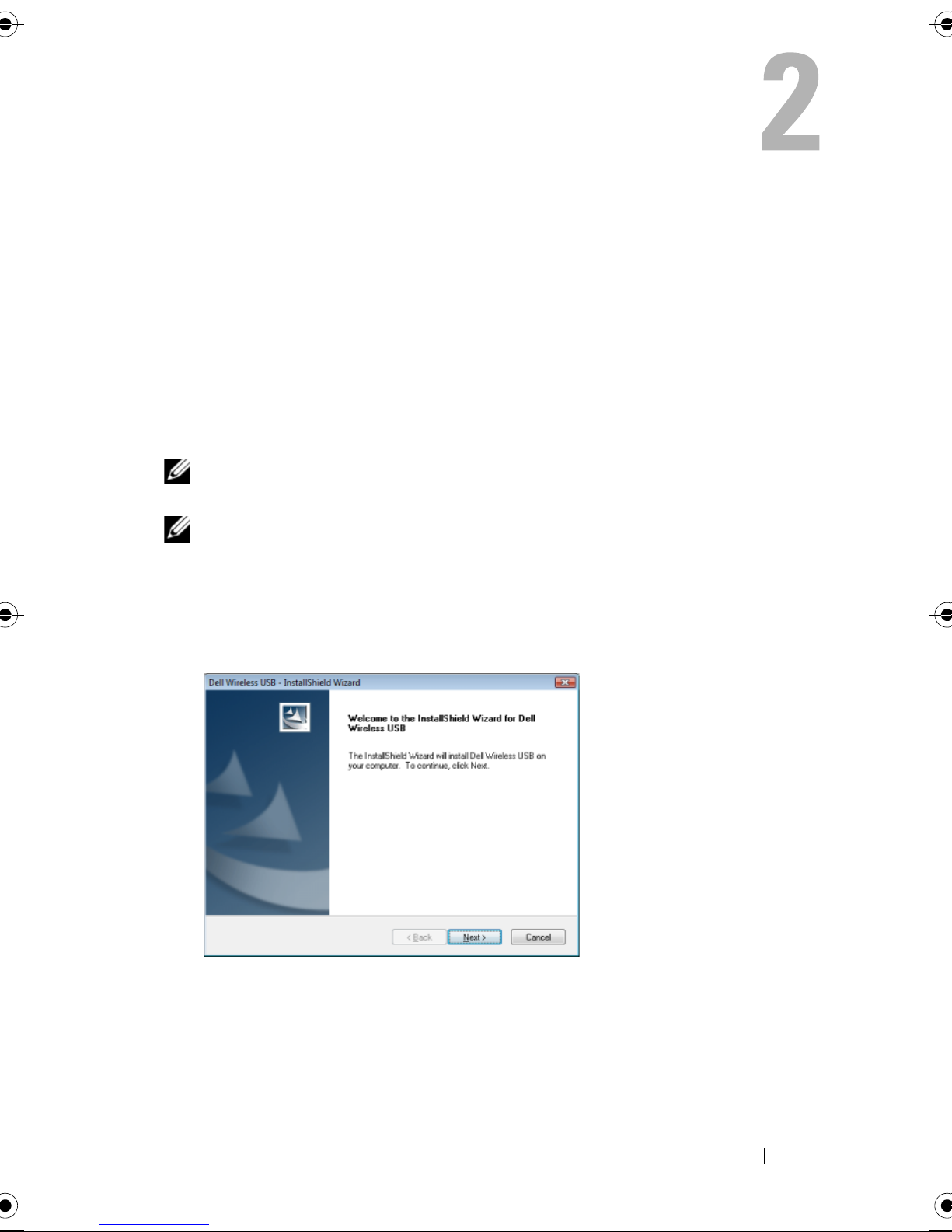

Installing the Software
The Drivers and Utilities media that ships with your Dell™ Wireless Dock
contains the software required for installing and associating your
Dell Wireless Dock.
NOTE: You must install the software and drivers before you begin to use your
Dell Wireless Dock.
NOTE: Ensure your notebook’s video card drivers are installed before continuing
with the installation.
1 Insert the Drivers and Utilities media for Dell Wireless Dock into
your notebook’s CD/DVD drive. The installation wizard appears.
2 Click Next to continue.
0HPCHA00.book Page 7 Thursday, October 22, 2009 4:05 PM

8Configuring Your Dell Wireless Dock

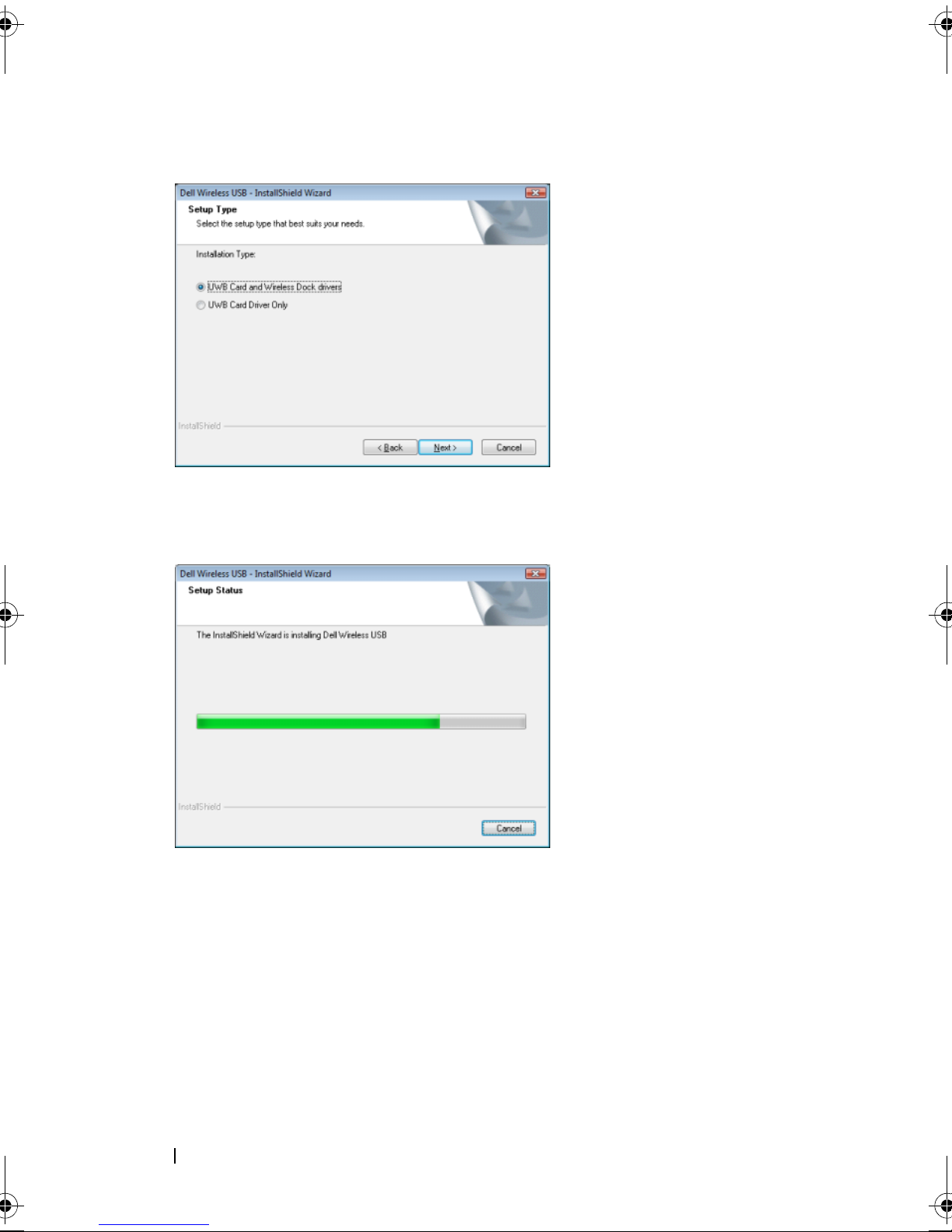

3 Select UWB Card and Wireless Dock drivers and click Next to continue.
4 The Dell Wireless USB card installation begins. This may take
several minutes.
0HPCHA00.book Page 8 Thursday, October 22, 2009 4:05 PM

Configuring Your Dell Wireless Dock 9
5 Click Next to install the Dell Wireless USB card.
6 The Dell Wireless USB card installation continues. This may take
several minutes.
0HPCHA00.book Page 9 Thursday, October 22, 2009 4:05 PM

10 Configuring Your Dell Wireless Dock

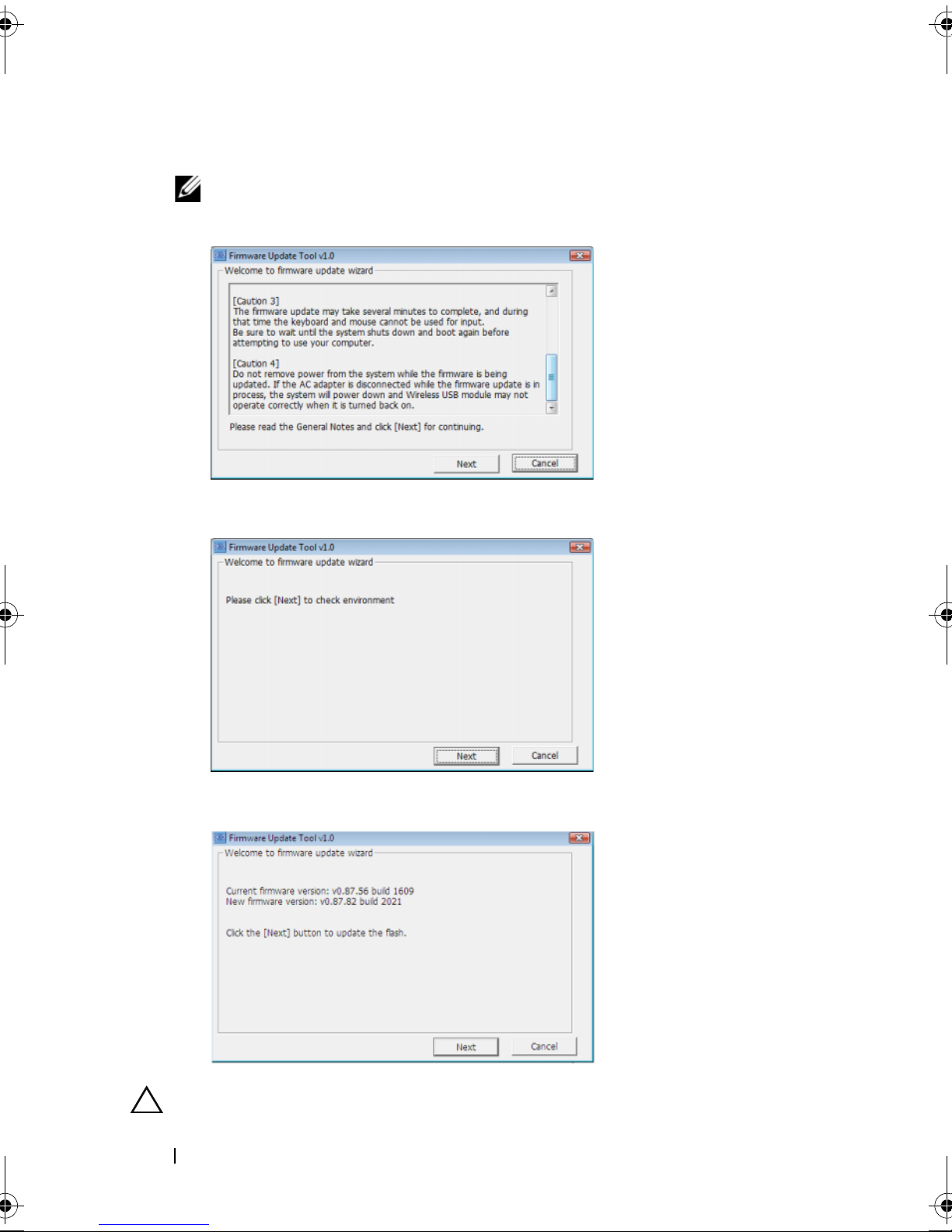

7 The Dell Wireless USB card firmware update wizard appears.
NOTE: The installer will skip this step if your firmware is already up to date.
a
Scroll and read the General Notes section and then click Next .
b Click Next to continue.
c Click Next to update the Wireless USB card firmware.
CAUTION: Do not disconnect your AC adapter during the firmware update.
0HPCHA00.book Page 10 Thursday, October 22, 2009 4:05 PM

Configuring Your Dell Wireless Dock 11
d Click OK .
e The firmware update for the Wireless USB card begins.
This may take several minutes.
f Click Finish to close the firmware update wizard.
8 Click Finish to continue.
0HPCHA00.book Page 11 Thursday, October 22, 2009 4:05 PM

12 Configuring Your Dell Wireless Dock

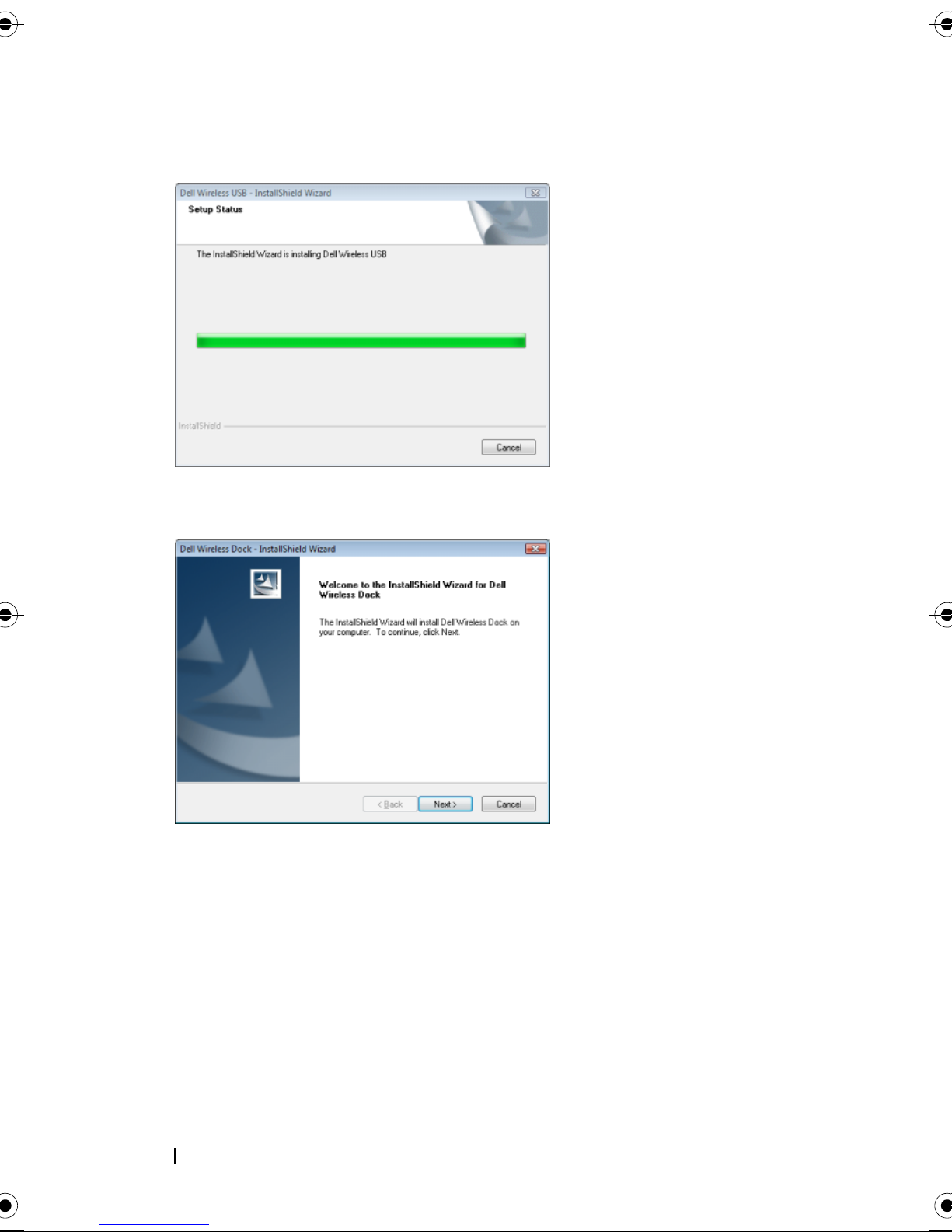

9 The Dell Wireless USB installation continues. This may take several minutes.
10 Click Next to install the Dell Wireless Dock software.
0HPCHA00.book Page 12 Thursday, October 22, 2009 4:05 PM

Configuring Your Dell Wireless Dock 13
11 The Dell Wireless Dock installation begins. This may take several minutes.
NOTE: Your notebook’s display may flicker or go blank for a few seconds
during the installation of the Dell Wireless Dock device drivers.
12 The Dell Wireless Dock Firmware Upgrade Utility appears.
a Connect the AC adapter to the Dell Wireless Dock and the notebook.
Then connect the USB cable, shipped with the Dell Wireless Dock,
from the mini-USB connector of the Dell Wireless Dock to the
USB connector of the notebook.
b If you have the latest Dell Wireless Dock firmware, click Finish .
0HPCHA00.book Page 13 Thursday, October 22, 2009 4:05 PM

14 Configuring Your Dell Wireless Dock
c If you do not have the latest Dell Wireless Dock firmware, click Upgrade .
i The firmware update begins.
ii Click
Finish . Disconnect the AC adapter and the USB cable
connecting the Dell Wireless Dock to the notebook.
0HPCHA00.book Page 14 Thursday, October 22, 2009 4:05 PM

Configuring Your Dell Wireless Dock 15

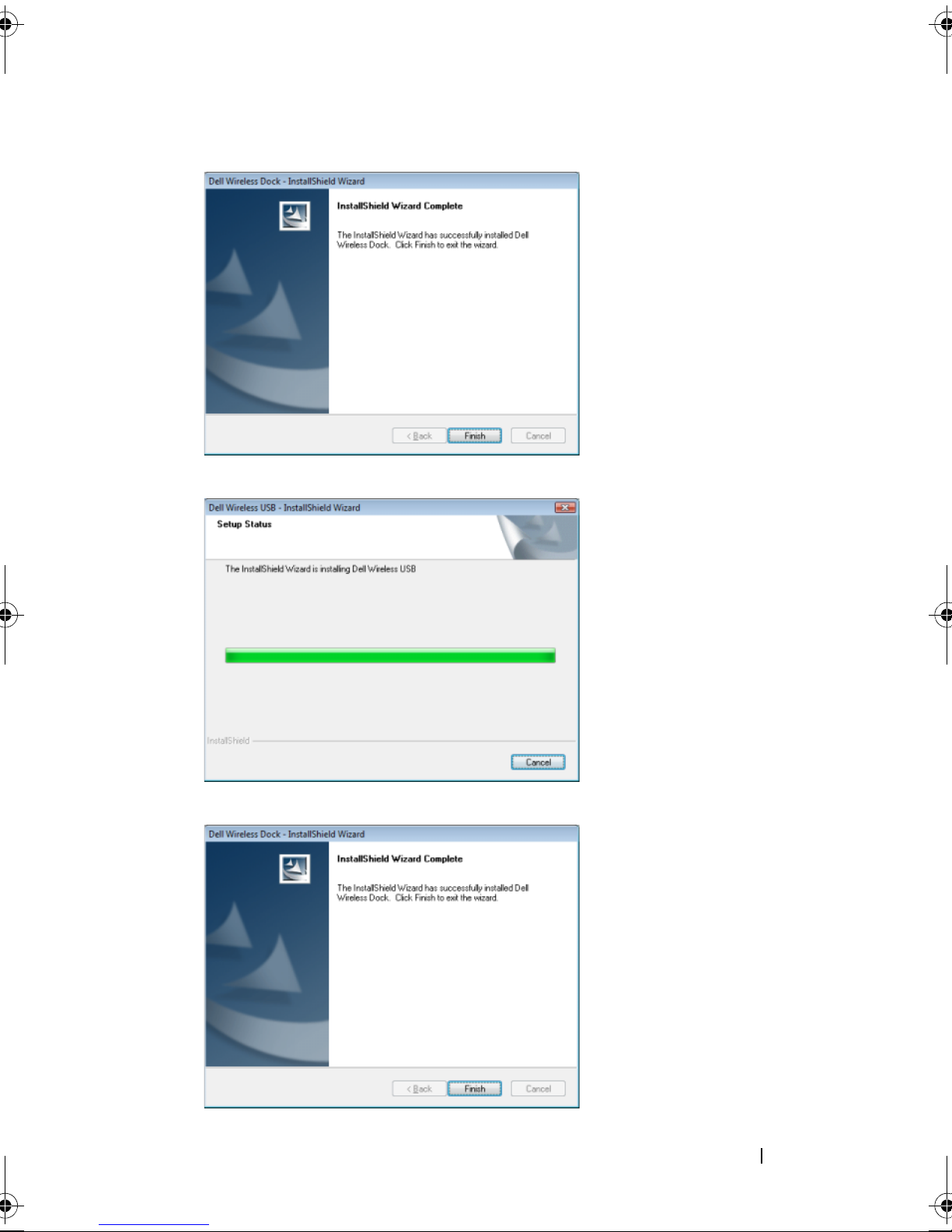

13 Click Finish to continue.
14 The Dell Wireless Dock installation continues. This may take several minutes.
15 Click Finish .
0HPCHA00.book Page 15 Thursday, October 22, 2009 4:05 PM

16 Configuring Your Dell Wireless Dock
Turning Your Dell Wireless Dock On
WARNING: Use only the AC adapter shipped with your Dell Wireless Dock to
avoid damage to the docking station.
Connect the AC adapter to the DC-IN connector on the Dell Wireless Dock
and an electrical outlet. The power light on the Dell Wireless Dock turns on.
Associating Your Dell Wireless Dock
You can associate your Dell Wireless Dock with your notebook using one of
the following methods:
• Cable association — Completes the association process using a one-time
cable connection to the Dell Wireless Dock.
•
PIN association — Completes the association process wirelessly by
entering the PIN code found on the label located on the bottom of the
Dell Wireless Dock.
NOTE: Ensure that your notebook has a wireless USB card installed (includes
hardware and software) and that the card is enabled.
0HPCHA00.book Page 16 Thursday, October 22, 2009 4:05 PM

Configuring Your Dell Wireless Dock 17
Associating Your Dell Wireless Dock Using Cable Association
1 Double-click the Wireless USB Manager icon located on the taskbar.
The
Dell Wireless USB Manager window appears.
2 Turn on your Dell Wireless Dock.
NOTE: The Dell Wireless Dock does not have a power button. You must
connect or disconnect the power cable to turn on or turn off the device.
3 Connect one end of the USB cable, shipped with the Dell Wireless Dock,
to the mini-USB connector on the Dell Wireless Dock and then connect
the other end of the USB cable to any of the USB connectors of the notebook.
0HPCHA00.book Page 17 Thursday, October 22, 2009 4:05 PM

18 Configuring Your Dell Wireless Dock
The association process begins and the Dell Wireless Dock icon appears in
the
Connection Manager window.
4 Disconnect the USB cable connecting your notebook to the Dell
Wireless Dock.
The Dell Wireless Dock icon turns green indicating a successful wireless
connection has been established. The icon remains gray if the connection
is not established.
0HPCHA00.book Page 18 Thursday, October 22, 2009 4:05 PM

Configuring Your Dell Wireless Dock 19
Associating Your Dell Wireless Dock Using PIN Association
1 Turn on your Dell Wireless Dock.
NOTE: The Dell Wireless Dock does not have a power button. You must
connect or disconnect the power cable to turn on or turn off the device.

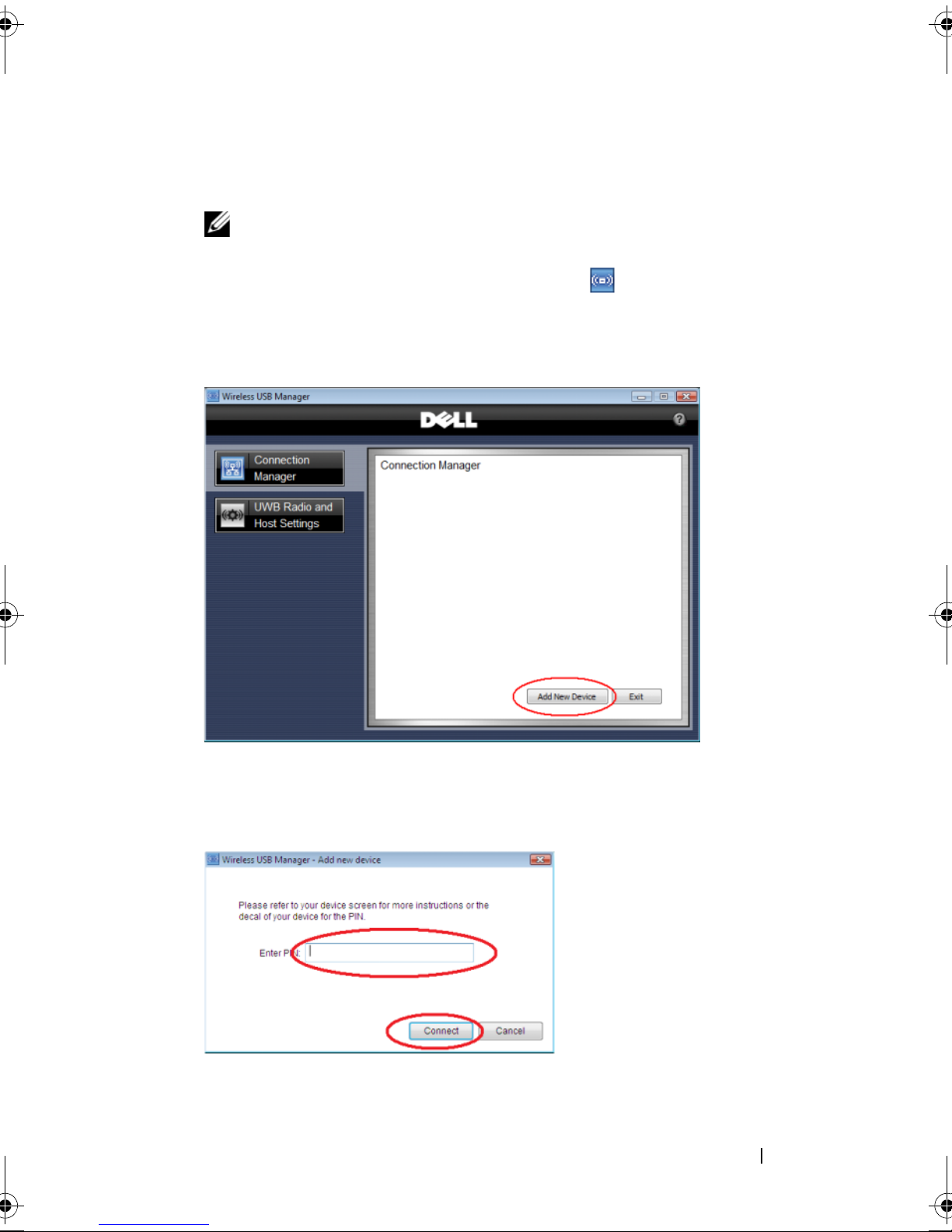

2 Double-click the Wireless USB Manager icon located on the taskbar.
The
Dell Wireless USB Manager window appears.
3 On the Wireless USB Manager screen, click Add New Device .
The notebook scans for wireless devices.
4 The Add new device window appears. Enter the PIN code found on the
label located on the bottom of your Dell Wireless Dock then click the
Connect button.
0HPCHA00.book Page 19 Thursday, October 22, 2009 4:05 PM

20 Configuring Your Dell Wireless Dock

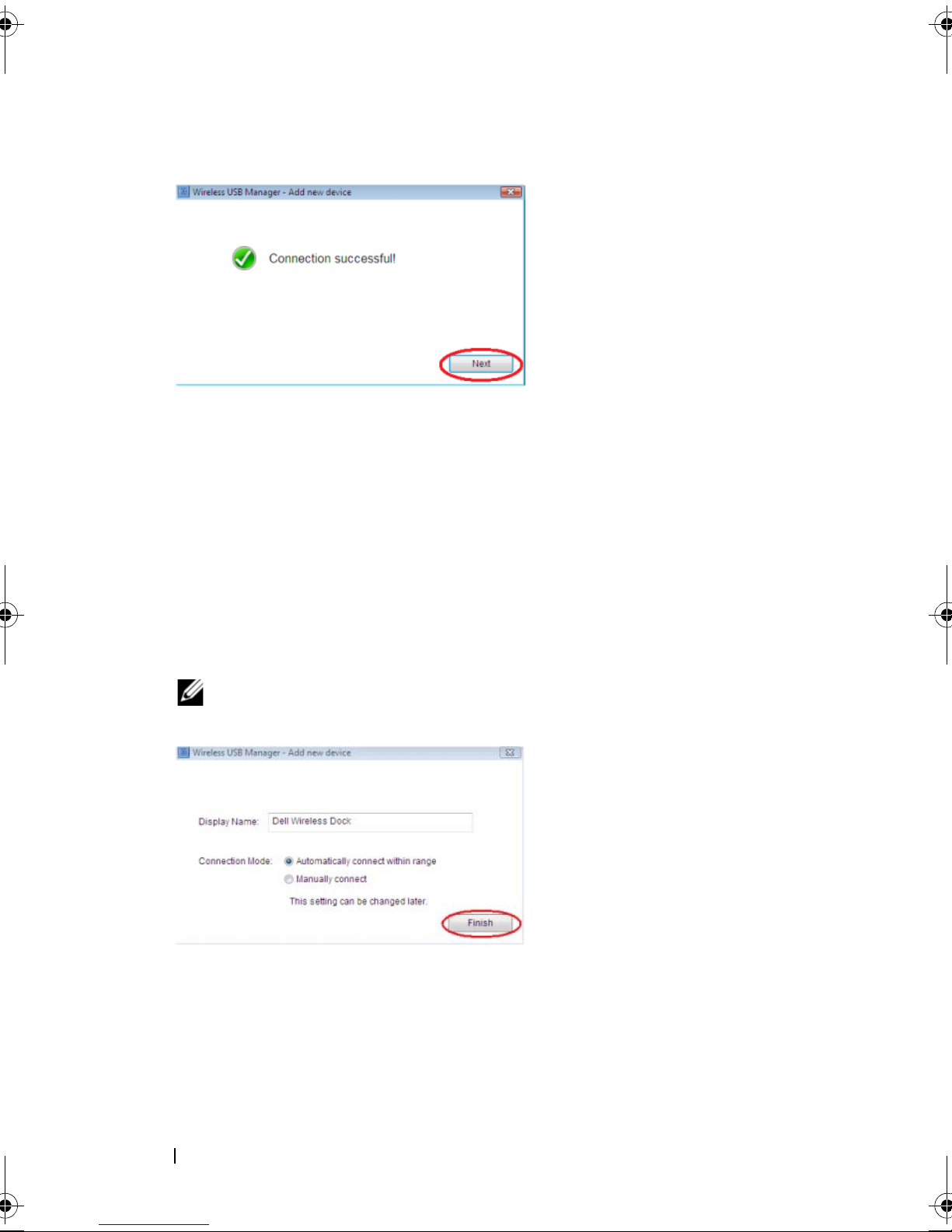

A Connection successful! message appears. Click Next .
If the PIN code is incorrect, a
PIN association failed message appears.
Click
OK and repeat step 3 to step 6 to try again.
If the notebook does not detect your Dell Wireless Dock, a
No wireless
devices found
message appears. Move your notebook closer to the
Dell Wireless Dock and repeat step 3 to step 6 to try again.
5 Ty p e t he Display Name and select Connection Mode .
Select
Automatically connect within range to connect the Dell Wireless
Dock automatically when your notebook is within range. Select
Manual
connect
to manually connect to the Dell Wireless Dock.
NOTE: You can modify the Connection mode and Display Name in the
Connection Manager after setup completes.
0HPCHA00.book Page 20 Thursday, October 22, 2009 4:05 PM
