Dell S2419H User manual

Model No.: S2419H/S2419HN/S2419NX/S2719H/S2719HN/
S2719NX
Regulatory model: S2419Hc/S2419Nc/S2719Hc/S2719Nc
User’s Guide
Dell S2419H/S2419HN/S2419NX/
S2719H/S2719HN/S2719NX

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better
use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of
data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury or death.
_________________________
Information in this document is subject to change without notice.
© 2018 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission
of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft
and Windows are either trademarks or registered trademarks of Microsoft. Corporation in
the United States and/or other countries, Intel is a registered trademark of Intel Corporation
in the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices, Inc.
ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an
ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR
guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the
entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary
interest in trademarks and trade names other than its own.
2018 - 03 Rev. A01

Contents | 3
Contents
About your monitor ................................................................ 5
Package contents ..................................................................................5
Product features ....................................................................................6
Identifying parts and controls ............................................................. 7
Monitor specifications ........................................................................10
Plug and play capability......................................................................19
LCD monitor quality and pixel policy ..............................................19
Maintenance guidelines......................................................................19
Setting up the monitor .........................................................20
Connecting the stand ........................................................................ 20
Connecting your monitor ..................................................................22
Organizing cables ................................................................................23
Removing the stand ............................................................................23
Operating your monitor.......................................................25
Power on the monitor.........................................................................25
Using the control buttons..................................................................25
Using the on-screen display (OSD) menu .......................................27
Setting up your monitor .....................................................................36
Using tilt.................................................................................................38

4|
Troubleshooting....................................................................39
Self-Test.................................................................................................39
Built-in diagnostics ............................................................................ 40
Common problems..............................................................................41
Product-specific problems ................................................................43
Appendix .................................................................................44
FCC notices (U.S. Only) and other regulatory information......... 44
Contacting Dell ................................................................................... 44

About your monitor | 5
About your monitor
Package contents
Your monitor ships with the components shown below. Ensure that you have
received all the components and see Contacting Dell for more information if
something is missing.
NOTE: Some items may be optional and may not ship with your monitor. Some
features or media may not be available in certain countries.
NOTE: To set up with any other stand, please refer to the respective stand setup
guide for setup instructions.

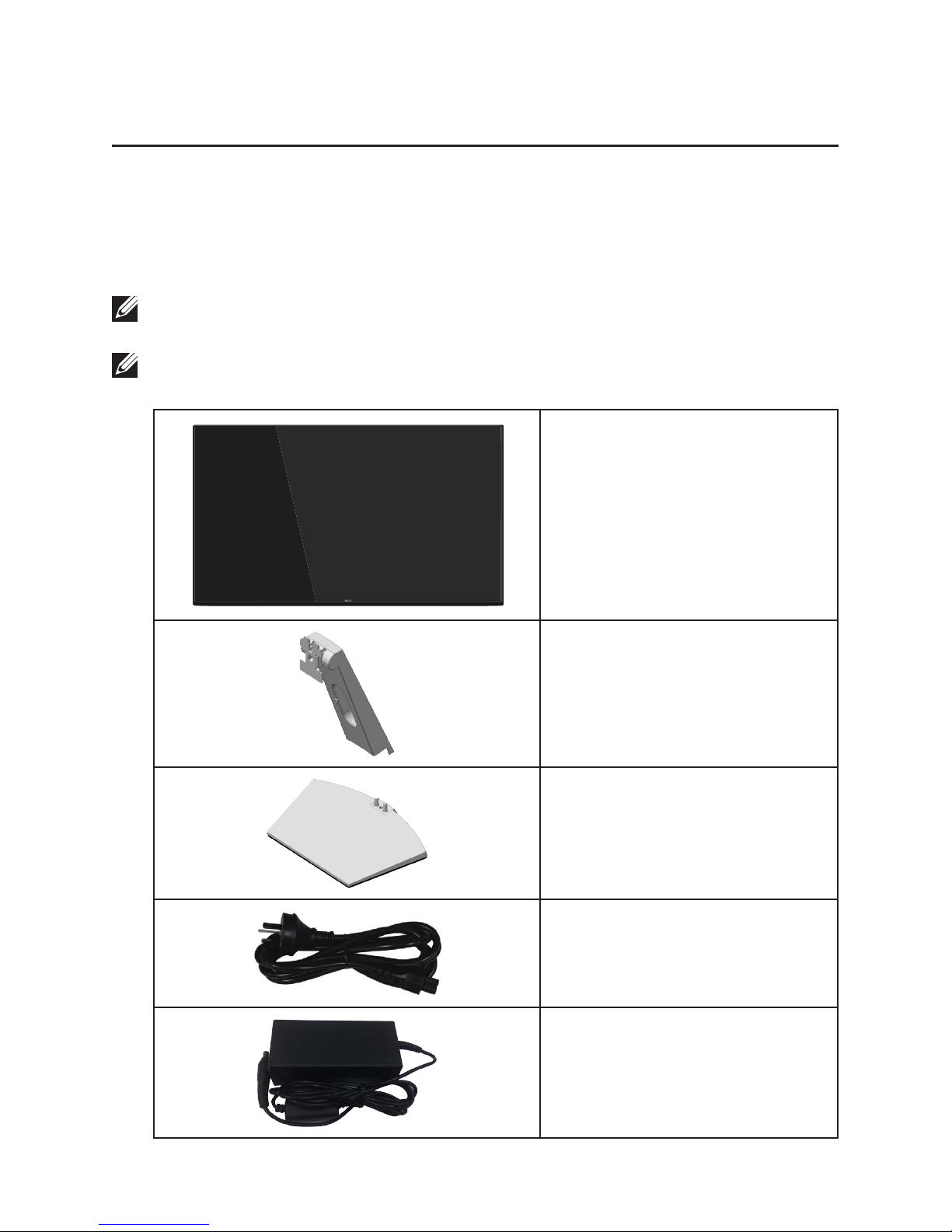

∞ Monitor
∞ Stand riser
∞ Stand base
∞ Power Cable (Varies by
Countries)
∞ Power Adapter

6| About your monitor
∞ HDMI Cable
∞ Quick Setup Guide
∞ Safety and Regulatory
Information
Product features
The Dell S2419H/S2419HN/S2419NX/S2719H/S2719HN/S2719NX flat panel display
has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD), anti-
static, and LED backlight. The monitor features include:
∞ S2419H/S2419HN/S2419NX: 60.47 cm (23.8 inch) viewable area display
(measured diagonally). 1920 x 1080 resolution, plus full-screen support for
lower resolutions.
∞ S2719H/S2719HN/S2719NX: 68.6 cm (27 inch) viewable area display (measured
diagonally). 1920 x 1080 resolution, plus full-screen support for lower
resolutions.
∞ Borderless monitor.
∞ Wide viewing angle to allow viewing from a sitting or standing position, or while
moving from side-to-side.
∞ HDMI connectivity makes it simple and easy to connect with legacy and new
systems.
∞ S2419H/S2719H:Build-in Speaker (5 W)x2
∞ Plug and play capability if supported by your system.
∞ On-Screen Display (OSD) adjustments for ease of set-up and screen
optimization.
∞ Energy Saver feature for Energy Star compliance.
∞ Security-lock slot.
∞ TCO-Certified Displays.
∞ BFR/PVC-Reduced (Its circuit boards are made from BFR/PVC-free laminates.)
∞ Arsenic-Free glass and Mercury-Free for the panel only.
∞ High Dynamic Contrast Ratio (8,000,000:1).
∞ 0.3 W standby power when in the sleep mode.
∞ Energy Gauge shows the energy level being consumed by the monitor in real
time.
∞ Optimize eye comfort with a flicker-free screen and ComfortView feature which
minimizes blue light emission.

About your monitor | 7
Identifying parts and controls
Front view
Control buttons
12
Label Description
1Function buttons (For more information, see Operating your monitor)
2Power On/Off button

8| About your monitor
Back view
5
S2419H
S2419Hc䆜䃔ֵ⭞䚄ᓜᚆۭᇩ㿌࣑Ⱦ
CANICES-3 (B)/NMB-3(B)
Forapplicable power supplies see user manual.
12V 3.33A
Q40G024N-700-14A
Consumode energía: XX Wh
Consumode energía en modo de espera: X.X Wh
Удельнаямощность рабочего режима - X.XXXВт/см²
Потребляемаямощность изделием в режиме ожидания - X.X Вт
Потребляемаямощность изделием в выключенном режиме - X.XВт
S/N:CN-12MWY-
TV100-7B1-001L
-A00
SVCTag:
1234567
ExpressService
Code:
123456 789 0
Dateof Mfg/⭕ӝᰛᵕ
⭕⭘ᰛᵕ:Nov. 2017
12V 3.33A
S2419H
MSIP-REM-TPF-S2419Hc
㐔㷡㢬ڊ㥐㦤㣄ڕ
TPVElectronics(Fujian) Co., Ltd.
080-200-3800
XXXXX
13
2
4
S2419H
S2419Hc 䆜䃔ֵ⭞䚄ᓜᚆۭᇩ㿌࣑Ⱦ
CANICES-3 (B)/NMB-3(B)
Forapplicable power supplies see user manual.
12V 3.33A
Q40G024N-700-14A
Consumode energía: XX Wh
Consumode energía en modo de espera: X.X Wh
Удельнаямощность рабочего режима - X.XXXВт/см²
Потребляемаямощность изделием в режиме ожидания - X.X Вт
Потребляемаямощность изделием в выключенном режиме - X.XВт
S/N:CN-12MWY-
TV100-7B1-001L
-A00
SVCTag:
1234567
ExpressService
Code:
123456 789 0
Dateof Mfg/⭕ӝᰛᵕ
⭕⭘ᰛᵕ:Nov. 2017
12V 3.33A
S2419H
MSIP-REM-TPF-S2419Hc
㐔㷡㢬ڊ㥐㦤㣄ڕ
TPVElectronics(Fujian) Co., Ltd.
080-200-3800
XXXXX

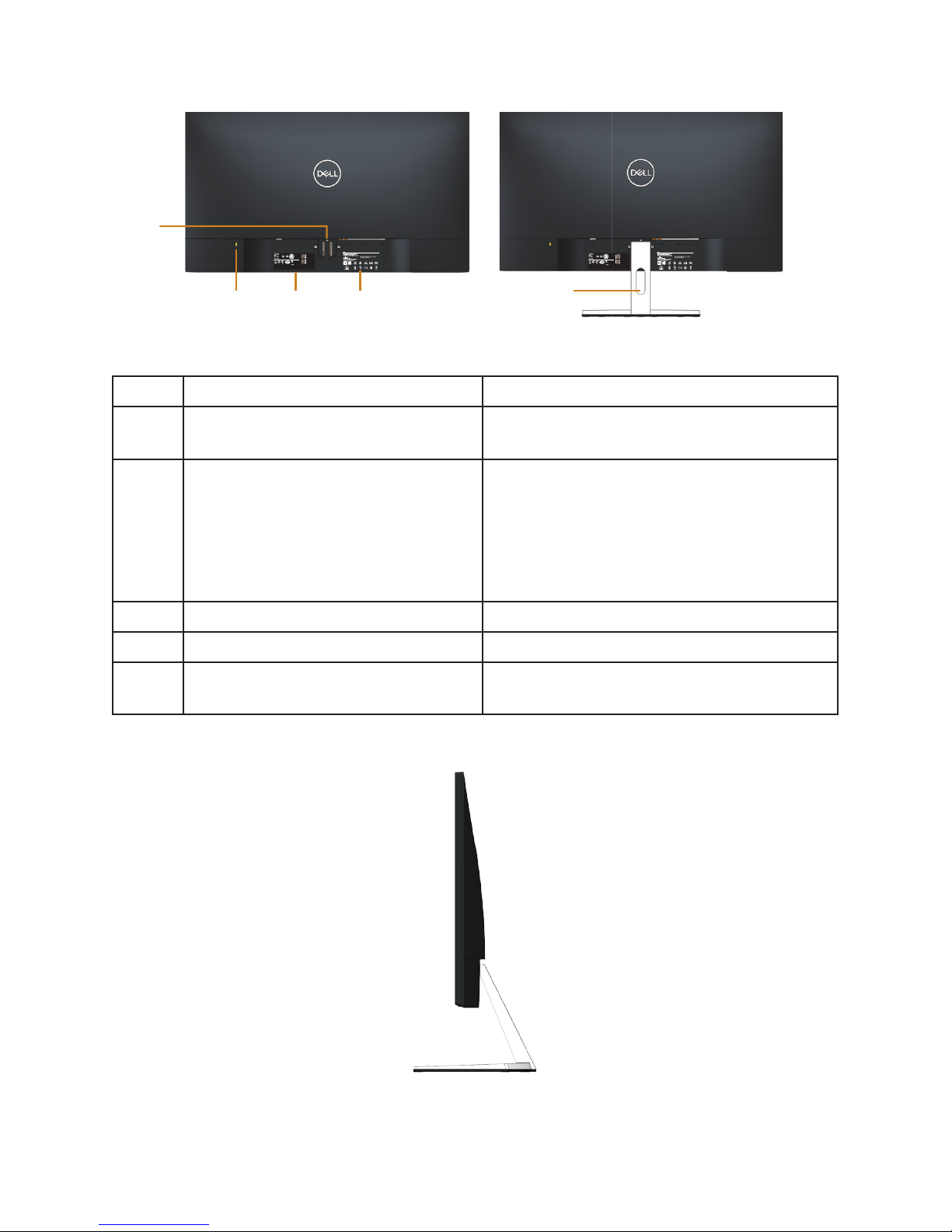

Back View with monitor stand
Label Description Use
1Security-lock slot Secures monitor with security lock
(security lock not included).
2Regulatory label (including
Barcode serial number and
Service Tag label)
Lists the regulatory approvals. Refer to
this label if you need to contact Dell for
technical support. The Dell service tag
is used for Dell warranty and customer
service management purposes and for
records of the base system.
3Regulatory information engraving. Lists the regulatory approvals.
4Stand release button Releases stand from monitor.
5Cable management slot Uses to organize cables by placing them
through the slot.
Side view

About your monitor | 9
Bottom view
32 4 5
11
Bottom view without monitor stand (S2419H/S2719H)
32 4 5
Bottom view without monitor stand (S2419HN/S2419NX/S2719HN//S2719NX)
Label Description Use
1Speakers Speakers
2Power-adapter port To connect the monitor power cable using a
12V DC adapter.
3HDMI1 port Connect your computer with HDMI cable.
4HDMI2 port Connect your computer with HDMI cable.
5Audio Line out port Connect to external speakers (Optional
Purchase)*
*Headphone usage is not supported for the audio line out port.

10 | About your monitor
Monitor specifications
Model S2419H/S2419HN/
S2419NX
S2719H/S2719HN/
S2719NX
Screen type Active matrix-TFT LCD
Panel type In-Plane Switching
Viewable image
Diagonal
Horizontal, Active Area
Vertical, Active Area
Area
604.70 mm (23.81 in)
527.04 mm (20.75 in)
296.46 mm (11.67 in)
1562.46 cm2 (242.15 in2)
686.00 mm (27 in)
597.89 mm (23.54 in)
336.31 mm (13.24 in)
2010.76 cm² (311.67 in²)
Pixel pitch 0.2745 mm 0.3114 mm
Pixel per inch (PPI) 92 81
Viewing angle 178° (vertical) typical
178° (horizontal) typical
178° (vertical) typical
178° (horizontal) typical
Brightness 250 cd/m² (typical) 250 cd/m² (typical)
Contrast ratio 1000 to 1 (typical)
8,000,000 to 1 (Dynamic
Contrast)
1000 to 1 (typical)
8,000,000 to 1 (Dynamic
Contrast)
Faceplate coating Low Haze with 3H hardness
Backlight LED edgelight system
Response time 5 ms typical (G to G)
Color depth 16.7 million colors
Color gamut CIE 1976 (84%), CIE 1931 (72%), >99% sRGB
Dell display manager
compatibility
Yes
Connectivity 2xHDMI 1.4 (HDCP)
Border width (edge of
monitor to active area)
5.3 mm (Top)
5.3 mm (Left/Right)
8.3 mm (Bottom)
6.7 mm (Top)
6.8 mm (Left/Right)
8.4 mm (Bottom)
Security Security lock slot (cable lock optional purchase)
Adjustability Tilt (5°/21°)

About your monitor | 11
Resolution specifications
Model S2419H/S2419HN/
S2419NX
S2719H/S2719HN/
S2719NX
Horizontal scan range 31 kHz to 83 kHz
(automatic)
31 kHz to 83 kHz
(automatic)
Vertical scan range 56 Hz to 76 Hz (automatic) 56 Hz to 76 Hz (automatic)
Maximum preset resolution 1920 x 1080 at 60 Hz for
HDMI 1.4 (HDCP) port.
1920 x 1080 at 60 Hz for
HDMI 1.4 (HDCP) port.
Supported video modes
Model S2419H/S2419HN/
S2419NX
S2719H/S2719HN/
S2719NX
Video display capabilities
(HDMI)
480p, 480i, 576p, 720p,
1080p, 576i, 1080i
480p, 480i, 576p, 720p,
1080p, 576i, 1080i
Preset display modes
S2419H/S2419HN/S2419NX/S2719H/S2719HN/S2719NX
Display Mode Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(Horizontal /
Vertical)
VESA, 720 x 400 31.5 70.1 28.3 -/+
VESA, 640 x 480 31.5 60.0 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.3 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1024 x 768 48.4 60.0 65.0 -/-
VESA, 1024 x 768 60.0 75.0 78.8 +/+
VESA, 1152 x 864 67.5 75.0 108.0 +/+
VESA, 1280 x 1024 64.0 60.0 108.0 +/+
VESA, 1280 x 1024 80.0 75.0 135.0 +/+
VESA, 1600 x 900 60.0 60.0 108.0 +/+
VESA, 1600 x 1080 67.5 60.0 148.5 +/+

12 | About your monitor
Electrical specifications
Model S2419H/S2419HN/S2419NX/S2719H/S2719HN/
S2719NX
Video input signals HDMI 1.4 (HDCP), 600mV for each differential line,
100 ohm input impedance per differential pair
AC/DC
Adapter
Input voltage/
frequency/current
Delta adapter ADP-40DD B: 100 VAC to 240 VAC/50
Hz to 60 Hz ± 3 Hz/1.5 A (Max.).
Lite-On adapter PA-1041-81: 100 VAC to 240
VAC/50 Hz to 60 Hz ± 3 Hz/1.2 A (Max).
Output voltage/
current
Output: 12VDC/3.33A
Inrush current No damage when cold start at 100 VAC~240 VAC
Physical characteristics
Model S2419H/S2419HN/S2419NX
Signal cable type Digital: detachable, HDMI, 19 pins
Front-frame gloss (minimum) Black frame - 85 gloss units
Dimensions (with stand)
Height 413.4 mm (16.28 in)
Width 539.0 mm (21.22 in)
Depth 152.8 mm (6.01 in)
Dimensions (without stand)
Height 315.2 mm (12.41 in)
Width 539.0 mm (21.22 in)
Depth 47.4 mm (1.87 in)
Stand dimensions
Height 171.6 mm (6.76 in)
Width 249.0 mm (9.80 in)
Depth 152.8 mm (6.01 in)
Weight S2419H S2419HN/S2419NX
Weight with packaging 6.02 kg (13.27 lb) 5.81 kg (12.81 lb)
Weight with stand assembly
and cables
4.08 kg (8.99 lb) 3.87 kg (8.53 lb)
Weight without stand
assembly (no cables)
3.09 kg (6.81 lb) 2.88 kg (6.35 lb)
Weight of stand assembly 0.52 kg (1.15 lb) 0.52 kg (1.15 lb)

About your monitor | 13
Model S2719H/S2719HN/S2719NX
Signal cable type Digital: detachable, HDMI, 19 pins
Front-frame gloss (minimum) Black frame - 85 gloss units
Dimensions (with stand)
Height 454.6 mm (17.9 in)
Width 612.7 mm (24.12 in)
Depth 186.7 mm (7.35 in)
Dimensions (without stand)
Height 356.5 mm (14.04 in)
Width 612.7 mm (24.12 in)
Depth 45.8 mm (1.8 in)
Stand dimensions
Height 176.7 mm (6.96 in)
Width 257.2 mm (10.13 in)
Depth 186.7 mm (7.35 in)
Weight S2719H S2719HN/S2719NX
Weight with packaging 7.86 kg (17.33 lb) 7.65 kg (16.87 lb)
Weight with stand assembly
and cables
5.17 kg (11.40 lb) 4.96 kg (10.93 lb)
Weight without stand
assembly (no cables)
4.05 kg (8.93 lb) 3.84 kg (8.47 lb)
Weight of stand assembly 0.66 kg (1.46 lb) 0.66 kg (1.46 lb)

14 | About your monitor
Environmental characteristics
Model S2419H S2419HN/
S2419NX
S2719H S2719HN/
S2719NX
Temperature
Operating 0°C to 40°C (32°F to 104°F)
Non-operating ∞ Storage: -20°C to 60°C (-4°F to 140°F)
∞ Shipping: -20°C to 60°C (-4°F to 140°F)
Humidity
Operating 10% to 80% (non-condensing)
Non-operating ∞ Storage 5% to 90% (non-condensing)
∞ Shipping 5% to 90% (non-condensing)
Altitude
Operating
(maximum)
5,000 m (16,400 ft)
Non-operating
(maximum)
12,192 m (40,000 ft)
Thermal
dissipation
∞ 112.60
BTU/hour
(maximum)
∞ 81.89 BTU/
hour (typical)
∞ 71.65
BTU/hour
(maximum)
∞ 61.42 BTU/
hour (typical)
∞ 122.84
BTU/hour
(maximum)
∞ 88.72 BTU/
hour (typical)
∞ 81.89
BTU/hour
(maximum)
∞ 68.24 BTU/
hour (typical)

About your monitor | 15
Power management modes
If you have VESA's DPM compliance display card or software installed in your PC, the
monitor can automatically reduce its power consumption when not in use. This is
referred to as Power Save Mode*. If the computer detects input from the keyboard,
mouse or other input devices, the monitor automatically resumes functioning. The
following table shows the power consumption and signaling of this automatic power
saving feature.
* Zero power consumption in off mode can only be achieved by disconnecting the
power cable from the monitor.
S2419H
VESA
Modes
Horizontal
Sync
Vertical
Sync
Video Power
Indicator
Power
Consumption
Normal
operation
Active Active Active White 33 W (maximum)
24 W (typical)
Active-off
mode
Inactive Inactive Blanked White
(Glowing )
Less than 0.3 W
Switch off - - - Off Less than 0.3 W
Energy Star Power Consumption
PON 17 W
ETEC 53.83 Kwh
S2419HN/S2419NX
VESA
Modes
Horizontal
Sync
Vertical
Sync
Video Power
Indicator
Power
Consumption
Normal
operation
Active Active Active White 21 W (maximum)
18 W (typical)
Active-off
mode
Inactive Inactive Blanked White
(Glowing )
Less than 0.3 W
Switch off - - - Off Less than 0.3 W
Energy Star Power Consumption
PON 17 W
ETEC 53.83 Kwh

16 | About your monitor
S2719H
VESA
Modes
Horizontal
Sync
Vertical
Sync
Video Power
Indicator
Power
Consumption
Normal
operation
Active Active Active White 36 W (maximum)
26 W (typical)
Active-off
mode
Inactive Inactive Blanked White
(Glowing )
Less than 0.3 W
Switch off - - - Off Less than 0.3 W
Energy Star Power Consumption
PON 20 W
ETEC 63.03 Kwh
S2719HN/S2719NX
VESA
Modes
Horizontal
Sync
Vertical
Sync
Video Power
Indicator
Power
Consumption
Normal
operation
Active Active Active White 24 W (maximum)
20 W (typical)
Active-off
mode
Inactive Inactive Blanked White
(Glowing )
Less than 0.3 W
Switch off - - - Off Less than 0.3 W
Energy Star Power Consumption
PON 20 W
ETEC 63.03 Kwh
NOTE:
PON: Power consumption of on mode as defined in Energy Star 7.0 version.
ETEC: Total energy consumption in KWh as defined in Energy Star 7.0 version.
This document is informational only and reflects laboratory performance. Your
product may perform differently, depending on the software, components and
peripherals you ordered and shall have no obligation to update such information.
Accordingly, the customer should not rely upon this information in making decisions
about electrical tolerances or otherwise. No warranty as to accuracy or completeness
is expressed or implied.
The OSD functions only in the normal operation mode. When any button is pressed
in the Active-off mode, one of the following messages will be displayed:

About your monitor | 17
Dell P2418HZ
Dell 24 Monitor
No HDMI1 signal from your device.
Press any key on the keyboard or move the mouse to wake it up.
?
S2419H
If there is no display, press the monitor button again to select
the correct input source.
Dell P2418HZ
Dell 27 Monitor
No HDMI1 signal from your device.
Press any key on the keyboard or move the mouse to wake it up.
?
S2719H
If there is no display, press the monitor button again to select
the correct input source.
Activate the computer and the monitor to gain access to the OSD.
NOTE: This monitor is ENERGY STAR -certified.

18 | About your monitor
Pin assignments

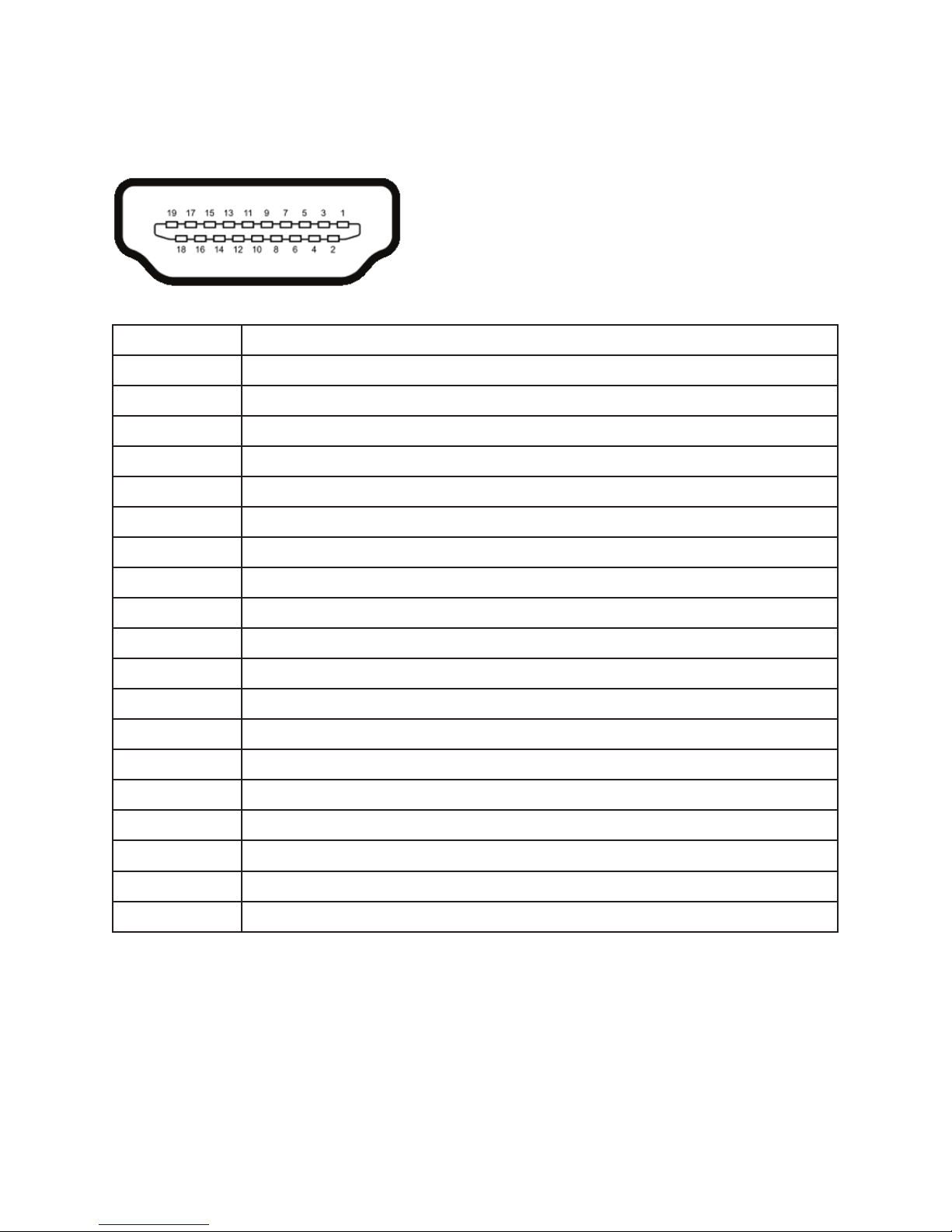

HDMI connector
Pin Number 19-pin Side of the Connected Signal Cable
1 TMDS DATA 2+
2 TMDS DATA 2 SHIELD
3 TMDS DATA 2-
4 TMDS DATA 1+
5 TMDS DATA 1 SHIELD
6 TMDS DATA 1-
7 TMDS DATA 0+
8 TMDS DATA 0 SHIELD
9 TMDS DATA 0-
10 TMDS CLOCK+
11 TMDS CLOCK SHIELD
12 TMDS CLOCK-
13 CEC
14 Reserved (N.C. on device)
15 DDC CLOCK (SCL)
16 DDC DATA (SDA)
17 DDC/CEC Ground
18 +5V POWER
19 HOT PLUG DETECT

About your monitor | 19
Plug and play capability
You can install the monitor in any Plug and Play-compatible system. The monitor
automatically provides the computer system with its Extended Display Identification
Data (EDID) using Display Data Channel (DDC) protocols so the system can configure
itself and optimize the monitor settings. Most monitor installations are automatic,
you can select different settings if desired. For more information about changing the
monitor settings, see Operating your monitor.
LCD monitor quality and pixel policy
During the LCD Monitor manufacturing process, it is not uncommon for one or more
pixels to become fixed in an unchanging state which are hard to see and do not affect
the display quality or usability. For more information on Dell Monitor Quality and Pixel
Policy, see Dell Support site at www.dell.com/support/monitors.
Maintenance guidelines
Cleaning your monitor
WARNING: Before cleaning the monitor, unplug the monitor power cable from
the electrical outlet.
CAUTION: Read and follow the Safety Instructions before cleaning the monitor.
For best practices, follow the instructions in the list below while unpacking, cleaning
or handling your monitor:
∞ To clean your screen, lightly dampen a soft, clean cloth with water. If
possible, use a special screen-cleaning tissue or solution suitable for the anti-
static coating. Do not use benzene, thinner, ammonia, abrasive cleaners or
compressed air.
∞ Use a lightly-dampened cloth to clean the monitor. Avoid using detergent of
any kind as some detergents leave a milky film on the monitor.
∞ If you notice white powder when you unpack your monitor, wipe it off with a
cloth.
∞ Handle your monitor with care as the black-colored monitor may get scratched
and show white scuff marks.
∞ To help maintain the best image quality on your monitor, use a dynamically
changing screen saver and turn Off your monitor when not in use.

20 | Setting up the monitor
Setting up the monitor
Connecting the stand
NOTE: The stand is detached when the monitor is shipped from the factory.
NOTE: This is applicable for a monitor with a stand. When any other stand
is bought, please refer to the respective stand setup guide for the set up
instructions.
To attach the monitor stand:
1. Place the monitor on a soft cloth or cushion.
2. Fit the stand riser and stand base together, and then turn the screw in the stand
base.
3. Fit the two tabs on the upper part of the stand to the groove on the back of the
monitor. Press the stand until it snaps into place.
