Simplified Service Manual–U3821DWB
Version: 01
Date:2020/11/25

- 2 -
Content Index
1. General Safety Instructions ....................................................................................... 3
1.1 SAFETY: General Safety ...................................................................................... 3
1.2 SAFETY: General Power Safety ........................................................................... 5
2. Disassembly SOP ....................................................................................................... 6
3. Assembly SOP........................................................................................................... 10

- 3 -
1. General Safety Instructions
Use the following safety guidelines to help ensure your own personal safety and to help protect your
equipment and working environment from potential damage.
NOTE: In this section, equipment refers to monitors.
IMPORTANT NOTICE FOR USE IN HEALTHCARE ENVIRONMENTS:
Dell products are not medical devices and are not listed under UL or IEC 60601 (or equivalent). As a
result, they must not be used within 6 feet of a patient or in a manner that directly or indirectly
contacts a patient
1.1 SAFETY: General Safety
WARNING: To prevent the spread of fire, keep candles or other open flames away from this product
at all times.
When setting up the equipment for use:
Place the equipment on a hard, level surface. Leave 10.2 cm (4 in) minimum of clearance on
all vented sides of the computer to permit the airflow required for proper ventilation.
Restricting airflow can damage the computer or cause a fire.
Do not stack equipment or place equipment so close together that it is subject to
recalculated or preheated air.
NOTE: Review the weight limits referenced in your computer documentation before placing
a monitor or other devices on top of your computer.
Ensure that nothing rests on your equipment's cables and that the cables are not located
where they can be stepped on or tripped over.
Ensure that all cables are connected to the appropriate connectors. Some connectors have
a similar appearance and may be easily confused (for example, do not plug a telephone
cable into the network connector).
Do not place your equipment in a closed-in wall unit or on a bed, sofa, or rug.
Keep your device away from radiators and heat sources.
Keep your equipment away from extremely hot or cold temperatures to ensure that it is used
within the specified operating range.
Do not push any objects into the air vents or openings of your equipment. Doing so can
cause fire or electric shock by shorting out interior components.
Avoid placing loose papers underneath your device. Do not place your device in a closed-in
wall unit, or on a soft, fabric surface such as a bed, sofa, carpet, or a rug.

- 4 -
When operating your equipment:
Do not use your equipment in a wet environment, for example, near a bath tub, sink, or
swimming pool or in a wet basement.
Do not use AC powered equipment during an electrical storm. Battery powered devices may
be used if all cables have been disconnected.
Do not spill food or liquids on your equipment.
Before you clean your equipment, disconnect it from the electrical outlet. Clean your device
with a soft cloth dampened with water. Do not use liquids or aerosol cleaners, which may
contain flammable substances.
Clean the monitor display with a soft, clean cloth and water. Apply the water to the cloth,
then stroke the cloth across the display in one direction, moving from the top of the display
to the bottom. Remove moisture from the display quickly and keep the display dry.
Long-term exposure to moisture can damage the display. Do not use a commercial window
cleaner to clean your display.
If your equipment does not operate normally - in particular, if there are any unusual sounds
or smells coming from it - unplug it immediately and contact an authorized dealer or service
center.
Protecting Against Electrostatic Discharge
Electrostatic discharge (ESD) events can harm electronic components inside your equipment. Under
certain conditions, ESD may build up on your body or an object, such as a peripheral, and then
discharge into another object, such as your computer. To prevent ESD damage, you should
discharge static electricity from your body before you interact with any of your equipment’s internal
electronic components, such as a memory module. You can protect against ESD by touching a metal
grounded object (such as an unpainted metal surface on your computer’s I/O panel) before you
interact with anything electronic. When connecting a peripheral (including handheld digital assistants)
to your equipment, you should always ground both yourself and the peripheral before connecting it. In
addition, as you work inside the equipment, periodically discharge any static charge your body may
have accumulated.
You can also take the following steps to prevent damage from electrostatic discharge:
When unpacking a static-sensitive component from its shipping carton, do not remove the
component from the antistatic packing material until you are ready to install the component.
Just before un wrapping the antistatic package, be sure to discharge static electricity from
your body.
When transporting a sensitive component, first place it in an antistatic container or
packaging.
Handle all electrostatic sensitive components in a static-safe area. If possible, use antistatic
floor pads and work bench pads.

- 5 -
1.2 SAFETY: General Power Safety
Observe the following guidelines when connecting your equipment to a power source:
Check the voltage rating before you connect the equipment to an electrical outlet to ensure
that the required voltage and frequency match the available power source.
Do not plug the equipment power cables into an electrical outlet if the power cable is
damaged
Norway and Sweden: If this product is provided with a 3-prong power cable, connect the
power cable to a grounded electrical outlet only.
If you use an extension power cable, ensure that the total ampere rating of the products
plugged in to the extension power cable does not exceed the ampere rating of the extension
cable.
If you must use an extension cable or power strip, ensure the extension cable or power strip
is connected to a wall power outlet and not to another extension cable or power strip. The
extension cable or power strip must be designed for grounded plugs and plugged into a
grounded wall outlet.
If you are using a multiple-outlet power strip, use caution when plugging the power cable into
the power strip. Some power strips may allow you to insert a plug incorrectly. Incorrect
insertion of the power plug could result in permanent damage to your equipment, as well as
risk of electric shock and/or fire. Ensure that the ground prong of the power plug is inserted
into the mating ground contact of the power strip.
Be sure to grasp the plug, not the cable, when disconnecting equipment from an electric
socket.
If your equipment uses an AC adapter:
Use only the Dell provided AC adapter approved for use with this device. Use of another AC
adapter may cause a fire or explosion.
NOTE: Refer to your system rating label for information on the proper adapter model
approved for use with your device.
Place the AC adapter in a ventilated area, such as a desk top or on the floor, when you use
it to run the computer or to charge the battery. Do not cover the AC adapter with papers or
other items that will reduce cooling; also, do not use the AC adapter inside a carrying case.
The AC adapter may become hot during normal operation of your computer. Use care when
handling the adapter during or immediately after operation.
It is recommended that you lay the adapter on the floor or desk so that the green light is
visible. This will alert you if the adapter should accidentally go off due to external effects. If
for any reason the green light goes off, disconnect the AC power cord from the wall for a
period of ten seconds, and then reconnect the power cord.
Japan Only: Use only the Dell-provided AC power cable with the AC adapter. Use of any
other power cable may damage the device or AC adapter or may present risk of fire or
electric shock.

- 6 -
2. Disassembly SOP
Preparation before disassemble
1. Clean the room for disassemble
2. Identify the area for monitor
3. Check the position that the monitors be placed and the quantity of the monitor; prepare the area for
material flow; according to the actual condition plan the disassemble layout
4. Prepare the implement, equipment, material as bellow:
1) Working table
2) Screw-driver
3) Glove
4) Cleaning cloth
5) ESD protection
6) U3818DW Curve Sponge Jig
Item Picture Operation Tool Notes
1
To remove the stand:
1. Place U3821DW
monitor on
U3818DW curve
sponge jig
2. Press and hold
the stand release
button
3. Lift the stand up
and away from the
monitor
U3818DW
curve sponge
jig
Panel and
whole monitor
head must be
put on
U3818DW
curve sponge
jig to avoid
panel
damage.
It is not
allowed to
place the front
side of panel
and monitor
head on a flat
surface
2
1. Unlock 4 screws
on Rear Cover
2. Use hands or Bar
Scraper to
disassemble Rear
Cover from Middle
Frame
Notice the
disassembly order:
Left Side=>Top Side
=>Right Side
=>Bottom
Sid
e
1. Screw
Driver
Torsion of
screw:11±1
Kg
2. Bar Scraper
1 3
2
4
4

- 7 -

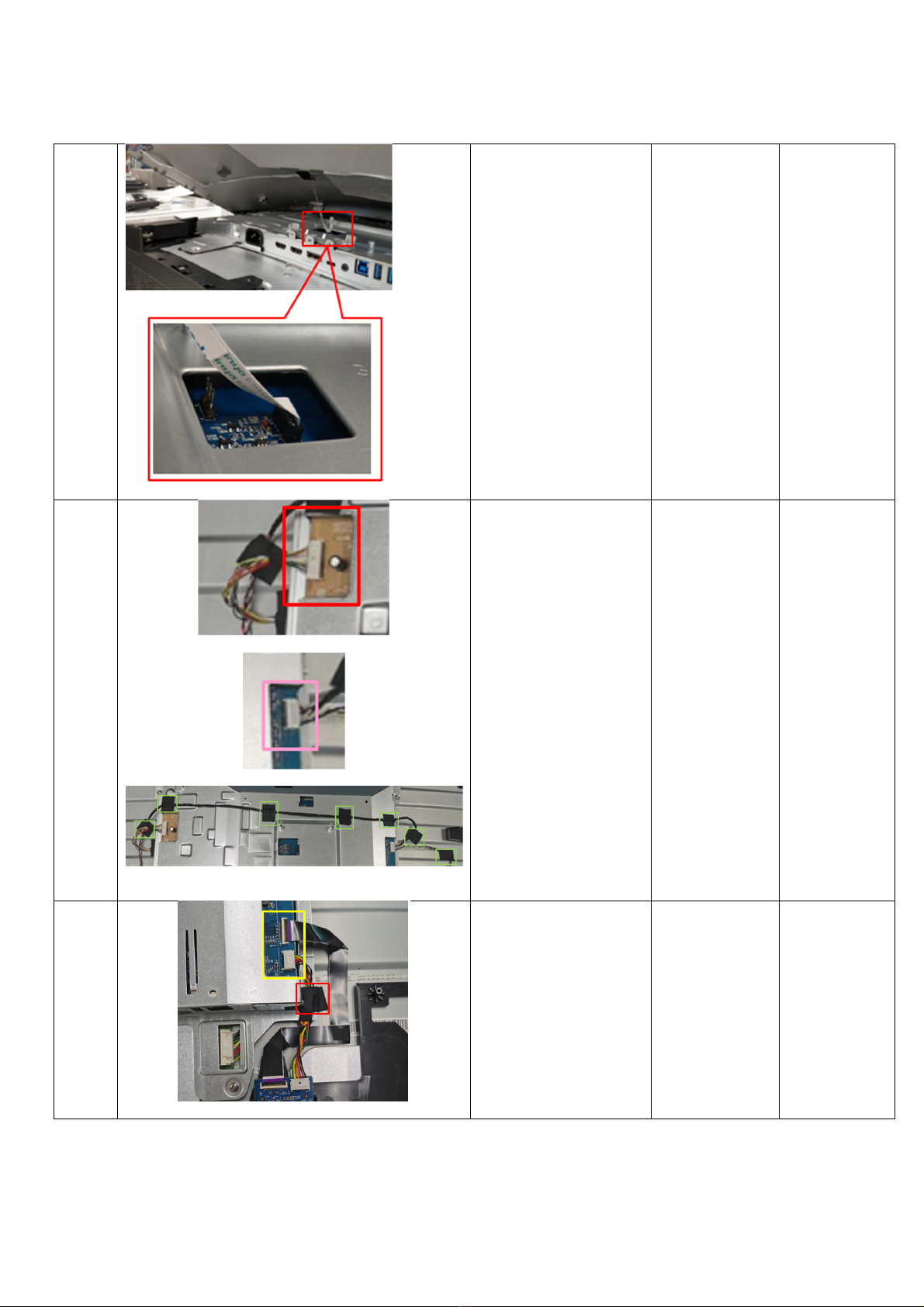

3
1. Pull out “CTRL BD
C” from I/ BD
to take off Rear
Cover
4
1. Unplug “Backlight
Wire” from LED
Driver BD (See
Red mark)
2. Unplug “Speaker
Wire” from I/F BD
(See Pink remark)
3. Tear off 7 tapes
from “Speaker
Wire” (See Green
Mark)
5
1. Tear off an
acetate tape from
“USB BD Wire”
2. Unplug “USB BD
FFC” and “USB
BD Wire” from I/F
BD

- 8 -
6
1. Unlock 4 screws
to disassemble
Main SHD from
Panel
2. Tear off an
acetate tape from
“FFC EDP” and
panel
3. Tear off a yellow
tape from “FFC
EDP” connector
4. Unplug “FFC
EDP” from panel
5. Take off Main
SHD from Panel
Screw-driver
Torsion of
Main SHD
screw:
4±0.5Kg
7
1. Disassemble
Mylar from Main
SHD
2. Unlock 10 PCBA
screws to
disassemble “I/F
BD”, “SPS BD”
and “LED Driver
BD” from Main
SHD
Screw-driver
Torsion of
PCB screw:
9±1Kg
Do not touch
the
component
without
wearing
insulating
gloves when
disassembling
and
assembling
Power BD

- 9 -
8
1. Tear off 1 tape
from I/F BD
2. Unplug wires from
I/F BD, SPS BD
and LED Driver
BD

- 10 -
3. Assembly SOP
Preparation before assemble
1. Clean the room for work
2. Identify the area for material
3. Prepare the implement, equipment, material as bellow:
1) Working table
2) Screw-driver
3) Glove
4) Cleaning cloth
5) ESD protection
6) U3818DW Curve Sponge Jig
Item Picture Operation Tools Notes

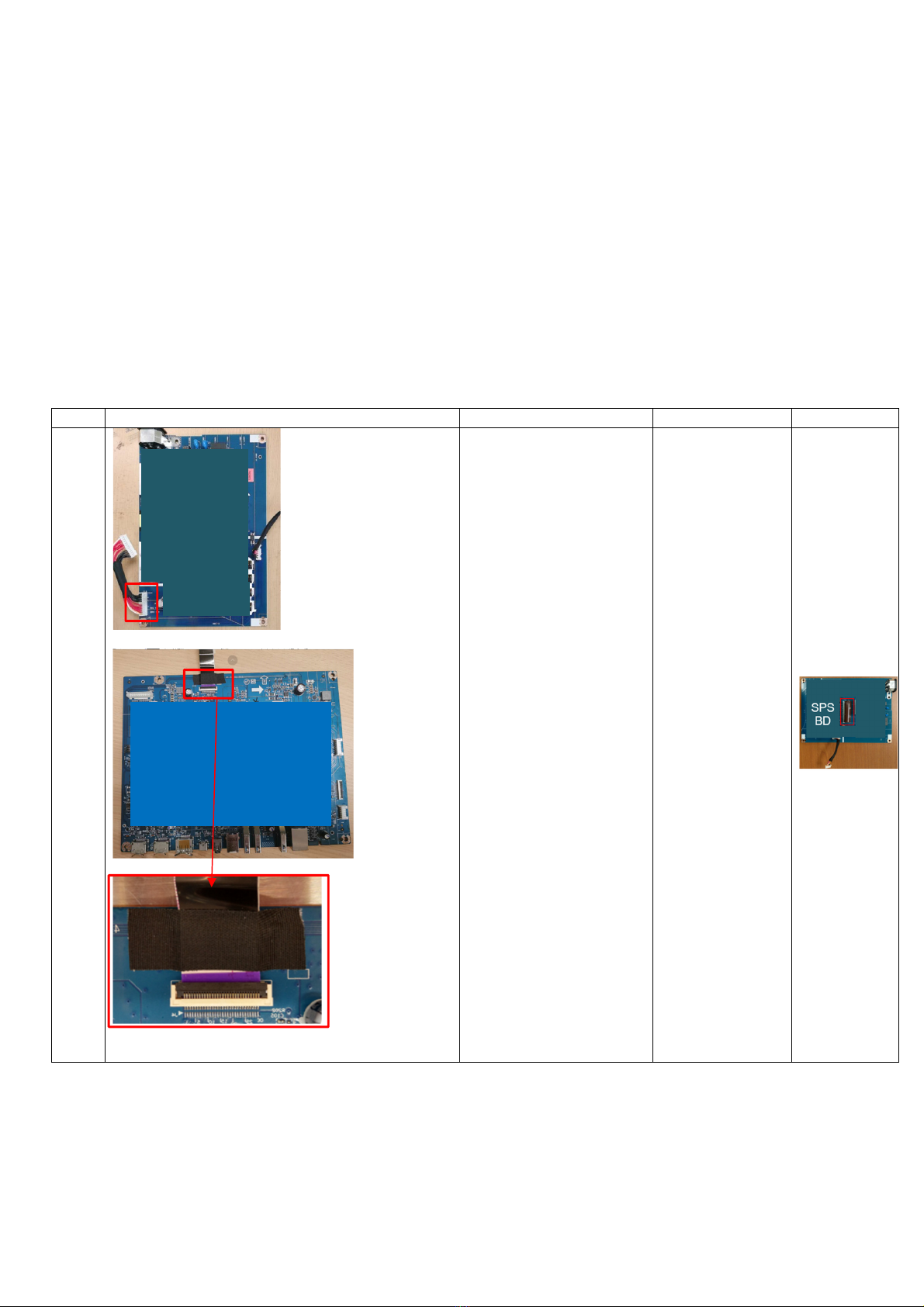

1
1. Insert “SPS BD
wire” into SPS BD
2. Insert “FFC EDP
cable” into I/F BD
and paste 1 tape to
fix it
Screw-driver
Torsion of PCB
screw: 9±1Kg
Do not
touch the
component
without
wearing
insulating
gloves
when
disassembli
ng and
assembling
Power BD
SPS BD
I/F BD

- 11 -

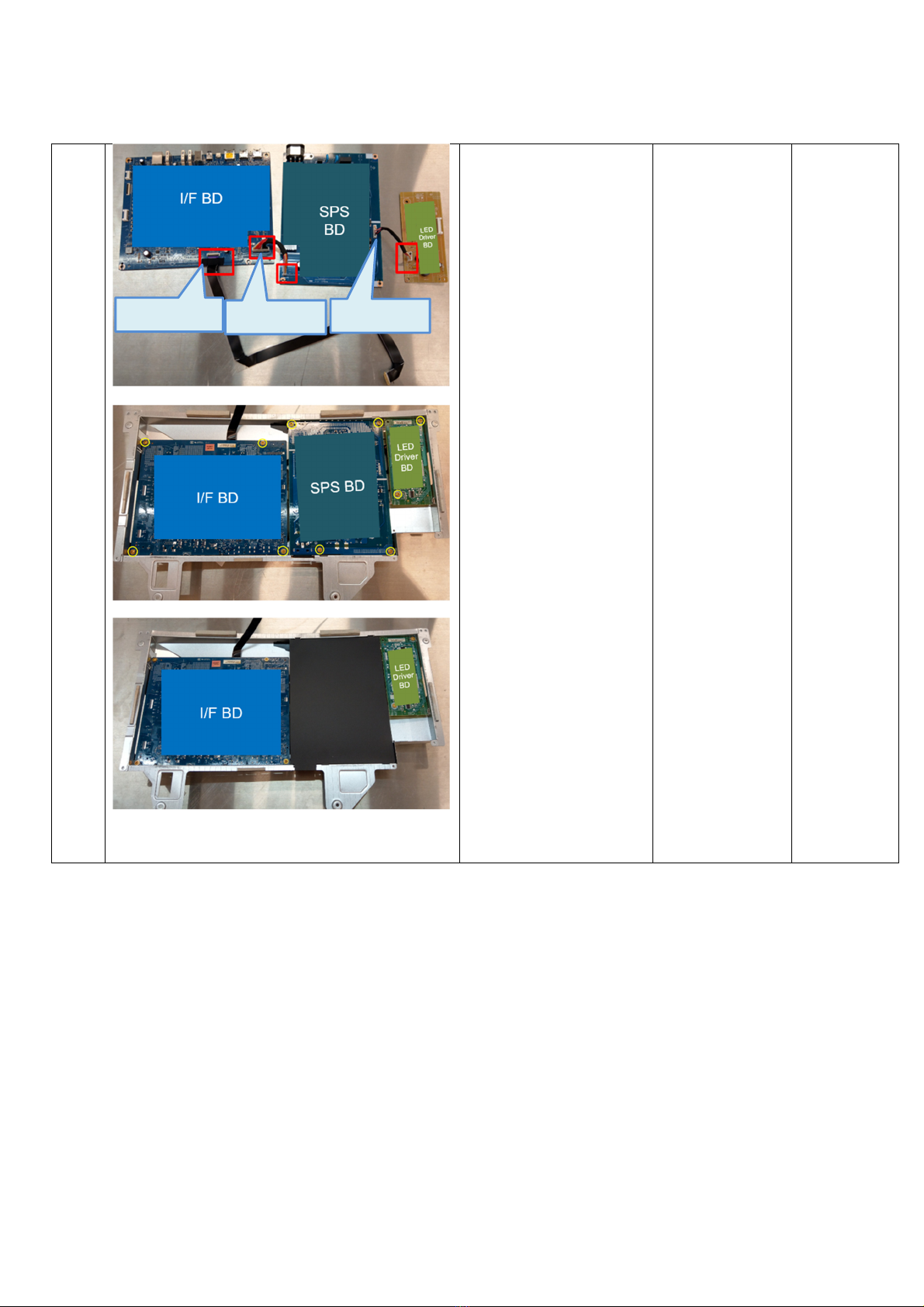

2
1. Insert “SPS BD
wire” into I/F BD
2. Assemble I/F BD
and SPS BD to
Main SHD
3. Insert “SPS BD to
LED Driver BD
wire” into LED
Driver BD
4. Assemble LED
Driver BD into Main
SHD
5. Lock 10 screws to
fix “I/F BD”, “SPS
BD” and “LED
Driver BD” on Main
SHD
6. Assemble Mylar on
Main SHD to cover
SPS BD
Screw-driver
Torsion of
screw: 8.5±1Kg
Kg
SPS BD wire
(WIRE 24P/24P)
FFC EDP
(FFC EDP 30P/30)
SPS BD to LED
Driver BD wire

- 12 -
3
1. Place U3821DW
panel on U3818DW
curve sponge jig
2. Insert “FFC EDP”
into panel
3. Adhere a yellow
tape to fix “FFC
EDP” connector
4. Adhere an acetate
tape to fix “FFC
EDP” on panel
5. Place Main SHD on
panel and lock 4
screws to fix it on
panel
1. U3818DW
curve sponge jig
2. Screw-driver
Torsion of
screw: 4.5±0.5
Kg
Panel and
whole
monitor head
must be put
on U3818DW
curve sponge
jig to avoid
panel
damage.
It is not
allowed to
place the
front side of
panel and
monitor head
on a flat
surface
4
1. Insert “USB BD
FFC” and “USB BD
Wire” into I/F BD
2. Paste an acetate
tape to fix “USB BD
Wire” on Main SHD
and Panel
5
1. Insert “Backlight
wire” into LED
Driver BD

- 13 -
6
1. Insert “Speaker
Wire” into I/F BD
(See Pink mark)
2. Adhere 7 tapes to
fix “Speaker Wire”
on Main SHD and
Panel (See Green
Mark)
7
1. Insert “CTRL FFC”
into I/F BD
8
1. Assemble Rear
Cover with Middle
Frame
2. ix Rear Cover by
screw *4
Screw-driver
Torsion of
screw:11±1Kg

- 14 -
9
1. Insert the stand
base blocks fully
into the stand slot.
2. Lift the screw
handle and turn the
screw clockwise.
3. After fully tightening
the screw, fold the
screw handle flat
within the recess.
10
Attach the stand
assembly to the
display.
a. Fit the two tabs on
the upper part of the
stand to the groove on
the back of
the display.
b. Press the stand
down till it snaps into
place.
