Dell™ Interactive Projector S510
User’s Guide

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make
better use of your projector
CAUTION: A CAUTION indicates potential damage to hardware or
loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
____________________
Information in this document is subject to change without notice.
© 2014 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written
permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP
and DLP logo are trademarks of TEXAS INSTRUMENTS INCORPORATED; Microsoft and
Windows are either trademarks or registered trademarks of Microsoft Corporation in
the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either
the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model: Dell Interactive Projector S510
December 2014 Rev. A00

Contents | 3
Contents
1 Your Dell Projector. . . . . . . . . . . . . . . . . . . . . . . 5
About Your Interactive Pen . . . . . . . . . . . . . . . . . . 7
2 Connecting Your Projector . . . . . . . . . . . . . . . . 9
Connecting to a Computer . . . . . . . . . . . . . . . . . 11
Connecting a DVD Player . . . . . . . . . . . . . . . . . . 19
Connecting to Local Area Network. . . . . . . . . . . . 23
3 Using Your Projector . . . . . . . . . . . . . . . . . . . . 25
Turning Your Projector On. . . . . . . . . . . . . . . . . . 25
Turning Your Projector Off . . . . . . . . . . . . . . . . . 25
Adjusting the Projector Focus . . . . . . . . . . . . . . . 26
Cleaning the Projector's Mirror . . . . . . . . . . . . . . 26
Adjusting Projection Image Size . . . . . . . . . . . . . . 27
Using the Remote Control. . . . . . . . . . . . . . . . . . 29
Installing the Remote Control Batteries . . . . . . . . . 32
Replacing the Interactive Pen Tips . . . . . . . . . . . . 33
Replacing the Interactive Pen Batteries . . . . . . . . . 34
Operating Range with Remote Control . . . . . . . . . 35
Using the On-Screen Display . . . . . . . . . . . . . . . . 36
Multimedia Introduction . . . . . . . . . . . . . . . . . . . 55
How to set-up File Type for Multimedia with USB . . 57
How to set-up File Type for Multimedia with
Internal Memory . . . . . . . . . . . . . . . . . . . . . . . . 59
Office Viewer for the USB and Internal Memory . . . 61
Multimedia SETUP for USB and Internal Memory. . . 62
Using Intel®Wireless Display (WiDi) . . . . . . . . . . . 63
Wireless Display or LAN Display Installation . . . . . . 71
For Windows Operating System Settings . . . . . . . . 72
For Mac Operating System Settings . . . . . . . . . . . 84
Audio Projection Installation . . . . . . . . . . . . . . . . 89
USB Display (DoUSB) Installation . . . . . . . . . . . . 101
IR Pen Interactivity Installation . . . . . . . . . . . . . . 104
Managing the Projector From Web Management . 109

4| Contents
Make Application Token . . . . . . . . . . . . . . . . . . 132
4 Troubleshooting Your Projector . . . . . . . . . . 133
Guiding Signals . . . . . . . . . . . . . . . . . . . . . . . . 138
Changing the Lamp . . . . . . . . . . . . . . . . . . . . . 139
5 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 141
6 Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . 147
Contacting Crestron . . . . . . . . . . . . . . . . . . . . 148
7 Appendix: Glossary . . . . . . . . . . . . . . . . . . . . 149

Your Dell Projector 5
Your projector comes with all the items shown below. Ensure that you have
all the items, and contact Dell if anything is missing.
1Your Dell Projector
Package Contents
Power cable VGA cable (VGA to VGA)
Remote control AAA Batteries (6)
CD User’s Guide and Documentation Mini USB cable (USB-A to Mini
USB-B)
IR Pen (2 pcs)/Pen tip cap (4 pcs) Wrist strap (2 pcs)
Freeze
Source Auto
Adjust Blank Screen
Blank
Screen Video Mode
VGA Video
PageDown
HDMI
PageUp
Aspect
Ratio
AAA
AAA
Dell
TM
Projector s
oduct Information Guide
Informacion Importante
Dell™ Interactive Projector S510
Contents:
•User's Guide
Documentation
P/N 8K5P4
Rev.A0 0
P/N 36.73901G001
December 2014
Madein China
©
2
0
1
4
D
e
l
l
I
n
c
.
A
ll
r
i
g
h
t
s
r
e
s
e
r
v
e
d
.
Dell
™
Projector S510
08K5P4A00

6Your Dell Projector
About Your Projector
1 Power button
2TempLED
3 Lamp LED
4IRreceivers
5 Lamp cover
6 Camera
710Wspeaker
8 Lens
9Focusring
10 Mounting holes for wall mount: Screw hole M4 x 8 mm depth.
Recommended torque <10 kgf-cm
163.00
112.5038.80 151.30
10 7
4
5
936
7
821
Top View Bottom View

Your Dell Projector 7

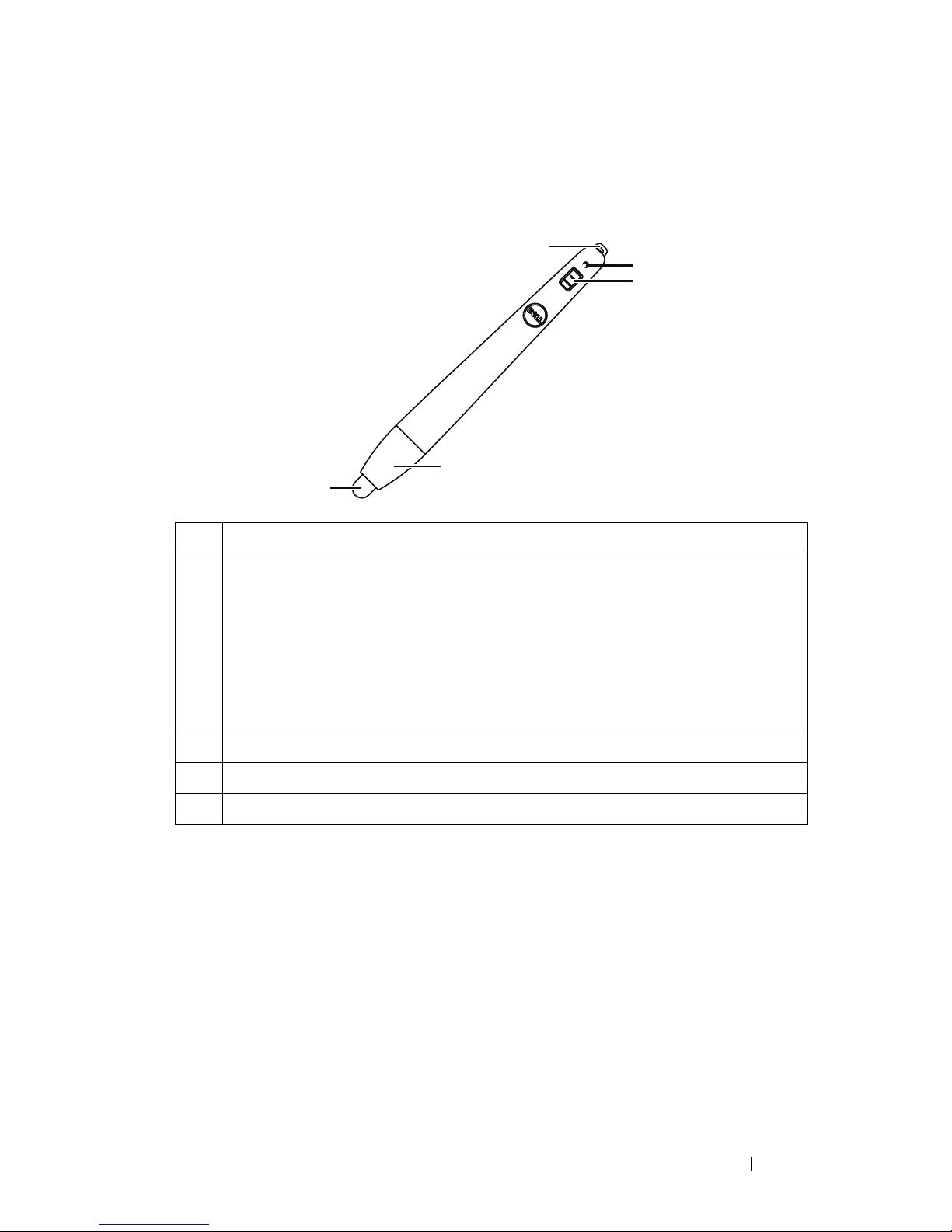

About Your Interactive Pen
You can navigate, select, and interact with your computer programs from the
projected screen using the interactive pens just as you would a mouse.
1 Power switch
2 Power indicator
As you turn on the pen, the power indicator flashes a few seconds
and goes off.
Green: Normal operation
Red: Battery is low
No light: Battery is empty
3 Wrist strap holder
4 Battery compartment access. Turn to open and replace batteries.
5 Pen tip
1
2
4
3
5

8Your Dell Projector
CAUTION: Safety Instructions
1 Do not use the projector near appliances that generate a lot of heat.
2 Do not use the projector in areas where there is an excessive amount of
dust. The dust may cause the system to fail and the projector will
automatically shutdown.
3 Ensure that the projector is mounted in a well-ventilated area.
4 Do not block the ventilation slots and openings on the projector.
5 Ensure the projector operates between ambient temperatures (5 °C to
35 °C).
6 Do not try to touch the ventilation outlet as it can become very hot after
the projector has been turned on or immediately after it is turned off.
7 Do not look into the lens while the projector is on as it may cause injury to
your eyes.
8 Do not place any objects near or in front of the projector or cover its lens
while the projector is on as the heat may cause the object to melt or burn.
9 Do not use the wireless projector near cardiac pacemakers.
10 Do not use the wireless projector near medical equipment.
11 Do not use the wireless projector near microwave ovens.
NOTE:
• Do not attempt to wall mount the projector by yourself. It should be
installed by a qualified technician.
• Recommended Projector Wall Mount Kit (P/N: 7XY53). For more
information, see the Dell Support website at dell.com/support .
• For more information, see the Safety Information that shipped with
your projector.
• The S510 projector can only be used indoors.

Connecting Your Projector 9
2Connecting Your Projector
1 Mini USB (Mini Type B)
connector for remote control,
interactive pen, and firmware
upgrade
10 Audio right-channel input
connector
2 HDMI-B connector 11 Audio left-channel input
connector
3 HDMI-A connector for support
MHL feature
12 Audio output connector
4 USB Type A connector for USB
Viewer
13 Power cord connector
5 USB Type B connector
(DoUSB) for USB Display
14 Microphone connector
6 VGA output (monitor loop
through) connector
15 Composite Video connector
7 RJ-45 connector 16 Audio-B input connector
8 VGA-A input (D-sub)
connector
17 VGA-B input (D-sub)
connector
9 Audio-A input connector 18 RS232 connector
13
1
1415161718
2 8 910 11 1243 5 67

10 Connecting Your Projector
CAUTION: Before you begin any of the procedures in this section,
follow the Safety Instructions as described on page 8.

Connecting Your Projector 11
Connecting to a Computer

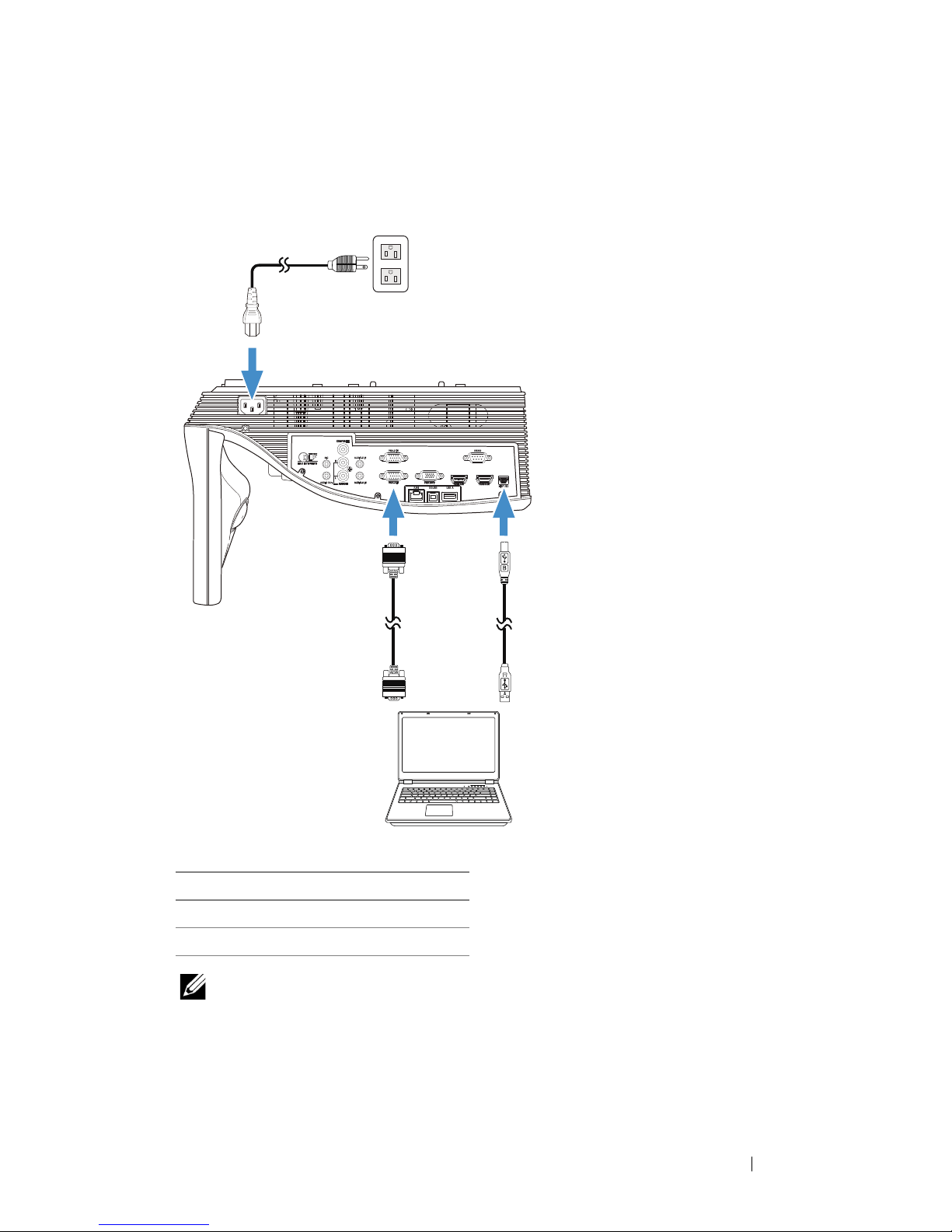

Connecting a Computer Using a VGA Cable
NOTE: The Mini USB cable must be connected if you want to use the
Page Up and Page Down features on the remote control.
1 Power cord
2 VGA to VGA cable
3 USB-A to Mini USB-B cable
1
MOLEX
23

12 Connecting Your Projector

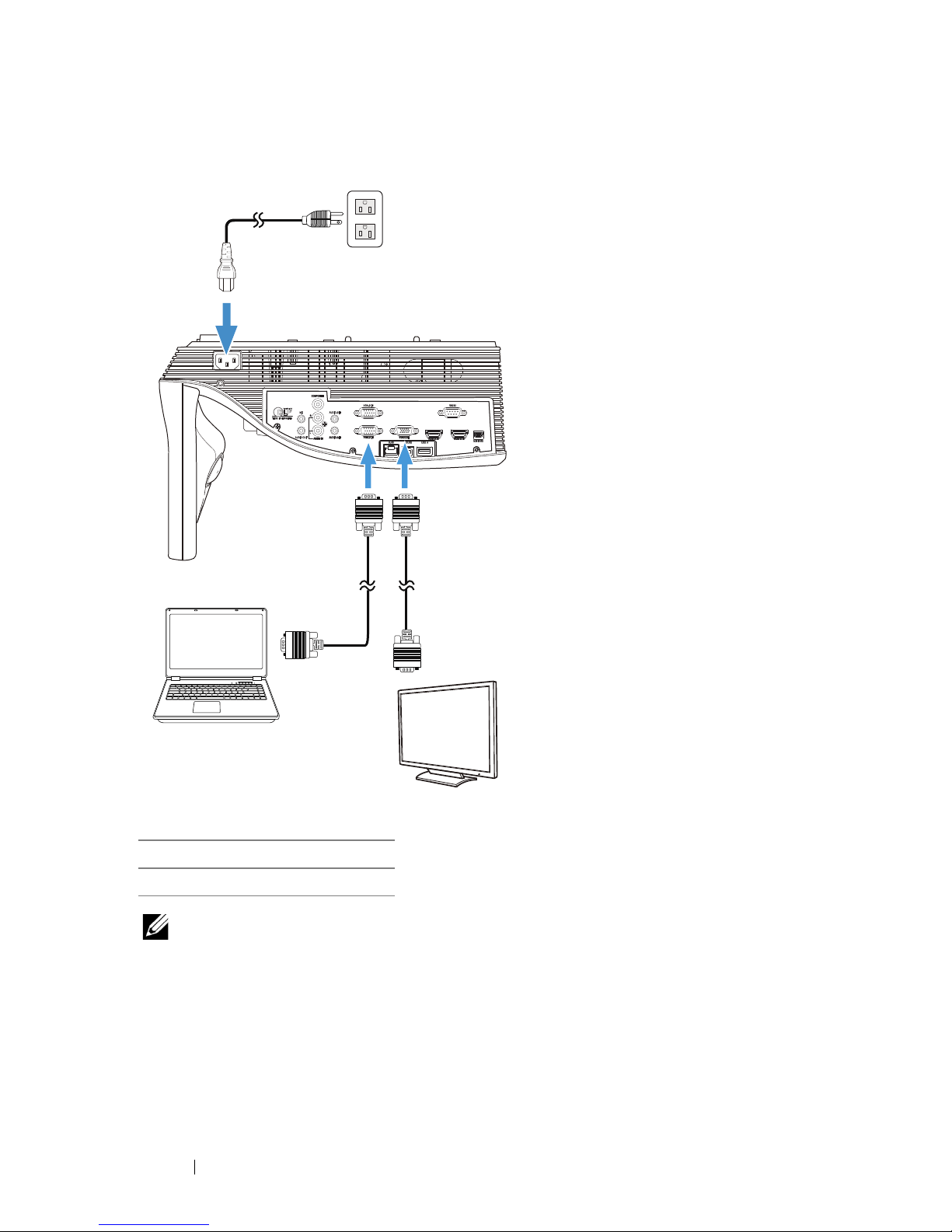

Monitor Loop-Through Connection Using VGA Cables
NOTE: Only one VGA cable is shipped with your projector. An
additional VGA cable can be purchased on the Dell website at
www.dell.com .
1 Power cord
2 VGA to VGA cable
1
2
2

Connecting Your Projector 13
Connecting a Computer Using a RS232 cable
NOTE: The RS232 (9-pin D-sub female to female pin2-3 swap) cable
is not shipped with your projector. Consult a professional installer for
the cable and RS232 remote control software.
1 Power cord
2 RS232 (9-pin D-sub female to female
pin2-3 swap) cable
1
2

14 Connecting Your Projector

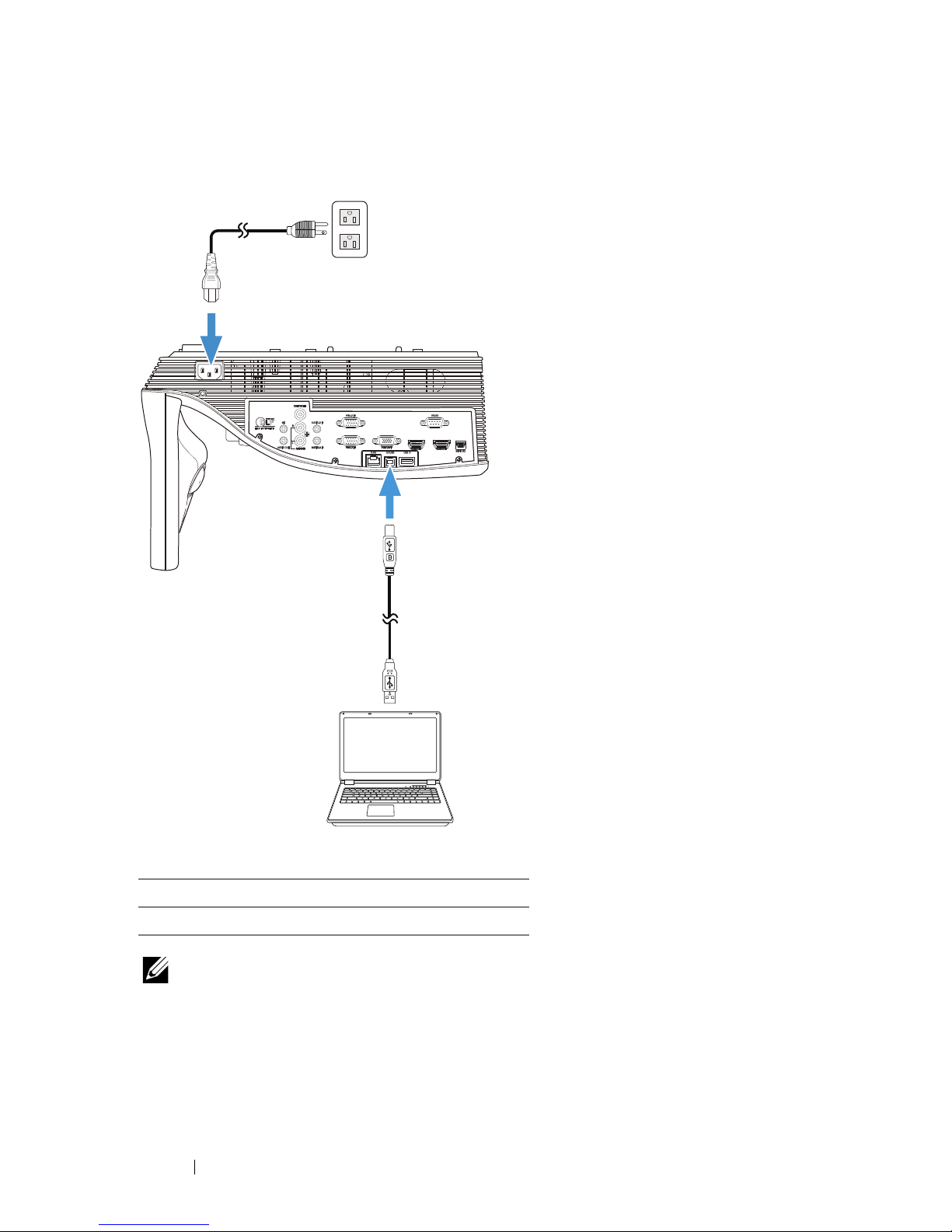

Connecting a Computer Using a USB Cable
NOTE: Plug and Play. Only one USB cable is shipped with your
projector. An additional USB cable can be purchased on the Dell
website at www.dell.com .
1 Power cord
2 USB-A to USB-B cable
MOLEX
1
2

Connecting Your Projector 15
Connecting a Computer Using a HDMI Cable
NOTE: The HDMI cable is not shipped with your projector. You can
purchase the HDMI cable on the Dell website at www.dell.com .
1 Power cord
2 HDMI cable
1
2

16 Connecting Your Projector
Connecting a Mobile Devices (Tablet) Using a MHL Cable
NOTE: The MHL cable is not shipped with your projector.
NOTE:
aYour smartphone or tablet must support MHL function.
bSome smartphone or tablet need to connect the additional MHL
adapter or adapter cable, please contact your dealer of devices.
1 Power cord
2 MHL cable
1
2

Connecting Your Projector 17
Connecting a Computer Using Wireless or Intel®WiDi
NOTE: Your computer should be equipped with a wireless adapter
and properly configured to detect another wireless connection. Refer
to your computer’s documentation on how to configure a wireless
connection.
NOTE: To connect a computer via Intel®WiDi, your computer must
be Intel®WiDi compatible.

18 Connecting Your Projector
Connecting to Smartphone or Tablet Using Wireless
NOTE: Dell S510 supports the MobiShow and WiFi-Doc applications.
These applications enable you to transmit supported content from
your Android or iOS devices wirelessly. After installing and launching
the application on your mobile device, enable Wi-Fi on your mobile
device and connect to the projector network, Dell S510. For more
Information, please visit go to Dell Support site at dell.com/support.
Files supported are:
* Please install the PtG2 Converter into your PC for file conversion of
ppt into PtG2 format. PtG2 Converter can be downloaded from
dell.com/support.
Mobi Show Photos jpeg / jpg
MS Powerpoint PtG2 (converted from
ppt)*
WiFi-Doc Photos jpeg / jpg
MS Powerpoint / Word /
Excel / Text / PDF
ppt / pptx / doc / docx /
xls / xlsx / txt / pdf

Connecting Your Projector 19
Connecting a DVD Player
Connecting a DVD Player Using a Composite Video and L/R Audio
Cable
NOTE: The Composite Video cable is not shipped with your
projector. You can purchase the Composite Video Extension (50
ft/100 ft) cable on the Dell website at www.dell.com .
NOTE: The L/R audio cable is not shipped with your projector.
1 Power cord
2 Composite Video cable
3 L/R audio cable
2
1
OPEN/CLOSE
HDMI
HOME
MENU RETURN
ENTER
TOPMENU MENU
USBDVD/USB
STANDBY/ON
3

20 Connecting Your Projector
Connecting a DVD Player Using a Component Video Cable
NOTE: The VGA to Component Video cable and audio cable are not
shipped with your projector. You can purchase the VGA to
Component Video Extension (50 ft/100 ft) cable on the Dell website
at www.dell.com .
1 Power cord
2 VGA to Component Video cable
3 Audio cable
1
2
OPEN/CLOSE
HDMI
HOME
MENU RETURN
ENTER
TOPMENU MENU
USBDVD/USB
STANDBY/ON
3
