VEP4600 overview
The VEP4600 platform is a one rack unit, x86-based networking platform running virtualized universal customer premise
equipment (uCPE) functions and basic switching/routing functions as a top-of-rack device with 4, 8, or 16 cores.
Figure 1. VEP4600 platform
1. Platform status icon LEDs 2. RS-232 ports (top) and 10/100/1000 Base-T ports (bottom)
3. SFP+ ports 4. Luggage tag
5. 1000 Base-T networking ports 6. Processor power on/off button
7. Micro USB-B port 8. USB Type A ports
For detailed information about the VEP4600 platform, see the following documents at https://www.dell.com/support:
●BMC User Guide
●BIOS User Guide
●VEP4600 Installation Guide
●VEP4600 Setup Guide
●uCPE Networking DIAG OS Guide
This document describes the steps for OS installation on a VEP4600 device. The OS installation steps are tested and verified on
the VEP4600 device with the OS versions listed below:
●DiagOS image: diagos-recovery-x86_64-dellemc_vep4600_d21xyt-r0.3.41.3.81-8.iso
●RHEL OS image: rhel-server-7.5-x86_64-dvd.iso
●Ubuntu OS image: ubuntu-18.04.3-live-server-amd64.iso
●Adva OS image: SVCS_connector-18.4.1.31-18.4-factory-dell-45.iso
●ESXi 6.7 OS image: VMware-VMvisor-Installer-6.7.0.update03-16316930.x86_64-
DellEMC_Customized-A06.iso
●ESXi 7.0 OS image: VMware-VMvisor-Installer-7.0.0-16324942.x86_64-DellEMC_Customized-A02.iso
NOTE: For systems running EXSi, BIOS shell, FreeBSD, Linux, or Windows, you can download the X722 firmware version
5.00 package from the Drivers & Downloads tab of the Dell Networking VEP4600 support page at www.dell.com/
support. Follow the instruction in the readme.tx to complete the update. Before you update, read and agree to the Intel
License Agreement.
1
VEP4600 overview 5

VEP4600 start up and serial console
connection
1. On a laptop connected to the VEP4600, bring up Windows Device Manager to get the COM port.

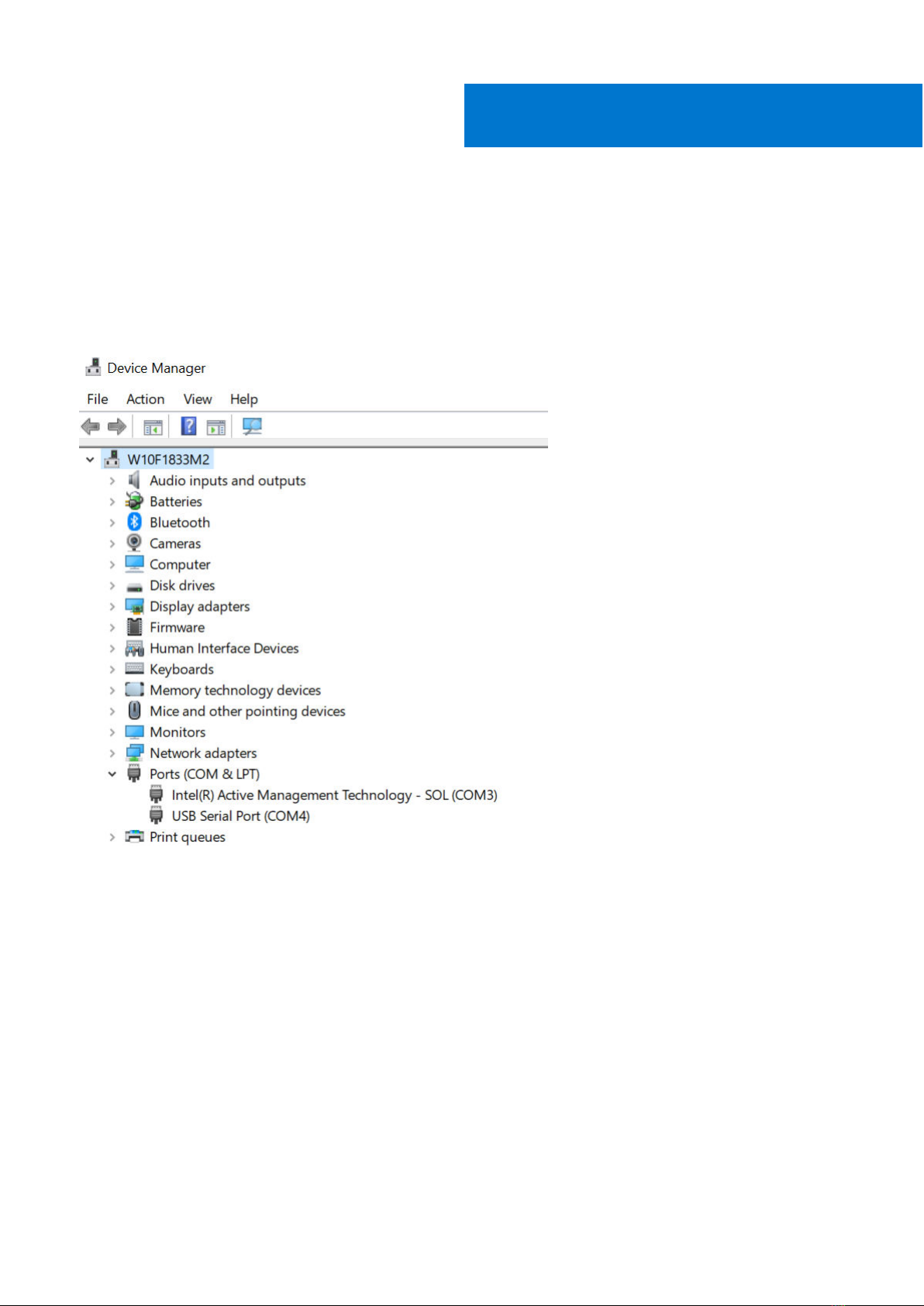

Windows Device Manager
It’s the USB Serial Port drive in this case for our USB to serial console adapter. The COM port number is 4.
2. Using Putty, configure a console connection with the right COM port and speed.
PuTTy session options
2
6 VEP4600 start up and serial console connection

3. Plug in a power cord to the back of VEP4600. It starts to power up immediately. Watch for VEP4600 console window.
VEP4600 console window
VEP4600 start up and serial console connection 7

After the POST Lower DRAM Memory test text displays, the cursor moves to the upper left corner of the console
window.
Curser
4. Press the Delete button until the Press <DEL> … string displays on the console window.
Console window
NOTE: If you miss the setup screen, a boot up screen displays. If this happens, power cycle the VEP4600 and press the
Delete button. Repeat the process until you see the setup screen.
Setup screen
8VEP4600 start up and serial console connection

VEP4600 start up and serial console connection 9

VEP4600 configuration guidelines
Topics
●Types of VEP4600 with pre-installed OS from manufacturing
●Guidelines for upgrading VEP4600 based on manufacturing configuration
This section describes the steps to take to complete the VEP4600 configuration. The VEP4600 will arrive from manufacturing
with one of the following configurations.
●Config1: VEP4600 preinstalled with ESXi
●Config2: VEP4600 preinstalled with DiagOS
●Config3: VEP4600 preinstalled with Versa flex NFV
Config1 – ESXi v6.7 Ux is installed on the VEP4600:
●Update firmware from the BMC - See Upgrade Firmware through BMC
Config2 – DiagOS is installed on the VEP4600:
●Update to the latest version of DiagOS - See Update to the latest version of DiagOS
●Update the firmware - See Upgrade Firmware through DiagOS
Config3 – Versa flex NFV is installed on the VEP4600:
●Update firmware from the BMC - See Upgrade Firmware through BMC
3
10 VEP4600 configuration guidelines

Update to latest DiagOS
Verify you are running the latest DiagOS as noted in the VEP4600 overview with the following steps:
1. Log in to the Diag OS using root as the username and calvin as the password.
2. Enter the sh_ver command:
root@dellemc-diag-os:~#sh_ver
Diag OS version VEP4600_DIAG_OS_x.xx.x.xx-x
Build date/time Tue Apr 24 00:15:20 PDT 2018
Build server netLogin-eqx-03
Build by cxxxx
Kernel Info:
Linux 4.9.30 #1 SMP PREEMPT Tue Apr 24 00:12:19 PDT 2018 x86_64 GNU/Linux
Debian GNU/Linux 8 \n \l
root@dellemc-diag-os:
4
Update to latest DiagOS 11

Upgrade firmware through DiagOS
This section describes the steps to take to upgrade the VEP4600’s firmware if your VEP4600 arrived from Dell with the DiagOS
as the only operating system.
The Unified Firmware Updater will need to be copied to a USB and run from the mounted USB.
Topics:
•Check the existing firmware version
•Copy the Unified firmware updater to USB
•Mount USB on the VEP4600
•Run the Unified firmware updater through USB
Check the existing firmware version
To check the current VEP4600 firmware versions from the DiagOS run the following command:
DiagOS installed: log in and type updatetool -D ALL -V
Copy the Unified firmware updater to USB
1. Download the Unified firmware updater from the Dell support site.
2. Unzip vep4600_ufw_3.2.zip file to access (UFW) script.
3. vep4600_ufw_x.x contains the following firmware versions:
●CPLD -v10 (0x10)
●BMC – 2.20
●BIOS – 3.41.0.9-18
●rNDC CPLD carrier image – v020x02
●rNDC nvm images -DUP package – 19.05.12
●x722 nvm 3.33
4. From a Windows or Linux server copy the vep4600_ufw_3.2.zip file to a USB. (USB size 2GB is sufficient)
Mount USB on the VEP4600
1. Insert the USB into the USB port in the VEP4600 front panel.
2. From the serial console DiagOS:
a. Run the command mkdir /mnt/usb to create the mount point
b. Run the command mount /dev/sdb /mnt/usb
NOTE: The USB can take a different device name, but usually VEP4600 DIAG OS assigns sdb for the USB. If you run
fdisk -l the USB is usually one of the last drives in the list.
Device Boot Start End Sectors Size Id Type
/dev/sdb1 32 30031871 30031840 14.3G c W95 FAT32 (LBA)
5
12 Upgrade firmware through DiagOS

Run the Unified firmware updater through USB
NOTE: x is a place marker for the current version.
1. From mounted USB, run the Unified ifrmware updater tool with the following commands:
a. root@dellemc-diag-os:~# cd /mnt/usb
b. root@dellemc-diag-os:/mnt/usb# chmod 777 vep4600_ufw_x.x
c. root@dellemc-diag-os:/mnt/usb# ./vep4600_ufw_x.x interactive
2. The following menu is displayed below:
root@dellemc-diag-os:/mnt/usb# chmod 777 vep4600_ufw_x.x
root@dellemc-diag-os:/mnt/usb# ./vep4600_ufw_x.x interactive
Creating directory images
Verifying archive integrity... 100% MD5 checksums are OK. All good.
Uncompressing release 100%
Selecting previously unselected package zlib1g-dev:amd64.
(Reading database ... 20150 files and directories currently installed.)
Preparing to unpack .../zlib1g-dev_1%3a1.x.x.dfsg-2+b1_amd64.deb ...
Unpacking zlib1g-dev:amd64 (1:1.x.x.dfsg-2+b1) ...
Setting up zlib1g-dev:amd64 (1:1.x.x.dfsg-2+b1) ...
Processing triggers for man-db (2.7.0.2-5) ...
fopen: Permission denied
Selecting previously unselected package libssl-dev:amd64.
(Reading database ... 20181 files and directories currently installed.)
Preparing to unpack .../libssl-dev_1.0.1t-1+deb8u6_amd64.deb ...
Unpacking libssl-dev:amd64 (1.0.1t-1+deb8u6) ...
Setting up libssl-dev:amd64 (1.0.1t-1+deb8u6) ...
Selecting previously unselected package libssl-doc.
(Reading database ... 20267 files and directories currently installed.)
Preparing to unpack .../libssl-doc_1.0.1t-1+deb8u6_all.deb ...
Unpacking libssl-doc (1.0.1t-1+deb8u6) ...
Setting up libssl-doc (1.0.1t-1+deb8u6) ...
Processing triggers for man-db (2.7.0.2-5) ...
fopen: Permission denied
Selecting previously unselected package bc.
(Reading database ... 21629 files and directories currently installed.)
Preparing to unpack diag/bc_1.06.95-9_amd64.deb ...
Unpacking bc (1.06.95-9) ...
Setting up bc (1.06.95-9) ...
Processing triggers for man-db (2.7.0.2-5) ...
fopen: Permission denied
Package version: x.x
Packaged images:
BMC image: x.x
BIOS image: 3.41.0.x-xx
CPLD image: XxXX
Wifi CPLD image: XxX
X722 image: x.xx
Note:If BMC version is less than 1.23 CPLD versions will not be shown correctly
1. Automatically update all firmware components
2. BMC image[Primary version:2.20, backup version:2.0]
3. BIOS image[Booted version:3.41.0.9-18]
4. CPLD image[CPLD version:v10 (0x10)]
5. rNDC left CPLD image[CPLD version:0x02]
6. rNDC right CPLD image[CPLD version:0x02]
7. intel rNDC firmware update:
[ left Type: NA, (0.0)]
Upgrade firmware through DiagOS 13

[ right Type: X710, (0.DUP package – 19.05.12)]
Note: also need to update i40e driver to 2.10.19.82 and DPDK to or further version
8. intel X722 firmware[X722 firmware version:3.33]
Note: also need to update i40e driver to 2.10.19.82 and DPDK to or further version
9. Reset BMC after CPLD update completion and system bootup
q. Exit
3. Enter 1Automatically update all firmware components.
updating ALL images
updating BMC image
****************************
* BMC version = x.x *
* Back-up Version = x.x *
****************************
Already have x.x programmed
updating BIOS image
******************************
* BIOS version = 3.41.0.x-xx *
******************************
updating primary image only..
BIOS image is ./VEP4600-BIOS-3.41.0.x-xx.BIN
01
INFO: Yafu INI Configuration File not found... Default options will not be applied...
Creating IPMI session via USB...Done
-------------------------------------------------
YAFUFlash - Firmware Upgrade Utility (Version 4.11x.x)
-------------------------------------------------
(C)Copyright 2016, American Megatrends Inc.
Beginning BIOS Update...
Uploading Image : 100%... done
Flashing Firmware Image : 100%... done
Verifying Firmware Image : 100%... done
Done with updating image
Will continue to update rest of components
Power cycle cpu to boot new BIOS after update is complete
updating CPLD image
Already have XxXX programmed
updating MC1_CARD CPLD image
Already have 0x2 programmed
WARNING: To avoid damage to your device, do not stop the update or reboot or power
off the system during t update.
Intel(R) Ethernet NVM Update Tool
NVMUpdate version 1.32.20.18
Copyright (C) 2013 - 2018 Intel Corporation.
done updating
Power cycle chassis for updates to take effect
Package version: x.x
Packaged images:
BMC image: x.x
BIOS image: 3.41.0.x-xx
CPLD image: XxXX
Note:If BMC version is less than 1.23 CPLD versions will not be shown correctly
1. Automatically update all firmware components
14 Upgrade firmware through DiagOS

2. BMC image[Primary version:2.20, backup version:2.0]
3. BIOS image[Booted version:3.41.0.9-18]
4. CPLD image[CPLD version:v10 (0x10)]
5. rNDC left CPLD image[CPLD version:0x02]
6. rNDC right CPLD image[CPLD version:0x02]
7. intel rNDC firmware update:
[ left Type: NA, (0.0)]
[ right Type: X710, (0.DUP package – 19.05.12)]
Note: also need to update i40e driver to 2.10.19.82 and DPDK to or further version
8. intel X722 firmware[X722 firmware version:3.33]
Note: also need to update i40e driver to 2.10.19.82 and DPDK to or further version
9. Reset BMC after CPLD update completion and system bootup
q. Exit
Enter your choice:q
4. After firmware upgrade completes, enter qto exit.
5. Once all firmware updates are complete, a system power cycle is required either with remote power cycler or manually
unplugging and plugging back the power cord.
NOTE: Please note that the power down state should be minimum of 15 seconds for the complete power drain.
Upgrade firmware through DiagOS 15

Upgrade firmware through BMC
This section describes the steps to take to upgrade the VEP4600’s firmware remotely from a Linux or Windows server.
Topics:
•Check the existing firmware version
•Configure BMC management address in BIOS
•Configure BMC management address on BMC console
•Run the Unified firmware updater tool from a Linux server
Check the existing firmware version
To check the current VEP4600 firmware versions when an Operating system is installed:
a. To find the CPLD and BIOS versions:
From the CPU mgmt console:
●ESXi is installed: scroll up to last boot output to see BIOS and CPLD versions
●DiagOS installed: log in and type updatetool -D ALL -V
b. To find the BMC version:
From BMC mgmt console: type ipmitool -I lanplus -H 127.0.0.1 -U admin -P admin mc info
~ # ipmitool -I lanplus -H 127.0.0.1 -U admin -P admin mc info
Device ID : 32
Device Revision : 1
Firmware Revision : 2.00
IPMI Version : 2.0
Manufacturer ID : 12290
Manufacturer Name : Unknown (0x3002)
Product ID : 1147 (0x047b)
Product Name : Unknown (0x47B)
Device Available : yes
Provides Device SDRs : no
Configure BMC management address in BIOS
To run the Unified firmware updater tool remotely, a BMC management address must be configured. This can be done through
booting into the BIOS or from the BMC console.
1. From the BMC console window, run the following commands to boot into the BIOS:
ipmitool -I lanplus -H 127.0.0.1 -U admin -P admin chassis bootparam set bootflag
force_bios
ipmitool -I lanplus -H 127.0.0.1 -U admin -P admin power reset
2. In the BIOS, tab to Server Mgmt menu, then move cursor down to BMC network configuration.
Select BMC network configuration
6
16 Upgrade firmware through BMC

3. Move cursor down to highlight, Configuration address source and press Enter. Select Static.
4. Use Ctrl-h to clear the fields and enter your BMC ip address, Subnet mask and Router IP address (gateway address).
Select Static
5. Press the F4 key to Save the changes and exit the utility.
6. Confirm saving the configuration by selecting Yes and press Enter to boot.
7. Log into the CPU mgmt (DiagOS) console and run the following command:
root@dellemc-diag-os:~# ipmitool lan set 1 ipsrc bios -> this will update the /etc/network/
interfaces file to what you have set in the bios
Upgrade firmware through BMC 17

Configure BMC management address on BMC console
From the BMC console, run the following commands:
ipmitool -H 127.0.0.1 -U admin -P admin lan set 1 ipsrc <static or dhcp>
NOTE: If using static addressing, follow the next 3 commands:
ipmitool -H 127.0.0.1 -U admin -P admin lan set 1 ipaddr xxx.xx.xxx.xx
ipmitool -H 127.0.0.1 -U admin -P admin lan set 1 netmask 255.255.255.0
ipmitool -H 127.0.0.1 -U admin -P admin lan set 1 defgw ipaddr xxx.xx.xxx.254
Run the Unified firmware updater tool from a Linux
server
1. Deploy a Linux OS (CentOS, RedHat, Ubuntu) that connects to the VEP4600 BMC network. Can be a VM based Linux
server.
2. Verify you can reach the BMC ip address with ipmitool:
test_user@ubs18-04:~$ sudo bash
[sudo] password for test_user:
root@ubs18-04:~# ipmitool -I lanplus -H xxx.xx.xx.xxx -U admin -P admin power status
Chassis Power is on
3. Run the UFW from the Linux (CentOS, RedHat, Ubuntu) server with the following command:
./vep4600_ufw_x.x <BMC IP address> interactive
root@ubs18-04:~# cd Downloads/
root@ubs18-04:~/Downloads# ls -l
total 186916
-rw-rw-r-- 1 test_user test_user 98093308 Aug 17 15:43 vep4600_ufw_3.3
root@ubs18-04:~/Downloads# chmod u+x vep4600_ufw_3.3
root@ubs18-04:~/Downloads# ls -l
total 186916
-rwxrw-r-- 1 test_user test_user 98093308 Aug 17 15:43 vep4600_ufw_3.3
root@ubs18-04:~/Downloads# ./vep4600_ufw_3.3 xxx.xx.xx.xxx interactive
Creating directory temp
Verifying archive integrity... 100% MD5 checksums are OK. All good.
Uncompressing release 100%
firmware_updater/
firmware_updater/x710/
firmware_updater/x710/spsetup.sh
firmware_updater/x710/DX69G.txt
firmware_updater/x710/BootIMG.FLB
firmware_updater/x710/6VDPG.txt
firmware_updater/x710/demere_map.txt
firmware_updater/x710/68M95.txt
firmware_updater/x710/nut_msg.txt
firmware_updater/x710/nvminv.cfg
firmware_updater/x710/98-secupdusb.rules
firmware_updater/x710/harbor_map.txt
firmware_updater/x710/shellfit.sh
firmware_updater/x710/XD56X.txt
firmware_updater/x710/getSystemId
firmware_updater/x710/OSFlavourUtils.sh
firmware_updater/x710/os_mapping.xml
firmware_updater/x710/svmExeMsg.xsl
firmware_updater/x710/PIEInfo.txt
18 Upgrade firmware through BMC

firmware_updater/x710/UpdRollBack
firmware_updater/x710/Version.txt
firmware_updater/x710/UpdRollBack.lst
firmware_updater/x710/spconfig.xml
firmware_updater/x710/buildVer.sh
firmware_updater/x710/vpd.txt
firmware_updater/x710/Intel_Proprietary_License.pdf
firmware_updater/x710/nvmupdate.cfg
firmware_updater/x710/package.xml.sign
firmware_updater/x710/smbiosHelp.txt
firmware_updater/x710/nvmupdate64e
firmware_updater/x710/LinuxDepWrapperLinux.bin
firmware_updater/x710/PIEConfig.sh
firmware_updater/x710/payload/
firmware_updater/x710/payload/BootIMG.CFB
firmware_updater/x710/payload/FmpUpdateWrapper.efi
firmware_updater/x710/HashOfHashFileList.txt
firmware_updater/x710/BootIMG.FLB.filepart
firmware_updater/x710/08XJ7.txt
firmware_updater/x710/kerby_map.txt
firmware_updater/x710/DDJKY.txt
firmware_updater/x710/en.prop
firmware_updater/x710/Y348Y.txt
firmware_updater/x710/6VDPG_1G.txt
firmware_updater/x710/uni-eol.txt
firmware_updater/x710/mc.txt
firmware_updater/x710/00-secupd-dell.rules
firmware_updater/x710/sphelp.txt
firmware_updater/x710/Y5M7N.txt
firmware_updater/x710/sputility.bin
firmware_updater/x710/KF46X.txt
firmware_updater/x710/duppmdatacollector.bin
firmware_updater/x710/spUtilityHelp.txt
firmware_updater/x710/package.xml
firmware_updater/diag/
firmware_updater/diag/zlib1g-dev_1%3a1.2.8.dfsg-2+b1_amd64.deb
firmware_updater/diag/bc_1.06.95-9_amd64.deb
firmware_updater/diag/libssl-dev_1.0.1t-1+deb8u6_amd64.deb
firmware_updater/diag/libssl-doc_1.0.1t-1+deb8u6_all.deb
firmware_updater/Azul_CPLD_refresh.vme
firmware_updater/AZUL_CPLD_V12_20210520_refresh.vme
firmware_updater/libfreeipmi.so.16
firmware_updater/mstr_01_20181226.vme
firmware_updater/VEP4600-BIOS-3.41.0.9-19.BIN
firmware_updater/centos7/
firmware_updater/centos7/OpenIPMI-modalias-2.0.23-2.el7.x86_64.rpm
firmware_updater/centos7/ipmitool-1.8.18-7.el7.x86_64.rpm
firmware_updater/MCCARD_mstr_cpld_00_02_201809101600.vme
firmware_updater/install.sh
firmware_updater/AZUL_CPLD_V12_20210520_norefresh.vme
firmware_updater/X722/
firmware_updater/X722/
LBG_B2_Hybrid_CS4227_P01_Backplane_P23_LED_HIGH_No_WoL_NCSI_4p30_80001FDF.bin
firmware_updater/X722/BootIMG.FLB
firmware_updater/X722/iv.txt
firmware_updater/X722/nvmupdate_4.3.cfg
firmware_updater/X722/version.txt
firmware_updater/X722/Intel_firmware_license.txt
firmware_updater/X722/LBG_B2_Hybrid_CS4227_PXE_v3.51_80001007.bin
firmware_updater/X722/Immediate_offset_2.txt
firmware_updater/X722/iSCSI.txt
firmware_updater/X722/Intel_Proprietary_License.pdf
firmware_updater/X722/
LBG_B2_Hybrid_CS4227_P01_Backplane_P23_LED_HIGH_No_WoL_NCSI_5p00_80002313.bin
firmware_updater/X722/nvmupdate.cfg
firmware_updater/X722/update.xml
firmware_updater/X722/nvmupdate64e
firmware_updater/X722/license.pdf
firmware_updater/X722/OCP_Configuration.txt
firmware_updater/X722/CS4227_KR_SFI_8_13_2015.bin
firmware_updater/X722/readme.txt
firmware_updater/X722/file_license.txt
firmware_updater/X722/license.txt
Upgrade firmware through BMC 19

firmware_updater/X722/Immediate_offset_1.txt
firmware_updater/libcrypto.so.1.1
firmware_updater/ipmitool
firmware_updater/libreadline.so.7
firmware_updater/libcrypto.so.1.0.0
firmware_updater/VEP4600-BMC-v2.20.ima
firmware_updater/Yafuflash
firmware_updater/x520/
firmware_updater/x520/spsetup.sh
firmware_updater/x520/BootIMG.FLB
firmware_updater/x520/nut_msg.txt
firmware_updater/x520/nvminv.cfg
firmware_updater/x520/98-secupdusb.rules
firmware_updater/x520/shellfit.sh
firmware_updater/x520/getSystemId
firmware_updater/x520/OSFlavourUtils.sh
firmware_updater/x520/os_mapping.xml
firmware_updater/x520/svmExeMsg.xsl
firmware_updater/x520/PIEInfo.txt
firmware_updater/x520/UpdRollBack
firmware_updater/x520/Version.txt
firmware_updater/x520/UpdRollBack.lst
firmware_updater/x520/spconfig.xml
firmware_updater/x520/buildVer.sh
firmware_updater/x520/vpd.txt
firmware_updater/x520/Intel_Proprietary_License.pdf
firmware_updater/x520/aqua_map.txt
firmware_updater/x520/nvmupdate.cfg
firmware_updater/x520/package.xml.sign
firmware_updater/x520/smbiosHelp.txt
firmware_updater/x520/nvmupdate64e
firmware_updater/x520/LinuxDepWrapperLinux.bin
firmware_updater/x520/PIEConfig.sh
firmware_updater/x520/payload/
firmware_updater/x520/payload/BootIMG.CFB
firmware_updater/x520/payload/FmpUpdateWrapper.efi
firmware_updater/x520/HashOfHashFileList.txt
firmware_updater/x520/en.prop
firmware_updater/x520/uni-eol.txt
firmware_updater/x520/sagepond_map.txt
firmware_updater/x520/mc.txt
firmware_updater/x520/00-secupd-dell.rules
firmware_updater/x520/sphelp.txt
firmware_updater/x520/sputility.bin
firmware_updater/x520/duppmdatacollector.bin
firmware_updater/x520/spUtilityHelp.txt
firmware_updater/x520/package.xml
firmware_updater/firmware.files
~/Downloads/temp ~/Downloads/temp
is ubuntu 18.04
installing libssl-dev
get X722 version from firmware.files is: 5.00
Package version: x.x
Packaged images:
BMC image: x.x
BIOS image: x.xx.x.x-xx
CPLD image: XxXX
Note:If BMC version is less than 1.23 CPLD versions will not be shown correctly
1. Automatically update all firmware components
2. BMC image[Primary version:2.20, backup version:2.0]
3. BIOS image[Booted version:3.41.0.9-18]
4. CPLD image[CPLD version:v10 (0x10)]
9. Reset BMC after CPLD update completion and system bootup
q. Exit
20 Upgrade firmware through BMC
