DeLonghi Arctic Whisper EL Series User manual

EL SERIES
PORTABLE AIR CONDITIONER
Instructions for use. Keep these instructions
Visit www.delonghi.com for a list of service
centers near you.
ELECTRIC CHARACTERISTICS
115 V~ 60 Hz
CONDITIONNEUR D’AIR PORTATIF
Mode d’emploi . Conservez cette notice
Visitez www.delonghi.com pour y voir une liste
des centres de réparation proches de chez vous.
CARACTÉRISTIQUES ÉLECTRIQUES
115 V~ 60 Hz
SISTEMA DE AIRE
ACONDICIONADO PORTÁTIL
Repase y guarde estas instrucciones.
Lea cuidadosamente este instructivo
antes de usar su aparato.
Visite www.delonghi.com para ver la lista
de centros de servicios cercanos a usted.
CARACTERISTICAS ELECTRICAS:
115 V~ 60 Hz

2
EN FR ES
pag. 4 page 16 pág. 28

3
A
B
B1 B2 B3 B4
B8
B7B6
B5
A4
A3
A2
A1
A7
A11
A9
A8
A6
B9
A5
A10
A12
B10

4
Important safeguard
• Use this appliance only as described in this
instruction manual.
As with any electrical appliance, the instructions
aim to cover as many situations as possible.
Cautionandcommonsenseshouldbeusedwhen
operating and installing this air conditioner.
• This appliance has been manufactured to cool
and dehumidify domestic environments and
must not be used for other purposes.
• It is dangerous to alter or modify the unit's
characteristics in any way.
• The appliance must be installed in accordance
with the relevant national legislation.
• Should repairs be necessary, contact our toll
free customer service at 1-800-322-3848.
Unauthorized servicing can be dangerous.
• The appliance is not intended for use by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have
beengiven supervisionor instruction concerning
use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that
they do not play with the appliance.
• If the power cable is damaged, it must be
replaced by the manufacturer or an authorized
technical service centre in order to avoid all risk.
• Always ensure the appliance is plugged into a
grounded 3-prong outlet. If you have any doubts
check with a qualied electrician.
• Do not use extension cables.
• Before cleaning or maintenance operations,
always unplug the unit from the outlet.
• Do not pull on or place strain on the power cord
when moving the appliance.
• The appliance should not be installed where the
atmosphere may contain combustible gases, oil
or sulphur, or near heat sources.
• Donotresthotorheavyobjectsontheappliance.
• Clean the lters at least once a week.
• Avoid using heaters near the unit.
• The unit should be transported in a vertical
position. If this is not possible secure the unit at
an angle, do not lie it horizontally.
• Before transporting the unit, drain the unit.
After transportation, wait at least 6 hours before
switching the unit on.
• The packaging materials can be recycled. You
are therefore recommended to place them in
the special containers for dierentiated waste
collection.
• This appliance is tted with a special safety
device. When the compressor switches o, this
device prevents it from switching on again for at
least 3 minutes.
• WARNING: Changes or modications not
expressly approved by the party responsible for
compliance could void the user's authority to
operate the equipment.
Specic warnings for appliances with R410A
refrigerant gas
R410A is a refrigerant that complies with
European ecological standards; nevertheless, it is
recommended not to pierce the cooling circuit of
the machine. At the end of its useful life, deliver the
appliance to a special waste collection centre for
disposal.
This hermetically sealed system contains uorinated
greenhouse gases.
ENVIRONMENTAL INFORMATION:
This unit contains uorinated greenhouse gases
covered by the Kyoto Protocol.
Maintenance and disposal must be carried out by
qualied personnel only (R410A, GWP=2088).
Save these instructions
This product is for household
only

5
INTRODUCTION
Thank you for choosing a De’Longhi product. Please take a few
moments to read the instructions to avoid risks or damage to the
appliance.
DESCRIPTION

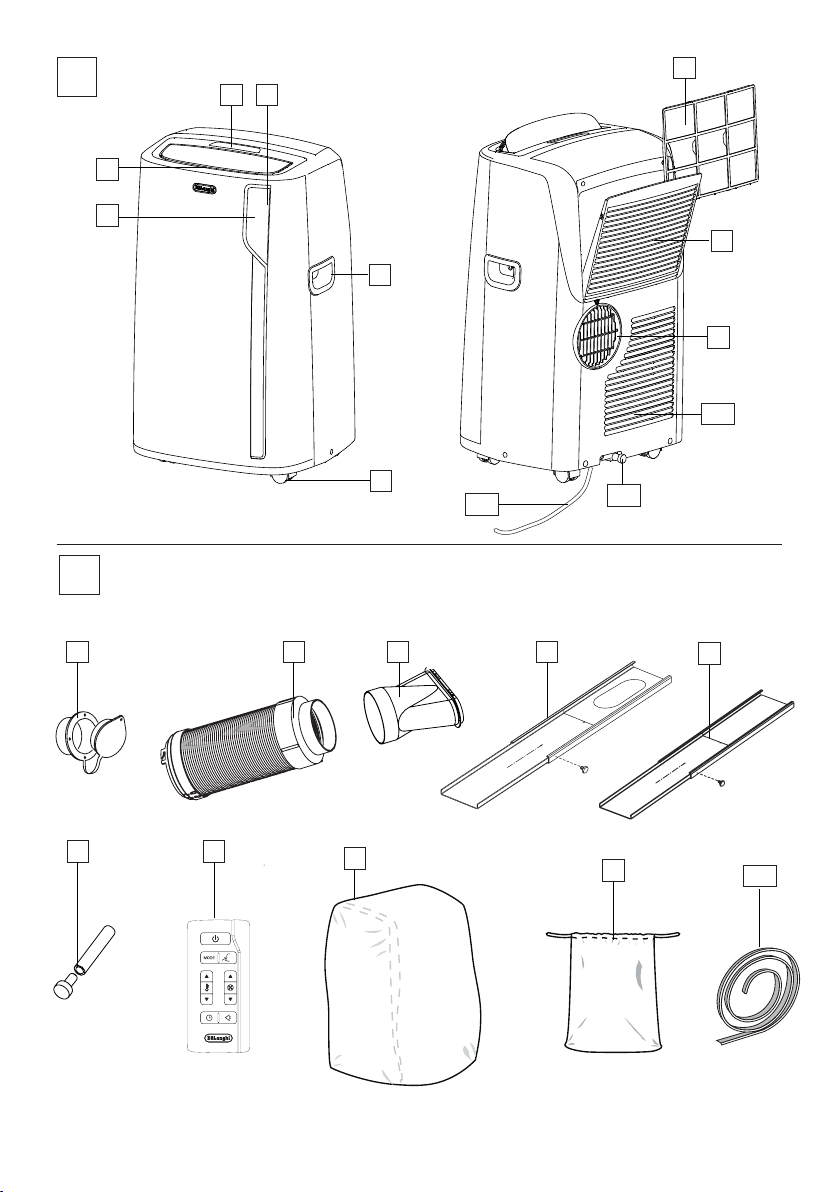

Description of the appliance (See page 3 - A)
A1 Air outlet ap
A2 Control panel
A3 Handles
A4 Wheels
A5 Remote control signal receiver
A6 Remote control storage
A7 Filter
A8 Air intake grille
A9 Air exhaust hose housing
A10 Air intake grille
A11 Drainage hose with cap
A12 Power supply cable
Description of accessories (See page 3 - B)
B1 Wall ange with cap
B2 Air exhaust hose (shown with adapters already attached)
B3 Window outlet vent
B4 Window bracket with locking pin
B5 Additional window bracket with locking pin
B6 Water drain hose with cap
B7 Remote control
B8 End of season dust cover (Some models only)
B9 End of season accessories bag (Some models only)
B10 Foam stripping
Electrical connection
Before plugging the appliance into the outlet, check that:
• The outlet’s power supply corresponds to the value
indicated on the rating label on the back of the appliance;
• The outlet and electrical circuit are adequate for the
appliance;
• The outlet is a 3-hole grounded outlet . If this is not
the case, you must choose another outlet. Failure to follow
these important safety instructions absolves the manufac-
turer of all liability.
If it becomes necessary, the power cable must be re-
placed by a qualied professional only.
The instructions below will enable you to prepare your air
conditioner for operation as eciently as possible. Before use,
make sure the air intake and outlet grilles are unobstructed.
USE
Note: This appliance features an auto evaporative
function to remove excess condensate water
during cooling and dehumidiying modes.
AIR CONDITIONING WITH WALL INSTALLATION
For optimal results set-up your appliance in this way:

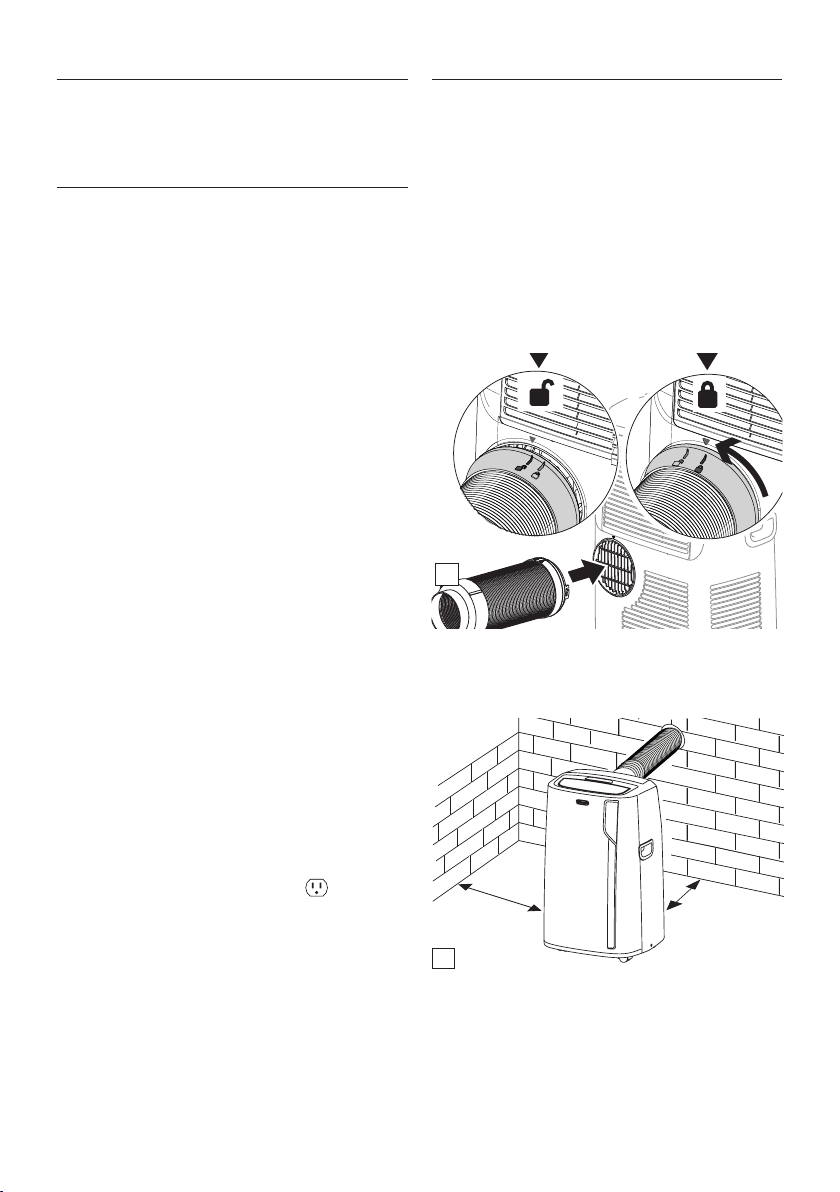

• Fit the assembled air exhaust hose B2 in the housing at the
back of the appliance using hose adapter. Align open key
symbol on the hose adapter with arrow on back of unit and
turn counterclockwise till arrow is aligned with closed lock
symbol. (As shown in gure 1).
1
• Respect the distances given in gure 2.
2
min. 11.8 in
min. 30 cm
min. 11.8 in
min. 30 cm
Proceed as follows:

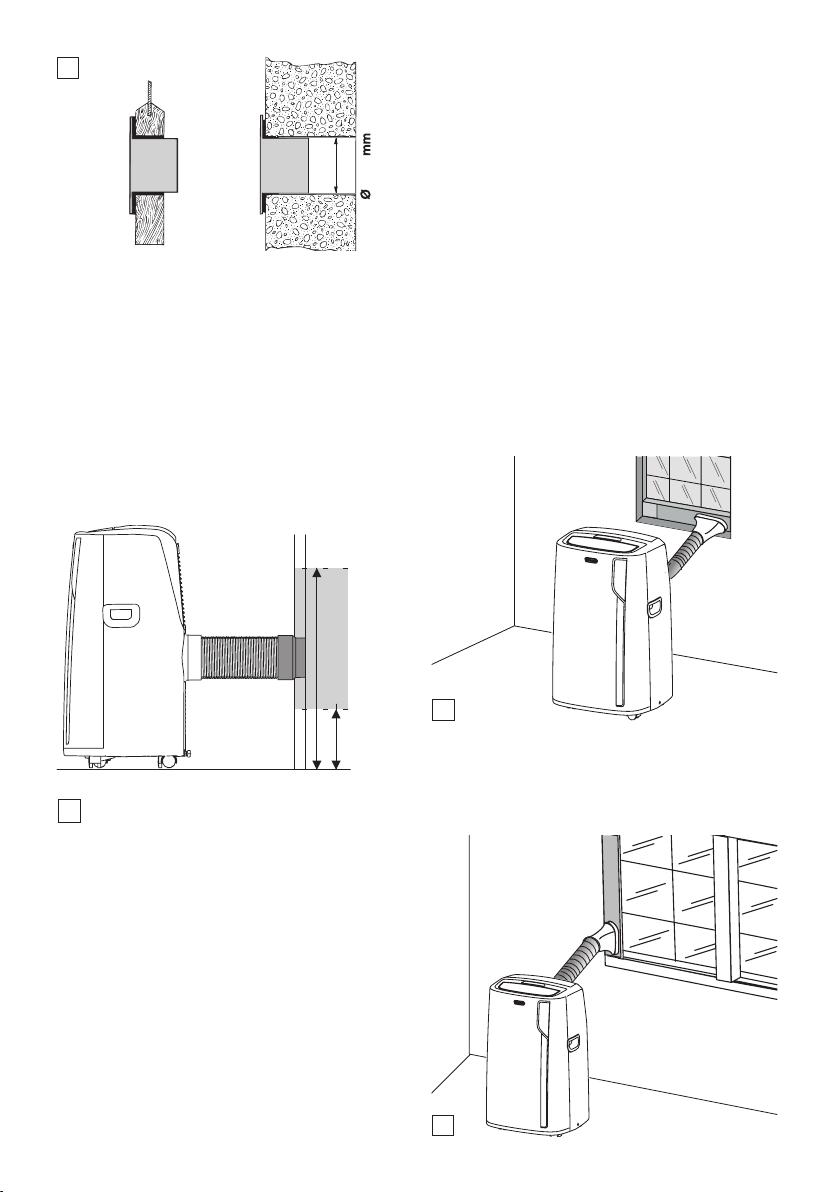

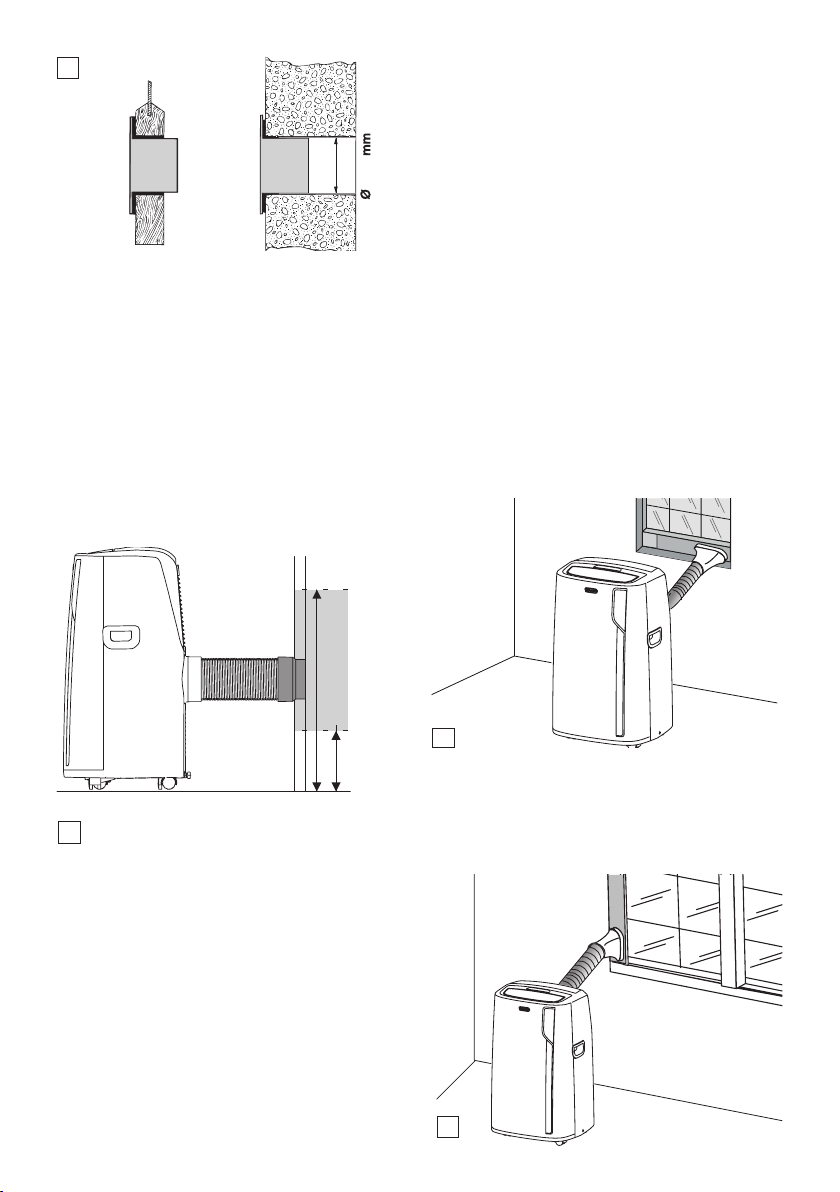

• Drill a hole ø 5,25 inches (134 mm) in an outside wall or
through a wooden kickboard. Respect the dimensions and
height of the hole given in gure 3 and 4.

6
134
Ø 5,25 in
3
in the wooden
kickboard of a French
window or panel
in the wall:
you are
recommended to insulate
the section of wall using
suitable insulation
• Fit the wall ange B1 into the hole.
• Fit the hose B2 into the wall ange B1 as shown in g. 4.
• When the hose B2 is not connected, the drilled hole can be
closed with the ange cap B1.
4
max 39 in
max 100 cm
min 14 in
min 35 cm
• When installing the air conditioner, you should leave a door
slightly open little as 1/2“ (1 cm) to guarantee correct
ventilation and room pressure.
• Keep the air hoses as short and free of curves as possible to
avoid constrictions.
Note:
• As special tools are required for this type of
installation, we suggest you have the appliance in-
stalled by specialized personnel.
AIR CONDITIONING WITH WINDOW INSTALLATION
You can also set-up in a double-hung window:
• Place the window bracket in the window sill, extend the
bracket fully within the window frame, x the bracket in
place by using the locking pin. Attach provided foam strip-
ping tape to top of window bracket and then lower the
window onto the bracket. (Should the window bracket be
too large for the window, the plastic can be cut with a saw
by a qualied professional.)
• Fit the air exhaust hose B2 in the relevant housing located
on the rear side of the appliance using hose adapter. Align
open key symbol on the hose adapter with arrow on back
of unit and turn counter clockwise till arrow is aligned with
closed lock symbol as shown in g. 1.
• Connect the window outlet vent B3 to the other end of the
exhaust hose using the adapter.
• Insert the window outlet B3 of the exhaust hose into the
slot of the window bracket vent (g. 5).
5
Other set-up methods:
• Thanks to the locking pins, it’s possible to use the window
bracket also for sliding windows. Position the hole of the
bracketsotoallow a correctinstallationof theexhausthose
(see gure 6).
6

7
• If you have a casement window (gure 7) proceed as
follows:
• Fit the assembled air exhaust hose B2 in the relevant hous-
ing located on the rear side of the appliance using the hose
adapter. Alignopenkeysymbol on thehoseadapter with ar-
rown on back of unit and turn counter clockwise till arrow is
aligned with closed lock symbol as shown in gure 1.Then,
attachthewindow outlet vent B3 to theairexhausthose B2
and place it outside the window to exhaust the hot air.
7
For help with installation, operation, and for all
accessories and spare/replacement parts, please contact
our toll free customer service call center at:
1-800-322-3848 [US only]
1-888-335-6644 [Canada only]
or log onto our website at www.delonghi.com
C5
C7
C8
C9
C6
C3
C4
C2
C1
C10
C11
C12
C13
C14
C15
C17
C16

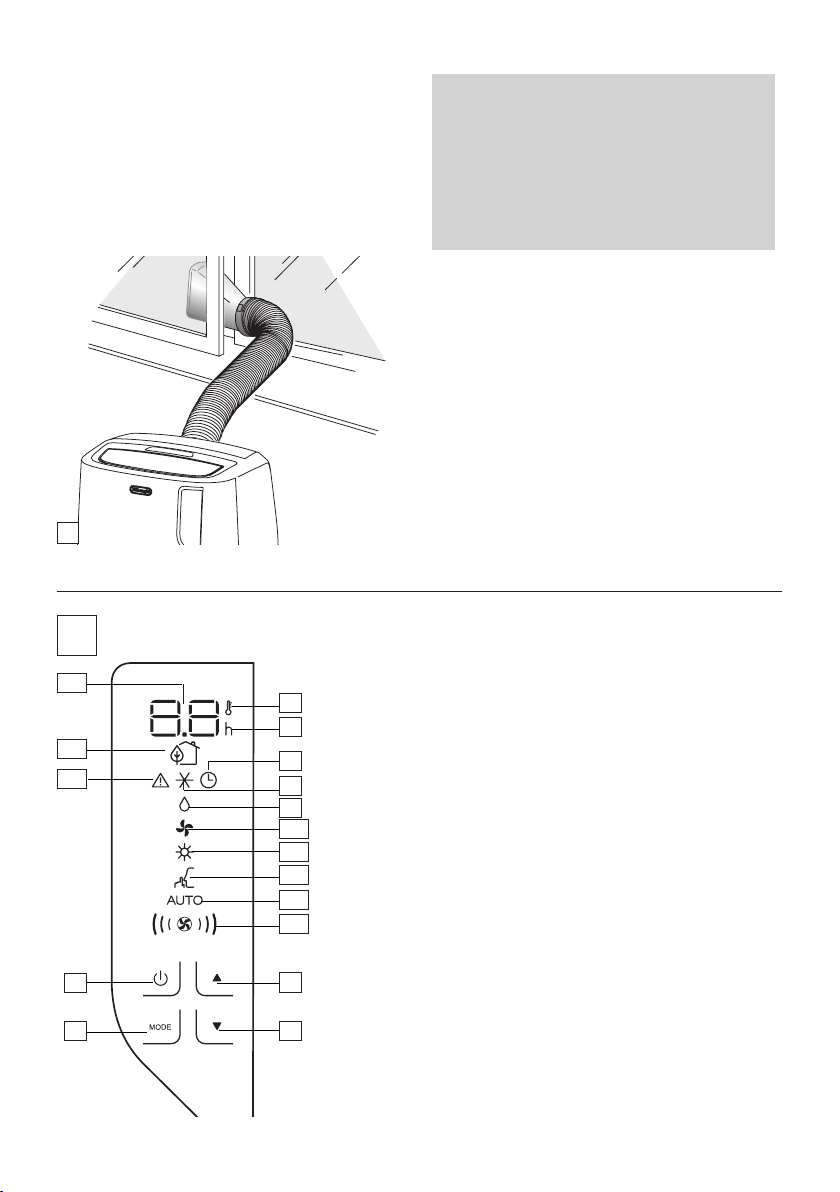

DESCRIPTION OF THE CONTROL PANEL (C)
C1 ON/STAND-BY (on/o) key
C2 Function selection key MODE (air conditioning,
dehumidifying, fan, heating, ECO REAL FEEL)
C3 Increase key
C4 Decrease key
C5 Temperature indicator
C6 Timer indicator
C7 Timer symbol
C8 Air conditioning symbol
C9 Dehumidifyìng symbol
C10 Fan symbol
C11 Heating symbol (on some models only)
C12 ArcticWhisper symbol
C13 Auto indicator
C14 Air ow indicator
C15 Alarm symbol
C16 ECO REAL FEEL symbol
C17 Set temperature values, programmed on/o time
CONTROL PANEL
C

8

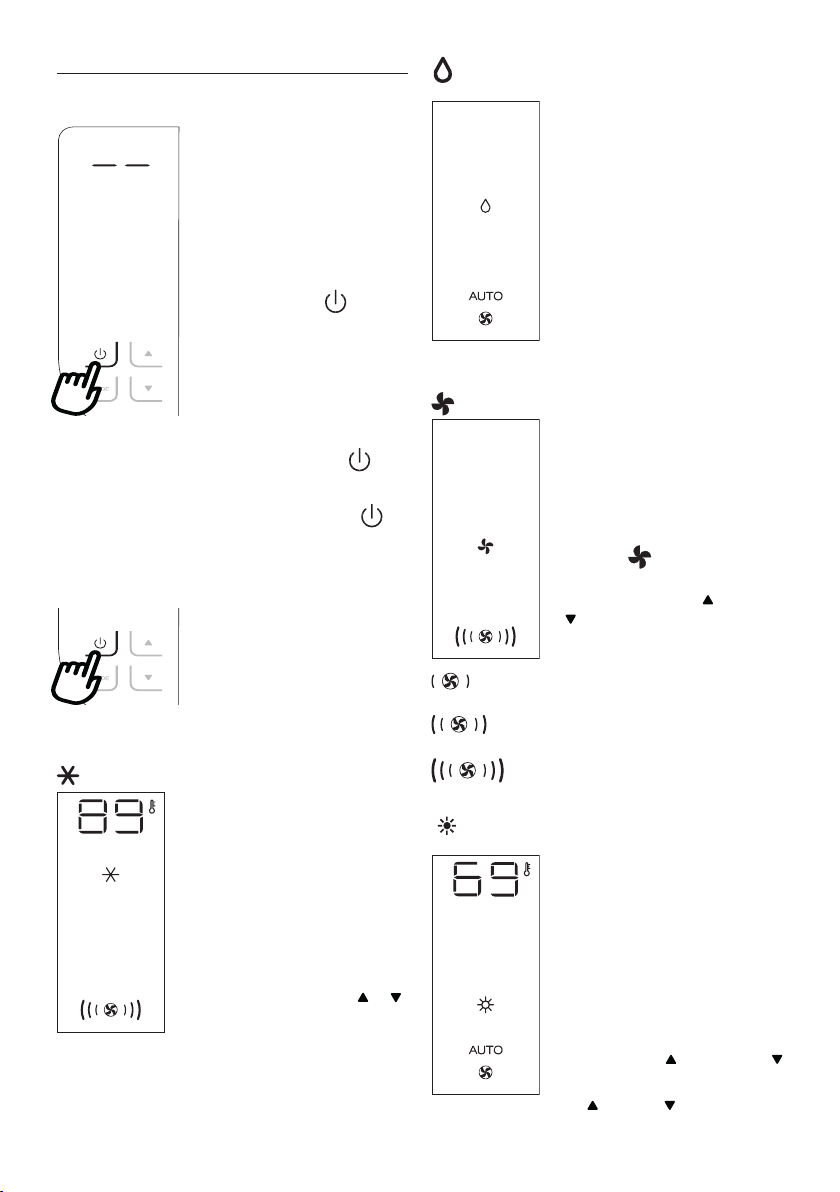

OPERATING FROM THE CONTROL PANEL
TURNING THE APPLIANCE ON/OFF
Before plugging the appliance
check the cap on back of the unit
are correctly inserted on drain-
age hose A11.
Insert the plug in the socket.
Two dashes appear on the display
indicating that the appliance is in
stand-by.
Touch the (C1) key to turn on
the appliance.
When the appliance comes on, the
last function set before it was shut o
is activated.
NOTE: After few seconds of the control
panel inactivity, its brightness will be
automatically reduced and in the next few minutes it will be
further reduced.
To turn the appliance o, touch the key.
Note: Never turn o the air conditioner by simply pulling the
plug. Touch the key in order to put your air conditioner in
stand-by and wait a few minutes before pulling the plug. In this
manner, the appliance can perform the operating status checks.
MODES SELECTION
To select the desired operating mode,
touch repeatedly the MODE key until
the desired function is selected.
AIR CONDITIONING MODE
This is ideal for hot and humid weather
when the room needs to be both cooled
and dehumidied.
To correctly set this mode:
• Touch repeatedly the MODE key until
the air conditioning symbol appears.
The display will show the desired tem-
perature.
• To change the temperature to be
reached, touch the or key.
Note: The most suitable temperatures,
during the summer range from 75 to 81°F.
However, setting the temperature signicantly lower than the
outdoor temperature is not recommended.
In conditioning mode, the air ow can be selected only from
the remote control.
DEHUMIDIFYING MODE
This is ideal for reducing humidity in the
room (spring and autumn, damp rooms,
rainy periods, etc). For this type of use, the
appliance must be set up as for air condi-
tioner mode. That is, the air exhaust hose
(B2) must be tted to the appliance to al-
low the humidity to be discharged outside.
To correctly set this mode:
• Touch repeatedly the MODE key until
the dehumidifying symbol appears.
• The appliance automatically chooses
the best air ow.
FAN MODE
When using this mode, the air exhaust
hose (B2) does not need to be attached to
the appliance.
To correctly set this mode:
• Touch repeatedly the MODE key until
the fan symbol appears.
• Select the desired air ow by touching
the increase (C3) or decrease
(C4) the key increased/decreased but-
ton.
The air ows available are:
Minimum air ow: when maximum silent
operation is desired.
Medium air ow: when the noise level needs
to be low but with a good comfort level.
Maximum air ow: for maximum performance.
HEATING MODE On some models only)
This is ideal in spring and autumn when
outdoor temperatures are not particular-
ly severe. For this mode, the appliance
should be prepared in the same way as for
air conditioning, with the air exhaust hose
(B2) attached.
To set this mode:
• Touch repeatedly the MODE button
until the heating symbol is displayed.
• Touch increase (C3) or decrease
(C4) buttons to adjust the desired
temperature.

9
Notes:
• In this mode, the air ow is selected automatically by the
appliance and cannot be set manually.
• When operating in very cold rooms, the appliance defreez-
es automatically, momentarily interrupting normal opera-
tion. In this case,“ Lt“ appears on the display. During this
operation, it is normal for the noise made by the appliance
to change.
• In this mode, you may have to wait a few minutes before
the appliance starts giving out hot air.
• In this mode, the fan may operate for short periods, even
though the set temperature has already been reached.
• It may happen that the display shows “HL” alarm. In this
case, empty the internal safety tank following the instruc-
tions in the Section“End of Season operations”. At the end,
press again the button to restore the heating function.
ECO REAL FEEL FUNCTION
ECOREALFEEL is theinnovative De’Longhi
technology that works simultaneously on
temperature reduction and humidity
control, securing best comfort level.
With traditional systems, during working
time, optimal comfort conditions may be
reached but not secured over time. With
ECO REAL FEEL, once optimal comfort is
reached, PAC automatically modulates
compressor action and air ow, to keep it
over time.
To activate the function, touch repeatedly
the MODE key until the Real symbol appears.
Perfect!
Perfect!
After approx. 1 minute, the ECO REAL FEEL-
symbol (C16) changes color when approach-
ing the best comfort level (see following diagram).
Perfect!
Perfect!
• The well-being feeling is a subjective condition: for this
reason, dierent people may judge dierently the same
environmental conditions.
• In particularly severe environmental conditions (large size
of the environment, high temperature or humidity outside,
poor insulation of the room, too many of people or strong
heat load in the room, strong exposure to the sun ...) this
device may not be able to reach the best comfort level.
SELECT THE TEMPERATURE SCALE
The temperature can be displayed in
°C or °F.
To change the temperature unit of
measure touch both the increase/
decrease keys and for about
10 sec.
OPERATING FROM THE REMOTE CONTROL
INSERTING OR REPLACING THE BATTERIES
• Remove the cover on the rear of the remote control;
• Insert or replace the batteries with two new R03“AAA”1.5V
batteries, inserting them correctly (see the instructions in-
side the battery compartment);
• Replace the cover.
Ifthe remote controlunit is replacedordiscarded,the batteries
must be removed and disposed of in accordance with current
legislation as they are harmful to the environment. Do not mix
old and new batteries.
HUMIDITY
TEMPERATURE
HIGH
MEDIUM
LOW
HIGH MEDIUM
LOW
Operating curve
ORANGE LIGHT:Room conditions far
from optimal level.
GREEN LIGHT: Most people feel good
room conditions, near optimal level.
BLUE LIGHT: Best comfort level.

10
Do not mix alkaline, standard (carbon-zinc) or rechargeable
(nickel-cadmium) batteries. Do not dispose of batteries in re.
Batteries may explode or leak. If the remote control is not be
used for a certain length of time, remove the batteries.
USING THE REMOTE CONTROL
• Point the remote control at the receiver (A5) on the air
conditioner. The remote control must be no more than 23
ft (7 metres) away from the appliance (without obstacles
between the remote control and the receiver).
• The remote control must be handled with care. Do not drop
it or expose it to direct sunlight or sources of heat.
max 23 ft
max 7 m
Note: The remote control can be safely stored in the
appropriate compartment A6 (see gure page 3).
DESCRIPTION OF THE REMOTE CONTROL
D1) ON/STAND-BY button
D2) ArcticWhisper button
D3.1) Air ow increase/decrease button
D3.2) Temperature increase/decrease button
D4) Swing button (ap swing)
D5) Timer button
D6) MODE button
D1
D2D6
D4D5
D3.1
D3.2
D3.1D3.2
TURNING THE APPLIANCE ON/OFF
• Plug into the outlet.
• Press the button (D1) (when turned on, the air
conditioner starts operating in the same mode as when it
was turned o) .
• To switch the appliance o, press button (D1) .
Note: Never switch the appliance o by removing the plug.
Always switch it o by pushing the button and waiting few
minutes before removing the plug. Only in this way the appli-
ance will perform the standard checkings.
SELECTING THE OPERATING MODES
Most of the commands available on the remote control corre-
spond to those on the appliance control panel (C).
SELECTING THE TEMPERATURES
In conditioning and heating modes press button D3.2 to select
the desired temperature.
SELECTING THE AIR FLOW
In conditioning and fan modes, press button D3.1 to select the
desired air ow.
The air ow available are:
Minimum air ow: when maximum silent
operation is desired.
Medium air ow: when the noise level needs to
be low but with a good comfort level.
Maximum air ow: for maximum performance.
The appliance automatically chooses the air ow based
on the temperature selected and the environmental
conditions (This is available only in the air conditioning
mode).
ARCTIC WHISPER (available in conditioning mode
only)
By activating this function, the operating noise is further re-
duced. To activate it, press (D2) button on the remote
control.The display shows the relative symbol (C12).
D

11
SETTING THE TIMER
The timer allows for the delayed start up or shut down of the
appliance.This function will prevent wasting electricity by opti-
mising the operating periods.
How to program delayed shut down
• While the appliance is on in any operating mode, delayed
shut down can be programmed.
• Press the timer key (D5): the timer symbol (C7) and hours
(C6) light up.
• Press the timer key until the desired numbers of hours to
shut down appears on the display (1,2,4,6,8,12 hours).
A few seconds after the timer is set, the setting is acquired, the
display shows the operating mode and the timer symbol stays lit.
Once the set time is elapsed, the air conditioner goes into standby.
To cancel the timer program, press the timer key (D5) twice.The
timer symbol (C7) will go o.
Note: Once the timer has been activated, by pressing the timer
key only one time, the remaining hours to shut down will be
displayed.
How to program delayed start up
• Plug in the appliance and set to standby.
• Press the timer key (D5): the timer symbol (C7) and hours
(C6) light up.
• Press the timer key until the desired numbers of hours to
start up appears (1,2,4,6,8,12 hours).
When the set time is elapsed, the appliance will start to operate
in the same operating mode that was previously set.
To cancel the timer program, touch the timer key (D5) twice.
The timer symbol (C7) will go o.
NOTE: Once the timer has been activated, by pressing the timer
key only one time, the remaining hours to the start up will be
displayed.
SWING FUNCTION
The SWING button (D4) moves the ap, evenly distributing the
air into the room.
When the SWING button is pressed, the ap will begin to move
forwards and backwards alternatively.
If pressed again, the ap will be locked into its current position.
When the button is next pressed, the ap will start to move
forwards and backwards again.
Notes:in order to avoid damaging the internal mechanisms, the
ap must not be moved manually.
Notes:
• This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasona-
ble protection against harmful interference in a residential
installation.
• This equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by turn-
ing the equipment o and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit dier-
ent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician
for help.
Changes or modications not expressly approved by the
party responsible for compliance could void the user’s au-
thority to operate the equipment.
• This device complies with Part 15 of the FCC Rules. Oper-

12
ation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
• This Class B digital apparatus complies with Canadian ICES-
003.
SELFDIAGNOSIS
The appliance has a self diagnosis system to identify a number of warning/malfunctions.
Error messages are displayed on the appliance display.
IF ... IS DISPLAYED,
“LowTemperature”
(frost prevention)
..WHAT SHOULD I DO?
The appliance is tted with a frost protec-
tion device to avoid excessive formation of
ice. The appliance starts up again auto-
matically when the defrosting process is
completed.
IF ... IS DISPLAYED,
Probe Failure
(Probe damaged)
..WHAT SHOULD I DO?
If this is displayed, contact your local au-
thorized service center.
IF ... IS DISPLAYED,
“High Level”
(Internal tray full)
..WHAT SHOULD I DO?
Empty the internal safety tank following
the instructions in the section“End of
season operations”.

13
TIPS FOR CORRECT USE
To ensure optimal results from your air conditioner, follow these
recommendations:
• close the windows and doors in the room to be air condi-
tioned When installing the air conditioner semi-perma-
nently, you should leave a door slightly open (as little as
0.39 inch. (1 cm)) to guarantee proper ventilation.
Close doors and windows
• Never use the appliance in very damp rooms (laundries for
example).
• Protect the room from direct exposure to the sun by par-
tially closing curtains and/or blinds to make the appliance
much more economical to run
Close blinds or curtains
• Never use the appliance outdoors.
• Make sure there are no heat sources in the room;
• make sure the air conditioner is standing on a level surface.
do not cover the appliance
• Never rest objects of any kind on the air conditioner;
• Never obstruct the air intake or outlet grilles;
CLEANING
Before cleaning or maintenance, turn the appliance o by
touching the button, then unplug from the outlet.
CLEANING THE CABINET
You should clean the appliance with a slightly damp cloth then
dry with a dry cloth. For safety reasons, never wash the air con-
ditioner with water.
Precautions
Never use petrol, alcohol or solvents to clean the appliance. Nev-
er spray insecticide liquids or similar.
CLEANING THE AIR FILTER
If the lter is dirty, air circulation is compromised and the e-
ciency of the appliance decreases.
It is therefore good practice to clean the lter at regular inter-
vals. The frequency depends on the duration and conditions of
operation.
If the unit is used constantly or systematically, you are recom-
mended to clean the lter once a week.
The lter is housed in the intake grille.

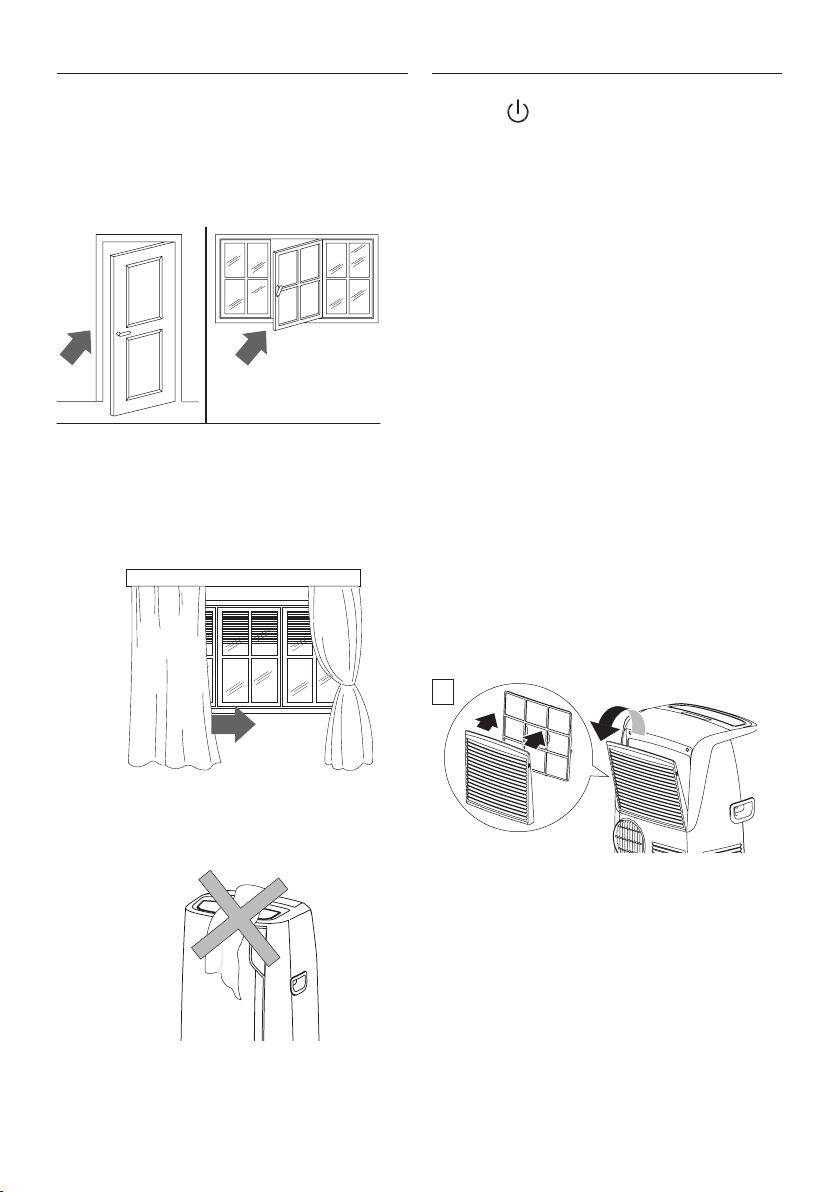

To clean the lter, extract as shown in g. 8.
To maintain the eciency of the air conditioner, it is recom-
mended to clean the dust lter after every week of use.
The lter is located near the intake grille. Remove the grille to
access the lter. To clean the lter, it will need to be extracted
as shown in g. 8.
8
Use a vacuum cleaner to remove any dust deposited on the lter.
If it is very dirty, submerge it into warm water and rinse it several
times.The water temperature must be kept below 104° F (40°C).
After washing the lter, allow it to dry completely before
repositioning it.

14
CHECKS AT THE START OF THE SEASON
Make sure the power cable and socket are in perfect condition
and make sure the earthing system is ecient. Comply strictly
with the installation standards.
END OF SEASON OPERATIONS

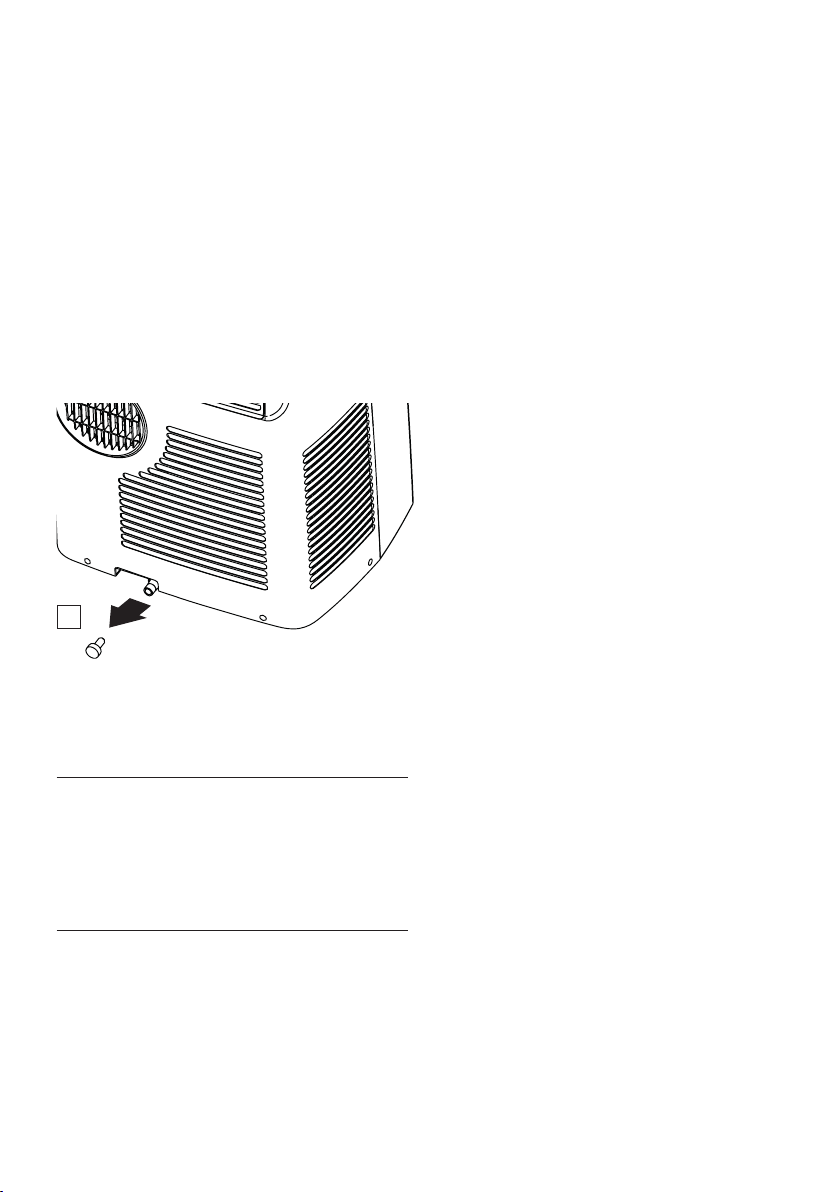

To drain all water from the circuit, remove the cap A11 from the
drainage on the back of the appliance and allow the water to
drain out into a basin (g. 10).
To facilitate thisoperation,atthe start of theseason, it’s possible
to apply the water drain hose with cap B6.
In order to properly storage the appliance at the end of the sea-
son, we suggest you cover it with the supplied end of season
dust cover B8 and you put the accessories in the relevant
end of season accessories bag B9.
10
When the appliance is empty, replace the cap.
Clean the lter and dry thoroughly before putting back.
TECHNICAL SPECIFICATIONS
Power supply voltage see rating label
Max. absorbed power during air conditioning “
Refrigerant “
Cooling capacity “
LIMIT CONDITIONS
Room temperature for
air conditioning 64 ÷ 95°F (18° ÷ 35°C)
Room temperature for
heating (on some models only) 50 ÷ 77°F (10 ÷ 25°C)
Transport, lling, cleaning, recovery and disposal of
refrigerant should be performed by a technical service
centre appointed by the manufacturer only.
Theappliance should bedisposedof bya specialistcentre
appointed by the manufacturer only.
TO AVOID DAMAGE TO THE UNIT:
NEVER TRANSPORT OR TURN THE APPLIANCE UPSIDE DOWN OR
ON ITS SIDE. IF THIS OCCURS, WAIT 6 HOURS BEFORE TURNING
THE APPLIANCE ON, 24 HOURS IS RECOMMENDED. After the unit
has been on its side, oil needs to return to the compressor to en-
sure proper function. Without allowing the unit this time (6-24
hours) the unit may function for only a short time, and then the
compressor will break down from lack of oil.
ELECTRICAL CONNECTION
This appliance is equipped with a 3 prong grounded plug. The
plug must be connected into an outlet that is properly installed
and grounded in the accordance with all local codes and ordi-
nances. Do not modify the plug provided with the appliance.
If it will not t the outlet, have a proper outlet installed by a
qualied electrician or relocate the unit to a proper outlet. If the
household electrical supply does not meet the above specica-
tions, or if you are not sure your home has an eective electrical
ground, have a qualied electrician or your local electrical utility
company check it and correct any problems.
SAFETY PLUG
The appliance is tted with a safety plug to protect the power
cable. If power is cut o, unplug from the outlet and make sure
the power cable is undamaged. If the cable is damaged, call the
service center immediately. If power cuts o frequently and the
power cable is undamaged, contact a qualied electrician.
OPERATION OF THE SAFETY PLUG
If the safety device incorporated in the plug trips and cuts o
the power supply, check that the power cable and plug are not
damaged. If the power cable is undamaged, to restore operation
press the“RESET”button. To verify correct operation of the plug,
press the“TEST”button periodically and make sure the appliance
disconnects. If this is not the case, contact the service center. To
restore operation, press the“RESET”button.

15
TROUBLESHOOTING
Check the following points before calling the authorised Technical Service Centre in your area.
PROBLEMS CAUSES SOLUTIONS
The air conditioner does not turn on lt is not plugged in plug it in
there is no power wait
the internal protection device was triggered call the help centre
The air conditioner works for a short
period of time
the air exhaust hose is obstructed or bent correctly position the air exhaust hose,
limiting the length and curves as much
as possible and avoiding any obstructions
an obstruction is impeding air exhaust
outside
identify and remove the obstacles that
impede air exhaust outside
The air conditioner runs but does not cool
the room
windows, doors, drapes open close the windows, doors and drapes,
keeping in mind the “recommendations
for proper use”
there is some heat source in the room
(oven, hair dryer, etc.)
eliminate the heat source
the air exhaust hose is disconnected from
the appliance
attach the air exhaust hose to the housing
on the back of the appliance (g.1)
dust lters clogged clean or replace the lters as previously
described
the technical characteristics of the
appliance are not suitable for cooling the
room where it is located
During operation there is an unpleasant
odour in the room
dust lters clogged clean or replace the lters as previously
described
The air conditioner does not work for
about 3 minutes from restart
to protect the compressor there is an
internal device that delays startup for
about 3 minutes from restart
wait;
The display shows the symbol with
one of the following messages:
HL/PF
the appliance has a self-diagnosis system
that identies some operating errors
refer to the SELF-DIAGNOSIS chapter

16
Précautions importantes
• Utilisez cet appareil uniquement tel que décrit
dans le présent manuel d’instructions.
Comme avec tous les appareils électriques, les
instructions visent à couvrir autant de situations
que possible. Il faut utiliser des précautions
et du bon sens lorsque vous installez et faites
fonctionner ce conditionneur d’air.
• Cet appareil a été fabriqué pour refroidir et
déshumidier les environnements domestiques
et il ne doit pas être utilisé dans d’autres buts.
Il est dangereux d’altérer ou de modier les
caractéristiques de l’unité de toutes façons.
• L’appareil doit être installé conformément à la
législation nationale.
• En cas de réparations, contactez le Centre de
service de réparations le plus proche 1-800-
322-3848. Il peut être dangereux de réparer
l’appareil sans autorisation.
• L’appareil n’est pas prévu pour des personnes (y
compris des enfants) dont les capacités physiques,
sensorielles ou mentales sont diminuées, ou
manquent d’expérience et de connaissances, sauf
s’ils reçoivent de la supervision ou des instructions
sur l’utilisation de l’appareil par une personne
responsable de leur sécurité.
Les enfants doivent être supervisés pour
s'assurer qu'il ne jouent pas avec l’appareil.
• Si le câble d'alimentation est endommagé, il
doit être remplacé par le fabriquant ou un centre
de maintenance technique autorisé an d’éviter
tout risque.
• Vériez toujours que l’appareil est branché dans
une prise à 3 ches reliée à la terre. Si vous avez
des doutes, vériez avec un électricien qualié.
• N’utilisez pas de rallonge.
• Avant toute opération de nettoyage ou de
maintenance, débranchez toujours l’appareil de
la prise.
• Ne tirez pas sur le cordon d’alimentation ni
n’appliquezdecontrainteslorsque vousdéplacez
l’appareil.
• L'appareil ne doit pas être installé là
où l’atmosphère peut contenir des gaz
combustibles, de l’huile ou du soufre, ou près
d’une source de chaleur.
• Ne posez pas d’objets chauds ou lourds sur
l’appareil.
• Nettoyez les ltres au moins une fois par
semaine.
• Évitez d’utiliserdeschauagesprèsdel’appareil.
• L’appareil doit être transporté en position
verticale. S’il n’est pas possible de placer
l’appareil dans un angle, ne le couchez pas
horizontalement.
• Avant de transporter l’appareil, purgez-le. Après
le transport, attendez au moins 6 heures avant
d'allumer l’appareil.
• Les matériaux d’emballage sont recyclables.
Vous devriez par conséquent les placer dans des
conteneurs spéciaux pour le tri sélectif des déchets.
• Cet appareil est équipé d’un dispositif de sécurité.
Lorsque le compresseur est éteint, ce dispositif
l’empêche de s'allumer pendant 3 minutes.
• AVERTISSEMENT : Les modications non
expressémentapprouvéesparl’entitéresponsable
de la conformité peuvent annuler l’autorisation
de l’utilisateur d’utiliser l’équipement.
Avertissements spéciques concernant les
appareils contenant du gaz réfrigérant R410A
Le R410A est un réfrigérant qui respecte les normes
écologiques européennes ; néanmoins, il est
recommandédenepaspercerlecircuitderefroidissement
de la machine. A la n de sa vie utile, remettez
l’appareil à un centre de collecte des déchets spéciaux
pour son élimination. Ce système hermétiquement
scellé contient des gaz à eet de serre uorés.
INFORMATIONS ENVIRONNEMENTALES :
Cet appareil contient des gaz à eet de serre uorés
couverts par le protocole de Kyoto.
La maintenance et l’élimination doivent être
eectuées uniquement par du personnel qualié
(R410A, GWP=2088).
Conservez ces
instructions
Ce produit est destiné au
foyer uniquement.

17
INTRODUCTION
Merci d’avoir choisi un produit De’Longhi. Veuillez prendre
quelques moment pour lire les instructions an d’éviter les
risques ou d’endommager l’appareil.
DESCRIPTION
Description de l’appareil (voir page 3 - A).
A1 Volet de sortie d'air
A2 Tableau de commande
A3 Poignées
A4 Roues
A5 Récepteur du signal de la télécommande
A6 Logement de la télécommande
A7 Filtre
A8 Grille d’entrée d’air
A9 Logement du exible d’évacuation d’air
A10 Grille d’entrée d’air
A11 Flexible de purge avec bouchon
A12 Câble d’alimentation électrique
Description des accessoires (voir page 3 - B).
B1 Bride murale avec bouchon
B2 Flexible d’évacuation d’air (dessiné avec les adaptateurs
déjà montés dessus)
B3 Bouche de sortie pour fenêtre
B4 Support de fenêtre avec goupille de verrouillage
B5 Supportdefenêtresupplémentaireavecgoupilledeverrouillage
B6 Flexible de purge de l'eau avec bouchon
B7 Télécommande
B8 Pare-poussièreden de saison(uniquem.sur certains modèles)
B9 Sac d'accessoires de n de saison (uniquement sur certains
modèles)
B10 Bande en mousse
Raccord électrique
Avant de brancher l'appareil dans la prise, vériez les points
suivants:
• L’alimentation électrique de la prise secteur correspond à la
valeur
indiquée sur la plaque signalétique à l’arrière de l’appareil;
• La prise et le réseau électrique conviennent à
l'appareil;
• La prise est une prise à trois ches reliée à la terre . Si
ce n’est pas le cas, vous devez choisir une autre prise. Le non
respect de ces instructions de sécurité importantes dégage
le fabricant de toute responsabilité.
Si cela devient nécessaire, le câble d’alimentation doit
être remplacé uniquement par un professionnel qualié.
Les instructions ci-dessous vous permettront de préparer votre
climatiseur aussi ecacement que possible avant sa mise en ser-
vice. Avant de l’utiliser, assurez-vous que les grille d’entrée et de
sortie d’air ne sont pas obstruées.
UTILISATION
Remarque: Cet appareil est doté de la fonction évapora-
tion automatique pour éliminer la condensation
d’eau en excès lorsqu’il fonctionne en mode re-
froidissement ou déshumidication.
INSTALLATION MURALE DU CLIMATISEUR
An d’obtenir des résultats optimaux, installez votre ap-
pareil de la façon suivante:
• Logez le exible d’évacuation d’air monté B2 dans le boîtier
à l’arrière de l'appareil en utilisant l’adaptateur du exible.
Placez le symbole du cadenas ouvert reporté sur l’adapta-
teur en face de la èche à l’arrière de l’appareil et tournez
dans le sens inverse des aiguilles d’une montre jusqu’à ce
que la èche soit alignée avec le symbole du cadenas fer-
mé. (voir gure 1).
1
• Respectez les distances données dans la gure 2.
2
min. 11.8 in
min. 30 cm
min. 11.8 in
min. 30 cm
Procédez comme suit:
• percez un trou ø 134 mm dans un mur extérieur ou dans le
bord en bois d’une fenêtre. Respectez les dimensions et la
hauteur de l’orice donné dans la gure 3 et 4.

18
134
Ø 5,25 in
3
dans la planche en
bois d’une fenêtre
française ou d'un
panneau
dans le mur:
Il vaut mieux
que vous isoliez la section
de mur à l’aide d’un
matériau isolant approprié.
• Introduisez la bride de montage murale B1 dans l’orice.
• Placez le exible B2 dans la bride murale B1 tel qu'illustré
à la g. 4.
• Lorsqueleexible B2 n’est pasconnecté,l’orice percé peut
être fermé avec le bouchon de la bride B1.
4
max 39 in
max 100 cm
min 14 in
min 35 cm
• Lorsque vous installez le conditionneur d’air, vous devriez
laisser une porte légèrement ouverte (1 cm environ) an
de garantir une ventilation et une pression correcte dans la
pièce.
• Conservez les tuyaux d'air aussi courts et exempts de cour-
bures que possible an d'éviter les étranglements.
Remarque:
• Étant donné qu’il est nécessaire, pour ce type d’ins-
tallation, d’utiliser des outils spéciaux, nous vous
conseillons de faire installer l’appareil par un pro-
fessionnel.
INSTALLATION DU CLIMATISEUR À UNE FENÊTRE
Vous pouvez également installer l’appareil dans une fe-
nêtre à guillotine:
• Placez le support pour fenêtre sur le rebord de la fenêtre,
étendrele supportsur toute la largeur ducadre de lafenêtre,
xez le support en utilisant la goupille de verrouillage. At-
tachez la bande en mousse fournie sur le support pour fe-
nêtre, puis fermez la fenêtre sur le support. (Si le support de
fenêtre est trop grand pour la fenêtre, le plastique peut être
coupé à l'aide d'une scie par un professionnel qualié.)
• Logez le exible d’évacuation d’air B2 dans le boitier prévu situé
à l’arrière de l’appareil en utilisant l’adaptateur du exible. Placez
le symbole du cadenas ouvert reporté sur l’adaptateur du exible
en face de la èche à l’arrière de l’appareil et tournez dans le sens
inverse des aiguilles d’une montre jusqu’à ce que la èche soit ali-
gnéeaveclesymboledu cadenasfermé,commedansla g.1.
• Raccordezla bouchedesortiefenêtreB3 à l’autreextrémité
du exible d’évacuation d’air en utilisant l’adaptateur.
• Insérez la bouche de sortie fenêtre B3 du exible d'évacua-
tion dans la fente du support de fenêtre (g. 5).
5
Autre méthode d'installation:
• Grâceauxgoupillesde verrouillage,ilestpossible d’utiliser le
support de fenêtre également pour les fenêtres coulissantes.
Positionnez l’orice du support an de permettre une instal-
lation correcte du exible d’évacuation (voir la gure 6).
6

19
• Dans le cas d’une fenêtre à battants (gure 7) procédez de
la façon Suivante:
• Logez le exible d’évacuation d’air monté B2 dans le boîtier
prévu à l’arrière de l'appareil, en utilisant l’adaptateur du
exible. Placez le symbole du cadenas ouvert reporté sur
l’adaptateur du exible en face de la èche à l’arrière de
l’appareil et tournez dans le sens inverse des aiguilles d’une
montre jusqu’à ce que la èche soit alignée avec le symbole
du cadenas fermé, comme dans la gure 1. Fixez ensuite la
bouche de sortie fenêtre B3 au exible d’évacuation d’air
B2 et placez-la à l’extérieur de la fenêtre pour permettre
l’évacuation de l’air chaud.
7
Pour toute assistance concernant l’installation, le
fonctionnement et pour tous les accessoires et pièces
de rechange, veuillez contacter notre centre d’appel de
maintenance (appel gratuit) à:
1-800-322-3848 [États-Unis uniquement]
1-888-335-6644 [Canada uniquement]
Ou connectez-vous sur notre site web à www.delonghi.
com
C5
C7
C8
C9
C6
C3
C4
C2
C1
C10
C11
C12
C13
C14
C15
C17
C16
DESCRIPTION DU PANNEAU DE COMMANDE (C)
C1 MARCHE/VEILLE touche marche/arrêt
C2 Bouton de sélection des fonctions MODE (climatisation,
déshumidication, ventilation, chauage, ECO REAL FEEL)
C3 Touche d'augmentation
C4 Touche de diminution
C5 Indicateur de température
C6 Indicateur de la minuterie
C7 Symbole de la minuterie
C8 Symbole fonction climatisation
C9 Symbole fonction déshumidication
C10 Symbole fonction ventilation
C11 Symbole fonction chauage (uniquement sur certains
modèles)
C12 Symbole fonction ArcticWhisper
C13 Indicateur Auto
C14 Indicateur du débit
C15 Symbole de l’alarme
C16 Symbole ECO REAL FEEL
C17 Dénit les valeurs de température, les heures de marche/
arrêt programmées
PANNEAU DE COMMANDE
C

20
FONCTIONNEMENT
MISE EN MARCHE/EXTINCTION DE L’APPAREIL
Avant de brancher l’appareil vé-
riez toujours que les bouchons
qui se trouvent à l’arrière de l’ap-
pareil sont bien insérés dans le
drainage A11.
Branchez l’appareil.
Deux lignes sur l’acheur indiquent
que l’appareil est en veille.
Appuyez sur la touche (C1) pour
mettre l’appareil en marche. Lorsque
l’appareil s’allume, la dernière fonction
activée avant l’extinction se réactive.
REMARQUE: Après quelques secondes
d’inactivité du panneau de com-
mande, sa luminosité sera automati-
quement réduite et, dans les minutes successives, il sera encore
réduit.Pour éteindre l’appareil, appuyez sur la touche .
Remarque : N’éteignez jamais le conditionneur d’air en dé-
branchant simplement la prise. Appuyez sur la touche an
deplacer votreconditionneur d’airen veille et attendez quelques
minutes avant de débrancher la prise. De cette manière, l’appa-
reil peut eectuer les vérication de l’état fonctionnel.
SÉLECTION MODES
Pour sélectionner le
mode de fonctionnement désiré,
appuyez plusieurs fois sur la touche
MODE jusqu’à ce que la fonction sou-
haitée soit sélectionnée.
MODE DE CONDITIONNEMENT D’AIR
Ceci est idéal pour les climats chauds et
humide lorsque la pièce doit être à la fois
refroidie et déshumidiée.
Pour régler correctement ce mode :
• Appuyez plusieurs fois sur la touche
MODE jusqu’à ce que le symbole de
conditionnement d’air apparaisse.L’écran
va acher la température désirée.
• Pour modier la température à at-
teindre, appuyez sur la touche ou .
Remarque: Les températures les plus
adaptées pendant l’été sont comprises
entre 24et 26°C. Cependant, il n’est pas recommandé de ré-
gler la température beaucoup plus bas que la température ex-
térieure. En mode conditionnement, le débit d’air ne peut être
sélectionné qu’à partir de la télécommande.
MODE DÉSHUMIDIFICATION
Ceci est idéal pour réduire l’humidité dans la
pièce (au printemps et à l’automne, pièces
humides, périodes pluvieuses, etc). Pour ce
type d’utilisation, l’appareil doit être réglé
en mode conditionnement de l’air. En
d’autres termes,le exible d’évacuation(B2)
doit être xé sur l’appareil pour permettre à
l’humidité de se décharger à l’extérieur.
Pour régler correctement ce mode :
• Appuyez plusieurs fois sur la touche
MODE jusqu’à ce que le symbole de
déshumidication apparaisse.
• L’appareil choisit automatiquement le
meilleur débit de l’air.
MODE VENTILATEUR
Lorsque vous utilisez ce mode, le exible
d’évacuation d’air (B2) n’a pas besoin
d’être xé à l’appareil.
Pour régler correctement ce mode :
• Appuyez plusieurs fois sur la touche
MODE jusqu’à ce que le symbole du
ventilateur apparaisse.
• Sélectionner le débit d’air désiré en
appuyant sur la touche augmenter
baisser.
Les débits d’air disponibles sont :
Débit minimum : quand le fonctionnement le
plus silencieux est désiré.
Débit d’air moyen:lorsque le niveau doit être
faible mais sans nuire au niveau de confort.
Débit d’air maximum: pour un rendement
maximum.
MODE CHAUFFAGE uniquement sur certains modèles)
C’est idéal au printemps et en automne
lorsque les températures extérieures ne
sont pas particulièrement sévères. Pour
ce mode, l’appareil doit être préparé de
la même manière que pour le condition-
nement de l’air, avec le tuyau d’évacuation
d’air (B2) xé.
Pour régler ce mode :
• Appuyez plusieurs fois sur la touche
MODE jusqu’à ce que le symbole de dés-
humidication apparaisse.
• Appuyez sur les touches augmenter
(C3) ou baisser (C4) pour régler la
température désirée.
