Important safeguards
•Use this appliance only as described in this instruction manual.
As with any electrical appliance, whilst the instructions aim to cover as many eventualities as
possible caution and common sense should be applied when operating and installing this air
conditioner.
•This appliance has been manufactured to cool and de-humidify domestic environments and
should not be used for other purposes.
•It is dangerous to alter or modify the unit's characteristics in any way.
•The appliance must be installed in line with the relevant national legislation.
•Should repairs be necessary, contact the nearest authorised Repair Service Centre. Unautho-
rised servicing can be dangerous.
•This appliance is to be used by adults only; keep away from children.
•In the case that the power cable becomes damaged, this must be substituted only by specialised
personnel authorised by the manufacturer.
•Always ensure the appliance is earthed. If you have any doubts check with a qualified elec-
trician.
•Avoid using extension leads with the unit.
•Before cleaning or maintenance operations, always unplug the unit from the socket.
•Do not pull on or place strain on the power cable when moving the appliance.
•The appliance should not be installed where the atmosphere may contain combustible gases,
oil or sulphur, or near heat sources.
•If the appliance is utilised in areas where there is no ventilation of air, it is necessary to take pre-
cautions to avoid that the refrigerant gases that may leak from the appliance do not remain
in the room, thereby causing a fire hazard.
•This appliance must be utilised and installed only in rooms with a total volume of 15 cubic metres
or greater.
•The refrigerant gases R290 conform to EC regulations on the environment. Avoid perforating
the refrigerant circuit of the appliance.
• Keep the unit at least 50 cm away from inflammable substances (alcohol etc) or pressurised con-
tainers (eg. aerosol cans).
•Do not rest hot or heavy objects onto the appliance.
•Clean the dust filter at least once a week.
•Remember to perform the descaling procedure at the end of each season (see page 37). In
areas where the water is particularly hard (rich in minerals), the use of a commercial anti-lime
product added to the water is recommended. This can be requested from De’Longhi LTD.
•Avoid using heaters near the unit.
•Do not cover this appliance with bags when is not in use
•Unventilated area where the appilance using flammable refrigerants is installed shall be so con-
structed that any leaked refrigerants will not stagnate so as to cause a fire or an explosion hazard
caussed by igniting stagnant refrigerants from other source such as electric heater, stove and simi-
lar home applications.
•The unit should be transported in a vertical position. If this is not possible secure the unit at an
angle, do not lie horizontally.
Before transporting the unit drain the condensation collecting-tray and tank. After transporta-
tion, wait at least 1 hour before switching on the unit.
•The packaging materials can be recycled. You are therefore recommended to place them in
the special containers for differentiated waste collection.

23
ENGLISH
During the summer, optimum comfort is achieved with a temperature of between 24 and 27˚C
and about 50% relative humidity.
An air conditioner removes moisture and heat from the room where it is located. One advantage
of portable air conditioning units over fitted models is that they can be moved from one room to
another in the home or even transferred between different buildings.
The hot air in your room is passed through a coil
cooled by refrigerant gas, losing excess
heat and moisture before being
discharged again into the room.
In single unit models (Pinguino), a
small part of this air is used to
cool the refrigerant gas befo-
re, hot and moist air is being
discharged outside.
In suitcase models, the cir-
cuit is cooled using the air
outside.
ECO by Pinguino is the
latest generation of ecolo-
gical air conditioners. Pin-
guino does not contain
gases dangerous to the
earth's ozone layer
(CFC/HCFC). In addition,
thanks to the extreme effi-
ciency of the appliance, not only
does it save you money on your
electric bills, but it saves the environ-
ment by not negatively contributing to
the greenhouse effect."
How does your Pinguino work

24
The following instructions will help you set up your air conditioning unit as efficiently as possible.
AIR CONDITIONING WITHOUT INSTALLATION
FOR INSTANT TEMPORARY USAGE
With just a few simple operations, Pinguino will
restore comfortable conditions in your room:

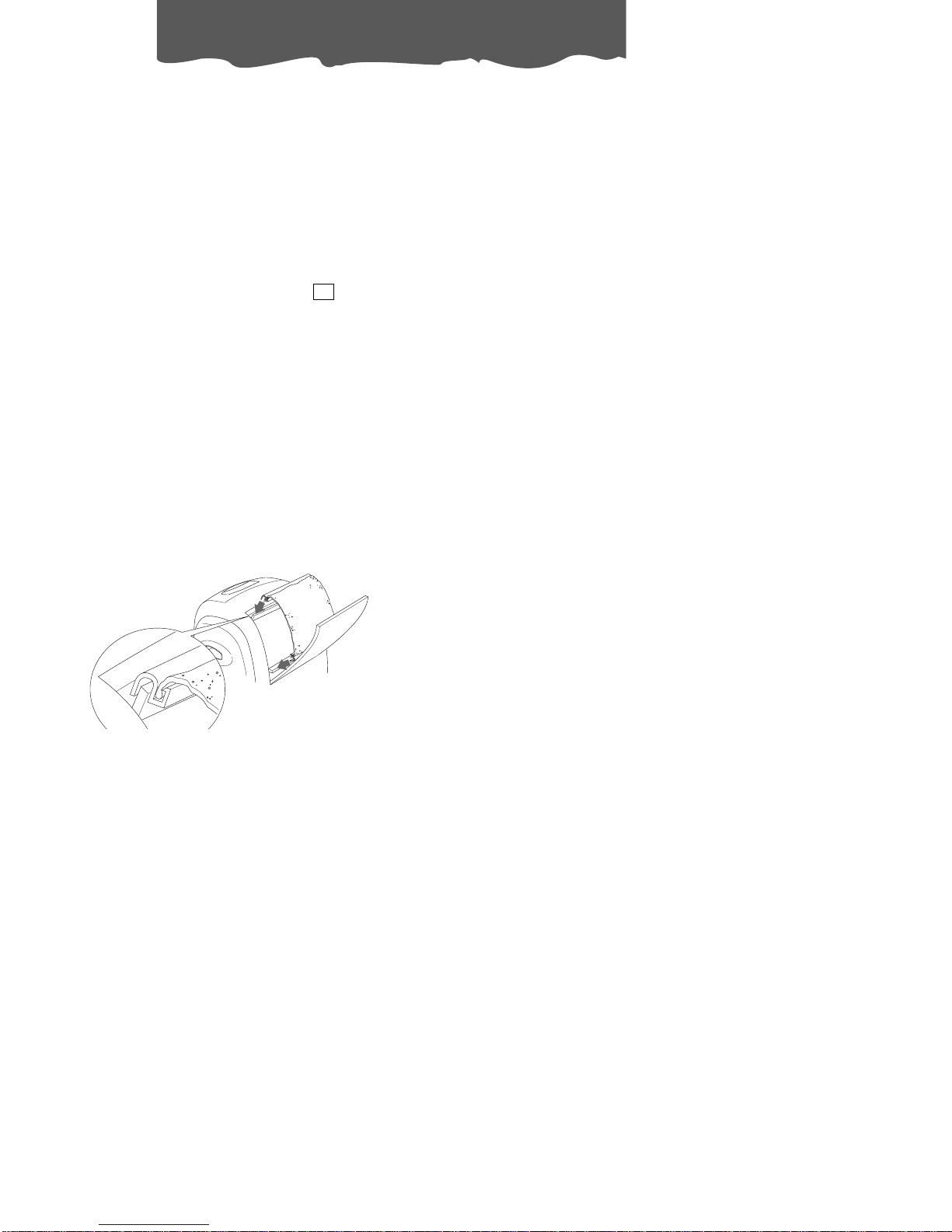

•Fix the exhaust hose to the coupling
on the back of the unit as shown in figu-
re A.
12
16
•With a double casement window, use the
suckers provided to hold the two hal-
ves of the window together (fig. C).
18
•Fix the window attachment to the end
of the hose .

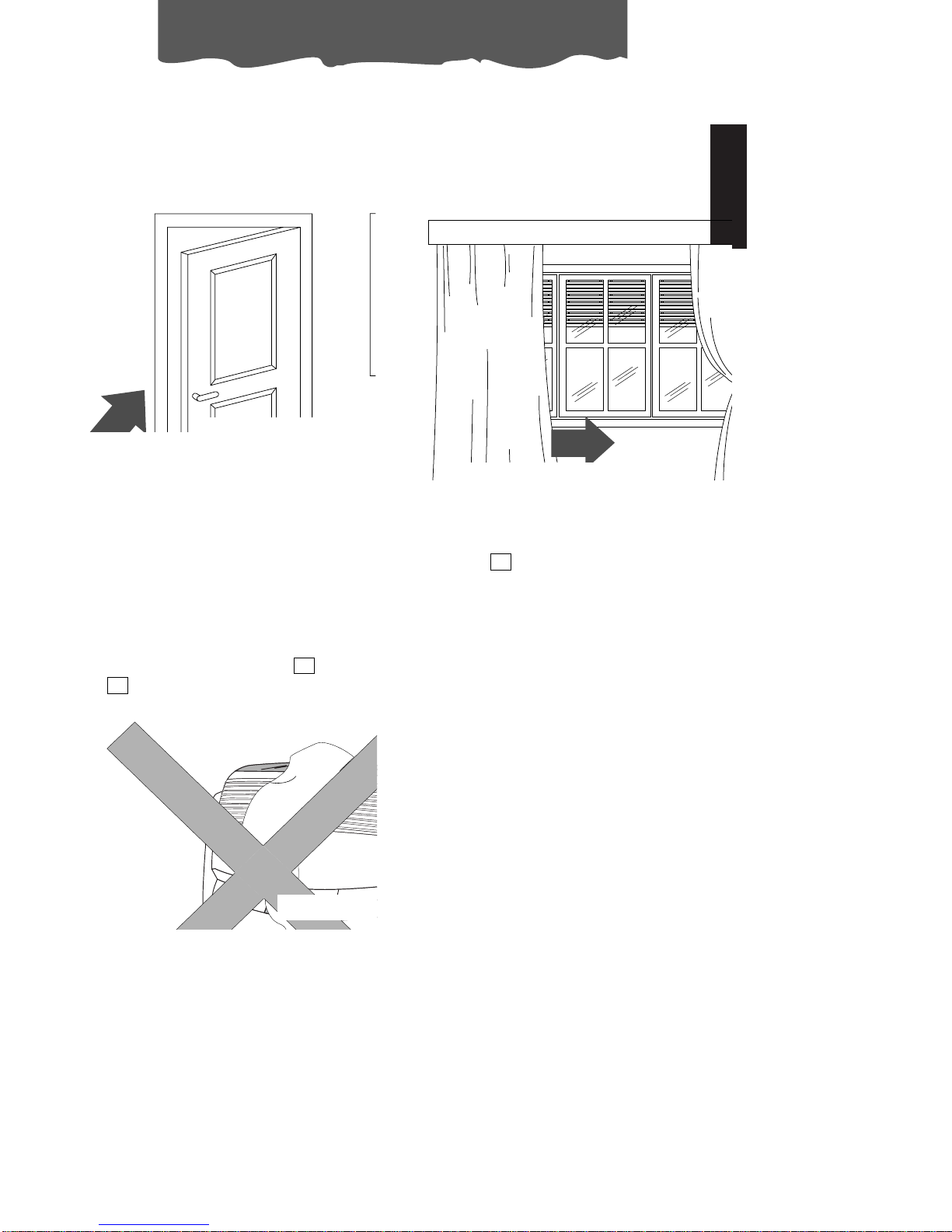

•Place the unit near a window French win-
dow or door.
•Open the window, French window or door
slightly and place the window attachment
as shown in figure B.
17
17 16
Description and setting up
1
2
AB
C
DESCRIPTION OF THE APPLIANCE
1) Remote control unit compartment with
cover
2) Control panel
3) Manual function button
4) Air outlet grill
5) Open-out handle
6) Front panel
7) Tray
8) Tank
9) Reset button
10)Air intake grill
11)Handle
12)Air exhaust hose fitting
13) Drain tube
14) Air intake grill
15)Flange bung
16)Air exhaust hose
17)Nozzle for air exhaust hose
18)Suction cups
19)Wheel locks
20)Descaling liquid

25
ENGLISH
Setting up
AIR CONDITIONING WITH INSTALLATION
For more efficient use Pinguino can also be
semi-permanently installed
•Fit the flange supplied to the hole.
•Fix the hose to the coupling on the
back of the unit (figure A).
•Attach the end of the hose to the flan-
ge as shown in the figure E.
15
16
16
15
To install, proceed as follows:

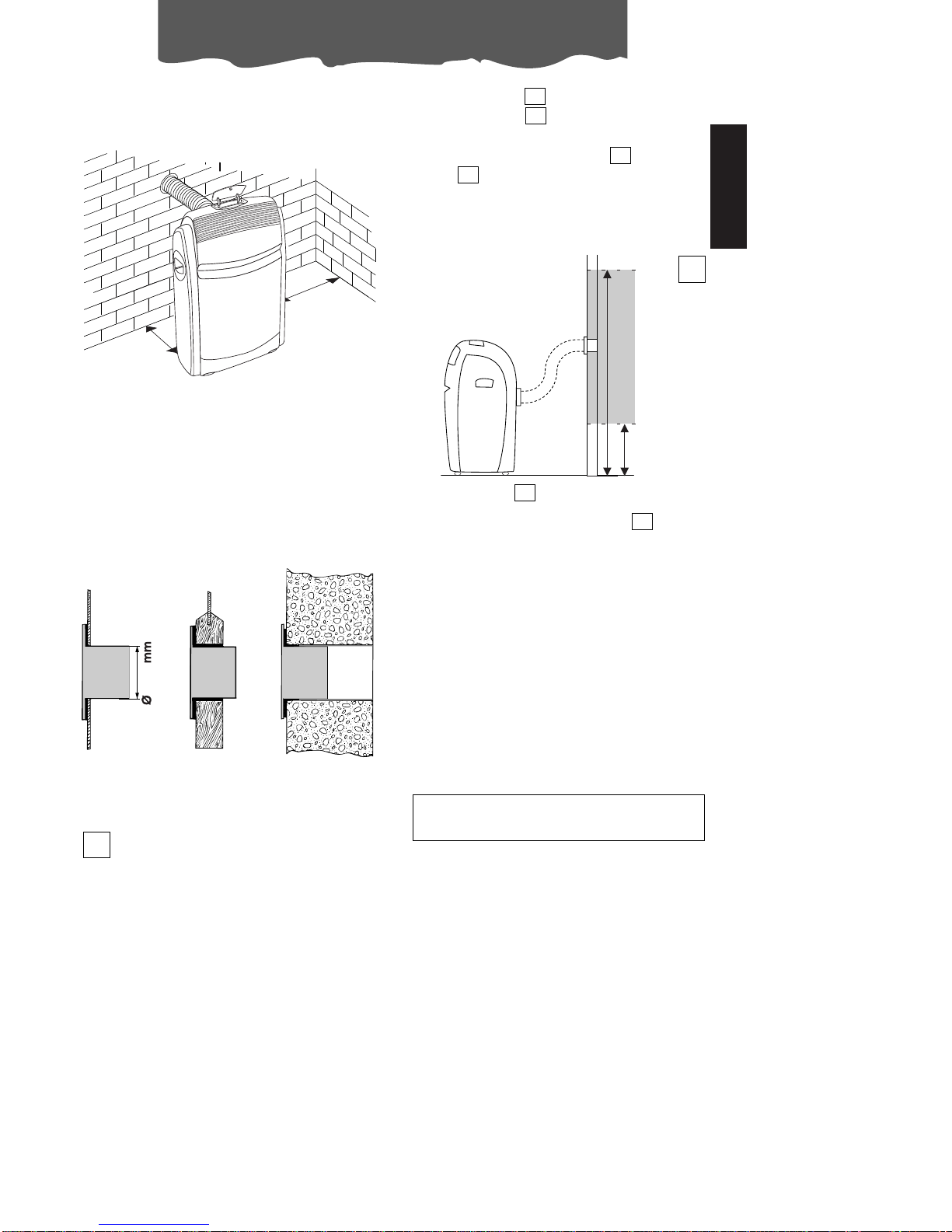

•Make a hole in a outside wall or through
the glass of a window. Check the height
and dimensions given in figure D
30 cm
30 cm
106
MAX 120 cm
MIN 30 cm
When the hose is not attached, close the
hole with the bung on the flange .
NOTE:
When the unit is installed semi-permanently,
we recommend leaving a door slightly open
(1 cm is enough) to ensure an adequate
exchange of air.
15
16
in a window
pane in the wall: for
optimum results,
insulate the sec-
tion of the wall
with suitable
insu-lating mate-
rial.
in the
wood sill of
a window
D
E
Keep the air hoses as short and free of cur-
ves as possible to avoid constrictions.

26
Preparation for use
HOW TO USE THE AIRCONDITIONER WITH WATER
These air conditioners can use both air and water to cool the condenser (the hot part) of the air
conditioner.
To utilise the full potential of your air conditioner, the tank needs tobefilledwith water.Thewater
is used. To increase the cooling power and reduce the noise level and energy consumption of the air
conditioner. The water that is used in then expelled from the machine as water vapour through the
exhaust hose (it does not go into room).
Always use clean top water (which doesn’t contain salts). As a rule the water will usually last about 8
hours however this depends on the conditions within the room, such as temperature, humidity, insula-
tion and aspect and number of people. In turbo mode the water will also be used more quickly.
You may also use the airconditioner on air cooling only (without filling the water tank . If you only requi-
re the lower cooling power.
16
8

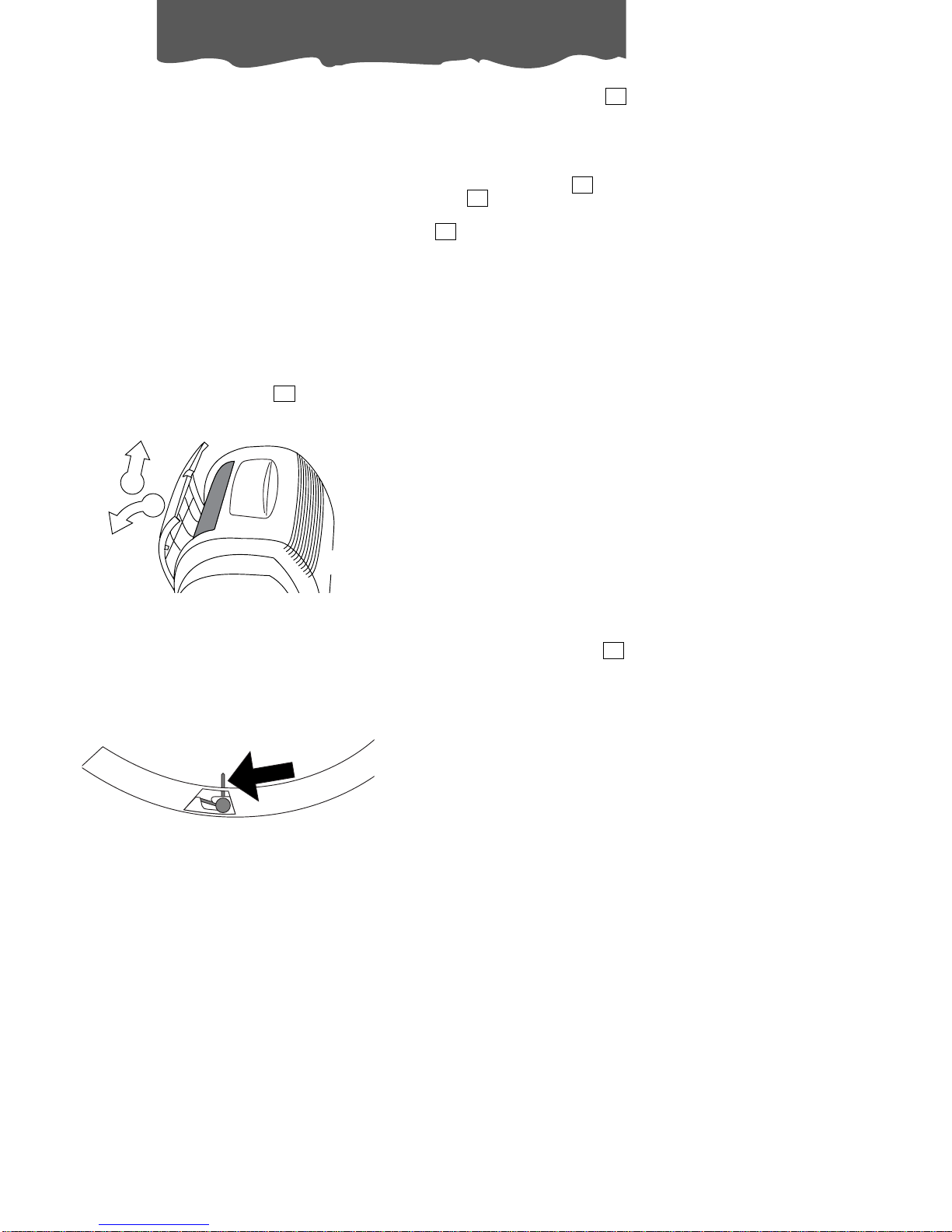

A) To open the front panel
grip either side of the
panel and gently pull the
panel towards you and
upwards. Remove the tank
Lifting it forward.
8

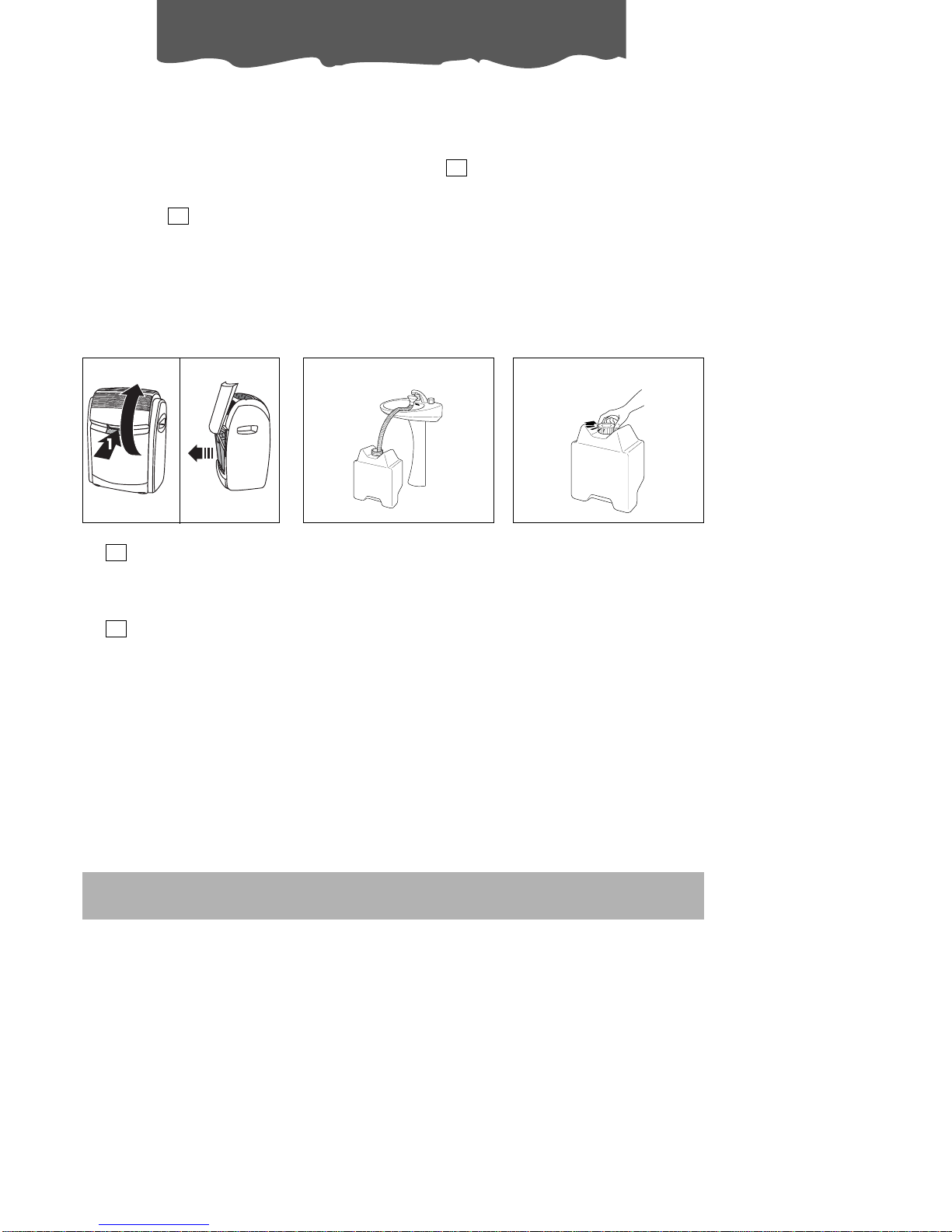

6B) Turn the tank upside down
and remove the plug,
remove the extendible
tube and fill the tank, lea-
ving it on the ground.
C) After completing the fil-
ling procedure, replace
the extendible hose,
replace the cap and
screw it in tightly. Return
the tank to its place, with
the writing FRONT clearly
visible. Carefully hold the
panel in the centre and
lower to its closed posi-
tion.
During the "water functioning" operation and in particularly silent locations (eg the bedroom) a
slight gurgling sound may be heard. This is completely normal.
IMPORTANT: if the room temperature is 32°C or over the airconditioner must be operated with with
water in the tank.
2

27
ENGLISH
Description of the remote control
When the remote control is not used, it can be stored in the foreseen compartment . To open
the compartment press “push”. 1
SLEEP TIMER
MODE
SW ING FAN
SM ART SUPER
Low
Low
High
High
C
h
AI
H
G
F
C
B
D
E
B

28
Description of the remote control/
Electrical connection

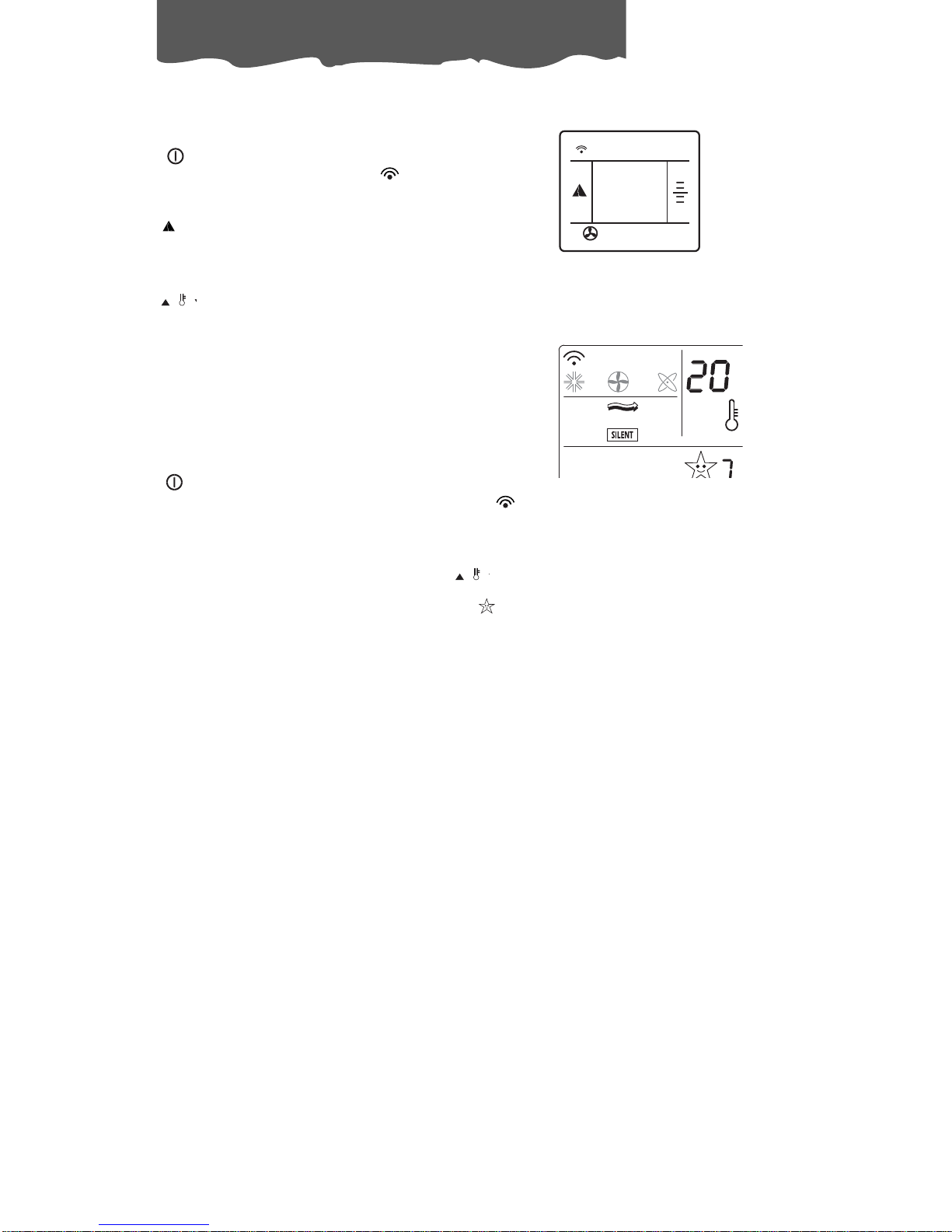

IL DISPLAY
Signal transmission
Air conditioning indicator
Dehumidifying indicator
Fan indicator
Heating indicator (mode not available
with this appliance)
SUPER air conditioning indicator
SMART indicator
SLEEP indicator
Automatic fan speed
High fan speed
Medium fan speed
Low fan speed
Regulates temperature in SMART or
Dehumidifying mode.
A. MODE button
Selects the operating mode (air conditio-
ning, dehumidifying, fan).
B. ROOM TEMPERATURE buttons
Set room temperature or programme the
timer.
Low
High
Low
High
Low
High
Low
High
Low
High
Low
High
Low
High
Low
High
Low
High
Low
High
Low
High
C. FAN button ( )
Sets fan speed to automatic, high,
medium or low in sequence.
D. TIMER button
Sets or cancels the timer.
E. SMART button ( )
When this button is pressed, the appliance
automatically establishes the most suita-
ble operating mode for maximum
comfort.
F. SUPER button ( )

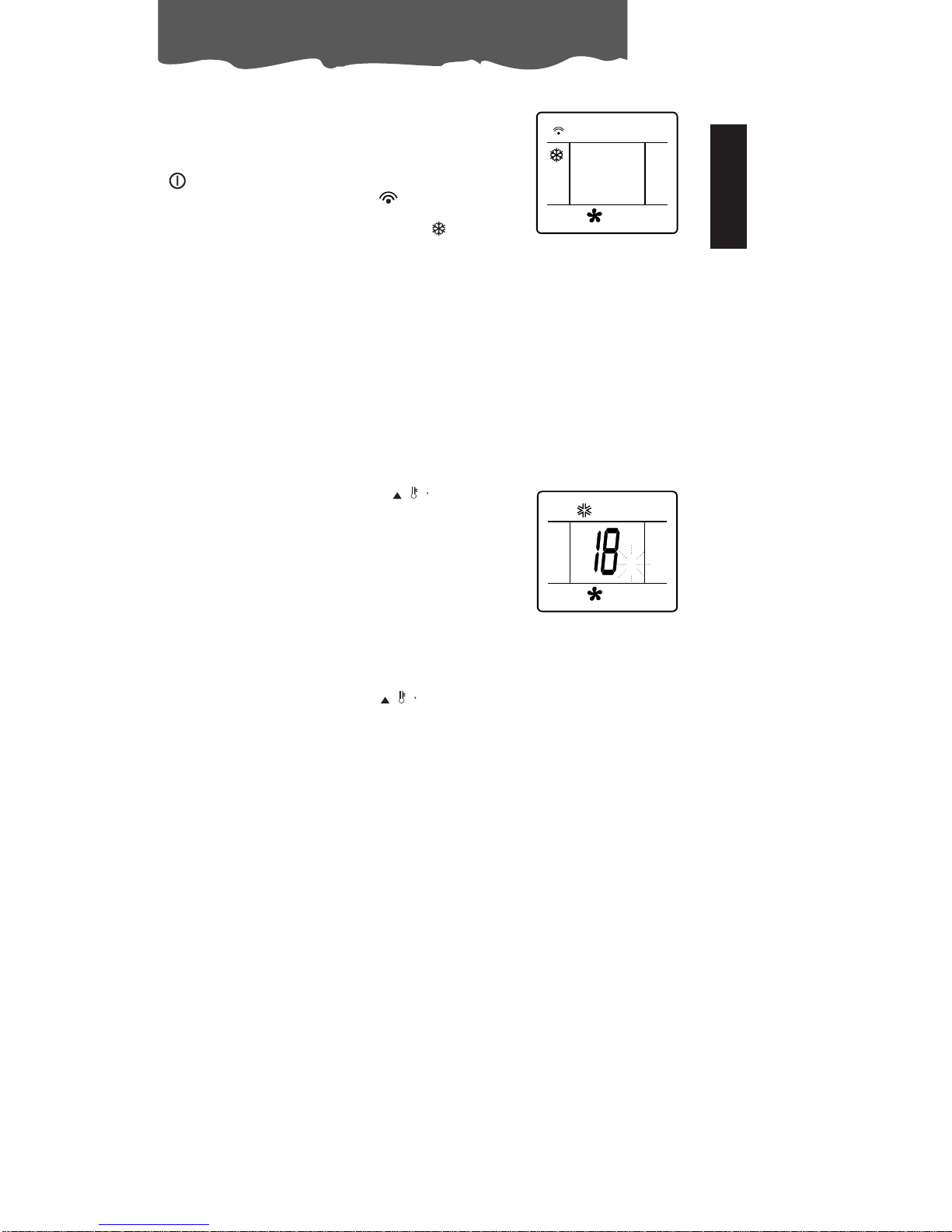

Starts or stops rapid cooling (in the rapid
cooling mode, the fan operates at high
speed with the temperature automatical-
ly set at 18°C).
G. SLEEP button ( )
Sets or cancels the automatic SLEEP func-
tion.
H. SWING button (wall mounted models only)
Starts or stops swing of the air distribution
vertical adjustment fins and sets the requi-
red air flow direction upwards or
downwards.
I. ON/OFF button
Press this button to turn the appliance on
and off. NB: the settings are displayed
even when the air conditioner is off.
Low
High
Low
High
Low
High
Low
High
LowLow
HighHigh
Low
High
ELECTRICAL CONNECTION
Before plugging in check that:
•the mains supply corresponds to the value shown in the specifications table;
•the socket and the mains lead correspond to the power requirements of the appliance;
•the socket is suited to the plug otherwise have the socket replaced;
•the socket is properly grounded. The manufactures cannot be held responsible for any dama-
ges due to failure in following normal safety procedures.
Replacement of the power cable must be carried out by qualified personnel.

29
ENGLISH
Warning lights/Forced operations
manual function button
THE LEDS
Led displays come on depending on the selected function or as warning of possible anomalies.
ANOMALY GREEN LIGHT YELLOW LIGHT
ALARM* blinking blinking
FUNZIONE GREEN LIGHT YELLOW LIGHT
OFF --
AIR-CONDITIONING on -
DEHUMIDIFYING on -
FAN -on
SMART
TIMER
As soon as this function is selected, all LED displays will remain on for some seconds until the control
unit selects which mode to function in (whether air-conditioning, dehumidifier, fan or heater).
TIMER - if the TIMER mode is selected, the indicator lights remain on even when the appliance is
off.
FORCED OPERATIONS
This is a way of operating to be selected if there are problems with the remote control (broken or
lost, or the batteries run-down).
Press the button until the required mode is selected (air conditioning, dehumidifying, fan,
smart, off). Refer to the indicator lights and the table below to identify the mode selected. For
each mode selected, the appliance will automatically choose the optimum values for maximum
comfort.
3
BLU LIGHT
-
-
on
-
SUPER --
on
BLU LIGHT
blinking
NO WATER IN TANK on or off -blinking
* Call the Service Centre

30
Description of the remote control
REMOTE CONTROL
Inserting the batteries
•Slide the cover as shown in figure.
•Insert two new batteries (not rechargea-
ble) making sure the (+) and (-) are in the
correct positions.
•Put the cover back on, letting it slide into its
original position.
•The Display will show all of the remote con-
trol's symbols for several seconds.
Note: WE SUGGEST USING ALKALINE BATTE-
RIES (LR03).
If the remote control is to be replaced or
thrown away, the batteries must be remo-
ved and disposed of in accordance with
the current laws as it represents an environ-
mental hazard.
When the remote control unit batteries are
replaced, the air-conditioning indicator
and heating indicator will flash alterna-
tely on the remote control unit liquid crystal
display.
To set the remote control unit correctly, while
is displayed, press any button.
If you do not press a button within 12 seconds,
the remote control unit will also make the
heating mode available, despite the fact
that this function is not available with this
appliance.
PROPER USE
•Point the remote control unit towards the
air-conditioning unit signal receiver .
•Maximum distance: about seven (7)
metres (without any obstacle between
remote control and receiver).
•The remote control must be handled with
great care: do not drop it, expose it to
direct sunlight, or leave it close to heat
sources.
15

31
ENGLISH
Selecting functions
AIR-CONDITIONING MODE
•Press the button to turn the appliance on.
•Abeep indicates that the air-conditioning unit is on and the
symbol flashes on the display
•Press the MODE button a number of times until the air-conditio-
ning symbol appears on the display.
•Now set the temperature using the buttons.
•To select fan speed, press the FAN button repeatedly until the
required fan speed is selected (automatic, high, medium, low).
NB: in air-conditioning mode, the appliance automatically removes
excess moisture from the atmosphere.
DEHUMIDIFYING MODE
•Activate this function when humidity is high.
•Press the button to turn the appliance on. A beep indicates
that the air-conditioning unit is on and the symbol flashes on
the display.
•Press the MODE button a number of times until the dehumidifying
symbol appears on the display.
•Use the buttons to set the required level of dehumidifying.
The symbol is displayed .
•Press the button to increase the dehumidifying level and the
button to reduce it.
•In dehumidifying mode, fan speed is selected by the appliance
automatically.
FAN MODE
On humid but not particularly hot days, the fan function alone may
be adequate.
•Press the button. A beep indicates that the air-conditioning
unit is on and the symbol flashes on the display.
•Press the MODE button a number of times until the fan symbol
appears on the display.
•Once fan mode has been selected, press the FAN button until
the required speed is reached (low, medium, high).
Low
Low
High
High
LowLow
HighHigh

32
Selecting functions
SMART MODE
In SMART mode, the air-conditioning unit decides the best way to
operate to guarantee maximum comfort.
•Press the button to turn the appliance on. A beep indicates
that the air-conditioning unit is on and the symbol flashes on
the display.
•Press the SMART button. The appliance functions automatically
and the symbol appears on the display.
NB: in SMART mode, temperature is controlled automatically.
However, if the required temperature has not yet been reached,
it can be reduced or increased by a maximum of 2° C by pres-
sing the buttons.
.
It should be pointed out that when the automatic ventilation func-
tions are activated, the appliance itself will choose the proper
speed.
AUTOMATIC SLEEP MODE
The automatic SLEEP mode is ideal for the night-time as it enables
operation of the air-conditioning unit in any of the modes (air-con-
ditioning, dehumidifying, fan or SMART) to be gradually reduced
until it shuts down completely (after eight hours). To select SLEEP
mode, proceed as follows:
•Press the button to turn the appliance on.
•Abeep indicates that the air-conditioning unit is on and the
symbol flashes on the display.
•Press the MODE button a number of times until the symbol of the
function required appears on the display.
•Then select the required temperature by pressing the but-
tons.
•Now press the SLEEP button to set the night function. The
symbol is displayed. Press the SLEEP button again to go back to
the previous mode. In this mode, the fan operates at low speed.
N.B: The night-time function makes it possible to keep a room at a perfect tem-
perature, thus preventing an excessive rise or a drop in temperature while the silent
operation is in effect. The air-flow will decrease, while the room temperature will
vary gradually to provide the ideal condition: the temperature will increase by 1°
C. after 60 minutes and by 2° C. after two hour (it goes off altogether after 8 hours).
Low
Low
High
High
°C
HR

33
ENGLISH
h
SUPER MODE
SUPER mode is used to turn rapid cooling on or off. The fan is set to
high speed and the temperature is automatically set to 18° C.
To select SUPER mode, proceed as follows:
•Make sure there is water in the tank
•Press the button to turn the appliance on. A beep indicates
that the air-conditioning unit is on and the symbol flashes on
the display.
•Press the SUPER button to set the mode. The symbol is
displayed.
•The blue indicator light comes on. If this flashes, the tank needs filling
•To go back to the previous mode, press the SUPER button again.
•The SUPER function will be deactivated automatically after 15
minutes
PROGRAMMING THE TIMER
After selecting the required operating mode, activate the timer by
pressing the TIMER button when you go out in the morning to obtain
a comfortable room temperature at the time you will be coming
home.
Programming the turn-off function
•With the air-conditioning unit on, press the TIMER button. The
time is displayed and the "h" symbol flashes. Set the time when
you want the appliance to go off using the buttons (from
30 minutes to 24 hours).
•Press the TIMER button again to confirm the selection. A count-
down of the time left is displayed.
•At the end of the set time the appliance goes off automatically.
During the first ten hours, you can select half hour intervals. For
times greater than ten hours, one hour intervals can be selected.
•To cancel the set time, press the TIMER button again. You will
hear a beep.
Programming the ON function
•With the air-conditioning unit off, press the TIMER button. The time
is displayed and the "h" symbol flashes. Set the time when you
want the appliance to come on using the buttons (from 30
minutes to 24 hours).
•Press the TIMER button again to confirm the selection. The three
indicator lights on the air-conditioning unit come on.
•At the end of the set time the appliance comes on automati-
cally.
During the first ten hours, you can select half hour intervals. For
times greater than ten hours, one hour intervals can be selected.
•To cancel the set time, press the TIMER button again. You will
hear a beep and the three indicator lights on the air-conditio-
ning unit will go off.
Selecting functions

34
Purification filter
PURIFICATION FILTER
The appliance is provided with a 3M purifica-
tion filter. This filter is able to capture even the
smallest sized particles and impurities (up to
0.003 millimetres), such as cigarette smoke.
The purification filter should never be used
with the dust filter, which is also included with
the appliance. Therefore:
A. If you wish to use the purification filter:
Remove the purification filter from the filter
housing; Remove the aspiration grill (fig. F
on page 36) and the dust filter which is atta-
ched to this. Remove the purification filter
from its packaging. Anchor the filter to the
appliance by attaching the two plastic pie-
ces on the filter to the special supports on the
air conditioner (see the illustration below).
Set the dust filter aside.
B. If the dust filter is sufficient:
Remove the purification filter from the filter
housing and set it aside.
10

35
ENGLISH
RECOMMENDATIONS
Follow these recommendations to achieve
maximum efficiency from your air conditio-
ning unit:
•Close the doors and windows in the room
where the unit is functioning. The only
exception is in the case of installation throu-
gh a hole in the wall or window. In this case,
you are recommended to allow a small
amount of air to enter through a door or
window to guarantee an adequate
exchange of air.
•Protect the room from direct exposure to
the sun’s rays by drawing the curtains
and/or partially lowering the blinds so as
to maximise energy savings.
•Do not rest objects on the air conditioning
unit.
•Do not obstruct the air intake or outlet
.
4
10
Recommendations
close doors and windows
lower the blinds or draw the curtains
do not cover
•Make sure the unit is located on a level
floor. If necessary, place the two blocking
devices under the front wheels .
19
•Make sure there are no heat sources
in the room.
•Do not use outdoors.

36
Before cleaning or maintenance, always turn the
unit off and unplug from the mains.
CLEANING THE APPLIANCE
We recommend cleaning the appliance with
a slightly damp cloth then drying with a dry
cloth. For safety reasons, do not wash the air
conditioner with water.
Precautions
Never clean with benzene, alcohol or sol-
vents. Never spray liquid insecticide or similar.
CLEANING THE FILTERS
All of the models are equipped with a dust fil-
ter able to capture the dust particles suspen-
ded in the air.
In order to maintain the effectiveness of your
air conditioner unaltered over time, remem-
ber to clean the dust filter every two weeks.
1. Remove the aspiration grill , (see fig. F);
10
1
2
CLEANING THE RESORVOIR
It is recommended that you clean this at least
once a month using the following method:
•turn off the appliance and remove the
plug from the electrical outlet.
•open the front panel and remove the
tank .
•remove the bung from the drainage hose
which can be found at the back the
air conditioner and empty out the water
to a container.
•after draining off the water, replace the
drainage hose plug.
•remove the dirt by scrubbing gently with a
cloth where the tank is positioned.
START OF SEASON CHECKS
Check that the power cable and socket are
undamaged and that the earth installation is
efficient. Carefully observe the installation
instructions.
RECOMMENDED OPERATIONS TO
PERFORM AT THE END OF THE SEASON
1) Proceed with scaling procedures (see
page 37).
2) Remove the water from the collection
reservoir.
3) Operate the appliance in the ventilation
only mode for about half an hour in order
to thoroughly dry the inside of the air con-
ditioner.
4) Turn off the appliance and remove the
plug from the outlet.
5) Remove the exhaust hose .
6) Clean the filter and dry it thoroughly befo-
re replacing it in the appliance.
16
13
86
7
fig. F
Maintenance
2. Remove the filter holder housing by deta-
ching it from the external grill. To detach it,
press on the two wings found on the side of
the filter holder (see fig. G)
Use a vacuum cleaner to remove the dust
deposits on the filter. If the filter is very dirty,
immerse it in warm water, rinsing it thoroughly.
The temperature of the water should be kept
under 40°C.
After washing it, let the filter dry before re-
inserting it into the holder.
fig. G

37
ENGLISH
Descaling
When the scale deposits become excessive
(on average, after about 400 hours of opera-
tion) or in any case, at least once each sea-
son, it is very important to proceed with the
decalcification of the appliance as described
below.
To remove the scale from the appliance, you
need:
•250 ml of descaling liquid
•750 ml of clean water
Proceed as follows:
1) Remove the tank from the appliance
and drain the water remaining in the col-
lection reservoir by using the drainage
hose (fig. H).
2) Close the drainage hose . Pour 250 ml
of decalcifying liquid and 1 litre of clean
water into the collection reservoir
which is found under the tank (fig. I), on
the bottom of the appliance.
3) Operate the air conditioner for about half
an hour (air-conditioning function).
4) After this, drain out all of the liquid remai-
ning in the collection reservoir and rinse
thoroughly. During the rinsing process, the
drainage hose must be open and the
appliance functioning.
5) Unplug the appliance from the mains and
clean the collection reservoir thoroughly
with a clean cloth.
6) After cleaning the collection reservoir, the
air conditioner can be used normally.
7
13
13
7
8
20
fig. H
fig. I
IF TRACES OF SUDS CAN BE SEEN IN THE WATER WHEN THE MACHINE IS USED AGAIN AFTER IT HAS
BEEN CLEANED AS DESCRIBED ABOVE, THIS IS NORMAL HOWEVER, IF THERE ARE A LOT OF SUDS
RINSE THE APPLIANCE AGAIN THOROUGHLY TO REMOVE ALL TRACES OF CLEANING PRODUCT.
IF NECESSARY, REQUEST ADDITIONAL QUANTITIES OF DECALCIFYING LIQUID FROM DE' LONGHI LTD.
ATTENTION:
The use of products other than De' Longhi could cause damage to the internal components of the
appliance and invalidate the terms of the warranty.

38
Troubleshooting
PROBLEM CAUSES REMEDY
The unit does not
work •the power is off
•
the plug is not inserted into the electrical outlet
•the fan is blocked
•the appliance’s security device has interve-
ned
•restore the power
•plug in the appliance
•call the Service Centre
•restore the appliance by
pushing the button . If the
problem persists, call the Servi-
ce Centre.
9
The unit works for
only a short time •the exhaust tube is twisted
•the exhaust tube is blocked
•the drain tube is bent
•position exhaust tube correctly
•check if there are obstacles
blocking the exhaust of air out
of the appliance
•unbend the tube
The unit works but
does not cool the
room
•awindow is open
•in the room there is some source of heat
(lamp, burner, etc.) or there are many peo-
ple in the room
•the thermostat is set too high
•the air filter is dirty
•the air conditioner has a capacity not ade-
quate for the conditions or the ldimensions of
the room
•close the open window
•remove the heat source
•set the thermostat to a lower
(remote control)
•clean the filter or replace
Remote control
signals are weak or
inexistent
•Batteries run down
•Batteries may be inserted incorrectly •Change the batteries •Check the batteries’ (+) and (-)
poles
•clean the filter or replace it
Strange odour in the
room •air filters dirty
The air conditioner
doesn’t work for about
3 min from turning on
the appliance
•the appliance’s security system has interve-
ned •wait for 3 minutes

39
ENGLISH
RECOMMENDED OPERATING CONDITIONS
Room temperature 21 ÷ 35°C
TECHNICAL SPECIFICATION
Power supply see rating plate
Max. absorbed power
in air conditioning “
Refrigerating capacity “
Refrigerant “
Number of fan speeds 3 + silent
Max. air flow . 370 m3/h
Dimensions:
•width 580 mm
•height 785 mm
•depth 435 mm
Technical specification
ELECTRICAL CONNECTION (U.K. ONLY)
A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should
be cut off from the mains lead, and on appropriate plug fitted, as below. warning: Very carefully dispose of the cut off
plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard.
With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-
on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the
event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nea-
rest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug.
B) If your appliance is not fitted with a plug, please follow the instructins provided below:
WARNING - THIS APPLIANCE MUST BE EARTHED
IMPORTANT
The wires in the mains lead are coloured in accordance with
the following code:
Green and yellow Earth
Blue Neutral
Brown Live
As the colours of the wires in the mains lead may not corre-
spond with the coloured markings identifying the terminals
in your plug, proceed as follows:
The green and yellow wire must be connected to the termi-
nal in the plug marked with the letter E or the earth symbol
or coloured green or green and yellow.
The blue wire must be connected to the terminal marked with
the letter N or coloured black.
The brown wire must be connected to the terminal marked
with the letter L or coloured red.
