Delta Electronics 10GBASE-LRM SFP+ Optical Transceiver... User manual

LCP-10G3B4EDR
DELTA ELECTRONICS, INC.
1 Revision: 0B
2008/9/5
www.deltaww.com

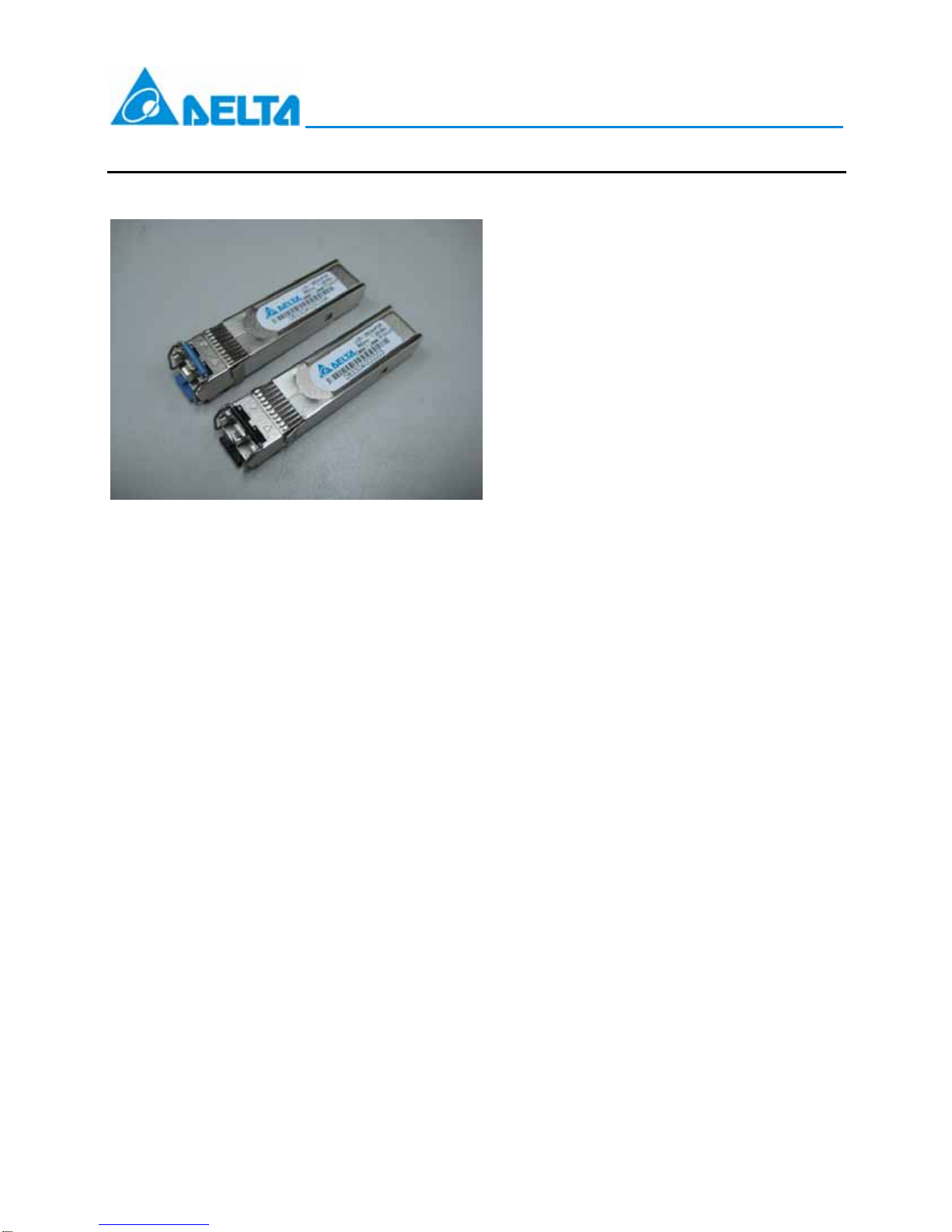

10GBASE-LRM SFP+ Optical Transceiver Preliminary
FEATURES
 RoHS compliant
 Compliant to SFP+ Electrical MSA SFF-8431
 Compliant with SFF-8472 MSA
 Standard LC duplex fiber-optic connector
 I2C for integrated Digital Optical Monitoring
 Power consumption ＜1W
Description
The LCP-10G3B4EDR is a hot pluggable
10Gbps small form factor plus transceiver
module integrated with the high performance
1310nm FP Laser transmitter, high sensitivity
linear PD-TIA receiver for 10Gbps applications.
It is compliant with the SFF-8431 SFP+
Electrical Multi-source Agreement (MSA) with
five digital monitoring functions: Temperature,
Vcc, Tx optical power, Tx laser bias current and
Rx received optical power.
Applications

10G LAN switch

10G Ethernet switch/router

10G Fiber channel
 SAN applications

LCP-10G3B4EDR
DELTA ELECTRONICS, INC.
2 Revision: 0B
2008/9/5
www.deltaww.com
Absolute Maximum Ratings
Parameter Symbol Min. Typ. Max. Unit
Storage Temperature TS-40 85 ºC
Supply Voltage Range @3.3V VCC3 -0.5 3.6 V
Recommended Operating Conditions
Parameter Symbol Min. Typ. Max. Unit
Case Operating Temperature TC-5 +70 ºC
Supply Voltage @3.3V VCC3 3.135 3.30 3.465 V
Relative Humidity (non condensation) - 5 85 %
DC Common Mode Voltage VCM 0 3.6 V
Low Speed Electrical Characteristics
(VCC=3.135V to 3.465V)
Parameter Symbol Min. Typ. Max. Unit Note
Total Supply Current ICC 300 mA
Power Consumption PC 1 W
VOL 0 0.4 V
TX_Fault, RX_LOS VOH Host_Vcc-0.5 Host_Vcc+0.3 V
VIL -0.3 0.8 V 1
TX_Disable VIH 2.0 VccT+0.3 V 1
VIL -0.3 0.8 V 2
RS0, RS1 VIH 2.0 VccT+0.3 V 2
1. Shall be pulled up with 4.7k-10k ohms to 3.3 volt in the module.
2. Shall be pulled low to GND with a ＞30k ohms resistor in the module.

LCP-10G3B4EDR
DELTA ELECTRONICS, INC.
3 Revision: 0B
2008/9/5
www.deltaww.com
Operating Ranges (Tc= -5 to 70 )℃℃
Multimode Fiber Type
Min.Modal
Bandwidth
(MHz*km)
Opterating
Range(m)
Maximum Channel
Insertion Loss (dB)
62.5um MMF OM1 160/500 0.5 to 220 1.9
50um MMF OM2 500/500 0.5 to 220 1.9
50um MMF OM3 1500/500 0.5 to 220 1.9
Optical Transmitter Characteristics (TC= -5 to 70 )℃℃
Parameter Symbol Min. Typ. Max. Unit Note
Data Rate R 10.3125 Gb/s
Signaling speed variation from nominal. ±100 ppm
Average Output Power Pavg -6.5 0.5 dBm
Wavelength λ1260 1355 nm
RMS Spectral Width at 1260nm
RMS Spectral Width between 1260nm and 1300nm
RMS Spectral Width between 1300nm and 1355nm
2.4
Figure 1
4
nm
nm
nm
1
Extinction Ratio ER 3.5
Optical Modulation Amplitude OMA -4.5 1.5 dBm
RIN20OMA RIN -128 dB/Hz
Transmitter eye mask definition
{X1, X2, X3, Y1, Y2, Y3} {0.25, 0.40, 0.45, 0.25, 0.28, 0.40}
Notes:
1. Refer to the spectral limits curve in Figure 1.
Transmitter eye mask definition

LCP-10G3B4EDR
DELTA ELECTRONICS, INC.
4 Revision: 0B
2008/9/5
www.deltaww.com
Figure 1. 10GBASE-LRM Transmitter spectral limits
Optical Receive Characteristics (Tc= -5 to 70 )℃℃
Parameter Symbol Min. Typ. Max. Unit Note
Signaling speed (nominal) TS10.3125 Gb/s
Signaling speed variation from
nominal. ±100 ppm
Center Wavelength λ1260 1355 nm
Overload in OMA PO1.5 dBm
Stressed sensitivity in OMA RSO -6.5 dBm 1
Stressed sensitivity in OMA for
symmetrical test -6 1
LOS De-assert LOSD-14.5 dBm
LOS Assert LOSA-22 dBm 2
LOS Hysteresis LOSD-LOSA0.5 dB
Notes:
1. PRBS 231-1 at 10-12 BER
2. When LOS asserted, the data output is Low-Level (fixed)

LCP-10G3B4EDR
DELTA ELECTRONICS, INC.
5 Revision: 0B
2008/9/5
www.deltaww.com
SFP+ Transceiver Electrical Pad Layout
Module Electrical Pin Definition
Pin Logic Symbol Name/Description Note
1 VeeT Module Transmitter Ground 1
2 LVTTL-O TX_Fault Module Transmitter Fault 2
3 LVTTL-I TX_Disable Transmitter Disable; Turns off transmitter laser output 3
4 LVTTL-I/O SDA 2- write Serial Interface Data Line
5 LVTTL-I/O SCL 2- write Serial Interface Clock
6 MOD_ABS Module Absent, connected to VeeT or VeeR in the module 4
7 LVTTL-I RS0 Not Implement
8 LVTTL-O RX_LOS Receiver Loss of Signal Indication 2
9 LVTTL-I RS1 Not Implement
10 VeeR Module Receiver Ground 1
11 VeeR Module Receiver Ground 1
12 CML-O RD- Receiver Inverted Data Output
13 CML-O RD+ Receiver Non-Inverter Data Output
14 VeeR Module Receiver Ground 1
15 VccR Module Receiver 3.3V Supply
16 VccT Module Transmitter 3.3V Supply
17 VeeT Module Transmitter Ground 1
18 CML-I TD+ Transmitter Non-Inverted Data Input
19 CML-I TD- Transmitter Inverted Data Input
20 VeeT Module Transmitter Griund 1

LCP-10G3B4EDR
DELTA ELECTRONICS, INC.
6 Revision: 0B
2008/9/5
www.deltaww.com
Note:
1. The module signal ground pins, VeeR and VeeT, shall be isolated from the module case.
2. This pin is an open collector/drain output pin and shall be pulled up with 4.7k-10k ohms to Host_Vcc
on the host board. Pull ups can be connected to multiple power supplies, however the host board
design shall ensure that no module pin has voltage exceeding module VccT/R + 0.5V.
3. This pin is an open collector/drain input pin and shall be pulled up with 4.7k-10k ohms to VccT in the
Module.
4. This pin shall be pulled up with 4.7k-10k ohms to Host_Vcc on the host board.
Low speed electrical control pins and 2-wire interface
In addition to the 2-wire serial interface, the SFP+ module has the following low speed pins for control and
status:
‧TX_Fault
‧TX_Disable
‧RS0/RS1
‧MOD_ABS
‧RX_LOS
1 TX_Fault
.TX_Fault is a module output pin that when High, indicates that the module transmitter has detected a fault
condition related to laser operation or safety.
The TX_Fault output pin is an open drain/collector and must be pulled p to the Host_Vcc with 4.7k-10k
ohms on the host board
2 TX_Disable
TX_Disable is a module input pin. When TX_Disable is asserted High or Left open, the SFP+ module
transmitter output must be turned off. The TX_DIS pin must be pulled up to VccT in the SFP+ module..
3 RS0/RS1
RS0 and RS1 are module input rate select pins and are pulled low to VeeT with a > 30kΩresistor in the
module. RS0 is an input hardware pin which optionally selects the optical receive data path rate coverage
for an SFP+ module. RS1 is an input hardware pin which optionally selects the optical transmit path data
rate coverage for an SFP+ module. RS1 is commonly connected to VeeT or VeeR in the legacy SFP
modules. The host needs to ensure that it will not be damaged if this pin is connected to VeeT or VeeR in
the module.

LCP-10G3B4EDR
DELTA ELECTRONICS, INC.
7 Revision: 0B
2008/9/5
www.deltaww.com
4 MOD_ABS
Mod_ABS is pulled up to Host_Vcc with 4.7k-10k ohms on the host board and connected to VeeT or VeeR
in the SFP+ module. MOD_ABS is then asserted “High” when the SFP+ module is physically absent from
a host slot. In the SFP MSA (INF8074i) this pin had the same function but is called MOD_DEF0.
5 SCL/SDA
SCL is the 2-wire interface clock and SDA is the 2-wire interface data line. SCL and SDA are pulled up to
a voltage in the range of 3.14V to 3.46V on the host.
6 RX_LOS
RX_LOS when High indicated an optical signal level below that specified in the relevant standard. The
RX_LOS pin is an open drain/collector output and must be pulled up to host Vcc with a 4.7k-10k ohms on
the host board.
RX_LOS assert min and de-assert max are defined in the relevant standard. To avoid spurious transition
of RX_LOS a minimum hysteresis of 0.5 dB is recommended.

LCP-10G3B4EDR
DELTA ELECTRONICS, INC.
8 Revision: 0B
2008/9/5
www.deltaww.com
Recommend Circuit Schematic

LCP-10G3B4EDR
DELTA ELECTRONICS, INC.
9 Revision: 0B
2008/9/5
www.deltaww.com
Package Outline Drawing for Metal Housing with Bail de-latch
Latch Color Identifier
Blue
Complies with 21 CFR
1040.10 and 1040.11
Made in x FSFS

LCP-10G3B4EDR
DELTA ELECTRONICS, INC.
10 Revision: 0B
2008/9/5
www.deltaww.com
Timing parameters for SFP+ management
Parameter Symbol Min. Max. Unit Note
TX_DISABLE Assert time t_off 10 µsec 1
TX_DISABLE Negate time t_on 2 msec 2
Time to initialize 2-wire
interfase t_2w_start_up 300 msec 3
Time to initialize t_start_up 300 msec 4
Time to initialize cooled
module t_start_up_cooled 90 sec 4
Time to Power Up to Level 2 t_power_level2 300 msec 5
Time to Power Down from
Level 2 T_power_down 300 msec 6
TX_Fault assert TX_Fault_on 1 msec 7
TX_Fault assert for cooled
module TX_Fault_on 50 msec 7
TX_Fault Reset t_reset 10 µsec 8
Module Reset t_module_reset TBD msec TBD
RS0, RS1 rate select timing
for FC
t_RS0_FC,
RS1_FC 500 µsec 9
RS0, RS1 rate select timing
non FC t_RS0, t_RS1 10 msec 9
RX_LOS assert delay t_los_on 100 µsec 10
RX_LOS negate delay t_los_off 100 µsec 11
Notes:
1) Rising edge of TX_Disable to fall of output signal below 10% of nominal.
2) Falling edge of TX_Disable to rise of output signal above 90% of nominal. This only applies in normal
operation, not during start up or fault recovery.
3) From power on or negation of TX_Disable.
4) From power on or TX_Disable negated during power up, or TX_Fault recovery, until non-cooled power
level 1 part (or non-cooled power level 2 part already enabled at power level 2 for TX_Fault recovery)
is fully operational.
5) From falling edge of stop bit enabling power level 2 until non-cooled module is fully operational.
6) From falling edge of stop bit disabling power level 2 until module is within power level 1 requirements.
7) From Occurrence of fault to assertion of TX_Fault.
8) Time TX_Disable must be held High to reset TX_Fault.
9) From assertion till stable output.
10) From Occurrence of loss of signal to assertion of LOS
11) From Occurrence of presence of signal to negation of RX_LOS.

LCP-10G3B4EDR
DELTA ELECTRONICS, INC.
11 Revision: 0B
2008/9/5
www.deltaww.com
Enhanced Digital Diagnostic Interface
The memory map in the following describes an extension to the memory map defined in SFP MSA. The enhanced
interface uses the two wire serial bus address 1010001X(A2h) to provide diagnostic information about the module’s
present operating conditions.
2 wire address 1010000 X (A0h) 2 wire address 1010001 X (A2h)
0 0
55
Alarm and Warning Thresholds
(56 bytes)
95
Serial ID Defined by SFP MSA
(96 bytes) 56
95
Cal Constants
(40 bytes)
96 96
119
Real Time Diagnostic Interface
(24 bytes)
127
Vender Specific
(32 bytes) 120
127
Vender Specific
128 128
247
User Writable EEPROM
(120 bytes)
255
Reserved in SFP MSA
(128 bytes) 248
255
Vender Specific
(8 bytes)
Digital Diagnostic Memory Map Specific Data Field Descriptions

LCP-10G3B4EDR
DELTA ELECTRONICS, INC.
12 Revision: 0B
2008/9/5
www.deltaww.com
EEPROM Serial ID Memory Contents (2-Wire Address A0h)
Address Hex ASCII Address Hex ASCII Address Hex ASCII
00 03 43 2D - 86 DC
01 04 44 31 1 87 DC
02 07 45 30 0 88 DC
03 40 46 47 G 89 DC
04 00 47 33 3 90 DC
05 00 48 42 B 91 DC
06 00 49 34 4 92 68
07 00 50 45 E 93 F0
08 00 51 44 D 94 03
09 00 52 52 R 95 CS2 Note 4
10 00 53 20 96 00
11 03 54 20 97 00
12 67 55 20 98 00
13 00 56 41 99 00
14 00 57 20 100 00
15 00 58 20 101 00
16 16 59 20 102 00
17 16 60 05 103 00
18 00 61 1E 104 00
19 16 62 00 105 00
20 44 D 63 CS1 Note 1 106 00
21 45 E 64 01 107 00
22 4C L 65 1A 108 00
23 54 T 66 00 109 00
24 41 A 67 00 110 00
25 20 68 SN Note 2 111 00
26 20 69 SN 112 00
27 20 70 SN 113 00
28 20 71 SN 114 00
29 20 72 SN 115 00
30 20 73 SN 116 00
31 20 74 SN 117 00
32 20 75 SN 118 00
33 20 76 SN 119 00
34 20 77 SN 120 00
35 20 78 SN 121 00
36 00 79 SN 122 00
37 00 80 SN 123 00
38 00 81 SN 124 00
39 00 82 SN 125 00
40 4C L 83 SN 126 00
41 43 C 84 DC Note 3 127 00
42 50 P 85 DC 128 00 Note 5
Notes:
1) Byte 63: Check sum of bytes 0-62.
2) Byte 68-83: Serial number.
3) Byte 84-91: Date code.
4) Byte 95: Check sum of bytes 64-94.
5) Byte 128 to 255 had been set hex 00.

LCP-10G3B4EDR
DELTA ELECTRONICS, INC.
13 Revision: 0B
2008/9/5
www.deltaww.com
Digital Diagnostic Monitoring Interface
Alarm and Warning Thresholds (2-Wire Address A2h)
Address #
Bytes Name Value (Dec.) Unit Note
00-01 2 Temp High Alarm 85 degree Celsius
02-03 2 Temp Low Alarm -10 degree Celsius
04-05 2 Temp High Warning 80 degree Celsius
06-07 2 Temp Low Warning -5 degree Celsius
℃1
08-09 2 Voltage High Alarm 3.6V
10-11 2 Voltage Low Alarm 3.0V
12-13 2 Voltage High Warning 3.5V
14-15 2 Voltage Low Warning 3.1V
Volt
16-17 2 Bias High Alarm Iop*2+20 mA
18-19 2 Bias Low Alarm Iop-20 mA
20-21 2 Bias High Warning Iop*2+10 mA
22-23 2 Bias Low Warning Iop-10 mA
mA 2
24-25 2 TX Power High Alarm P +3dB
26-27 2 TX Power Low Alarm P-3dB
28-29 2 TX Power High Warning P +2dB
30-31 2 TX Power Low Warning P-2dB
dBm 3
32-33 2 RX Power High Alarm P0+2
34-35 2 RX Power Low Alarm PS-2
36-37 2 RX Power High Warning P0
38-39 2 RX Power Low Warning PS
dBm 4
40-45 16 Reversed
56-91 36 External Calibration Constants
92-94 3 Reversed
95 1 Checksum 5
96-97 2 Real Time Temperature
98-99 2 Real Time Supply Voltage
100-101 2 Real Time Tx Bias Current
102-103 2 Real Time Tx Optical Power
104-105 2 Real Time Rx Received Power
106-109 4 Reserved
110 1 Optional Status/ Control Bits
111 1 Reserved
112-119 8 Optional Set of Alarm and Warning
Notes:
1) TC: Case Operating temperature
2) IOP: Operating current at room temperature. The min. setting current is 0 mA.
3) P: Operating optical power of transmitter at room temperature.
4) P0: Overload optical power of receiver
PS: Sensitivity optical power of receiver
5) Byte 95 contains the low order 8bits of sum of bytes 0-94

LCP-10G3B4EDR
DELTA ELECTRONICS, INC.
14 Revision: 0B
2008/9/5
www.deltaww.com
State/ Control Bits
Byte Bit Name Description
110 7 Tx Disable State Digital state of the Tx disable input pin
110 6 Soft Tx Disable Read/ Write bit that allow software disable of laser
110 5 Reserved
110 4 Rate Select State Rate Select State
110 3 Soft Rate Select Software Rate Select State
110 2 Tx Fault Digital state of the Tx fault output pin
110 1 LOS Digital state of the LOS output pin.
110 0 Data_Ready_Bar NA
7)
Optional Set of Alarm and Warning
Byte Bit Name Description
112 7 Temp High Alarm Set when internal temperature exceeds high alarm level
112 6 Temp Low Alarm Set when internal temperature is below low alarm level
112 5 Vcc High Alarm Set when internal supply voltage exceeds high alarm level
112 4 Vcc Low Alarm Set when internal supply voltage is below low alarm level
112 3 Tx Bias High Alarm Set when Tx Bias current exceeds high alarm level
112 2 Tx Bias Low Alarm Set when Tx Bias current is below low alarm level
112 1 Tx Power High Alarm Set when Tx output power exceeds high alarm level
112 0 Tx Power Low Alarm Set when Tx output power is below low alarm level
113 7 Rx Power High Alarm Set when received power exceeds high alarm level
113 6 Rx Power Low Alarm Set when received power is below low alarm level
113 5-0 Reserved
116 7 Temp High Warning Set when internal temperature exceeds high warning level
116 6 Temp Low Warning Set when internal temperature is below low warning level
116 5 Vcc High Warning Set when internal supply voltage exceeds high warning level
116 4 Vcc Low Warning Set when internal supply voltage is below low warning level
116 3 Tx Bias High Warning Set when Tx Bias current exceeds high warning level
116 2 Tx Bias Low Warning Set when Tx Bias current is below low warning level
116 1 Tx Power High Warning Set when Tx output power exceeds high warning level
116 0 Tx Power Low Warning Set when Tx output power is below low warning level
117 7 Rx Power High Warning Set when received power exceeds high warning level
117 6 Rx Power Low Warning Set when received power is below low warning level
117 5-0 Reserved
Digital Diagnostic Monitor Accuracy
Parameter Typical Value Note
Transceiver Temperature ±3℃1
Power Supply Voltage ±3% 2
TX Bias Current ±10%
TX Optical Power ±1.5dB
RX Optical Power ±3dB
Notes:
1) Temperature is measured internal to the transceiver
2) Voltage is measured internal to the transceiver

LCP-10G3B4EDR
DELTA ELECTRONICS, INC.
15 Revision: 0B
2008/9/5
www.deltaww.com
Regulatory Compliance
Feature Test Method Reference Performance
Electromagnetic
Interference (EMI)
FCC Part15 Class B
EN 55022 Class B
(CISPR 22A)
Radio Frequency
Electromagnetic Field
Immunity
IEC/EN 61000-4-3
Contact Discharge IEC/EN 61000-4-2 Electrostatic Discharge
(ESD) to the Duplex LC
Receptacle
Air Discharge IEC/EN 61000-4-2
Human Body Model
(HBM)
MIL-STD-883E Method 3015.7
EIA-JESD22-A114
Electrostatic Discharge
(ESD) to the Electrical
Pins Machine Model (MM) EIA-JESD22-A115
(1) Satisfied with
electrical
characteristics of
product spec.
(2) No physical damage
Laser Eye Safety
FDA/CDRH
TUV
US FDA CDRH AEL Class 1
IEC/EN 60825-1
IEC/EN 60825-2
Component
Recognition
TUV
UL/CSA
IEC/EN 60950-1
UL60950
