Delta VFD-L-I Series User manual

PLC1.ir

Preface
Thank you for choosing DELTA’s high-performance VFD-L-I Series. The VFD-L-I Series is
manufactured with high-quality components and materials and incorporate the latest microprocessor
technology available.
This manual is to be used for the installation, parameter setting, troubleshooting, and daily
maintenance of theAC motor drive. To guarantee safe operation of the equipment, read the following
safety guidelines before connecting power to the AC motor drive. Keep this operating manual at
hand and distribute to all users for reference.
To ensure the safety of operators and equipment, only qualified personnel familiar withAC motor
drive are to do installation, start-up and maintenance. Always read this manual thoroughly before
using VFD-L-I seriesAC Motor Drive, especially the WARNING, DANGER and CAUTION notes.
Failure to comply may result in personal injury and equipment damage. If you have any questions,
please contact your dealer.
PLEASE READ PRIOR TO INSTALLATION FOR SAFETY.
DANGER!
1. AC input power must be disconnected before any wiring to the AC motor drive is made.
2. A charge may still remain in the DC-link capacitors with hazardous voltages, even if the power
has been turned off. To prevent personal injury, please ensure that power has been turned off
before opening the AC motor drive and wait ten minutes for the capacitors to discharge to safe
voltage levels.
3. Never reassemble internal components or wiring.
4. Never connect the AC motor drive output terminals U/T1, V/T2, and W/T3 directly to the AC
mains circuit power supply.
5. VFD-L-I series shall NOT be used for life support equipment or any life safety situation.

This page intentionally left blank
.

Table of Contents
Preface ..............................................................................................................i
Table of Contents...........................................................................................iii
Chapter 1 Introduction.................................................................................1-1
1.1 Receiving and Inspection.................................................................... 1-1
1.1.1 Nameplate Information................................................................ 1-1
1.1.2 Model Explanation ...................................................................... 1-1
1.1.3 Series Number Explanation ........................................................ 1-2
1.2 Storage............................................................................................... 1-2
Chapter 2 Installation and Wiring ...............................................................2-1
2.1 Ambient Conditions............................................................................. 2-1
2.2 Installation........................................................................................... 2-1
2.3 Dimensions......................................................................................... 2-3
2.4 Wiring ................................................................................................. 2-4
2.4.1 Basic Wiring................................................................................ 2-4
2.4.2 External Wiring............................................................................ 2-6
2.4.3 Main Terminals Connections ...................................................... 2-7
2.4.4 Control Terminals........................................................................ 2-9
Chapter 3 Start Up........................................................................................3-1
3.1 Preparations before Start-up............................................................... 3-1
3.2 Operation Method............................................................................... 3-1
3.3 Trial Run............................................................................................. 3-1

Chapter 4 Parameters ..................................................................................4-1
4.1 Summary of Parameter Settings......................................................... 4-2
4.2 Description of Parameter Settings.................................................... 4-10
Chapter 5 Fault Code Information...............................................................5-1
5.1 Common Problems and Solutions ...................................................... 5-1
Chapter 6 Troubleshooting..........................................................................6-1
6.1 Over Current (OC).............................................................................. 6-1
6.2 Over Voltage (OV).............................................................................. 6-2
6.3 Low Voltage (Lv)................................................................................. 6-3
6.4 Over Heat (OH)................................................................................... 6-4
6.5 Overload............................................................................................. 6-4
6.6 Motor Stalls during Acceleration......................................................... 6-5
6.7 The Motor does not Run as Expected ................................................ 6-5
Chapter 7 Maintenance and Inspections....................................................7-1
Appendix A Specifications .........................................................................A-1
Appendix B Accessories ............................................................................B-1
B.1 Remote Controller RC-01...................................................................B-1

Revision July 2009, SW V1.1 1-1
Chapter 1 Introduction
1.1 Receiving and Inspection
This VFD-L-I AC motor drive has gone through rigorous quality control tests at the factory before
shipment. After receiving the AC motor drive, please check for the following:
Inspect the unit to assure it was not damaged during shipment.
Make sure that the part number indicated on the nameplate corresponds with the part
number of your order.
There is no built-in digital keypad in the VFD-L-I series. It needs to use optional digital
keypad VFD-PU06 or communication method to modify the parameters.
1.1.1 Nameplate Information
Example for 0.25HP 230VAC motor drive
MODEL : VFD00 2L 21B- I
IN P UT : 1P H 4.9 A 2 00 -2 40 V 5 0/ 60 Hz
O UTPUT : 3PH 0-2 40 V 1.6A 0.6 kVA 0.25HP
Freq ue ncy Ra ng e : 0.1-400Hz
DE LTA E L E CTRO NI CS I NC. MADE IN XXXXX
Model Name
Input Spec.
Output Spec.
Output Frequency Range
Serial Number & Bar Co de
002L21BIT7010001
1.1.2 Model Explanation
VF
D
B
Version Type
2
1
L
VFD-L Series
00
7
Series Nam
e
Input Voltage
21:Single phase 230V
Applicable motor capacity
002: 0.25HP(0.2kW)
I
Specific for wire-drawing machines

Chapter 1 Introduction|VFD-L-I Series
1-2 Revision July 2009, SW V1.1
1.1.3 Series Number Explanation
001 01
9
T
002L21BI
Production number
Production year 2009
Production factory
Production week
(Taoyuan)
Model
230V 1-phase 0.25HP(0.2kW)
If the nameplate information does not correspond to your purchase order or if there are
any problems, please contact your distributor.
1.2 Storage
The AC motor drive should be kept in the shipping carton or crate before installation. In order to
retain the warranty coverage, the AC motor drive should be stored properly when it is not to be used
for an extended period of time. Storage conditions are:
Store in a clean and dry location free from direct sunlight or corrosive fumes.
Store within an ambient temperature range of -20°C to +60°C.
Store within a relative humidity range of 0% to 90% and non-condensing environment.
Store within an air pressure range of 86kPa to 106kPa.
CAUTION!
1. DO NOT store in an area with rapid changes in temperature. It may cause condensation and
frost.
2. DO NOT place on the ground directly. It should be stored properly. Moreover, if the surrounding
environment is humid, you should put exsiccator in the package.
3. If the AC motor drive is stored for more than 3 months, the temperature should not be higher
than 30 °C. Storage longer than one year is not recommended, it could result in the degradation
of the electrolytic capacitors.
4. When the AC motor drive is not used for a long time after installation on building sites or places
with humidity and dust, it’s best to move the AC motor drive to an environment as stated above.
.

Revision July 2009, SW V1.1 2-1
Chapter 2 Installation and Wiring
2.1 Ambient Conditions
Install theAC motor drive in an environment with the following conditions:
Operation Air Temperature: -10 ~ +50°C (14 ~ 122°F)
Relative Humidity: <90%, no condensation allowed
Atmosphere pressure: 86 ~ 106 kPa
Installation Site Altitude: <1000m
Vibration: <20Hz: 9.80 m/s2(1G) max
20 ~ 50Hz: 5.88 m/s2(0.6G) max
Storage
Transportation Temperature: -20°C ~ +60°C (-4°F ~ 140°F) Relative Humidity: <90%, no condensation allowed
Atmosphere pressure: 86 ~ 106 kPa
Vibration: <20Hz: 9.80 m/s2(1G) max
20 ~ 50Hz: 5.88 m/s2(0.6G) max
Pollution Degree 2: good for a factory type environment.
CAUTION!
1. Operating, storing or transporting the AC motor drive outside these conditions may cause
damage to the AC motor drive.
2. Failure to observe these precautions may void the warranty!
2.2 Installation
Mounting Clearances
150mm
(6-inch)
or more
50mm(2-inch) or more
150mm
(6-inch)
or more
50mm(2-inch) or more
Coldair

Chapter 2 Installation and Wiring|VFD-L-I Series
2-2 Revision July 2009, SW V1.1
1. Mount the AC motor drive vertically on a flat vertical surface by using bolts or screws. Other
directions are not allowed.
2. The AC motor drive will generate heat during operation. Allow sufficient space around the unit
for heat dissipation.
3. The heat sink temperature may rise to 90°C when running. The material on which the AC motor
drive is mounted must be noncombustible and be able to withstand this high temperature.
4. When the AC motor drive is installed in a confined space (e.g. cabinet), the surrounding
temperature must be within 10 ~ 40°C with good ventilation. DO NOT install the AC motor drive
in a space with bad ventilation.
5. When installing multiple AC motor drives in the same cabinet, they should be adjacent in a row
with enough space. When installing one AC motor drive below another one, use a metal
separation barrier between the AC motor drives to prevent mutual heating. Refer to figure below
for details.
6. Prevent fiber particles, scraps of paper, saw dust, metal particles, etc. from adhering to the
heatsink.

Chapter 2 Installation and Wiring|VFD-L-I Series
Revision July 2009, SW V1.1 2-3
2.3 Dimensions
(Dimensions are in millimeter and [inch])
Unit: mm [inch]

Chapter 2 Installation and Wiring|VFD-L-I Series
2-4 Revision July 2009, SW V1.1
2.4 Wiring
After removing the front cover, check if the power and control terminals are clear of debris. Be sure
to observe the following precautions when wiring.
2.4.1 Basic Wiring
Make sure that power is only applied to the L1, L2 terminals. Failure to comply may
result in damage to the equipment. The voltage and current should lie within the range
as indicated on the nameplate.
Check the following items after completing the wiring:
1. Are all connections correct?
2. No loose wires?
3. No short-circuits between terminals or to ground?
A charge may still remain in the DC bus capacitors with hazardous voltages even if the
power has been turned off. To prevent personal injury, please ensure that the power is
turned off and wait ten minutes for the capacitors to discharge to safe voltage levels
before opening theAC motor drive.
DANGER!
1. All the units must be grounded directly to a common ground terminal to prevent electric shock,
fire and interference.
2. Only qualified personnel familiar with AC motor drives are allowed to perform installation, wiring
and commissioning.
3. Make sure that the power is off before doing any wiring to prevent electric shocks.

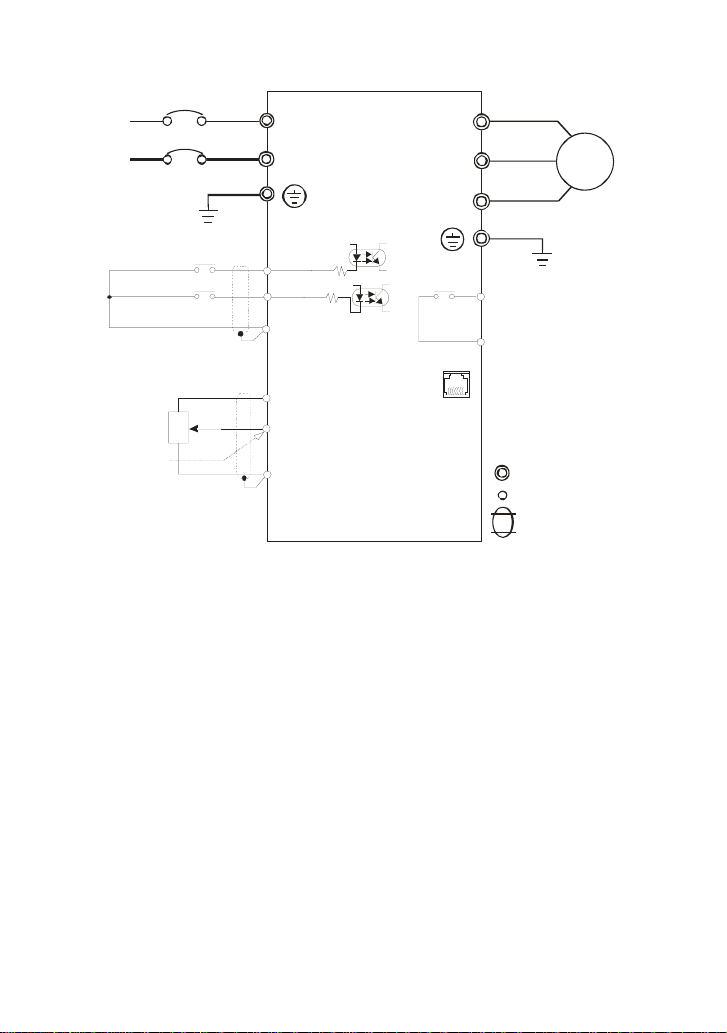

Basic Wiring Diagrams
Users must connect wires according to the circuit diagrams on the following pages. Do not plug a
modem or telephone line to the RS-485 communication port or permanent damage may result. The
pins 1 & 2 are the power supply for the optional copy keypad PU06 only and should not be used for
RS-485 communication.

Chapter 2 Installation and Wiring|VFD-L-I Series
Revision July 2009, SW V1.1 2-5
U
V
W
IM
3~
RS-485
61←
RA
RC
010VDC
VR 3K 5K
～
：～Ω
AVI
GND
3
2
1
VR
RJ-11
L1
L2
MCCB
R
S
+18V
M0
M1
GND
+18V
4.7KΩ
4.7KΩ
1: EV
2: G ND
3: SG -
4: SG +
5: Reserved
6: Reserved
Main Circuit Powe
r
Factory settings
FWD/STOP
REV/STOP
Common signal
Multi-function input terminals
3-phase induction motor
Multi-function indication
output contacts
120VAC/28VDC 3A
Factory setting:
mulfunction indication
RS-485 serial interface
Main c ircu i t ter m ina ls
Control circuit terminals
Shielded leads
Potentiometer power supply
+10V 20mA(MAX)
Master frequency setting
Analog voltage frequency command

Chapter 2 Installation and Wiring|VFD-L-I Series
2-6 Revision July 2009, SW V1.1
2.4.2 External Wiring
NFB or ELB
VFD-L-I
M
Power Supply
Magnetic Contactor
AC Reactor
Motor
Power Supply
Please follow the specific power
supply requirements shown in
Appendix A
No Fuse Breaker or Electricity Leakage Breaker
There may be an inrush current during power
up. Please refer to the following table for the
correct fuse selection.
Magnetic Contactor
Please do not use the magnetic contactor as
the power switch of the AC motor drive, as
it may reduce the operating life of the AC
motor drive.
AC Reactor
It is recommended to add an AC reactor
to improve the power factor when the output
capacity is more than 1000kVA. The wiring
distance should be less than 10m.
No-fuse Breaker Chart
Model 1-phase 230VAC
0.2KW/0.25HP 15A

Chapter 2 Installation and Wiring|VFD-L-I Series
Revision July 2009, SW V1.1 2-7
2.4.3 Main Terminals Connections
NOTE: Terminal blocks are the removable terminals
Po w er s wit ch
Indicators
Green: P ower i ndicator
RED: Fault indicator
M a in s p o we r te rm in a l
s
L 1 , L 2
W ir e g a u ge : 18 - 1 2 A WG
W ir e t yp e : C o pp e r on ly 7 5 C
Torque: 4kgf-cm (3.5 in-lbf)
o
M o to r co n n ec to r
U , V , W
W ir e g a u ge : 18 - 1 2 A W G
Wire type: Copper only 75 C
Torque: 4kgf-cm (3.5 in-lbf)
o
C on t ro l t e rm i na ls
RS-485
Communication interface
Mains power terminals
It must have a no-fuse breaker between the AC input power and main circuit terminals
(L1, L2).
It is recommended to add a magnetic contactor (MC) in the power input wiring to cut off
power quickly and reduce malfunction when activating the protection function of AC
motor drives. Both ends of the MC should have an R-C surge absorber.
Ground resistance should be less than 100Ω.
The AC motor drive, welding machine and large horsepower motor should ground
separately.
Make sure the power voltage and max. supply current.
Connect a brake resistor in applications with frequent deceleration ramps, short
deceleration time, too low braking torque or requiring increased braking torque.
Do not connect any output terminal (U, V, W) to the AC motor drive power.
Please tighten the screws of the main circuit terminals to prevent a spark due to vibration.
The wiring of main circuit and control circuit should be separated to prevent erroneous
actions. If necessary let them cross only at 90º angle.
Please use the shield wire for the control wiring and do not expose the peeled-off net in
front of the terminal.
Please use the shield wire or tube for the power wiring and ground the two ends of the
shield wire or tube.
If the AC motor drive is installed in the occasion where is sensitive to the interference,
please add an RFI filter as close as the AC motor drive. With the lower of the PWM
carrier frequency, it will have the less interference.

Chapter 2 Installation and Wiring|VFD-L-I Series
2-8 Revision July 2009, SW V1.1
When using a GFCI (Ground Fault Circuit Interrupter), select a current sensor with
sensitivity of 200mA, and not less than 0.1-second detection time to avoid nuisance
tripping.
If the insulation of the control wire is damaged due to some reasons, it may result in the
circuit damage or personal injury.
The AC motor drive, motor and wiring may cause noise interference. Please notice the
surrounding sensors and equipment to prevent erroneous actions.
Main circuit terminals (L1, L2)
Please connect these main circuit terminals (L1, L2) to the AC power via a no-fuse
breaker or electricity leakage breaker for circuit protection. It is unnecessary to consider
phase-sequence.
It is recommended to add a magnetic contactor (MC) in the power input wiring to cut off
power quickly and reduce malfunction when activating the protection function of AC
motor drives. Both ends of the MC should have an R-C surge absorber.
Control circuit terminals (U, V, W)
When the AC drive output terminals U, V, and W are connected to the motor terminals
U/T1, V/T2, and W/T3, respectively, the motor will rotate counterclockwise (as viewed on
the shaft end of the motor) when a forward operation command is received. To
permanently reverse the direction of motor rotation, switch over any of the two motor
leads.
Forward
running
DO NOT connect phase-compensation capacitors or surge absorbers at the output
terminals of AC motor drives.
Use a well-insulated motor, suitable for inverter operation.
Grounding terminals ( )

Chapter 2 Installation and Wiring|VFD-L-I Series
Revision July 2009, SW V1.1 2-9
Make sure that the leads are connected correctly and the AC drive is properly grounded.
Use ground leads that comply with local regulations and keep them as short as possible
to prevent electric shock or fire.
Multiple VFD-L-I units can be installed in one location. All the units should be grounded
directly to a common ground terminal, as shown in the figure below. Ensure there are
no ground loops.
goodexcellent not allowed
2.4.4 Control Terminals
RA
RC
+10V
AVI
M0
M1
GND
120VAC/DC 28V 3A
Relay Wire gauge: 22-12 AWG
Wire type: Copper only 75℃
Torque: 4 kgf-cm(3.5in-lbf)
Wire gauge: 28-16 AWG
Wire type: Copper only 75℃
Torque: 2 kgf-cm(1.7in-lbf)
Multi-function relay output
Potentiometer power supply
Analog voltage frequency command
Multi-function input terminal
Multi-function input terminal
Digital signal common
Terminal symbols and functions
Terminal
Symbol Terminal Function Factory Settings (NPN mode)
ON: Connect to GND
RA Multi-function Relay output
(N.O.) a
RC Multi-function Relay common
Output every monitor signal, such as in
operation, frequency attained and overload
indications. Refer to Pr.03-03 for multi-function
output terminals.
+10V Potentiometer power supply +10VDC 20mA (variable resistor: 3~5kohm)

Chapter 2 Installation and Wiring|VFD-L-I Series
2-10 Revision July 2009, SW V1.1
Terminal
Symbol Terminal Function Factory Settings (NPN mode)
ON: Connect to GND
AVI Analog voltage Input
Impedance: 47kΩ
Resolution: 10 bits
Range: 0~10VDC = 0 ~ max. output frequency
(Pr.01-00)
Selection methods: Pr.02-00, Pr.07-05
Settings: Pr.04-00~Pr.04-03
M0 Multi-function auxiliary input
M1 Multi-function input 1
Refer to Pr.04-04 for programming the Multi-
function Inputs.
GND Digital Signal Common (Sink) Common for multi-function input terminals
Control signal wiring size: 18 AWG (0.75 mm2) with shielded wire.
Analog input terminals (AVI, GND)
Analog input signals are easily affected by external noise. Use shielded wiring and keep
it as short as possible (<20m) with proper grounding. If the noise is inductive, connecting
the shield to terminal GND can bring improvement.
If the analog input signals are affected by noise from the AC motor drive, please connect
a capacitor (0.1
μ
F and above) and ferrite core as indicated in the following diagrams:
CAVI
GND
ferrite core
wind each wires 3 times or more around the core
Digital inputs (M0, M1, GND)
When using contacts or switches to control the digital inputs, please use high quality
components to avoid contact bounce.
General
The wiring of main circuit and control circuit should be separated to prevent erroneous
actions. If necessary let them cross only at 90º angle.
The AC motor drive control wiring should be properly installed and not touch any live
power wiring or terminals.

Revision July 2009, SW V1.1 3-1
Chapter 3 Start Up
3.1 Preparations before Start-up
Carefully check the following items before proceeding.
Make sure that the wiring is correct. In particular, check that the output terminals U, V, W
are NOT connected to power and that the drive is well grounded.
Verify that there are no short-circuits between terminals and from terminals to ground or
mains power.
Check for loose terminals, connectors (PG card) or screws.
Verify that no other equipment is connected to the AC motor.
Make sure that all switches are OFF before applying power to ensure that the AC motor
drive doesn’t start running and there is no abnormal operation after applying power.
Make sure that the front cover is correctly installed before applying power.
Do NOT operate the AC motor drive with humid hands.
3.2 Operation Method
Please choose a suitable method depending on application and operation rule. The operation is
usually done as shown in the following table.
3.3 Trial Run
After finishing checking the items in “3.1 preparation before start-up”, you can perform a trial run.
1. After applying power, verify that the power LED lights with green.
2. Please connect a switch separately between M0-GND and M1-GND.
3. The factory setting of the source of frequency command is communication. Please set
Operation Method Frequency Source Operation Command
Source
Operate from
external signal AVI parameter setting: 02-00=1
External terminals
input:
M0-GND
M1-GND
Operate from
communication RJ11 Communication input
