Preface
Thank you for choosing DELTA’s high-performance VFD-BW Series. The VFD-BW Series is
manufactured with high-quality components and materials and incorporates the latest microprocessor
technology available.
This manual is to be used for the installation, parameter setting, troubleshooting, and daily
maintenance of the AC motor drive. To guarantee safe operation of the equipment, read the following
safety guidelines before connecting power to the AC motor drive. Keep this operating manual at hand
and distribute to all users for reference.
To ensure the safety of operators and equipment, only qualified personnel familiar with AC motor
drive are to do installation, start-up and maintenance. Always read this manual thoroughly before
using VFD-BW series AC Motor Drive, especially the WARNING, DANGER and CAUTION notes.
Failure to comply may result in personal injury and equipment damage. If you have any questions,
please contact your dealer.
PLEASE READ PRIOR TO INSTALLATION FOR SAFETY.
DANGER!
1. Ensure that VFD-BW is grounded in a correct way before putting it into use.
2. AC input power must be disconnected before any wiring to the AC motor drive is made.
3. A charge may still remain in the DC-link capacitors with hazardous voltages, even if the power
has been turned off. To prevent personal injury, please ensure that power has been turned off
before opening the AC motor drive and wait ten minutes for the capacitors to discharge to safe
voltage levels.
4. Never reassemble internal components or wiring.
5. The AC motor drive may be destroyed beyond repair if incorrect cables are connected to the
input/output terminals. Never connect the AC motor drive output terminals U/T1, V/T2, and
W/T3 directly to the AC mains circuit power supply.
6. Ground the VFD-BW using the ground terminal. The grounding method must comply with the
laws of the country where the AC motor drive is to be installed. Refer to the Basic Wiring
Diagram.
7. VFD-BW series is used only to control variable speed of 3-phase induction motors, NOT for 1-
phase motors or other purpose.

8. VFD-BW series shall NOT be used for life support equipment or any life safety situation.
WARNING!
1. DO NOT use Hi-pot test for internal components. The semi-conductor used in the AC motor
drive is easily damaged by high-pressure.
2. There are highly sensitive MOS components on the printed circuit boards. These components
are especially sensitive to static electricity. To prevent damage to these components, do not
touch these components or the circuit boards with metal objects or your bare hands.
3. Only qualified persons are allowed to install, wire and maintain AC motor drives.
CAUTION!
1. Some parameter settings will cause the motor to run immediately after applying power.
2. DO NOT install the AC motor drive in a place subjected to high temperature, direct sunlight,
high humidity, excessive vibration, corrosive gases or liquids, or airborne dust or metallic
particles.
3. Only use AC motor drives within specification. Failure to comply may result in fire, explosion or
electric shock.
4. To prevent personal injury, please keep children and unqualified people away from the
equipment.
5. When the motor cable between the AC motor drive and motor is too long, the layer insulation of
the motor may be damaged. Please use a frequency inverter duty motor or add an AC output
reactor to prevent damage to the motor. Refer to appendix B Reactor for details.
6. The rated voltage for the AC motor drive must be ≤480V for 460V models and the mains
supply current capacity must be ≤5000A RMS (≤10000A RMS for the ≥40hp (30kW) models).

Table of Contents
Preface ............................................................................................................. i
Table of Contents .......................................................................................... iii
Chapter 1 Introduction ................................................................................ 1-1
1.1 Receiving and Inspection ................................................................... 1-1
1.1.1 Nameplate Information................................................................ 1-1
1.1.2 Model Explanation ...................................................................... 1-1
1.1.3 Series Number Explanation ........................................................ 1-2
1.1.4 Drive Frames .............................................................................. 1-2
1.2 Appearances ...................................................................................... 1-3
1.3 Preparation for Installation and Wiring ............................................... 1-5
1.3.1 Remove Keypad ......................................................................... 1-5
1.3.2 Remove Front Cover................................................................... 1-6
1.3.3 Unpacking Instruction ................................................................. 1-8
1.4 Lifting................................................................................................ 1-10
1.5 Storage............................................................................................. 1-13
Chapter 2 Installation and Wiring .............................................................. 2-1
2.1 Ambient Conditions ............................................................................ 2-1
2.2 Installation .......................................................................................... 2-1
2.3 Dimensions......................................................................................... 2-3
2.4 Wiring ............................................................................................... 2-14

2.4.1 Basic Wiring .............................................................................. 2-14
2.4.2 External Wiring .......................................................................... 2-20
2.4.3 Main Terminals Connections ..................................................... 2-21
2.4.4 Control Terminals ...................................................................... 2-23
2.4.5 Specifications for Power Terminals and Control Terminals ....... 2-27
Chapter 3 Start Up .......................................................................................3-1
3.1 Preparations before Start-up...............................................................3-1
3.2 Operation Method ...............................................................................3-2
3.3 Trial Run .............................................................................................3-2
Chapter 4 Digital Keypad Operation ..........................................................4-1
4.1 Description of the Digital Keypad VFD-PU01......................................4-1
4.2 How to Operate the Digital Keypad VFD-PU01 ..................................4-3
Chapter 5 Parameters..................................................................................5-1
5.1 Summary of Parameter Settings.........................................................5-2
5.2 Parameter Settings for Applications..................................................5-21
5.3 Description of Parameter Settings ....................................................5-27
Chapter 6 Fault Code Information ..............................................................6-1
6.1 Common Problems and Solutions ......................................................6-1
6.2 Reset ..................................................................................................6-5
Chapter 7 Troubleshooting .........................................................................7-1
7.1 Over Current (OC) ..............................................................................7-1
7.2 Ground Fault.......................................................................................7-2
7.3 Over Voltage (OV) ..............................................................................7-2
7.4 Low Voltage (Lv).................................................................................7-3
7.5 Over Heat (OH)...................................................................................7-4

7.6 Overload............................................................................................. 7-4
7.7 Display of PU01 is Abnormal.............................................................. 7-5
7.8 Phase Loss (PHL) .............................................................................. 7-5
7.9 Motor cannot Run............................................................................... 7-6
7.10 Motor Speed cannot be Changed..................................................... 7-7
7.11 Motor Stalls during Acceleration....................................................... 7-8
7.12 The Motor does not Run as Expected .............................................. 7-8
7.13 Electromagnetic/Induction Noise ...................................................... 7-9
7.14 Environmental Condition .................................................................. 7-9
7.15 Affecting Other Machines ............................................................... 7-10
Chapter 8 Maintenance and Inspections ................................................... 8-1
Appendix A Specifications ........................................................................ A-1
Appendix B Accessories ........................................................................... B-1
B.1 All Brake Resistors & Brake Units Used in AC Motor Drives..............B-1
B.1.1 Dimensions and Weights for Brake Resistors ............................ B-4
B.1.2 Specifications for Brake Unit ......................................................B-5
B.1.3 Dimensions for Brake Unit..........................................................B-6
B.2 AMD - EMI Filter Cross Reference.....................................................B-8
B.2.1 Dimensions............................................................................... B-11
B.3 PG Card (for Encoder) .....................................................................B-16
B.3.1 PG02 ........................................................................................B-16
B.3.1.1 Installation......................................................................... B-16
B.3.1.2 PG Card and Pulse Generator (Encoder) ......................... B-17
B.3.1.3 PG-02 Terminal Descriptions............................................ B-18

B.3.2 PG03.........................................................................................B-21
B.3.2.1 Installation .........................................................................B-21
B.3.2.2 PG Card and Pulse Generator (Encoder)..........................B-22
B.3.2.3 PG-03 Terminal Descriptions ............................................B-23
B.4 Remote Controller RC-01 ................................................................ B-26
B.5 Remote Panel Adapter (RPA 01) .................................................... B-27
B.6 AC Reactor...................................................................................... B-28
B.6.1 AC Input Reactor Recommended Value ...................................B-28
B.6.2 AC Output Reactor Recommended Value ................................B-28
B.6.3 Applications for AC Reactor......................................................B-29
B.7 Zero Phase Reactor (RF220X00A) ................................................. B-31
B.8 DC Choke Recommended Values................................................... B-36
B.9 No-fuse Circuit Breaker Chart ......................................................... B-36
B.10 Fuse Specification Chart ............................................................... B-37
B.11 PU06 ............................................................................................. B-38
B.11.1 Description of the Digital keypad VFD-PU06 ..........................B-38
B.11.2 Explanation of Display Message.............................................B-38
B.11.3 Operation Flow Chart..............................................................B-39
Appendix C How to Select the Right AC Motor Drive .............................. C-1
C.1 Capacity Formulas ............................................................................ C-2
C.2 General Precaution ........................................................................... C-4
C.3 How to Choose a Suitable Motor....................................................... C-5

Revision May 2009, BWE0, SW V1.05 1-1
Chapter 1 Introduction
1.1 Receiving and Inspection
This VFD-BW AC motor drive has gone through rigorous quality control tests at the factory before
shipment. After receiving the AC motor drive, please check for the following:
Check to make sure that the package includes an AC motor drive, a user manual, dust
covers and rubber bushings.
Inspect the unit to assure it was not damaged during shipment.
Make sure that the part number indicated on the nameplate corresponds with the part
number of your order.

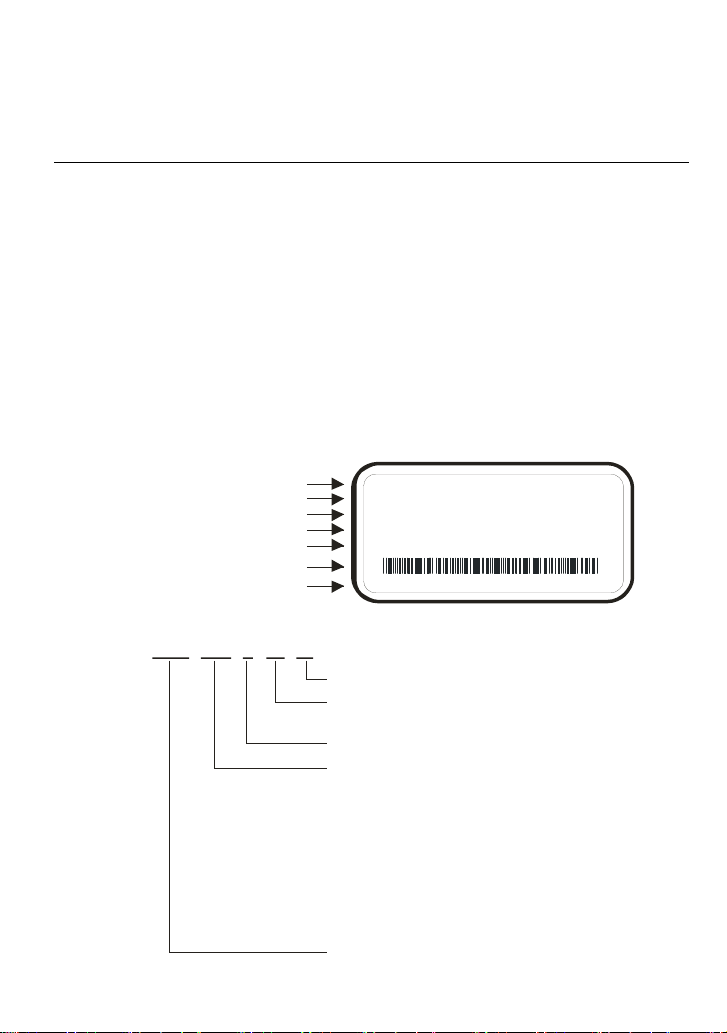

1.1.1 Nameplate Information
Example for 1HP/0.75kW 3-phase 460V AC motor drive
007B43W0W6100001
MODEL
INPUT
OUT PUT
Fr eq.Range
ENCLOSURE
:VFD007B43W
:3PH 380~480V 50/60Hz 3.2A
:3PH 0~480V 2.7A 2.3kVA 1HP
:0.1~400Hz
:TYPE 1
BarCode
AC Drive Model
Input Spec.
Output Spec.
Output Frequency Range
Enclosure type
Serial Number
1.1.2 Model Explanation
危險！
VFD 0 07 B 43 W
B S e r ie s
43:460V 3-PHASE
007:1HP(0.75kW)
0 15: 2 HP (1 .5kW )
022:3HP(2.2kW)
037:5HP(3.7kW)
055:7.5HP(5.5kW)
075:10HP(7.5kW)
11 0 : 15 H P (11 kW )
150:20HP(15kW)
185:25HP(18.5kW)
220:30HP(22kW)
300:40HP(30kW)
370:50HP(37kW)
450:60HP(45kW)
550:75HP(55kW)
750:100HP(75kW)
900:125HP(90kW)
1100:150HP(110kW)
1320:175HP(132kW)
1600:215HP(160kW)
1850:250HP(185kW)
Vers ion Typ e
Mains Input Voltage
A p pl i ca b l e M o t o r C a pa c ity
Series Name ( ariable requency rive)VF D

Chapter 1 Introduction|VFD-BW Series
1-2 Revision May 2009, BWE0, SW V1.05
1.1.3 Series Number Explanation
007B43W W 6 10 0 0010
460V 3-PHASE 1HP(0.75kW)
T: Taoyuan W: Wujiang
Production number
Production year 2006
Production factory
Production week
Model
If the nameplate information does not correspond to your purchase order or if there are
any problems, please contact your distributor.
1.1.4 Drive Frames
Frame Power Range Models
A 1hp (0.75kW) VFD007B43W
A1 1-2hp (0.75-1.5kW) VFD015B43W
A2 2-3hp (1.5-2.2kW) VFD022B43W
B 3-5hp (2.2-3.7kW) VFD037B43W
C 7.5-15hp (5.5-11kW) VFD055B43W, VFD075B43W, VFD110B43W
D 20-30hp (15-22kW) VFD150B43W, VFD185B43W, VFD220B43W
E 40-60hp (30-45kW) VFD300B43W, VFD370B43W, VFD450B43W
E1 40-100hp (30-75kW) VFD550B43W, VFD750B43W
F2 125-175hp(90-132kW) VFD900B43W, VFD1100B43W, VFD1320B43W
G 215-250hp(160-185kW) VFD1600B43W, VFD1850B43W

Chapter 1 Introduction|VFD-BW Series
Revision May 2009, BWE0, SW V1.05 1-3

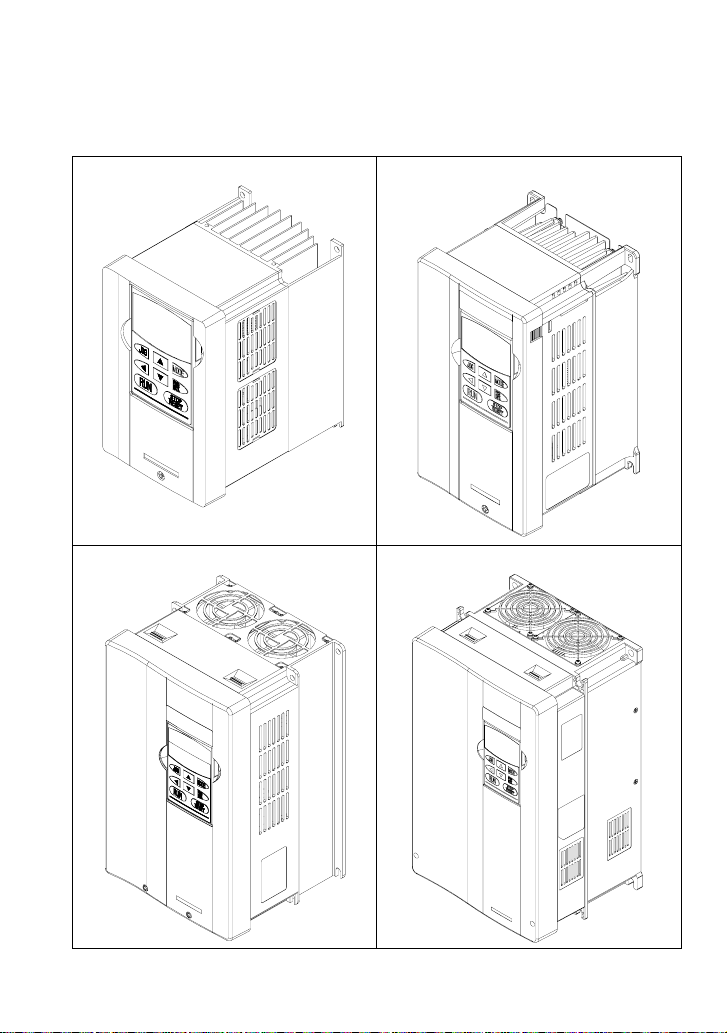

1.2 Appearances
(Refer to chapter 2.3 for exact dimensions)
1-3HP/0.75-2.2kW(Frame A, A1, A2)
5HP/2.2-3.7kW(Frame B)
7.5-15HP/5.5-11kW(Frame C)
20-30HP/15-22kW(Frame D)

Chapter 1 Introduction|VFD-BW Series
1-4 Revision May 2009, BWE0, SW V1.05
40-100HP/30-75kW(Frame E, E1)
75-100HP/55-75kW(Frame F)

Chapter 1 Introduction|VFD-BW Series
Revision May 2009, BWE0, SW V1.05 1-5
1.3 Preparation for Installation and Wiring

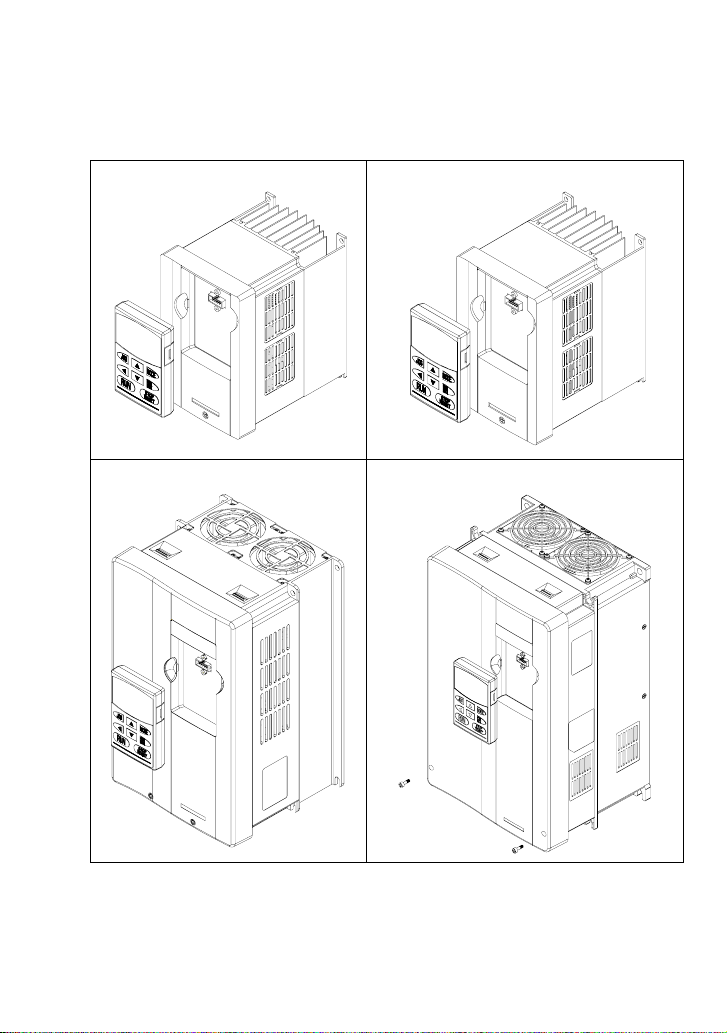

1.3.1 Remove Keypad
1-3HP/0.75-2.2kW(Frame A, A1, A2) 3-5HP/2.2-3.7kW(Frame B)
7.5-15HP/5.5-11kW(Frame C) 20-30HP/15-22kW(Frame D)

Chapter 1 Introduction|VFD-BW Series
1-6 Revision May 2009, BWE0, SW V1.05

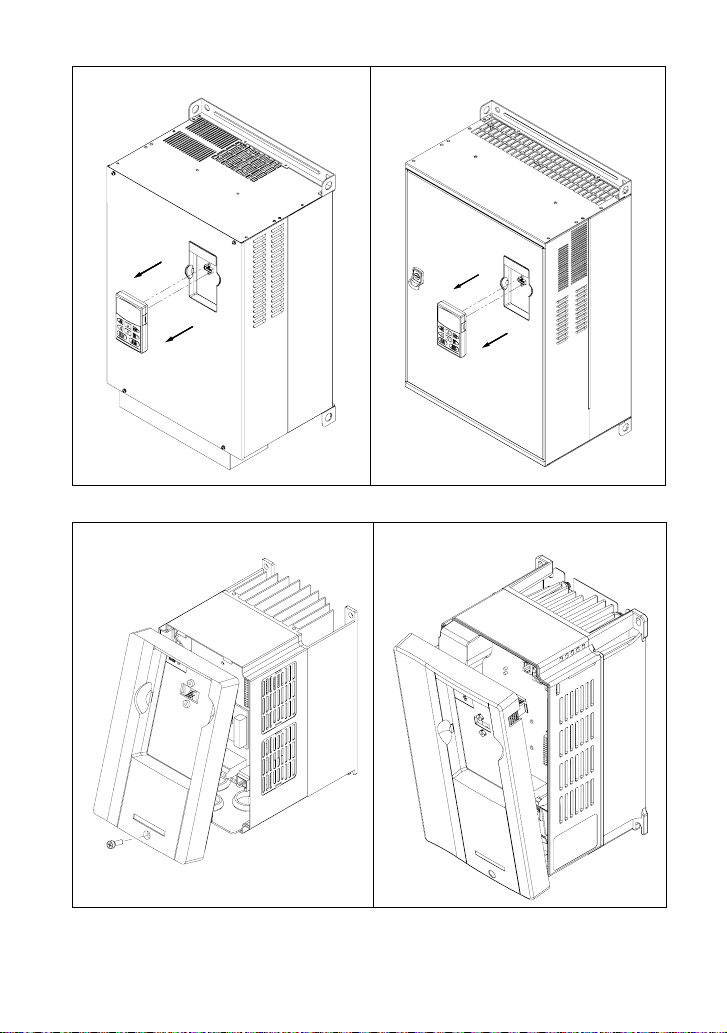

40-100HP/30-75kW(Frame E, E1)
75-100HP/55-75kW(Frame F)
1.3.2 Remove Front Cover
1-3HP/0.75-2.2kW(Frame A, A1, A2) 3-5HP/2.2-3.7kW(Frame B)

Chapter 1 Introduction|VFD-BW Series
Revision May 2009, BWE0, SW V1.05 1-7
7.5-15HP/5.5-11kW(Frame C) 20-30HP/15-22kW(Frame D)
40-100HP/30-75kW(Frame E, E1) 75-100HP/55-75kW(Frame F)

Chapter 1 Introduction|VFD-BW Series
1-8 Revision May 2009, BWE0, SW V1.05
1.3.3 Unpacking Instruction
For 125-175HP (Frame F2)
Step 1: Unscrew all the cover screws.
Step 2: Lift the wooden box.
Step 3: Lift the EPE.
Step 4: Lift the AC motor drive following the
steps in 1.4 Lifting.

Chapter 1 Introduction|VFD-BW Series
Revision May 2009, BWE0, SW V1.05 1-9
For 215-250HP (Frame G)
Step 1: Unscrew all the cover screws (24
screws).
Step 2: Lift the wooden box and EPE.
Step 3: Unscrew the 12 screws that fixed
the AC motor drive to the pallet and
remove 4 wooden slats.
Step 4: Lift the AC motor drive following the
steps in 1.4 Lifting.

Chapter 1 Introduction|VFD-BW Series
1-10 Revision May 2009, BWE0, SW V1.05
1.4 Lifting
Please carry only fully assembled AC motor drives as shown in the following.
For 40-100HP (Frame E, E1 and F)
Step 1
Step 2
Step 3
Step 4

Chapter 1 Introduction|VFD-BW Series
Revision May 2009, BWE0, SW V1.05 1-11
For 125-175HP (Frame F2)
Step 1
Step 2
Step3
Step4
