Delta PPC-B2 Series User manual

www.deltaww.com
Digitized Automation for a Changing World
Delta Embedded Industrial PC
Operation Manual – PPC-B2xx Series

Delta Embedded Industrial PC
Operation Manual- PPC-B2XX Series
Revision History
Version Revision Date
1st The first version was published. 2023/11/30

Delta Embedded Industrial Panel PC
Operation Manual –PPC-B2XX Series
COPYRIGHT NOTICE
©Delta Electronics, Inc. All rights reserved.
All information contained in this user manual is the exclusive property of Delta Electronics Inc. (hereinafter referred to as
"Delta") and is protected by copyright law and all other laws. Delta retains the exclusive rights of this user manual in
accordance with the copyright law and all other laws. No parts in this manual may be reproduced, transmitted,
transcribed, translated, or used in any other ways without the prior consent of Delta.
Limitation of Liability
The contents of this user manual are only for the use of the embedded industrial PC manufactured by Delta. Except as
defined in special mandatory laws, Delta provides this user manual “as is” and does not offer any kind of warranty
through this user manual for using the product, either express or implied, including but not limited to the following: (i) this
product will meet your needs or expectations; (ii) the information contained in the product is current and correct; (iii) the
product does not infringe any rights of any other person. You shall bear your own risk to use this product.
In no event shall Delta, its subsidiaries, affiliates, managers, employees, agents, partners and licensors be liable for any
direct, indirect, incidental, special, derivative or consequential damages (including but not limited to the damages for loss
of profits, goodwill, use or other intangible losses) unless the laws contain special mandatory provisions to the contrary.
Delta reserves the right to make changes to the user manual and the products described in the user manual without prior
notice and afterwards.
Warranty Terms and Conditions:
This warranty is valid for 18 months. Consideration for special requirement is based on the contract signed by the
two parties.
Trademarks:
All trademarks mentioned in this manual are registered to the respective companies:
AMI®is the registered trademark of AMI Company.
Intel®, Celeron®are the registered trademarks of Intel.
Windows 7, Windows 10 are the registered trademarks of Microsoft.
Notes on Use:
This is as Class A product and may cause EMI (Electro Magnetic Interference) in the living environment which users
are required to take appropriate measure.
Warning:
Notice (Marked on operating instructions and its packaging):
(1) Operate the device for 30 minutes and take 10-minute break.
(2) Do not let young children less than 2 years old stare at the screen, nor let elder children stare at the screen for
more than 1 hour.

(3) Overuse of devices can affect the eyes.
(4) Risk of explosion may occur when batteries are inaccurately changed. Please handle the batteries based on the
instructions provided by the manufacturer.
Safety Instructions:
We disclaim liability for inadequate installation or use of device that led to direct or indirect damages and with intent
or not.
1. Carefully read the operation manual before using the product and keep it for future reference.
2. Before connecting power supply to the product, please confirm the voltage is compliant with the
requirement of the device.
3. To avoid electric shock or damage to the product, please unplug the power cord from the socket before
cleaning the device with wet cloth.
4. Do not use liquid or stain remover spray aerosol cleaner to clean up the device.
5. To avoid short circuit or fire, please do not let any liquid get into or splash into the product.
6. For device that needs power cords, there must be an easy-to-reach power socket near the device.
7. Do not use the product in a damp environment.
8. Make sure the device is placed on a solid surface before installation; accidental drop or tipping may cause
malfunction or damage to the device.
9. All power cords need to be unplugged first before connecting or unplugging any signal cables.
10. To avoid unnecessary damage caused by frequent power-on/off, wait at least 30 seconds after restarting the
computer.
11. When product is not used for a long time, please disconnect the power cord to avoid damages caused by
transient voltage.
12. Some precision devices are sensitive to ESD and needs to be installed or dismantled via its workstation for
enhancement.
13. Provide excellent heat dissipation and system ventilation.
14. Do not open or dismantle the device by yourself. Please let professional maintenance person open the
device due to safety concerns.
Product Contents:
PPC-B2xx Industrial Panel Computer
1. One fanless touchscreen industrial panel computer
2. Installation clips and screw kit (customer assembly)
3. Certificate of compliance
4. Packing list
5. Address label
6. Genuine Microsoft Windows 10 IoT license sticker (if a licensed version product is purchased), to be affixed
next to the product label.

P-1
P
Preface
Table of Contents
P.1 Unpack and Check the Delivery Package .............................................P-2
P.2 Transportation ....................................................................................P-2
P.3 Storage Requirements.........................................................................P-2

Delta Embedded Industrial PC Operation Manual- PPC-B2xx Series
P- 2
P
P.1 Unpack and Check the Delivery Package
Please take note of the following when accepting a delivery:
●Do not dispose the original packaging in case you have to reuse it to transport the device again.
●Please keep the enclosed disc drive containing the documentation in a safe place.
●Check the device for any transport damage at the time of delivery.
●Verify the packing list for the completeness of the packaging contents and any accessories.
●If the contents of the packaging are damaged or do not match your order, please contact our customer
service.
P.2 Transportation
Well-packaged devices are suited for all kinds of transportation. During long-distance transport, pay attention to
the following:
●Do not store the device in open cabin or carriage.
●No device is to keep in an outdoor storage during transit.
●Avoid transporting the products together with flammable, explosive and corrosive chemicals.
●Keep the device dry and do not expose to rain, snow or any liquid substances to avoid damage the device.
P.3 Storage Requirements
In order to store or keep the products, please take the following precautions:
●Store the product in its original packaging. Please refer to the spec sheet for storage temperature and
relative humidity.
●Do not store any harmful gas, flammable, explosive products and corrosive chemicals.
●The device is stored without vibrations, shocks, and strong magnetic interference.
●Keep at least 10cm distance between the packing box and the ground and at least 50cm distance from the
wall, heat source, cooling source, window or air inlet.
CAUTION！！
Risk of damage to the device！
When transporting the device in cold weather, please pay attention to the extreme
changes in temperature. Make sure no water drop (condensation) is build up on the
surface or inside the device. If condensation develops, please wait at least 12 hours
before switching on the device.

i
Delta Embedded Industrial PC
Operation Manual- PPC-B2XX Series
Table of Contents
Chapter 1 Product Specification
1.1 Introduction ......................................................................................1-2
1.2 Host Controller Specification .............................................................1-2
1.2.1 PPC-B2xx Series ........................................................................... 1-2
1.3 Dimensions........................................................................................1-4
1.3.1 PPC-B212 Series ...........................................................................1-4
1.3.2 PPC-B215 Series ...........................................................................1-5
1.3.3 PPC-B219 Series ...........................................................................1-6
Chapter 2 I/O Interface
2.1 Diagrams of I/O Interface.................................................................2-2
2.1.1 PPC-B212 Series ...........................................................................2-2
2.1.2 PPC-B215 Series ...........................................................................2-3
2.1.3 PPC-B219 Series ...........................................................................2-4

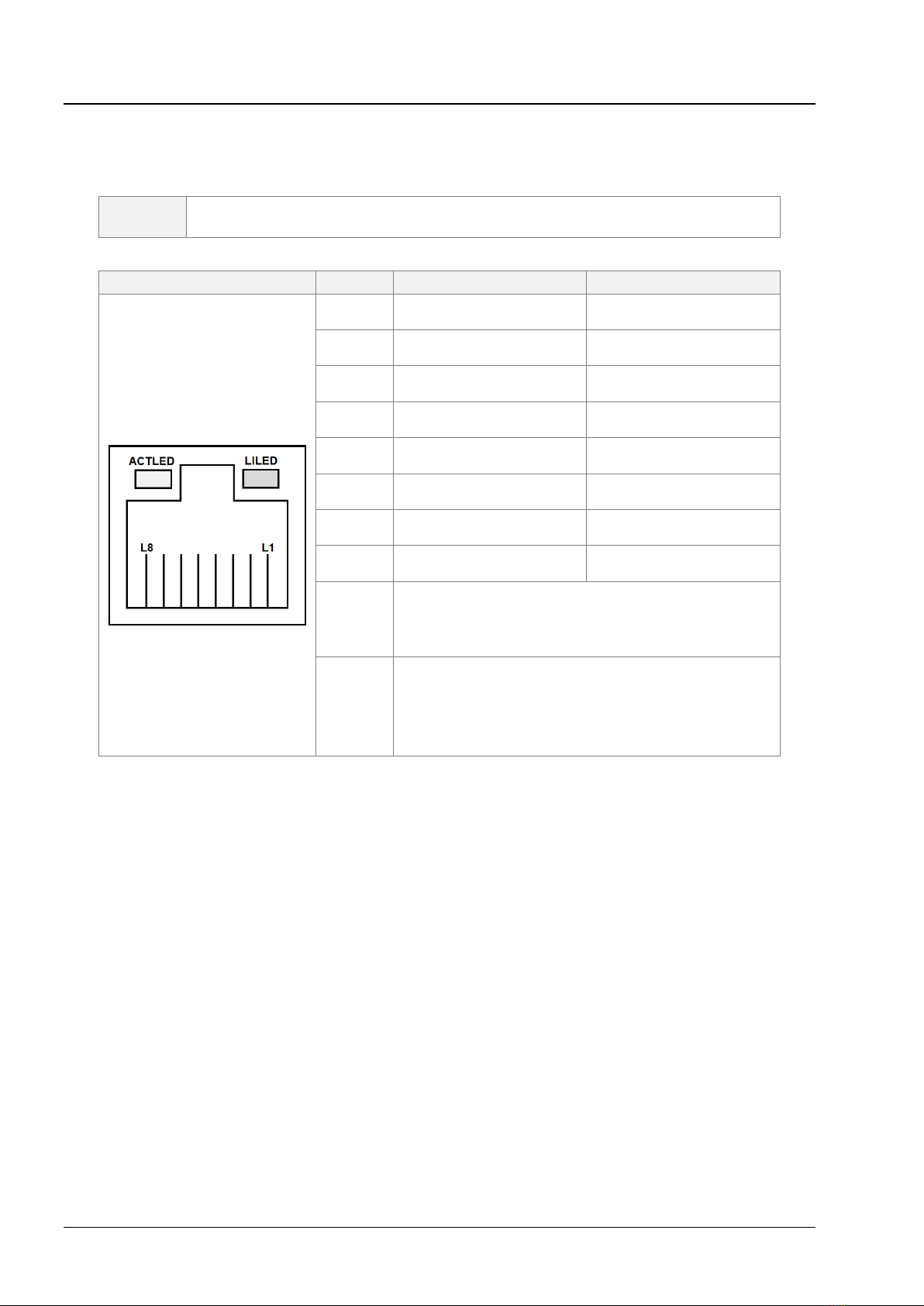

2.2 I/O Port Pins .....................................................................................2-5
2.2.1 Standard DB9 Port ........................................................................2-5
2.2.2 RJ-45 LAN Port .............................................................................2-6
2.2.3 VGA Port......................................................................................2-7
2.2.4 USB 2.0 Port ................................................................................2-7
2.2.5 USB 3.0 Port ................................................................................2-8
2.2.6 HDMI A Type Port..........................................................................2-8
2.2.7 DC 9~32V Power Port ....................................................................2-9
Chapter 3 Common BIOS Setting
3.1 Starting BIOS ....................................................................................3-2
3.2 Hotkey Shortcuts ...............................................................................3-2
3.3 Set up Automatic Startup After Power-On .........................................3-3
3.4 Setting the System Boot Order ..........................................................3-4

ii
Chapter 4 Driver Installation
4.1 Download Drivers .............................................................................. 4-2
4.2 Install Chipset Drivers....................................................................... 4-4
4.3 Install Graphics Drivers..................................................................... 4-7
4.4 Install LAN Drivers .......................................................................... 4-11
4.5 Install Audio Drivers ....................................................................... 4-15
Appedix A PPC Touch Screen Usage and Calibration
A.1 Using the Touch Screen.......................................................................A-2
A.2 Touchscreen Calibration......................................................................A-2
Appedix B Common Windows Functions Setting
B.1 Open On Screen Keyboard .................................................................B-2
B.2 Disable the Display Automatic Shutdown Feature .............................B-4
B.3 Disable the System Scheduled Sleep Feature ....................................B-6

1- 1
1
Chapter 1 Product Specification
Table of Contents
1.1 Introduction ................................................................................................1-2
1.2 Host Controller Specification .......................................................................1-2
1.2.1 PPC-B2xx Series......................................................................................................................... 1-2
1.3 Dimensions..................................................................................................1-4
1.3.1 PPC-B212 Series................................................................................... 1-4
1.3.2 PPC-B215 Series................................................................................... 1-5
1.3.3 PPC-B219 Series................................................................................... 1-6

Delta Embedded Industrial PC Operation Manual - PPC-B2xx Series
1- 2
_1
1.1 Introduction
PPC-B2xx series are embedded industrial PCs featuring low power, high-performance and with sealed fan-less design. In
addition, the product adopts excellent high-strength aluminum-alloy material including heat sinks made from dense
aluminum-alloy.
The product is equipped with Intel®J1900 processors, standard 8G RAM in memory. It supports operating systems such
as Windows 10 and Linux.
PPC products are suitable for various industries, including mechanical rubber, solar photovoltaic (PV), vehicle control and
general industrial automation (e.g., papermaking, environmental protection).
1.2 Host Controller Specification
The PPC-B2xx series features three hardware specifications including fan-less 12/15/19-inch PPCs. Below are details
regarding each specification.
1.2.1 PPC-B2xx Series
Applicable
Models
PPC-B212、PPC-B215、PPC-B219 Series
Item Specification
CPU Intel®Celeron J1900 2.0 GHz quad-core processor
RAM 8GB DDR3L 1600MHz SO-DIMM
SSD 128 GB M.2 SSD
Network 2x Intel®I211 Gigabit Ethernet Controller
Audio Built-in speakers, with an additional set of Standard frequency I/O
Expansion Supports mini PCIE interface and Wi-Fi communication modules
External I/O
Serial port: COM 1~4 (RS-232)
3 x USB 2.0, 1 x USB 3.0（blue）
1 x VGA output
1 x HDMI output
LED Screen
12.1＂PPC
Display Screen: 12.1" TFT LED
Screen Resolution: 1280x800
Brightness: 500 cd/m2
Contrast Ratio: 1200:1
Viewing Angle (CR≧10): 170°(V) / 170°(H)
15.6＂PPC
Display Screen: 15.6" TFT LED
Screen Resolution: 1920x1080
Brightness: 450 cd/m2
Contrast Ratio: 3000:1
Viewing Angle (CR≧10): 178°(V) / 178°(H)

Chapter 1 Product Specification
1- 3
1_
Item Specification
19＂PPC
Display Screen: 19" TFT LED
Screen Resolution: 1440x900
Brightness: 250 cd/m2
Contrast Ratio: 1000:1
Viewing Angle (CR≧10): 160°(V) / 170°(H)
Touchscreen
Material: 6H Tempered Glass
Type: Capacitive
Dimension
12.1＂PPC: 315.8mm(L)×218mm(W)×70mm (H)；
15.6＂PPC: 408mm(L)×257.3mm(W)×69.9mm (H)；
19＂PPC: 472.3mm(L)×319.3mm(W)×71.1mm (H)
Installation
Methods
VESA Mount:
12.1＂PPC: 100mm(L)×100mm(W)；
15.6＂PPC: 100mm(L)×100mm(W)；
19＂PPC: 100mm(L)×100mm(W)
Embedded Installation:
12.1＂PPC: 302.1mm(L)×204.3mm(W)；
15.6＂PPC: 393.4mm(L)×242.6mm(W)；
19＂PPC: 458.6mm(L)×305.6mm(W)
Structure
Case: High-strength aluminum alloy, sand blasting anodizing aluminum
Color: Silver
Thermal conductivity: An integrated aluminum case with active heat conduction
design
Material: Aluminum alloy heat sink
Weight
12.1＂PPC: Net Weight: 2.8Kg；Gross Weight: 4.2Kg
15.6＂PPC: Net Weight: 4.1Kg；Gross Weight: 5.7Kg
19＂PPC: Net Weight: 6.0Kg；Gross Weight: 7.5Kg
Temperature
Operation temperature: -10°C～50°C (with air flow)
Storage temperature: -20°C～70°C
Humidity 10~95% @ 40°C (non-condensing)
Certification CE(EMC+LVD)、FCC
Environment
Anti-vibration: 5-17Hz/1.0mm amplitude；17-200Hz/1.0g acceleration
Anti-shock: 10g acceleration, 11ms duration
Power
Input voltage:
9~32 Vdc wide voltage input, it is recommended to use a power supply of at least
60W to ensure system stability.
12.1” PPC Power consumption: 11.4 W (stand-by)
15.6” PPC Power consumption: 20.5 W (stand-by)
19” PPC Power consumption: 12.7 W (stand-by)

Delta Embedded Industrial PC Operation Manual - PPC-B2xx Series
1- 4
_1
1.3 Dimensions
1.3.1 PPC-B212 Series
Applicable
Models
PPC-B212 Series
Unit：mm

Chapter 1 Product Specification
1- 5
1_
1.3.2 PPC-B215 Series
Applicable
Models
PPC-B215 Series
Unit：mm

Delta Embedded Industrial PC Operation Manual - PPC-B2xx Series
1- 6
_1
1.3.3 PPC-B219 Series
Applicable
Models
PPC-B219 Series
Unit：mm

2- 1
2
Chapter 2 I/O Interface
Table of Contents
2.1 Diagrams of I/O Interface .........................................................................2-2
2.1.1 PPC-B212 Series ....................................................................................2-2
2.1.2 PPC-B215 Series ....................................................................................2-3
2.1.3 PPC-B219 Series ....................................................................................2-4
2.2 I/O Port Pins..............................................................................................2-5
2.2.1 Standard DB9 Port.................................................................................2-5
2.2.2 RJ-45 LAN Port......................................................................................2-6
2.2.3 VGA Port ..............................................................................................2-7
2.2.4 USB 2.0 Port.........................................................................................2-7
2.2.5 USB 3.0 Port.........................................................................................2-8
2.2.6 HDMI A Type Port ..................................................................................2-8
2.2.7 DC 9~32V Power Port ............................................................................2-9

Delta Embedded Industrial PC Operation Manual - PPC-B2xx Series
2- 2
_2
2.1 Diagrams of I/O Interface
2.1.1 PPC-B212 Series
Applicable
Models PPC-B212 Series
No. Item No. Item
1 Power Switch 6 VGA
2 Line-In/Out 7 GND
3 RS-232 8 Power Connector
4 USB2.0 / USB3.0 9 HDMI
5 Ethernet

Chapter 2 I/O Interface
2- 3
2_
2.1.2 PPC-B215 Series
Applicable
Models
PPC-B215 Series
No. Item No. Item
1 Power Switch 6 VGA
2 Line-In/Out 7 GND
3 RS-232 8 Power Connector
4 USB2.0 / USB3.0 9 HDMI
5 Ethernet

Delta Embedded Industrial PC Operation Manual-PPC-B2xx Series
2- 4
2.1.3 PPC-B219 Series
Applicable
Models
PPC-B219 Series
No. Item No. Item
1 Power Switch 6 VGA
2 Line-In/Out 7 GND
3 RS-232 8 Power Connector
4 USB2.0 / USB3.0 9 HDMI
5 Ethernet

Chapter 2 I/O Interface
2- 5
2_
2.2 I/O Port Pins
2.2.1 Standard DB9 Port
Applicable
Models
PPC-B212、PPC-B215、PPC-B219 Series
Serial Port
Pin
Communication Interface
RS-232
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI

Delta Embedded Industrial PC Operation Manual-PPC-B2xx Series
2- 6
2.2.2 RJ-45 LAN Port
Applicable
Models
PPC-B212、PPC-B215、PPC-B219 Series
RJ-45
Pin
1000 Base-T
100 Base-T
L1 Red Green
L2 Blue N.C.
L3 GND DETECT
L4 GND GND
L5 +5V GND
L6 N.C. DDC DATA
L7 Horizontal Sync Vertical Sync
L8 DDC CLK
ACTLED
Network Status Display
LED ON: Data transmitting
LED OFF: No data transmission
LILED
Network Transmission Rate
LED (Orange light): 1000Mbps
LED (Green light): 100Mbps
LED OFF: 10Mbps
