Delta MS-ACT50-4K User manual

HD CCTV tester
User Manual

Thank you for purchasing the HD CCTV tester. Please read the manual
before using the HD CCTV tester and use properly.
For using the HD CCTV tester safely, please first read the「Safety
Information」carefully in the manual.
The manual should be kept well in case of reference.

Keep the S/N label for after-sale service within warranty period. Product
without S/N label will be charged for repair service.
If there is any question or problem while using the HD CCTV tester, or
damages occurred on the product, please contact our technical department.

Content
1. Safety information.......................................................................................... 1
2. Function interface........................................................................................... 2
3. Operation........................................................................................................ 8
3.1 Installing the Battery........................................................................ 8
3.2 General ............................................................................................. 8
4. Feature ........................................................................................................... 9
5. Feature introduction ..................................................................................... 11
5.1 TVI/CVI/AHD/CVBS camera test.................................................. 11
5.2 Coaxial PTZ control........................................................................ 12
5.3 RS485 control................................................................................. 14
5.4 EX-SDI/HD-SDI camera test.......................................................... 16
6. XVR display................................................................................................. 16
6.1 HDMI input .................................................................................... 16

6.2 VGA input ...................................................................................... 17
7. Cable Tester................................................................................................. 18
7.1 UTP Cable Tester............................................................................ 18
7.2 Digital cable tracer (Optional)......................................................... 21
8. U disk reading.............................................................................................. 23
9. Audio test..................................................................................................... 24
10. Setting........................................................................................................ 24
11. Packing kits................................................................................................ 25
12. Specifications............................................................................................. 26

1
1. Safety information
◆The tester is intended to use in compliance with the local rules of the
electrical usage and avoid to apply at the places which are inapplicable for
the use of electrics such as hospital, gas station etc.
◆To prevent the functional decline or failure, the product should not be
sprinkled or damped.
◆The exposed part of the tester should not be touched by the dust and liquid.
◆During transportation and use, it is highly recommended to avoid the
violent collision and vibration of the tester, lest damaging components and
causing failure.
◆Don’t leave the tester alone while charging and recharging. If the battery
is found severely hot, the tester should be powered off from the electric
source at once. The tester should not be charged over 10 hours.
◆Don’t use the tester where the humidity is high. Once the tester is damp,
power off immediately and move away other connected cables.

2
◆The tester should not be used in the environment with the flammable gas.
◆Do not disassemble the instrument since no component inside can be
repaired by the user. If the disassembly is necessary indeed, please contact
with the technician of our company.
◆The instrument should not be used under the environment with strong
electromagnetic interference.
◆Don’t touch the tester with wet hands or waterish things.
◆Don’t use the detergent to clean and the dry cloth is suggested to use. If
the dirt is not easy to remove, the soft cloth with water or neutral detergent
can be used. But the cloth should be tweaked sufficiently.
2. Function interface

3
○
,1 RS485 data transmission indicator: the light is red while the data is
being transmitted
○
,2 Charging indicator: the light is red while the battery is being charged.
The light will automatically turn off if charge completed

4
○
,3 Power indicator: the light is green while the tester is turned on
○
,4 Zoom in the image
○
,5 Zoom out the image
○
,6 Focus the image faraway
○
,7 Focus the image nearby
○
,8 Upward, select function, set parameter and tilt the PTZ upward
○
,9 Rightward, select function, set parameter and pan the PTZ rightward
○
,10 Confirm button, enter functions and save settings
○
,11 Downward, select function, set parameter and tilt the PTZ

5
downward
○
,12 Leftward, select function, set parameter and pan the PTZ leftward
○
,13 Setting button, enter the function parameter settings
○
,14 Return/Close: Return and cancel the operation

6
○
,15 CVBS/AHD/TVI/CVI input (BNC interface)
○
,16 EX/HD-SDI input (BNC interface) （Optional）
○
,17 HDMI input
○
,18 DC 5V 1A power output, USB power bank
○
,19 DC 12V 1A power output, temperately supply power for camera
○
,20 ON/OFF power switch
○
,21 LED light
○
,22 Light power button

7
○

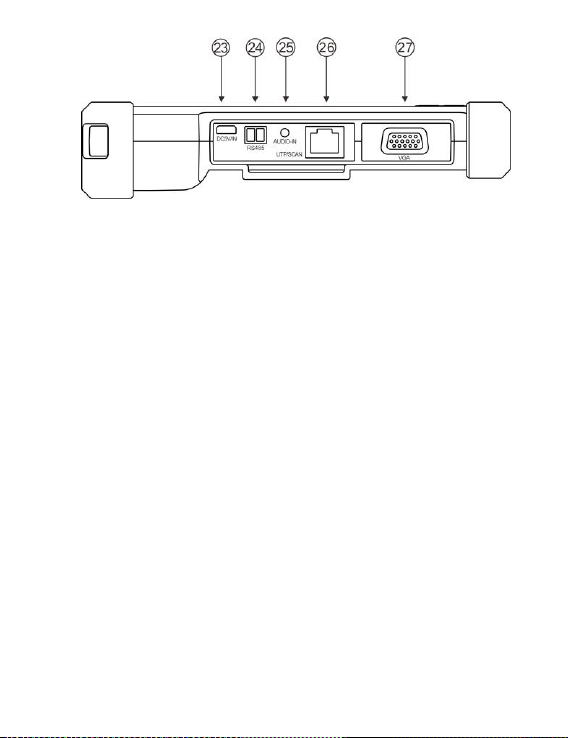

,23 DC 5V 2A charging interface
○
,24 RS485 Interface: RS485 communication for the PTZ
○
,25 Audio input
○
,26 UTP port, UTP cable tester port/ Cable tracer port (*Optional)
○
,27 VGA input

8
3. Operation
3.1 Installing the Battery
The tester has built-in lithium ion rechargeable battery. The battery inside
battery cabin should be disconnected for safety during transportation!
Prior to the use of the instrument, please take out the battery insulation paper.
Sliding the ON/OFF power switch can power on or off the tester.
Notice: please use 5V 2A adapter to charge when charging. Too high
voltage/current will burn the instrument!
When the battery icon is full or the charge indicator turns off automatically,
indicate the battery charging is completed
3.2 General
The 5 inch TFT-LCD screen HD CCTV Tester is designed for maintenance
and installation of CVBS, TVI, CVI, AHD cameras, as well as HDMI input,

9
VGA input, Audio input, PTZ control, PING test, LED Flashlight, DC 12V
1A power output, etc. Its portability, user-friendly design and many other
functions make the CCTV tester an essential tool for all installers or
technicians.
4. Feature
● 5 inch TFT-LCD screen, 800*480 resolutions
● RS485 PTZ control, baud 600-115200bps, compatible with more than 30
protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc
● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, coaxial PTZ control & call
OSD menu
● 8MP AHD test, 3840x2160P 15 FPS, coaxial PTZ & call OSD menu
● 8MP CVI test, 3840 x 2160P 12.5/15FPS, coaxial PTZ & call OSD menu
● 8MP EX-SDI test, 3840 x 2160P 25/30FPS, coaxial PTZ & call OSD
menu (*Optional)

10
● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, coaxial PTZ & call OSD
menu (*Optional)
● 3G-SDI test, 1920 x 1080P 50/60 FPS, coaxial PTZ & call OSD menu
(*Optional)
● CVBS camera test, PTZ controller
● DC12V/1A power output, camera can be powered from DC 12 Voltage.
● DC 5V 1A power output, support reading USB disk
● Audio in, support record and save the audio.
● Improvement cable tester, UTP cable, telephone cable etc order and
connectivity test, can save testing report, if special number, need customized.
Can detect the near-end, mid-end and far-end fault point of RJ45 cable
connector
● Digital Cable tracer, search BNC cable, network cable and telephone cable
from the mess cables. Cable tracer and UTP cable test app in the same
interface(*Optional)

11
● 3.7 V /5200mAh Li-ion Battery, after 4 hours charging, working time lasts
6.5 hours
5. Feature introduction
5.1 TVI/CVI/AHD/CVBS camera test
Connect camera to “AHD/CVI/TVI” port, enter “Auto HD” app. Can auto
recognize AHD/CVI/TVI/CVBS signal and display the image, as well as
display the camera type and frame.

12
5.2 Coaxial PTZ control
When enter “PTZ” option, press key switch to “menu setting”, and
switch to“key (open)” or “OK” option, press key to call out the camera
main menu.

13

14
5.3 RS485 control
Support RS485 control, baud 600-115200bps, compatible with more than 30
protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. Can
set PTZ pan speed and Tilt speed, call set preset position. In the Auto

15

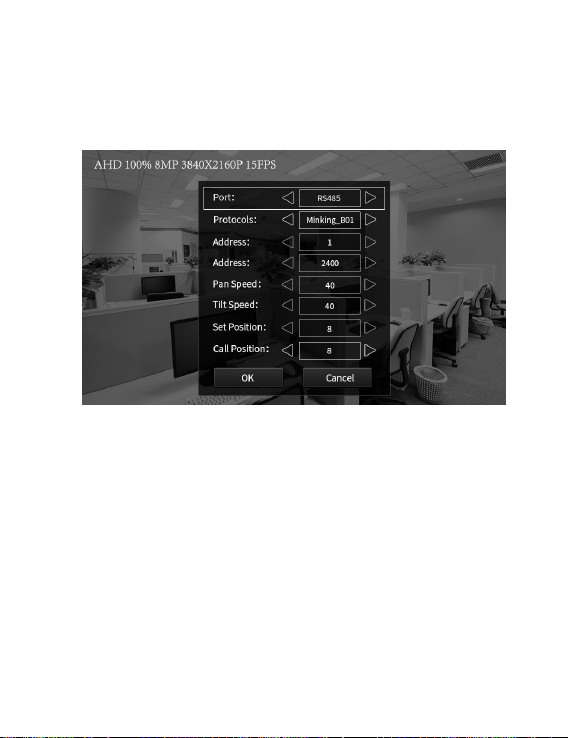

HD/CVBS IN interface, press “SET” , can set RS485 protocol, Port, Baud,
Address, PTZ, etc.
