Demco Hijacker 6040 User manual

8-12
HJ26040 rev 0

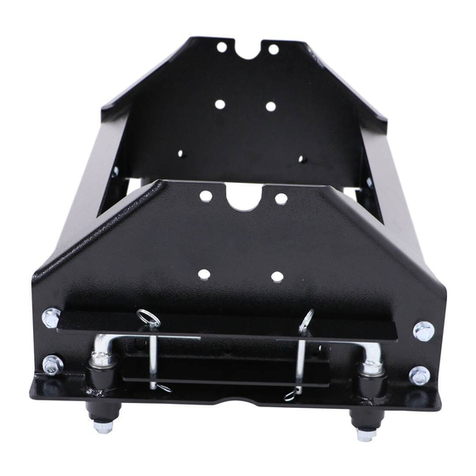

6040 UMS Side Rail Assembly Instructions
Place the side rail plates into the base rail holes in truck box.1.
Loosely bolt the saddle bracket (5990) to the side rails using the 1/2” x 1 1/2” bolts, flat washers,2.
and lock nuts provided in the 6040 bolt package.
Loosely bolt the cross braces to the side rails using only 1/2” x 1 1/2” bolts and lock nuts (no flat3.
washers). NOTE: A flat washer under the head of the bolts would prevent the locking pins from
pivoting around far enough to allow the pins to release from the base rails.
Tighten all the bolts.4.
Unlock and remove the hitch assembly from the base rails and put to the side for later.5.
IMPORTANT NOTE: Apply a little grease or lubricant to the part of the pins that insert into the base
rails to help maintain smooth operation and rotation of pins and to protect from the elements. Turn the
pins occasionally to prevent them from seizing.
Drawing #1
Apply grease or lubricant
Unlocked
Locked
To lock hitch in truck, turn lock handles
in and install safety lock pins
To unlock hitch from truck, remove
safety lock pins and turn lock handles
straight out.

6040 Parts Breakdown
3
10
7
6
9
2
5
12
8
13
4
11
14
A
ITEM PART # DESCRIPTION QTY
1 00085 .50 FLAT WASHER
16
2 00173 NUT, HEX, .50NC CENTER PUNCH 4
3 01254
BOLT, .50 NC X 1.50 GR.5 HEX
20
4 02178 NUT, .50NC LOCK, NY. INSERT
20
5 02384 .50 X 14GA MACHINE WASHER 4
6 07225
SPLIT RING 4
7
14262-76 UMS SIDE RAIL BRACE
2
8 14412-95 UMS LOCK PIN ASSEMBLY, REESE 4
9
14342-95 CLEVIS SAFETY PIN 4
10 14350
HAIR PIN, .093 WIRE X 1.63 OL 4
11
14352-76 UMS 21K BRACE 2
12
14413-95 LOCKING TAB 4
13 14423
WASHER SHIM .875 ID X .030 THK 8
14
14462-76 SIDE RAIL F/UM REESE MNT 2
REV. ECN # DATE DFTM
A 5249 12/6/2012 JK
DATE
DATE
4010 320TH ST. PO BOX 189
BOYDEN, IOWA 51234
THIRD ANGLE
PROJECTION
UNLESS OTHERWISE
SPECIFIEDALL DIMENSIONS
ARE IN INCHES
6040
DRAWN BY
APPOV. BY
DRAWING. NO. REV
SCALE: 1:7
SHEET 1 OF 1
A
UMS SIDE RAIL KIT
TOLERANCES
.X = .060 MIN. MACHINE SURFACE 250
.XX = ±.030 BREAK ALL SHARP EDGES
.XXX = ±.010 BEND AND DRAFT ±1°
85.71
WEIGHT
05/09/12
JK
JK
01/26/12
THE DRAWING AND ALL
INFORMATION THERE
ON ARE THE PROPERTY OF
DEMCO
DESCRIPTION
SAVED BY
JK 12/06/12
DATE
VOLUME
304.16
ITEM PART # QTY DESCRIPTION
100085 24 .50 FLAT WASHER
200173 4 NUT, HEX, .50NC CENTER PUNCH
301254 20 BOLT, .50 NC X 1.50 GR.5 HEX
402178 20 NUT, .50NC LOCK, NY. INSERT
502384 4 .50 X 14GA MACHINE WASHER
607225 4 SPLIT RING
714262-30 2 UMS SIDE RAIL BRACE
814412-95 4 UMS LOCK PIN ASSEMBLY, REESE
914342-95 4 CLEVIS SAFETY PIN
10 14350 4 HAIR PIN, .093 WIRE X 1.63 OL
11 14352-30 2 UMS 21K BRACE
12 14413-95 4 LOCKING TAB
13 14423 8 WASHER SHIM .875 ID X .030 THK
14 14462-30 2 SIDE RAIL F/UM REESE MNT
