Denon Dn-c635 User manual

CD/MP3 PLAYER

DN-C635

OPERATING INSTRUCTIONS

FOR ENGLISH READERS PAGE 06 ~ PAGE 17

PARA LECTORES DE ESPAÑOL PAGINA 18 ~ PAGINA 29

INSTRUCCIONES DE OPERACION

SAFETY INSTRUCTIONS

1. Read Instructions – All the safety and operating instructions

should be read before the product is operated.

2. Retain Instructions – The safety and operating instructions

should be retained for future reference.

3. Heed Warnings – All warnings on the product and in the

operating instructions should be adhered to.

4. Follow Instructions – All operating and use instructions

should be followed.

5. Cleaning – Unplug this product from the wall outlet before

cleaning. Do not use liquid cleaners or aerosol cleaners.

6. Attachments – Do not use attachments not recommended

by the product manufacturer as they may cause hazards.

7. Water and Moisture – Do not use this product near water –

for example, near a bath tub, wash bowl, kitchen sink, or

laundry tub; in a wet basement; or near a swimming pool;

and the like.

8. Accessories – Do not place this product on an unstable cart,

stand, tripod, bracket, or table. The product may fall,

causing serious injury to a child or adult, and serious

damage to the product. Use only with a cart, stand, tripod,

bracket, or table recommended by the manufacturer, or

sold with the product. Any mounting of the product should

follow the manufacturer’s instructions, and should use a

mounting accessory

recommended by the

manufacturer.

9. A product and cart

combination should be

moved with care. Quick

stops, excessive force,

and uneven surfaces may

cause the product and cart

combination to overturn.

10. Ventilation – Slots and openings in the cabinet are provided

for ventilation and to ensure reliable operation of the

product and to protect it from overheating, and these

openings must not be blocked or covered. The openings

should never be blocked by placing the product on a bed,

sofa, rug, or other similar surface. This product should not

be placed in a built-in installation such as a bookcase or rack

unless proper ventilation is provided or the manufacturer’s

instructions have been adhered to.

11. Power Sources – This product should be operated only

from the type of power source indicated on the marking

label. If you are not sure of the type of power supply to

your home, consult your product dealer or local power

company. For products intended to operate from battery

power, or other sources, refer to the operating instructions.

12. Grounding or Polarization – This product may be equipped

with a polarized alternating-current line plug (a plug having

one blade wider than the other). This plug will fit into the

power outlet only one way. This is a safety feature. If you

are unable to insert the plug fully into the outlet, try

reversing the plug. If the plug should still fail to fit, contact

your electrician to replace your obsolete outlet. Do not

defeat the safety purpose of the polarized plug.

FIGURE A

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL

ELECTRICAL CODE ANTENNA

LEAD IN

WIRE

GROUND

CLAMP

ELECTRIC

SERVICE

EQUIPMENT

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

NEC - NATIONAL ELECTRICAL CODE

13. Power-Cord Protection – Power-supply cords should be

routed so that they are not likely to be walked on or pinched

by items placed upon or against them, paying particular

attention to cords at plugs, convenience receptacles, and

the point where they exit from the product.

15. Outdoor Antenna Grounding – If an outside antenna or

cable system is connected to the product, be sure the

antenna or cable system is grounded so as to provide some

protection against voltage surges and built-up static

charges. Article 810 of the National Electrical Code,

ANSI/NFPA 70, provides information with regard to proper

grounding of the mast and supporting structure, grounding

of the lead-in wire to an antenna discharge unit, size of

grounding conductors, location of antenna-discharge unit,

connection to grounding electrodes, and requirements for

the grounding electrode. See Figure A.

16. Lightning – For added protection for this product during a

lightning storm, or when it is left unattended and unused

for long periods of time, unplug it from the wall outlet and

disconnect the antenna or cable system. This will prevent

damage to the product due to lightning and power-line

surges.

17. Power Lines – An outside antenna system should not be

located in the vicinity of overhead power lines or other

electric light or power circuits, or where it can fall into such

power lines or circuits. When installing an outside antenna

system, extreme care should be taken to keep from

touching such power lines or circuits as contact with them

might be fatal.

18. Overloading – Do not overload wall outlets, extension

cords, or integral convenience receptacles as this can result

in a risk of fire or electric shock.

19. Object and Liquid Entry – Never push objects of any kind

into this product through openings as they may touch

dangerous voltage points or short-out parts that could

result in a fire or electric shock. Never spill liquid of any

kind on the product.

20. Servicing – Do not attempt to service this product yourself

as opening or removing covers may expose you to

dangerous voltage or other hazards. Refer all servicing to

qualified service personnel.

21. Damage Requiring Service – Unplug this product from the

wall outlet and refer servicing to qualified service personnel

under the following conditions:

a) When the power-supply cord or plug is damaged,

b) If liquid has been spilled, or objects have fallen into the

product,

c) If the product has been exposed to rain or water,

d) If the product does not operate normally by following

the operating instructions. Adjust only those controls

that are covered by the operating instructions as an

improper adjustment of other controls may result in

damage and will often require extensive work by a

qualified technician to restore the product to its normal

operation,

e) If the product has been dropped or damaged in any way,

and

f) When the product exhibits a distinct change in

performance – this indicates a need for service.

22. Replacement Parts – When replacement parts are required,

be sure the service technician has used replacement parts

specified by the manufacturer or have the same

characteristics as the original part. Unauthorized

substitutions may result in fire, electric shock, or other

hazards.

23. Safety Check – Upon completion of any service or repairs

to this product, ask the service technician to perform safety

checks to determine that the product is in proper operating

condition.

24. Wall or Ceiling Mounting – The product should be mounted

to a wall or ceiling only as recommended by the

manufacturer.

25. Heat – The product should be situated away from heat

sources such as radiators, heat registers, stoves, or other

products (including amplifiers) that produce heat.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO

USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrowhead

symbol, within an equilateral triangle,

is intended to alert the user to the

presence of uninsulated “dangerous

voltage” within the product’s

enclosure that may be of sufficient

magnitude to constitute a risk of

electric shock to persons.

IMPORTANT TO SAFETY

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO

NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

CAUTION

1. Handle the power supply cord carefully

Do not damage or deform the power supply cord.

If it is damaged or deformed, it may cause electric

shock or malfunction when used. When removing

from wall outlet, be sure to remove by holding the

plug attachment and not by pulling the cord.

2. Do not open the rear cover

In order to prevent electric shock, do not open the

top cover.

If problems occur, contact your DENON DEALER.

3. Do not place anything inside

Do not place metal objects or spill liquid inside the

system.

Electric shock or malfunction may result.

Please, record and retain the Model name and serial

number of your set shown on the rating label.

Model No. DN-C635

Serial No.

The exclamation point within an

equilateral triangle is intended to alert

the user to the presence of important

operating and maintenance (servicing)

instructions in the literature

accompanying the appliance.

NOTE:

This CD/MP3 PLAYER uses the semiconductor laser.

To allow you to enjoy music at a stable operation, it is

recommended to use this in a room of 5°C (41°F) ~

35°C (95°F).

LABELS (for U.S.A. model only)

CERTIFICATION

THIS PRODUCT COMPLIES WITH DHHS RULES

21 CFR SUBCHAPTER J APPLICABLE AT DATE OF

MANUFACTURE.

CAUTION:

USE OF CONTROLS OR ADJUSTMENTS OR

REFOR-MANCE OF PROCEDURES OTHER THAN

THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

THE COMPACT DISC PLAYER SHOULD NOT BE

ADJUSTED OR REPAIRED BY ANYONE EXCEPT

PROPERLY QUALIFIED SERVICE PERSONNEL.

This device complies with Part 15 of the FCC

Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any

interference received, including interference that

may cause undesired operation.

This Class B digital apparatus meets all

requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numérique de la classe B respecte

toutes les exigences du Règlement sur le matériel

brouilleur du Canada.

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION

POUR ÉVITER LES CHOCS ÉLECTRIQUES,

INTERODUIRE LA LAME LA PLUS LARGE DE LA

FICHE DANS LA BORNE CORRESPONDANTE DE

LA PRISE ET POUSSER JUSQU’ AU FOND.

•FOR CANADA MODEL ONLY

•POUR LES MODELE CANADIENS

UNIQUEMENT

ATTENZIONE: QUESTO APPARECCHIO E’ DOTATO DI DISPOSITIVO OTTICO CON RAGGIO LASER.

L’USO IMPROPRIO DELL’APPARECCHIO PUO’ CAUSARE PERICOLOSE ESPOSIZIONI A RADIAZIONI!

ENGLISH ESPANÑOL

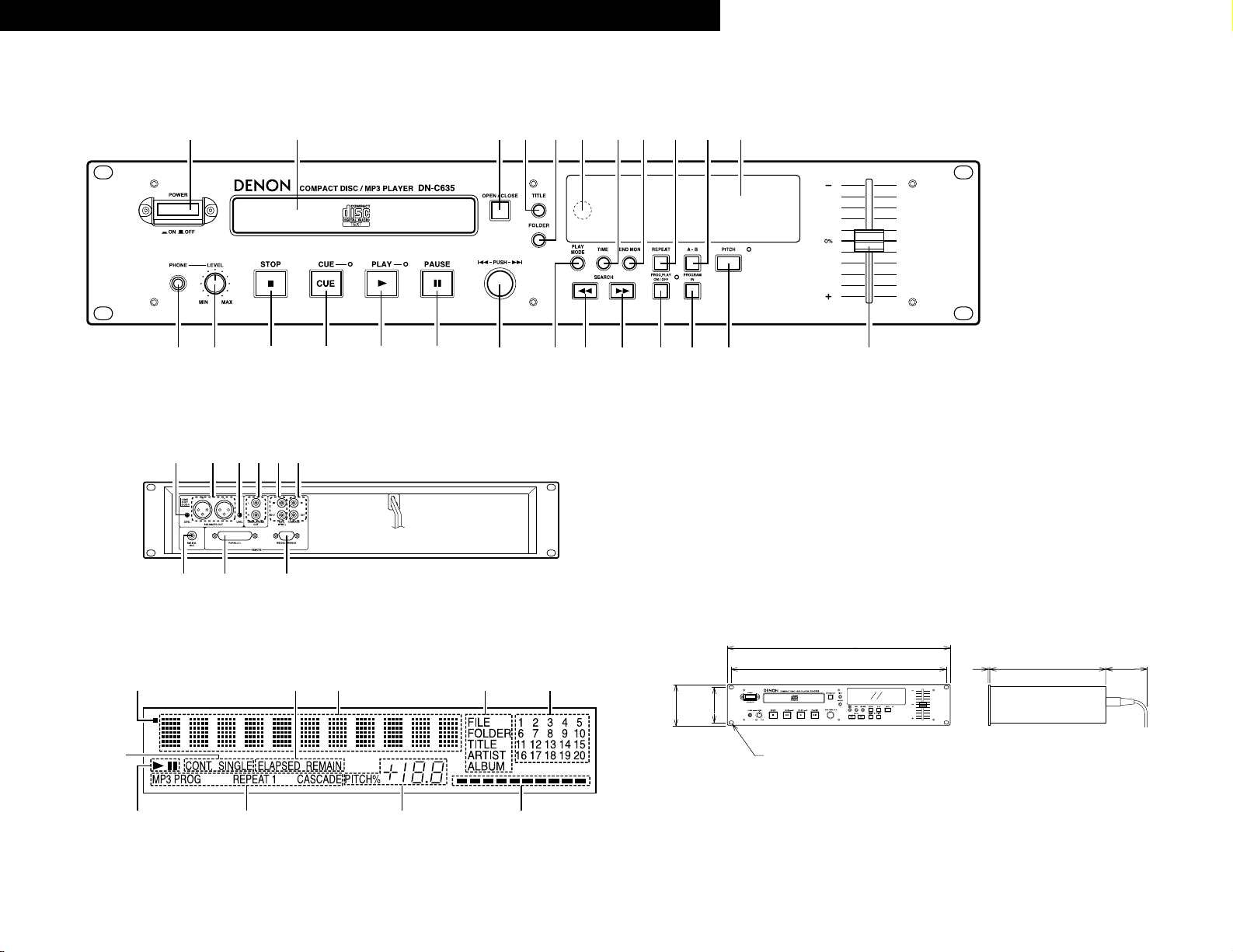

FRONT PANEL / FRONTPLATTE / PANNEAU AVANT / RANNELLO ANTERIORE /

PANEL FRONTAL /VOORPANEEL / FRONT PANELEN

DISPLAY / DISPLAY / AFFICHAGE / DISPLAY / VISUALIZADOR /

DISPLAY / DISPLAYEN

qwe@1r@3

@5@4 oyi!0 !7 !8 !6

t!9!4@0

!5!2!1!38

q ww iu

q w e r

i yu w t

REAR PANEL / RÜCKWAND / PANNEAU ARRIERE / IL PANNELLO POSTERIORE /

PANEL TRASERO / ACHTERPANEEL / BAKSIDA

DIMENSIONS / ABMESSUNGEN / DIMENSIONS /

DIMENSIONI / DIMENSIÓNES / AFMETINGEN /

YTTERMÅTT

7 x 10 hole

Loch 7 x 10

Trou de 7 x 10

Foro 7 x 10

Orificio de 7 x 10

Opening 7 x 10

Hål 7 x 10

482 (19”)

465 (18-5/16”)

88 (3-15/32”)

76.2

(3”)

(5/64”)

250

(9-27/32”)

(3-35/64”)

Unit: mm

Gerät: mm

Unité: mm

Unità: mm

Unidad: mm

Eenheid: mm

Enhet: mm

NOTE ON USE / HINWEISE ZUM GEBRAUCH /

OBSERVATIONS RELATIVES A L’UTILISATION / NOTE SULL’USO

NOTAS SOBRE EL USO / ALVORENS TE GEBRUIKEN / OBSERVERA

• Avoid high temperatures.

Allow for sufficient heat dispersion when

installed on a rack.

• Vermeiden Sie hohe Temperaturen.

Beachten Sie, daß eine ausreichend

Luftzirkulation gewährleistet wird, wenn das

Gerät auf ein Regal gestellt wird.

• Eviter des températures élevées

Tenir compte d’une dispersion de chaleur

suffisante lors de l’installation sur une

étagère.

• Evitate di esporre l’unità a temperature alte.

Assicuratevi che ci sia un’adeguata

dispersione del calore quando installate

l’unità in un mobile per componenti audio.

• Evite altas temperaturas

Permite la suficiente dispersión del calor

cuando está instalado en la consola.

• Vermijd hoge temperaturen.

Zorg voor een degelijk hitteafvoer indien het

apparaat op een rek wordt geplaatst.

• Undvik höga temperaturer.

Se till att det finns möjlighet till god

värmeavledning vid montering i ett rack.

• Keep the set free from moisture, water, and

dust.

• Halten Sie das Gerät von Feuchtigkeit,

Wasser und Staub fern.

• Protéger l’appareil contre l’humidité, l’eau et

lapoussière.

• Tenete l’unità lontana dall’umidità, dall’acqua

e dalla polvere.

• Mantenga el equipo libre de humedad, agua

y polvo.

• Laat geen vochtigheid, water of stof in het

apparaat binnendringen.

• Utsätt inte apparaten för fukt, vatten och

damm.

• Do not let foreign objects in the set.

• Keine fremden Gegenstände in das Gerät

kommen lassen.

• Ne pas laisser des objets étrangers dans

l’appareil.

• E’ importante che nessun oggetto è inserito

all’interno dell’unità.

• No deje objetos extraños dentro del equipo.

• Laat geen vreemde voorwerpen in dit

apparaat vallen.

• Se till att främmande föremål inte tränger in i

apparaten.

• Handle the power cord carefully.

Hold the plug when unplugging the cord.

• Gehen Sie vorsichtig mit dem Netzkabel um.

Halten Sie das Kabel am Stecker, wenn Sie

den Stecker herausziehen.

• Manipuler le cordon d’alimentation avec

précaution.

Tenir la prise lors du débranchement du

cordon.

• Manneggiate il filo di alimentazione con cura.

Agite per la spina quando scollegate il cavo

dalla presa.

• Maneje el cordón de energía con cuidado.

Sostenga el enchufe cuando desconecte el

cordón de energía.

• Hanteer het netsnoer voorzichtig.

Houd het snoer bij de stekker vast wanneer

deze moet worden aan- of losgekoppeld.

• Hantera nätkabeln varsamt.

Håll i kabeln när den kopplas från el-uttaget.

• Unplug the power cord when not using the

set for long periods of time.

• Wenn das Gerät eine längere Zeit nicht

verwendet werden soll, trennen Sie das

Netzkabel vom Netzstecker.

• Débrancher le cordon d’alimentation lorsque

l’appareil n’est pas utilisé pendant de

longues périodes.

• Disinnestate il filo di alimentazione quando

avete l’intenzione di non usare il filo di

alimentazione per un lungo periodo di tempo.

• Desconecte el cordón de energía cuando no

utilice el equipo por mucho tiempo.

• Neem altijd het netsnoer uit het stopkontakt

wanneer het apparaat gedurende een lange

periode niet wordt gebruikt.

• Koppla ur nätkabeln om apparaten inte

kommer att användas i lång tid.

• Do not let insecticides, benzene, and thinner

come in contact with the set.

• Lassen Sie das Gerät nicht mit Insektiziden,

Benzin oder Verdünnungsmitteln in

Berührung kommen.

• Ne pas mettre en contact des insecticides,

du benzène et un diluant avec l’appareil.

• Assicuratevvi che l’unità non venga in

contatto con insetticidi, benzolo o solventi.

• No permita el contacto de insecticidas,

gasolina y diluyentes con el equipo.

• Laat geen insektenverdelgende middelen,

benzine of verfverdunner met dit apparaat in

kontakt komen.

• Se till att inte insektsmedel på spraybruk,

bensen och thinner kommer i kontakt med

apparatens hölje.

• Never disassemble or modify the set in any

way.

• Versuchen Sie niemals das Gerät

auseinander zu nehmen oder auf jegliche Art

zu verändern.

• Ne jamais démonter ou modifier l’appareil

d’une manière ou d’une autre.

• Non smontate mai, nè modificate l’unità in

nessun modo.

• Nunca desarme o modifique el equipo de

ninguna manera.

• Nooit dit apparaat demonteren of op andere

wijze modifiëren.

• Ta inte isär apparaten och försök inte bygga

om den.

• Do not obstruct the ventilation holes.

• Die Belüftungsöffnungen dürfen nicht

verdeckt werden.

• Ne pas obstruer les trous d’aération.

• Non coprite i fori di ventilazione.

• No obstruya los orificios de ventilación.

• De ventilatieopeningen mogen niet worden

beblokkeerd.

• Täpp inte till ventilationsöppningarna.

* (For sets with ventilation holes)

•DECLARATION OF CONFORMITY

We declare under our sole responsibility that this

product, to which this declaration relates, is in conformity

with the following standards:

EN60065, EN55013, EN55020, EN61000-3-2 and

EN61000-3-3.

Following the provisions of 73/23/EEC, 89/336/EEC and

93/68/EEC Directive.

•ÜBEREINSTIMMUNGSERKLÄRUNG

Wir erklären unter unserer Verantwortung, daß dieses

Produkt, auf das sich diese Erklärung bezieht, den

folgenden Standards entspricht:

EN60065, EN55013, EN55020, EN61000-3-2 und

EN61000-3-3.

Entspricht den Verordnungen der Direktive 73/23/EEC,

89/336/EEC und 93/68/EEC.

•DECLARATION DE CONFORMITE

Nous déclarons sous notre seule responsabilité que

l’appareil, auquel se réfère cette déclaration, est

conforme aux standards suivants:

EN60065, EN55013, EN55020, EN61000-3-2 et

EN61000-3-3.

D’après les dispositions de la Directive 73/23/EEC,

89/336/EEC et 93/68/EEC.

•DICHIARAZIONE DI CONFORMITÀ

Dichiariamo con piena responsabilità che questo

prodotto, al quale la nostra dichiarazione si riferisce, è

conforme alle seguenti normative:

EN60065, EN55013, EN55020, EN61000-3-2 e EN61000-

3-3.

In conformità con le condizioni delle direttive 73/23/EEC,

89/336/EEC e 93/68/EEC.

QUESTO PRODOTTO E’ CONFORME

AL D.M. 28/08/95 N. 548

•DECLARACIÓN DE CONFORMIDAD

Declaramos bajo nuestra exclusiva responsabilidad que

este producto al que hace referencia esta declaración,

está conforme con los siguientes estándares:

EN60065, EN55013, EN55020, EN61000-3-2 y EN61000-

3-3.

Siguiendo las provisiones de las Directivas 73/23/EEC,

89/336/EEC y 93/68/EEC.

•EENVORMIGHEIDSVERKLARING

Wij verklaren uitsluitend op onze verantwoordelijkheid

dat dit produkt, waarop deze verklaring betrekking heeft,

in overeenstemming is met de volgende normen:

EN60065, EN55013, EN55020, EN61000-3-2 en

EN61000-3-3.

Volgens de bepalingen van de Richtlijnen 73/23/EEC,

89/336/EEC en 93/68/EEC.

•ÖVERENSSTÄMMELSESINTYG

Härmed intygas helt på eget ansvar att denna produkt,

vilken detta intyg avser, uppfyller följande standarder:

EN60065, EN55013, EN55020, EN61000-3-2 och

EN61000-3-3.

Enligt stadgarna i direktiv 73/23/EEC, 89/336/EEC och

93/68/EEC.

CAUTION

• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths,

curtains, etc.

• No naked flame sources, such as lighted candles, should be placed on the apparatus.

• Please be care the environmental aspects of battery disposal.

• The apparatus shall not be exposed to dripping or splashing for use.

• No objects filled with liquids, such as vases, shall be placed on the apparatus.

CLASS 1 LASER PRODUCT

LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

ADVARSEL: USYNLIG LASERSTRÅLING VED ÅBNING, NÅR

SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION.

UNDGÅUDSAETTELSE FOR STRÅLING.

VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ

KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA

ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1

YLITTÄVÄLLE NÄKYMÄMTTÖMÄLLE LASERSÄTEILYLLE.

VARNING–OM APPARATEN ANVÄNDS PÅANNAT SÄTT ÄN I DENNA

BRUKSANVISNING SPECIFICERATS, KAN ANVÄNDAREN

UTSÄTTAS FÖR OSYNLIG LASERSTRÅLNING SOM

ÖVERSKRIDER GRÄNSEN FÖR LASERKLASS 1.

CLASS 1

LASER PRODUCT,

• Use compact discs that include the mark.

CD’s with special shapes (heart-shaped CD’s, octagonal

CD’s etc.) cannot be played on this set.

Attempting to do so may damage the set. Do not use

such CD’s.

• Benutzen Sie Compact Discs, die das Zeichen

tragen.

Speziell geformte CD’s (herzförmige CDs, achteckige

CDs, usw.) können auf dieser Anlage nicht abgespielt

werden.

Der Versuch derartige CDs abzuspielen kann die Anlage

beschädigen. Verzichten Sie auf die Benutzung solcher

CDs.

• Utiliser des disques compacts portant le logo .

Des CD avec des formes spéciales (CD en forme de

coeur, des CD octogonaux, etc.) ne peuvent pas être lus

sur cet appareil.

Le fait de l’essayer, risque d’endommager le lecteur. Ne

pas utiliser de tels CD.

• Usare compact disc che includono il marchio .

I CD con forme particolari (CD a forma di cuore, CD

ottogonali ecc.) non possono essere riprodotti su questo

apparecchio.

L’apparecchio si potrebbe danneggiare se si cerca di

farlo. Non utilizzare questi CD.

• Use discos compactos con la marca .

En este equipo no es posible reproducir CDs con formas

especiales (CDs con forma de corazón, CDs octagonales,

etc.).

Si intenta hacerlo, el equipo podrá resultar dañado. No

use este tipo de CDs.

• Gebruik compact discs voorzien van het logo .

CD’s met speciale vormen (bijv. CD’s in de vorm van een

hart, achthoekige CD’s, enz.) kunnen met dit toestel niet

worden afgespeeld.

Wanneer u dit toch probeert, zal u het toestel

beschadigen. Speel dergelijke CD’s dus niet af.

• Använd CD-skivor med -märket.

Specialformade CD-skivor (hjärtformade, åttkantiga, m m)

går inte att spela på den här apparaten.

Utrustningen kan skadas om du försöker göra detta.

Använd inte CD-skivor av denna typ.

Disc

Residue

Rückstand

Résidu

Residuo

Residuos

Oneffenheid

Plastrester

• The disc may not play normally if there is residue

along the edges of the center hole.

• When using new discs in particular, use a pen, etc.,

to remove the residue.

• Die Disk kann nicht normal abgespielt werden,

wenn sich ein Rückstand entlang der

Mittellochenden befindet.

• Insbesondere, wenn Sie neue Disks benutzen, dann

entfernen Sie mit einem Stift, etc. den Rückstand.

• Le disque peut ne pas être lu normalements s’il y a

un résidu le long des bord du trou central.

• Lors de l’utilisation de nouveaux disques en

particulier, utiliser un stylo à bille, etc., pour enlever

le résidu.

• Il disco può non essere riprodotot in modo normale

se ci sono dei residui lungo I bordi del foro centrale.

• Usate una penna, ecc., per rimuovere I residui,

specialmente quando usate dischi nuovi.

• El disco no puede ser reproducido normalmente

debido a la terminación deficiente de los bordes del

agujero central.

• Para quitar estos residuos de material,

especialmente cuando vaya a re-producir discos

nuevos, utilice un bolígrafo, o algo similar.

• Het is mogelijk dat de disc niet normaal wordt

weergegeven als de randen van het middengat van

de schijf oneffenheden vertonen.

• Verwijder vooral bij gebruik van nieuwe discs de

oneffenheden met een pen of iets dergelijks.

• Det kan uppstå fel vid CD-avspelningen om det

finns plastrester kvar i mitthålet.

• Tänk på att bort dessa med en penna, e d, särskilt

om CD-skivan är ny.

• This unit can display text information on the display when

playing CD text discs which contain text information in

English category.

The CD text disc includes the mark shown at the right.

NOTE:

• This unit can provide a text display of the following

types of characters. Other types of characters will

result in “ ” being displayed.

• Alphabet

ABCDEFGHIJKLMNOPQRSTUVWXYZ

abcd fghijklmnopqrstuvwxyz

• Numbers

0123456789

• Symbols

• Bei der Wiedergabe von CD-Textdiscs, die

Funktionstasten in englischer Kategorie enthalten, kann

dieses Gerät auf dem Display Funktionstasten anzeigen.

Die CD-Textdiscs sind mit dem rechts dargestellten Logo

versehen.

HINWEIS:

• Dieses Gerät kann aus den nachfolgend aufgeführten

Zeichenarten bestehende Texte anzeigen. Bei anderen

Zeichenarten wird “ ” angezeigt.

• Alphabet

ABCDEFGHIJKLMNOPQRSTUVWXYZ

abcd fghijklmnopqrstuvwxyz

• Zahlen

0123456789

• Symbole

• Cet appareil peut afficher les textes d'information lors de

la lecture de CD qui comportent ces textes, dans la

catégorie anglaise.

Les CD avec texte se repèrent à la marque indiquée à

droite.

REMARQUE:

• Cet appareil permet l’affichage de textes composés

avec les types de caractère suivants. Tous les autres

types de caractère seront affichés ainsi “ ”.

• Alphabétiques

ABCDEFGHIJKLMNOPQRSTUVWXYZ

abcd fghijklmnopqrstuvwxyz

• Chiffres

0123456789

• Symboles

• Quest’unità può visualizzare dei testi sul display durante

la riproduzione di CD che contengono dei testi in inglese.

Il disco CD con testi include il marchio mostrato qui a

destra.

NOTA:

• Quest’unità è in grado di fornire una visualizzazione dei

testi usando i seguenti tipi di caratteri. Altri tipi di

caratteri causeranno la visualizzazione dell’indicazione

“ ”.

• Alfabeto

ABCDEFGHIJKLMNOPQRSTUVWXYZ

abcd fghijklmnopqrstuvwxyz

• Numeri

0123456789

• Simboli

SPACE

•Esta unidad puede mostrar información de texto en la

pantalla cuando se reproducen discos CD de Texto que

contengan información de texto en la categoría de Inglés.

Los discos CD de Texto incluyen la marca indicada a la

derecha.

NOTA:

•Esta unidad puede mostrar visualizaciones de texto de

los siguientes tipos de caracteres.Otros tipos de

caracteres harán que se visualice “”.

•Alfabeto

ABCDEFGHIJKLMNOPQRSTUVWXYZ

abcd fghijklmnopqrstuvwxyz

•Números

0123456789

•Símbolos

•Dit toestel kan tekstinformatie op het display tonen bij

het weergeven van CD-Text discs met tekstinformatie in

de categorie Engels.

Een CD-Text disc is voorzien van het logo rechts.

OPMERKING:

•Dit toestel kan de volgende tekens als tekst

weergeven. Voor andere types van tekens verschijnt

“”op het display.

•Alfabet

ABCDEFGHIJKLMNOPQRSTUVWXYZ

abcd fghijklmnopqrstuvwxyz

•Getallen

0123456789

•Symbolen

•Denna apparat kan visa text pådisplayen när du spelar

CD-textskivor innehållande information påengelska.

CD text-skivor bär märket som anges påhöger sida.

OBSERVERA:

•Apparaten kan visa text med följande teckentyper. För

övriga tecken kommer “”att visas.

•Alfabetiska

ABCDEFGHIJKLMNOPQRSTUVWXYZ

abcd fghijklmnopqrstuvwxyz

•Siffror

0123456789

•Symboler

SPACE

ENGLISH

CAUTION:

• Whenever the power operation switch is in the

OFF state, the apparatus is still connected on AC

line voltage.

• The DN-C635 will work normally when the player

unit is mounted with the front panel within 10

degrees of the vertical plane. If the unit is tilted

excessively, discs may not load or unload

properly.

DN-C635

Max. 10°

PART NAMES AND FUNCTIONS (Refer to page 3.)

(1) Front panel

qPower operation switch (POWER)

• The power turns on when the button is

switched from the off position (£) to the on

position (¢).

• The power turns off when the button is

switched from the on position (¢) to the off

position (£).

wDisc holder

• The disc placed on this holder. Pressing the

disc holder OPEN/CLOSE (5) button ewill

open and close the holder.

When loading the CD, place it securely in the

disc holder.

eDisc holder open/close button

(5OPEN/CLOSE)

• Press to load or eject the disc. Each press will

open or close the disc holder w.

rRemote control sensor

(REMOTE SENSOR)

• About the wireless remote control unit : Please

contact local dealer or distributor.

tDisplay

• Refer to page 8 for details.

yPLAY button (1)

• Use this to start playback.

uSTOP button (2)

• Press this button to stop playback.

iPAUSE button (3)

• Use this pause playback.

oCUE button

• When pressed during playback, the pickup

returns to the position at which playback last

started and the pause mode is set.

• When pressed during manual search, the

pause mode is set at that position.

• When pressed while the disc holder is open,

the disc holder closes and the pause mode is

set.

!0 Select knob (8,9)

• Turn the knob clockwise by one click to move

one track forward, counterclockwise by one

click to move one track backward.

• When the knob turned while pressing it in, one

click corresponds to 10 tracks.

• In the preset mode, use this knob to set and

enter preset settings.

!1 !2 Search button (6,7)

• These buttons are used to accurately change

the positions where playback will start.

!3 PLAY MODE button

• Press this button to switch the play mode.

!4 END MON button

• Press this button in the standby mode to

monitor the end of the track. (End Monitor)

✽In the MP3 play mode, the time of monitor may

not be correctly.

!5 PITCH button

• Press this button to switch to the play speed

set with the Pitch Slider. The PITCH LED

flashes.

• When the button is pressed again, the fixed

pitch mode is set and the PITCH LED lights.

• Press the button again to cancel the pitch play

mode and return to normal speed.

– TABLE OF CONTENTS –

zFeatures..............................................................6

xPart names and functions..............................6~8

cConnections........................................................8

vOpening and closing the disc holder

and loading a disc...............................................9

bNormal CD playback...........................................9

nAdvanced CD playback...............................10, 11

mPlaying MP3 files .......................................11~13

,The compact disc.............................................13

.Power on playback...........................................13

⁄0 Expanded function......................................13, 14

⁄1 Before switching off the power.......................14

⁄2 Preset functions and operations................14~16

⁄3 Troubleshooting ................................................16

⁄4 Specifications ...................................................17

2ACCESSORIES

Check that the following parts are included in

addition to the main unit:

qOperating instructions......................................1

wConnection Cords ............................................1

FEATURES

299-track programming play

2±12 % Variable pitch playback

2CD-R/RW playback

2CD TEXT

2MP3 playback

219 inch Rack Mountable (Height 2 U)

2Track Search Select knob (Easy track selection)

2Play mode and Finish mode

(1) Play mode

qContinuous: Play a whole disc.

wSingle: Play a track.

(2) Finish mode (Stop, Next, Recue)

qStop: Stop after finishing to play a track.

wNext: Standby at the beginning of next

track after finishing to play track.

eRecue: After finishing to play a track,

standby at the beginning of the track.

2Auto Cue

After a disc is loaded, it is automatically cued to the

point where audio starts.

Cueing takes place at the point where audio starts

rather than where the track starts. The level at

which sound is first detected can be set between

–36 to –48 dB (3 steps).

2End Monitor

Pressing the END MON button during standby

instantly previews the end of the track, thus

assuring perfect “end point”. The point at which

monitoring starts can be set within a range of 5 to

35 seconds (7 steps) prior to the track’s end.

✽In the MP3 play mode, the time of monitor may

not be correctly.

2End of Message (EOM)

At the end of the track, the time display flashes,

providing a visual warning to the operator that the

track will end shortly. The point at which the

flashing beings can be set within a range of 0 to 60

seconds (7 steps) prior to the end of the track.

2FL Display

2Display of Playback Locations

A bar graph display indicates playback points on

the track being played. Elapsed time and

Remaining time displays are switched using the

TIME button.

2External control Terminals

Parallel Remote (D-sub 25 pin)

Serial Remote (D-sub 9 pin)

2Cascade playback

2Power on playback

2INTRODUCTION

Thank you very much for purchasing the DENON

component CD / MP3 player.

DENON proudly presents this advanced CD / MP3

player to audiophiles and music lovers as a further

proof of DENON’s non-compromising pursuit of the

ultimate in sound quality. The high quality performance

and easy operation are certain to provide you with

many hours of outstanding listening pleasure.

ENGLISH

!6 Pitch Slider

• Use this slider to adjust the play speed. Slide

up to decrease the play speed, down to

increase the play speed.

!7 PROG. PLAY ON/OFF button

• When this button is pressed while the PROG

indicator is lit, the program play mode is set.

• The button will not function during the A-B play

mode.

• The PROG. PLAY ON/OFF LED lights during

the program play standby and play modes.

• When the button is pressed during the

program play standby or play mode, the

program play mode is cleared.

!8 PROGRAM IN button

• Press this button to set the program input

mode.

• The button will not function during the play

mode.

• The PROG indicator flashes when in the

program input mode.

• The PROG indicator lights when a program is

set.

!9 REPEAT button

• Press this to perform repeat playback.

@0 TIME button

• The time display switches each time this

button is pressed. (“REMAIN”,

“ELAPSED”)

@1 TITLE button

• When the button is pressed, the text

information (Disc title, track title, disc artist or

track artits) is displayed.

• When the button is pressed while in the stop

mode with a disc containing an MP3 ID3-Tag

loaded, the file name is displayed. When

pressed during playback, the display switches

as shown below.

(2) Rear panel

qBALANCED OUT connectors

• These are active balanced outputs using XLR

type connections. The CD’s playback signals

are output from these connectors.

• Pin layout : 1. Common / 2. Hot / 3. Cold

• Applicable connector :

Cannon XLR-3-31 or equivalent.

wLEVEL L/R controls

• Use these controls to adjust the level of the

audio signals from the BALANCED OUT

connectors.

eUNBALANCED OUT jacks

• These are unbalanced outputs using RCA type

jacks.

rDIGITAL OUT jack

• This is a coaxial output using an RCA type jack.

• Signal format : SPDIF or IEC-958 Type II

tSerial control port

• This is serial remote connector.

• Applicable connector : 9-pin D-sub (male)

• Baud rate : 9600 bps

• Pin layout

File name of currently playing track

Elapsed time of currently playing track

Title name

Artist name

Album name

@2 FOLDER button

• When disc containing MP3 format files is

loaded, in the stop mode press this button then

the folder select mode is possible.

@3 A-B (A-B repeat) button

• Use this to play a set section repeatedly.

• When the button is pressed once during

playback, that position is set as the A point and

the “A-B” indicator flashes on the display.

• When the button is pressed again, that position

is set as the B point, the “A-B” indicator stops

flashing (remaining lit), and the A-B section

begins playing repeatedly.

• When the button is pressed again, A-B repeat

is canceled and the mode returns to the normal

play mode.

@4 Headphones jack

• For private listening, you can connect your

headphones to this jack.

@5 PHONES LEVEL control

• Use this adjust the output level of the

headphones.

NOTE :

• Do not short-circuit the hot or cold pin with

the common pin.

Pin No.

Signal Name

16NC

GND I / O

27NC

TxD O

38NC

RxD I

49NC

NC _

5 S. GROUND _

RS-232C

Pin No.

Signal Name

16NC

GND I / O

27 TxD

TxD (RETURN) O

38 RxD (RETURN)

RxD I

49NC

NC _

5 S. GROUND _

RS-422A

yParallel remote control port

• This is a parallel remote connector.

• Applicable connector : 25-pin D-sub (male)

• Connecting signal layout

Pin No.

Signal Name

114

PLAY tally

I / O

215

PAUSE tally

PLAY command

316

CUE tally

PAUSE command

417

INDEX 2/INDEX 3 tally

CUE command

TRACK (+) command

TTL (Iol = 20mA)

HCMOS (Ii = 3mA)

TTL (Iol = 20mA)

HCMOS (Ii = 3mA)

TTL (Iol = 20mA)

HCMOS (Ii = 3mA)

Tally common

619

Reserved

TRACK (–) command

720

Reserved

SEARCH (Fwd) command

821

Reserved

SEARCH (Rev) command

FADER START command

HCMOS (Ii = 3mA)

Tally power supply

Command common

EOM tally

Reserved

+3.3V, 20mA

(Ii = 10mA)

TTL (Iol = 20mA)

ENGLISH

CONNECTIONS

Leave your entire system (including the DN-C635) turned off until all connections between the DN-C635 and

other components have been completed.

2Connection precautions

• Before proceeding with connections or disconnections of cables and power cords, be sure to turn all

system components off.

• Ensure that all cables are connected properly to the L (left) and R (right) jacks.

• Insert plugs fully into the terminals.

• Connect the CD output jacks to the amplifier CD or AUX input jacks.

PLAYPAUSECUE

INDEX2/INDEX3EOM

FADER SWITCHTRACK(+)TRACK(-)

The rating of REMOTE connector pin 22 (TALLY POWER SUPPLY) is 3.3 V, 80 mA maximum.

Avoid currents in excess of the rating.

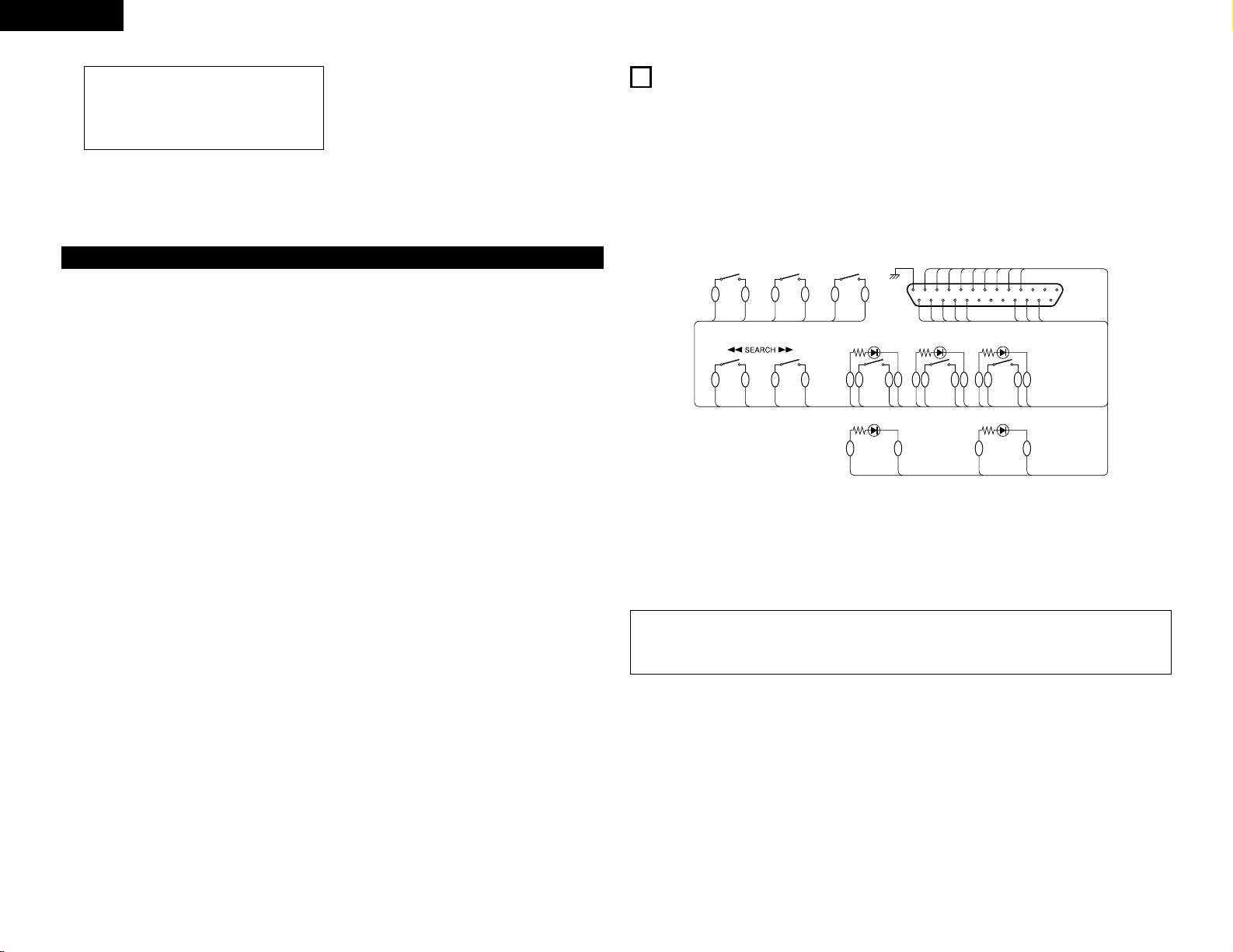

2Remote control connections

2Installation precautions

• If the DN-C635 is placed near an amplifier, tuner or other components, noise (induced hum) or beat

interference may result (especially during AM or FM reception).

If this occurs, separate the DN-C635 from other components or reorient its position.

NOTE:

• Use this unit in a horizontal orientation.

When the unit is used with the front panel facing upward (and the unit us in a vertical orientation) or when

the front panel is on an incline, the unit will not operate properly.

(3) Display

qCD transport indicator

wMode display portion

FILE :This lights when the file name of

MP3 is displayed.

FOLDER :This lights in the folder selection

mode.

TITLE :This lights when the title in the MP3

ID3-Tag or CD Text is displayed.

MP3 :This lights when a disc containing

MP3 format file is loaded.

PROG :This lights in the program mode.

REPEAT, 1 :This lights in the repeat mode.

CASCADE :This lights in the cascade mode.

(Preset function)

ALBUM :This lights when the album name in

the MP3 ID3-Tag is displayed.

ARTIST :This lights when the artist name in

the MP3 ID3-Tag is displayed.

eCD pitch display

rPlaying position display

• This indicates the current position within the

track’s totalplaying time.

• In the MP3 play mode, it may be unable to

display correctly.

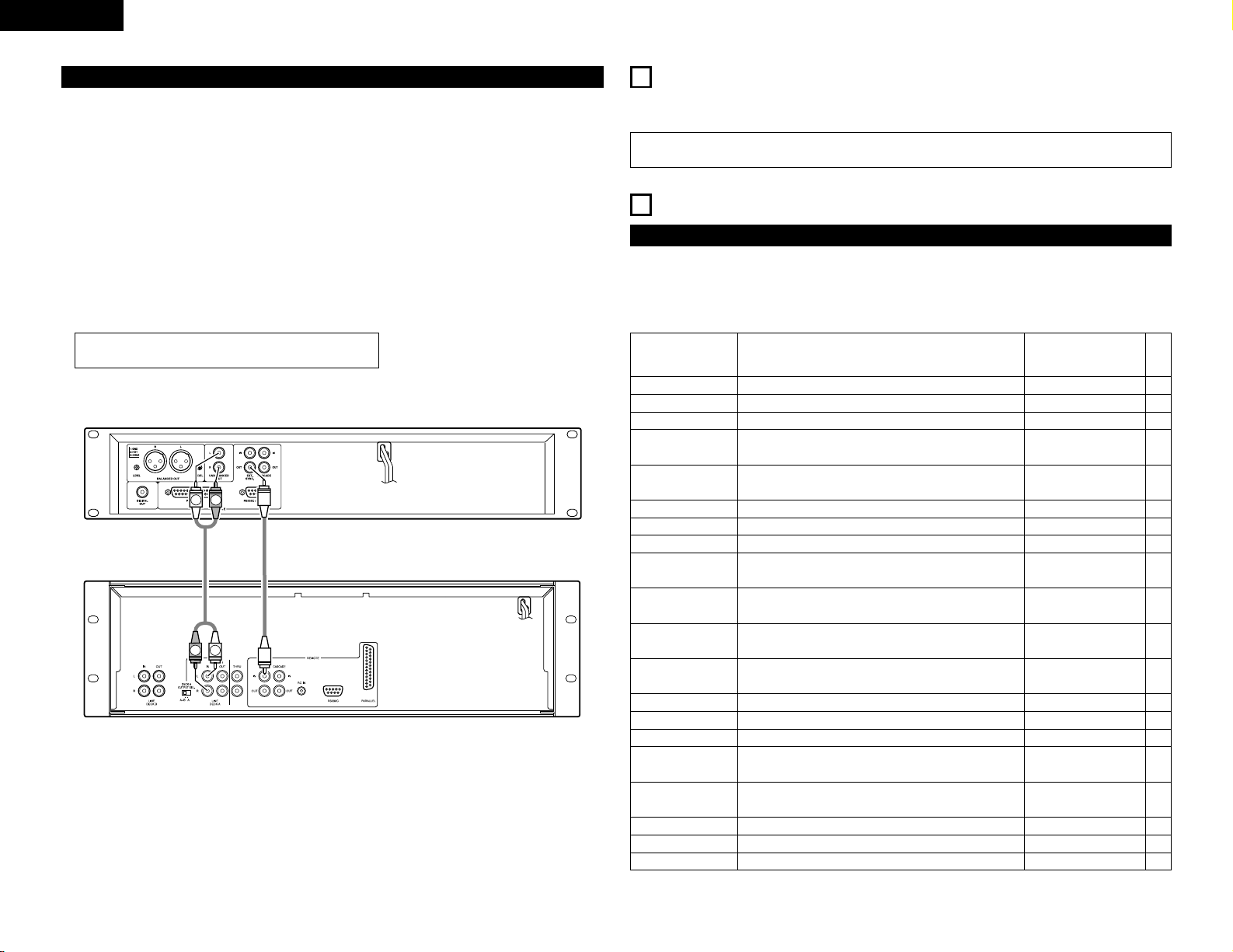

uExternal synchronized control jacks

(EXT. SYNC.)

• Connect these for synchronized recording.

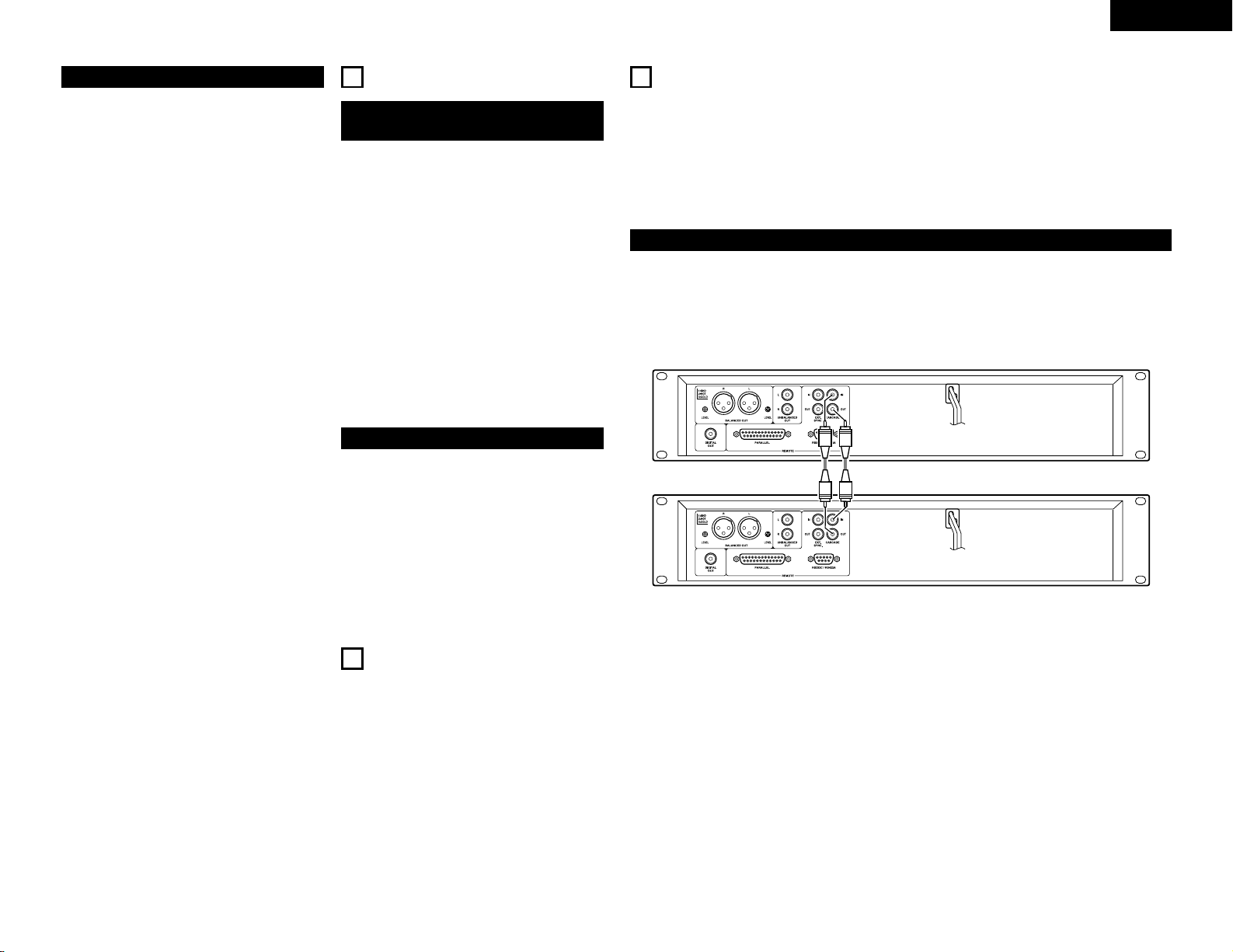

iCascade control jacks (CASCADE)

• Connect these for continuous operation on

multiple units.

• When the cascade mode is set to “ON”, the

start signal is output from this output jack once

operation is finished. (Preset function)

t20 tracks music calender

• In the single track play mode, only the specified

track lights.

• In the continuous play mode, everything from

the specified track to the last track lights.

• Track numbers are displayed up to track 20.

Track 21 and on are not displayed.

• MP3 is not displayed.

yMultiple display

• This displays Track No. of CD, playing time of

CD, various operational information, text

message, etc.

uTime mode indicator

ELAPSED: This lights when the elapsed time is

displayed.

REMAIN : This lights when the remaining time is

displayed.

iInfrared remote control indicator

oPlay mode indicators

• “SINGLE” lights when in the single track play

mode.

• “CONT.” lights when in the continuous play

mode.

NOTE:

The tally output pin has open collector IC

specifications (Imax. 20 mA, Vmax. 3.3 V),

but the maximum supply current is 80 mA,

so use with a total load current of 80 mA or

less.

ENGLISH

✽. This operation only works while the power is on.

1. Press the power operation switch qto turn on the power.

2. Press the OPEN/CLOSE button e.

OPENING AND CLOSING THE DISC HOLDER AND

LOADING A DISC

Opening and closing the disc holder

• Make sure the disc holder is completely open.

• Hold the disc by the edges and place it on the disc

tray. (Do not touch the signal surface, i.e., the

glossy side.)

• When using 12 cm. diameter discs, make sure the

outer edge matches the tray guide circumference

and when using CD signals (8 cm. diameter) match

the outer edge with the inner tray guide

circumference.

• Press the OPEN/CLOSE button eto close the disc

holder w.

• When the disc holder is open and a disc is loaded,

you may also press the PLAY (1) button yto close

the disc holder. (If the PLAY (1) button is pressed,

playback will start immediately upon the disc

contents having been read.)

How to load a disc

CAUTIONS:

• If you finger should get caught in the disc

holder when it closes, press the OPEN/CLOSE

button.

• Do not place any foreign objects on the disc

tray, and do not place more than one disc on the

tray at a time. Otherwise malfunction may

occur.

• Do not push in the disc tray manually when the

power is off as this may cause malfunction and

damage the CD player.

• This player can play CD-R/RW discs, but only if

they are finalized. Note however that depending

on the recording quality, the player may not be

able to play some finalized CD-R/RW discs.

2Messages

Messages may appear on the display while using the DN-C635. The meanings of these messages are

explained below.

Message Meaning

No Disc No disc inserted, disc unreadable or disc inserted upside down.

TOC Error The disc information has not been read properly.

Invalid CD The disc is a CD-ROM that does not contain MP3 files.

Tray Error The disc holder could not be opened or closed properly.

NORMAL CD PLAYBACK

1. Press the power operation switch qto turn on the

power.

2. Load the disc you want to play.

3. Make the presettings according to the usage

purpose. (See page 14.)

• Select the play finish mode. (Preset functions)

Finish stop :

The stop mode (the servo functions turn off) is

set when playback finishes.

Finish next :

The standby mode is set at the beginning of the

next track when playback is finished.

✽After the final track is played, the standby

mode is set at the beginning of the first track.

Finish recue :

When playback is finished, the standby mode is

set at the position at which playback was started.

• To standby at the point where the sound begins.

(Preset functions)

Set the “C Det” level.

When a track is selected, the position at which

the sound begins is found when a track is cued

and the standby mode is set at that point.

• Press the PLAY MODE button !3 to select the

play mode.

SINGLE : (single track play mode)

The stop mode is set after the specified track is

played.

CONT. : (continuous play mode)

The stop mode is set after the last track is

played.

4. Press the PLAY (1) button y.

(1) Starting playback

Playback can be temporarily halted and then continued

from the same point in the track.

1. Press the PAUSE (3) button iduring playback.

2. To continue playback, press the PLAY (1) button y.

(2) Pausing playback at any point

(Pause)

Sleep mode (Preset functions)

• The sleep mode is set if no operation is

performed for set-up time in the standby, pause

or manual search mode.

When in the sleep mode, if the PLAY button is

pressed, playback will be started from the

beginning of the track in which the sleep mode

was set. If the CUE button is pressed, it will

standby for the beginning of the track in which

the sleep mode was set.

1. Press the STOP (2) button u.

(4) Stopping playback

When the CUE button ris pressed during the play

mode, the pickup returns to the position at which

playback started and the pause mode is set.

(3) Returning to the position at which

playback started (Back Cue)

Press the

1button

Play internal Play internal

Press the

3button Press the

CUE button

Press the 1button

Back cue operation

Position

on the

disc

ENGLISH

ADVANCED CD PLAYBACK

• Using this function, you can search for a desired

point quickly with in a track in the both forward or

reverse direction.

• Release the SEARCH button (6or 7) !1 !2

when the desired point has been reached. Normal

playback then continues.

• When a SEARCH button (6or 7) !1 !2 is

pressed during the pause mode and the button is

released, the pause mode is set at that point with

the sound being output.

(3) Audible quick search

(Manual search)

2Manual search forward

1. Press the SEARCH (7) button !2 during

playback.

• Playback of the track is sped up.

2Manual search in reverse

1. Press the SEARCH (6) button !1 during

playback.

• Reverse playback of the track is sped up.

(4) Repeating playback of a desired

interval (Single track repeat)

1. Set the play mode to the single play mode.

2. Press the REPEAT button !9.

• The “REPEAT 1” indicators light on the display

and the single track repeat mode is set.

(All track repeat)

1. Set the play mode to the continuous play mode.

2. Press the REPEAT button !9.

• The “REPEAT” indicators light on the display and

the all track repeat mode is set.

3. Press the PLAY (1) button y.

• The disc is played repeatedly.

• The all track repeat mode can also be set by

pressing the REPEAT button !9 during playback.

• If the REPEAT button !9 is pressed during

programmed playback, the tracks are played

repeatedly in the programmed order.

• To cancel the all track repeat mode, press the

REPEAT button !9 repeatedly until the

“REPEAT” indicator turns off.

1. Turn the select knob (9) !0 clockwise during

playback.

• The pickup will advance to the beginning of the

next track and playback will continue.

Pressing the button several times will forward

the pickup to the corresponding number tracks.

(1) Advancing to the next track

during playback(Automatic search)

1. Turn the select knob (8) !0 counterclockwise

during playback.

• The pickup will return to the beginning of the

current track and playback will continue.

Pressing the button several times will return the

pickup to the corresponding number tracks.

(2) Returning to the beginning of the

current track during playback

(Automatic search)

1. During playback, press the A-B button @3 at the

point where you want to start repeated playback (A

point).

• The “A-B” indicator flash on the display.

2. Press the A-B button @3 again at the point where

you want to end repeated playback (B point).

• The “A-B” indicator stops flashing (remaining lit),

and the A-B section begins playing repeatedly.

• If no B point it set, the end of the current track is

set as the B point when in the single mode, and

the end of the disc is set as the B point when in

the “continue” mode.

3. To cancel A-B repeat playback, press the A-B button

@3 again.

(5) To play the set section repeatedly

(A-B repeat)

NOTE:

• Set the A and B points at least 1 second apart

from each other.

• With this function, you can choose any of the tracks

on the disc and program them to play in any order.

• Up to 99 tracks can be programmed.

(6) Playing specific tracks in a specific

order (Programmed play)

2Inputting the program

1. Press the PROGRAM IN button !8.

• “PROG” indicator flashes, and “---Select?”

appears on the display.

2. Turn the select knob !0 to select the track.

3. Press the select knob !0 to enter the track.

• To enter the next track, press the select knob

!0 again.

• Repeat steps 2 and 3 to program the tracks in

the desired order.

4. Press the PROGRAM IN button !8 to exit the

program input mode.

• “PROG” indicator lights, and set the return to

the normal mode.

2Changing the program

1. Press the PROGRAM IN button !8 to set the

program edit mode.

• “PROG” indicator flashes.

2. Turn the select knob !0 to select the program

step.

3. Press the select knob !0 to be edited.

4. Turn the select knob !0 to change the track.

5. Press the select knob !0 to enter the track.

• To edit the next track, press the select knob !0

again.

• Repeat steps 2, 3, 4, and 5 to change the

tracks.

6. Press the PROGRAM IN button !8 to exit the

program edit mode.

2Inserting the program

1. Press the PROGRAM IN button !8 to set the

program edit mode.

• “PROG” indicator flashes.

2. Turn the select knob !0 to select the position at

which to insert a track.

3. Press the SEARCH (7) button !2 to set the

program insert mode.

4. Turn the select knob !0 to insert the track.

5. Press the select knob !0 to enter the track.

• The track corresponding to that number is

inserted in the program before the track of

step 2.

• To insert more tracks, press the select knob !0

again.

• Repeat steps 2, 3, 4, and 5 to insert the tracks.

NOTE:

• Programming is not possible with the disc

holder open.

6. Press the PROGRAM IN button !8 to exit the

program edit mode.

2Deleting the program

1. Press the PROGRAM IN button !8 to set the

program edit mode.

• “PROG” indicator flashes.

2. Turn the select knob !0 to select the position at

which to delete a track.

3. Press the SEARCH (6) button !1 to delete the

track.

• Repeat steps 2 and 3 to delete more tracks.

4. Press the PROGRAM IN button !8 to exit the

program edit mode.

2Playing the programs

1. Press the PROG. PLAY button !7 to set the

program play mode.

• The program play mode LED is lit.

• The first track in the program is cued and the

standby mode is set.

2. Press the PLAY (1) button y.

• Programmed playback starts.

2Clearing the program

1. The program is also cleared when the

OPEN/CLOSE button eis pressed.

2Presetting program

• Programs can be stored in the preset memory.

When a disc for which a program is preset is

loaded, the programmed playback mode is set

automatically.

• Programs can be stored for up to three discs.

1. Follow the instructions under “Programming” to

input the program.

2. Follow the instructions under “(2) Presetting

Procedure” to set the preset mode. (See Page

15.)

3. Turn the select knob !0 to select “02:Prg1”

(or “03:Prg2” or “04:Prg3”).

4. Press the select knob !0.

• The character display changes as follows :

[Before change] [After change]

Prg1 OFF ⇒Prg1 ON

Prg2 OFF ⇒Prg2 ON

Prg3 OFF ⇒Prg3 ON

5. Press the STOP (2) button u.

• The preset setting mode is canceled and the

set return to the normal mode.

• To play a preset disc :

Load a disc for which a program is preset.

6. Press the PLAY (1) button y.

3. Use the select knob (8and 9) !0 to select

the track to be played repeatedly.

4. Press the PLAY (1) button y.

• Playback starts.

• Once the selected track ends, it is played again

from the beginning.

• The single track repeat mode can also be set by

pressing the REPEAT button !9 during playback.

The current track is played repeatedly.

• To cancel the single track repeat mode, press

the REPEAT button !9 repeatedly until the

“REPEAT 1” indicator turns off.

ENGLISH

PLAYING MP3 FILES

There are many sites on the Internet from which you

can download music files in MP3 format. These files

can be downloaded following the instructions on the

site and stored on CD-R/RW discs which can then be

played on the DN-C635.

The music on commercially available music CDs can

be converted into MP3 files on a computer using MP3

encoding programs. When this is done, the data is

reduced to approximately 1/10 the original size. This

MP3 data can then be stored on a CD-R/RW disc,

allowing you to create a single 12 cm CD-R/RW disc

containing about 10 times more music than a normal

music CD, that is some 100 tracks or more (*).

* This is an approximately value for MP3 files of

tracks about 5 minutes long converted at a standard

bit rate (128 kbps) and stored on a CD-R/RW disc

with a capacity of 650 MB.

✽Recordings you make are for your personal use and

should not be used in ways infringing upon the

✽MP3 may require time for reading.

✽With disc condition it may not play properly.

NOTES :

• The DN-C635 is compatible with “MPEG-1 Audio

Layer-3”, “MPEG-2 Audio Layer-3” and “MPEG-

2.5 Audio Layer-3”. It is not compatible with MP1

or MP2 standards.

SAMPLING FREQUENCY

• When writing MP3 files on a CD-R/RW disc, set

the writing program’s format to “ISO9660 level 1”

or “ISO9660 level 2”, “Joliet” or “Romeo”. MP3

files written in other formats may not play

properly. With some writing programs it is not

possible to record in “ISO9660” format. Use an

“ISO9660” format writing program.

• Generally speaking, the higher the MP3 file’s bit

rate, the better the sound quality. With the DN-

C635 it is recommended to use MP3 files written

with a bit rate of 128 kbps or greater.

• The writing program may change the positions of

the folders and files when writing the MP3 files

on the CD-R/RW disc, so the files may not be

played in the expected order.

• Make sure to give MP3 files the extension

“.MP3”. Files with extensions other than “.MP3”

or without extensions cannot be played. (On

Macintosh computers, MP3 files can be played by

adding the extension “.MP3” after the file name

consisting of a maximum of 8 Roman capital

letters and / or numerals when recording them on

CD-R/RW discs.)

• To protect copyrights, no digital signals are output

when playing MP3 files.

• A maximum of 255 folders can be played on the

DN-C635. Folders over 8 layers down, however,

cannot be played. The maximum number of files

is also 999. If there are 1,000 files, only the first

999 are played. (Files other than those with the

extension “.MP3” are not counted.)

• On the DN-C635, folder and file names can be

displayed like titles. Roman capital letters and/or

numerals and “__” (underscores) are scrolled.

(However, a maximum of 31 characters can be

displayed.) In addition, folder and file names using

other symbols will not be displayed properly.

• The DN-C635 is compatible with ID3-tag (Ver. 1.*,

Ver. 2.0).

• It may not be possible to play some CD-R/RW

discs due to dirt, scratches or the disc’s

properties.

• Do not apply seals or tape to the label or signal

side of CDs or CD-R/RW discs. The glue could get

on the disc surface, making the disc get stuck

inside the set.

• The DN-C635 is multi-session compatible.

Only music CDs can be played if the first session

is a music CD, and only MP3 files can be played if

the first session consists of MP3 files.

• The DN-C635 is compatible with play lists.

(.m3u of WINAMP Form) (Preset functions)

MPEG 1.0

48 kHz

MPEG 2.0

MPEG 2.5

12 kHz

24 kHz 44.10kHz

11.03 kHz

22.05 kHz 32 kHz

08 kHz

16 kHz

NOTES:

• With some writing programs it may not play

properly. In this case, please set to

“PLst=OFF”.

• Play List may require time for reading.

• The maximum number of play lists is also 255.

If there are over 255 play lists, only the first

255 are performed.

1. Press the PITCH button !5.

• The pitch LED is flashed.

• The play speed decreases when the pitch slider

is moved upwards, increases when the pitch

slider is moved downwards.

2. Press the PITCH button !5 again.

• The pitch LED is lit.

• The play speed set with the pitch slider is held.

In this state, the play speed will not change even

if the pitch slider is moved.

• When the playback speed is preset in the preset

mode, that play speed is set.

3. Press the PITCH button !5 again to return to the

normal speed.

• The pitch LED is turned off.

(

) Playing at a different pitch (PITCH)

NOTE:

• When the play speed is changed, the sampling

frequency of the digital output signal also

changes, so it may not be possible to receive

digital signals.

ENGLISH

1. Load a disc containing MP3 files.

2. [ To select a folder ]

qIn the stop mode, press the FOLDER button @2

to turn on the “FOLDER” indicator.

wTurn the select knob !0 to select the folder you

want to listen to.

• The folder name scrolls on the display.

eWhen the CUE button ois pressed at this time,

files in the folder can be selected.

• Operate following the procedure under “To

select a file”.

[ To select a file ]

qIn the stop mode, press the TITLE button @1 to

turn on the “FILE” indicator.

✽This operation is only necessary when the

“FOLDER” indicator is lit.

wTurn the select knob !0 to select the file you

want to listen to.

• The file name scrolls on the display.

3. Press the PLAY (1) button y.

✽When the TIME button @0 is pressed during

playback, the “FOLDER” or “FILE” indicator

turns off and the track number of elapsed track

time are displayed.

✽The display switches as follows each time the

TITLE button @1 is pressed during playback :

(1) Playing folders or files

Title name (The “TITLE” indicator lights.)

File name (The “FILE” indicator lights.)

Artist name (The “ARTIST” indicator lights.)

Album name (The “ALBUM” indicator lights.)

Use this function to select certain tracks from the disc

and program them to play in a certain order.

A maximum of 99 files and folders can be programmed.

(Programs can included both files and folders.)

2Programming

1. Press the PROGRAM IN button !8.

• “PROG” indicator flashes, and “---Select?”

appears on the display.

2. [ To select a folder ]

qPress the FOLDER button @2 to turn on the

“FOLDER” indicator.

wTurn the select knob !0 to select the folder.

ePress the select knob !0 to enter the folder.

(2) Programmed playback of folders

or files

Elapsed time of currently playing track

[ To select a file ]

qPress the TITLE button @1 to turn on the

“FILE” indicator.

✽This operation is only necessary when the

“FOLDER” indicator is lit.

wTurn the select knob !0 to select the file.

ePress the select knob !0 to enter the file.

3. To enter the next folder or the next file, press the

select knob !0 again.

• Repeat steps 1, 2 and 3 to program the folder

or file in the desired order.

4. Press the PROGRAM IN button !8 to exit the

program input mode.

• “PROG” indicator lights, and set the return to

the normal mode.

2Changing the program

1. Press the PROGRAM IN button !8 to set the

program edit mode.

• “PROG” indicator flashes.

2. Turn the select knob !0 to select the program

step.

3. Press the select knob !0 to be edited.

4. Turn the select knob !0 to change the folder or

file. (Follow the procedure under “To select a

folder” or “To select a file”.)

5. Press the select knob !0 to enter the folder or

the file.

• To edit the next folder or the next file, press

the select knob !0 again.

• Repeat steps 2, 3, 4 and 5 to change the

folder or the file.

6. Press the PROGRAM IN button !8 to exit the

program edit mode.

2Inserting the program

1. Press the PROGRAM IN button !8 to set the

program edit mode.

• “PROG” indicator flashes.

2. Turn the select knob !0 to select the position at

which to insert a folder or a file.

3. Press the SEARCH (7) button !2 to set the

program insert mode.

4. Turn the select knob !0 to insert the folder or the

file. (Follow the procedure under “To select a

folder” or “To select a file”.)

5. Press the select knob !0 to enter the folder or

the file.

• The folder or the file corresponding to that

number is inserted in the program before the

folder or the file of step 2.

• To insert more folders or files, press the select

knob !0 again.

• Repeat steps 2, 3, 4 and 5 to insert the tracks.

6. Press the PROGRAM IN button !8 to exit the

program edit mode.

2Deleting the program

1. Press the PROGRAM IN button !8 to set the

program edit mode.

• “PROG” indicator flashes.

2. Turn the select knob !0 to select the position at

which to delete a folder or a file.

3. Press the SEARCH (6) button !1 to delete the

folder or the file.

• Repeat steps 2 and 3 to delete more folders or

files.

4. Press the PROGRAM IN button !8 to exit the

program edit mode.

NOTE:

• Programming is not possible with the disc

holder open.

2Presetting Programs

• Programs can be stored in the preset memory.

When a disc for which a program is preset is

loaded, the programmed playback mode is set

automatically.

• Programs can be stored for up to three discs.

1. Follow the instructions under “Programming” to

input the program.

2. Follow the instructions under “(2) Presetting

Procedure” to set the preset mode. (See Page

15.)

3. Turn the select knob !0 to select “02:Prg1”

(or “03:Prg2” or “04:Prg3”).

4. Press the select knob !0.

• The character display changes as follows :

[Before change] [After change]

Prg1 OFF ⇒Prg1 ON

Prg2 OFF ⇒Prg2 ON

Prg3 OFF ⇒Prg3 ON

5. Press the STOP (2) button u.

• The preset setting mode is canceled and the

set return to the normal mode.

• To play a preset disc :

Load a disc for which a program is preset.

6. Press the PLAY (1) button y.

2Playing the programs

1. Press the PROG. PLAY button !7 to set the

program play mode.

• The program play mode LED is lit.

• The first file in the program is cued and the

standby mode is set.

2. Press the PLAY (1) button y.

• Programmed playback starts.

ENGLISH

21-folder all-track repeat

1. Set the play mode to the single play mode.

2. In the stop mode, press the FOLDER button @2.

• The “FOLDER” indicator lights.

3. Turn the select knob !0 to select the folder you

want to listen to.

• The folder name scrolls on the display.

4. Press the REPEAT button !9.

• The “REPEAT 1” indicators light on the display

and the single track repeat mode is set.

5. Press the PLAY (1) button y.

• Playback starts from the first track in the

selected folder.

• Once the last track in the selected folder has

been played, playback resumes from the

beginning of the first track in the selected

folder and the tracks are repeated.

✽When the TIME button @0 is pressed during

playback, the track number of elapsed track

time are displayed. (The “FOLDER” indicator

do not turns off.)

(3) Repeat playback

2All track repeat

1. Set the play mode to the continuous play mode.

2. In the stop mode, press the TITLE button @1 to

turn on the “FILE” indicator.

3. Press the REPEAT button !9.

• The “REPEAT” indicators light on the display

and the all track repeat mode is set.

4. Press the PLAY (1) button y.

• The disc is played repeatedly.

• Once the last track on the disc is played,

playback continues from the beginning of the

first track.

THE COMPACT DISC

• Do not allow fingerprints, oil or dust on the surface

of the compact disc. If the signal surface is dirty,

wipe it off with a soft, dry cloth. Wipe in circular

motions from the center and out.

• Do not use water, benzene, thinner, record sprays,

electrostatic proof chemicals, or silicone-treated

cloth to clean discs.

• Always use care when handling discs to prevent

damaging the surface, in particular when removing

a disc from the case and returning it.

• Do not bend compact discs.

• Do not apply heat to compact discs.

• Do not enlarge the hole in the center of the disc.

• Do not write on the disc and do not attach any

labels.

• Condensation will from on the disc surface if it is

brought into a warm room from a cold area, such as

outdoors during winter. Wait until the condensation

disappears. Never dry discs with hair dryers, etc..

Precautions on handling compact

discs

• After playing a disc, always return it to its case.

• Keep discs in the cases when they are not to be

played. This will protect them from dust and dirt and

prolong their service life.

• Do not store discs in the following places :

1) Places exposed to direct sunlight for a

considerable time.

2) Places subject to accumulation of dust or high

humidity.

3) Places exposed to high temperatures, such as

close to heater outlets.

Precautions on storage

POWER ON PLAYBACK

Playback starts automatically when the power is turned

on.

• The power on playback function can be set with the

“PRESET FUNCTIONS AND OPERATIONS” (See

page 14).

2Single track repeat

1. Set the play mode to the single play mode.

2. Press the REPEAT button !9.

• The “REPEAT 1” indicators light on the display

and the single track repeat mode is set.

3. Turn the select knob !0 to select the file you

want to listen to.

• The file name scrolls on the display.

4. Press the PLAY button (1) y.

• Playback starts.

• Once the selected track ends, it is played

again from the beginning.

• The single track repeat mode can also be set

by pressing the REPEAT button !9 during

playback. The current track is played

repeatedly.

• To cancel the single track repeat mode, press

the REPEAT button !9 repeatedly until the

“REPEAT” indicator turns off.

EXPANDED FUNCTION

Multiple units of the DN-C635 or other DENON products (DN-780R etc.) can be used together for longer play

time, simultaneous recording and other functions.

2CASCADE (MULTIPULE CONTINUOUS) OPERATION

• Refer to figure 1 to connect the equipment.

• Use a single RCA cable to connect the units’ CASCADE OUT jacks with the units’ CASCADE IN jacks.

• When the first and last units are connected as shown in figure 1, playback is performed endlessly.

• If the first and last units are not connected, operation stops at the last unit.

Cascade playback

1. Set the cascade mode of all unit to the “Cas=ON”. (Preset function)

2. Press the PLAY (1) button yon unit 1. Playback starts.

• Playback on unit 1 ends, playback starts on unit 2.

3. Playback stops when the stop button on the unit currently playing is pressed.

Figure 1 unit 1 DN-C635

unit 2 DN-C635

ENGLISH

External synchronized recording

The synchronized recording can be use when the DN-C635 is used in combination with DENON other product

(DN-780R etc.).

When the CD player’s play button is pressed, a synchronized signal for starting is output from the EXT. SYNC.

jack. When the STOP buttons on the CD player is pressed, a synchronized signal for stopping is output from the

EXT. SYNC. jack.

• Refer to figure 2 to connect the equipment.

• Use a single RCA cable to connect the units’ EXT. SYNC. OUT jacks with the units’ EXT. SYNC. IN jacks.

✽Set the infrared remote sensors of all the units to “OFF” when using this function. Also set the same infrared

remote control codes for all the units. (Refer to “PRESET FUNCTIONS AND OPERATIONS” (See page 14).)

Failure to make these settings could result in malfunction.

1. Load the CD into DN-C635. Load unrecorded cassette tapes into all decks.

2. Set the reverse mode and Dolby NR of all decks.

3. Adjust the twin recording level of DN-780Rs. (Master/Slave switch set to OFF.)

4. Press the Twin recording button of DN-780R.

5. Press the PLAY (1) button yof DN-C635. Recording starts all decks.

6. Press the STOP (2) button uof the DN-C635 to stop recording on all the connected units.

NOTE:

• Use tapes of the same times (lengths) as far as possible.

Figure 2

DN-780R

DN-C635

Preset type

Finish mode

Power on mode

Auto cue

Auto stop

Program 1

Program 2

Program 3

End monitor

E.O.M.

Next track standby

Next Track Reserve

Play speed

Delay start

Panel lock

Play lock

Eject lock

Time mode

Frame display

Text display

BEFORE SWITCHING OFF THE POWER

When you have finished using the CD player, before switching off the power be sure that the disc holder has been

closed with the OPEN/CLOSE (5) button.

CAUTION:

• Do not forcibly close the disc holder when the power is off. It may damage the unit when it is transported.

PRESET FUNCTIONS AND OPERATIONS

(1) List of Preset Functions

• Functions can be preset using the buttons on the front panel. These presettings are stored in a permanent

memory, so they are not cleared even when the power is turned off.

• The functions shown on the table below can be preset. Set the functions according to the usage purpose to

efficiently achieve even higher quality playback.

• One of the preset functions can be used to display information on this set (microprocessor version).

Selection of preset type.

Setting of operation when playback ends.

Setting of operation when power is turned on.

Setting of whether or not to perform the auto cue

operation and the audio startup level.

Setting of whether or not to automatically stop the servo

functions.

Setting of whether or not to play program 1.

Setting of whether or not to play program 2.

Setting of whether or not to play program 3.

Setting of whether or not to use the end monitor function

and monitor time setting.

Setting of whether or not to display the EOM and display

time setting.

Setting of whether or not to standby at the next track

when the CUE button is pressed during playback.

Setting of operation when select knob is turned during

playback.

Standard playing speed setting.

Delay start time setting.

Selection of whether or not to enable the panel buttons.

Selection of whether or not to inhibit the panel switches

during playback.

Selection of whether or not to lock ejecting during

playback.

Setting of play mode when power is turned on.

Selection of whether or not to display frames.

Selection of time or text display.

Preset Type 1

Finish Next

Power On Standby

CueDet. -48dB

Sleep 30min

Program 1 OFF

Program 2 OFF

Program 3 OFF

End Mon. 10 s

E.O.M. 10 s

Next Stb. OFF

Reserve. OFF

Normal Speed

Delay OFF

Panel OFF

Play Lock OFF

Eject OFF

Time REMAIN

FR Disp ON

Text OFF

Preset function type Description Set upon shipment

from factory No.

ENGLISH

Parallel remote

Serial remote

Play mode

Cascade

RC cord

IR remote

Stereo/Mono

Play list (MP3)

Preset clear

Set information

Selection of whether or not to accept parallel remote

signals.

Selection of whether or not to output standby tally.

External control tally output signal setting.

Fader start mode selection.

Serial remote (9P D-Sub) setting.

Setting of play mode when power is turned on.

Selection of whether or not to output cascade signal.

RC cord setting.

Infrared remote control sensor setting.

Selection of stereo or monaural playback.

Setting of whether or not to perform the play list.

Setting for clearing presets and setting them to the initial

values.

Microprocessor version display.

Remote ENA

ST. Tally ON

INDEX 2 Tally

Fader Pause

RS 232C

Play SINGLE

Cascade OFF

RC DENON

IR OFF

Stereo

Play List OFF

Ini. Preset

Ver. **** (* = number)

Preset function type Description Set upon shipment

from factory No.

(2) Presetting procedure

1 Press the STOP (2) button ufor approximately 2 seconds while in the stop mode.

2 Turn the select knob !0 and select the preset item.

3 Press the select knob !0 to change the setting.

4 The preset mode is canceled when the STOP (2) button u. The setting are writeen at this time.

(3) Detailed Description of Preset Functions

(* = initial setting)

01) “Preset Type (*)” (Three different sets (types) of presettings can be made and used for different purposes.)

*01:P No=1 : Set to preset type 1.

*01:P No=2 : Set to preset type 2.

*01:P No=3 : Set to preset type 3.

02) “Finish Mode”

*02:Fin=Stop : Stop mode is set after playback ends.

*02:Fin=Next : Standby mode is set at next track after playback ends.

*02:Fin=Rcue : Standby mode is set at playback start position after playback ends.

03) “Power On (****)”

*03:P On=Stb : Standby mode is set at specified track after TOC is read.

*03:P On=Ply : Playback begins in the all repeat mode after TOC is read.

*03:P On=Stp : Stop mode is set after TOC is read.

04) “CueDet. Level”

*04:CDet.=–** : Set the audio detection level for cueing. (*–48 / –42 / –36)

*04:CDet.=OFF : Sound startup position is not cued.

05) “Sleep ON (OFF)”

*05:Sleep=** : Automatically turn the servo functions off if no button is operated for ** minutes in

the pause, standby or manual search mode. (1 / 2 / 5 / 10 / 15 / *30)

*05:Slp=OFF : Do not automatically turn the servo functions off.

06) “Program 1 OFF (ON)”

*06:Prg 1 : Store the contents of program 1 when on. (Initial setting - OFF)

07) “Progam 2 OFF (ON)”

*07:Prg 2 : Store the contents of program 2 when on. (Initial setting - OFF)

08) “Program 3 OFF (ON)”

*08:Prg 3 : Store the contents of program 3 when on. (Initial setting - OFF)

09) “End Mon (**) s”

*09:EndM (**) s : Set the end monitor time. (5/*10/15/20/25/30/35)

*09:EndM OFF : Do not use the end monitor function.

10) “EOM Time”

*10:EOM=**s : Set the EOM time. (0 / 5 / *10 / 15 / 20 / 30 / 60)

*10:EOM=OFF : Do not use the EOM function.

11) “Next Standby”

*11:NStb=OFF : Return to the play start position and standby when the CUE button is pressed during

playback.

*11:NStb=ON : Standby at the beginning of the next track when the CUE button is pressed during

playback.

12) “Next Track Reserve”

*12:Rsv=OFF : Specified track is searched for immediately when select knob is turned during

playback.

*12:Rsv=ON : Track to be searched for is scheduled after playback of current track ends when select

knob is turned during playback.

13) “CD Pitch”

*13:Pit=Norm : Play at normal speed.

*13:Pit=+/–*.* : Play at variable speed.

±(0.2 / 0.4 / 0.6 / 0.8 / 1.0 / 1.2 / 1.4 / 1.6 / 1.8 / 2.0 / 2.2 / 2.4 / 2.6 / 2.8 / 3.0), 0Fix

14) “Delay OFF (***ms)”

*14:

Dly=OFF (***ms)

Set the time for delayed start after the play start operation. (*OFF/100 m/200 m/300 m)

15) “Panel Lock ON/OFF”

*15:Pane=OFF : Enable operation of all the buttons on the front panel.

*15:Pane=ON : Inhibit operation of all panel buttons other than those use for presetting operations

and OPEN/CLOSE button.

16) “Play Lock”

*16:Play=ON : Inhibit all operations other than the 3, TIME, PLAY MODE, FOLDER and TITLE

buttons during playback.

*16:Play=OFF : Enable all functions during playback.

17) “Eject Lock ON/OFF”

*17:Ejec=ON : The OPEN/CLOSE button is locked during playback.

*17:Ejec=OFF : The OPEN/CLOSE button is not locked during playback.

ENGLISH

18) “Time Mode”

*18:Time=ELA : Time display is elapsed time when power is turned on.

*18:Time=REM : Time display is remaining time when power is turned on.

19) “Frame Display”

*19:Frm=ON : Display the frames on the time display during playback.

*19:Frm=OFF : Do not display the frames on the time display during playback. (The frames are

displayed in the manual search, standby, pause and end monitor modes.)

20) “Text Display”

*20:Text=OFF : Display is set time mode when power is turned on.

*20:Text=ON : Display is set text mode when power is turned on.

21) “Parallel Remote”

*21:Para=ON : Enable input of control signals to the parallel remote connector.

*21:Para=OFF : Inhibit input of control signals to the parallel remote connector.

22) “St. Tally ON (OFF)”

*22:StbT=ON : Output standby tally from parallel remote connector.

*22:StbT=OFF : Do not output standby tally from parallel remote connector.

23) “Index Tally”

*23:IndxTly2 : Output index 2 tally signal to remote pin (17).

*23:IndxTly3 : Output index 3 tally signal to remote pin (17).

24) “Fader Start”

*24:F=Pause : Start playback when remote fader pins (9-10) are short-circuited and pause when pins

are open.

*24:F=Play : Start playback when remote fader pins (9-10) are short-circuited and continue

playback when pins are open.

25) “Serial Remote”

*25:RS=232C : Set the serial ports to RS232C.

*25:RS=422A : Set the serial ports to RS422A.

*25:RS=OFF : Inhibit signals of 9P D-Sub connector.

26) “Play Mode”

*26:Play=CON : Play mode is continuous when power is turned on.

*26:Play=SIN : Play mode is single when power is turned on.

27) “Cascade ON/OFF”

*27:Cas=ON : Output the cascade signal (Cascade operation possible)

*27:Cas=OFF : Do not output the cascade signal.

28) “IR Code”

*28:RC=DENON : Receive denon codes. (OPEN/CLOSE, PLAY, PAUSE, STOP, 8, 9, 6, 7,

TIME, REPEAT and A–B buttons are possible.)

*28:RC=RC5 : RC-5 codes can be received. (OPEN/CLOSE, PLAY, PAUSE, STOP, 8, 9, 6,

7, REPEAT and A–B buttons are possible.)

29) “IR Remote”

*29:IR=ON : Accept infrared remote control signals.

*29:IR=OFF : Do not accept infrared remote control signals.

30) “Stereo (Mono)”

*30:Stereo : Output L and R stereo signals from the output connector.

*30:Mono : Output mixed L and R signals from the output connector.

31) “Play List”

*31:PLst=OFF : Play List does not perform.

*31:PList=ON : MP3 is performed according to Play List.

32) “Preset Clear (Ini. Preset)”

*32:P Init? : Clear the presettings (set to the initial factory values).

33) “Ver = xxxx” : Display the microprocessor version. (“xxxx” is a number.)

TROUBLESHOOTING

Make sure of the followings before you consider as any malfunctions :

1. Are all the connections correct?

2. Are all system components being operated correctly in accordance with the operating instructions?

3. Are the speakers and amplifier/receiver functioning correctly?

If the tape deck still does not function properly, check the symptom against the list below. If the symptom does

not correspond to the check list, please contact your DENON dealer.

Problem Cause Remedy

Disc holder does not open/close. • Power operation switch is not

turned on. • Turn the power operation switch

on.

When a disc is loaded, “TOC Error”

or “No Disc” is displayed. • Disc is not properly loaded. • Reload the disc.

When the PLAY (1) button is

pressed, playback does not start. • Disc is dirty or scratched. • Clean the disc.

There is no sound, or it is distorted. • Output cord is not properly

connected.

• Amplifier adjustment is

inappropriate.

• Connect the output cord properly.

• Readjust the amplifier.

A specific section of the disc will

not play. • Disc is dirty or scratched. • Clean the disc.

Programmed playback does not

work. • Programmed playback operation

has been performed improperly. • Restart programmed playback.

ENGLISH

SPECIFICATIONS

Audio Channel : 2 channel stereo

Quantization : 16-bit Liner

Sampling Frequency : 44.1 kHz at Normal Pitch

Oversampling Ratio : 8 times

Frequency Response : 5 to 20,000 Hz

Total Harmonic Distortion : 0.004 % (at “CD Pitch = 0Fix” mode of the preset function)

Signal-to-noise Ratio : 104 dB (at “CD Pitch = 0Fix” mode of the preset function)

Dynamic Range : 100 dB (at “CD Pitch = 0Fix” mode of the preset function)

Channel Separation : 90 dB (at “CD Pitch = 0Fix” mode of the preset function)

Unbalanced Output : RCA jack

Output Level : 2.0 V at 0 dB disc

Load Impedance : 10 kΩ/ kohms or more

Balanced Output : 3-Pin XLR

Output Level (Stereo) : +18 dBu at 0 dB disc

Load Impedance : 600 Ω/ ohms

Adjust Range : +22 dBu to –20 dBu

Digital Output : RCA jack

Signal Format : SPDIF or IEC-958 Type II

Variable Pitch Control : ±12 % max.

Frame Search Accuracy : 1/75 second

Discs : Standard compact discs (12 cm and 8 cm)

Remote : 9P D-Sub (Serial port)

Remote Control Sensor

25P D-Sub (Parallel)

Headphone Output : Stereo

Outputs Level : 7 mW

Load Impedance : 33 Ω/ ohms

Power supply : 120 V AC ±10 %, 60 Hz (for U.S.A. & Canada models)

230 V AC ±10 %, 50 Hz (for European & U.K. models)

Power Consumption : 15 W

Installation : 19-inch rack mountable (2U)

Mass : 4.7 kg

✽For improvement purposes, specifications and design are subject to change without notice.

18.

ESPAÑOL

– ÍNDICE –

zCaracterísticas..................................................54

xNombres y funciones de las piezas...........54~56

cConexiónes.......................................................56

vApertura y cierre del portadisco,

y carga de un disco ..........................................57

bReproducción normal........................................57

nFunciones especiales de reproducción......58, 59

mReproducción de ficheros MP3..................59~61

,El disco compacto............................................61

.Reproducción al encender................................61

⁄0 Función ampliada........................................61, 62

⁄1 Antes de desconectar la alimentacion

a la unidad ........................................................62

⁄2 Funciones y operaciones de preajuste ......62~64

⁄3 Sintomas que suelen confundires

con las averias..................................................64

⁄4 Especificaciones...............................................65

2ACCESSORIOS

Verifique que los siguientes accesorios vengan

incluidos junto con la unidad principal:

qInstrucciones de operación ..............................1

wCable de connexión..........................................1

CARACTERÍSTICAS

2Reproducción programada de 99 pistas.

2Reproducción con variación de velocidad (tono) de

±12 %

2Reproducción de CD-R/RW

2Texto CD (CD TEXT)

2Reproducción de MP3

2Montaje en Rack de 19 pulgadas (2 U [unidades] de

alto)

2INTRODUCCIÓN

Gracias por haber adquirido el reproductor de CD/MP3

componente de DENON.

DENON se siente orgulloso de presentar este

avanzado reproductor CD/MP3 para los aficionados y

amantes de la música como una prueba más de la

búsqueda sin obligaciones de DENON de lo último en

calidad de sonido. El rendimiento de alta calidad y la

fácil operación sin duda le proporcionarán muchas

horas de deleite con una escucha excepcional.

PRECAUCION:

• La unidad permanece conectada a la red de AC

aun con el interruptor de encendido en la

posición OFF.

• El DN-C635 funciona con normalidad cuando la

unidad reproductora se monta con el panel

frontal dentro de los 10 grados del plano vertical.

Si la unidad es inclinada excesivamente, puede

ocurrir que los discos no se carguen o

descarguen correctamente en la unidad.

DN-C635

Max. 10°

2Perilla Selectora de Búsqueda de Pista (fácil

selección de pistas)

2Modo Play (reproducción) y modo Finish (terminar)

(1) Modo Play

qContinuous: Reproduce el disco completo

wSingle: Reproduce una pista

(2) Modo Finish (Stop, Next, Recue)

qStop: se detiene después de haber

reproducido una pista.

wNext: queda en espera al comienzo de la

pista siguiente después de haber

reproducido la pista.

eRecue: Después de haber reproducido una

pista, queda en espera al comienzo de tal

pista.

2Auto Cue (señalización automática)

Después de la carga de un disco, éste es

automáticamente señalizado en el punto en que

comienza el audio.

La señalización tiene lugar en el punto en que

comienza el audio y no donde comienza la pista. El

nivel al que se detecta por primera vez el sonido se

puede regular entre –36 y –48 dB (3 pasos).

2End Monitor (monitorización del final de pista)

Si se pulsa el botón END MON durante el modo en

espera, se visualizará instantáneamente el final de

la pista, asegurándose así un “punto final”

perfecto. El punto en el que comienza la

monitorización puede ajustarse dentro de una

gama que va de 5 a 35 segundos (7 pasos)

anteriores al final de la pista.

✽En el modo de reproducción MP3, la hora del

monitor puede no ser la correcta.

2Fin de Mensaje (EOM)

Al final de la pista, la pantalla de visualización del

tiempo parpadeará, lo que proporciona al operador

una advertencia visual de que la pista terminará en

breve. El punto en el que comienza el parpadeo

puede ser ajustado dentro de un margen que va de

0 a 60 segundos (7 pasos) anteriores al final de la

pista.

2FL Display

2Visualización de los puntos de reproducción

Un visualizador gráfico de barra indica los puntos

de reproducción de la pista que se está

reproduciendo. La visualización del tiempo

transcurrido y el tiempo restante se consigue

pulsando el botón TIME.

2Terminales externos de control

Remoto en paralelo (D-sub 25 puntas)

Remoto en serial (D-sub 9 puntas)

2Reproducción en cascada

2Reproducción al encender

NOMBRES Y FUNCIONES DE LAS PIEZAS

(Fate riferimento alla pagina 3.)

(1) Panel frontal

qInterruptor de funcionamiento de

alimentación (POWER)

• La unidad se enciende cuando se pulsa el

botón de encendido desde la posición OFF

(apagado £) a la posición ON (encendido ¢).

• La unidad se apaga cuando el botón se pulsa

desde al posición ON (¢) a la posición OFF (£).

wPortadisco

• El disco colocado sobre este soporte. El

soporte se abrirá y se cerrará al pulsar el botón

OPEN/CLOSE del soporte de disco (5) e.

Cuando introduzca el CD, colóquelo de forma

segura en el soporte del disco.

eBotón abrir/cerrar del soporte de

disco (5OPEN/CLOSE)

• Presione estos botones para cargar o expulsar

un disco. Cada vez que estos botones sean

presionados, el portadisco wse abrirá o

cerrará.

rSensor de control remoto

(REMOTE SENSOR)

• Acerca de la unidad de control remoto

inalámbrico : por favor, póngase en contacto

con su distribuidor o representante local.

tVisualizar

• Consulte la página 56 para más información.

yBotón de PLAY (1)

• Utilice este botón para dar comienzo a la

reproducción.

uBotón de STOP (2)

• Presione este botón para detener la

reproducción.

iBotón de PAUSE (3)

• Utilice este botón para realizar la pausa de

grabación.

oBotón localización (CUE)

• Cuando se pulsa este botón durante la

reproducción, el transductor retorna a la posición

en que la reproducción fue iniciada por última

vez, y el equipo asume el modo de pausa.

• Cuando este botón es pulsado durante la

operación de búsqueda manual, el equipo

asume el modo de pausa en dicha posición.

• Si es pulsado mientras el portadiscos está

abierto, el portadiscos se cierra y el equipo

asume el modo de pausa.

!0 Palanca de selección (8,9)

• Gire la perilla en el sentido de las agujas del

reloj un “click” para moverse una pista hacia

adelante, y en el sentido contrario a las agujas

del reloj un “click” para moverse una pista

hacia atrás.

• Cuando se gira esta perilla a la vez que es

pulsada hacia adentro, un “click” corresponde

a 10 pistas.

• En el modo de preajuste, utilice esta perilla

para activar e introducir ajustes preajustados.

!1 !2 Botones de búsqueda (6,7)

• Estos botones se usan para cambiar con

precisión las posiciones donde empezará la

reproducción.

!3 Botón PLAY MODE

(modo reproducción)

• Pulse este botón para activar el modo

reproducción.

19.

ESPAÑOL

!4 Botón END MON (monitorización

del final de pista)

• Pulse este botón en el modo en espera para

monitorizar el final de una pista.

(Monitorización final)

✽En el modo de reproducción MP3, la hora del

monitor puede no ser la correcta.

!5 Botón PITCH (tono)

• Pulse este botón para conmutar la velocidad de

reproducción ajustada con el Control Deslizante

de Velocidad. A continuación parpadeará el

diodo LED PITCH.

• Cuando se pulsa el botón otra vez, queda

ajustado el modo de velocidad fijo y se ilumina

el diodo LED PITCH.

• Vuelva a pulsar este botón para cancelar el

modo de reproducción PITCH y volver a la

velocidad normal.

!6 Control Deslizante de Velocidad

• Utilice este control deslizante para ajustar la

velocidad de reproducción. Deslícelo hacia

arriba para disminuir la velocidad de

reproducción y hacia abajo para aumentar la

velocidad de reproducción.

!7 Botón ON/OFF de PROG. PLAY

(activación/ desactivación de la

reproducción de programa)

• Cuando se pulsa este botón mientras esté

iluminado el indicador PROG se ajustará el

modo de reproducción de programa.

• No se puede hacer funcionar este botón

durante el modo de reproducción A-B.

• Durante el modo de espera de reproducción de

programa y el modo de reproducción se

iluminará el diodo LED PROG. PLAY ON/OFF.

• Cuando se pulsa el botón durante el modo de

reproducción de programa, en espera o

reproducción, se borra el modo de

reproducción de programa.

!8 Botón PROGRAM IN

• Presione este botón para ajustar el modo de

entrada de programa.

• El botón no funcionará durante el modo de

reproducción.

• Cuando esté activado el modo entrada de

programa se iluminará el indicador PROG.

• Cuando se ajusta un programa se iluminará el

indicador PROG.

!9 Botón de REPEAT

• Pulse este para realizar la reproducción de

repetición.

@0 Botón de tiempo (TIME)

• El indicador de tiempo cambia cada vez que se

presiona este botón. (“REMAIN”, “ELAPSED”)

@1 Botón título (TITLE)

• Cuando se pulsa el botón, se visualiza la

información del texto (título del disco, título de

la pista, artista del disco o artista de la pista).

• Cuando se pulsa el botón mientras se encuentre

en el modo stop con un disco que contiene un

MP3 ID3-Tag cargado, se visualiza el nombre del

fichero. Cuando se pulsa durante la

reproducción, la pantalla de visualización cambia

como se muestra a continuación.

@2 Botón carpeta (FOLDER)

• Cuando se carga un disco que contiene

ficheros en formato MP3, pulse este botón en

el modo stop y a continuación será posible el

modo de selección de carpeta.

@3 Botón repetición A-B

• Use este botón para reproducir repetidamente

una sección especeífica.

• Cuando se pulsa el botón una vez durante la

reproducción, dicha posición es almacenada

como el punto A y el indicador “A-B” destella

en el visualizador.

• Cuando se vuelve a pulsar el botón, dicha

posición es almacenada como el punto B, el

indicador “A-B” deja de destellar

(permaneciendo encendido), y la sección A-B

comienza a ser reproducida en forma repetida.

• Cuando se vuelve a pulsar el botón una vez

más, la operación de repetición A-B es

cancelada y el equipo vuelve al modo de

reproducción normal.

@4 Conector de auriculares

• Si desea escuchar en privado, usted podrá

conectar unos auriculares a este conector.

@5 Control nivel de auriculares

(PHONES LEVEL)

• Use este control para ajustar el nivel de salida

de los auriculares.

Nombre del fichero de la pista que se reproduce

actualmente

Tiempo transcurrido de la pista que se reproduce

actualmente

Nombre del título

Nombre del artista

Nombre del álbum

(2) Panel trasero

qConectores salida simétrica

(BALANCED OUT)

• Salidas simétricas activas que usan conectores

tipo XLR.

• Disposición del contacto :

1. Común / 2. Positivo / 3. Negativo

• Conector aplicable :

Cannon XLR-3-31 o equivalente

wControles LEVEL L/R (de nivel

izquierdo y derecho)

• Utilice estos controles para ajustar el nivel de

las señales de audio provenientes de los

conectores ANALOG OUT (balanceada).

eConectores salida asimétrica

(UNBALANCED OUT)

• Salidas asimétricas que utilizan conectores tipo

RCA.

rConectores salida digital

(DIGITAL OUT)

• Esta es una salida coaxial con una clavija del

tipo RCA.

• Formato de la señal : SPDIF o IEC-958 Type II.

tPuerto de Control en Serie

• Este es un conector remoto en serie.

•

Conector correspondiente :

D-sub de 9 contactos

(macho)

• Velocidad de baudios : 9600 bps

• Disposición de contactos

NOTA :

• No cortocircuite la espiga positivo o

negativo con la espiga común.

Número de

contacto Nome del segnale

16NC

GND

I / O

27NC

TxD O

38NC

RxD I

49NC

NC _

5 S. GROUND _

RS-232C

Número de

contacto Nome del segnale

16NC

GND

I / O

27 TxD

TxD (RETURN) O

38 RxD (RETURN)

RxD I

49NC

NC _

5 S. GROUND _

RS-422A

yPuerto de Control Remoto Paralelo

(PARALLEL)

• Este es un conector remoto paralelo.

•

Conector correspondiente :

D-sub de 25 contactos

(

macho

)

• Disposición de contactos

Número

contacto Nome del segnale

114

PLAY tally

I / O

215

PAUSE tally

PLAY command

316

CUE tally

PAUSE command

417

INDEX 2/INDEX 3 tally

CUE command

TRACK (+) command

TTL (Iol = 20mA)

HCMOS (Ii = 3mA)

TTL (Iol = 20mA)

HCMOS (Ii = 3mA)

TTL (Iol = 20mA)

HCMOS (Ii = 3mA)

Tally common

619

Reserved

TRACK (–) command

720

Reserved

SEARCH (Fwd) command

821

Reserved

SEARCH (Rev) command

FADER START command

HCMOS (Ii = 3mA)

Tally power supply

Command common

EOM tally

Reserved

+3,3V, 20mA

(Ii = 10mA)

TTL (Iol = 20mA)

20.

ESPAÑOL

NOTA:

La punta de salida con marcas tiene

especificaciones de colector abierto IC (Imáx.

20 mA, Vmáx. 3,3 V), pero la alimentación

máxima de corriente es de 80 mA, por lo que

debe utilizarse con una corriente de carga

total de 80 mA o menos.

uConectores de Control Sincronizado

Externo (EXT. SYNC.)

• Conecte estos terminales para una grabación

sincronizada.

iTerminales de Control en Cascada

(CASCADE)

•

Conecte estos terminales cuando desee un

funcionamiento continuo con múltiples unidades.

• Cuando el modo de cascada se ajusta a “ON”,

se emite la señal de inicio desde esta clavija de

salida una vez que ha finalizado la operación.

(Función de preajuste)

(3) Visualizador

qIndicador de transporte de CD

wPorción de pantalla de modo

FILE :Se ilumina cuando aparece el

nombre de archivo de MP3.

FOLDER :Se ilumina en el modo de selección

de la carpeta.

TITLE :Se ilumina cuando aparece el título

del MP3 ID3-Tag o Texto CD.

MP3 :Se ilumina cuando se carga un disco

con formato MP3.

PROG :Se ilumina en el modo de

programación.

REPEAT, 1 :Este se ilumina en el modo de

repetición.

CASCADE :Este se ilumina en el modo de

cascada. (Función de preajuste)

ALBUM :Se ilumina cuando aparece en

nombre del álbum de MP3 ID3-Tag.

ARTIST :Se ilumina cuando aparece el

nombre del artista de MP3 ID3-Tag.

ePantalla de pitch del CD

rVisualización de posición de

reproducción

•

Esta visualización indica la posición actual dentro

del tiempo total de reproducción de la pista.

• En el modo de reproducción de MP3, es

posible que este no se visualice

correctamente.

tCalendario musical de 20 pistas

• En el modo de reproducción de pista individual,

sólo se iluminará la pista especificada.

• En el modo de reproducción continua, se

iluminarán todas las pistas desde la pista

especificada hasta la última pista.

• Los números de pistas se iluminan hasta la

pista 20. Las pistas 21 y subsiguientes no se

pueden visualizar.

• No se visualiza MP3.

yPantalla múltiple

• Muestra el número de pista del CD, el tiempo

de reproducción del CD, distinta información

de funcionamiento, mensajes de texto, etc.

uIndicador del modo del tiempo

ELAPSED: Se ilumina cuando aparece el tiempo

transcurrido.

REMAIN : Se ilumina cuando aparece el tiempo

que queda.

iIndicador de control remoto de

infrarrojos

oIndicadores de modo Reproducción

• Se ilumina “SINGLE” cuando se encuentre en

el modo de reproducción de pista simple.

• Se ilumina “CONT.” cuando se encuentre en el

modo de reproducción continuo.

CONEXIÓNES

Deje todo el sistema (incluyendo el DN-C635) desactivado hasta que las conexiones entre el DN-C635 y otros

componentes hayan sido completadas.

2Precauciones para la conexión

• Antes de proceder con la conexión o desconexión de cables de interconexión o cables de alimentación,

asegúrese de que todos los componentes estén desactivados.

• Asegúrese de conectar correctamente todos los cables a las tomas ixquierdas (L) y derechas (R).

• Asegúrese de que las elavijas queden totalmente insertadas en los terminales.

• Conecte las clavijas de salida del CD a los conectores de entrada de CD o AUX del amplificador.

2Conexiones de control remoto

PLAYPAUSECUE

INDEX2/INDEX3EOM

FADER SWITCHTRACK(+)TRACK(-)

El valor nominal del pin 22 del conector REMOTO (REGISTRO DEL SUMINISTRO ENERGETICO) es de 3,3 V,

80 mA como máximo.

Evite las corrientes que superen este valor nominal.

2Precauciones para la instalación

• Si el DN-C635 se coloca serca de un amplificador, sintonizador u otros cmponenttes, se puede provocar

ruido (zumbido inducido) o interferencia de latido (especialmente durante la ecepción de AM o FM).

Si esto ocurre, separe el DN-C635 de los demás componentes o reoriente su posición.

NOTA:

• Use esta unidad en posición horizontal.

Cuando la unidad sea usada con el panel delantero de cara hacia arriba (es decir, en posición vertical), o

cuando el panel delantero quede inclinado, la unidad no funcionará correctamente.
