Dentsply Sirona Intego Technical specifications

Intego/Intego Pro
Brief operating instructions (not valid for USA)
6457654 KGBA Intego EN.book Seite 1 Mittwoch, 18. Oktober 2017 4:49 16

2Dentsply Sirona
Dear Customer,
You can use these brief operating instructions to quickly find the
most important control procedures and functions of your dental
treatment center.
However, they do not describe all of its functions. Therefore,
they cannot replace the complete operating instructions of your
dental treatment center, which contain many important descrip-
tions and warnings. The care and cleaning of your treatment
center are described thoroughly in the complete operating inst-
ructions. A quick overview of the required measures is provided
in the Care and Cleaning Plans for the Treatment Center and the
Instruments.
Your Intego Team
Content
Overview of Intego .............................................................. 3
Overview of Intego Pro ...................................................... 4
Power switch ........................................................................... 5
User interface of the dentist element ......................... 6
User interface of the assistant element ..................... 11
Programming chair programs ...................................... 12
Pneumatic foot switch ...................................................... 13
C+ electronic foot control ............................................... 14
4-way foot control ............................................................. 16
3-way standard and Sprayvit E syringe ................... 16
High-speed handpiece / air motor / other air-
driven instruments ............................................................... 17
Electric motor ........................................................................ 17
Endo function ....................................................................... 19
Apex locator (only with EasyTouch) ....................... 23
SiroSonic L ............................................................................ 26
Mini L.E.D. ............................................................................... 28
SiroCam F/AF/AF+ ......................................................... 29
Sivision program ................................................................. 34
Configuration of the treatment center (setup) ... 37
Overview of the touchscreen dialog ........................ 40
6457654 KGBA Intego EN.book Seite 2 Mittwoch, 18. Oktober 2017 4:49 16

Dentsply Sirona 3
Overview of Intego
* Maximum load exerted by patient and accessories:: 140kg, 185 kg
as an option
Dentist element instruments
Assistant element instruments
A Patient chair E Compact assistant element
B Flat headrest F Compact water unit
C Pneumatic foot switch G Power switch and external
device connection
D TS dentist element
Position 1 Positions
2, 3
Position 4 Position 5 Additional
tray (only
for TS)
Standard 3-
way syringe
highspeed
handpiece
highspeed
handpiece
SiroSonic L SiroCam
F/AF/AF+
Sprayvit E Motor BL E /
BL ISO E
Motor BL E /
BL ISO E
SiroCam
F/AF/AF+
SiroSonic L
Position 1 Position 2 Position 3 Position 4
Standard 3-way
syringe
additional spray
aspirator
Spray aspirator Saliva ejector
Sprayvit E Mini L.E.D.
SiroCam
F/AF/AF+
6457654 KGBA Intego EN.book Seite 3 Mittwoch, 18. Oktober 2017 4:49 16

4Dentsply Sirona
Overview of Intego Pro
* *Maximum load from patient and accessories: 185 kg
Dentist element instruments
Assistant element instruments
A Patient chair E Comfort assistant element
B Double-jointed head support F Comfort water unit
C C+ electronic foot control G Power switch and external
device connection
D CS dentist element
Position 1 Positions
2, 3
Position 4 Position 5 Additional
tray (only
for TS)
Sprayvit E highspeed
handpiece
highspeed
handpiece
SiroSonic L SiroCam
F/AF/AF+
Motor BL E /
BL ISO E
Motor BL E /
BL ISO E
Mini L.E.D.
SiroSonic L SiroCam
F/AF/AF+
Position 1 Position 2 Position 3 Position 4
Sprayvit E additional spray
aspirator
Spray aspirator Saliva ejector
Mini L.E.D.
SiroCam
F/AF/AF+
6457654 KGBA Intego EN.book Seite 4 Mittwoch, 18. Oktober 2017 4:49 16

Dentsply Sirona 5
Power switch
The treatment center has a power switch
(A) at the base of the chair. At the end of
the working day, the treatment center
should be switched off to save energy and
for safety reasons. This switches off the air
and water supply as well as all electronic
components. It then no longer consumes
any energy.
A
6457654 KGBA Intego EN.book Seite 5 Mittwoch, 18. Oktober 2017 4:49 16

6Dentsply Sirona

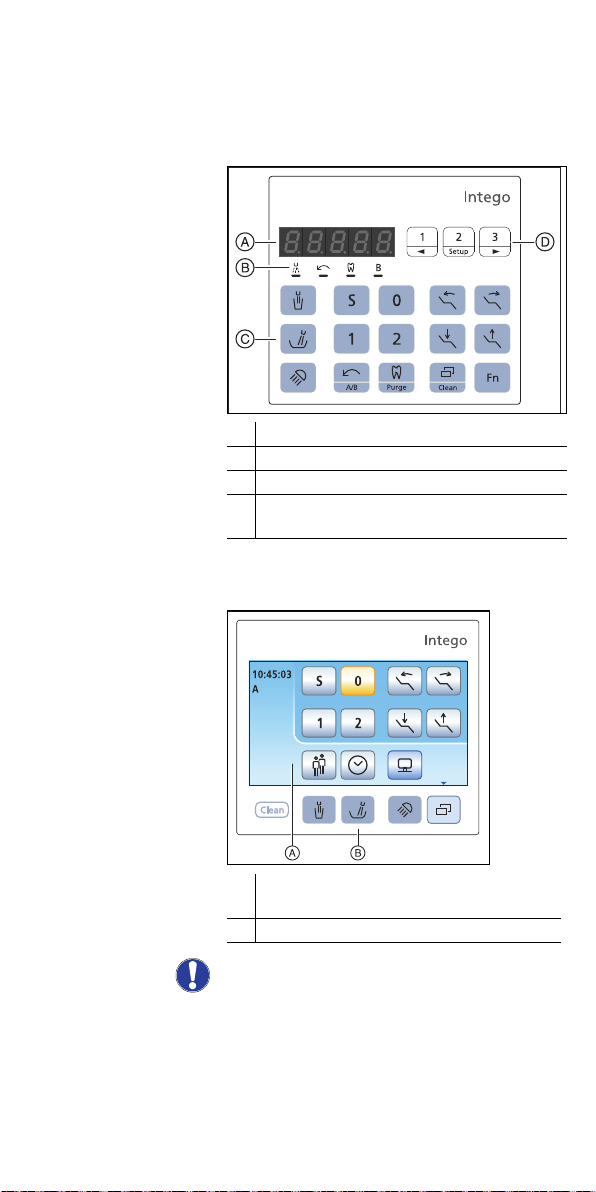

User interface of the dentist
element
Standard user interface of
the EasyPad
EasyTouch comfort user
interface
For an overview of touch-screen programs,
see the end of this quick reference guide.
A EasyPad display
B Status displays
C Fixed keys (membrane keyboard)
D Favorite key pad (membrane
keyboard)
A Touchscreen (pressure-sensitive user
interface)
B Fixed keys (membrane keyboard)
6457654 KGBA Intego EN.book Seite 6 Mittwoch, 18. Oktober 2017 4:49 16

Dentsply Sirona 7
EasyPad display
For indicating speed, intensity, and torque
and for configuring and servicing the treat-
ment center. The time, timer function, and
error messages are also displayed.
Status displays on the
EasyPad
Indicate activation of spray (only for C+
electronic foot switch), counterclockwise
rotation, Endo function, and user profile B.
Favorites keypad
These fixed keys are for:
• Adjusting the speed of the motor and the
intensity of the SiroSonic L scaler
• Saving the instrument settings speed or
intensity, maximum torque and spray on
the function keys 1, 2 and 3 by pressing
and holding (> 2 s). Pressing briefly recalls
the stored setting.
Keys and displays
Tumbler filling
Starts the tumbler filling function.
Pressing the Tumbler filling key (> 2 s)
displays the setting text/program for
coupling the tumbler filling to mouth
rinsing position S and filling time.
Flushing the cuspidor
Starts the flushing of the cuspidor bowl.
Pressing the Flushing key (> 2 s) displays
the setting text/dialog for coupling flushing
to mouth rinsing position S and flushing
time.
Operating light
Switches the operating light on, to the
composite function, or off. The composite
function is used to prevent premature
curing of composite materials.
With the LED light, brightness is set using
the no-touch sensor.
B
1.2 4028
Set
12
Setup
3
0:45:03
2
1
0S
S
0:45:03
2
1
0S
S
0:45
6457654 KGBA Intego EN.book Seite 7 Mittwoch, 18. Oktober 2017 4:49 16

8Dentsply Sirona
In the LEDview and LEDview Plus the
setting context/dialog appears when the
operating light key is pressed (>2 s). The
brightness of the light and the distance
from which the no-touch sensor should
react to movements can be adjusted.
In the LEDview Plus, the color temperature
of the light can also be adjusted.
Sub-screen
With EasyTouch, some programs are
divided into a main program and sub-
screens.
This is indicated by a small arrow at the
bottom right of the touchscreen. It points
to the fixed key Sub-dialog below the
touchscreen
Chair program S
Mouth rinsing position with last-position
memory function (programmable)
Chair program 0
Entry/exit position (programmable)
Chair programs 1 and 2
(programmable)
Backrest tilt
Moves the seat and backrest without any
compression or stretching effects for the
patient
40
S
S
0
0
2
1
2
1
6457654 KGBA Intego EN.book Seite 8 Mittwoch, 18. Oktober 2017 4:49 16

Dentsply Sirona 9
Chair height
Timer function
Starts and stops the timer.
With EasyPad, the timer is preset in the
setup of the treatment center, see "Preset-
ting the timer“ [38].
On the EasyTouch, the settings dialog for
the Timer function appears when the Timer
key is held down (> 2s) . Set the time and
select whether you want to switch the time
loop (i.e. the timer restarts automatically
after the time is up) and the acoustic signal
for the selected timer on or off.
Counterclockwise rotation / user profile
With the motor removed: switching coun-
terclockwise rotation on/off
With instruments in place: changing the
user profile
Endo / Purge
With the motor removed: switching the
Endo function of the motor on/off
With the ultrasound handpiece removed:
switching the endo mode on/off (limiting
power)
Fn
0:45:03
2
1
0S
0:15
A/B
B
B
B
10:45:03
Purge
Endo
B
3e Endo
6457654 KGBA Intego EN.book Seite 9 Mittwoch, 18. Oktober 2017 4:49 16

10 Dentsply Sirona
On the EasyPad with active Endo function
and holding the key (> 2 s): starting calibra-
tion of the drill drive
On the EasyPad with instruments in place:
selecting the purge, autopurge, sanitize,
and stand-alone water supply functions
Display mode / clean
On the EasyPad with active Endo function:
switching between speed and torque indi-
cator
With instruments in place: switches the
entire user interface of the dentist element
to no function. The instruments of the
dentist and assistant elements can no
longer be activated. The Sivision monitor
and the camera system are switched off.
Pressing > 3 s again reactivates the treat-
ment unit. This protects from interference
from an external HF device and when
cleaning the surface by ensuring that no
functions can be accidentally triggered.
/
Clean
Clean
0:45:03
2
1
0S
Clean
3 sec
6457654 KGBA Intego EN.book Seite 10 Mittwoch, 18. Oktober 2017 4:49 16

Dentsply Sirona 11
User interface of the assistant
element
Chair program S
Mouth rinsing position with last-position
memory function (programmable)
Chair program 0
Entry/exit position (programmable)
Tumbler filling
on/off
Flushing the cuspidor
on/off
Operating light / Composite function
Press the key repeatedly to set the
following switching positions:
1. Switched on
2. Composite function
3. Switched off
Fn key
Starts and stops the timer.
S
0
Fn
6457654 KGBA Intego EN.book Seite 11 Mittwoch, 18. Oktober 2017 4:49 16

12 Dentsply Sirona
Programming chair programs
The four factory preset chair programs:
• Mouth rinsing position S
• Entry/exit position 0
•1and2
can be individually programmed for both
user profiles (A and B) on the EasyPad and
each of the four user profiles (A to D) on
the EasyTouch.
On the EasyTouch, the Start or Instru-
ment dialog is displayed on the touch-
screen.
1. Move the patient chair to the desired
treatment position.
2. Switch the operating light on or off (this
is set during programming).
3. Press and hold the desired program key
(S, 0, 1 or 2) (> 2s).
An acoustic signal sounds. Your settings
are now stored under the desired
program key.
Note: Chair programs S and 0 can also be
programmed on the assistant element side.
S0
2
1
2
1
0
S
6457654 KGBA Intego EN.book Seite 12 Mittwoch, 18. Oktober 2017 4:49 16

Dentsply Sirona 13
Pneumatic foot switch
Foot pedal
Drag an instrument (electric motor,
high-speed handpiece/air motor, Siro-
Sonic L) and step on the foot pedal.
The instrument is switched on with the
set speed and intensity. For highspeed
handpieces/air motors, the speed is
controlled by the pedal action.
Spray switch
Move the toggle switch.
Left position: Spray off
Right position: Spray on
The spray is either switched on or off
when an instrument is activated.
Chip blower
With the chip blower, an air jet comes out
of the bur.
Take an instrument and press the right
button.
The chip blower remains switched on as
long as the button is pressed.
6457654 KGBA Intego EN.book Seite 13 Mittwoch, 18. Oktober 2017 4:49 16

14 Dentsply Sirona
C+ electronic foot control
Foot pedal
All instruments are in place.
Press the foot pedal.
The EasyPad switches to the standard
operating context (initial situation), the
EasyTouch displays the start dialog.
An instrument is removed.
Press the foot pedal.
The instrument is activated. With the
EasyPad, the motor and the SiroSonic L
are activated with the set speed or inten-
sity (direct starter). If the standard foot
switch function is selected with the Easy-
Touch, the motor and the SiroSonic L can
be controlled in relation to the pedal
stroke. When the intraoral camera is
removed from the holder, the camera
image is focused and switches to the still
or live image.
Left button
All instruments are in place.
Press the left button.
The chair moves to mouth rinsing posi-
tion S.
An instrument is removed.
Press the left button.
With the EasyPad, the spray is switched
on and off, with the EasyTouch, the
cooling medium preset in the sub-dialog
(spray or air). If the intraoral camera is
removed, the video still image is saved in
Sidexis; the live image is displayed in the
next quadrant in Si Video.
Right button
All instruments are in place.
Press the right button.
The chair moves to entry/exit position 0.
An instrument is removed.
Press the right button.
The chip blower remains switched on as
long as the button is pressed. When the
intraoral camera is removed, it is
possible to toggle between single image
and quad image in Si Video.
S
0
S
0
S
S
0
0
6457654 KGBA Intego EN.book Seite 14 Mittwoch, 18. Oktober 2017 4:49 16

Dentsply Sirona 15
4-way foot control plate
All instruments are in place.
Move the 4-way foot control plate to
the left or right.
Left: Chair program 1 is loaded.
Right: Chair program 2 is loaded.
An electric motor or SiroSonic L is
removed.
Slide the 4-way foot switch plate up or
down.
Up: The speed or intensity is increased.
Down: The speed or intensity is
decreased.
An electric motor or SiroSonic L is
removed.
Slide the 4-way foot control plate to the
right.
The instrument settings saved for the
favorite key, e.g. speed, intensity and
activation of spray are called up.
An electric motor is removed from the
holder.
Slide the 4-way foot switch plate to the
left.
The clockwise/counterclockwise rota-
tion of the electric motor is activated.
S
0
S
0
S
0
S
0
6457654 KGBA Intego EN.book Seite 15 Mittwoch, 18. Oktober 2017 4:49 16

16 Dentsply Sirona

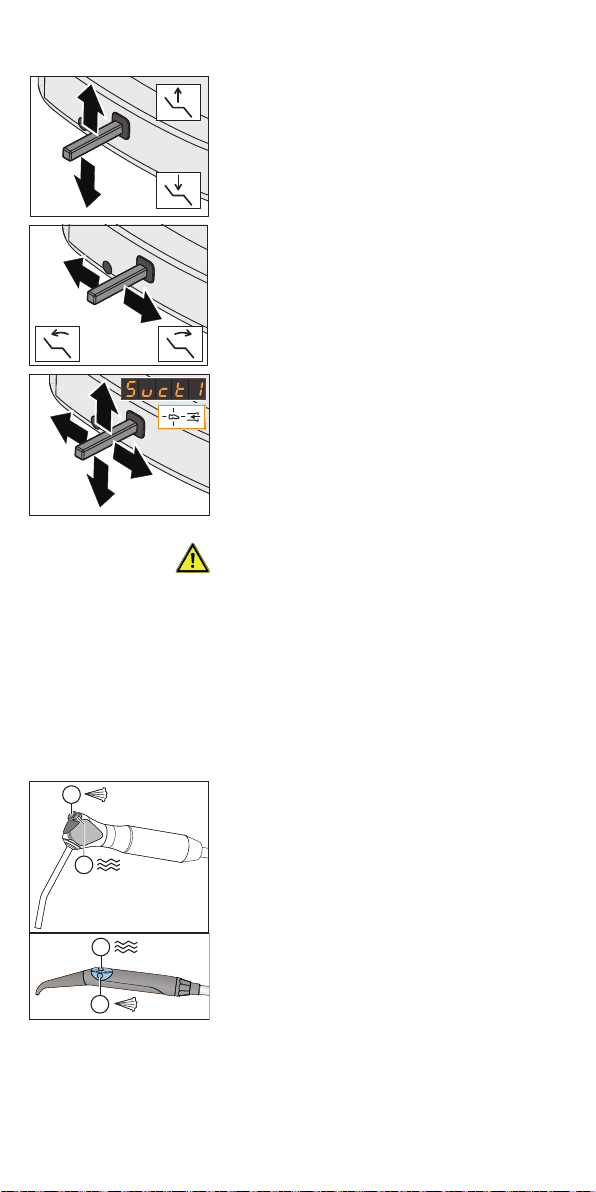

4-way foot control
Adjusting the chair height
Slide the 4-way foot control upward or
downward.
Inclining the backrest
Slide the 4-way foot control to the left
or right.
Suction via 4-way foot control
If the treatment center is equipped with a
place selection valve option for the suction
system, it can be set so suction flow of the
spray mist suction can be interrupted or
restarted by moving the 4-way foot control
switch at the base of the chair in any direc-
tion.
WARNING: Due to the lack of suction flow,
fluid may run back out of the spray aspi-
rator and into the patient's mouth.
Always remove the spray aspirator from
the patient's mouth before switching it
off.
3-way standard and
Sprayvit E syringe
A= air button
B= water button
Available option: Sprayvit E with reverse
key assignment
B
A
A
B
6457654 KGBA Intego EN.book Seite 16 Mittwoch, 18. Oktober 2017 4:49 16

Dentsply Sirona 17
High-speed handpiece / air
motor / other air-driven
instruments
If your treatment center is equipped with
the pneumatic foot switch, the drive air for
the turbine can be regulated by the foot
pedal.
EasyPad user interface
When the highspeed handpiece is removed
from the holder, a short vertical bar
appears on the right side of the EasyPad
display. Press the foot switch to start the
high-speed handpiece.
EasyTouch user interface
When the highspeed handpiece is removed
from the holder, a highspeed handpiece
signal appears on the touchscreen.
A
10:45:03
2
1
0S
6457654 KGBA Intego EN.book Seite 17 Mittwoch, 18. Oktober 2017 4:49 16

18 Dentsply Sirona
Electric motor
The brushless motors BL E and BL ISO E
are available as electric motors.
The speed range of the motors for Intego /
Intego Pro is between 1,200 and
40,000 rpm. If the treatment center
features the eControl option, the motor can
be down-regulated to 100 rpm.
Accessing saved speed setting
The electric motor is removed from the
holder.
Press one of the favorite keys briefly
(< 1 s).
The speed saved on the favorite key is
shown in rpm (revolutions per minute).
With the EasyTouch, the favorite key is
highlighted orange.
By moving the 4-way switch plate of the
C+ electronic foot switch to the right, the
settings of the favorite keys can be
accessed consecutively.
Changing the speed
Press and hold the 1 or 2 / – or + favorite
key (>1 s).
The speed is increased or reduced.
The speed can also be increased or
reduced by moving the 4-way switch plate
of the C+ electronic foot switch up or
down.
12
Setup
3
1.2 4020
Set
rpm
20000 1.2 4020
Set
S
0
1.2 4020
Set
12
Setup
3
rpm
28000
1.2 4020
Set
S
0
6457654 KGBA Intego EN.book Seite 18 Mittwoch, 18. Oktober 2017 4:49 16

Dentsply Sirona 19
Saving the speed
The desired speed is set.
1. Press and hold the 2 / Setup or Set
favorite key (>1 s).
The speed flashes.
2. Press one of the three favorite keys.
An acoustic signal sounds. The speed
set is saved on the favorite key.
Setting the direction of rotation via
the foot switch
The rotational direction of the motor can
also be set via the 4-way foot control plate
of the C+ electronic foot switch.
An electric motor is removed from the
holder.
1. Move the 4-way foot control plate to the
left.
When counterclockwise rotation is
switched on, the Counterclockwise
status display lights up on the EasyPad,
the Counterclockwise key is marked
orange on the EasyTouch.
2. Move the 4-way foot control plate to
the left again to reverse the rotational
direction.
2
Setup
20
Set
rpm
28000 1.2 4020
Set
12
Setup
3
rpm
28000
1.2 4028
Set
S
0
6457654 KGBA Intego EN.book Seite 19 Mittwoch, 18. Oktober 2017 4:49 16

20 Dentsply Sirona
Endo function
The speed and torque of the rotating
instrument can be set precisely using the
Endo function.
The basic functionality of the Endo func-
tion is described below. For more informa-
tion, please refer to your complete Intego
Operating Instructions.

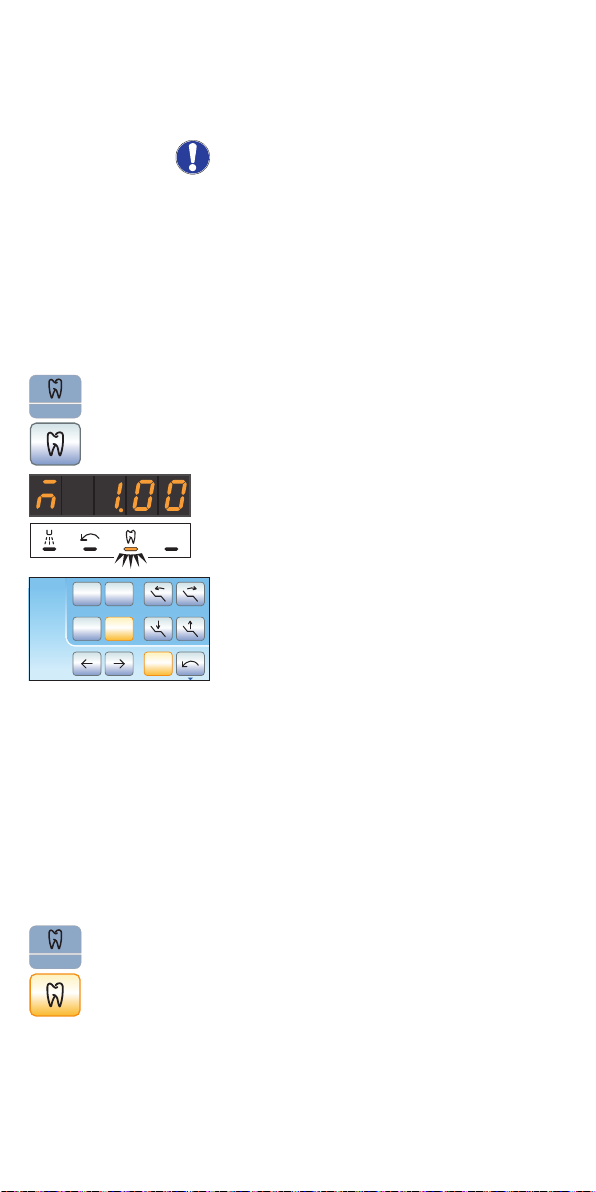

Switching on the Endo
function
The Endo function is assigned to the burr
drive removed from the holder.
The desired electric motor for the Endo
function is removed from the holder.
Press the Endo / Purge key or the Inte-
grated Torque Control key in the sub-
dialog Motor.
If the Endo function is turned on, the
preset torque of 1.00 Ncm (Newton
centimeter) is displayed on the EasyPad
display. The Endo function status display
is illuminated. With the EasyTouch, the
Endodontics dialog is displayed.
Switching off the Endo
function
If the Endo function is switched on, when
the burr drive assigned to the Endo func-
tion is removed from the holder, the torque
or speed of the contra-angle handpiece is
displayed instead of that of the motor on
the EasyPad display. To show the motor
speed again when the burr drive is
removed, the Endo function must first be
switched off.
Press the Endo / Purge key (< 1s) or the
Endo function key again.
The Endo function status display goes
out on the EasyPad. On the EasyTouch,
the key Endo function is displayed in
blue again. When the burr drive is
removed from the holder, the speed of
the motor is displayed.
Purge
B
2
1
0S
rpm
300
Ncm
1.00
Endo 3 Cal
Purge
6457654 KGBA Intego EN.book Seite 20 Mittwoch, 18. Oktober 2017 4:49 16
