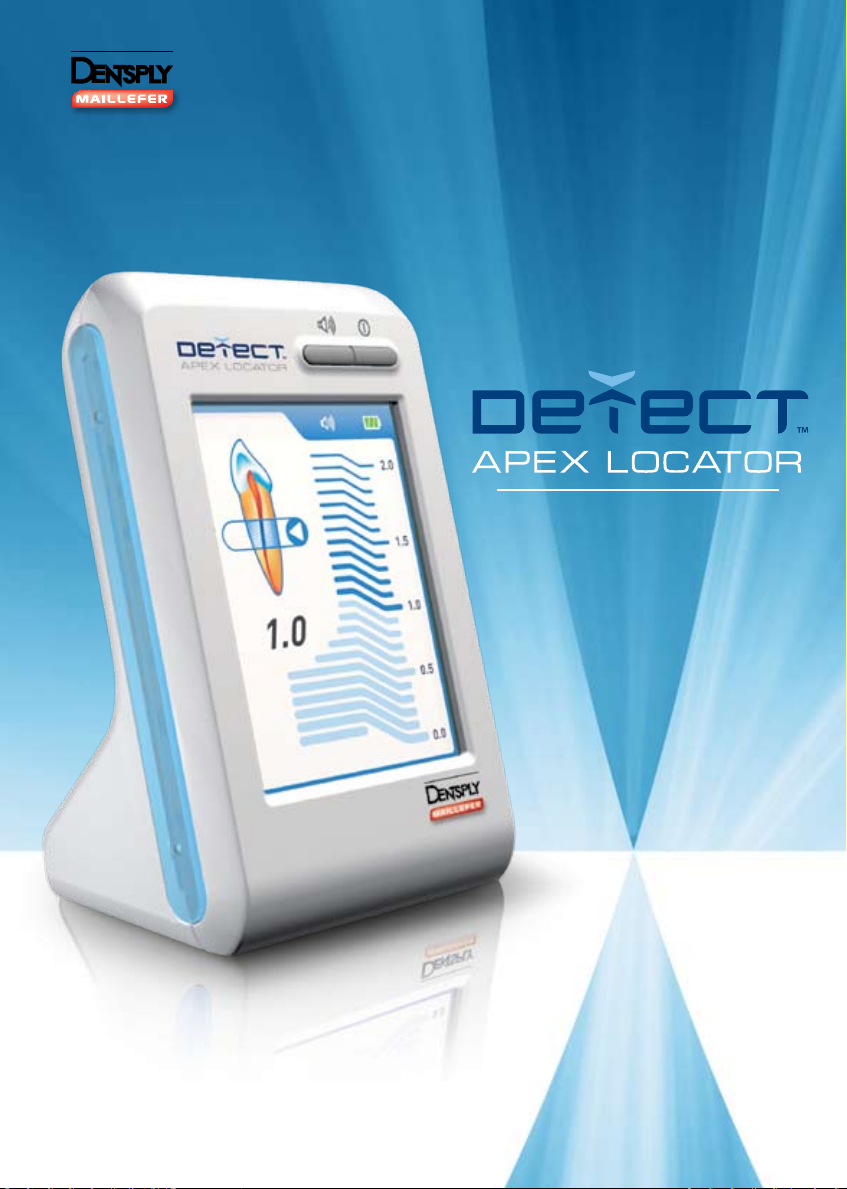

DENTSPLY DETECT APEX LOCATOR User manual

USER MANUAL

3
Table of Contents
Introduction......................................................4
1. Indications For Use ................................................4
2. Contraindications .................................................4
3. Warnings .......................................................5
4. Precautions ......................................................5
5. Adverse Reactions .................................................5
6. Step-By-Step Instructions ............................................6
A. Contents ................................................6
B. Recharging the Battery ......................................6
C. Replacement of the Rechargeable Battery .........................7
D. Getting Started ...........................................8
E. Search for the Apex ........................................9
F. Sound Adjustment ........................................11
G. Demo Mode ............................................11
H. Automatic Shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
I. Maintenance of Your Detect™ Apex Locator ......................12
J. Guarantee .............................................12
K. Technical Specifications ....................................12
L. Standard Symbols ........................................13
Disinfection, Cleaning & Sterilization .................................. 13

4
5
FOR DENTAL USE ONLY
Introduction
Congratulations on the purchase of Detect™.
1. Indications for Use
The Detect™is an electronic device used for apex location determination and working length
determination. This product must only be used in hospital environments, clinics or dental
offices by qualified dental personnel.
2. Contraindications
The Detect™is not recommended for use in patients that have a pacemaker or other
implanted electrical devices.
3. Warnings (See Contraindications)
See above.
• Onlyusetheoriginalcharger.
4. Precautions
The Detect™device must be used with the manufacturer’s original accessories only.
In order to prevent infectious agent transmission it is highly recommended to use a rubber
dam system during the endodontic procedure.
To ensure that short circuits do not impair the measurements, be particularly careful with
patients fitted with metal crowns or bridges (avoid any metallic contact with the file or the
lip clip).
• Highconcentrationsofsodiumhypochloritemayresultinaloweraccuracy.Forworking
length determination, we recommend to use sodium hypochlorite solution at maximum
3% concentration.
• Makesurethatthecanaliswetenoughtoensurereliabilityofthemeasurement.
• Ensurethattheledoesnottouchanotherinstrument.
• DonotexposeDetect™toanyliquid.
• Avoidexcessiveliquidsinsidethetoothcavitytopreventoverowand
incorrect measurements.
• Detect™must be stored in normal temperature (<60°C) and humidity conditions.
• Donotuseinthepresenceofammableproducts.
• Teethwithopenapiceswillgiveimpreciseresults.
• Ifthebargraphsuddenlymakesalargemovementintheupperpartofthecanal–
continue slightly towards the apex so the signal returns normal.
• Anapexlocatormaynotbeabletomeasureinallconditions.Inanycase,itis
recommended to take an X-Ray prior to use of the unit and compare the information
given by both means.
• For your own safety, please wear personal protective equipment (gloves, glasses, mask).
5. Adverse Reactions
None known.

6
7
RED LOW
ORANGE MID
GREEN FULL

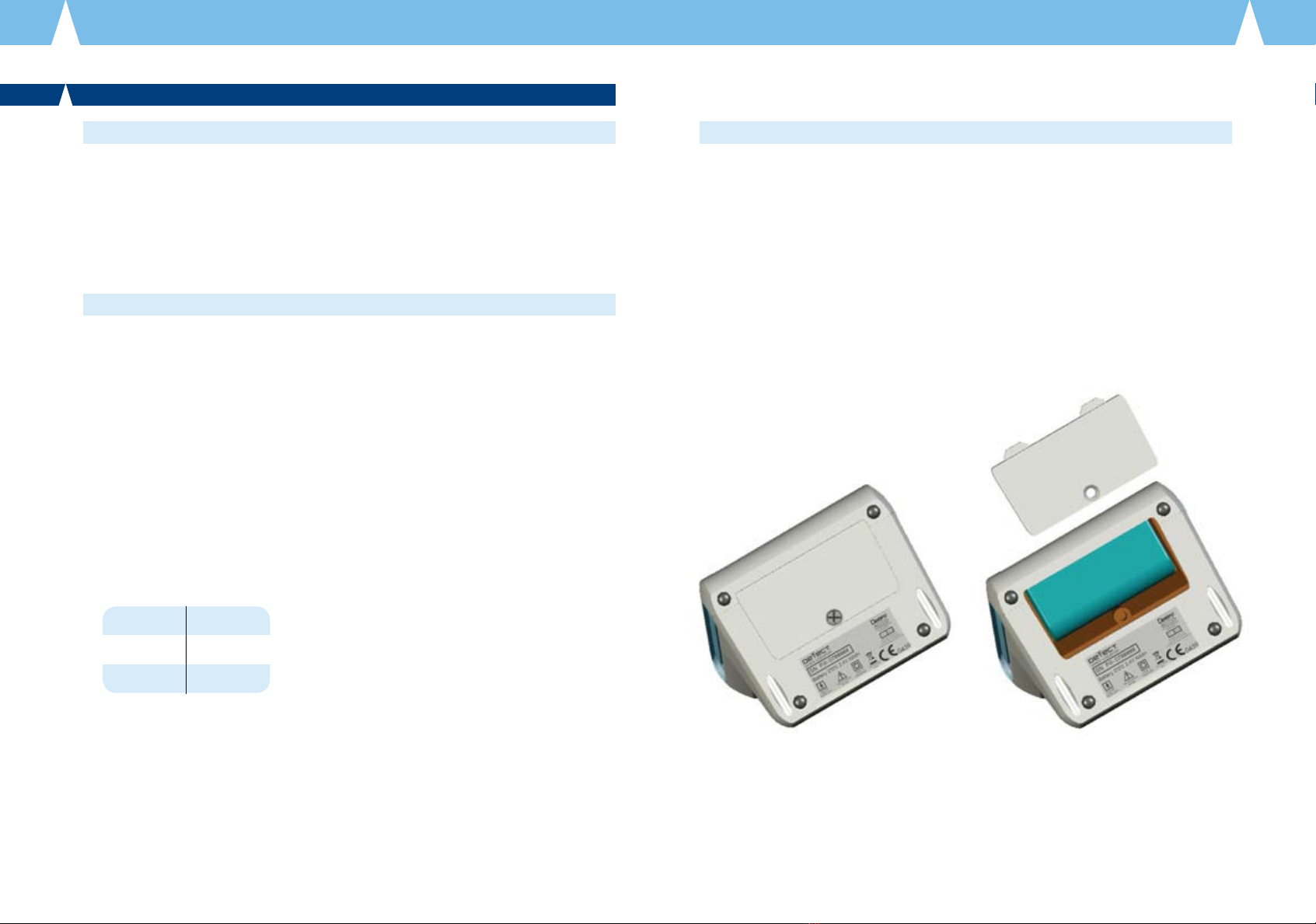

C. Replacement of the rechargeable battery
The battery compartment is located at the bottom of Detect™and the cover is secured
by a screw.
1.Release the screw and remove the battery compartment cover
2.Remove the battery and disconnect the battery cable from the jack connector
3.Insert the new battery cable into the jack connector
4.Insert the battery into the battery compartment
5.Close the battery compartment and secure it with the screw
Warning: Use only the original battery pack from your supplier!
6. Step-By-Step Instructions
A. Content
Check the contents of the equipment before use:
– oneDetect™apexlocator – onecharger
– onemeasurementcable – twolipclips
– twoconnectionhooks – twoconnectionforks
– oneusermanual
B. Recharging the Battery
The Detect™is delivered with a rechargeable battery.
On the Detect™a screen indicator shows the level of the battery charge. When this is
ashing,thebatteryrequiresrecharging.However,itisstillfunctionalforseveraltreatments
before the battery shuts down.
Procedure for recharging the battery:
1.Disconnect the measurement cable
2.Connect the charger cable to the Detect™
3.Connect the charger to the mains
Charging screen will appear during battery charging. When the battery image on the
screen stops blinking and turns green, the charging is complete.
CHARGING SCREEN COLOR GUIDE
Duration of charging: About 12 hours (24 hours after long periods without use).
Note: Detect™cannot be used while charging.

8
9
D. Getting Started
1.Disconnect the charger from the device if connected.
2.ConnectthemeasurementcableandswitchthedeviceOn–afterashortlogo
presentation, the main screen is displayed and the cursor on the tooth image will start
blinking.
 (WhileturningthedeviceOnwithoutthemeasurementcable–themainscreenwillbe
displayed without cursor on the tooth image).
3.Attach the lip clip to the patient.
4.Inserttheleintothecanal–(toensureprecisemeasurementsthelesizeshouldbe
adjusted to the canal diameter).
5.Connect the hook to the file.
The cursor on the tooth will stop blinking (accompanied by a double beep signal).
A blinking cursor and no sound signal indicate a faulty connection. Check your connections,
clean your hook connection, moisten the canal, if necessary, and start again.
No other adjustments are necessary before starting measurement.
Note: Connection test feature is included in Detect™ in order to check the cables:●
• Connectmetalpartoftheconnectionhooktothelipclip
• “Connectiontest”iconshouldappearinthebottomleftcornerofthedisplay,
indicating proper connection
• Ifnoiconappears,theconnectionhookorthemeasurementcableshouldbereplaced
E. Searching for the Apex
1. Coronal and Medial Zone
Slowly introduce the file into the canal. The cursor on the tooth icon indicates the progression
of the file inside the canal.
Further progression of the file in the canal is shown both by the cursor on the tooth icon
and by the numerical value on the graphical scale (which does not represent length in
millimeters). Detect™emits audible information of file progression via a series of progressive
rate beeps.

10
11
F. Sound Adjustment
Detect™is equipped with a sonic indicator which enables monitoring of the progression of
the file within the canal.
Thisfunction,inconjunctionwiththedisplayofprogression,enablesworking“blind”while
still monitoring the progression of the file.
The volume can be adjusted to one of four levels: mute, low, normal and high, by successive
presses on the volume key.
G. Demo Mode
The built-in Demo mode is available to become acquainted with the device and to
demonstrate its operation.
1.Disconnect the measuring cable or the charger from the device if connected and turn
Off the device.
2.To start Demo mode, press and hold the (On/Off) button for about 2 sec. until the
secondbeepsoundsand“Demo”indicationappearsinthebottomleftcornerofthe
display.
3.During Demo cycle device operating sequence is shown on the screen. Press button
to pause the simulation; press button again to resume.
4.When Demo cycle is completed, it is repeated automatically until interrupted by
the operator.
5.To exit Demo mode press button and hold
it for about 2 sec. until a beep sounds.
Note: If measurement cable is connected to
Detect™ during Demo cycle, the device switches
automatically to normal operation mode
H. Automatic Shutdown
Detect™automatically shuts down after 5 minutes without use. It is advisable, however, to
manually switch off equipment after measurement by simply pressing the key (On/Off).
BEGINNING OF APICAL ZONE MIDDLE OF APICAL ZONE APICAL POSITION
2) Apical Zone
Theapicalzoneisdividedinto10segmentsgraduatedfrom0.9to0.0(apex)asvisual
information of file progression.
Whentheapexisreached,thecursorshows“APEX”andasolidtoneisemitted.
Once apex is reached, it is recommended to subtract 0.5 mm to determine the working
length for shaping.
3) Over-Instrumentation
A red segment and a warning signal indicate that the file has passed the apex. The cursor
onthetoothiconshows“OVER”.

12
13
Operation Operating mode Warning
Pre-Disinfection or
Decontamination
–Soakimmediatelyjust
after usage all instruments
in a disinfectant solution
combined with proteolytic
enzymeifpossible.
–Followinstructionsandobserve
concentrations and immersion time
given by the manufacturer (an excessive
concentration may cause corrosion or
others defects on instruments).
–Thedisinfectantsolutionshouldbe
aldehyde free (to avoid blood
impurities fixation).
–Donotusedisinfectantsolutioncontaining
Phenol or any products which are not
compatible with the instruments (See
general recommendation).
–Forvisibleimpuritiesthatareobserved
on instruments, a pre-cleaning is
recommended by brushing them manually
with soft material.
X
- Internallypoweredequipment(2.4V
NiMHrechargeablebattery)
- Not suitable for use in the presence of
ammableanestheticmixtureswithair,
oxygen or nitrous oxide
- Ingressofliquids–notprotected
- Type BF applied parts
- Continuous operation
- Environmental conditions during
transportation:temperature:–20°Cto
+60°C (0 to 140°F); relative humidity:
10%to90%,non-condensing
Recycling:PLEASEDONOTTHROWAWAY!Thisproduct
and all its components must be recycled through your supplier.
Attention, consult
accompanying documents.
Type BF applied part
Direct Current
Class II Equipment
I. Maintenance of your Detect™
The device does not contain user serviceable parts. The service and repair should be
provided by factory trained service personnel only.
After each use, all the objects that were in contact with infectious agents should be cleaned
using towels impregnated with a disinfecting and detergent solution (a bactericidal, fungicidal
and aldehyde free solution). Use of chemical agents may cause damage to the equipment.
Reprocessing procedure:
- thelipclip,thehookandtheforkmustbesterilizedbetweentreatmentsbyautoclavingat134°C
See after for detailed procedure.
The measuring cable cannot be autoclaved.
J. Warranty
Detect™is warranted for 24 months from the date of purchase. The accessories (cables,
battery etc.) are warranted for 6 months from the date of purchase.
The warranty is valid for normal usage conditions. Any modification or accidental damage
will render the warranty void.
K. Technical Specifications
Detect™electronic apex locator belongs to the following category of medical devices:
TECHNICAL SPECIFICATIONS
Dimensions 130 x 80 x 63 mm
Weight 360 gr.
Type of Screen Color Graphic TFT
 ScreenDimensions 3.5“
 Supply 2.4VNiMHrechargeablebattery
 ExternalChargerInput 120V/50-60Hzor230V/50-60Hz
 ExternalChargerOutput 6VDC
L. Standard Symbols
On the device label appears standard symbols as follows:
Disinfection, Cleaning & Sterilization Procedure for Detect™ Accessories
Foreword
TheLipclipmustbecleaned,disinfectedandsterilizedbeforeeachusetopreventany
contamination according to ISO 17664. This concerns the first use as well as the
subsequent uses.
General Recommendations
• Theuserisresponsibleforthesterilityoftheproductfortherstcycleandeachfurther
usage as well as for the usage of damaged or dirty instruments.
• Foryourownsafety,pleasewearpersonalprotectiveequipment(gloves,glasses).
• Useonlydisinfectingsolutionwhichisapprovedfortheirefcacy(DGHM-listing,
FDA approval).Pr
PROCEDURE FOR LIP CLIP, HOOK AND FORK

14
PROCEDURE FOR LIP CLIP, HOOK AND FORK (CONT’)
Operation Operating mode Warning
Rinsing
ManualCleaning
Rinsing
Disinfection
Final Rinsing
Inspection
Packaging
Sterilization
Storage
–Rinsetheaccessories
manually with plenty
of water
–cleanmanuallythe
accessories with an
adequate brush,
pre-soaked in a clean
pre-disinfectant solution
–Seepoint#2
–Immersetheaccessories
in a disinfectant
solution (bactericidal,
virucidal, fungicidal,
tuberculocidal and
aldehyde free) according
to the manufacturer
recommendations
–Seepoint#2
–Afterrinsing,the
accessories should be
dried.
–Inspectdevicesandsortout
those with defects.
–Packthedevicesin
“Sterilizationpouches.”
–Steamsterilizationat:
134°C (237°F) for 18 min
–Keepdevicesin
sterilizationpackaging
in a dry and
clean environment
–thehookmechanismhastobeactivated
during the cleaning process (press the push
button several times)
–novisibleimpuritiesshouldbeobservedonthe
accessories.
–Followinstructionsandobserve
concentrations and time given by the
manufacturer.
–Dirtyinstrumentsmustbecleanedand
disinfected again.
–Checkthevalidityperiodofthepouchgiven
by the manufacturer to determine the shelf life.
–Usepackagingwhichisresistantupto
a temperature of 141°C (286°F) and in
accordance with EN ISO 11607.
–Theclipmustbesterilizedaccordingtothe
packaging labeling.
–Usefractionatedvacuumorgravity(less
preferred) autoclaves (according to EN
13060, EN 285).
–Usevalidatedsterilizationprocedure
according to ISO 17665-1.
–Followmaintenanceprocedureofthe
autoclave device given by the manufacturer.
–Useonlythelistedsterilizationprocedures.
–Sterilitycannotbeguaranteedifpackaging
is open, damaged or wet (check the
packaging before using the instruments).
X
X
X
X
X
X

DENTSPLY Maillefer
DENTSPLY International, Inc.
608RollingHillsDrive
Johnson City, TN 37604
1-800-924-7393
1-800-924-7389(fax)
www.maillefer.dentsply.com
Manufacturedfor:
ManufacturedUnderU.S.Patent#6,425,875.©2010DENTSPLYInternational,Inc.DETECTDFU05/10
