DeviceWell HDS7105 User manual

5-CH SWITCHER
Users’ Manual

2
SWITCHER
Caution
Danger
Preparation Before Installation
●During transportation, handling, and installation of switchboard equipment, avoid collisions
between the switchgear equipment and doors, walls, shelves, etc.
●When the equipment is unpacked and transported, it is strictly forbidden to put it down and
drag it gently to avoid damage to the switchboard equipment.
●Do not place the switcher equipment in a flammable, explosive atmosphere or smoke
environment. Do not perform any operation in this environment.
●Operating equipment should be kept away from water and moisture. The water in the
switchgear or moisture will cause damage to the circuit of the switchgear equipment.
●A certain amount of heat will be generated during the operation of the switcher. Ensure that
the switchgear equipment is ventilated and the switcher device can operate normally.
●It is a fatal hazard that indirect contact with the power supply by wet objects is prohibited.
Unregulated, incorrect high-voltage operation can cause accidents such as fire or electric shock.
●It is forbidden to install and remove the switchgear equipment and power cord. When the power
cord is in contact with the conductor, an arc or spark may be generated, which may result in fire
or electric shock.

3
SWITCHER
Contents
1. Overview…………………………………………………………………………………..4
1.1 Introduction……………….…………………………………………………………..….4
2. Functional characteristics………….…………………………………………......5
2.1 Size……………………………………..………………….………………….……….….….6
3. Interface Specification..……………….………………………………………......7
3.1 Interface Introduction……………..…….…….………………….……………..….7
3.2 TALLY Interface……………………..………….….………………….……………..….8
3.3 Parameter……………………….……….……….…………………….……………..….9
4. Control Panel and Interface………..…………………..………………………..10
4.1 Control Panel.………………………..…………….………………….………………..10
4.1.1 Area Description……………..………………………….…….………………..10
4.1.2 Key Description……………..………….……………….…….………………...11
4.1.2.1 Function Area……………….….…………………………...…..…...11
4.1.2.2 Audio Control Area……………….……….……………….…..…...11
4.1.2.3 Transition Effect Control Area………………….……….……...13

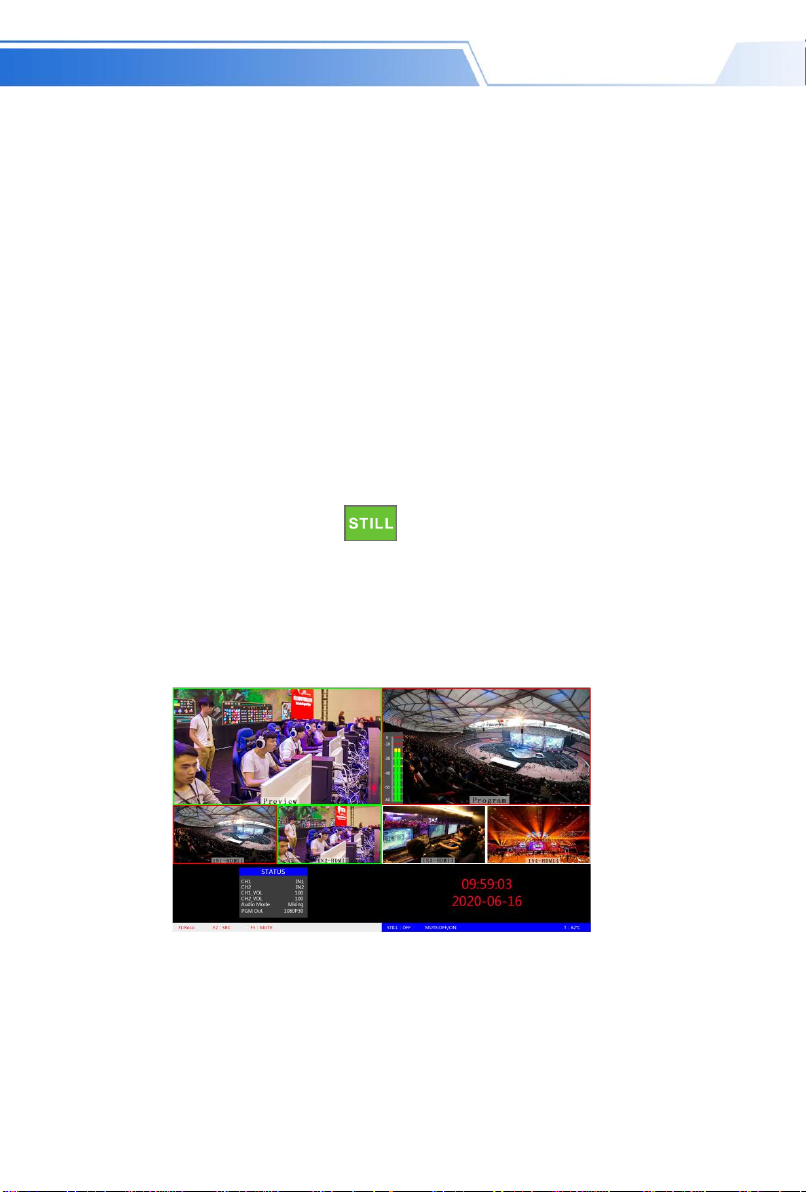

4.1.2.4 Integrated Control Area.……………….……….……….…….....15

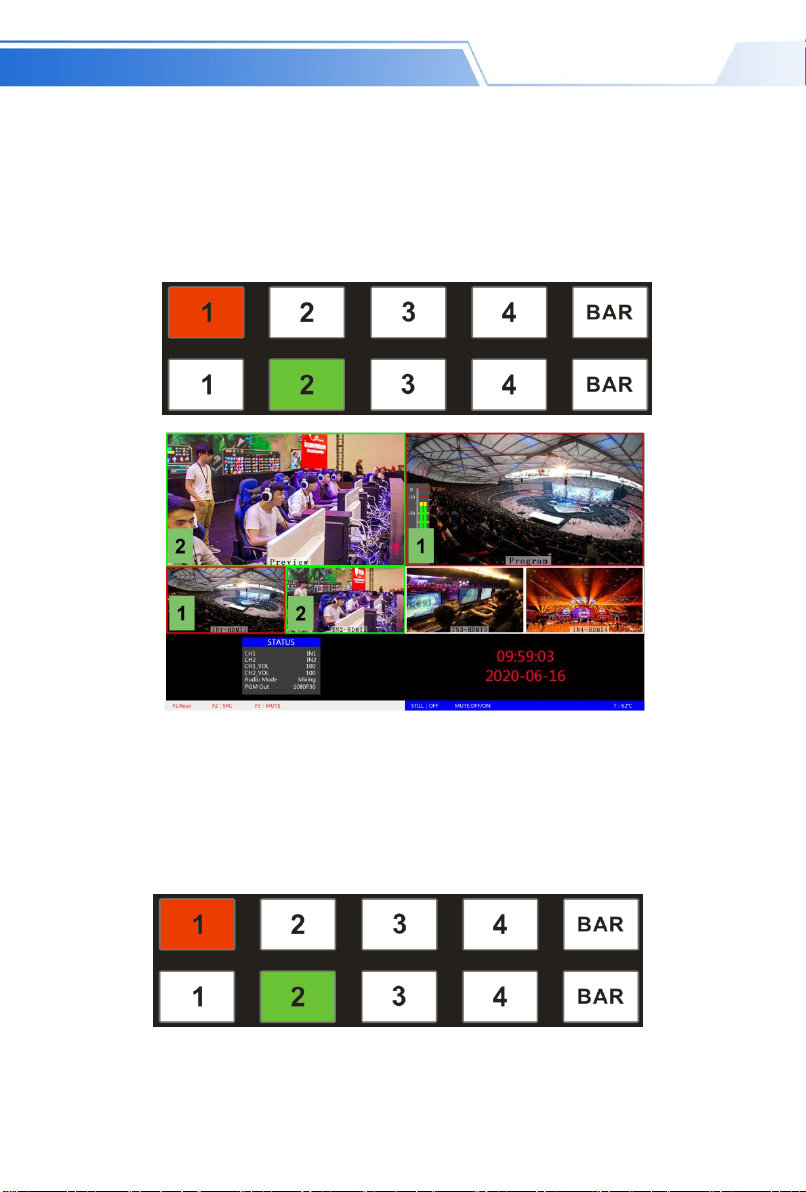

4.1.2.5 PGM & PVW Selection…………………….……….……………....17

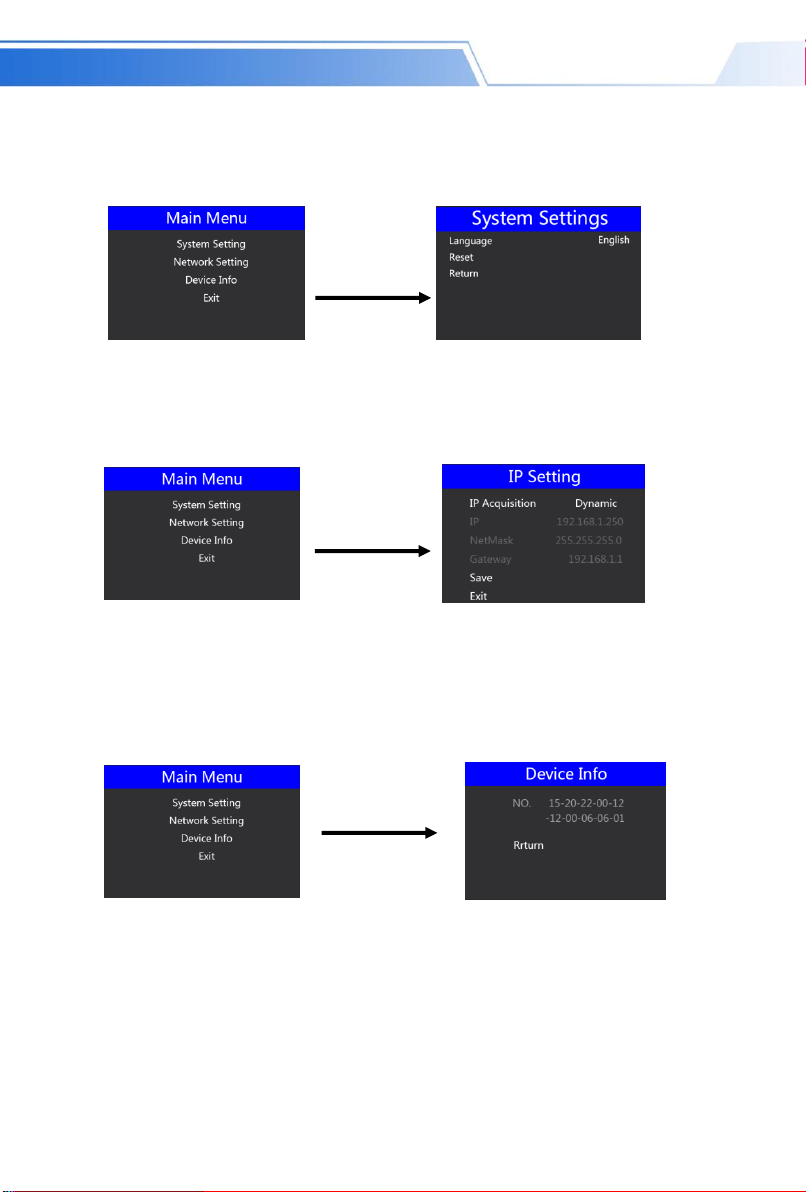

5. System menu settings……..……………..………………………………………….19
6.Instructions for USB interface to OBS software…….…………………….21
7. Switcher software control…..…………………………………………………....23
8.Manual for synchronizing local time and upgrading the device….27
9. Failure and Maintenance…..……………………………………………………...30

4
SWITCHER
High-definition video switcher adopts a portable integrated design, metal casing, small size and
light weight. Standard size: 236mm * 105mm * 47mm, which can be used for small-scale
out-of-field video effects switching requirements. The device integrates multiview processor,
special effect generator, audio processor, control keyboard and other common components of the
switcher.
Switcher supports 4 HDMI + 1 DP signal inputs, a total of 5 video signals. The external
preview signal can be output simultaneously. The switcher supports HDMI embedded audio +
external analog audio. After mixed processing, it can be embedded in the output HDMI signal or
output from the analog port. The resolution of all input signals is automatically adapted, and the
output signal resolution can be selected according to requirements, which is quite flexible. For the
needs of video switching such as radio and television, program production, live production of
interviews and lectures, outdoor sports events, and school courseware production, the functions of
the switcher can be fully met.
1.Overview
1.1 Introduction
PC
HD camera
HD camera
HD camera
Microphone
DP IN
HDMI IN
HDMI IN
HDMI IN
MIC IN
Switcher
Multiview out
PGM OUT
Monitor
Projector
PGM
Large screen
LINE IN
Mixer
Audio processor
Power amplifier
Sound

5
SWITCHER

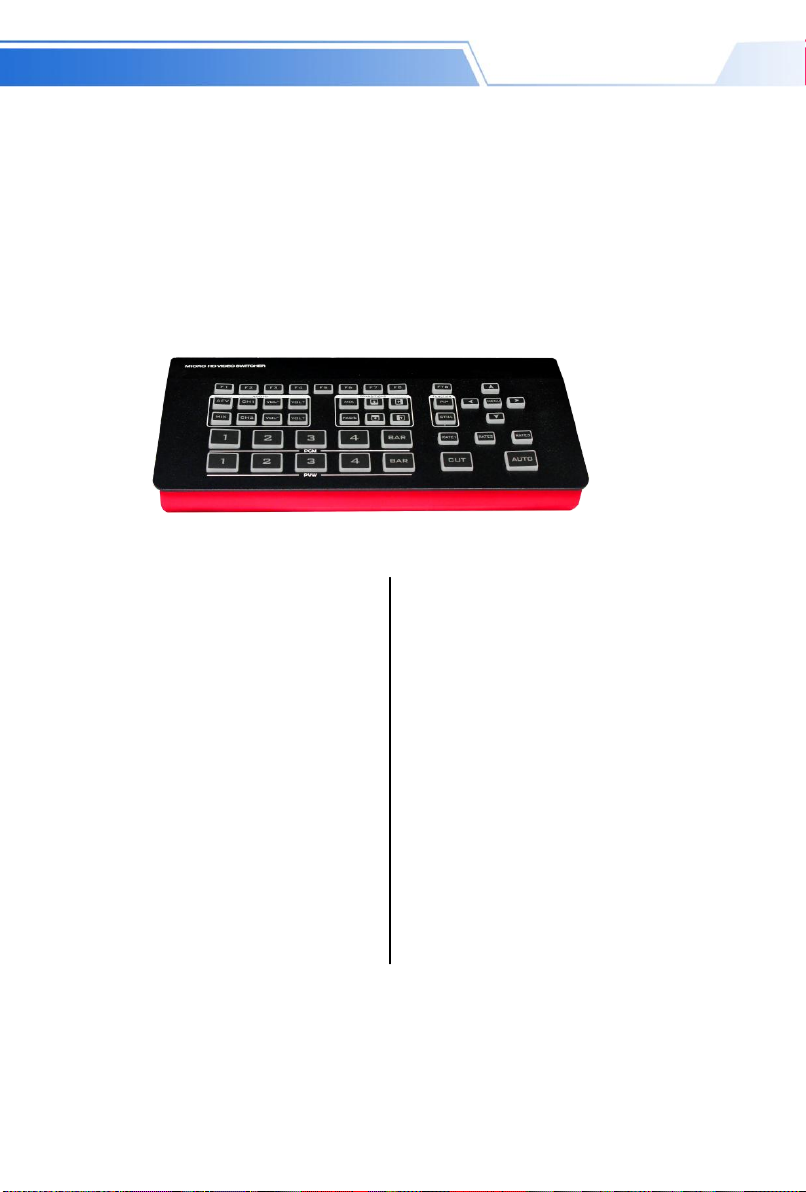

◆Portable integrated design
◆Metal body, high strength and light
weight
◆Integrated control keyboard
◆Support up to 4 HDMI + 1 DP inputs
◆2 stereo MIC inputs
◆1 LINE IN input
◆1 LINE OUT output
◆Support 1 USB output video stream,
clear picture quality
◆Support PC remote control
◆The equipment comes with color bar
output screen
◆Support audio follow, mix function
◆Support HDMI audio de-embedding
◆PGM output: 1 HDMI
◆Multiview output: 1 HDMI
◆Support special effects switching such as MIX / FADE
◆Support CUT hard cut, supportAUTO special effect
switching
◆Support Tally / Network control
◆Support still function
◆Support PIP window function
◆Support vertical menu output, must
be used with PM1005, PM1007
Switcher five-channel high-definition video switcher is a multi-functional switcher, which
requires no professional knowledge and can perform video switching and audio mixing with simple
operations. This machine can be used in broadcasting, live broadcasting and various event venues.
2.Functional characteristics

6
SWITCHER

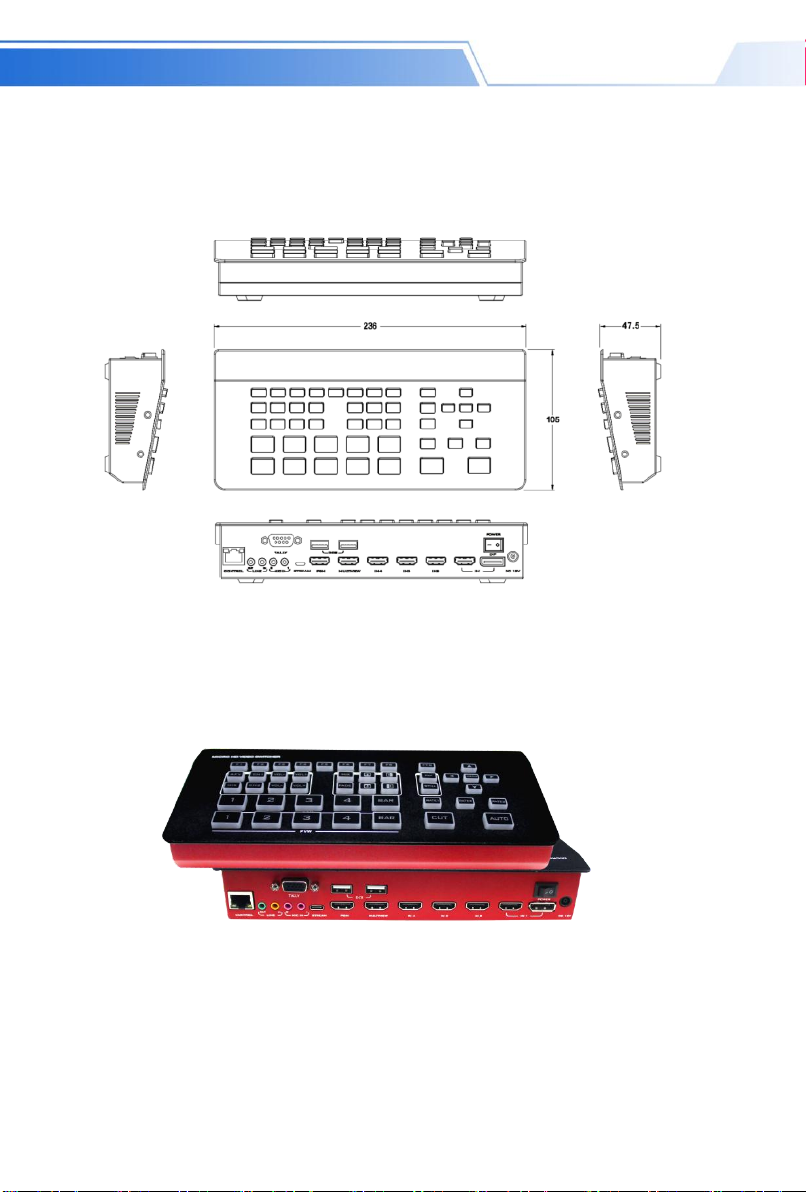

2.1 Size
Size:236mm*105mm*47mm

7
SWITCHER
NO.
Definition
Description
1
TALLY
DB15 pin, external call system
2
DCB
Cascade equipment, supporting TALLY lamp module (reserved)
3
Switch
Power switch button
4
DC 12V
Power Input
5
HDMI IN/DP IN
4 HDMI + 1 DP inputs, The first input can be switched to DP input
6
MULTIVIEW
Multiview output
7
HDMI OUT
1*PGM live output
8
STREAM OUT
Tpy_C interface, UVC output
9
MIC IN
2 stereo MIC inputs
10
LINE IN/OUT
Line audio input and output
11
RJ45
Network upgrade, PC remote control
3.Interface Specification
3.1 Interface Introduction
The Switcher interface is shown below.

8
SWITCHER
3.2 TALLY Interface
PIN
Function
PIN
Function
11
PGM-IN1
6
PVW-IN1
12
PGM-IN2
7
PVW-IN2
13
PGM-IN3
8
PVW-IN3
14
PGM-IN4
9
PVW-IN4
5
GND
Note：PIN1 PIN2 not used.
TALLY Online schematic：
Note：Tally LED: for external display device
Tally output：Active low (Tally LED is lit) High level is invalid (Tally out is off)

9
SWITCHER
3.3 parameters
Name
4*HDMI+1*DP Switcher
Video
Signal
Input
Input signal
HDMI/DP video signal
Rate
270Mbps~3Gbps
Connector
Standard
Reflection loss
>15dB 5MHz~3GHz
Signal amplitude
800mV±10%(HDMI)
Impedance
100Ω (HDMI)
Balance
Adaptive
DVD input HDMI
support
480i/576i,480p/576p,720p,1080i,1080p,
Computer HDMI input
support
1920x1080,1680x1050,1600x900,1440x1050,1366x768,1360x768,1360x768,1280x1024,1
280x960,1280x800,1280x768,1280x720,1280x600,1152x864,1024x768,800x600,
Video
Signal
Output
output signal
HDMI video output
Code rate
270Mbps~3Gbps
Connector
Standard
Return Loss
>15dB 5MHz~3GHz
Signal amplitude
800mV±10%(HDMI)
impedance
100Ω (HDMI)
DC offset
0V±0.5V
Clock recovery
Support
Control
Parameter
Control
9600 baud, 8 bits, 1 stop bit, no parity
Connection
15-pin D-port, 2-RX, 3-TX, 5-GND
Network control
RJ45,100M
General
Parameter
power supply
12V/DC
Power rate
18w
control panel
Support on-site production, integration of a variety of buttons.
Operating temperature
0℃~50℃, No condensation
Storage temperature
-20℃~75℃
Working humidity
20%~70%RH
Storage humidity
0%~90%RH，No condensation

10
SWITCHER
4
6
4.Control Panel and Interface
Before using the HD Mini Switcher, please take a few minutes to read this section. This chapter will
introduce you the panel and interface of the HD switcher to facilitate your subsequent use and operation.
The new high-strength characteristics of the new aluminum alloy with high-strength characteristics
improve the anti-drop, anti-shock and shock-proof capabilities of the whole machine, and effectively
protect the internal components of the equipment. Ultra-lightweight features make the unit easier to
transport and maintain without the need for additional equipment; it also offers unparalleled thermal
performance.
In addition to the innovation of the case, the HD switcher has also been completely optimized for the
interface connector. Environmentally friendly materials with new RoHS standards are More demanding in
terms of durability and environmental protection, to provide customers with more stable, more
environmentally friendly, more cost-effective products

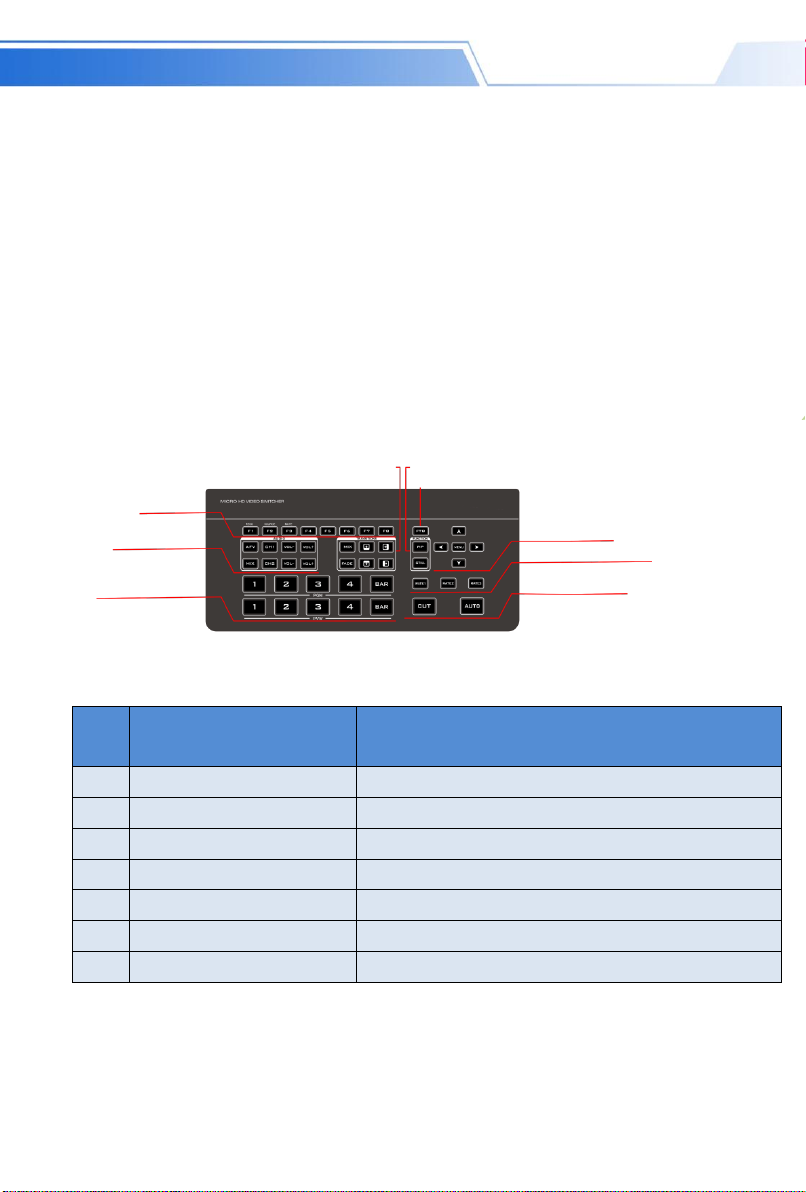

4.1 Control Panel
No.
Name
Description
1
Function area
Currently supports F1/F2/F3 function
2
Audio control area
Mainly set the audio follow-up mix and audio volume control
3
Transition effect control area
Select transition effects
4
Integrated control area
PIP and STILL effects
5
Menu control area
Setting menu information with keys
6
PGM and PVW selection
Program and preview selection
7
Transition control area
Control transition switching and transition rate adjustment
4.1.1 Area Description
PGM and PVW selection
Audio control area
Function area
Integrated control area
FTB
Menu control area
Transition speed rate setting
Transition control area
Transition effect control area

11
SWITCHER
4.1.2 Key Description
F1---Reso resolution control
Press F1 on the keypad to adjust the screen output resolution. Each time you press the
button, you can adjust the output resolution. The resolutions are 1080P60Hz / 1080P50Hz /
1080P30Hz / 1080P25Hz / 1080P24Hz / 1080I60Hz / 1080I50Hz.
F2--- Source channel switching control
Press F2 on the keypad to select the input source of the fourth channel. When the HDMI
and DP signals are connected to the back interface of the switcher at the same time, you
can choose between IN1-HDMI and IN1-DP after pressing F2.
F3--- Mute one-key mute
Press F3 on the key panel to switch to the mute function, turn off all the audio volume
output
4.1.2.1 Function area

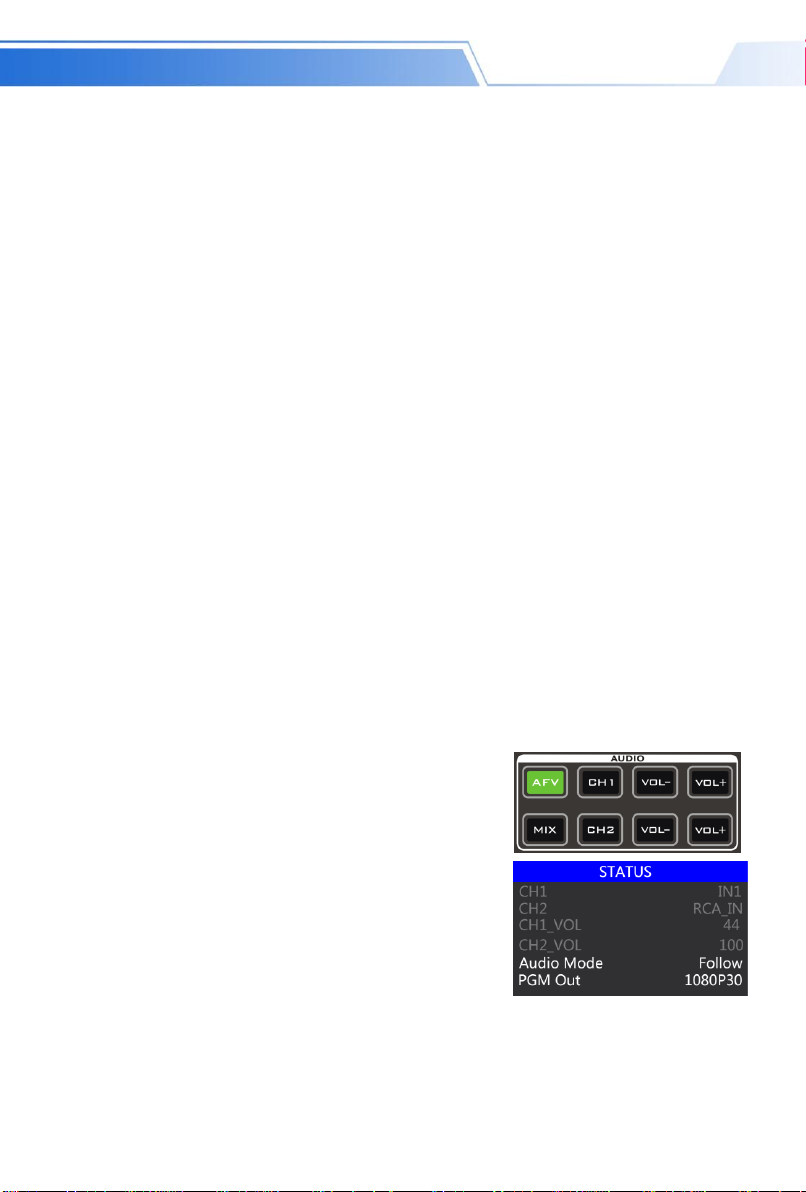

1. Press the AFV button on the operation panel, the button
will light green at this time, and the corresponding multiview
menu will also display the current audio status. The Audio
Mode in the menu shows Follow, which indicates that the
audio is in follow mode; as shown in the figure on the right
(Note: the color of the keys displayed in the picture is
different from the actual effect picture.)
4.1.2.2 Audio Control Area
How to use the audio follow mode：

12
SWITCHER
3. The volume adjustment of the audio follow mode is controlled by the keys on the operation
panel. Pressing the AFV button in the follow mode (green light is displayed) will follow the audio
of the PGM live channel by default. At this time, you need to increase or decrease the volume.
Next to VOL+ (increase volume) and VOL- (decrease volume) to adjust.
Keep clicking the VOL + and VOL- buttons, the corresponding menu section can also display the
current volume value.
The menu corresponding to the multiview will also
display the current audio status. The Audio Mode in the
menu displays Mixing, which indicates that the audio is
in the mixing assignment mode, as shown in the right
figure.
3. Audio channel adjustment for mixing assignment: It is adjusted through the buttons on the panel,
including audio control area and menu control area.As shown below.
2. The channels of the audio follow mode are IN1、IN2、IN3、IN4 , and the corresponding operation
panel keys (the button panel 2 lights up at this time, indicating that Operate the IN2-HDMI2 signal
source as shown below.)
How to use mix assignment:
1、Press the MIX button on the operation panel.
Lights up green as shown on the right
2. The mixing assigned channels are IN1、IN2、IN3、IN4、PHONE_IN、MIC_IN1、MIC_IN2. Under the
mixing assignment mode, there are two more audio embedding functions; PHONE _IN means 3.5mm
stereo audio interface, MIC_IN means 3.5mm microphone audio interface; PGM live output can mix
two audio channels at any time, and the volume of the two audio channels can also be adjusted
separately.

13
SWITCHER
4.1.2.3 Transition Effect Control Area
There are 3 transition modes:
MIX transitions, FADE, and Wipes, where the Wipes
include: up, down, left, and right.
You can also press MIX (showing green light) in the key panel, then press the "up and down" buttons of
the menu button to enter the audio channel selection, press the "down" button to enter the CH1 channel,
click "MENU" to enter the audio source selection, audio The source can be selected fromIN1、IN2、IN3、
IN4、PHONE_IN、MIC_IN1、MIC_IN, after confirming the selection, press "MENU" to exit; as shown in the
right figure, the audio source of the first channel is from IN1-HDMI1 becomes IN4-HDMI4.
The second audio selection operation is the same. As shown in the right figure, the audio source of the
second channel has changed from IN2-HDMI2 to MIC_IN1.
Note: When there is a white bar displayed in the menu, you can only exit by pressing the "up" button on
the key panel, and you can only operate the operating system menu after exiting
4. The volume adjustment of the audio mixing mode is controlled by the buttons on the operation panel;
press the MIX button (showing green light) in the mixing mode. At this time, you need to increase or
decrease the volume, just operate VOL+ (increase volume) and VOL- (decrease volume) button to adjust.
Keep clicking the VOL+ and VOL- buttons, and the corresponding menu part can also display the current
volume value.

14
SWITCHER
MIX Transition
MIX special effects are transition effects. After setting the transition, the main output will fade from the
original live picture and then transition to the new live picture until it completely disappears.
Click in the special effect control area (green light is displayed after pressing), and then click
AUTO or CUT to switch. The effect is shown below.
MIX transition effects, superimposed on the A picture and
gradually superimposed the B picture, until the transition to the
end, the picture is completely replaced by the B picture
FADE Transition
Click in the special effect control area (green light is displayed after pressing), and then click
AUTO or CUT to switch, the effect picture is below.
Four special effects wipe transitions
There are four types of transition modes in wipe, which are up / down / left / right.
Transition up: Click in the special effect control area (green light is displayed
after pressing), and then click AUTO or CUT to switch. The other three transition
operations are the same.
FADE in and fade out effects, A gradually darkens the picture
until it is completely black, and then gradually changes from
black to B picture.
Wipe up the transition effect, the A picture is unchanged, and
the B picture is gradually wiped in by the upward direction until
the picture completely becomes B

15
SWITCHER
PIP picture-in-picture special effects
PIP special effects: Press on the control panel (the green light is displayed after
pressing), and then click AUTO or CUT to switch. The effect is shown below.

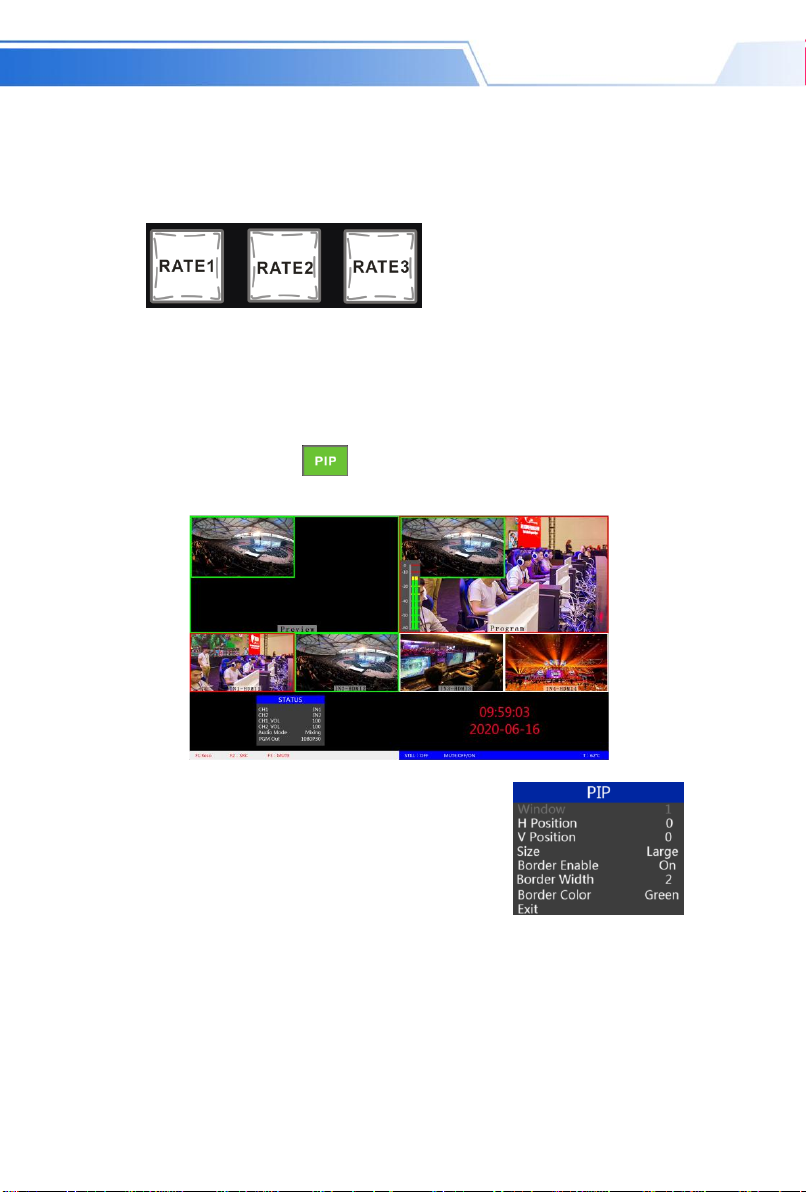

Transition rate adjustment
When operating the transition effect control area, you can also control the transition rate by
operating the RATE1, RATE2, and RATE3 in the keypad (rate1: 640ms; rate2: 1280ms;
rate3: 2560ms) Note: Only when using AUTO transition effective.
4.1.2.4 Integrated control area
At this time, the information on the LCD screen
will be switched to the PIP setting. The control
menu key can be set according to requirements, as
shown below.

16
SWITCHER
You can use the knob to set the parameters of PIP picture-in-picture, the situation is as follows
(the horizontal / vertical position size is based on the smallest display image as an example)
Horizontal position setting: The value from the upper left end to the upper right end is 0-1440,
and the value increases / decreases by 10 each time the knob is rotated.
Vertical position setting: The value from the upper left end to the lower left end is 0-810, and
the value increases / decreases by 10 each time the knob is rotated.
Display size setting: You can choose small / medium / large settings.
Bezel switch settings: You can choose on / off settings.
Border width setting: The border width can be selected from 2-7 thickness borders, and the
value increases / decreases by 1 each time the knob is turned.
Border color setting: You can choose white / red / green / green to set the border color.
PIP size and position
STILL screen freeze effects
Screen freeze special effect: Press on the control panel (green light is displayed
after pressing), and then the output PGM video animation will enter the freeze
phenomenon. Press the button again to unfreeze the screen, the effect is shown below.

17
SWITCHER
4.1.2.5 PGM and PVW selection

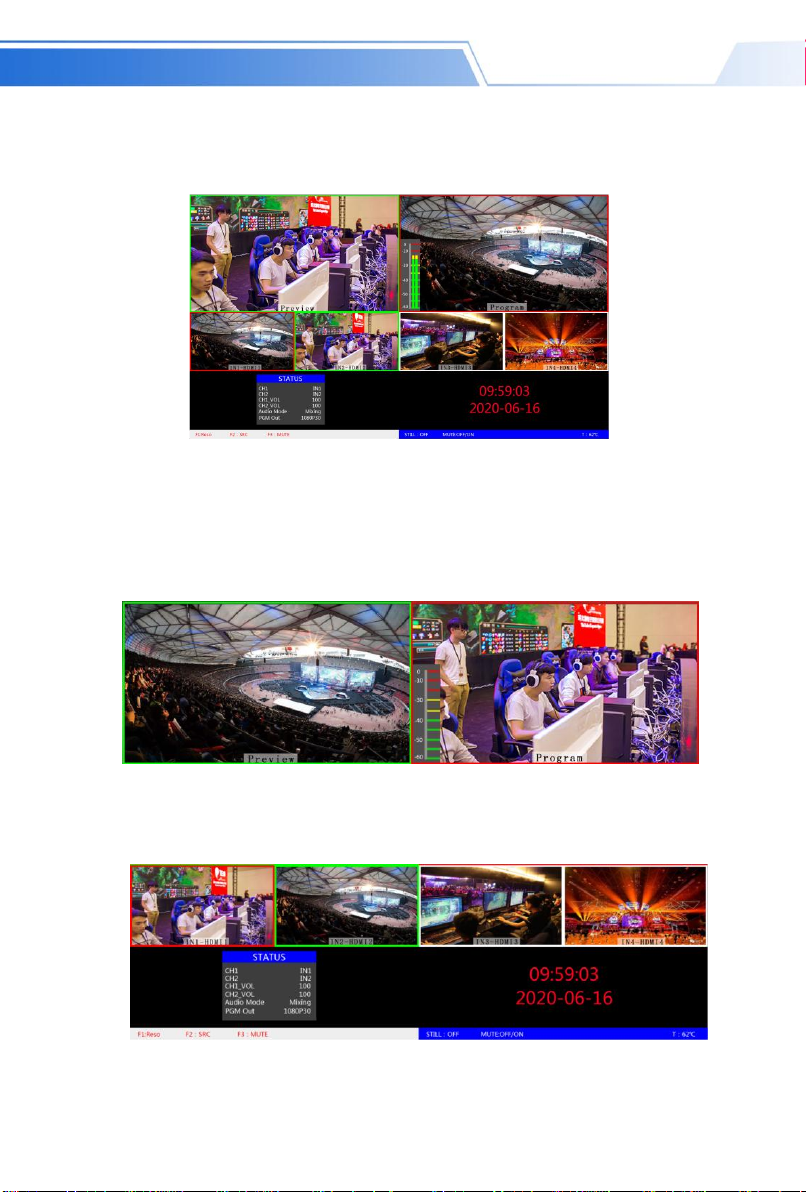

Multiview output window introduction
Among them Preview and Program are preview and live broadcast output respectively, as
shown below.
There are 4 windows below corresponding to the input source monitoring, which
correspond to the No. 1 to No. 4 buttons on the switcher control panel.
PVW
PGM

18
SWITCHER
PGM and PVW output signals
After the device is connected to the video signal source, press 1 (PGM) and 2 (PVW) in the
keypad. The live and preview signal sources in the output multiview monitor are 1 (PGM) and
2 (PVW), respectively. The signal sources are HDMI IN1 and HDMI IN2.
The effect diagram is as follows
PGM and PVW source switching
If you want to switch between PGM and PVW video sources in multiview (PGM ⇌PVW)
Suppose you want to convert live signal source 1 (PGM) and preview signal source 2 (PVW)
into 2 (PGM) and 1 (PVW) in a multiview. You only need to press 2 (PGM) and 1 ( PVW), and
then use the CUT orAUTO to switch. The live PGM signal sources 1-4 can be switched
arbitrarily with the preview PVW signal source.
The effect diagram is as follows:

19
SWITCHER
5. System menu settings
In the menu bar, you can perform IP settings on the device, restore the factory settings, and
change the language.
In the default state of power on, press the menu to enter the main menu, as shown below.
Menu display
Press the menu
Press MENU under the status bar to set the audio mode and output resolution;
Audio mode; menu to select mix or follow;
Output resolution: menu can be operated, you can choose 1080p60 / 1080p50 / 1080p30 /
1080p25 / 1080p24 / 1080i50 / 1080i60
After pressing the BAR button in the button panel, the screen will output color bars

20
SWITCHER
Network settings
In the system setting menu, you can choose between two languages: Chinese or English; if
you encounter an unknown error during use, you can choose to restore the factory Settings,
reset.
In the network setting menu, you can choose in the IP acquisition: dynamic IP or static IP.
After selecting the static IP, you can also set the IP address, subnet mask, and network
management settings accordingly, and save and return.
Device information
In the device information menu, you can read the serial number of the device. You cannot
modify it here.
System settings
Press the menu
Press the menu
Press the menu
