DeviceWell HDS9110 User manual

SWITCHER
Model: HDS9110
VER 1.0
Users’ Manual

Website: www.devicewell.com Email: [e-mail] 2
HDS9110
Precautions
Copyright:
When using this unit for video and/or audio
switching, publishing over the Internet, or the
like, in some cases it may be necessary to
authorize the copyright owner of the video or
audio. In order to protect copyright, please
strictly observe the following points when
using this device:
●When connecting a recording device to this
unit and recording video or audio, be sure to
follow the relevant copyright laws.
●It is prohibited by law to display or publish
third-party copyrighted video and audio
materials, or to allow private or public access
without the permission of the copyright holder.
●Even if you have the right to display or
publish, for example, editing activities that use
this unit to erase or disassemble the original
content may still be prohibited by law. For the
purpose of copyright protection, the
specifications of the video and audio signals
that can be input may change without notice
due to software upgrades or feature extensions.
●According to copyright laws, recorded video
and audio may not be used for purposes other
than personal preferences without the
permission of the copyright holder. Please note
that even if it is based on personal preference,
●It may also limit shooting during live
performances, performances or exhibitions.
About this device:
●This device belongs to the
high-frequency video processing
equipment. Therefore, please strictly
observe the following points:
●Non-professionals are not allowed to
disassemble the equipment case without
permission. Do not repair it yourself to
avoid accidents or damage to the
equipment.
●Do not spill any chemicals or liquids on
or near the equipment.
●The power supply of the device will
generate heat during operation. Therefore,
keep the working environment well
ventilated to avoid damage to the device
due to excessive temperature.
●Do not place system equipment in a
location that is too cold or too hot.
●Operate the equipment in an environment
where the temperature is between 0-70
degrees Celsius (32-158 degrees
Fahrenheit) and the humidity is between
10% and 80%.
●Try to keep the product environment
clean and avoid dust, otherwise there is a
danger of destroying the product.
●When using the product, keep it away
from electromagnetic fields.
●Do not dispose of this product as
normal waste. This product is designed to
be recyclable.

Website: www.devicewell.com Email: [e-mail] 3
HDS9110
Contents
Precautions ................................................................................................................................ 2
1. Overview ........................................................................................................................... 6
1.1 Product Introduction........................................................................................... 6
2. Function Features .............................................................................................................. 7
3. Preparation Before Installation.......................................................................................... 8
4. Equipment Unpacking....................................................................................................... 9
4.1 Size: 420*305*100mm....................................................................................... 9
5. Interface Specification..................................................................................................... 10

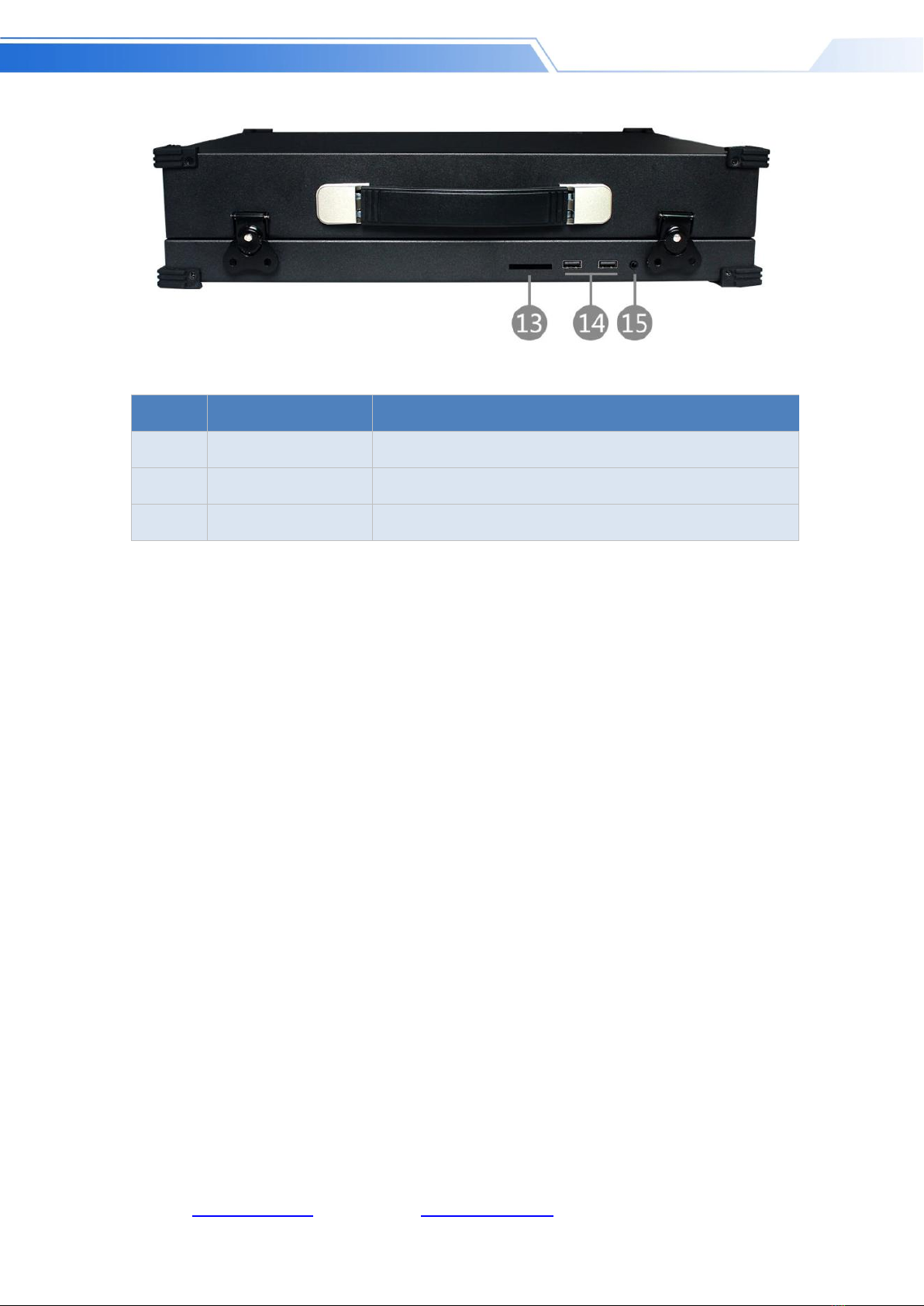

5.1 Interface Introduction....................................................................................... 10
5.2 TALLY Interface ................................................................................................. 12
5.3 Interface Parameters........................................................................................ 13
6. Control Panel and Interface............................................................................................. 14
6.1 Control Panel.................................................................................................... 14
6.1.1 Area Description............................................................................................... 14
6.1.2 Button Description............................................................................................ 15
6.1.2.1 Mixer........................................................................................................15
6.1.2.2 Knob and LCD menu...............................................................................15
6.1.2.3 USB Media PlayArea..............................................................................16

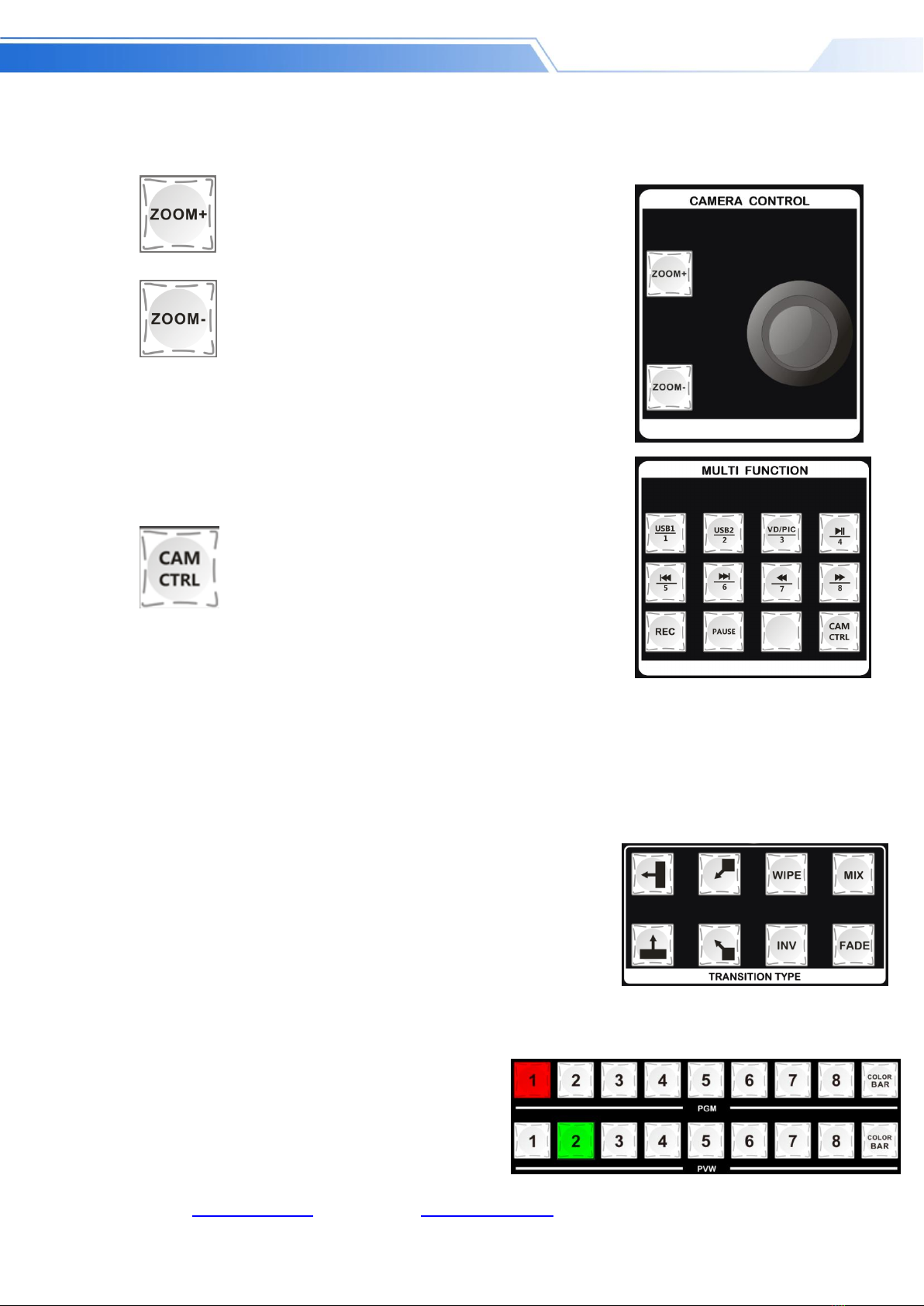

6.1.2.4 Camera Control Area................................................................................17
6.1.2.5 Transition Control Area............................................................................17
6.1.2.6 PGM & PVW...........................................................................................17

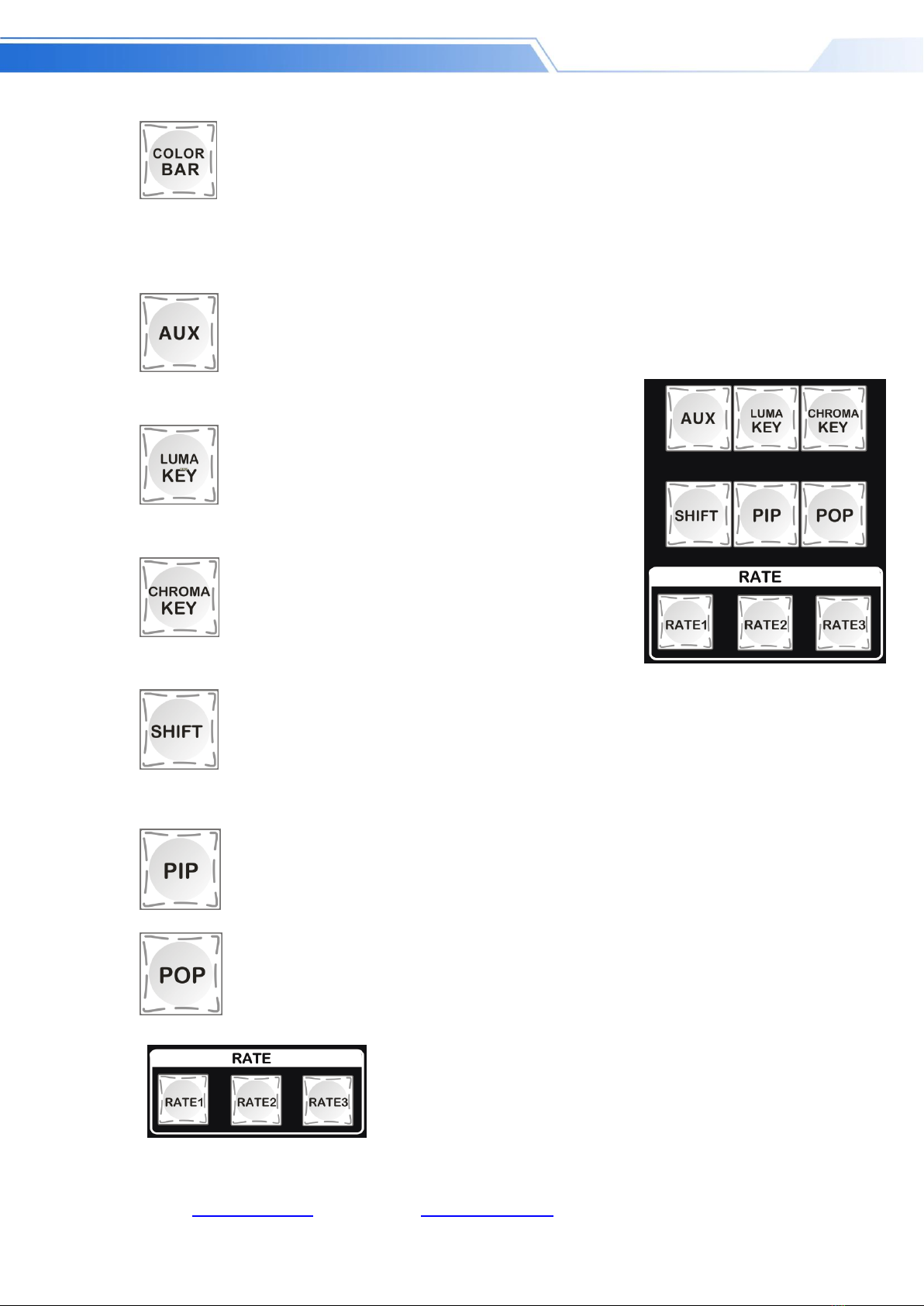

6.1.2.7 Integrated Control Area............................................................................18
6.1.2.8 T-bar .........................................................................................................19
7. Button Operation Instructions ......................................................................................... 20
7.1 Multi-Screen Output Window Introduction...................................................... 20
7.2 Multi-screen preview 8 channel source switching............................................ 21
7.2.1 Panel realizes 10 screen split display and preview switching of 8 channel
sources 21
7.3 PGM&PVW Switching .................................................................................... 22

Website: www.devicewell.com Email: [e-mail] 4
HDS9110
7.3.1 T-bar Calibration .............................................................................................. 22
7.3.2 Panels Enable PGM and PVW Channel Selection........................................... 24
7.3.3 Transition control ............................................................................................. 25
7.3.4 PGM Output Black Field.................................................................................. 25
7.3.5 USB Media Playback........................................................................................ 26
7.3.6 SD card recording............................................................................................. 27
7.4 Audio Settings .................................................................................................. 28
7.4.1 Audio Introduction ........................................................................................... 28
7.4.2 Audio Description............................................................................................. 28
7.4.2.1 Audio Introduction ...................................................................................28
7.4.2.2 Audio Follow.............................................................................................29
7.4.2.3 Audio Embedding.....................................................................................29
7.4.2.4 Mixing mode ............................................................................................29
7.4.2.5 Audio Source Switching...........................................................................29
7.4.2.6 Audio Monitoring ....................................................................................29
7.4.3 Audio usage analysis......................................................................................... 30
7.4.3.1 Audio mode switching..............................................................................30
7.4.3.2 How to use the audio follow mode..........................................................30
7.4.3.3 Function analysis of the mixer .................................................................31
7.4.3.4 How to use the mix assignment...............................................................32
7.4.3.5 How to listen to audio..............................................................................34
7.5 Special effects instructions............................................................................... 34
7.5.1 MIX Transition Effects..................................................................................... 34
7.5.2 FADE In and Out Transition Effects .................................................................. 35
7.5.3 WIPE Transition Effects................................................................................... 35
7.5.4 INV mirror transition effects............................................................................. 36
7.5.5 PIP Picture-In-Picture Special Effects.............................................................. 36
7.5.6 POP Picture-Out-Picture Special Effect........................................................... 37
7.5.7 Luma KEY........................................................................................................ 39
7.5.7.1 Panel brightness image.............................................................................39

Website: www.devicewell.com Email: [e-mail] 5
HDS9110
7.5.8 Chroma KEY.................................................................................................... 40
7.5.8.1 Panel color image.....................................................................................40
7.6 System Menu Settings...................................................................................... 41
7.6.1 System Setting.................................................................................................. 42
7.6.2 Network Setting................................................................................................ 42
7.6.3 Recording Settings............................................................................................ 42
7.6.4 Device Info....................................................................................................... 43
8. Failure and Maintenance................................................................................................. 44
8.1 Common Faults and Solutions.......................................................................... 44
8.2 Maintenance..................................................................................................... 44
8.2.1 Warranty information ....................................................................................... 44

Website: www.devicewell.com Email: [e-mail] 6
HDS9110
1. Overview
1.1Product Introduction

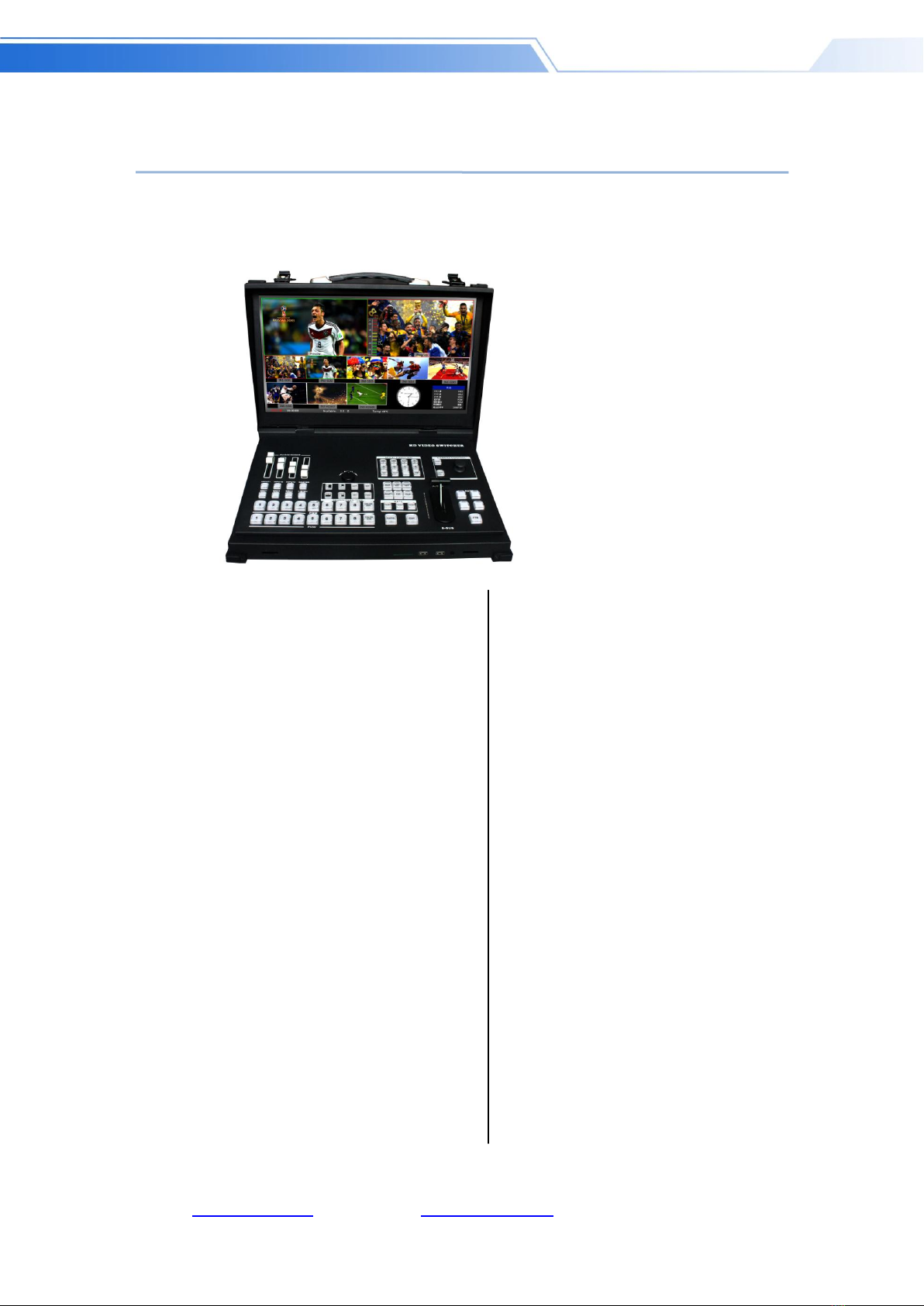

Devicewell 10-CH switcher HDS9110 integrates multiple control modes. Comes with
17-inch high-definition monitoring screen .The keyboard can be used to set special effects
and transition modes. The knob can control the LCD display. The LCD will display various
states of the current device in real time. The built-in menu display function allows the device
to be set up more intuitively and efficiently, and the camera joystick can control the distance
between the camera and the camera.
Devicewell 10-channel switcher HDS9110 is an 8-channel SDI, 2-channel HDMI and
2-channel U-disk playback input video signal, a total of 6 SDI output, 3 HDMI output
broadcast-level video signals. The ten-channel switcher HDS9110 is suitable for live
performances, course recordings, and in-shed navigation. The switcher has multiple functions.
Such as multiple format video input and input resolution adaptive, analog balanced audio
input and output, audio plus embedded de-embedding, mixing, TALLY, SD card recording,
RS422 and RJ45 control, etc., with remote upgrade capabilities. The user can perform video
switching and audio mixing with additional effects through easy operation.

Website: www.devicewell.com Email: [e-mail] 7
HDS9110
2. Function Features
The DeviceWell Switcher is a multi-function switcher that requires no special knowledge and
can be used for video switching and audio mixing with a simple operation. This unit can be used
in radio and television, live broadcast and various activities.
●Comes with 17-inch high-definition monitoring screen
●Media management function, support 2-CH USB media
playback, you can choose to play video or picture.
● Support PIP& POP function. The size and position of
the sub-window can be adjusted arbitrarily, and the
thickness and color of the frame can be set.
●The configured LCD panel can be controlled by the knob
to facilitate setting the parameters of the device and
displaying the working status of the device in real time.
●HDMI input supports 4K60, backward compatible
● Support audio monitoring function, easy to monitor any
audio and PGM live output audio.
●The input resolution is adaptive and the output resolution
is adjustable.
●Support PC software remote upgrade.
● Support SD/HD/3G signal format.
● Support TALLY interface signal indication.
●Input: 8-CH SDI, 2-CH HDMI&2-CH USB.
●Output: 4-CH SDI, 2-CH HDMI live PGM output,
2-CH SDI, 1-CH HDMI multi-picture output.
●1 channel XLR balanced audio input; 1 channel XLR
balanced audio output; support SDI audio de-embedding;
support audio follow-up and mix switching function.
●Supports MIX/FADE/WIPE/INV switching effects;
supports CUT hard cut,AUTO switching and FTB black
field emergency switching; the switching rate can be set.
●1 set of KEY, support Luma key, chroma key image
processing, support overlay icon.
●Support camera control, up to 8 cameras can be
controlled.
●Test pictures such as color bars can be generated inside
the device.
●Support SD card to record PGM live video.
●Support RS422 interface to control the camera.

Website: www.devicewell.com Email: [e-mail] 8
HDS9110
3. Preparation Before Installation
Caution
●During transportation, handling, and installation of switchboard equipment, avoid collisions
between the switchgear equipment and doors, walls, shelves, etc.
●When the equipment is unpacked and transported, it is strictly forbidden to put it down and
drag it gently to avoid damage to the switchboard equipment.
●Do not place the switcher equipment in a flammable, explosive atmosphere or smoke
environment. Do not perform any operation in this environment.
●Operating equipment should be kept away from water and moisture. The water in the
switchgear or moisture will cause damage to the circuit of the switchgear equipment.
●A certain amount of heat will be generated during the operation of the switcher. Ensure that
the switchgear equipment is ventilated and the switcher device can operate normally.
Danger
●It is a fatal hazard that indirect contact with the power supply by wet objects is prohibited.
Unregulated, incorrect high-voltage operation can cause accidents such as fire or electric shock.
●It is forbidden to install and remove the switchgear equipment and power cord. When the
power cord is in contact with the conductor, an arc or spark may be generated, which may result
in fire or electric shock.

Website: www.devicewell.com Email: [e-mail] 9
HDS9110
4. Equipment Unpacking
When unpacking inspection, if the sealing label or packaging is found to be damaged, stop
unpacking and report the situation to the equipment dealer. If the quantity of the goods is correct
and the packaging is intact, the goods can be inspected.
4.1 Size: 420*305*100mm

Website: www.devicewell.com Email: [e-mail] 10
HDS9110
5. Interface Specification
5.1 Interface Introduction
HDS9110 interface is shown below.
NO.
Definition
Description
1
TALLY
DB-25 interface
2
SDI IN
8-CH SDI input
3
SDI OUT
3-way SDI video output PGM, SDI OUT1 custom output
PGM/PVW, SDI OUT2 AUX auxiliary output
4
AUDIO IN
XLR_IN
5
AUDIO OUT
XLR_OUT
6
RJ45
Network control and upgrade
7
RS422
PTZ camera control
8
POWER
AC 110-240V power input
9
HDMI IN
2 HDMI video source inputs
10
HDMI OUT
2 HDMI video output PGM
11
MULTIVIEW
HDMI and SDI output multi-picture
12
POWER
DC12V power input and output

Website: www.devicewell.com Email: [e-mail] 11
HDS9110
NO.
Definition
Description
13
SD Card
SD card recording PGM screen
14
USB
USB media player
15
AUDIO
Audio monitoring

Website: www.devicewell.com Email: [e-mail] 12
HDS9110
5.2 TALLY Interface
HDS9110 DB-25 Interface Definition
Channel
PGM（LED Red
PVW (LED Green）
1
1
14
2
2
15
3
3
16
4
4
17
5
5
18
6
6
19
7
7
20
8
8
21
GND:13
TALLY : Online schematic
Note：Tally LED: for external display device
Tally output : Active low (Tally LED is lit) High level is invalid (Tally out is off)

Website: www.devicewell.com Email: [e-mail] 13
HDS9110
5.3 Interface Parameters
Name
Portable Switcher
Model
HDS9110
Video Signal
Input
Input Signal
SDI/HDMI Video Signal
Rate
270Mbps~3Gbps
Connector
Standard
Reflection loss
>15dB 5MHz~3GHz
Signal amplitude
800mV±10%(SDI /HDMI)
Impedance
100Ω (HDMI) 75Ω(SDI)
Balance
Adaptive
DVD input HDMI
support
480i/576i,480p/576p,720p,1080i,1080p
Computer HDMI input
support
1920x1080,1680x1050,1600x900,1440x1050,1366x768,136
0x768,1280x1024,1280x960,1280x800,1280x768,1280x720,
1280x600,1152x864,1024x768,800x600
Video Signal
Output
Output Signal
SDI/HDMI Video Signal
Rate
270Mbps~3Gbps
Connector
Standard
Reflection loss
>15dB 5MHz~3GHz
Signal amplitude
800mV±10%(SDI /HDMI)
Impedance
100Ω (HDMI) 75 Ω(SDI )
DC offset
0V±0.5V
General
Parameters
Power supply
12V/DC
Power Rating
Rated power 40w
Size
420*305*100mm
Control Panel
Support live production, integrate multiple buttons.
Weight
6.44kg
Operating Temperature
0℃~50℃without condensation
Storage Temperature
-20℃~75℃
Working Humidity
20%~70%RH
Storage Humidity
0%~90%RH, No condensation

Website: www.devicewell.com Email: [e-mail] 14
HDS9110
6. Control Panel and Interface
The new high-strength characteristics of the new aluminum alloy with high-strength
characteristics improve the anti-drop, anti-shock and shock-proof capabilities of the whole
machine, and effectively protect the internal components of the equipment. Ultra-lightweight
features make the unit easier to transport and maintain without the need for additional equipment;
it also offers unparalleled thermal performance.
In addition to the innovation of the enclosure, the DeviceWell HD switcher has also been
completely optimized for the interface connector. Environmentally friendly materials with new
RoHS standards are more demanding in terms of durability and environmental protection,
providing customers with more stable, cost-effective and environmentally friendly products.
6.1Control Panel
6.1.1 Area Description
NO.
Name
Description
1
Mixer
Mainly for audio follow, embedded and mix settings.
2
Transition effect control area
Select transition effects
3
Knob control area
Use the knob to display menu information and various
states of the switcher system

Website: www.devicewell.com Email: [e-mail] 15
HDS9110
6.1.2 Button Description
6.1.2.1Mixer
Audio channel control:
IN PUT1/IN PUT2/IN PUT3 indicates that 3 types of input audio can be
controlled.
MASTER:Adjusts the output master volume.
Audio Source Switch:
Where SRC is the audio channel bonding option, press SRC1 /SRC2/ SRC3,
cycle through the selection of the desired audio channel.
Audio monitoring:
LISTEN monitor button, after accessing the headset, you can cycle to
select any one of the monitors.
6.1.2.2Knob and LCD menu
HDS9110 integrated LCD menu, can be set by knob
The LCD menu is mainly divided into status display and menu settings.
The knob control menu is divided into 3 states:
1. Rotate clockwise to down to increase the value.
2. Rotate counterclockwise to the up to decrease value.
3. Press to select.
NO.
Name
Description
4
USB media play area
Control USB playback
5
Camera control area
Control camera
6
PGM & PVW
Live broadcast and preview selection
7
Integrated control area
Mainly to control the switcher overlay effects
8
T-bar
Manual control of transitions

Website: www.devicewell.com Email: [e-mail] 16
HDS9110
6.1.2.3USB Media Play Area
USB1 and USB2 in the multimedia play area are control options, and USB1 is also controlled on
USB1. VD/PIC is selected for video or picture, the default is to play video. Once pressed, you can
switch to picture playback.
Play/ Pause
Previous
Next
Speed, up to 32 times
After the SD card is properly inserted, the red light is displayed
after pressing REC.
Pause the recording of the SD card after pressing
Back, up to 32 times
Reserved

Website: www.devicewell.com Email: [e-mail] 17
HDS9110
6.1.2.4Camera Control Area
Zoom in shooting distance
Reduced shooting distance
Push the camera rocker up: the lens is up
Push the camera rocker down: the lens is down
Push the camera rocker left: rotate the lens counterclockwise
Push the camera rocker right: rotate the lens clockwise
Camera control key, if you want to choose the number of control,
You must first press the CAM CTRL key, then select the number key, the
number corresponds to the address of the camera;
6.1.2.5Transition ControlArea
6.1.2.6PGM & PVW
Mainly choose PGM (live) and PVM (preview)
Output channel, red indicates that it is being
broadcast, green table preview.
There are three transition modes:
MIX, WIPE, FADE
INV key are mirrored transitions.
Before using the INV mirror button, press the arrow
button and then press the INV mirror button. The wipe
direction is opposite to the direction of the arrow.

Website: www.devicewell.com Email: [e-mail] 18
HDS9110
6.1.2.7Integrated ControlArea
Auxiliary output, after accessing SDI OUT2, press AUX and
press any one of the PVWs to assign one output to any of the 8 videos.
Luma key, press button to deduct the black and background
source overlay.
Chroma key, press the button to deduct the specified color
and overlay it with the background source.
Switch the channel key and switch to other preview screens
with the numbers in the PVW
PIP special effects button, open picture-in-picture function
POP special effects button, open picture-out-picture function
After pressing this button, the screen will output color bars.
Transition rate selection:
RATE1, RATE2, RATE3 can be customized through the menu (Note: only when using AUTO transition)

Website: www.devicewell.com Email: [e-mail] 19
HDS9110
6.1.2.8 T-bar
Auto transition, with transition effects.
Hard cuts, no transition effects.
Black field, flashing after clicking, indicates that the main output is
outputting a black field.
The switcher T-Bar system consists of a pusher module and an
indicator light. Pushing the T-bar up can complete the transition.
When the T-bar is pushed, the indicator light will follow the
movement to the top 1 (the pusher pushes to the bottom and the
top is a light).

Website: www.devicewell.com Email: [e-mail] 20
HDS9110
7. Button Operation Instructions
7.1Multi-Screen Output Window Introduction
Preview and Program are preview and live output respectively; As shown below:
There are 8 windows below that correspond to the input source monitoring, corresponding to the 1
- 8 buttons on the switchboard control panel.
PVW
PGM
