devinci E-MILANO User manual
TECHNICAL MANUAL
E-MILANO
PLEASE READ BEFORE USING YOUR BIKE
Even if you have already piloted a bike for years, it is important to be aware of the information contained in the User's Manual
and the Specic Manual PAB (Power-Assisted Bike). Read them carefully before riding your E-Milano :
• These documents contain important information.
• Understand the use, layout and maintenance of each electrical components of your new PAB.
Your safety and those of other is paramount :
• Never ride the bike without its battery; the battery must be on the bike when you head out, otherwise there
will be no lights on the bike.
• Never ride the bike without a saddle; failure to comply with this rule could lead to accidents.
• Inspect your bike to make sure there are no loose screws or components or damages. In the event of a defect,
visit your authorized Devinci retailer for a repair.
• A PAB is faster than a normal bike, risks of accident with other users on the road may occur.
• Ride under the conditions mentioned in the Owner's Manual.
• For PAB's that have a rear rack: the limit is 20 kg.
The electrical system requires careful handling :
• Do not clean the bike with a high-pressure jet. The system is sensitive to moisture. High-pressure water may
seep into the connectors or other parts of the electrical system.
• Handle the battery carefully and pay attention to electric shocks. Failure to comply with this instruction could
lead to abnormal heating or severe damage. In very rare cases, the consequences of an electrical shock could
Perform maintenance of the battery as mentioned in the Technical Manual.
* NOTE: Failure to followthe instructions below may damage the battery and require you to purchase a new battery kit.
• Charge the bike with the Shimano charger only;
• When the battery is not used for a long time, recharge to 100% (from 4 to 5 LEDs ont the charge indicator) ;
• Check the battery charge status regularly when not in use, recharge it to 100% if the load is less than 20%
(1 indicatior light on the charge gauge). Check the load every month and have it fully charged every 6 months;
• It is not recommended to keep the battery connected to the charger for a long period ;
•
• Store the battery in a well-ventilated and dry place. Pay attention to moisture ;
• In case of poor conditions, remove the battery from the bike and store it in a dry place until next use;
•
• Monitor the storage temperature and try to avoid discrepancies. For example, do not leave the battery in your
car during summer or leave the battery outdoors during a storm in winter;
• It is recommended to store a battery which is not connected to the bike.
Follow the transport instructions for your PAB :
• Comply with local laws regarding transportation on the PAB;
• A PAB is heavier than a normal bike, so you must be careful when transporting it. Check that the maximum
load of the rack, roof or bike rack used is respected. Refer to the support manual used;
• The Li-Ion battery of your PAB, due to its size, is considered a "Class 9 dangerous good" during transport.
Applicable regulations could limit transport of a separate Li-Ion battery (when the battery is not on the bike)
in some places. This regulation applies to several airlines and a number of road transport companies. On the
other hand, if you are planning to move around with a full PAB (when the battery is on the bike), regulations
are less strict. In case you use these transport methods, check the regulations that apply to your PAB with
your transport company before booking.
Visit your authorized Devinci retailer for regular maintenance of your new PAB :
• Only your retailer has the know-how and the proper equipment to maintain your PAB.
• If you have any question about your PAB, please ask for assistance from your retailer.
67
8 9

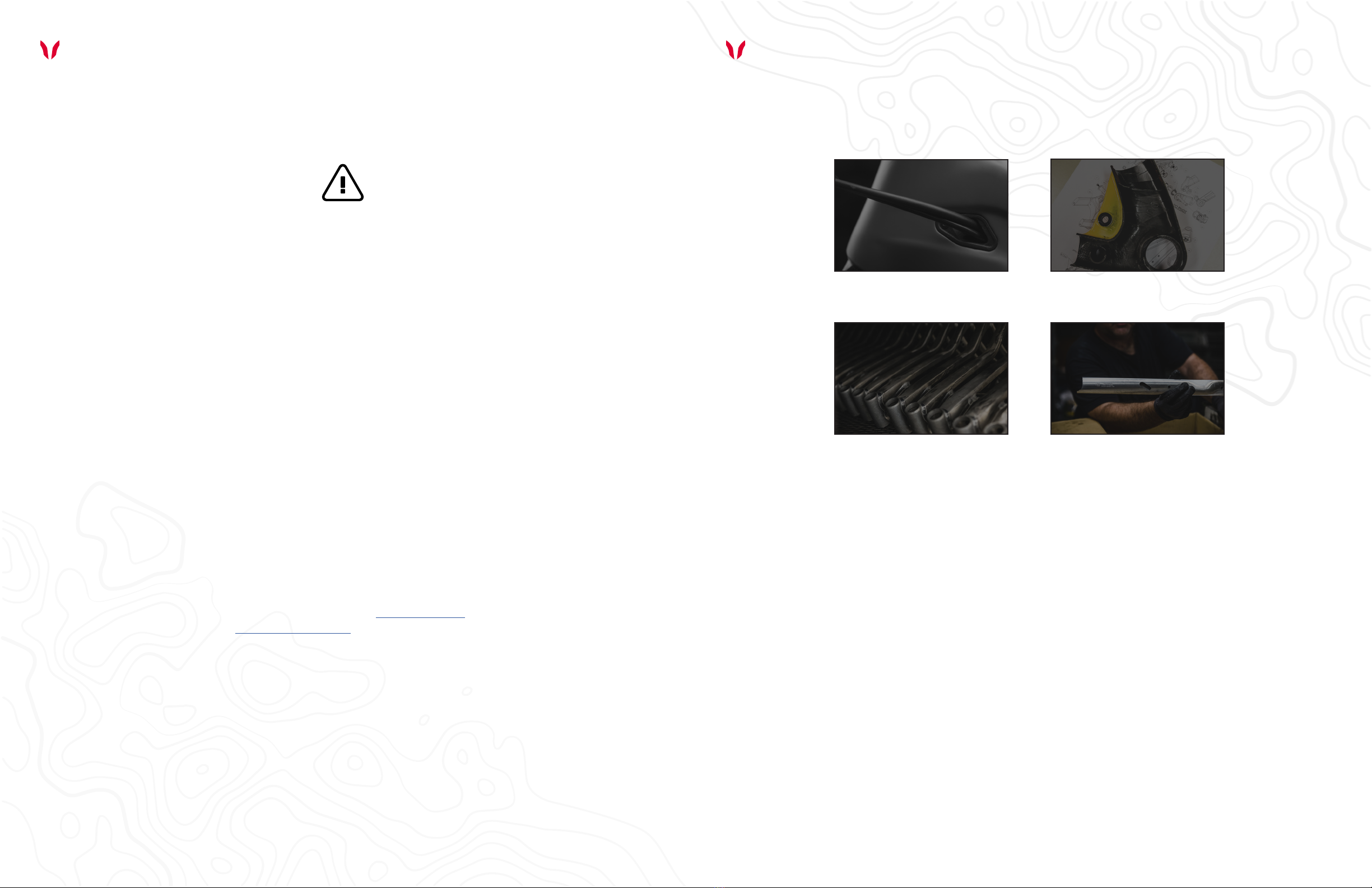

TABLE OF CONTENT
Cable
Routing
Service
Kit
Warranty Warranty
Conditions
YOUR AUTHORIZED DEVINCI RETAILER
Your authorized Devinci retailer is at your service to guide your choices of bike and accessories which are best suited to
the style of biking you wish to perform. This will help you maintain your equipment in good condition so that you can take
carry out the repairs and provide you with reliable advice.
However, your authorized Devinci retailer cannot make decisions for you, and cannot be held responsible for your lack of
For further information, please see the User Manual available at www.devinci.com and the Shimano STEPS EP800 &
E7000 series user manual available on http://si.shimano.com/, or you can ask your authorized Devinci retailer. He will take
the time to answer any questions you may have and will advise you with great pleasure.
ABOUT OUR MANUALS
Our user manuals meet ISO 4210-10TS, EN 15194 et EN 14766 standards.
Like many sports, cycling involves risk of injury and accidents, so you must be fully aware of these risks. Neither the
manufacturer, the retailer, nor the person who sold you the bike, nor the people who maintain the trails are responsible
for these risks. As you are solely responsible, it is, therefore, essential that you read and fully understand all the parts
contained in this manual.
To enjoy maximum safety and enjoyment right from the get go, it is important that you are familiar with your new bike, its
handling and its possibilities. It is your duty to maintain your bike well and reduce the risk of injury. Biking can be a dan-
gerous activity, even under the best conditions. These are risks associated with using a bicycle that cannot be predicted
or avoided. These are the sole responsibility of the cyclist.
6
7
E-MILANO
Étape 3
3
1
ALWAYS REFER TO SHIMANO
DOCUMENT LATEST VERSION
FOR TIGHTENING TORQUE
VALIDATION (10 - 12.5 N∙m)
COLLAR
(6 N∙m)
4
4
2
5
2
A
Revision
PCB-068
E-MILANO
3
1
ALWAYS REFER TO SHIMANO
DOCUMENT LATEST VERSION
FOR TIGHTENING TORQUE
VALIDATION (10 - 12.5 N∙m)
COLLAR
(6 N∙m)
4
4
2
5
2
A
Revision
PCB-068
E-MILANO
CABLE ROUTING
LEGEND
Housing outside the frame
Housing inside the frame
Seatpost housing
Seatpost housing
Speed housing
Brake housing
Step 2 | Step 2 | Step 2
Step 3
Step 1 | Step 1
Step 1
Step 2
Step 2 | Step 3
Step 1
Step 1
SERVICE KIT
Step 1 | Fix the housing to the two brackets on the chainstay
using U-clips
Step 2 | Thread the housing in the rubber cable guide’s opening
on the back of the motor mount.
Step 3 | Enter the housing through the down tube and exit
through the top opening on the left side. *To make this step
easier, use an internal cable guide routing kit. *
BRAKE HOUSING
Step 1 | Thread the rear shifter housing on the top of the
downtube through the opening.
Step 2 | Thread the housing in the opening on the back of the
motor mount.
Step 3 | Fix the housing to the three tabs located on the chainstay.
SPEED HOUSING
Step 1 | Thread the wire through the guide at the top of the down tube.
Step 1 | Attach the wire to the same guides as the brake housing
on the inner surface of the base.
Step 1 | Secure the charging port on top of the down tube.
Step 2 | Pull the wire out through the motor opening.
Step 2 | Thread the wire through the opening at the back of the
motor mount.
Step 2 | Pull the wire out through the motor opening on the right side.
Step 3 | Bring out the wire on the right side of the motor mount.
DI-2 CABLE
SPEED SENSOR CHARGING PORT
98
DEVINCI’S RIDE IN PEACE
WARRANTY
WARRANTY PERIOD FROM DEVINCI CYCLES INC
The frames of cycles devinci inc. are guaranteed against all manufacturing defects, for the periods specied below, as
of the date of the initial purchase. During these specic periods, devinci will replace or repair without charge, and at its
discretion, the devinci frames that display a manufacturing defect. The parts replaced or repaired in accordance with this
warranty, will be covered for a period equal to the remaining portion of the warranty of the original equipment. Replace-
ment parts are subject to availability. In certain cases, color and/or model may dier from the original parts.
BICYCLE FRAMES & WARRANTY PERIOD
Since 2006, all the frames bike model, including all mountain, freeride, downhill frames and dirt jump are guaranteed
for life. Paint and decals for all models of frame: 1 year the pivots* for double suspension frames: 1 year the components
assembled on devinci frames are guaranteed by their respective manufacturers. Please contact your authorized devinci
retailer. For more information regarding the applicable warranties.
* the pivots include the bearings, bolts and axles holding together the elements of the suspension of the rear triangle.
WARRANTY EXCLUSIONS
Each devinci bicycle was conceived for a specic use. The operational life of a bicycle varies according to its construction,
maintenance and the care provided. Intensive use or use with a heavy load, use during competitions or for activities other
than those for which the bicycle was conceived, greatly diminish its operational life. Any of these conditions may lead to
random failure. Abusive use will therefore cancel the warranty.
EXCHANGE POLICY IN CASE OF ACCIDENT
Devinci is aware that the purchase of a high performance bicycle is done with the heart. This is why our customer service
applies an exchange policy at a low price to accommodate claims that would have been refused for one of the reasons
mentioned in the section “warranty exclusions”. This policy applies only to the initial buyer. Please contact your devinci
retailer for more information.
Limitation of liability: this is an integral warranty, complete and nal, for devinci frames. Devinci does not give authoriza-
tion to any other person, including the authorized devinci retailers, to assume or grant, expressly or implicitly, any or all
addition(s) or extension(s) to the warranty specied herein. Any other obligation or responsibility expressed by any other
person(s) and any demonstration or illustration of devinci frames is in no way linked to devinci and is furthermore excluded
from this warranty.
Devinci assumes no liability in case of any property damage, moral or bodily injury to the user, the buyer or any other per-
son(s), resulting from the use of a devinci frame or one of its components.
Except as limited or expressly forbidden by law, regarding any other condition or guarantee, express or implied, based in
law, established commercial customs and usage, including, but not limited to, guarantee of merchantability or adaptation
to a specic end, devinci declines any responsibility for any amount exceeding the actual purchase price of the bicycle nor
for any particular, accessory or consecutive damages that may occur in connection with said bicycle.
With regard to the exercising of rights resulting from the present warranty, the buyer of a devinci frame agrees to elect
domicile in the judicial district of chicoutimi, in the province of quebec, canada, as an appropriate place for the hearing
of all claims or legal proceedings.
ALL OUR FRAMES ARE GUARANTEED FOR LIFE.
DEVINCI’S RIDE IN PEACE
WARRANTY | CONDITIONS
THIS WARRANTY DOES NOT COVER
Regular maintenance (cleaning, lubrication or inspection);
TranOptimum S or shipping charges incurred as a result of the execution of the warranty;
Cost of labour related to the assembly, disassembly, repair or replacement parts;
Damages caused by normal wear and tear including damages caused by material fatigue.
THE WARRANTY DOES NOT APPLY IF:
The damages were caused by a fortuitous event;
The bicycle was purchased from a retailer other than those authorized by devinci;
The bicycle was not entirely assembled by an authorized devinci retailer;
The bicycle was repaired by a person other than an authorized devinci retailer;
You are not the original owner of the bicycle;
The instructions contained in the user’s manual for all frames and the technical manual for frames with double sus-
pension were not respected;
The periodic inspection recommended in the user’s manual for all frames and in the technical manual for the frames
with double suspension was not carried out;
Parts not supplied by devinci with the bicycle or not indicated in the user’s manual for all frames or the technical
manual for the frames with double suspension were used;
The bike paint is damaged as a result of an adhesive frame protector installation;
The bicycle was used for an activity other than those for which it was conceived;
The bicycle and/or its components were subject to abusive use, negligence, abnormal and/or excessive use or was
implicated in an accident;
The frame is too small for you;
The frame and/or its components were modied (ex: polishing, structural or mechanical modication or addition,
stripping, sanding, strain hardening, shot peening);
You continued to use your bicycle while it was damaged.
